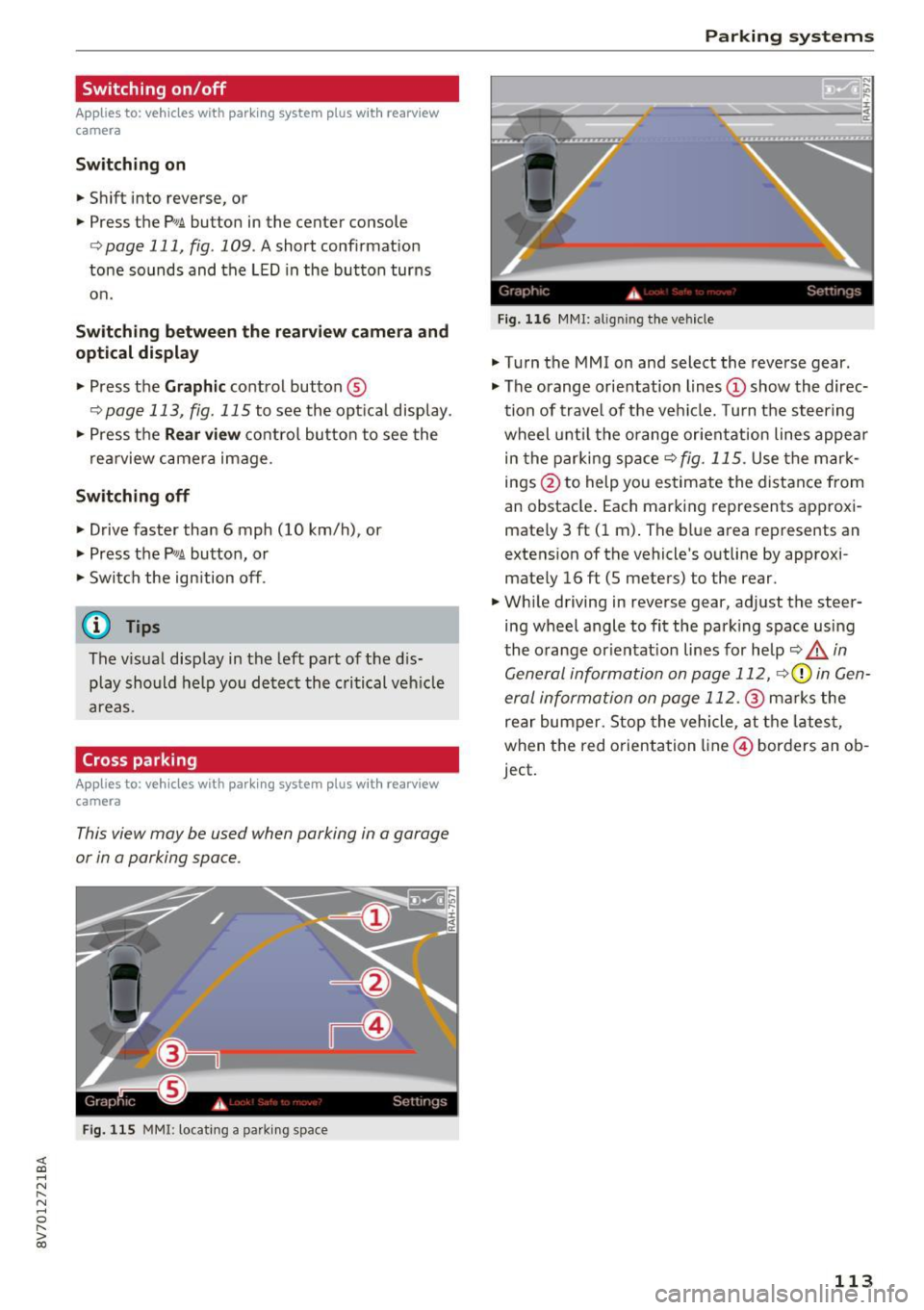

Switching on/off
App lies to: vehicles with parking system plus with rearv iew
camera
S wi tc hing on
• Shift into reverse, or
• Press the
Pw.A button in the center console
¢ page 111, fig . 109 . A short conf irmat ion
tone sounds and the LED in the button turns
on.
S wi tching betwe en th e re ar view came ra and
optical displa y
• Press the Gr aphic control button ®
r::!.> page 113, fig . 115 to see the optica l display .
• Press the
Rear view control button to see the
rea rview camera image .
Switching off
• Drive faster than 6 mph (10 km/h), or
• Press the
P•1A button, or
• Switch the ign ition off .
@ Tips
The visual display in the left part of the d is­
play should help you detect the c ritical ve hicle
areas.
Cross parking
Appl ies to: vehicles with parking system plus with rearview
camera
This view may be used when parking in a garage
or in a parking space .
Fig. 115 MMI: locating a park ing space
Parking systems
Gr,11;t I( i._ S,·T .. 1',lJ',
Fig. 11 6 MMI: a lig nin g the vehicle
• Turn the MMI on and select the reverse gear .
• The orange orientation lines
(D show the direc­
tion of trave l of the vehicle. Turn the steering
wheel until the orange orientation lines appea r
in the parki ng space
r:!) fig. 115 . Use the mark­
ings @to help you estimate the distance from
an obstacle . Each marking represents approxi­
mately 3 ft (1 m) . The blue area represents an
extens ion of the vehicle 's outline by approxi ­
mate ly 16
ft (5 meters) to the rear .
• Wh ile driving in reverse gear, adjust the steer­
ing wheel angle to fit the park ing space using
the o range or ientat ion lines for help
r:!) A in
General information on page 112,
r::> 0 in Gen­
eral information on page 112.@
marks the
rear bumper. Stop the vehicle, at the lates t,
when the red o rientation line @) borders an ob­
ject.
113

Parking systems
Parallel parking
Applies to: ve hicles w ith pa rk ing system p lus with rearv iew
camera
This view may be used when parallel parking
along the side of a street.
Fig. 117 MMI: bl ue s urfaces aligned in the parki ng space
Fig. 118 MMI: contact of the blue curved l ine w ith the curb
Parking on the right is described here . It is iden­
tical when park ing on the left .
If there is an obstacle next to the parking space
(such as a wall), refer to "Information for park ing
next to obstacles"
c:.> page 114 .
.,. Turn on the right turn signal.
.,. Position your vehicle next to a parked vehicle in
front of the desired parking space. The distance
to this veh icle should be approximately 3 ft (1
m) .
.,. Turn the MMI on and select the reverse gear .
The park ing system is turned on and the
cross
parking view is d ispla yed.
.,. Press the control button on the MMI-controls
to select @
c:.> fig. 117. The parallel parking
view is displayed .
.,. Back up and align your vehicle so the blue area
@ borders on the rear end of the vehicle be­
hind you or on the parking space line
c:.> A in
114
General information on page 112, c:.> (D in Gen­
eral information on page 112.
The blue area
represents an extension of the veh icle's outline
by approximate ly 16 ft (5 meters) to the rear.
The long side of the blue area shou ld be on the
curb. The ent ire blue area must fit into the
parking space .
.,. With the vehicle stopped, t urn the steering
wheel to the right as far as it will go .
.,. Bac k into the pa rking space unt il t he blue curve
c:.> fig. 118 touches the curb c:.> A in General in­
formation on page
112, c:.>(D in General infor­
mation on page
112. Stop the vehicle .
.,. With the vehicle stopped, turn the steering
wheel to the left as far as it will go .
.,. Continue to back into the parking space until
the vehicle is parked parallel to the curb
c:> A
in General information on page 112, c:.>(D in
General information on page 112 .
@ marks
the rear bumper . Stop the vehicle, at the latest,
when the red orientation line@) borders an ob­
ject . Keep an eye on the front of your vehicle
while doing this.
Parking next to obstacles
If there is an obstacle (such as a wall) next to the
parking space, position the vehicle so there is
more space on that side. Position the long side of
the b lue surface so that there is sufficient space
from the obstacle. The surface must not be
touching . You will a lso need to start turning the
steering wheel earlier. The blue curve
c:.> fig. 118
must not touch the obstacle and should have suf­
ficient room .
(D Note
Keep enough distance from the curb to avo id
damage to the rims.
¢j) Tips
The left or right orientation lines and surfaces
will be d isp layed, depending on the turn s ig­
nal being used.

<( co .... N ,.__
N .... 0 ,.__
> co
Adjusting the display and the warning tones
A ppl ies to: ve hicl es with parkin g system plus/rearview cam·
era
The display and warning tones con be adjusted in
the MMI.
~ Select: the I MENU ! button >Car > Systems *
control button > Driver assistance > Parking
aid .
Display
On * -
An op tical d isp lay is shown for the parking
system plus, a rearview camera image is s hown
for parking system plus with rearv iew camera* .
Off -Whe n the par king system is switched off,
only audib le sign als are give n.
Signal tones
Front volume -
volume for the front and side*
a rea
Rear volume -volume for t he rear area
Front frequenc y-frequency for the front and
side * area
Rear frequency -frequency fo r the rear area
Music volume during nav . prompts -the volume
of the a udio/v ideo so urce is lowe red when t he
pa rking system is turned o n.
The new ly selected leve l is demons trated briefly
by the sound generator.
- The warning tones ca n also be adjusted d i­
r ec tly from the visua l display or t he rearv iew
cam era image *. Simply pr ess the
Settings
co ntrol bu tton.
- The setti ngs a re auto mat ica lly stored and
ass igned to the remote co ntro l key t hat is in
u se .
Error messages
App lies to: ve hicles with par kin g system plus/rearview cam­
era
There is an erro r in the system if the LED in the
P111A. button is b linking and you hear a continuous
Parking systems
alarm for a few seconds after sw itch ing on the
par king system or w hen the pa rking system is a l­
ready activated. If the error is not cor rected be ­
fo re you switch off the ignition, the LED in the
Pw ,
button w ill blink the next time you switch on the
park ing system by shifting into reverse.
Parking sy stem plus*
If a sensor is fa ulty, the~ symbol will appear i n
f ront of/behind the vehicle in the MMI display. If
a rear sensor is faulty, only obstacles that are in
areas @and @are shown
<=>page 110, fig. 108.
If a front sensor is fa ulty, only obstacles that are
i n a reas © and @are shown .
Drive to an authorized Audi dealer or authorized
Audi Service Facility immed iate ly to have the
malfu nction corrected.
115

<( co .... N ,.__
N .... 0 ,.__
> co
Energy management
The starting ability is optimized
The energy manag ement syst em manages th e
electrical energy distribution and optimizes the
availability of electrical energy for starting the
engine.
When a vehicle w ith a conventional energy sys ­
tem is not dr iven for a long time, the batte ry is
d rained by equ ipment (for example the immobi l­
i ze r) . In certain circumsta nces, there could may
n ot be eno ugh energy to st art the engine.
Your veh icle is equipped with an intellige nt ener­
gy management system for d istr ibut ing electric i­
ty . This s ignificantly im proves the s tarting ab ility
an d incr eases t he battery life.
The energy management system Is made up of
batter y diagnosis , idling current management
and dynami c energy management.
Battery diagnosis
The battery diagnosis determ ines the battery
charge level. The senso rs determ ine the battery
voltage, the battery current, and t he battery
t e m perature . Th e cu rrent charge level a nd the
p e rformance of the b attery are dete rm ined based
on this.
Idling current management
The idling c urrent management dec reases the
e n ergy used wh ile pa rked . With the eng ine
sw itched off, it manages the energy dist ribution
t o the different elect rical componen ts. Date from
b attery d iagnosis is ta ken into a ccount for this.
Depending on the battery cha rge level, e lectr ica l
eq uipment is switched off o ne item after the o th ­
e r, to p revent the batte ry from draini ng an d to
r eta in the s tarting ab ili ty.
Dynamic energy management
W hile driving, dy namic energy management dis­
tr ibutes the appropriate amount of energy to the
e lectr ica l equipment.
It con trols the battery
ch arge level so th at more energy is not used then
i s being gener ate d in orde r to m aint ain a n op ti­
mal battery charge level.
Intellig ent Technology
{!) Tips
- Energy management cannot overcome the
laws o f physics . Note that the charge level
and length of the battery life are limited.
- W hen the sta rting ability is endangered, the
(•) indicator light t urns on
¢ page 17.
What you should know
Maintaining the starting ability is the highest
priority .
A lo t of stress is p laced on t he b attery when dr iv­
ing short d istances, in t raffic, and at cold times
of the year . A lot of energy is used but litt le is
generated .
It is also critical when the eng ine is
not r unning but e lectr ica l equipment is sw itched
o n . In th is case, energy is used but none is gener­
ated .
In situat ions like th is, energy management w ill
active ly regulated the distr ibut ion of energy.
Long periods without use
If you do no t drive your vehicle for severa l days o r
weeks, electrical eq uipment is gradua lly scaled
back or sw itched off . This reduces e nergy use and
ensures the vehicle will be ab le to start after long
per iods of time . Some conven ience f unctions
such as opening w it h the remote control key may
not be availab le . Th ese convenience functions
will be ava ilable again once you switch the ign i­
t io n on and sta rt the eng ine.
With the engine switched off
The battery w ill dra in if you use funct io ns such as
li ste ning to the radio wh ile the engine is switch ­
ed off .
The vehicle's ab ility to start may be impa ired by
the energy use, a message will appear in the In­
fota inme nt system display .
The message indicates that the system w ill
switch off automatically soon . If you would like
to continue using the functions, you must start
the engine .
IJJ,,
121

<( co ..... N
" N ..... 0
" > 00
(D Tips
- The oil pre ssure w arning display. i s not
an indicator of the oil level. Do not rel y on
it. Instead , check the oil level in your en­
gine at regular inte rval s, preferably each
t ime you refuel , and alway s befo re going
on a long trip.
- If y ou have the impressio n your engine con­
sumes excessive amounts of oil, we recom­
mend that you cons ult an autho rized Aud i
dealer to have the cause of your concern
properly d iagnosed . Keep in mind that the
accurate measurement of oil consump tion
requi res great care and may take some
time. An a uthorized Audi dea ler has instruc ­
tions about how to measure oil consump ­
tion accurately .
Checking the engine oil level and adding oil
Fig. 16 2 O il dip stick (example) : ch ec king th e eng in e oil
l evel
Fi g. 1 63 Engine co mpartme nt: e ngin e oil f ille r ope ning
c ov er
0
N
-N
"' ::l
Read and follow all WARNINGS before checking
anyth ing in the engine compartment
c:> page 188, Working in the engine comport­
men t .
Checking and Filling
Checking the engin e oil level
- Park the vehicle o n a level su rface .
- Shut the eng ine off when it is wa rm. Wait ap-
proximate ly two minutes so that the eng ine oil
can flow back i nto the oil pan .
- Open the hood
c:> page 190.
- Remove the oil d ipstick <=:> page 191, fig . 161 ,
wipe it off w ith a clea n clot h and inse rt it all the
way in aga in .
- Remove the oil d ipstick again and then read the
oil leve l
c:> table on page 193.
-Add engine o il if necessary .
Areas on the oi l dipstick
c:> fig . 162 .
CD If the engine oil level is just before the
mark ing
CD , then eng ine oil must be added .
See
c:> (D .
@ Do not add eng
ine oil.
Adding engine oil
- Unscrew the cap 'l=:7: c:> fig. 163 for the engine
oil filling opening
c:> poge 191, fig. 161.
- Carefully add 0.5 quart (0 .5 liter) of the correct
oil
c:> poge 191.
-Check the oi l level aga in after two minu tes.
- Add a smaller amo unt of engine oil if necessa -
ry. The marking @ <=:>
fig. 162 must no t be ex­
ceeded
c:> (!) .
-Scr ew the eng ine oil filler cap 'l=:7: and slide the
dipstick a ll the way in.
.&_ WARNING
=
- When adding engine o il, do not let oil drip
onto hot engine components. This increases
the risk of a fire.
- You must sea l the cap on the oil filler open­
ing correct ly so that oil does not leak out
onto the hot engine and ex haust system
when the engine is runn ing , because this is
a fire hazard.
- Always clean sk in thoroughly if it comes into
contact w ith eng ine o il.
(D Note
- The engine o il leve l must not be under the
marking
CD c:> fig. 162, because t his increas-
es the r isk of engine damage.
111>
193

Check ing and F illing
with all environmental regulations. D isposing
of vehicle batteries improperly is very danger­
ous to the env ironment .
Windshield washer
system
F ig. 16 7 Engin e co mpartment : washer fluid reservoir cap
"' N
-N
" 0:, lD
The washer flu id reservoir§ contains the wind­
shie ld wash er fluid
¢ page 191, fig. 161. The res­
ervoir capacity is found in
9 page 251.
.. Read and follow a ll WARNINGS before wo rking
in the engine compartment ¢
page 188, Work­
ing in the engine compartment.
.. Open the cap .
.. Add the washer fluid and close the cap .
To reduce the risk of lime sca le deposits on the
spray nozzles, use clean water w ith low amounts
of calc ium . A lways add window cleaner to the wa­
t er. When the outs ide temperatures are co ld, an
anti-freezing agent should be added to the water
so that it does not freeze .
(D Note
-The concentration of anti-freezing agent
must be ad justed to the vehicle operating
cond itions in the respect ive climate . A con­
ce ntration that is too high can lead to veh i­
cle damage.
- Neve r add rad iator ant i-freeze or ot her addi­
tives to the washe r fl uid .
- Do not use a glass cleaner that conta ins
paint solvents, beca use this cou ld damage
the pa int.
202
Service interval display
T he service interval display detects when your ve­
hicle is due for service.
The service interval display works in two stages :
-Inspe cti on or oil change reminder: afte r a cer-
tain dis tan ce dr ive n, a message appears in the
instrument cluster display each t ime the igni ­
tion is switched on or off . The remaining dis­
tance or tim e is disp layed briefly.
- Inspection or oil change due : if your vehicl e
has reached an inspection or oil change inte rval
or both intervals at the same t ime, the mes­
sage
Inspection due! or Oil change due! or Oil
change and inspection d ue!
appears briefly af­
ter switching the ignition on/off.
Check ing ser vice inter vals
You can check the remaining d istance or t ime un­
ti l the next oi l change or next inspection in the
MMI. Select the
i MENU I button> Car> Systems *
control button > Ser vice & control > Service in ­
tervals .
Resetting the indic ator
Your a uthorized Audi dea ler or authorized Audi
Service Facility w ill reset the service interva l dis­
play after perform ing service .
If you perform an o il change yourse lf to the Audi
specifications, you must reset the service interval
display .
To rese t the disp lay, select the
I MENU I but ton>
Car > Systems * control button > Service & con­
t rol > Service inter vals > Re set oil change inter ·
val.
(D Note
- Only reset the oil c hange indicator if the oi l
was changed .
- Following the service in terva ls is cr itica l to
mainta ining the se rvice life and val ue of
your vehicle, especially the engine. Even if
the mileage on the ve hicle is low, do not ex­
ceed the time for the next service.
- Calculat ing the time to the next oil change
is inte rrupted when the vehicle battery is

Tires and wheels
Tire pressure monitoring
indicator
CD General notes
Applies to: ve hicles w ith tire p ressu re monitoring system
Each tire, including the spare (if provided),
should be checked monthly when cold and inflat­
ed to the inflation pressure recommended by the
vehicle manufacturer on the vehicle placard or tire inflation pressure label. (If your vehicle has
tires of a different size than the size indicated on
the vehicle placard or tire inflation pressure la­
bel, you should determine the proper tire infla­
tion pressure for those tires) .
As an added safety feature, your vehicle has been
equipped w ith a tire pressure monitoring system
(TPMS) that illuminates a low tire pressure tell­
tale when one or more of your t ires is significant­
ly under-inflated. Accordingly, when the low tire
pressure telltale illuminates, you should stop and
check your tires as soon as possible , and inflate
them to the proper pressure. Driving on a signifi­
cantly under-inflated tire causes the tire to over­
heat and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life,
and may affect the vehicle's handling and stop ­
ping ability .
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver's re­
sponsib ility to ma intain correct tire pressure,
even if under-inflation has not reached the level
to tr igger illum inat ion of the TPMS low tire pres­
sure telltale.
Your veh icle has also been equipped w ith a TPMS
malfunct ion indicator to indicate when the sys­
tem is not operat ing properly. The TPMS mal­
function indicator is combined w ith the low tire
pressure telltale. When the system detects a
malfunction, the telltale will flash for approxi­
mately one minute and then remain continuous ly
illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the mal­
function exists .
When the malfunction indicator is illuminated,
the system may not be able to detect or signal low tire pressure as intended . TPMS malfunctions
222
may occur for a variety of reasons, including the
installation of replacement or alternate tires or
wheels on the veh icle that prevent the TPMS
from functioning properly. Always check the
TPMS malfunction telltale after replacing one or more tires or wheels on your vehicle to ensure
that the replacement or alternate tires and
whee ls allow the TPMS to continue to function
properly.
If the Tire Pressure Monitoring System
indicator appears
Appl ies to: vehicles wit h Tire Pressure Mo nito rin g System in­
dica tor
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too low
or if there is a system malfunction.
Using the ABS sensors, the tire pressure monitor­
i ng system compares the tire tread c ircumfer­
ence and vibration characteristics of the individu­
al tires. If the pressure changes in one or more
tires , this is indicated in the instrument cluster
display with an
Ii] indicator light and a message.
If only one tire is affected, the location of that
tire will be indicated. The message turns
off after
a few minutes. You can display the message
again
,=;, page 25.
The tire pressures must be stored in the menu
display again each time the pressures change
(switching between partial and full load pres­
sure) or after changing or replacing a tire on your
vehicle
c;, page 223. The tire pressure mon itor­
ing system on ly monitors the tire pressure you
have stored . You can find the recommended tire
pressures for your vehicle on the label on the
driver's door pillar
q page 214 .
Tire tread circumference and vibrat ion character­
i stics can change and cause a tire pressure warn­
i ng if:
-If the tire pressure in one or more t ires is too
low,
- the tire has structural damage,
- The tire was replaced or the tire pressure
changed and it was not stored again
,=;, page 223.
- the spare tire is installed.

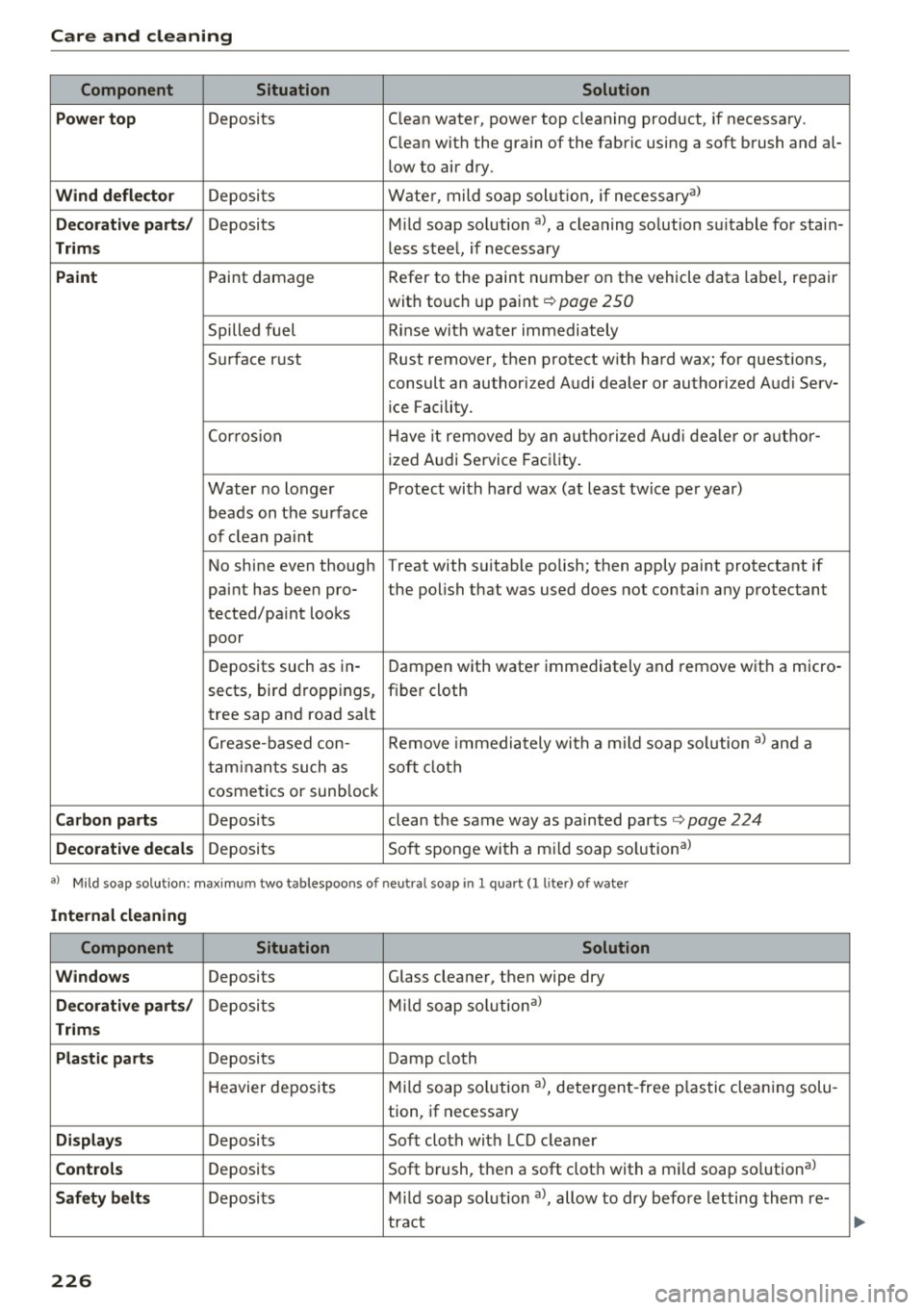

Care and cleaning
Component Situation Solution
Power top
Deposits Clean water, power top cleaning product , if necessary.
Clean with the grain of the fabric using a soft brush and al- low to air dry.
Wind deflector Deposits Water, mild soap solution,
if necessaryal
Decorative parts/ Deposits Mild soap solution a>, a cleaning solution suitable for stain-
Trims less steel, if necessary
Paint Paint damage Refer to the paint number on the vehicle data label, repair
with touch up paint
r:!) page 250
Spilled fuel Rinse with water immediately
Surface r ust Rust remover, then protect with hard wax; for questions,
consult an authorized Audi dealer or authorized Audi Serv-
ice Facility.
Corrosion H
ave it removed by an authorized Aud i dealer or author-
ized Audi Service Facility.
Water no longer Protect with hard wax (at least twice per year)
beads on the surface
of clean paint
No shine even though Treat with suitable polish; then apply paint protectant if
paint has been pro- the polish that was used does not contain any protectant
tected/pa int looks
poor
Deposits such as in- Dampen with water immediately and remove with a micro-
sects, bird droppings,
fiber cloth
tree sap and road salt
Grease-based con- Remove
immediately with a mild soap solution a) and a
taminants such as soft cloth
cosmetics or sunblock
Carbon parts Deposits clean the same way as painted parts ~ page 224
Decorative decals Deposits Soft
sponge with a mild soap solution al
a) Mild soap so lution: maxim um two tablespoons of neutral soap in l quar t (l lite r) of water
Internal cleaning
Component Situation Solution
Windows
Deposits Glass cleaner, then wipe dry
Decorative parts/ Deposits Mild
soap solutiona )
Trims
Plastic parts
Deposits Damp cloth
Heavier deposits Mild soap so lution a>, detergent-free p lastic clean ing solu -
tion, if necessary
Displays Deposits Soft cloth with LCD cleaner
Controls Deposits Soft
brush, then a soft cloth with a mild soap so lutional
Safety belts Deposits Mild soap so lution a>, allow to dry before letting them re-
tract
226

Care and cleaning
- Never use gasoline, spot remover, ben­
zene, paint thinner or other solvents to
remove.
- Door window s
- Remove snow and ice on windows and ex-
terior mirrors with a p lastic scraper . To
avoid sc ratches, move the scrape r only in
one direction and not back and forth .
- Never remove snow or ice from door win­
dows and m irrors using warm or hot water
because this could cause cracks to form.
- To avoid damage to the rear w indow de­
fogge r, do not apply any stickers on the
heating w ires on the inside of the window.
- Decorati ve parts /trim
- Never use chrome care or cleaning prod- ucts.
- Paint
- To reduce the risk of scratches, the vehicle
must be free of dirt and dust before pol­
ishing or waxing.
- To prevent pa int damage, do not polish or
wax the veh icle in direct sunlight.
- To reduce the risk of pa int damage, do not
polish away rust spots .
- Remove cosmetics and sunscreen immedi­
ately- these could damage the paint.
- Displays
- To avoid scratches, do not use dry cleaning
methods on displays.
- Controls
- Make sure tha t no fluids enter the con-
trols, because this could ca use damage .
- Safet y belt s
- Do not remove the safety belts to clean them.
- Never clean safety belts or their compo­ nents chemically or with corrosive fl uids
or so lvents and never allow sharp objects
to come into contact w ith the safety belts .
Th is could cause damage to the belt web­
bing.
- If there is damage to the webbing, the
connect ions, the retractors or the buckles,
have them replaced by an author ized Audi
dealer or author ized Audi Service Facility.
- Textiles /artificial leather / Alcantara
228
- Never treat art ificial leathe r/ A lcantara
with leather ca re products, solvents, f loor
polish, shoe polish, spot remove o r similar
products.
- Have a specialist remove stubborn stains
to prevent damage.
- Never use steam cleaners, brushes, hard
sponges, etc . when cleaning .
- Do not turn on the seat heating* to dry the seat.
- Objects w ith sharp edges s uch as zippers,
rivets on clothing or be lts can cause dam­
age to the surface .
- Open hook and loop fasteners, for exam­ ple on clothing, can damage seat covers.
Make sure hook and loop fasteners are
closed.
- Natural le ather
- Never treat leather with solvents, floor
polish, shoe polish, spot remover or sim i­
lar p roducts.
- Objects w ith sharp edges such as zippe rs,
rivets on clothing or be lts can cause dam­
age to the surface.
- Never use steam cleaners, brushes, hard
sponges, etc. when cleaning.
- Do not turn on the seat heating * to dry the
seat .
- To help prevent the leather from fad ing,
do not leave the vehicle in d irect sunlight
for long periods of time.
If leav ing the ve­
h icl e parked fo r long pe riods of time, you
should cover the lea the r to pro te ct it from
d irec t sunlight .
(D Tips
-Insects are easier to remove from paint that
has been freshly waxed.
- Regular waxing can prevent rust spots from
forming.
Placing your vehicle out
of service
If you would like to take your vehicle out of serv­
ice for a longer time, contact your authorized
Audi dealer or qualified repair facility. They will
advise you of important measures, such as ..,.

<( co ..... N
" N ..... 0 r--. > 00
-Some of the equipment listed in the follow­
ing tables applies only to certain model ver­
s ions or certain optional equipment .
Interior fuse assignment
Fig. 188 Vehicle interior: fuse assignment
No. Equipment
Fl Engine components
F2 Seat
adjustment
F3 Power top hydraulic pump
F4 MMI control panel, MMI components
FS Gateway
F6 Selector
lever (automatic transmission)
.... ~ N
0
>
"' (0
F7 Climate/heating control, auxiliary heating,
rear w
indow defogger relay
Diagnosis, electromechanical parking
FB brake switch, light switch
, rain/light sen-
sor, inter ior lighting, communications box,
anti-theft alarm system
F9 Steering column switch module
FlO Display
Fll Reversible driver's side safety belt tension
-
ers
F12 MMI area
F13 Damper control module/ service plug
No.
Fl4
FlS
Fl6
F 17
FlB
F19
F20
F23
F 24
F2 5
F2 6
F27
F28
F29
F 31
F32
F 33
F 34
F35
F 36
F37
F38
F39
F40
F41
F42
F4 3
F44
F 47
Fuses and bulbs
Equipment
Climate control system blower
Electronic steering column lock
MMI area
Instrument cluster
Rearview camera
Convince key system control module, tank
system
Tank system
Exterior lighting, heated washer fluid noz -
zles
Panorama sunroof/ power top control
module, power top latch (Cabriolet)
Door/driver's side doors (for examp le pow-
er windows)
Seat heating
Sound-amplifier
Power top control module, electro nics
(Cabriolet)
Inter ior lights
Exterior lighting
Driver assistance systems
Airbag
Button illumination, coils for neck heating
r elay and socket relay, interior sound,
back-up light switch, temperature sensor
Function lighting, diagnosis, headlight
range control system, air quality sensor,
automat ic dimming rearview mirror
R ight cornering light/ right LED-headlight
Left cornering light/ left LED-headlight
High-voltage battery
Door/front passenger's side doors (for ex-
ample, power windows)
Sockets
Reversible front passenger's side safety
belt tensioners
Central locking components, windshield
washer system
Headlights, lighting
all wheel drive Rear w indow wiper
241
