Page 61 of 64

AUDI A4 1995 B5 / 1.G APB Engine Ignition System Checking 28-54 Evaluation display group 014, display field 3 Display field: 3 Possible cause Corrective action greater 15 Spark plug faulty Spark plug connector faulty Ignition coil or power out

Page 62 of 64

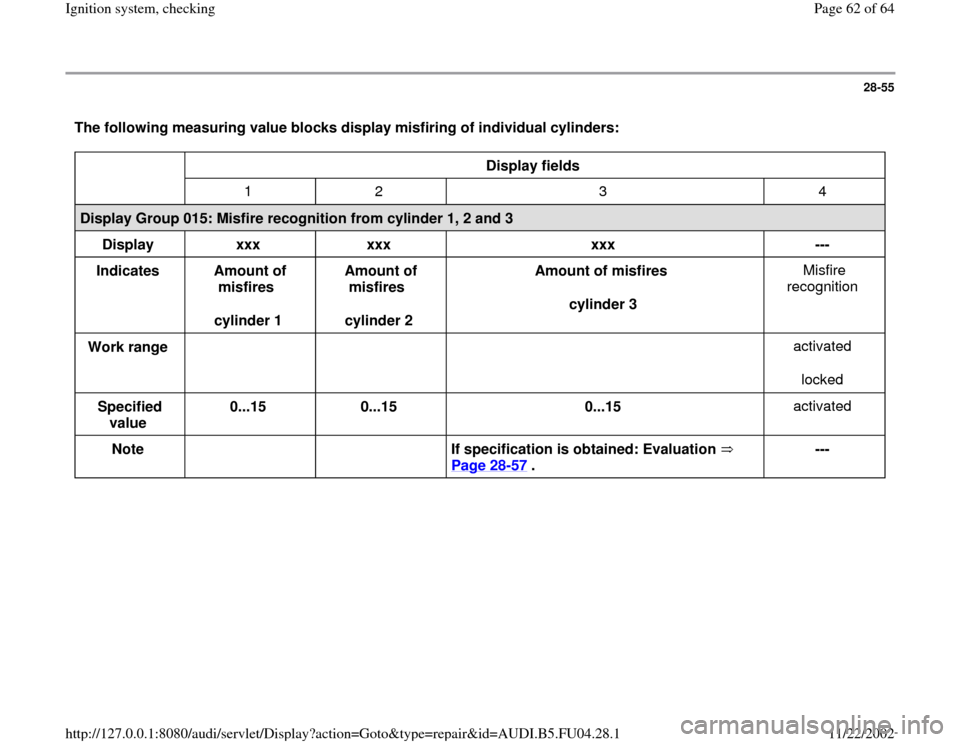

AUDI A4 1995 B5 / 1.G APB Engine Ignition System Checking 28-55 The following measuring value blocks display misfiring of individual cylinders: Display fields 1 2 3 4 Display Group 015: Misfire recognition from cylinder 1, 2 and 3 Displa

Page 63 of 64

AUDI A4 1995 B5 / 1.G APB Engine Ignition System Checking 28-56 Display fields 1 2 3 4 Display Group 015: Misfire recognition from cylinder 4, 5 and 6 Display xxx xxx xxx --- Indicates Amount of misfires cylinder 4 Amount

Page 64 of 64

AUDI A4 1995 B5 / 1.G APB Engine Ignition System Checking 28-57 Evaluation display groups 015 and 016 Display field: 1,2 and 3 from measuring value block 15 and 16 Possible cause Corrective action greater 15 Spark plug faultySpark plug connector f
