AUDI A4 1998 B5 / 1.G Rear Brake Service Workshop Manual 46-20


Rear brakes, servicing Rear brakes with automatic parking brake
adjusters
WARNING!

Do not re-use fasteners that are worn or
deformed in normal use.
 Some fasteners are designed to b

Page 2 of 11

AUDI A4 1998 B5 / 1.G Rear Brake Service Workshop Manual 46-21


Note:

Install only the complete repair kit.
 The brakes can be tested on a commercial
brake dynamometer provided the speed of the
two dynamometer drive rollers is not more than
5.5 km

Page 3 of 11

AUDI A4 1998 B5 / 1.G Rear Brake Service Workshop Manual 46-22


Note:
Until changing over to ribbed bolts, the remaining
socket-head bolts should be used. Tightening
torque for the socket-head bolt is 60 Nm (44 ft lb).
3 -
Socket-head bolt
For veh

Page 4 of 11

AUDI A4 1998 B5 / 1.G Rear Brake Service Workshop Manual 46-23


Note:
Until changing over to ribbed bolts, the remaining
socket-head bolts should be used. Tightening
torque for the socket-head bolt is 60 Nm (44 ft lb).
5 -
Socket-head bolt
For veh

Page 5 of 11

AUDI A4 1998 B5 / 1.G Rear Brake Service Workshop Manual 46-24

Rear brake pads, removing and
installing


Removing

Note:
     If brake pads are to be re-used, mark installed
positions when removing. Re-install at the same
point, ot

Page 6 of 11

AUDI A4 1998 B5 / 1.G Rear Brake Service Workshop Manual Insert special tool 3272 so that the collar is positioned ahead of the piston.
WARNING!
Brake fluid is poisonous and must NEVER be removed by siphoning
with your mouth.
Pa
ge 6 of 11 Rear brakes,

Page 7 of 11

AUDI A4 1998 B5 / 1.G Rear Brake Service Workshop Manual 46-25

CAUTION!

Extract part of the brake fluid from the brake
fluid reservoir before pushing back the
pistons.
     If this is not done, particularly if the brake
fluid has been topp

Page 8 of 11

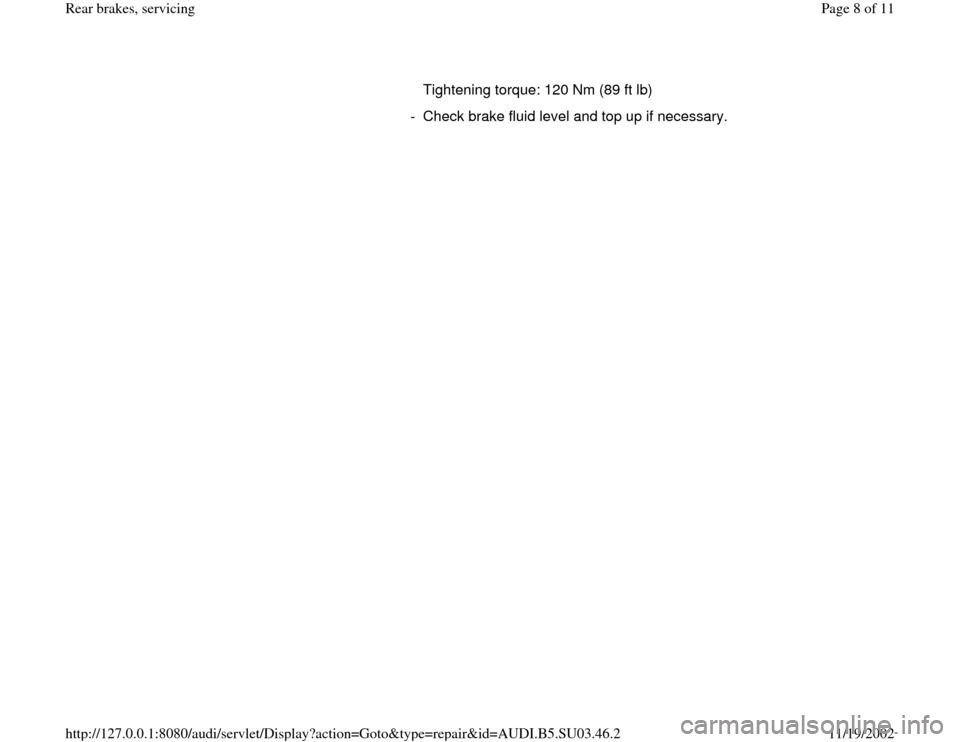

AUDI A4 1998 B5 / 1.G Rear Brake Service Workshop Manual    Tightening torque: 120 Nm (89 ft lb)
-  Check brake fluid level and top up if necessary.
Pa
ge 8 of 11 Rear brakes, servicin
g
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t

Page 9 of 11

AUDI A4 1998 B5 / 1.G Rear Brake Service Workshop Manual 46-26

Rear brake pads on front-wheel-drive
vehicles with aluminum rear brake
calipers, removing and installing


Special tools and equipment
Removing
Note:
If brake pads are to be

Page 10 of 11

AUDI A4 1998 B5 / 1.G Rear Brake Service Workshop Manual 46-27

Installing

WARNING!

Brake fluid is poisonous and must NEVER be
removed by siphoning with your mouth.

CAUTION!

Before pushing back the piston, siphon
some of
