engine AUDI A4 2015 Manual Online

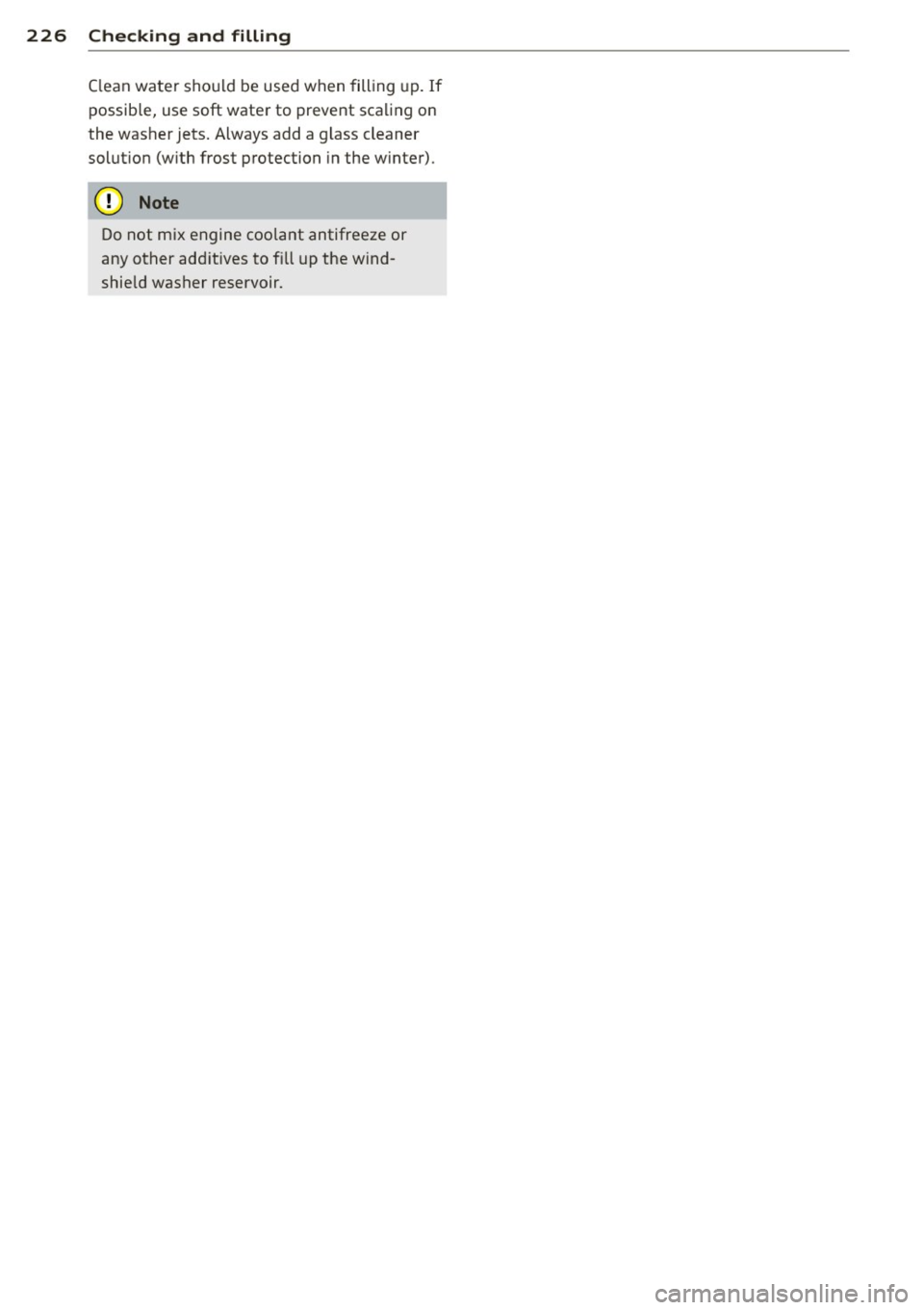

226 Checking and filling
Clean water should be used when filling up. If
possible, use soft water to prevent scaling on
the washer jets. Always add a glass cleaner
solut ion (with frost protection in the winter) .
Do not mix engine coolant antifreeze or
any other additives to fill up the wind­
shie ld washer reservoir.

'"" N
0 ::.,: co ,...., \!) 1.1'1 ,...., 1.1'1 ,....,

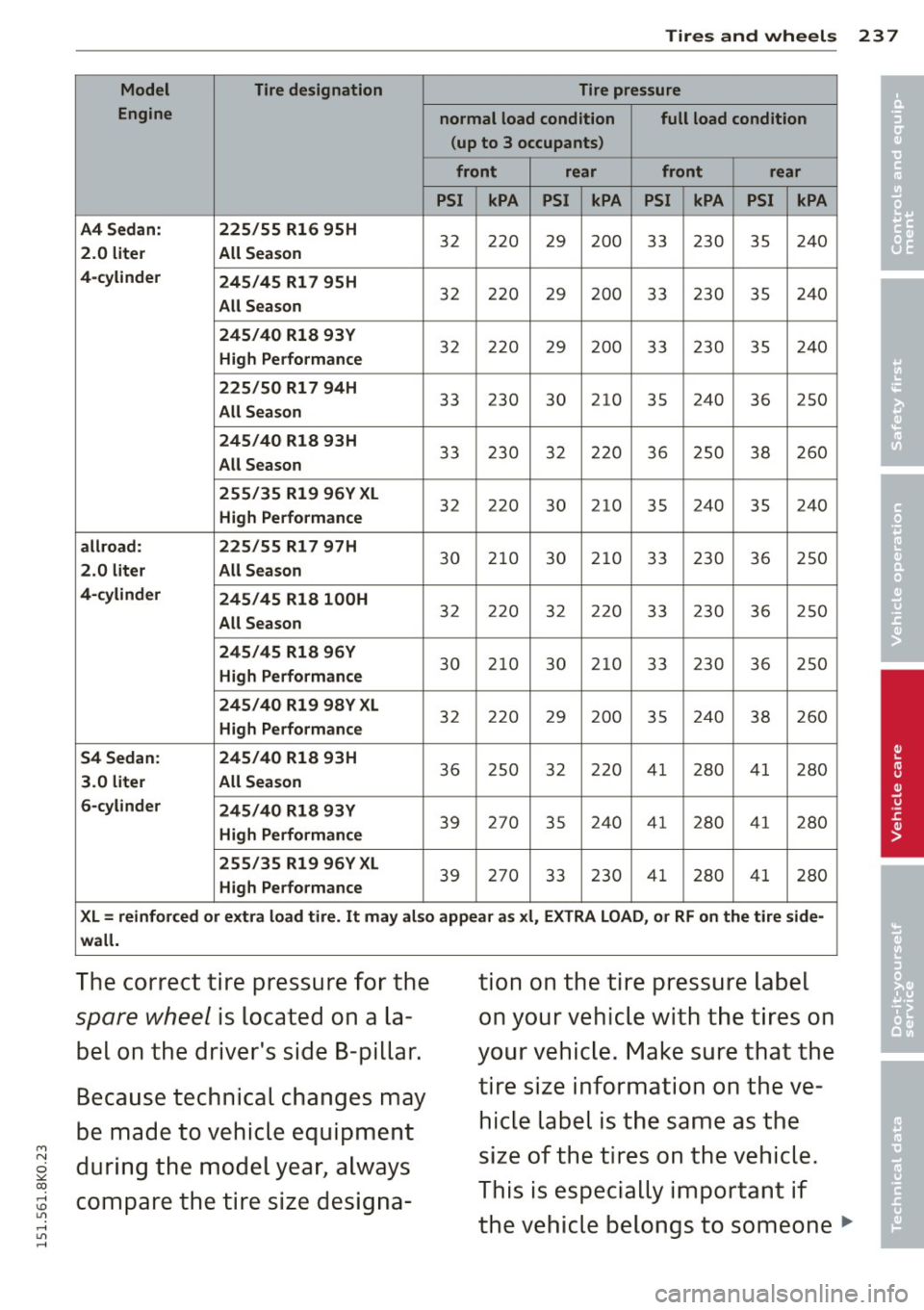

Tires and wheels 237
Model Tire designation Tire pressure
• Engine
normal load condition full load condition
• (up to 3 occupants)
front rear front rear
PSI kPA PSI kPA PSI kPA
PSI kPA
A4 Sedan: 225/55 Rl6 95H
32 220 29 200 33 230 35 240 2.0 liter All Season
4-cylinder 245/45 Rl 7 95H
All Season
32 220 29 200 33 230 35 240
245/40 Rl8 93V 32 220 29 200 33 230
35 240 High Performance
225/50 Rl 7 94H
33 230 30 210 35 240
36 250 All Season
245/40 Rl8 93H
33 230 32 220 36 250 38 260 All Season
255/35 Rl9 96V XL
32 220
30 210
35 240
35 240
High Performance
allroad: 225/55 Rl 7 97H
30 210 30 210 33 230 36 250 2.0 liter All Season
4-cylinder 245/45 Rl8 lOOH
All Season
32 220 32 220 33 230 36 250
24S/4S R18 96Y
30 210 30 210 33 230 36 250 High Performance
245/40 R19 98Y XL
32 220 29 200 35 240 38 260 High Performance
S4 Sedan: 245/40 Rl8 93H
36 250 32 220 41 280 41 280 3.0 liter
All Season
6-cylinder 245/40 Rl8 93Y
High Performance
39 270
35 240 41
280 41
280
255/35 Rl9 96YXL
39 270 33 230 41 280 41 280 High Performance
XL= reinforced or extra load tire. It may also appear as xl, EXTRA LOAD, or RF on the tire side-
wall.
The correct tire pressure for the
spare wheel is located on a la­
bel on the driver's side B-pillar.
Because technical changes may
be made to vehicle equipment
during the model year, always
compare the tire size designa- tion on the tire pressure label
on your vehicle with the tires on
your vehicle. Make sure that the
tire size information on the ve­ hicle label is the same as the
size of the tires on the vehicle.
This is especially important if
the vehicle belongs to someone ""

260 What do I do now ?
What do I do now?

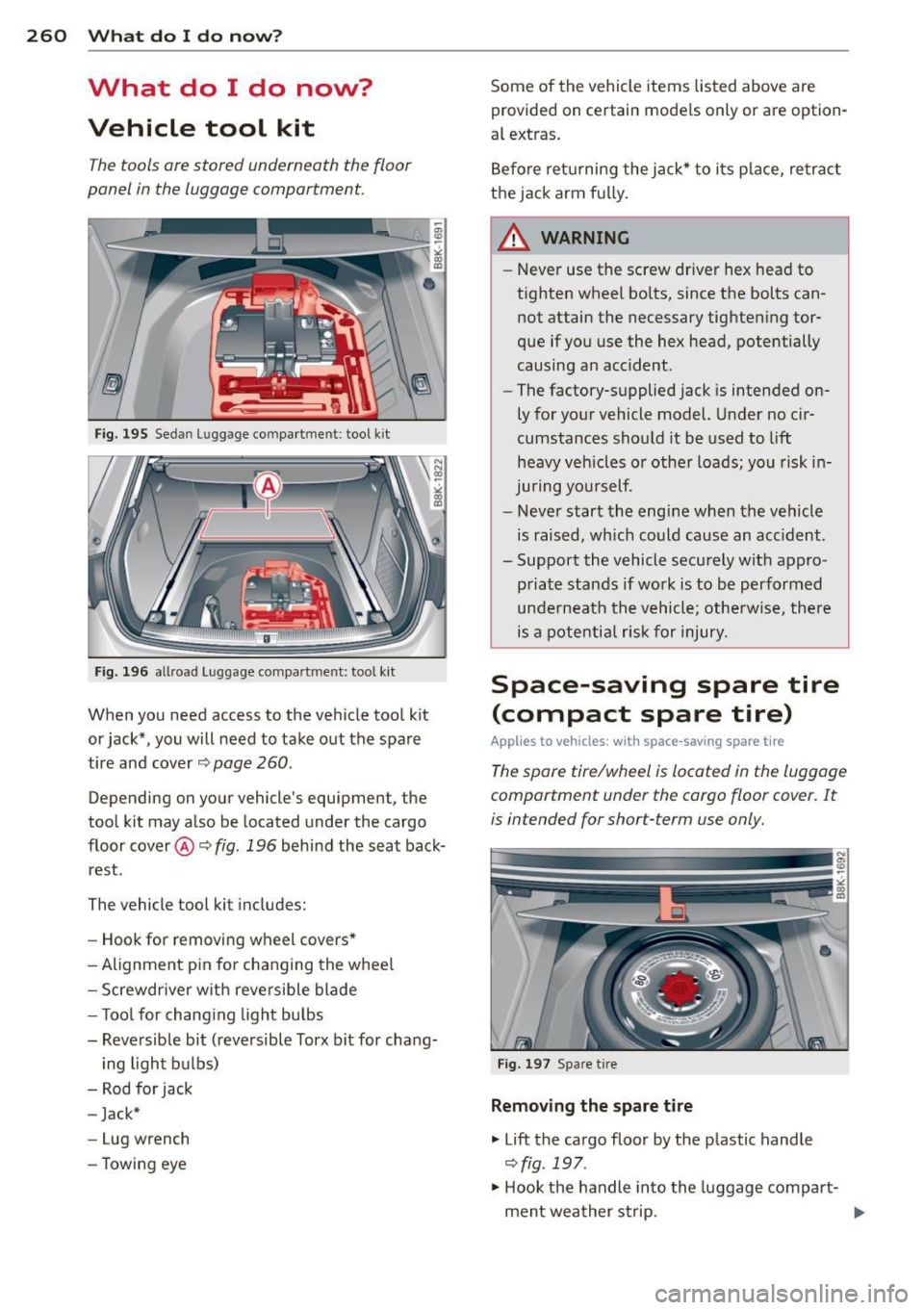

Vehicle tool kit
The tools ore stored underneath the floor
panel in the luggage comportment.
Fig. 195 Seda n Lu ggage compart ment : too l kit
Fig. 196 a llroa d Lu ggage compart men t: too l kit
When you need access to the vehicle tool kit
or jack* , you will need to take out the spare
tire and cover
Q page 260 .
Depending on your vehicle's equipment, the
tool kit may also be located under the cargo
floor cover @
Q fig. 196 behind the seat back­
rest .
The vehicle tool kit includes:
- Hook for removing wheel covers *
- Alignment pin for changing the wheel
- Screwdriver w ith reversible blade
- T ool for changing light bulbs
- Reversible bit (reversible Torx bit for chang- ing light b ulbs)
- Rod for jack
- Jack*
- Lug wrench
- Towing eye Some of the vehicle items listed above are
provided on certain mode
ls only or are option­
al extras.
Before ret urning the jack * to its p lace, re trac t
the jack arm f ully.
A WARNING
-
- Never use the screw driver hex head to
tighten wheel bo lts, since the bolts can­
not attain the necessary tightening tor­
que if you use the hex head, potentially
causing an acc ident .
- The factory-supplied jack is intended on­
ly for your vehicle model. U nder no c ir­
cumstances should it be used to lift
heavy veh icles o r othe r loads; you risk in­
juring yo urself .
- Never start the engine when the vehicle
is raised, wh ich could cause an acc ident.
- Support the vehicle securely with appro ­
priate stands if work is to be performed
underneath the vehicle; otherwise, there
is a potentia l risk for injury.
Space-saving spare tire
(compact spare tire)
Appl ies to veh icles : w ith space -sav ing spare tire
The spore tire/wheel is located in the luggage
comportment under the cargo floor cover . It
is intended for shor t-term u se only.
F ig. 197 Spa re ti re
Removing the spar e ti re
., lift the cargo floor by the p lastic handle
Q fig. 197 .
., Hook the handle into the luggage compart­
ment wea ther strip.

"" N
0 ::.,: co ,...., \!) 1.1'1 ,...., 1.1'1 ,....,
~ Unscrew the va lve stem from the s pare tire .
~ Screw the tire filler hose from the compres­
sor firm ly onto the valv e of the spare tire.
~ In se rt the p lug from the compress or into a
socket of the vehicle¢
page 66.
~ Switc h the compressor on .
~ Let the compressor run until the valu e speci­
fied on the tire pressure label is reached ¢
page 234, fig . 190. Sw itch the compres­
so r off afte r runn ing for 12 minutes at the
most -danger of overhea ting!
A WARNING
The compressor and the tire filler hose can
become extremely hot while they are run­
ning -danger of burns!
(D Note
Switch the compressor off after running
for 12 minutes at the most -danger of
overheating! Allow the compressor to cool
down for a few minutes before you use it
again.

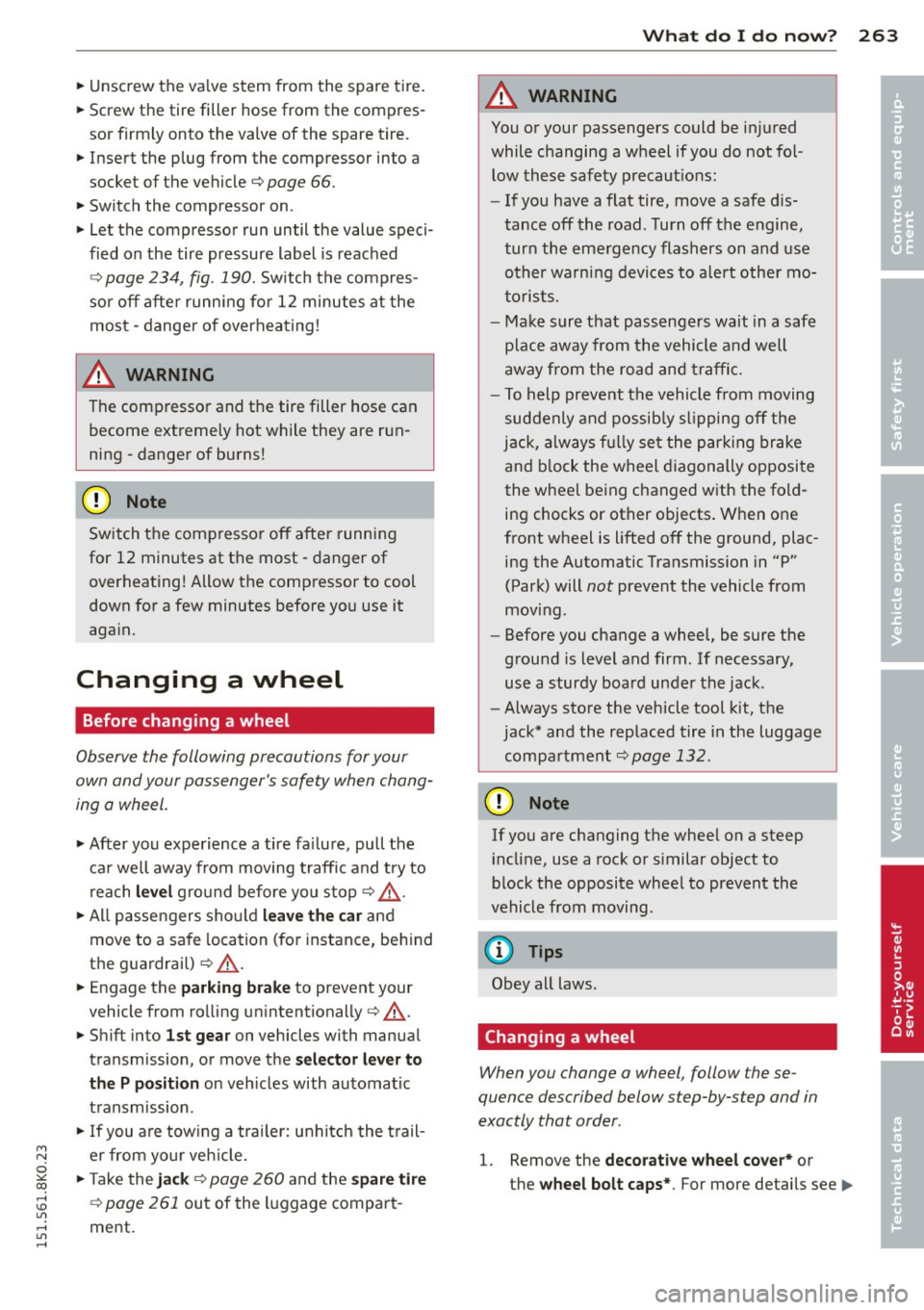

Changing a wheel
Before changing a wheel
Observe the following precautions for your
own and your passenger' s safety when chang­
ing a wheel .
~ After you experience a tire fa ilure, pu ll the
ca r well away from moving traffic and try to
r e ach
level gro und before yo u stop ¢ LI)..
~ All p assengers sho uld leave the car and
move to a safe loca tion (for instance, beh ind
the guardrai l) ¢
A .
~ Engage the parking brake to prevent your
vehicle from ro lling un intentionally ¢
A.
~ Shift into 1st gear on vehicles with manua l
transmission, o r move the
selector lever to
the P po sition
on veh icles with au toma tic
t ransmission .
~ If you are tow ing a tra ile r: u nhi tch the trail­
er from your veh icle.
~ T ake the jack ¢ page 260 and the spare tire
¢ page 261 out of the luggage compart ­
ment.
What do I do now? 263
A WARNING
You or your passengers could be injured
while c hanging a wheel if you do not fo l­
low these safety precaut ions:
- If you have a flat tire, move a safe d is­
tance off the road . T urn off the engine,
tur n the eme rg ency flashers on and use
other wa rn in g devices to a le rt othe r mo­
torists.
- Ma ke sur e that passengers wait in a safe
p lace away from the vehicle and well
away from the ro ad and traffic.
- T o help prevent the vehicle from moving
suddenly and possib ly sli pping off the
j a ck, alw ay s fu lly se t the par king br ake
an d block the wheel d iagonally opposi te
the whee l be ing changed w ith the fol d­
ing chocks or other objects. When one
front wheel is lifted off the ground, plac­ ing the Automatic Transmission in "P"
(Park) will
not prevent the vehicle from
moving .
- Before you change a wheel, be sure the
grou nd is level and firm. I f necessary,
use a sturdy board unde r the jack .
- Always sto re the vehicle tool kit, the
jack* and the replaced tire in the luggage compa rtment
¢page 132.
(D Note
If you are changing the whee l on a steep
i ncline, use a rock or s imilar object to
block the opposite whee l to prevent the
vehicle from moving.
(D Tips
Obey all laws.
Changing a wheel
When you change a wheel , follow these­
quence described below step-by-step and in
exactly that order .
l. Remove the decorative wheel cover* or
-
the wheel bolt caps* . For more details see..,.
•
•

2 70 Fuses and bulbs
No. Consumer Amps No. Consumer Amps
A/C system pressure sensor, Two-door models: rear left
electromechanical parking window regulator; Four-
brake, Homelink, automatic 11 door models: rear
left door
30
3 dimming interior rear view
5 (window regulator, central
m irror, air quality/outside locking, switch, lighting)
air sensor, Electronic Stab ili-
12 Rain
and light sensor
5
zation Control (button)
5 Sound actuator 5
Fuse panel© (red)
6 Headlight
range control/
5/7,5
head light (corner ing light)
No . Consumer Amps
3 Lumbar support 10
7 Headlight (cornering light) 7,5
4 Dynamic steering
35
Contro l modu les (electro-
5 Interior lighting (Cabriolet)
5
8 mechanical parking brake,
5
shock absorber, quattro
sport), DCDC converter
9 Adaptive cruise control 5 6
W
indshield washer system,
35
headlight washer system
7 Vehicle electrical system
20
control module 1
10 Shift gate/clutch sensor
5
11 Side ass ist 5
8
Vehicle electr ica l system
30
control module 1
12 Headlight range control,
5
parking system 9 Left rear window regulator
7,5/20
motor (Cabriolet)/sunroof
13 Airbag 5
14 Rear wiper (allroad) 15 10
Vehicle e
lectrica l system
30
control module 1
15 Auxiliary fuse (instrument
10
pane l) 11 Right
rear window regulator
7,5/20
(Cabriolet)/sun shade motor
16 Aux
iliary fuse terminal 15
40
(engine area) 12 Anti-theft alarm warning
s system
Fuse panel
@ (brown)
No. Consumer Amps
2 Brake light sensor 5
3 Fuel pump 25
4 Clutch sensor 5
5 Left seat heating with/with-
15/30
out seat ventilation
6 Electronic Stabilization
Con-
5
trol (electric)
7 Horn 15
Front left door (window reg-
8 ulator, centra
I locking, mi r-
30
ror, switch, lighting)
9 Windshield wiper motor 30
10 Electronic Stabi
lization Con-
25
trol (valves)

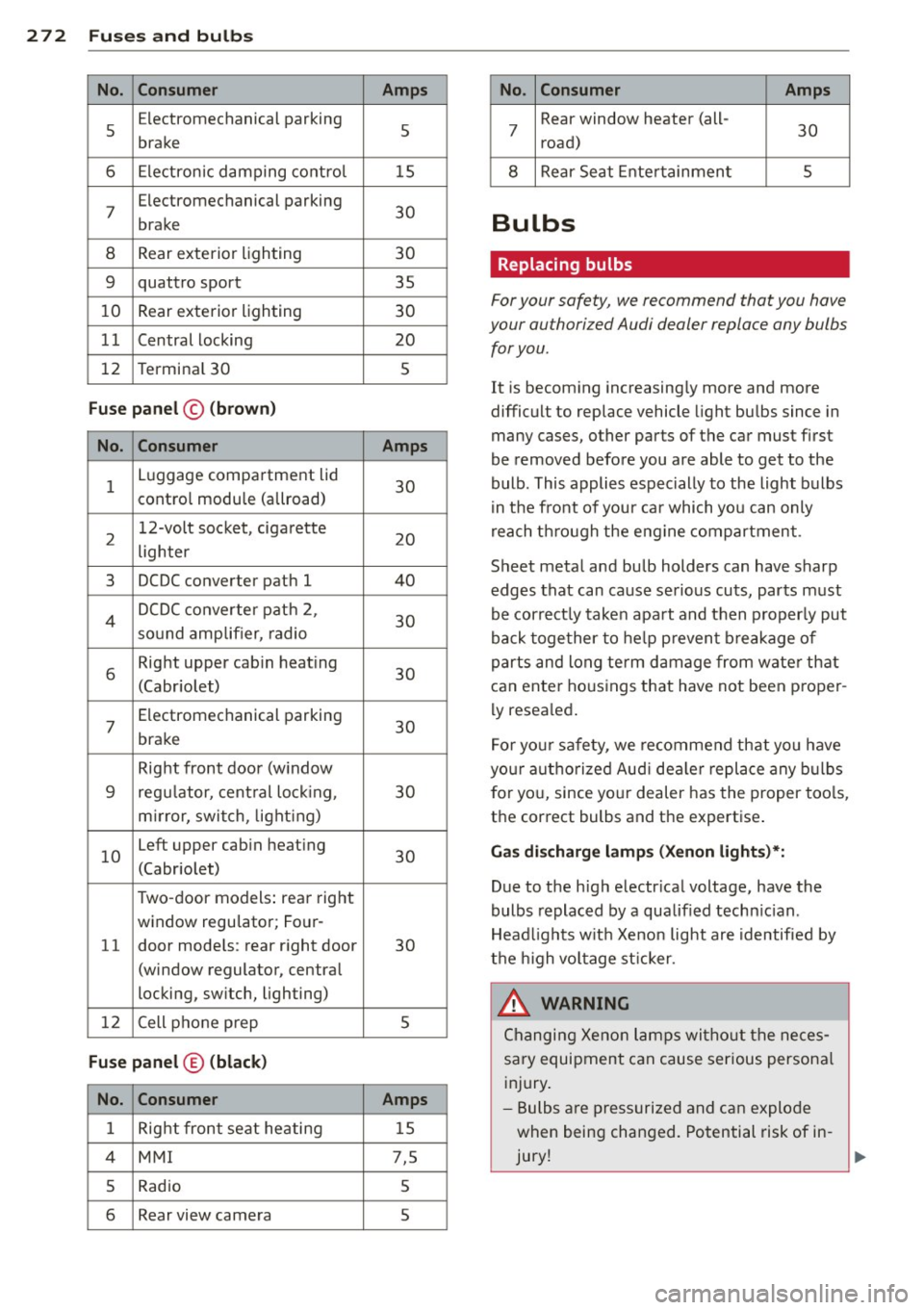

272 Fuses and bulb s
No. Consumer
5 Electromechanical parking
brake
6 Electronic damping control
7
Electromechanical parking
brake
8 Rear exterior lighting
9 quattro sport
10 Rear exterior lighting
11 Central locking
12 Terminal
30
Fuse panel © (brown)
No. Consumer
1 Luggage compartment lid
contro l module (allroad)
2 12-volt
socket, cigarette
lighter
3 DCDC converter path 1
4 DCDC converter path 2,
so und amp lifier, radio
6
Right upper cab in heat ing
(Cabr iolet)
7
Electromechanical parking
brake
Right front door (w indow
9 regu lator, central locking,
mirror, switch, lighting)
1 0 Left upper cabin
heating
(Cabr iolet)
T wo -door models : rear right
window regu lator; Four-
11 door models: rear r
ight door
(window regulator, central
locking, sw itch, lighting)
12 Cell phone prep
Fuse panel © (black)
No. Consumer
1 Right front seat heating
4
MMI
5 Radio
6 Rear view camera
Amps
5
15
30
30
35
30
20 5
Amps
30
20
40
30
30
30
30
30
30
5
Amps
15
7,5
5
5
No . Consumer Amps
7 Rear window heater (all-
30
road)
8 Rear Seat Entertainment s
Bulbs
Replacing bulbs
For your safety, we recommend that you hove
your authorized Audi dealer replace any bulbs
for you.
It is becoming increasingly more and more
difficult to replace vehicle light bulbs since in
many cases, other parts of the car must first
be removed before you are able to get to the
bulb. This applies especially to the light bulbs
in the front of your car which you can only
reach through the engine compartment .
Sheet metal and bulb holders can have sharp
edges that can cause serious cuts, parts must
be correctly taken apart and then properly put
back together to help prevent breakage of
parts and long term damage from water that
can enter housings that have not been p roper­
l y resea led.
For your safety, we recommend that you have
you r authorized Aud i dea ler replace any bulbs
for you, since yo ur dealer has the proper too ls,
the correct bulbs and the expertise .
Gas discharge lamp s (Xenon lights)*:
Due to the high electr ical voltage, have the
bulbs replaced by a qualif ied techn ic ian.
Headlights wit h Xenon light are identified by
the high voltage sticker.
_&. WARNING
Changing Xenon lamps witho ut the neces­
sa ry equipment can cause serious persona l
injury.
- Bulbs are pressurized and can explode
when being changed. Potential risk of in­
jury!
-

"" N
0 ::.,: co ,...., \!) ..,.,
,...., ..,., ,....,
-On vehicles equipped with gas discharge
bulbs (Xenon light)* life-threatening in­
jur ies can result from improper handling
of the high-voltage portions of such
lamps!
- Only your authorized Audi dealer or
qualified workshop should change the
bulbs in gas discharge lamps. There are
parts w ith sharp edges on the openings
and on the bulb holders that can cause
serious cuts.
If yo u are uncertain about
what to do, have the work performed by
an authorized Audi dealer or qualified
workshop. Serious personal injury may
result from improperly performed work.

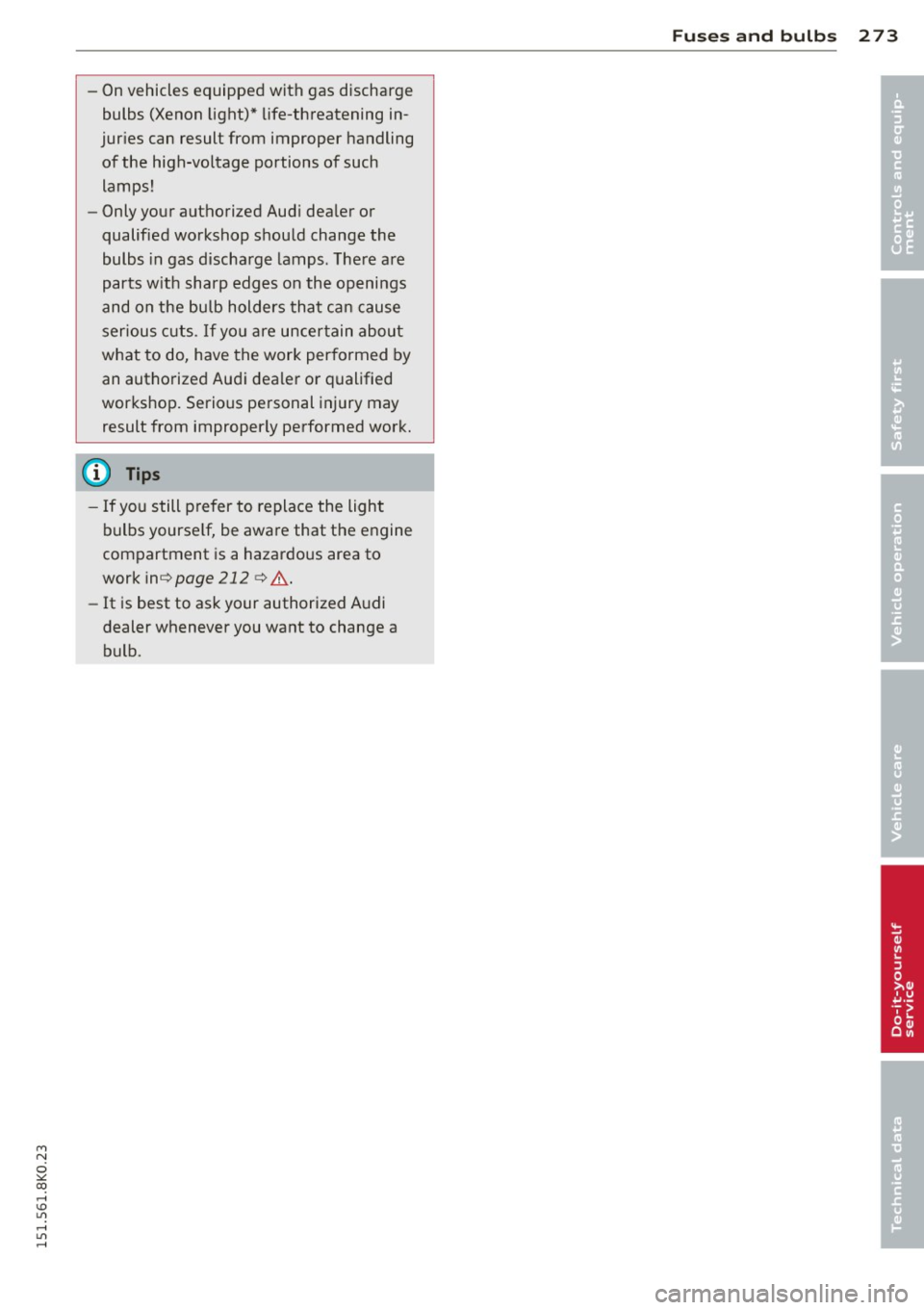

(D Tips
- If you still prefer to replace the light
bulbs yourse lf, be aware that the engine
compartment is a hazardous area to
work
inqpoge 212 ¢ A .
-It is best to ask your authorized Audi
dealer whenever you want to change a
bulb.
Fu ses and bulb s 273
•
•

2 7 4 Emergency situations
Emergency situations
General
This chapter is intended for trained emer­
gency crews and working per sonnel who
have the necessary tools and equ ipment to
perform these ope rations.
Starting by pushing or
towing
Q;) Note
Vehicle s with an automati c transmission
cannot be started by pushing or towing .
Starting with jumper
cables
If necessary, the engine can be started by
connecting it to the battery of another vehi­
cle.
If the engine should fail to start because of a
discha rged or wea k batte ry, the battery can be
connected to the battery o f
another vehicle,
using a
pair of jumper cables to start the en­
g ine .
Jumper cables
Use only jumper cab les of sufficiently
large cross section to carry the starter cur rent
safely. Refer to the manufact urer's spec ifica­
ti ons.
Use on ly jumper cables with
insulated te rmi­
na l clamps wh ic h are d istinctly mar ked :
plus (+) cable in most c ases co lore d red
minu s (-) cable
in most cases colored black .
A WARNING
Batterie s cont ain e lec tricity, a cid, a nd gas.
A ny o f these c an ca use ve ry ser io us or f atal
in ju ry . F ollow the i nstruc tio ns below for
safe ha ndling of your ve hicle's bat tery.
- Alw ay s sh ield yo ur eye s and a vo id le an­
ing over the batte ry w henever p ossib le . -
A discharged battery can freeze at tem­
pe rat ures just below 32 °F (0 °C). Before
connecting a jumper cable, you must
thaw the fr ozen battery complete ly , ot h­
e rwise it cou ld explode.
- Do not allow batte ry acid to contact eyes
or skin . Fl ush any contacted a rea wi th
wate r im media tely.
- Imp roper use of a booster battery to
s tart a vehicle may cause an explosion.
- Vehicle batter ies generate explosive gas­
es . Keep sparks, flame and lighted ciga­
rettes away from ba tte ries .
- Do not try to jump start a ny ve hicle w ith
a low ac id leve l in the battery .
- The vo ltage of the booster batte ry m ust
a lso have a 12-Vo lt rat ing . The capacity
(A h) of the booster batte ry should not b e
lowe r than that of the discharged bat­
tery . U se o f batt erie s of d iffe ren t voltage
or subs tanti ally diffe ren t "Ah" rat ing
may c ause an exp losion and person al in­
ju ry .
- N ever ch arge a fr ozen bat te ry. Gas t rap ­
ped in the ice may ca use an ex plosion .
- N ever ch arge o r use a batt ery th at has
been fro zen. T he battery case may have
be weakened.
- Us e of batt erie s of di ffere nt vo ltag e or
substan tially differen t ca pa city (Ah) rat ­
i ng may cause an exp losion and injury.
T he capac ity (Ah) of the booster battery
should not be lower than that of the dis­
charged batte ry.
- Before you check anything in the engine
compartment, always read and heed a ll
W ARNI NGS¢
page 212.
(D Note
- App lyi ng a hig her voltage booste r bat­
tery wi ll cause expens ive damage to sen­
sitive e lectronic components, such as
cont ro l units, relays, rad io, etc.
- There must be no electrical contact be­ twee n the vehicles as otherwise current
co uld already start to f low as soon as t he
posi tive(+) terminals a re con nected . ..,.

M N
~ co
rl I.O
"' rl
"' rl
@ Tips
The discharged battery must be properly
connected to the vehicle's electrical sys­
tem. When jump starting or charg ing the
battery, never connect the negative
ground cable to the battery negat ive post
because the ba ttery manager system must
be ab le to detect the battery's state of
charge. Always connect the negative
g round cab le to the negative ground pos t
of t he battery manager cont ro l unit.
Use of jumper cables
Make sure to connect the jumper coble
clomps in exactly the order described b elow!

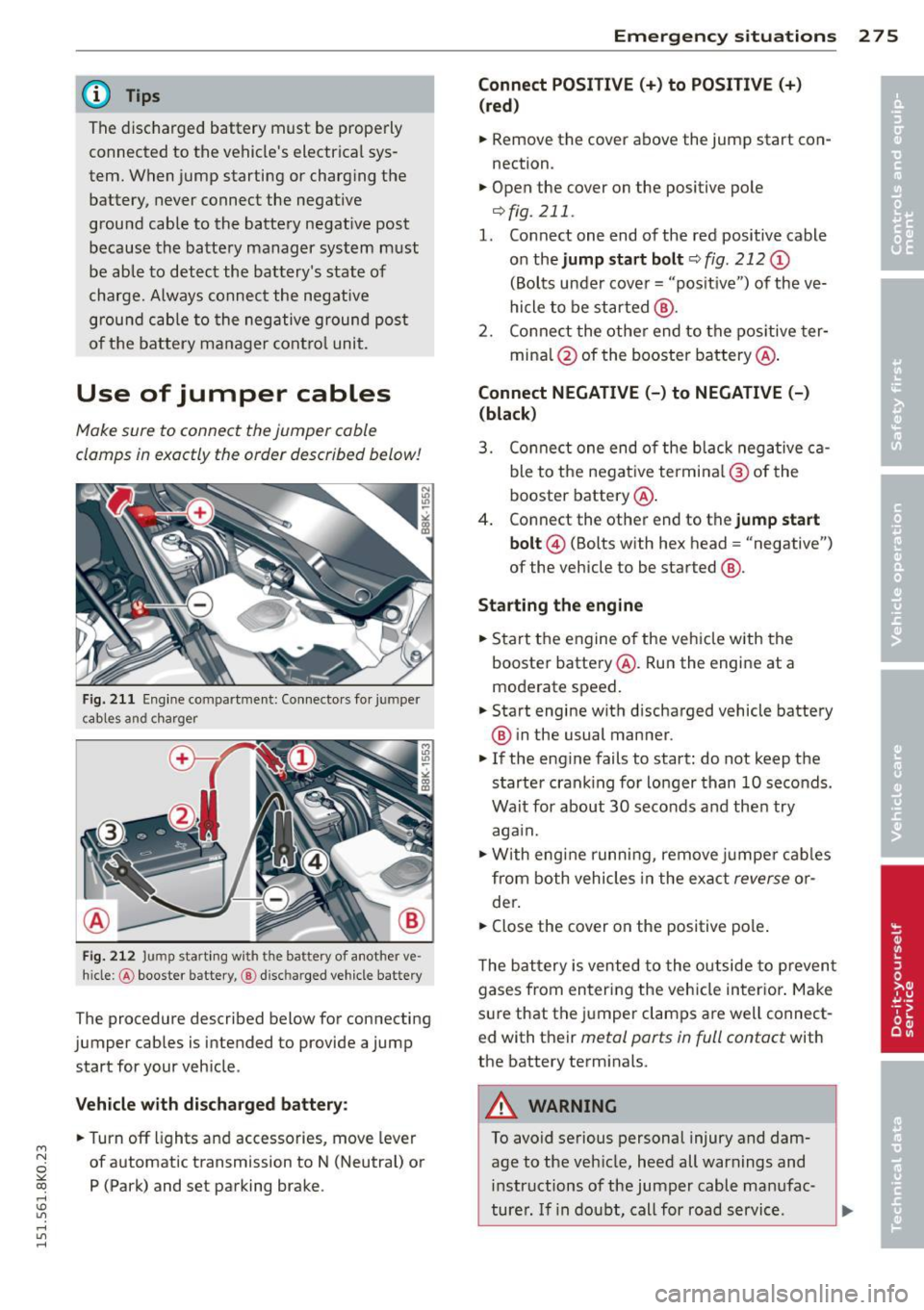

Fi g. 21 1 Eng ine co mpar tment: Co nnecto rs fo r jum per
c ab les a nd c har ge r
F ig. 212 Jump start in g w ith t he ba ttery of a not her ve ·
hi cle :@ booster battery, @ disc harged veh icle battery
The procedure described below for connecting
jumper cables is intended to provide a jump
start for your veh icle .
Vehicle with di scharged battery :
~Turnoff lights and accessories , move lever
of automatic transmission to N (Neutral) or P (Park) and set parking brake .
Emergency situ ation s 2 7 5
Connect POSITIVE(+) to POSITIVE(+ )
(red )
~ Remove the cover above the jump start con­
nection .
~ Open the cover on the positive pole
¢fig . 211 .
1. Connect one end of the red positive cable
on the
jump sta rt bolt c::;, fig. 212 (D
(Bolts under cove r= "posit ive ") of the ve­
hicle to be started @.
2 . Conne ct the othe r end to the pos itive ter -
mina l@ of the booster battery @.
Connect NEGATIVE (-) to NEGATIVE (-)
(black )
3. Co nnect one end o f the b lack neg ative c a­
ble to the nega tive te rmi na l@ of the
booster battery @.
4 . Connect the other end to the
jump start
bolt @
(Bolts with hex head = "negative")
of the vehicle to be started @.
Starting the engine
~ Start the engine of the ve hicle with the
booste r battery @. Run the engine at a
moderate speed.
~ Start engine with d ischarged vehicle battery
® in the usual manner .
~ If the engine fails to start: do not keep t he
starter cran king for lo nger than 10 seconds .
Wait for about 30 seco nds and the n try
aga in.
~ W ith engi ne runni ng, remove jumpe r cab les
from both vehicles in the exa ct
reverse o r­
der .
~ Close the cover on the positive pole .
T he b attery is vented to the o utside to p reven t
gases from en tering the veh icle in ter ior . Ma ke
s ur e that the j umper clamps a re well connect­
e d with their
metal ports in full contact with
the batte ry term inals.
A WARNING
To avoid serious personal injury and dam­
age to the vehicle, heed all warnings and
in structions of the jumper cable ma nufac-
turer . If i n dou bt, call for road servic e.
Ill>

2 76 Em ergency sit uat ions

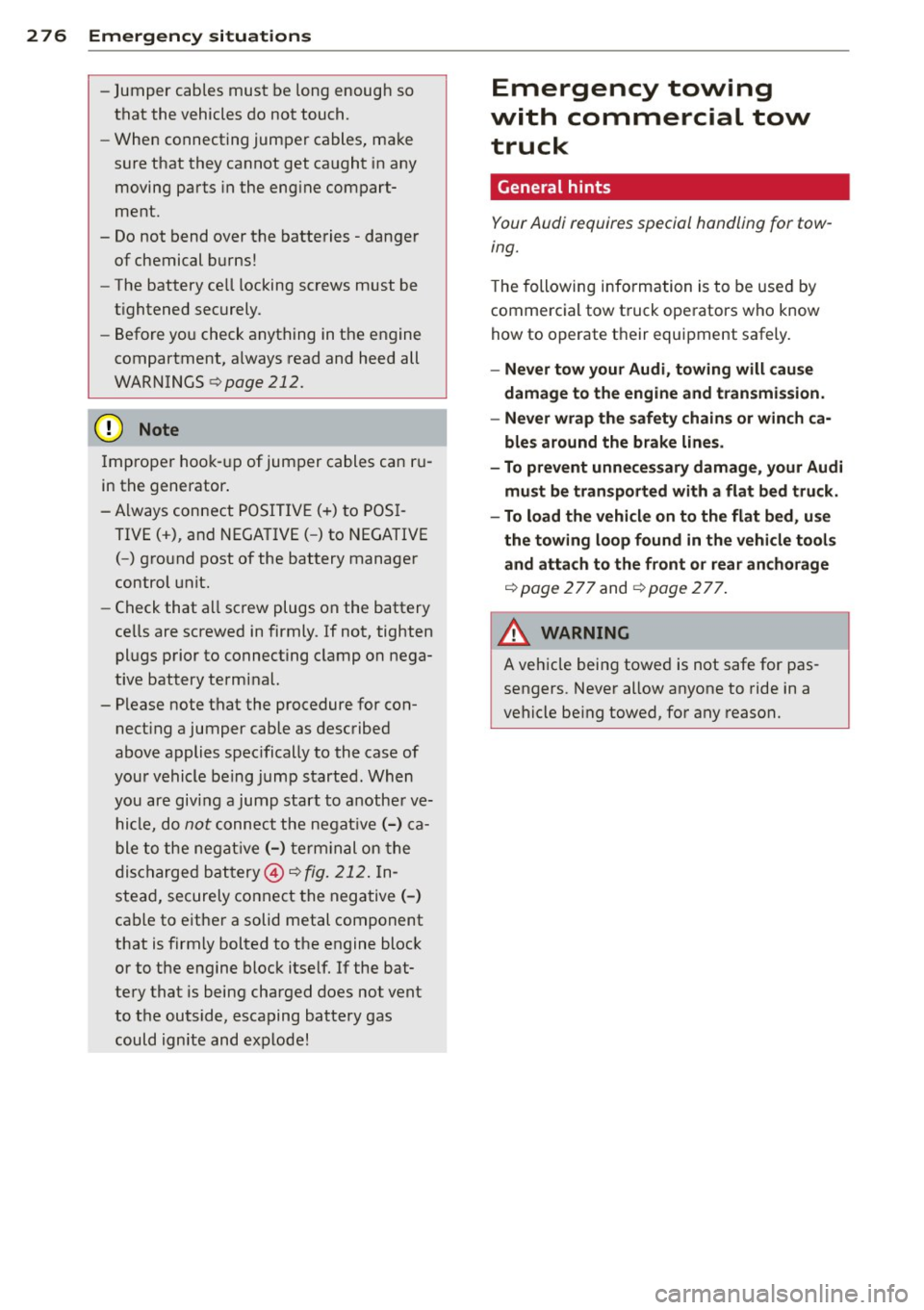

-Jumper cables must be long enough so
that the vehicles do not touch.
- When connecting jumper cables, make
sure that they cannot get caught in any
moving parts in the eng ine compart­
ment.
- Do not bend over the batteries - danger of chemical burns!
- The battery ce ll locking screws must be
tightened securely .
- Before you check anything in the engine
compartment, always read and heed all
WARNINGS
9 page 212.
Improper hook-up of jumper cables can ru ­
in the generator.
- Always connect POSITIVE( +) to POS I­
TIVE(+), and NEGATIVE( -) to NEGATIVE
( - ) ground post of the battery manager
control unit.
- Check that a ll screw plugs on the battery
cells are screwed in firmly . If not, tighten
plugs p rior to connecting clamp on nega­
tive battery terminal.
- Please note that the procedure for con­ nect ing a jumper cable as described
above applies spec ifically to the case of
your vehicle being jump started. When
you are giving a jump start to another ve­ hicle, do
not connect the negat ive( -) ca­
ble to the negat ive (-) term inal on the
discharged battery@)
9fig. 212. In­
stead, securely connect the negative(- )
cable to e ither a solid metal component
that is firm ly bolted to the engine block
or to the engine block itself. If the bat­
tery that is being charged does not vent
to the outside, escaping battery gas
could ignite and explode!
Emergency towing
with commercial tow
truck
General hints
Your Audi requires special handling for tow­
ing.
T he following information is to be used by
commercial tow truck operators who know
how to operate their equipment safely.
- Nev er tow your Audi , towing will cau se
damage to the engine and tr an smi ssion .
- Ne ver wrap th e safety chain s or winch ca­
ble s around the brak e lines.
- To pre vent unne ce ss ary dam age, your Audi
mus t be tr an sp o rt ed with a flat bed tru ck.
- To load th e vehicle on to th e flat b ed, use
the towing l oop found in t he vehicle to ols
a nd att ach to th e front or rea r a nchor age
c;,page 277 and c;,page 277 .
& WARNING
= -
A vehicle being towed is not safe for pas-
sengers. Never allow anyone to ride in a
vehicle being towed, for any reason.
