0 :,,:: co ..... ..... Seats and storage

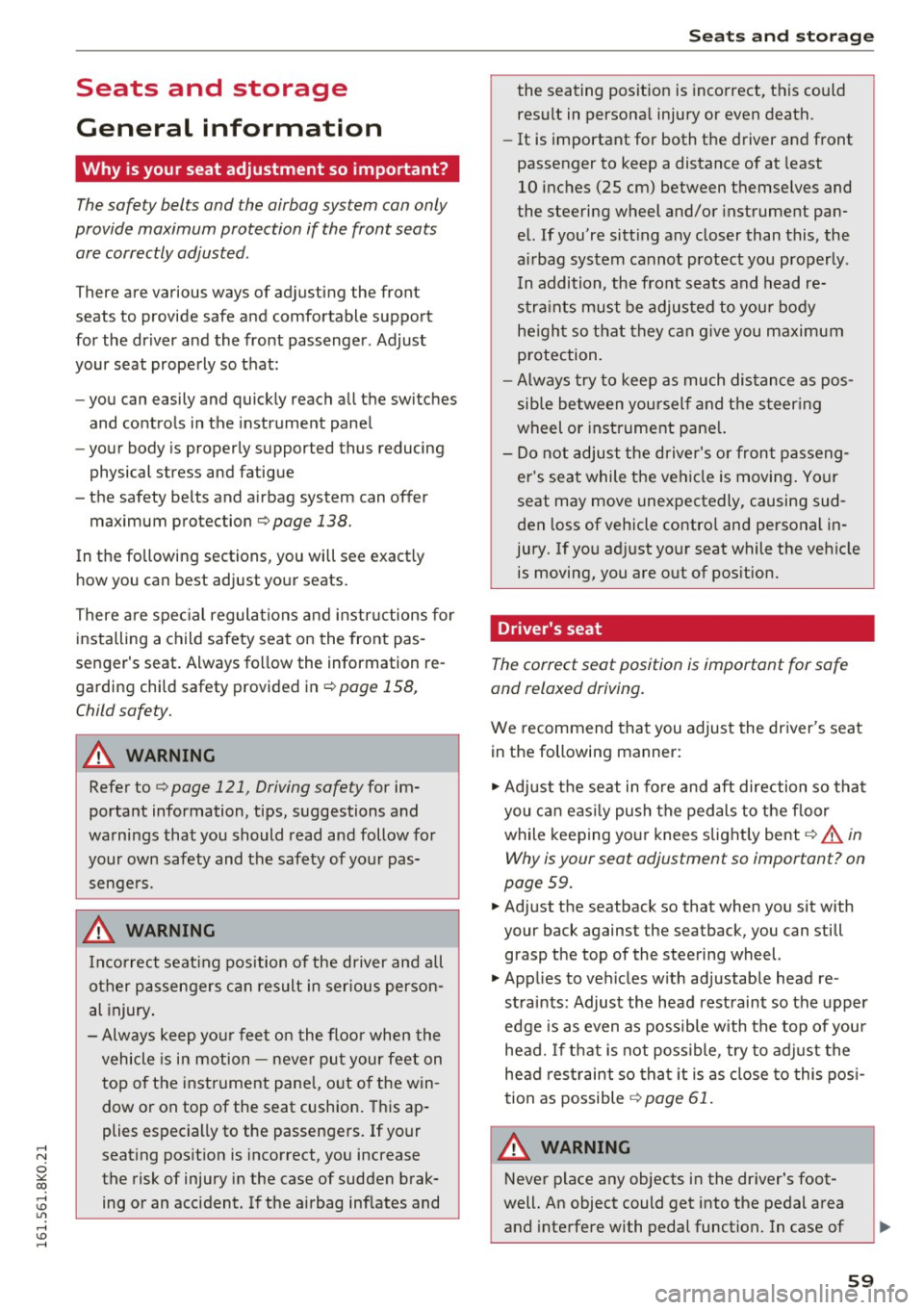

General information
Why is your seat adjustment so important?
The safety belts and the airbag system can only
provide maximum protection if the front seats are corr ectly adjusted.
There are various ways of adjusting the front
seats to provide safe and comfortable support
for the driver and the front passenger. Adjust
your seat properly so that:
- you can easily and quickly reach all the switches
and controls in the instrument panel
- your body is properly supported thus reducing
physical stress and fatigue
- the safety belts and airbag system can offer
maximum protection
Q page 138.
In the following sections, you will see exact ly
how you can best adjust your seats.
There are spec ial regulations and instr uctions for
installing a child safety seat on the front pas­
senger's seat. Always fo llow the information re­
garding child safety provided in
¢page 158,
Child safety.
A WARNING -
Refer to Q page 121, Driving safety for im­
portant information, tips, suggestions and
warnings that you should read and follow for
your own safety and the safety of yo ur pas­
senge rs.
A WARNING
Incorrect seat ing position of the driver and all
other passengers can result in serious person­
al injury .
- Always keep yo ur feet on the floor when the
vehicle is in motion -never pu t your feet on
top of the instrument pane l, out o f the win ­
dow or on top of the seat cushion. This ap­
plies especially to the passengers. If your
seating pos it ion is incorrect, you increase
the risk of injury in the case of sudden brak­
ing or an accident. If the airbag inflates and
Seat s and sto rage
the seating position is incorrect, this could
result in persona l injury or even death.
- It is important for both the driver and front
passenger to keep a distance of at least
10 inches (25 cm) between themselves and
the steering wheel and/or instrument pan­
el. If you're sitt ing any closer than this, the
airbag system cannot protect you properly.
In addition, the front seats and head re­
stra ints must be adjusted to you r body
he ight so that they can g ive you maximum
p rotection.
- Always try to keep as much dis tance as pos­
sible between yourself and the steer ing
wheel or instrument pane l.
- Do not adjust the driver's o r front passeng­
er 's seat while the veh icle is moving . Your
seat may move unexpectedly, causing sud­
den loss of vehicle contro l and personal in­
jury. If you ad just your seat while the veh icle
is moving, you are out of pos ition.
Driver's seat
The correct seat position is important for safe
and relaxed driving.
We recommend that you adjust the dr iver's seat
in the following manner:
.,. Adjust the seat in fo re and aft direction so tha t
you c an ea sil y push the pedals to the floor
while keeping yo ur knees s light ly bent¢ .&.
in
Why is your seat adjustment so important? on
page 59.
.,. Adj ust the seatback so that when you sit with
your back against the seatback, you can still
grasp the top of the steering wheel.
.,. App lies to ve hicles w ith ad justab le head re­
stra ints: Adjust the head rest raint so the upper
edge is as even as possible w ith the top of your
head. If t hat is not possible, try to adjust the
he ad restraint so that it is as close to this pos i­
tion as possible ¢
page 61.
A WARNING ~
Never place any objects in the driver's foot-
well. An object could get into the pedal area and interfere with pedal function. In case of
59

Sea ts and stor age
sudden braking or an accident, you would not
be able to brake or accelerate.

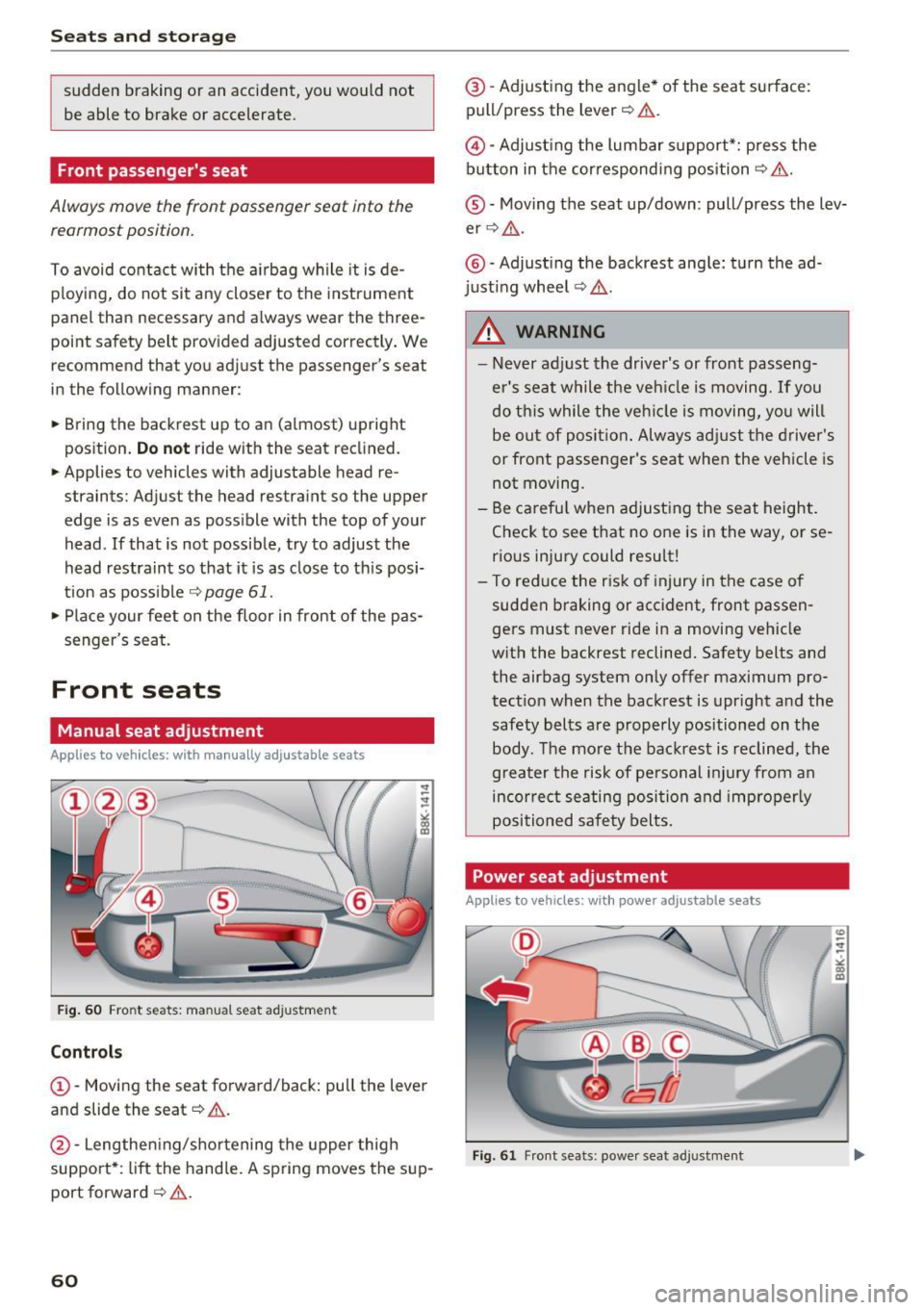

Front passenger's seat
Always move the front passenger seat into the
rearmost position.
To avoid contact with the a irbag while it is de­
p loying, do not sit any closer to the instrument
panel than necessary and a lways wear the three­
point safety belt provided adjusted correctly. We
recommend that you adjust the passenger's seat
in the following manner:
.,. Bring the backrest up to an (a lmost) upright
position .
Do not ride with the seat reclined.
.,. Applies to vehicles with adjustable head re­
straints: Adjust the head restra int so the upper
edge is as even as poss ible with the top of your
head. If that is not possible, try to adjust the
head restraint so that it is as close to th is posi­
tion as poss ible
~ page 61.
.,. Place your feet on the floor in front of the pas­
senger's seat.
Front seats
Manual seat adjustment
App lies to veh icles : with manually adjustable seats
F ig . 60 Fro nt seats: man ual seat adjustment
Controls
@ -Moving the seat forwa rd/back : pull the lever
and slide the seat~&..
@ -Lengthen ing/shortening the upper thigh
suppor t* : lift the handle. A spring moves the sup­
port forward ~.&. .
60
@ -Adjusting the a ngle* of the seat surface:
pull/press the lever ~.&. .
@ -Adjust ing the lumbar support*: p ress the
b utton in the cor responding position~,&.
®-Moving the seat up/down : pull/press the lev­
e r ~ .&. -
@ -Adjusting the backrest ang le: turn the ad­
justing wheel~&. .
& WARNING
-Never adjust the drive r's or front passeng­
er 's seat while the veh icle is moving. If you
do t his while the veh icle is moving, yo u will
be out of posi tion . Always ad just the d river 's
or front passenger's seat when the vehicle is
not moving.
- Be carefu l when adjust ing the seat height.
Check to see that no one is in the way, or se­
rio us injury could result!
- To reduce the risk o f injury in the case of
sudden braking or accident, front passen­
ge rs must never ride in a moving veh icle
with the backrest reclined. Safety belts and
the airbag system only offer maximum pro­
tect ion when the backrest is upr ight and the
safety belts are properly positioned on the body. T he more the backrest is reclined, the
greater the risk of pe rsonal inj ury from an
incor rec t seating posi tion and improperly
posi tioned safety belts.
Power seat adjustment
Applies to vehicles : with power adjustable seats
Fig. 61 Fro nt seats: powe r seat adjustment
-

...... N
0
""' CX)
...... I.Cl U"I
...... I.Cl ......
Controls
@-Adjusting the lumbar support*: press the
button in the corresponding position¢.&. .
@ -Moving the seat up/down: press the button
up/down¢ .&_.
@ -Moving the seat forward/back: press the but­
ton forward/back¢ .&,.
©-Adjusting the backrest angle: press the but­
ton forward/back¢ .&..
©-Raising/lowering* the head restraints: press
the button up/down
c:> .&. .
@ -Lengthening /short ening the uppe r thigh
support*: lift the handle. A spring moves the
front seat cushion forward
c:> .&..
A WARNING
-Never adjust the driver's or front passeng­
er's seat while the vehicle is moving. If you
do this while the vehicle is moving, you will
be out of position. Always adjust the driver's
or front passenger's seat when the vehicle is
not mov ing.
- Be careful when adjusting the seat height.
Check to see that no one is in the way, or se­
rious injury could result!
- Because the seats can be electrically adjust­
ed with the ignition off or with the ignition
key removed, never leave children unattend­
ed in the vehicle. Unsupervised use of the
electric seat adjustments may cause serious
injury.
- To reduce the risk of injury in the case of
sudden braking or accident, front passen­
gers must
never ride in a moving vehicle
with the backrest reclined. Safety belts and
the airbag system only offer maximum pro­
tection when the backrest is upright and the
safety belts are properly positioned on the body. The more the backrest is reclined, the
greater the risk of personal injury from an
incorrect seating posit ion and improperly
positioned safety belts .
-
Seats and storage

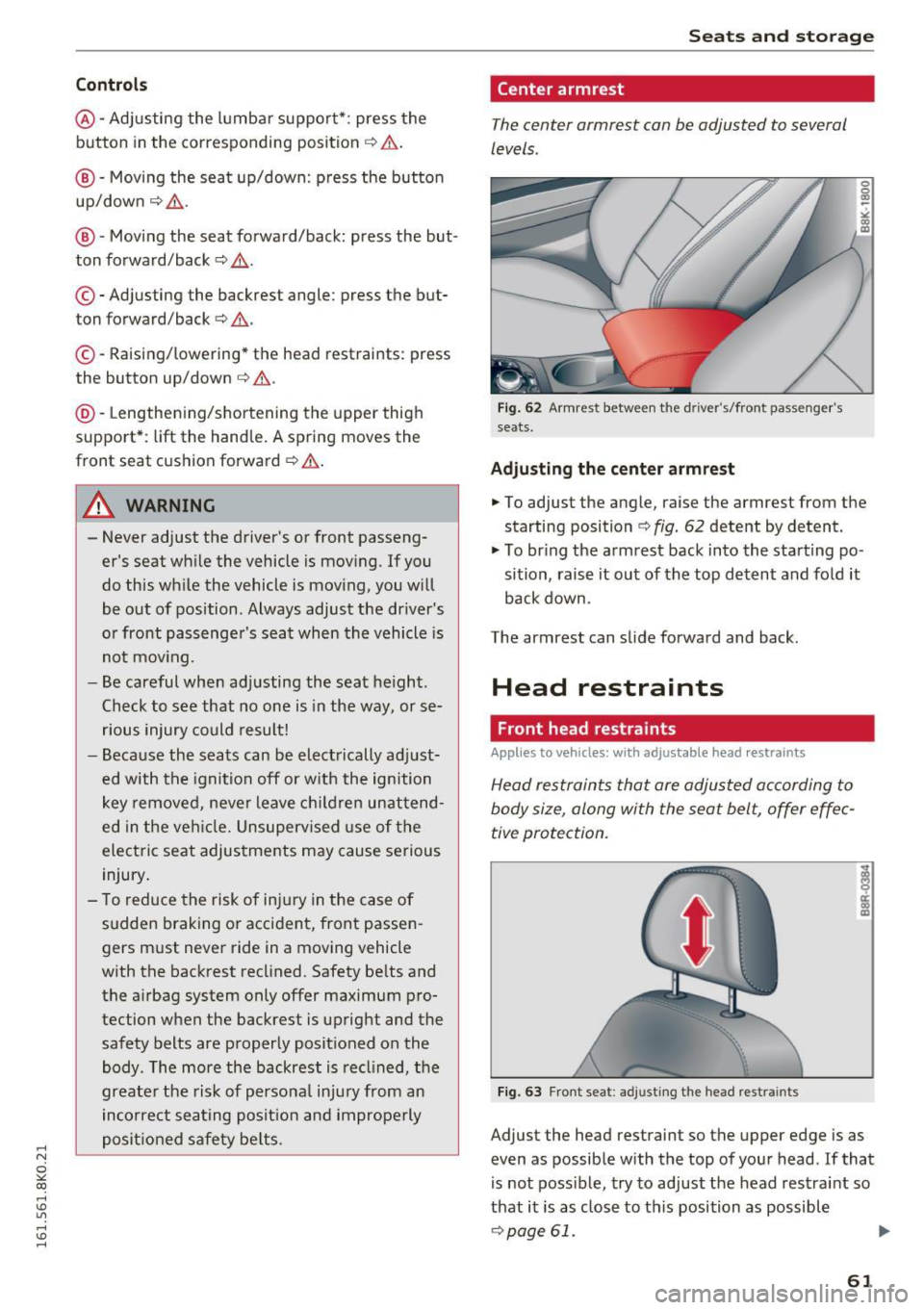

Center armrest
The center armrest can be adjusted to several
levels .
Fig. 62 Armrest between the driver 's/front passenger's
seats.
Adjusting the center armrest
... To adjust the angle, raise the armrest from the
starting position
c:> fig. 62 detent by detent.
... To bring the armrest back into the starting po­
sition, raise it out of the top detent and fold it
back down .
The armrest can slide forward and back.
Head restraints
Front head restraints
Appl ies to vehicles: wi th adjus tab le head restrain ts
Head restraints that are adjusted according to
body size, along with the seat belt, offer effec­
tive protection.
Fig. 63 Front seat: adj usting the head restrain ts
Adjust the head restraint so the upper edge is as
even as possible with the top of your head . If that
is not possible, try to adjust the head restraint so
that it is as close to this position as possible
¢page 61 .
61

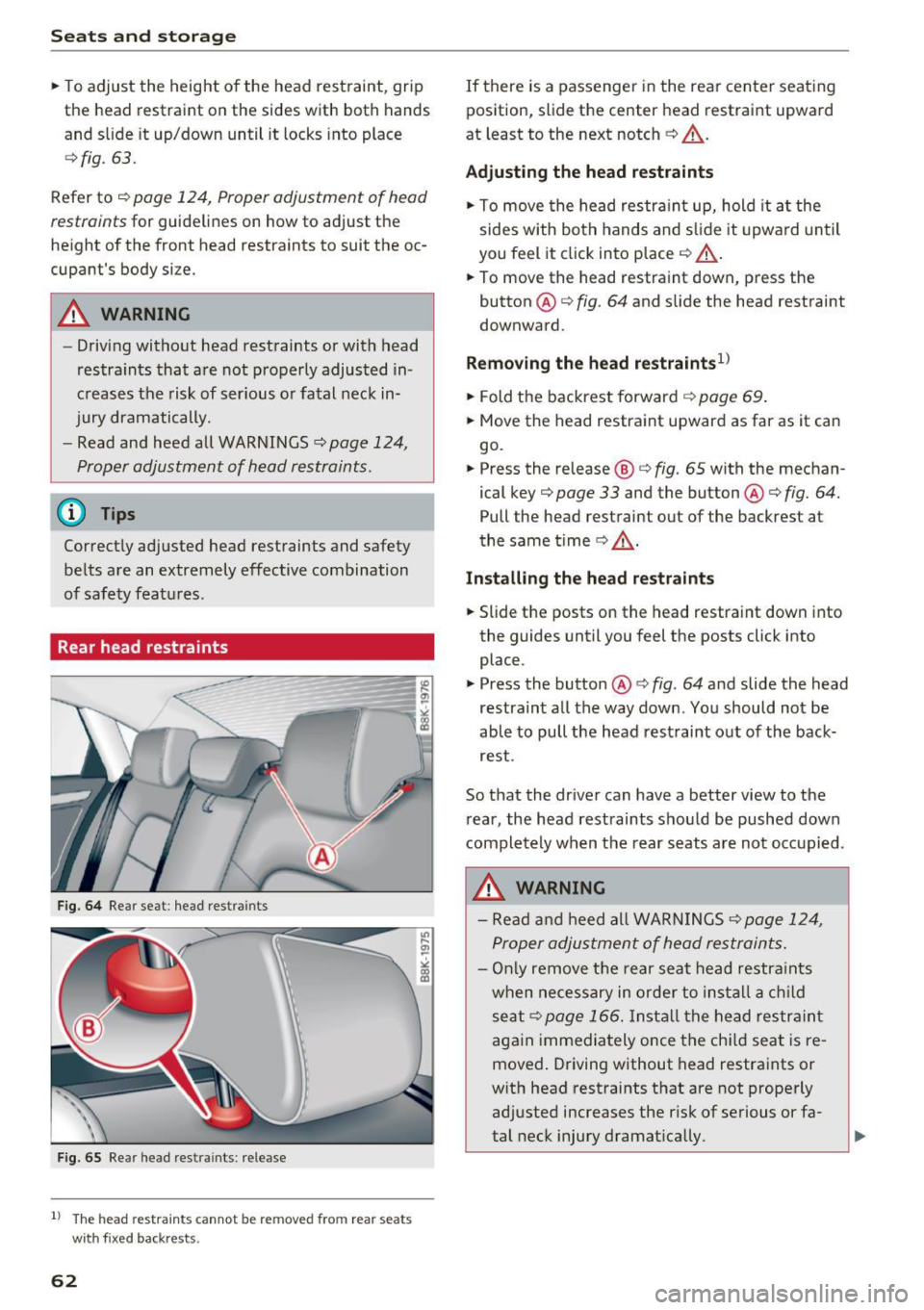

Sea ts and stor age
.,. To adju st the height of the head restraint, grip
the head restraint on the sides with both hands
and s lide it up/down until it locks into place
¢ fig. 63.
Refer to c::> page 124, Proper adjustment of head
restraints
for guidelines on how to adjust the
height of the front head restraints to suit the oc­
cupant's body size.
A WARNING
- Driving without head restraints or with head
restra ints that are not properly adjusted in­
c reases the risk of ser ious or fatal neck in­
jury dramatically.
- Read and heed all WARNINGS
c::>page 124,
Proper adjustment of head restraints.
(D) Tips
Correctly adjusted head restraints and safety
be lts are an extremely effective combination
of safety features .
Rear head restraints
Fig. 64 Rear seat : head restra ints
Fig. 65 Rear head restra ints : release
1l The head restra ints cannot be removed from rear seats
with fixed backrests.
62
If there is a passenger in the rear center seating
position, slide the center head restraint upward
at least to the next notch
c::> &_ .
Adjusting the head re straints
.,. To move the head restraint up, hold it a t the
sides with both hands and s lide it upward until
you feel it click into place
c::> &_ .
.,. To move the head restraint down, press the
button @
c:> fig. 64 and s lide the head restraint
downward .
Removin g the head r estraint s1l
.,. Fold the backrest forward c::> page 69 .
.,. Move the head restraint upward as far as it can
go.
.,. Press the release @
c::> fig. 65 with the mechan­
ical key
c::> page 33 and the button @ c::> fig. 64.
Pull the head restraint out of the backrest at
the same t ime
c::> ,& .
Insta lling the he ad r estraint s
.,. Slide the posts on the head restraint down into
the guides until you feel the posts click into
place .
.,. Press the button @
c::> fig. 64 and slide the head
restraint all the way down. You should not be
ab le to pull the head restraint out of the back­
rest.
So that the driver can have a better view to the rear, the head restraints should be pushed down
completely when the rear seats a re not occ upied.
A WARNING
- Read and heed all WARN INGS c::>page 124,
Proper adjus tment of head restraints.
- On ly remove the rear seat head restra ints
when necessary in order to install a c hild
seat
c::>page 166. Insta ll the head restra int
again immediately once the chi ld seat is re ­
moved . Driving without head restraints or
w ith head restraints that are not properly
ad justed increases the risk of serious or fa­
tal neck injury dramatica lly.

..... N
0 ::..:: co ..... ..... @ Tips
Correctly adjusted head restraints and safety
belts are an extremely effective combination
of safety features .

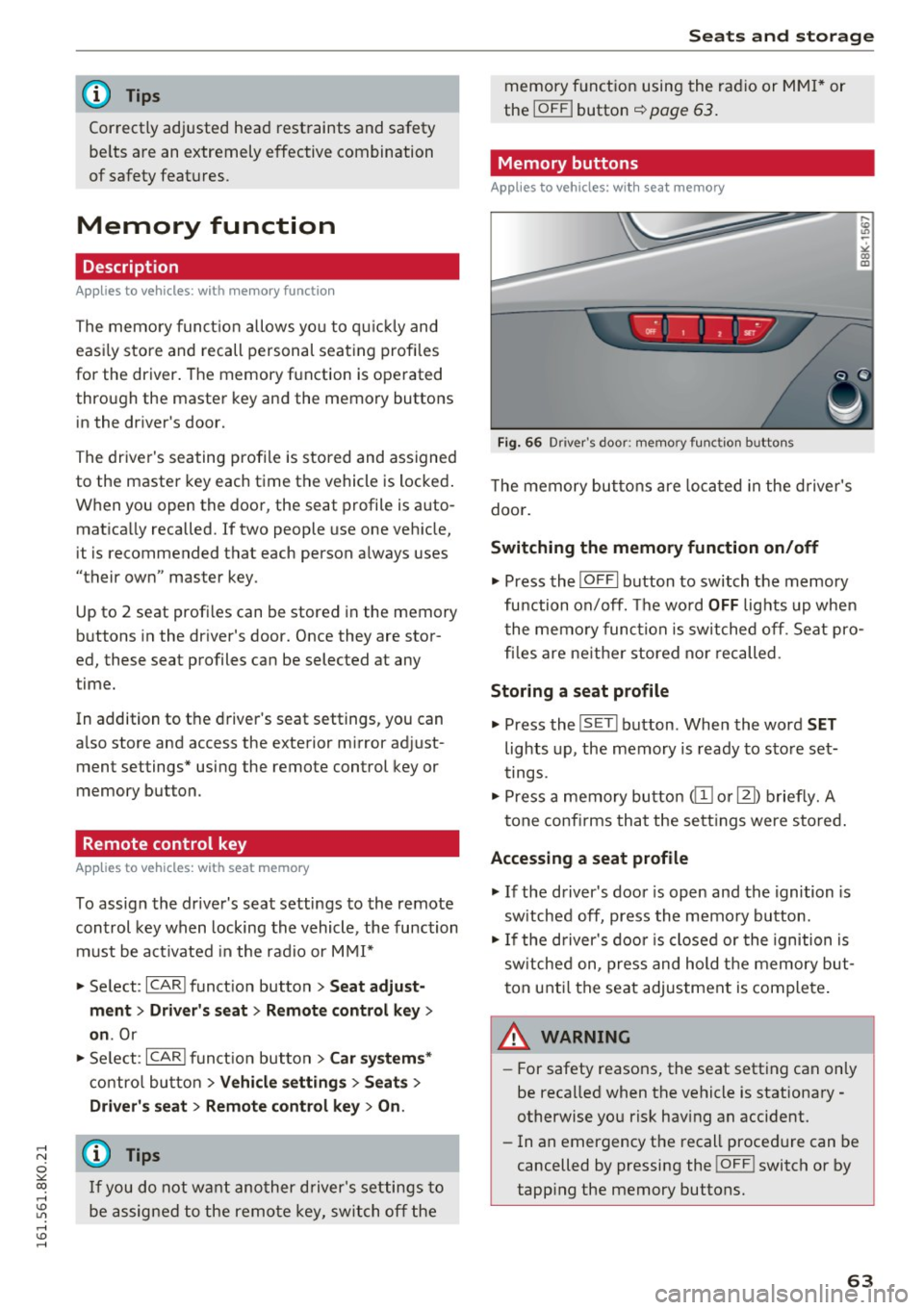

Memory function
Description
Applies to vehicles: with memory function
The memory function allows you to quickly and
easi ly store and recall personal seating profiles
for the driver. The memory function is operated
through the master key and the memory buttons
in the driver 's door.
The driver's seating profile is stored and assigned
to the master key each time the vehicle is locked .
When you open the door , the seat profile is auto­
matica lly recalled. If two people use one vehicle,
it is recommended that each person always uses
" t heir own" master key .
Up to 2 seat profi les can be stored in the memory
buttons in the driver's doo r. Once they are stor­
ed, these seat profiles can be se lected at any
time.
In addition to the driver's seat settings, you can
also store and access the exterior mirror adjust­ ment settings* using the remote control key or
memory but ton.
Remote control key
Applies to vehicles: with seat memory
To assign the driver's seat settings to the remote
control key when locking the vehicle, the function
must be activated in the radio or MMI*
~ Select: I CARI function button > Seat adjust­
ment > Driver's seat > Remote control key
>
on.Or
~ Select: ICARI function button> Car systems*
control button > Vehicle settings> Seats >
Driver's seat> Remote control key > On .
@ Tips
If you do not want another driver's settings to
be assigned to the remote key, switch off the
Seats and storage
memory function using the radio or MMI* or
the
I OF Fl button c:::> page 63.
Memory buttons
Applies to vehicles: with seat memory
Fig. 66 Dri ver's door: memo ry func tion b uttons
The memory buttons are located in the driver's
doo r.
Switching the memory function on/off
~ Press the I OFFI button to switch the memory
fu nction on/off. The wo rd
OFF lights up when
the memory function is switched off. Seat pro­
files are ne ither stored nor recalled .
Storing a seat profile
~ Press the IS E T I button . When the word SET
lights up, the memory is ready to store set­
tings .
~ Press a memory button @or [Ii) briefly. A
tone confirms that the settings were stored.
Accessing a seat profile
~ If the driver's door is open and the ignition is
sw itched off, press the memory button .
~ If the driver's door is closed or the ignition is
sw itched on, press and hold the memory but­
ton until the seat adjustment is complete.
.&_ WARNING
-For safety reasons, the seat setting can only
be recalled when the vehicle is stationary­
otherwise you risk having an accident.
- In an emergency the recall procedure can be
cancelled by pressing the
! O FF ! switch or by
tapp ing the memory buttons.
63

Seats and storage

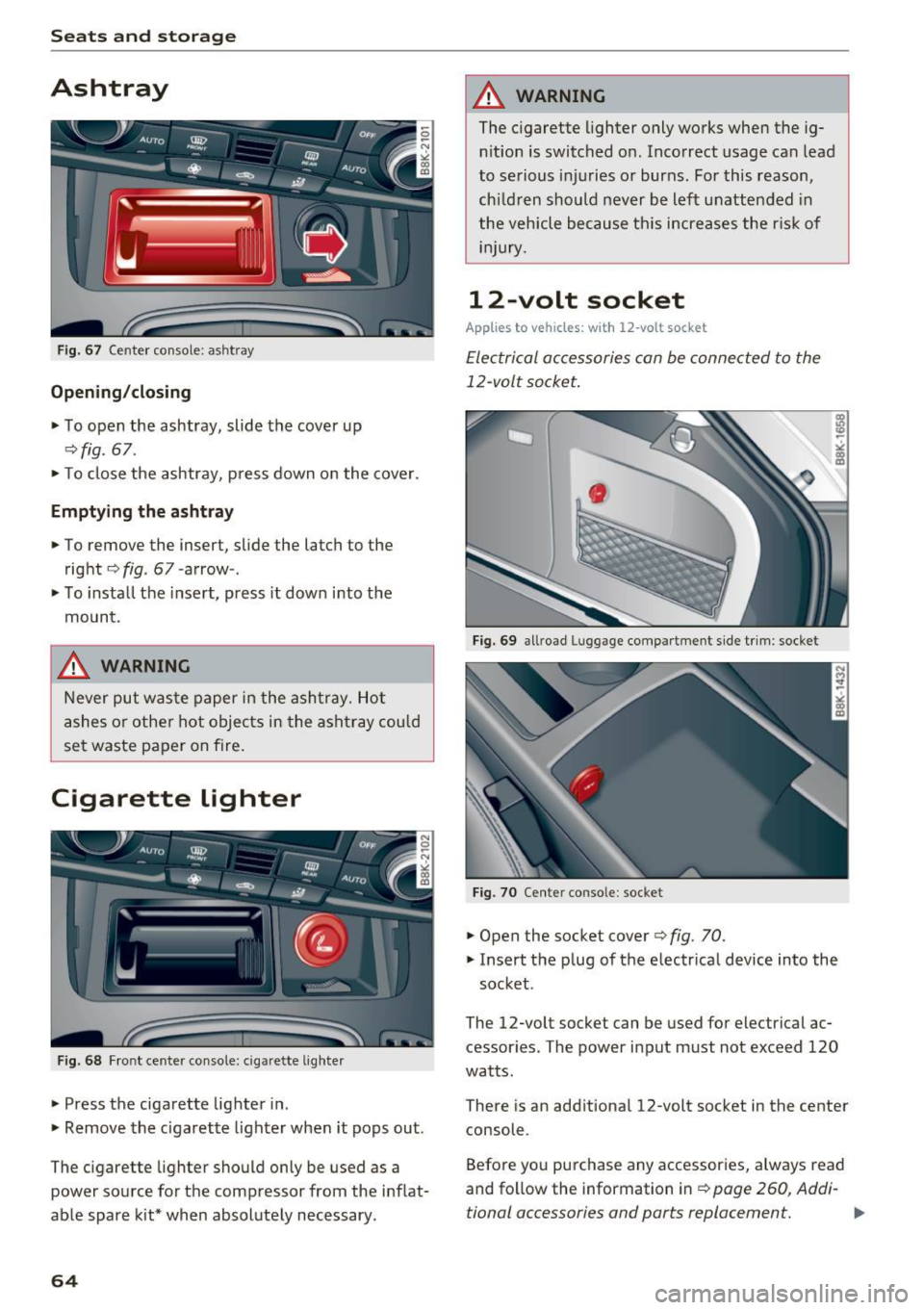

Ashtray
Fig. 67 Center console: as htray
Opening/closing
.,. To open the ashtray, slide the cover up
q fig . 67 .
.,. To close the ashtray, p ress down o n the cover .
Emptying the ashtray
.,. To remove the insert, slide the latch to the
right
<=> fig . 67 -arrow -.
.,. To install the insert, press it dow n into the
mount.
,&. WARNING
-
Never put waste paper in the ashtray. Hot
ashes or other hot objects in the ashtray could
set waste paper on fire.
Cigarette lighter
Fig. 68 Front cente r console: c igarette l ighte r
.,. Press the cigarette lighter in.
.,. Remove the cigarette lighter when it pops out .
The cigarette lighter should only be used as a
power source for the compressor from the inflat­
able spare kit* when absolutely necessary .
64
,&. WARNING
The cigarette lighter only works when the ig­
nition is switched on. Incorrect usage can lead
to serious injuries or burns. For this reason,
ch ildre n should never be left unattended in
the vehicle because this increases the ris k of
in jur y.
12-volt socket
Appl ies to vehicles: with 12-volt socket
Electrical accessories can be connected to the
12-volt socket.
Fig. 69 allroad Lu ggage compartment side trim: socket
Fig. 70 Cente r conso le : socket
.,. Open the socket cover¢ fig. 70 .
.,. Insert the plug of the electrical device into the
socket .
The 12-volt socket can be used for electrical ac­
cessor ies. The power input must not exceed 120
watts .
There is an additiona l 12-volt socket in the center
console.
Before you purchase any accessories, always read
and follow the information in¢
page 260, Addi-
tional accessories and ports replacement. .,,_

,....,
N
0
""' CX) ,....,
I.Cl U"I ,....,
I.Cl ,....,

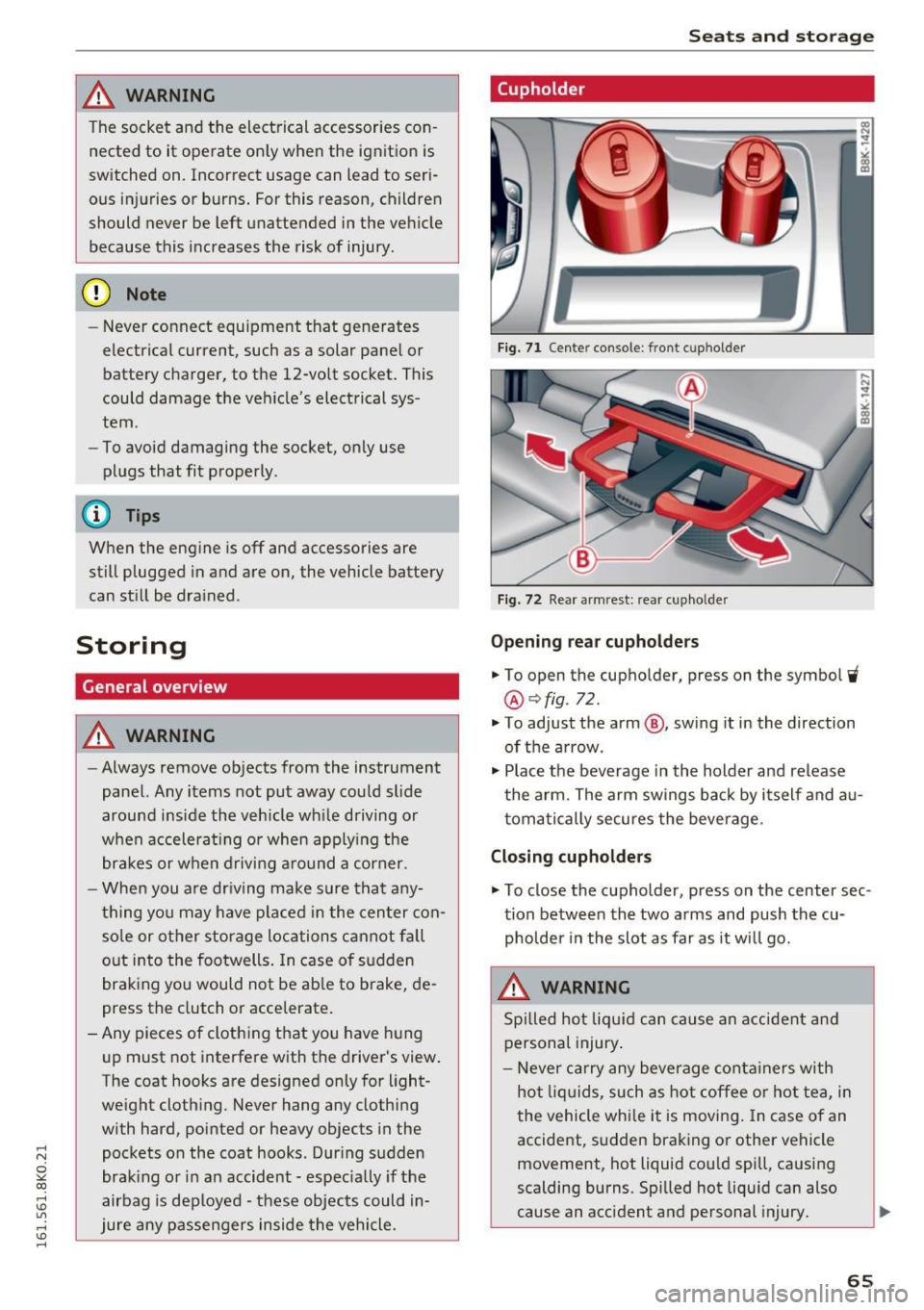

/! WARNING
The socket and the electrical accessories con­
nected to it operate on ly when the ignition is
switched on. Incorrect usage can lead to seri­
ous injuries or burns. For this reason, children
should never be left unattended in the veh icle
because this increases the risk of injury.
0 Note
- Never connect equ ipment that gene rates
electrical current, such as a solar pane l or
battery charger, to the 12-volt socket. This
could damage the ve hicle's electrical sys ­
tem .
- To avoid damag ing the socket, only use
plugs that fit properly .
@ Tips
When the engine is off and accessories are
still plugged in and are on, the vehicle battery
can sti ll be dra ined .
Storing
General overview
A WARNING
-Always remove objects from the instrument
panel. Any items not pu t away cou ld slide
around inside the vehicle wh ile driving or
when accelera ting or when app ly ing the
bra kes or w hen driv ing around a corner.
- When you are dr iv ing make sure that a ny­
t hing yo u may have pla ced i n the cen ter con­
so le or other sto rage locations cannot fall
o ut into the footwells . In case of s udden
brak ing you would not be ab le to brake, de­
press the clutch or accelerate .
-Any pieces of clothing that yo u have hung
up must not interfere with the driver's view .
The coat hooks are designed only for light­
weight cloth ing . Never hang any clothing
with hard , pointed or heavy objects in the
pockets on the coat hooks . Dur ing sudden
brak ing or in an accident -especially if t he
airbag is deployed -these objects could in­
jure any passengers inside the vehicle.
Seats and storag e
(upholder
Fig. 71 Cen te r conso le : fr ont cuph older
Fig. 72 Rea r a rmrest: rear cupho lder
Opening rea r cupholders
.. To open the cupho lder, press on the symbol ii
® qfig . 72 .
.. To adjust the arm @, sw ing it in the direction
of t he a rrow .
.. Place t he beverage in the holder and release
the arm. The arm swings bac k by i tself and a u­
t oma tically secures the beve rage.
Closing cupholders
.. To close the cupholder, press on the center sec ­
tion between the two arms and push the cu­
pho lder in the slot as far as it wi ll go.
A WARNING
Spi lled ho t liqu id can cause an accident an d
personal injury .
- Never carry any beverage c ontai ners w ith
hot liq uids, such as hot coffee or hot tea, in
t he vehicle whi le i t is movi ng. In case of an
accide nt, sudden brak ing o r other ve hicle
movement, hot liquid co uld spill , ca using
scalding burns. Spilled hot liqu id can also
cause an accident and personal injury.
65

Sea ts and stor age
- Use only soft cups in the cupholder. Hard
cups and g lasses can cause injury in an acci­
dent.
- Never use the cupholder or adapter as an
ashtray -risk of fire.
(D Note
On ly drink containe rs with lids should be car"
r ied in the cupholder . Liquid co uld spill out
and damage your vehicle's electronic equip­
ment or stain the upho lstery, etc.
Glove compartment
The glove compartment is illuminated and can
be lo cked .
Fig. 73 Glove compar tment
M M ., ~ ' ,.:
"' IX)
• To open the glove compartment, pull the han­
dle in the direct ion of the arrow¢
fig. 73 and
swing the cove r down to open .
• To close the g love compartment , pus h the
glove compartment lid upwa rd unt il the lock
engages .
The glove compartment can be locked using the
mechan ical key ¢
page 33.
On the right side in the glove compa rtment is a
holder with the key body into which the emerge n­
cy key m ust be cl ipped to be able to start the ve­
hicle.
A WARNING
To red uce the risk of personal injury in an acc i­
dent or sudden stop, always keep the glove
compartment closed wh ile driving.
66
Additional storage
There a re a variety of storage compartments and
fasteners in var ious places in the veh icle .
- In the roof head liner above t he rearview m irror .
- On the back of the fron t seat . The compart-
ment can hold a maximum we ight of 1 kg .
- On the left and right of the luggage compart­
ment, beh ind the side trim .
- Garment hooks on the pillars in the rear of the
vehicle .
.,&. WARNING
- When driving, do not leave any hard objects
on the rear window shelf o r allow your pet
to sit on the shelf . They co uld become a haz­
ard for vehicle occupants in the event of
sudden b raking or a crash .
- Always remove objects from the instr ument
panel. Any items no t stored co uld slide
aro und inside t he vehi cle while drivi ng or
when acce le rating or when a pplying the
brakes or when dr iving around a corner.
- When you are driving make sure that any­
thing you may have placed in the center con­
sole or other storage locations cannot fa ll
out into the footwells. In case of sudden
braking you wo uld not be able to brake or
accelerate.
- Any articles of clothing that you have hung up must not interfere with the driver 's view .
The coat hooks are designed on ly for light­
we ight clothing . Never ha ng a ny clot hing
w it h ha rd, pointed o r heavy ob jects in the
pockets on t he coa t hooks. Du ring sudden
braking or in an acciden t -espe cially if the
ai rbag is deployed -these ob jects cou ld in­
jure any passengers inside the veh icle .
- To reduce the r is k of person al injury i n an
accident or sudden stop, always keep the
glove compartment closed while dr iving.
- Re ad a nd follow alt WARN INGS
¢ page 154, Important safety instructions
on the side airbag system .
-Hang clothes in such a way tha t they do not
impair the drive r's vision . ,...

,....,
N
0
""' CX) ,....,
I.Cl U"I ,....,
I.Cl ,....,

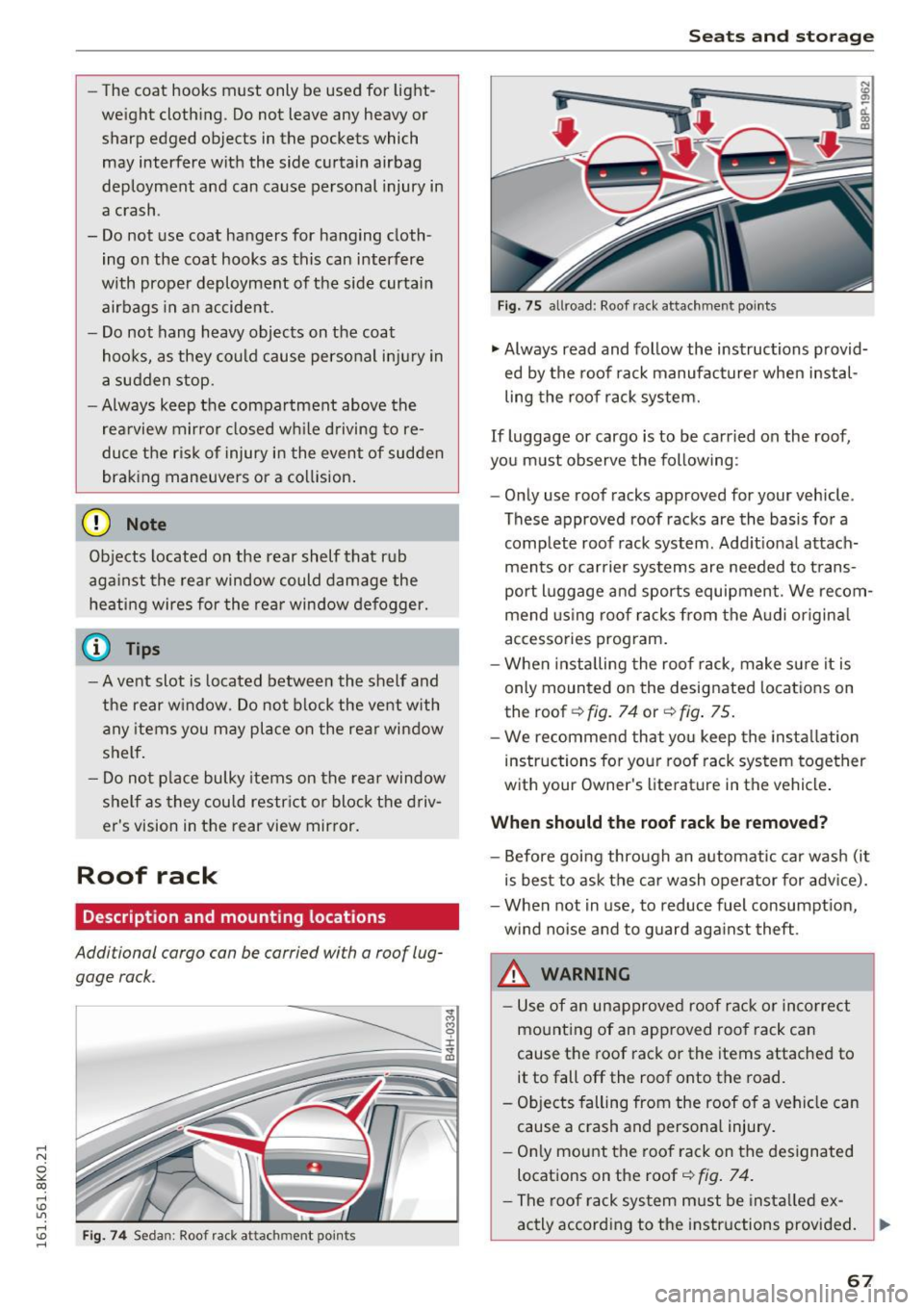

-The coat hooks must only be used for light­
weight clothing . Do not leave any heavy or
sharp edged objects in the pockets which
may interfere with the side curtain airbag
deployment and can cause personal injury in
a crash .
- Do not use coat hangers for hanging cloth­ ing on the coat hooks as this can interfere
with proper deployment of the side curtain
airbags in an accident.
- Do not hang heavy objects on the coat
hooks, as they could cause personal injury in
a sudden stop.
-Always keep the compartment above the
rearview mirror closed while driving to re­
duce the risk of injury in the event of sudden
braking maneuvers or a collision.
0 Note
Objects located on the rear shelf that rub
against the rear window could damage the
heating wires for the rear window defogger.
(j) Tips
-A vent slot is located between the shelf and
the rear window. Do not block the vent with
any items you may place on the rear window
shelf.
- Do not p lace bulky items on the rear window
shelf as they could restrict or block the driv­
er's vision in the rear view mirror.
Roof rack
Description and mounting locations
Additional cargo can be carried with a roof lug­
gage rack .
Fig. 74 Sedan: Roof rack a ttac hm en t poin ts
Seats and storage
Fig. 75 allroad : Roof rack attachme nt points
"'Always read and follow the instructions provid­
ed by the roof rack manufacturer when instal­
ling the roof rack system.
If luggage or cargo is to be carried on the roof,
you must observe the following :
- Only use roof racks approved for your vehicle .
These approved roof racks are the basis for a
complete roof rack system . Add it ional attach­
ments or carrier systems are needed to trans­
port luggage and sports equipment. We recom­
mend using roof racks from the Audi original
accessories program.
- When insta lling the roof rack, make sure it is
only mounted on the designated locations on
the roof
r::!> fig. 74 or r::!> fig. 75.
- We recommend that you keep the installation
instructions for your roof rack system together
with your Owner's literature in the vehicle .
When should the roof rack be removed?
-Before going through an automatic car wash (it
is best to ask the car wash operator for advice).
- When not in use, to reduce fuel consumption,
wind noise and to guard against theft .
_&. WARNING
- Use of an unapproved roof rack or incorrect
mounting of an approved roof rack can
cause the roof rack or the items attached to
it to fall off the roof onto the road.
- Objects falling from the roof of a vehicle can
cause a crash and personal injury.
- Only mount the roof rack on the designated
locations on the roof
r::!> fig. 7 4.
- The roof rack system must be install ed ex-
actly according to the instructions provided. ..,.
67

Seat s and sto rage

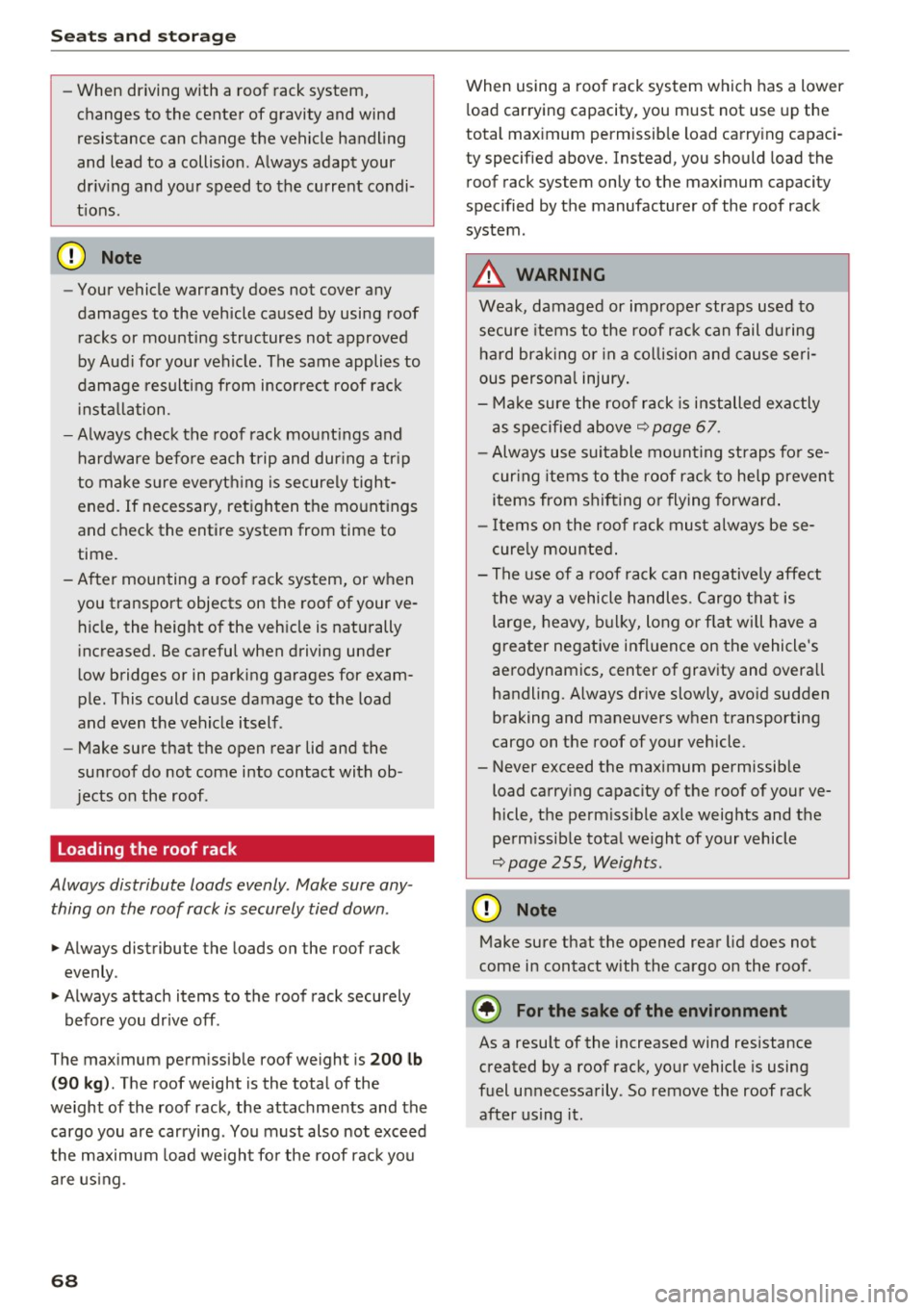

-When driving with a roo f rack system,
changes to the center of gravity and wind
resistance can change the vehicle handling
and lead to a collision . A lways adapt your
dr iv ing and your speed to the current condi·
t ions .
{U) Note
- Your vehicle warranty does not cover any
damages to the vehicle caused by using roof
racks or mounting structures not approved
by Aud i for your vehicle . The same applies to
damage resulting from incorrect roof rack i nst allation .
- Always check the roof rack mount ings and
hardware befo re each trip and dur ing a tr ip
to make s ure everyt hing is securely tight­
ened.
If necessary, ret ighten the mo unt ings
and check the entire system from time to
time.
- After mounting a roo f rack system, or when
you transport objects on the roof of your ve­
hicle, the height of the veh icle is naturally
i nc reased. Be careful when driving under
l ow bridges or in parking garages for exam­
ple . This could cause damage to the load
and even the vehicle itself.
- Make sure that the open rear lid and the
su nroof do not come into contact with ob·
j ects on the roof .
Loading the roof rack
Always distribute loads evenly. Make sure any ­
thing on the roof rack is securely tied down .
"'Always distribute the loads on the roof rack
evenly .
"' Always attach items to the roof rack securely
before you dr ive off .
The max imum perm issible roo f weight is
2 00 lb
( 90 kg ).
The roof weight is the total of the
weight of the roof rack, the attachme nts and the
cargo you are carrying . You must also not exceed
the maximum load weight fo r the roof rack yo u
a re using.
68
When using a roof rack system wh ich has a lower
l oad carrying capacity, you must not use up the
total max imum permissib le load carry ing capac i­
ty specified above. Instead, you should load the
roof rack sys tem only to the maximum capacity
specified by the manufacturer of the roof rack
system.
A WARNING
Weak, damaged or improper straps used to
secure items to the roof rack can fail du ring
hard brak ing or in a collision and cause seri­
ous persona l injury .
- Ma ke sure the roof rack is i nstalled exactly
as spe cified above
~ page 67 .
-Always use suitable mo unt ing straps fo r se·
cur ing items to the roof ra ck to help preven t
items from sh ifting or flying forward .
- Items on the roof rack must a lways be se·
cure ly mounte d.
- The use of a roof rack can negative ly affect
the way a vehicle handles . Cargo that is
large, heavy, b ulk y, long or flat w ill have a
greater negative influence on the vehicle's
aerodynamics, center of grav ity and overa ll
handling . Always drive slowly, avoid sudden
braking and maneuvers when transporting
cargo on the roof of your vehicle .
- Never exceed the maximum permissib le
load carry ing capacity of the roof of your ve­
hicle, the perm iss ible axle weights and the
perm iss ible total we ight of your vehicle
~ page 255, Weights.
(D Note
Make sure that the opened rear lid does not
come in contact with the cargo on the roof .
@ For the sake of the environment
As a result of the increased wind resistance
created by a roof rack, your vehicle is using
fuel unnecessarily . So remove the roof rack
after using it .
-
