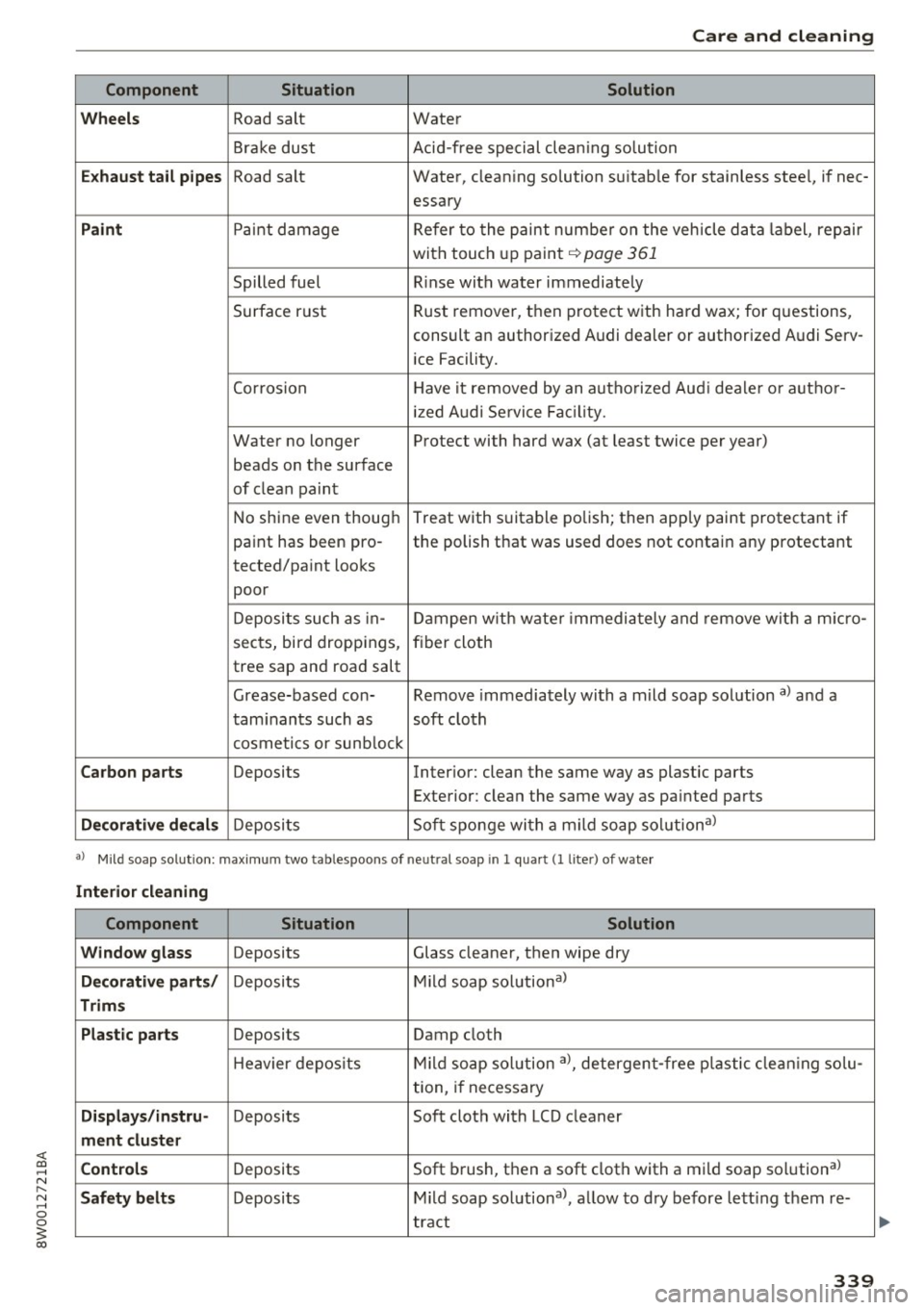

Care and cleaning
Component Situation Solution
Wheels
Road salt Water
Brake dust Acid-free special clea ning solution
Exhaust tail pipes Road salt Water, cleaning solution su itab le for stainless steel, if nee-
essary
Paint Paint damage Refer to the paint number on the vehicle data label, repair
with touch up paint
qpage 361
Spilled fuel Rinse with water immediately
Surface rust Rust remover, then protect with hard wax; for questions,
consult an authorized Audi dealer or authorized Audi Serv- ice Facility.
Cor rosion Have it removed by an autho rized Aud i dealer or author-
iz ed A udi Service Fac ility.
Water no longer Protect with hard wax (at least twice per year)
beads on the surface
of clean paint
No shine even thoug h Treat with suitable polish; then apply paint protectant if
paint has been pro- the polish that was used does not contain any protectant
tected/paint looks poor
Deposits such as in-
Dampen with wate r immedia tely and remove wit h a m icro-
sects, bi rd droppings, fiber cloth
tree sap and road salt
Grease-based con- Remove immediately with a mild soap solution
a) and a
taminants such as soft cloth
cosmetics or sunblock
Carbon parts Deposits Interior: clean the same way as plastic parts
Exterior: clean the same way as pa inted parts
Decorative decals Deposits Soft
sponge with a m ild soap solutional
a) Mild soap solut ion: max imum two tab lespoons of ne utral soap in 1 quart (1 lite r) of wate r
Interior cleaning
Component Situation Solution
Window glass
Deposits Glass cleaner, then wipe dry
Decorative parts/ Deposits Mi
ld soap solutiona>
Trims
Plastic parts
Deposits Damp cloth
H eavier deposits Mild
soap solution a>, detergent-free p lastic cleaning solu-
tion, if necessary
Displays /instru-Deposits Soft cloth with LCD cleaner
ment cluster
Controls
Deposits Soft
brush, then a soft cloth with a mild soap solutiona>
Safety belts Deposits Mild soap solutiona>, allow to dry before letting them re-
tract
339

Care and cleaning
Component Situation Solution
Te xtil es
Deposits adhering to Vacuum cleaner
a rt ifici al le ather , the surface
Alcant ara Water-based deposits Absorben
t cloth and mild soap solutiona>
such as coffee, tea,
blood, etc.
O il-based deposits Apply a m ild soap solution a), blot away the dissolved oil or
such as oil, make-up, dye with an absorbent towel and treat afterward with wa-
etc. ter, if necessary.
Special deposits such Special stain remover, b lot with absorbent material, treat
as ink, na il polish, la- afterward with mild soap solution, if necessary a).
tex paint, shoe pol-
ish, etc.
Natural leather Fresh stains Cotton cloth with a mi
ld soap solutiona>
Water-based deposits Fresh sta ins : absorbent cloth
such as coffee, tea, Dried sta ins: stain remover suitable fo r leather
blood, etc.
Oil-based deposits Fresh stains: absorbent cloth and stain remover suitable
such as oil, make-up, for leather
etc. Dried sta ins : grease dissolv ing spray
Special deposits such Spot remover suitab le for leather
as ink, nai l polish, la -
tex paint, shoe pol-
ish, etc.
Ca re Regularly apply cond ition ing cream that protects from
light and penet rates into the materia l. Use specia lly-co l-
ored conditioning cream, if necessary.
Carbon parts Deposits clean the same way as plastic parts
a) Mild soap solution: maximum two tablespoons of neutral soap in 1 quart (l liter) of water
_& WARNING
The windshie ld may not be trea ted with wa­
ter-repelling windshield coating agents. Un­
favorable conditions s uch as wetness, dark­
ness, or low sun can result in increased glare .
Wiper blade chatter is also possible.
(D Note
- Headlights/tail light s
-Never clean headlights or tail lights with a
dry cloth or sponge.
- Do not use any cleaning product that con­
tains alcohol, because they could cause
cracks to form.
- Wheels
340
-
- Never use any paint polish or other abra­
sive materials.
- Damage to the protect ive layer on the
rims such as stone chips or scratches must
be repaired immediately.
- Sensors /camera lenses
- Neve r use wa rm or ho t wa ter to remove
snow or ice from the camera lens . This
could cause the lens to crack .
- Neve r use ab rasive cleaning materials or
a lcohol to clea n the camera lens . This
could cause scratches and cracks .
-Doo r window s
-Remove snow and ice on windows and ex-
terior mirrors with a plast ic scraper. To

<( a, .... N ,....
N .... 0 0
3 a,

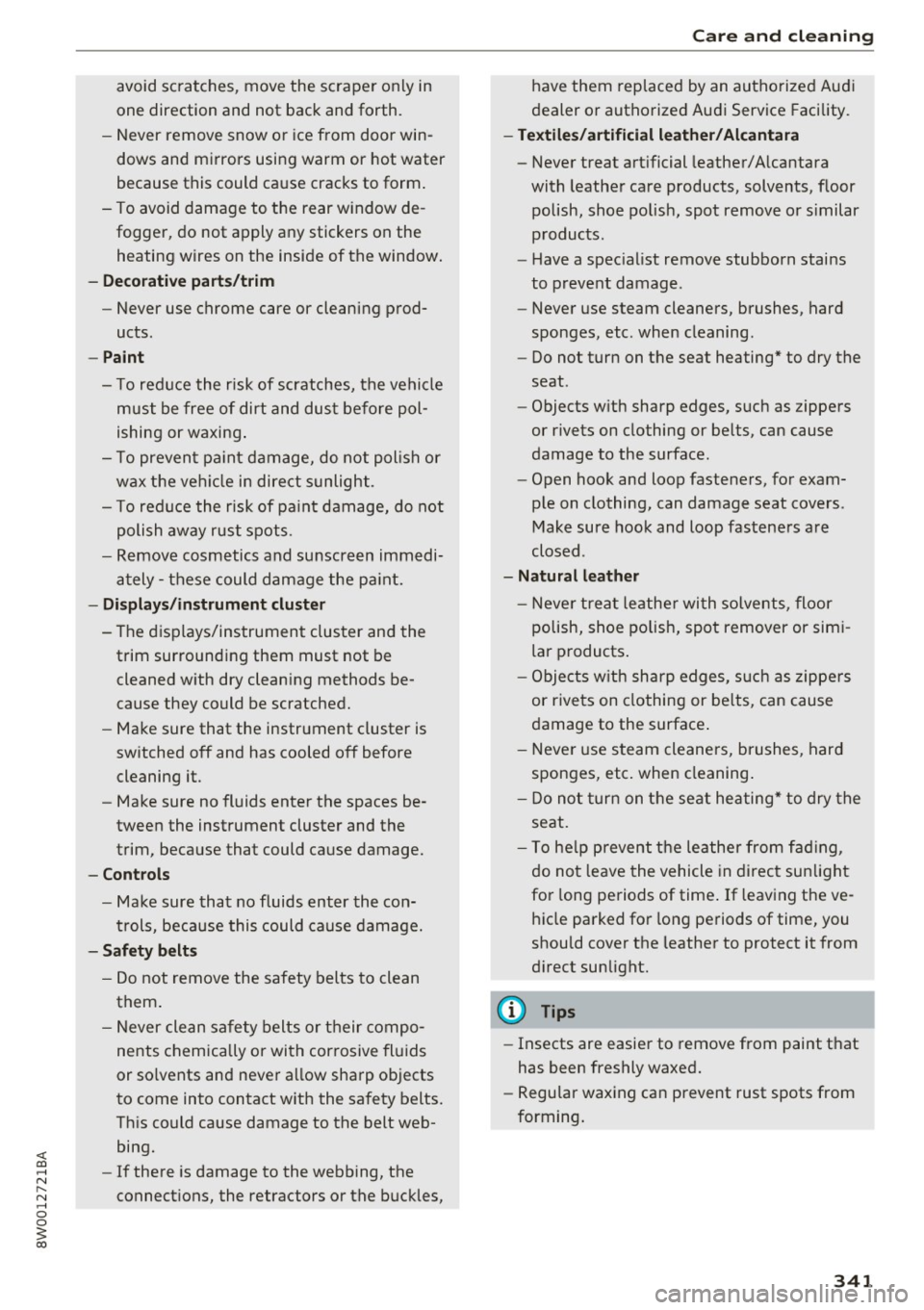

avoid scratches, move the scraper only in
one direction and not back and forth.
- Never remove snow or ice from door win­
dows and mirrors using warm or hot water
because this could cause cracks to form.
- To avoid damage to the rear window de­
fogger, do not apply any stickers on the
heating wires on the inside of the window.
- Decorative part .s/trim
- Never use chrome care or cleaning prod-
ucts .
- Paint
- To reduce the risk of scratches, the vehicle
must be free of dirt and dust before pol­
ishing or waxing .
- To prevent paint damage, do not polish or
wax the vehicle in direct sunlight .
- To reduce the risk of paint damage, do not
polish away rust spots.
- Remove cosmetics and sunscreen immedi­
ately- these could damage the paint.
- Displays/instrument cluster
- The displays/instrument cluster and the
trim surrounding them must not be
cleaned with dry cleaning methods be­
cause they could be scratched.
- Make sure that the instrument cluster is
switched off and has cooled off before
cleaning it.
- Make sure no fluids enter the spaces be­
tween the instrument cluster and the
trim, because that could cause damage.
- Controls
- Make sure that no fluids enter the con-
trols, because this could cause damage.
- Safety belts
- Do not remove the safety belts to clean
them.
- Never clean safety belts or their compo­
nents chemically or with corrosive fluids
or solvents and never allow sharp objects
to come into contact with the safety belts.
This could cause damage to the belt web­ bing.
- If there is damage to the webbing, the
connections, the retractors or the buckles,
Care and cleaning
have them replaced by an authorized Audi
dealer or authorized Audi Service Facility.
- Textiles/artificial leather/ Alcantara
- Never treat artificial leather/Alcantara
with leather care products, solvents, floor
polish, shoe polish, spot remove or similar
products.
- Have a specialist remove stubborn stains
to prevent damage.
- Never use steam cleaners, brushes, hard
sponges, etc . when cleaning.
- Do not turn on the seat heating* to dry the
seat .
- Objects with sharp edges, such as zippers
or rivets on clothing or belts, can cause
damage to the surface.
- Open hook and loop fasteners, for exam­
ple on clothing, can damage seat covers .
Make sure hook and loop fasteners are
closed .
- Natural leather
- Never treat leather with solvents, floor
polish, shoe polish, spot remover or simi­
lar products.
- Objects with sharp edges, such as zippers
or rivets on clothing or belts, can cause
damage to the surface .
- Never use steam cleaners, brushes, hard
sponges, etc. when cleaning.
- Do not turn on the seat heating* to dry the
seat.
- To help prevent the leather from fading,
do not leave the vehicle in direct sunlight
for long periods of time. If leaving the ve­
hicle parked for long periods of time, you
should cover the leather to protect it from
direct sunlight.
(D Tips
- Insects are easier to remove from paint that
has been freshly waxed.
- Regular waxing can prevent rust spots from
forming.
341

Care and cleaning

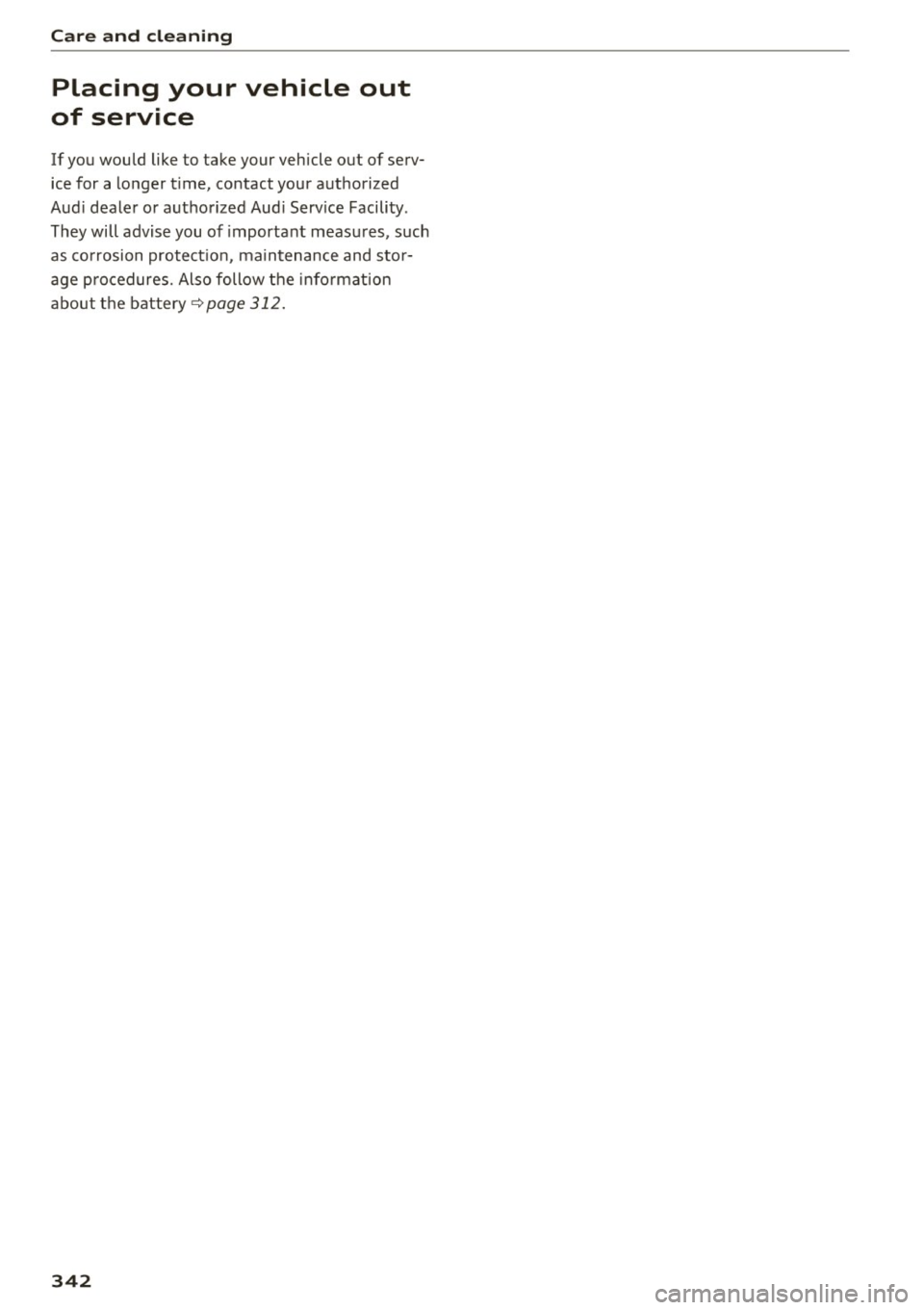

Placing your vehicle out
of service
If you would like to take your vehicle out of serv­
ice for a longer t ime, contact your authorized
Aud i dealer or a uthorized Aud i Serv ice Facility .
They will advise you of important measu res, such
as co rrosion protectio n, main tenance and sto r­
age p rocedures. Also follow the i nfo rmation
about the battery
~ page 312.
342

Emergency assistance
Trunk escape latch
In case of an emergency, the rear lid can be
opened from the inside using the trunk escape
latch.
Fig. 257 Luggage compartment: Trunk escape latc h
• Push the latch in the direction of the arrow un­
t il the lock releases.
The trunk escape latch ins ide the rear lid is made
of fluorescent material to glow in the dark.
_& WARNING
The trunk escape latch is to be used only in an
emergency .
@ Tips
The emergency release lever should never be
used as a handle fo r closing the luggage com­
par tment l id.
General information
• Park the vehicle as far as poss ible from moving
t raff ic in the event of a breakdown . In the event
of a flat tire , park the vehicle on a leve l surface .
It you are on a steep hill, be especially careful.
• Set the parking brake.
• Switch the emergency flashers on.
• Have the passengers exit the vehicle. They
should move to a safe place, for example be­
hind a guard rail.
Emergen cy a ssis tanc e
_& WARNING
-Follow the steps given above. Th is is for your
protection and the for the safety of other driv ­
ers .
Equipment
Vehicle tool kit/vehicle jack
Applies to: vehicles wit h the vehicle tool kit and vehicle jack
Fig. 258 Lu ggage compa rt ment: vehicle tool kit, vehicle
jack*, tir e m ob ility kit and compressor
The vehicle tool kit, vehicle jack, tire mobility k it
and compressor are stored in the luggage com­
partment under the cargo floor cover.
• Lift the cargo floor using the p lastic handle and
hook the handle onto the luggage compart­
ment seal
c:> fig . 258.
• Vehicles with spare tire: turn the handle coun­
ter -clockwise and remove the spare tire .
"' Unhook the cargo floor before closing the rear
lid .
Depending on vehicle equipment, the vehicle tool
k it, tire mobility kit and compressor may be lo­
cated under another cover that is secured w ith a
handwheel.
(D Tips
The vehicle jack in your vehicle is mainte­
nance-free.
Tire mobility kit
Preparation
"' Read and follow the important safety precau­
tions
c:> page 343.
• Set the parking brake. ll>-
34 3

Emergency assistance
.,. Se lect the P selector lever position.
.,. Check if a repair with the tire mobility kit is pos ­
s ib le
r::!:> pag e 344.

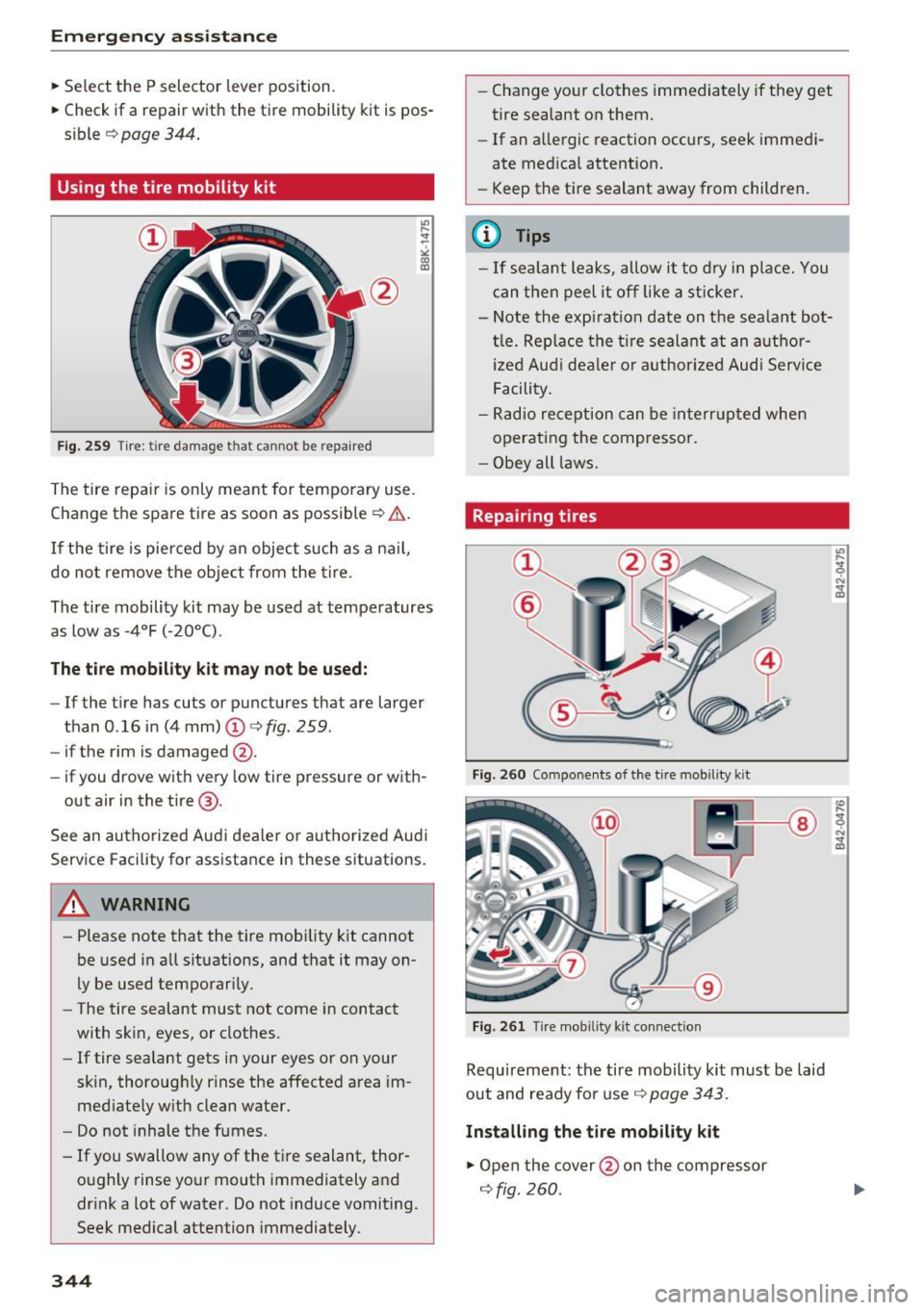

Using the tire mobility kit
Fig. 259 Tire: t ire da mag e th at cann ot be repaired
The tire repair is only meant for temporary use.
Change the spare tire as soon as possible
c::> .&. .
If the tire is pierced by an object such as a nail,
do not remove the object from the tire.
The tire mobility kit may be used at temperatures
as low as -4°F (-20°C).
The tire mobility kit may not be used:
-If the tire has cu ts or punctures that are larger
than 0 .16 in (4 mm)@¢
fig. 259 .
-if the rim is damaged @.
- if you drove with very low t ire pressure or with-
out air in the tire @.
See an authorized Aud i dealer or autho rized Audi
Service Facility for assistance in these situations.
A WARNING
-Please note that the tire mobility kit cannot
be used in a ll situations, and that it may on­
ly be used temporarily.
- The tire sealant must not come in contact
with skin, eyes, or clothes.
- If tire sealant gets in your eyes or on your
skin, thoroughly r inse the affected area im­
med iately with clean water.
- Do not inhale the fumes .
- If you swallow any of the tire sealant, thor -
oughly rinse your mouth immediately and
drink a lot of water. Do not induce vomiting .
Seek medical attention immediately.
344
- Change your clothes immediately if they get
tire sealant on them.
- If an allergic reaction occurs, seek immedi­
ate medica l attention.
- Keep the tire sealant away from children .
a) Tips
-If sealant leaks, allow it to dry in place. You
ca n then peel it off like a sticker.
- Note the expiration date on the sealant bot­
tle. Replace the tire sealant at an author ­
ized Audi dea le r or authorized Audi Service
Facility.
- Radio reception can be interrupted when
operating the compressor.
- Obey all laws.
Repairing tires
Fig. 260 Co mponents of the tire mo bility k it
Fig. 261 T ire mobil ity k it connec tion
Requirement: the tire mobility kit must be laid
out and ready fo r use
c::> page 343 .
Installing the tire mobility kit
.,. Open the cover @on the compressor
¢fig. 260 .

<( a, .... N ,....
N .... 0 0
3 a,

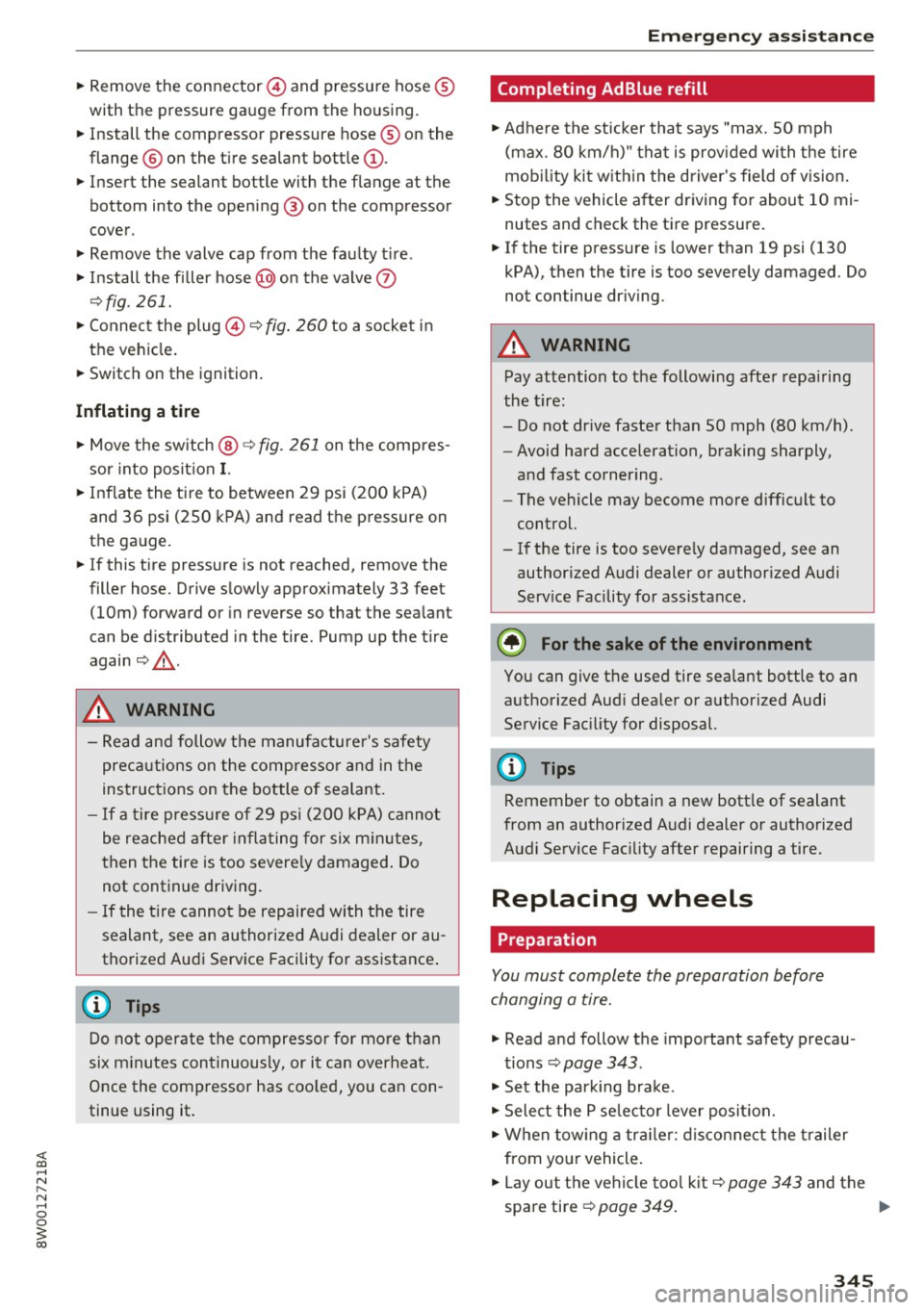

• Remove the connector@) and pressure hose ®
with the pressure gauge from the housing.
• Install the compressor pressure hose ® on the
flange @ on the tire sealant bottle@.
• Insert the sealant bottle with the flange at the
bottom into the opening @ on the compressor
cover .
• Remove the valve cap from the fau lty t ire .
• Install the fi ller hose @on the valve(!)
r::!vfig. 261.
• Connect the plug@¢ fig. 260 to a socket in
the vehicle .
• Switch on the ignition.
Inflating a tire
• Move the sw itch @ r::?v fig. 261 on the comp res­
sor into posit ion
I.
• Inflate the tire to between 29 psi (200 kPA)
and 36 psi (2SO kPA) and read the pressure on
the gauge.
• If this tire pressure is not reached, remove the
filler hose. Drive slowly approximately 33 feet (10m) forward or in reverse so that the sea lant
can be d istributed in the tire . Pump up the t ire
again
~ A .
A WARNING
-Read and follow the manufacture r's safety
precautions on the compresso r and in the
ins tructions on the bottle of sealant.
- If a tire press ure of 29 ps i (200 kPA) cannot
be reached afte r inflating for six m in utes,
then the tire is too severe ly damaged . Do
not continue driving.
- If the t ire cannot be repaired with the tire
sealant, see an authorized A udi dealer or au­
thorized Audi Serv ice Facility for assistance .
@ Tips
Do not operate the compressor for mo re than
six m inutes continuously, or i t can overheat .
Once the compressor has coo led, you can con ­
tinue using it .
Emergenc y ass is tanc e
Completing AdBlue refill
• Ad here the sticker that says "max. SO mph
(max . 8 0 km/h) " that is provided wi th t he tire
mob ility kit w it hi n the driver's field of vision.
• Stop the vehicle a fter driving for abou t 10 mi­
nutes and check the tire pressure.
• If the tire pressure is lower than 19 psi (130
kPA), then the tire is too severely damaged. Do not continue dr iving.
A WARNING
Pay attention to the following afte r repa iring
the tire:
- Do not dr ive faste r than SO mph (80 km/h) .
- Avoid hard acce leration, braking sharply,
and fast cornering .
- The vehicle may become more difficult to
control.
- If the tire is too severe ly damaged, see an
authorized Audi dealer or authorized Audi
Serv ice Facility for assistance.
(® For the sake of the environment
You can give the used tire sealant bottle to an
a uthorized Audi dea ler or authorized Audi
Service Fac ility for disposal.
(D Tips
Remember to obtain a new bott le of sealant
from an authorized A udi dealer or authorized
A udi Service Fac ility after repairing a tire.
Replacing wheels
Preparation
You must complete the preparation before
changing a tire.
• Read and follow the important safety precau-
tions
~ page 343 .
• Set the par king brake.
• Sele ct the P selec to r lever posit ion.
• W hen tow ing a tr ailer: d isconne ct the trailer
from your vehicle .
• Lay out the vehicle too l kit ~
page 343 and the
spare tire
¢ pag e 349 . .,,.
345

Emerg ency assis ta nce

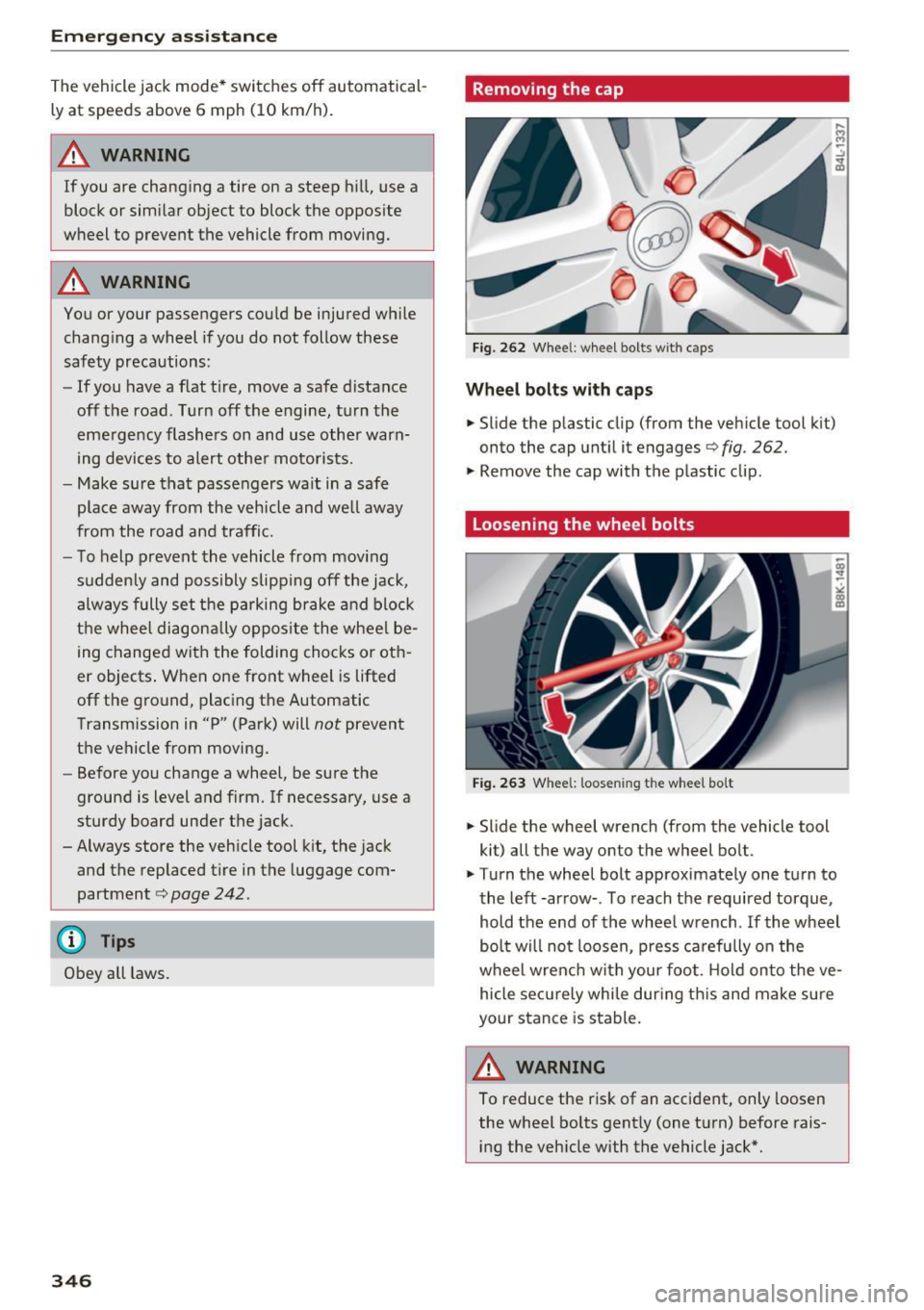

The vehicle jack mode* switches off automatical­
ly at speeds above 6 mph (10 km/h).
A WARNING
If you are changing a tire on a steep hill, use a
block or similar object to block the opposite
wheel to prevent the vehicle from moving.
A WARNING
You or your passengers could be injured wh ile
chang ing a wheel if you do not follow these
safety precautions :
- If you have a flat t i re, move a safe d ista nee
off the road . Turn off the engine, turn the
emergency flashers on and use other warn­
ing devices to alert other motorists.
- Make s ure that passengers wa it in a safe
place away from the vehicle and well away
from the road and traffic.
- To help prevent the vehicle from moving
suddenly and possibly slipp ing off the jack,
always fully set the parking brake and block
the wheel diagona lly oppos ite the wheel be­
ing changed with the folding chocks or oth ­
er objects . When one front wheel is lifted
off the ground, placing the Automatic
Transmission in "P" (Park) will
not prevent
the vehicle from moving.
- Before you change a wheel, be sure the
ground is level and firm. If necessary, use a
sturdy board under the jack.
- Always store the veh icle tool k it, the jack
and the replaced tire in the luggage com­
partment
c::> page 242.
@ Tips
Obey all laws.
346
Removing the cap
Fig. 262 Whee l: wheel bolts with c aps
Whee l bolts with cap s
.. Slide the p lastic clip (from the vehicle tool k it)
onto the cap until it engages
c::> fig . 262.
.,. Remove the cap with the plastic clip.
Loosening the wheel bolts
Fig . 263 Whee l: loosen ing t he whee l bolt
.. Slide the wheel wrench (from the vehicle tool
kit) all the way onto the wheel bolt .
.. Turn the wheel bolt approximately one turn to
the left -arrow- . To reach the required torque,
hold the end of the wheel wrench . If the wheel
bolt will not loosen, press ca refu lly on the
wheel wrench with your foo t. H old onto the ve­
hicle securely whi le dur ing th is and make sure
your stance is stable.
A WARNING
To reduce the risk of an accident, only loosen
the wheel bolts gent ly (one turn) before rais­
i ng the veh icle with the vehicle jack*.

lifting the vehicle
Fig. 264 Sill p anels : m arkin gs
Fig. 265 Sill: posit io nin g th e vehicle jack
.,. Place the vehicle jack* (vehicle tool kit) on a
firm surface . Use a flat , stable support if neces ­
sary . On a slippery surface such as tile, you
sho uld use a non-s lip pad (such as a rubber
mat)
¢ 8, .
.,. Find the mar king on the sill that is closest to
the tire that will be changed¢
fig. 264. Behind
the marking, there is a lift ing point on the side
sill for the v ehicle jack* .
.,. Turn the handwheel to raise the veh icle jack*
under the lifting point on the s ide s ill until the
bracket on the jack @completely covers the
notch on your vehicle.
.,. Align the vehicle jack* so the bracket @covers
the notch and the base @ is flat on the gro und .
The base @ must be direct ly unde r the lifting
poin t@ .
.,. Mount the crank on the vehicle jack*: insert the
crank into the opening on the handwheel. Turn
the rod left or right to secu re it .
.,. Cont inue raising the vehicle jack* with the
crank until the wheel lifts off the ground slight­
ly .
Em ergen cy a ssis tanc e
A WARNING
--Make sure the vehicle jack* is stable. There
is a risk of inju ry when the ground is slick o r
soft, because the vehicle jack* could slide or
sink .
- Only raise your vehicle w ith the vehicle jack*
provided by the factory . If you use a vehicle
jack designed for anothe r vehicle, your veh i­
cle ca n slide and cause injury.
- Position the veh icle jack* only at the des ig­
nated lifting points on the side s ill and align
the j ack. Othe rw ise, the vehicle jack* could
slip and cau se an i njury if it does not have
sufficient hold on the vehicle.
- To reduce the r is k of an accident, neve r start
the engine when the vehicle is raised.
- To reduce the r isk of injury, support the ve­
h icle sec urely with s uitable stands if wor k is
to be performed underneath the vehicle .
- To help preven t injury to yourse lf and your
passengers:
- Do not raise the vehicle until you are sure
the jack is securely engaged .
- Passengers must not remain in the vehicle
when it is jacked up.
- Make sure that passengers wait in a safe place away from the vehicle and well away
from the road and traffic .
- Make sure jack position is correct, adjust
as necessary and then continue to raise
the jack .
- If work has to be done under the veh icle,
ensure that it is safely supported on suita­
ble stands -risk of i njury!
- Never start the eng ine when the vehicle is
o n the jack -risk of accident!
(D Note
Do not lift the ve hicle by the s ill. Pos ition the
vehicle jack* only at the designated lifting po ints on the side sill. Otherw ise, your veh icle
will be damaged .
347

Emergency assistance
Removing and installing a wheel
Fig. 266 Wheel: internal hex socket to turn the whee l
bolts
Fig. 267 Whee l: alignment pin in the top ho le
Removing a wheel
., Remove the top wheel bolt complete ly using
the hex socket in the screwdriver hand le (in the
vehicle tool kit)
c::> fig. 266 and place it on a
clean surface .
., Install the alignment pin (from the vehicle tool
kit) by hand into the empty hole
c::> fig. 267 .
., Remove the rest of the wheel bolts.
., Remove the wheel. The alignment pin remains
in the hole while doing this.
Install a wheel
Read the directions on c:> page 348 when instal­
ling unidirectional tires.
., Slide the wheel on over the alignment pin.
., Install the wheel bolts and tighten gent ly using
the hex socket.
., Remove the alignment pin and also tighten the
remaining wheel bo lt .
., Carefully lower the vehicle using the vehicle
jack* .
., Tig hte n the wheel bolts i n a diagona l pattern
using the wheel wren ch.
348
The wheel bolts must be clean and loosen/tight ­
en easily . Check the contact surfaces for the
wheel and hub. Contam inants on these surfaces
must be removed before installing the wheel.
A WARNING
Never use the hex socket in the screwdriver
handle or the hex socket wrench w ith the
ratchet to loosen or tighten the wheel bolts.
This increases the risk of an accident, because
you will not reach the tightening specification
required.
(D Note
When removing or instal ling the wheel, the
r im could hit the brake rotor and damage t he
rotor. Work carefully and have a second per­
son help yo u.
@ Tips
- When mounting tires with unidirectional
tread design
make sure the tread pattern is
pointed the right way
c::> page 348.
- The wheel bolts should be clean and easy to
turn. Check for dirt and corrosion on the
mati ng surfaces of both the wheel and the
hub. Remove all dirt from these sur faces be­
fore remounting the whee l.
Unidirectional tires
A unidirectional tire profile is identified by arrows
that point in the running direction on the tire
s idewall. You must always adhere to the speci­
fied running direction . Th is is necessary ensure
the tire's opt imum performance in regard to ad­
hesion, running noise, friction and hyd roplaning.
To benefit fully from the advantages of the uni­
directional tire design, you should replace faulty
tires as soon as possible and restore the correct
r un ning direction on all of the tires.
Finishing
., Re install the caps on the wheel bolts if neces­
sary .
., Store the vehicle tool kit in its designated
place . ..,.
