Appl ies to vehicles: wi th 6-speed automatic transm is sion
Fail-safe mode
If the tiptronic® suffers a malfunction, the fail-safe mode
maintains minimum driveability.
If there is a malfunct ion in t he system, the automatic transmiss ion
wi ll shift to the fai l- safe mode. Al l the segments in the display will
l ight up to indicate th is condi tion .
Display col ors inv ersed
If there's a ma lfunction in the system, the automatic transmission
wi ll shift to the fail -safe mode. The entire row of gear selector posi ­
t ions wi ll light up in the d isplay in inverse colors ( light background,
dark characters) to indicate this condition . If there is an electrical
f ailure, t he gear posi tion ind ica tor row wi ll turn blank .
You wi ll sti ll be able to put the se lected lever in any of the positions .
However, the transmission will remain in 4th gear when it is placed
in positions D and S.
[ i ] Tip s
• The electronic lock that protects t he reverse gear while driv ing is
inoperative when the transmission is in the fail- safe mode .
• The manua l shift program is inoperative in fail -safe mode .
• The transm ission aut omatically shif ts to and rema ins in 4t h gear
regard less of which of the forward gears is selected. This means
that it may not be possible to tow a t rai ler or to drive uphill on a
steep gradient. Reverse gear can sti ll be engaged.
• In case the engine goes out i t must b e restarted wi th the veh ic le
stationary and the selector lever in position ( Pl or (Nl.
• The 4 th gear remains engaged even whe n the veh icle comes to
a ha lt . T he transmission will respond with noticeable jolts as you
shi ft fr om "D" to "P" and back aga in. The ca r wil l acce lerate s lug­
gishly as you take off again. •
Controls and equip­
ment
multitronic â„¢
App lies to veh icles: with mu lt itron ic'" Cont inuous ly Va riab le Transm ission (CVTl
General information
Your vehicle is equipped with a electronically controlled continu ­
ously variable transmission
(multitronic,..l. Inside the multitronicâ„¢
system, the gear ratios are not shifted in finite steps as in a conven­
t ional automatic transmiss ion, but rat her
continuously . As a result,
engine power is applied smoothly and comfortably, and better fuel
econo my is ac hieved.
The transmission se lects the appropriate gear rat io (upshifts and
downshif tsl a utomat ical ly based on set dr iv ing progra ms
=> page 153, "Dynamic shift program (DSP)" .
You can a lso ma nua lly select a shift p rogram (tiptronic®)
=> page 154.
You shou ld note, that the multitronic transmission differs from a
conventiona l Aut omatic Transmiss io n . In the mu lt it ronic transm is ­
sion the engine power is transferred via a link -p late chain, rather
than by a conventi onal torque c onver ter . The multitronic transm is ­
s ion greatly reduces vehic le "creep"" when at a standst ill and the
transmission is in D Sor R.
•

___ T_ r
_ a_ n_s _m_ i_s _s _i_o _n ___________________________________________________ _
Applies to vehi cles: with mu ltit ron ic '" C ont in uo usly Va riab le Tr ansmiss ion {CVT I
Driving the multitronic â„¢
The gear ratio is continuously adapted to vehicle speed
and load.
Starting the engine
-The selector lever must be in N or P.
Starting off
Press and hold the brake pedal.
Fig. 153 Section of the
center console:
selector lever with lock
button
-Press and hold the release button in the selector lever
handle and move the selector lever from
P (alternatively
N) to D (alternatively S) and release the button.
-Wait briefly until the transmission has shifted (you will
feel a slight movement).
-Remove your foot from the brake pedal and accelerate
=>& .
Rocking back and forth to become unstuck
-Shift only between D and R when the vehicle is at a full
stop and the engine is running at idle speed.
Stopping
-Press and hold the brake pedal until the vehicle has come
to a complete stop.
-Keep the brake pedal depressed so that the vehicle
cannot roll forward or backward while it is
idling=>& .
-Once stopped, do not depress the accelerator pedal to
rev up the
engine =>& .
Parking
-Press and hold the brake pedal until the vehicle has come
to a complete stop.
-Set the parking brake firmly=> page 138, "Parking".
-Press and hold the release button in the selector lever
handle, move the selector lever into
P and then let go of
the release button.
Your vehicle is equipped with a starting assist that allows for easier
starting on inclines. The system is activated when the brake pedal is
depressed for a
few seconds. After releasing the brake pedal, the
brake power is held for a moment to prevent the vehicle from rolling
back when starting.
The selector lever must be in
Nor P. If one of the driving position s
is engaged a safety switch wi ll prev ent the engine from being
started. See
also ~ page 136.
Before you move the selec tor lever from the P position, you must
always apply the brake pedal before and while depressing the
button in the handle of the se lector lever.
~

Transmission -
-----------------'
& WARNING
• Unintended veh icle mo vement can cause serious injury .
-When the selector lever is in a driving position, the vehicle
m ay creep , even at idle speed . Therefore do not relea se the
parking brake o r foot brake until you are read y to move ,
becau se power is transmitted to the wheel s as soon a s a
dri ving position is eng aged .
-Do not accelerate while selecting a driving position . At this
time the engine must be at idle speed so that undue stress is
not placed on the clutche s in the transmission.
-Remember: - even when stopped briefly with the automatic
tr ansmission in
" D" , "S " or "R ", engine power i s being t rans­
mitted to the wheels. Your vehicle could
" creep " forward or
b ackward . When stopped , keep the brake pedal fully depressed
and use the p ark ing brake if necessary to keep the veh icle from
rolling .
-If the selector lever is un intentionally moved into N wh ile you
are driving , take your foot off the accelerator pedal and wait for
the eng ine to return to idle speed before selecting a driving
position.
-Never shift into " R " or "P " when the vehicle is in mot ion .
-Never get out of the dr iver 's seat when the engine is running.
-If you must get out of the vehicle , move the selector lever
se curely into the P position and apply the park ing bra ke firmly .
-If the engine must remain running, never have any driving
position engaged when che cking under the hood . Make sure
the selector lever has se curely engaged and is lo cked in
"P "
with the parking brake firmly set :::::, page 265 , "Eng ine
compartment ". Otherwise , any increase in engine speed may
set the vehicle in motion , even with the park ing brake
applied. •
Controls and equip ­
ment
Ap plies to ve hicles : wi th m ultit r on ic â„¢ Co ntin uo usly V ariab le Tr ansmissio n ICVT I
Selector lever positions
Th is sec tio n describes the selector le ver posi tions and
driving ranges.
Fig . 154 Display in the
in strument clu ste r:
s elec tor lever in p osi­
tion P
T he selector lever posit ion engaged appears next to the selector
lever as well as in the inst rumen t cluster dis play .
P - Park
In this selector lever posit ion the transmission is mechanica lly
locked .
E ngage P only w hen the vehicle is completely
stopped:::::, & in
"Driving the multi tronicâ„¢" on page 150.
T o shift into or out of posit ion P, you must first press and hold the
brake pedal and then press the release button in the selector lever
handle whi le moving the selec tor lever to P.
R -Rever se
The transmission wil l automatically select the lowest gear ratio
when you sh if t in to reverse .
irechnical data

-
Transmission
----------------

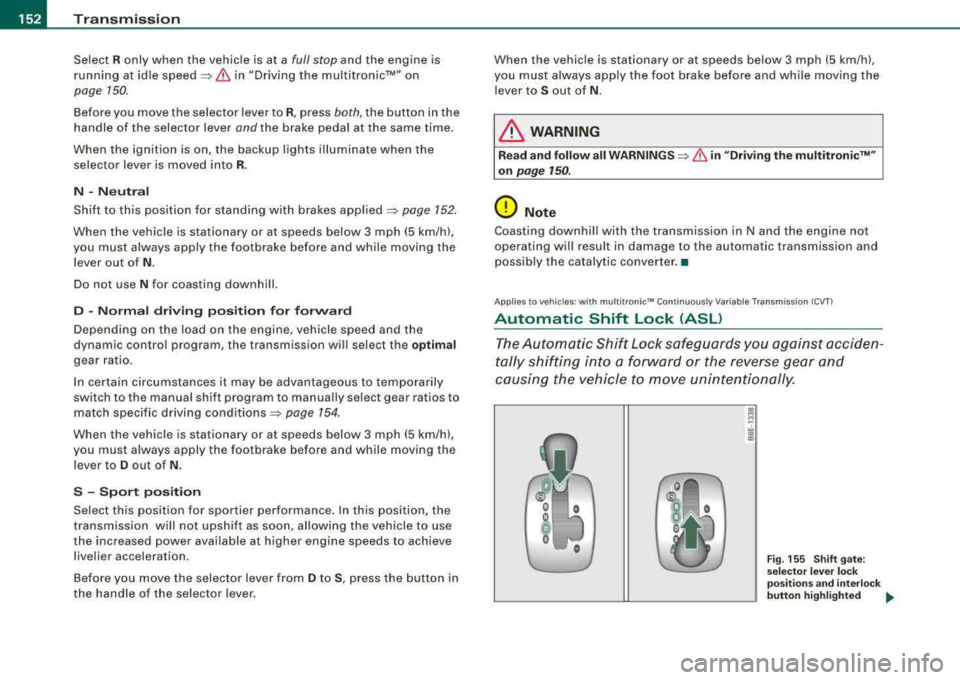

Select R only when the vehicle is at a full stop and the engine is
running at idle
speed~ & in "Driving the multitronicâ„¢" on
page 750.
Before you move the selector lever to R, press both, the button in the
handle of the selector lever
and the brake pedal at the same time.
When the ignition is on, the backup lights illuminate when the selector lever is moved into R.
N -Neutral
Shift to this position for standing with brakes applied ~ page 152.
When the vehicle is stationary or at speeds below 3 mph (5 km/h),
you must always apply the footbrake before and while moving the
lever out of
N .
Do not use N for coasting downhill.
D -Normal driving position for forward
Depending on the load on the engine, vehicle speed and the
dynamic control program, the transmission will select the
optimal
gear ratio.
In certain circumstances it may be advantageous to temporarily
switch to the manual shift program to manually select gear ratios to
match specific driving
conditions ~ page 154.
When the vehicle is stationary or at speeds below 3 mph (5 km/h),
you must always apply the footbrake before and while moving the
lever to
D out of N.
S -Sport position
Select this position for sportier performance. In this position, the
transmission will not upshift as soon, allowing the vehicle to use
the increased power available at higher engine speeds to achieve livelier acceleration.
Before you move the selector lever from
D to S, press the button in
the handle of the selector lever. When the vehicle is stationary or at speeds below 3 mph (5 km/h),
you must always apply the foot brake before and while moving the
lever to
S out of N.
& WARNING
Read and follow all WARNINGS ~ & in "Driving the multitronicâ„¢"
on
page 150.
0 Note
Coasting downhill with the transmission in N and the engine not
operating will result in damage to the automatic transmission and
possibly the catalytic converter. •
Applies to vehi cles : wi th mu ltitroni c'" Continuous ly Variable Transm ission (CVT )
Automatic Shift Lock (ASL )
The Automatic Shift Lock safeguards you against acciden ­
tally shifting into a forward or the reverse gear and
causing the vehicle to move unintentionally.
~ M -w a, .,
Fig. 155 Shift gate:
selector lever lock
positions and interlock
button highlighted
..

Transmis sio n -
----------------

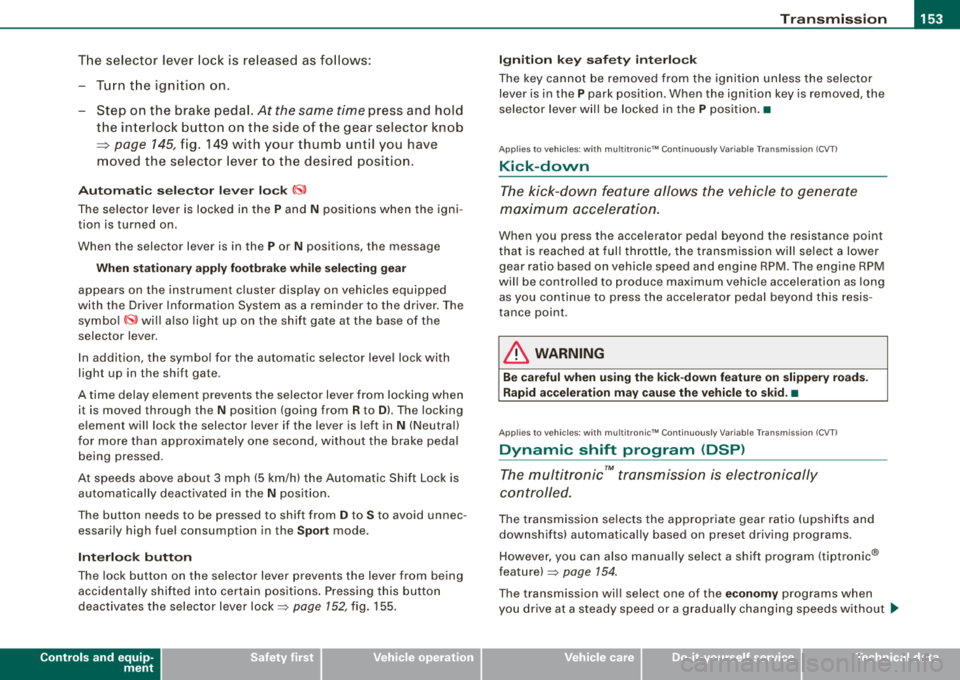

The selector lever lock is released as fo llows:
- Turn t he ignition on.
- Step on the brake pedal.
At the some time press and hold
the inter lock button on the side of the gear selector knob
=> page 145, f ig. 149 with your thumb until you have
moved the selector lever to the desi red position.
A uto mat ic se lec to r l eve r lock C\S)
The se lector lever is locked in the P and N posi tions when the igni ­
tion is turned on.
When the selector lever is in the
P or N pos itions , th e m essage
When statio nary appl y footbrak e while sel ecting gear
appears on the instrument c luster disp lay on vehicles equipped
with the Driver Informatio n System as a reminder to the driver . The
symbo l
Cs» will a lso light up on the shi ft gate at the base of the
selector lever.
In additio n, the symbo l for the automatic selector level lock with
light up in th e shift ga te .
A time delay e lement prevents the selecto r lever from loc king when
it is moved through the
N position (going from R to Dl. The locking
e lement will lock the selector lever if the lever is left in
N (Neutral)
for more than approx imately one second , without the brake peda l
being pressed.
At speeds above abou t 3 mph (5 km/h) the Automatic Shift Lock is
automatically deactivated in the
N position.
The button needs to be pressed to sh ift from
D to S to avoid unnec ­
essari ly high fuel consumption in the
S po rt mode .
Interlock but ton
The lock button on the selec tor lever prevents the lever from be ing
accidentally shifted into certain pos it ions . Pressing this button
deactivates the selector lever
lock=> page 152 , fig. 155.
Controls and equip ­
ment
Igniti on key sa fe ty int erlo ck
The key cannot be removed from the ignition un less the se lector
lever is in the
P park posi tion . When the ignition key is removed , the
selector lever wil l be locked in the
P posit ion. •
Applies t o ve hic les: w it h m ultitron icâ„¢ C ontin uo usly Var iab le Tra nsmiss ion (CVTl
Kick-down
The kick -d own feature allows the veh icle to generate
maximum acceler ati on.
When you press the accelerator peda l beyond the resistance point
that is reached at ful l throttle, the trans mission wi ll select a lower
gea r ratio based on vehicle speed and engine RPM . The engine RPM
wil l be control led to produce max imum veh ic le acceleration as long
as you continue to press the acce lerator pedal beyond this resis ­
tance point .
& WARNING
Be careful when u sing the kic k-down f eature on slipp ery ro ad s.
R apid acceler ation m ay cause the vehicle to skid . •
A pplies to v ehicles: w ith mult it ro nicâ„¢ Con tinuo usly Var iab le Tra nsmiss ion (CV Tl
Dynamic shift program (DSP)
The multitronicâ„¢ transmission is electronically
controlled.
The transmiss ion se lec ts the appropr ia te gear rat io (upshifts and
downshifts) automatically based on preset driving programs .
However, you can also manua lly select a s hift program (tiptronic ®
f eature)
=> page 154 .
The transmission will select on e of th e econom y programs when
you drive at a s teady speed or a gradually changing speeds without
~

___ T_ ra_ n_ s_ m_ is_ s_ io_ n _____________________________________________________ _
heavy acceleration. This gives best fuel efficiency, with early
upshifting and delayed downshifting.
The transmission will automatically select the
sporty shift programs
when you drive at higher speeds, or with heavy acceleration and
frequently changing speeds. Upshifts are delayed to make full use
of engine power. Downshifting takes place at higher engine speeds
than in the economy programs.
The selection of the most suitable shift program is a continuous,
automatic process. The driver can a lso make the transmission
switch to a sporty program by
quickly pressing down the gas pedal.
This causes the transmission to shift down into a lower gear ratio
and makes quick acceleration possible (to pass another vehicle) You
do not need to press the gas pedal into the kickdown range. After
the transmission has upshifted, the original program is selected
according to your driving style .
An additiona l shift program allows the automatic transmission to
select the proper gear for uphill and downhill gradients.
This prevents the transmission from shifting up and down unneces ­
sari ly on hills. The transmission will shift down to a lower gear ratio
when the driver presses the brake pedal on a downhill gradient. This
makes use of the braking effect of the engine without the need to
shift down manually .
If you are driving in hills and mountains, the transmission will
continuously adjust the gear ratio to the road grade. If you press the
brake pedal when driving downhill, the transmission will downshift
automatically . This increases the braking effect of the engine.
If the cruise control is on when you are traveling downhill, the trans­
mission will automatical ly select a lower gear ratio in order to main­
tain the set vehicle speed . This will cause the engine speed to
increase. •
Applies to vehi cles : wi th mu ltit roni câ„¢ Con tinu ousl y V ariabl e Tra nsmi ssio n lC VT I
tiptronic ® manual shift program
Using the manual shift program (tiptronic®) you can
manually shift between seven pre-programmed gear
ratios (tran smission positions).
Fig. 156 Center
console: shifting
manually
Fig . 157 Display:
manual shift program,
se lecte d gear high -
lighted ~

_______________________________________________________ T:...:.; ra::.:.. n:.:s:.: m
:..:.:.:.: is:::: s::.:.: io::.:.. n:__J""
Swi tching to ma nual s hift pro gra m
- With the selector lever in
D, push lever to the right. The
display will show7
6 5 4 3 2 1 as soon as the selector lever
is switched over. The gear you select wi ll also be h igh­
lighted in the
display => page 154, fig. 157.
To up shift
- Push the selector lever forward to the plus position
=> page 154, f ig. 156 G) .
To d ownshift
- P ush the lever to the mi nus positio n
Q.
When accelerating, the transmission will automatically shift into the
next higher gear before the engine reaches the maximum RPM .
When accelerating, if you apply a light throttle, the tiptronic® wil l
automatically shift into the next higher gear to save fuel. If you apply
a heavy throttle, the transmission will stay in gear engaged until
near maximum RPM are reached, or until the driver manually shifts
into a higher gear.
If you take your foot off the accelerator pedal when driving down a
steep incline, the tiptronic ® wi ll downshift from the selected gear
into the next lower gear based on road speed and engine RPM . The
automatic downshifting is interrupted as soon as you apply throttle
again .
[ i ] Tips
• When you shift into the next lower gear, the engine will down ­
shift only when there is no possibility of over-revving.
• When the kick -down comes on, the transmission will sh ift down
to a lower gear depending on vehicle and engine speeds.
• The tiptronic® is inoperative when the transmission is in the fail ­
safe mode. •
Controls and equip ­
ment
Ap plies to vehi cles: with mult it r o ni câ„¢ Cont inuo usly V ariab le Tr ansm iss io n (CV Tl -not
a vail abl e at the t ime of p rin ting
Steering wheel with tiptronic ®
The shift buttons on the steering wheel allow the driver to
shift gears manually .
Fig. 158 Stee ring
w hee l: S hift butt ons
To d ownshif t, touch the button on t he left Q .
To upshift, touch the button on the right G) .
The shift buttons are activated when the selector lever is in D, Sor
in the manual shift program (tiptronicl.
Of course, you can continue to use the manual shift program with
the selector lever on the center console. •
irechnical data

___ T
_ r_a _ n_ s_m _ i_s _s _i_o _n ______________________________________________________ _
Applies to vehicles: w ith mu ltitroni c"" Continu ously Variab le Tr ansmiss ion {CVT I
Fail-safe mode
If the multitronicâ„¢ suffers a malfunction the fail-safe
mode maintains minimum driveability.
If there is a malfunction in the system, the automatic transmission
will shift to the fail-safe mode. All the segments in the display will
light up to indicate this condition.
Display inverse
If there's a malfunction in the system , the multitronic will shift to the
fail -safe mode. The entire row of gear selector positions will light up
in the display in inverse colors (light background, dark characters)
to indicate this condition. If there is an electrica l failure, the gear
position indicator row will turn blank. You can continue to drive, but
you should take the vehicle to an authori zed Audi dealer as soon as
possible to have the multitronic checked.
Display flashing
If the display is flashing, a serious malfunction has occurred. Drive
the vehicle in a gentle and cautious manner to the nearest autho ­
rized Audi dealer and have the problem corrected. •

________________________________________________ ___:H....:..::: o:..:.m .:....:..:: e::L:.:. i.:....:n :.:..:k :..::® ::__ffllll

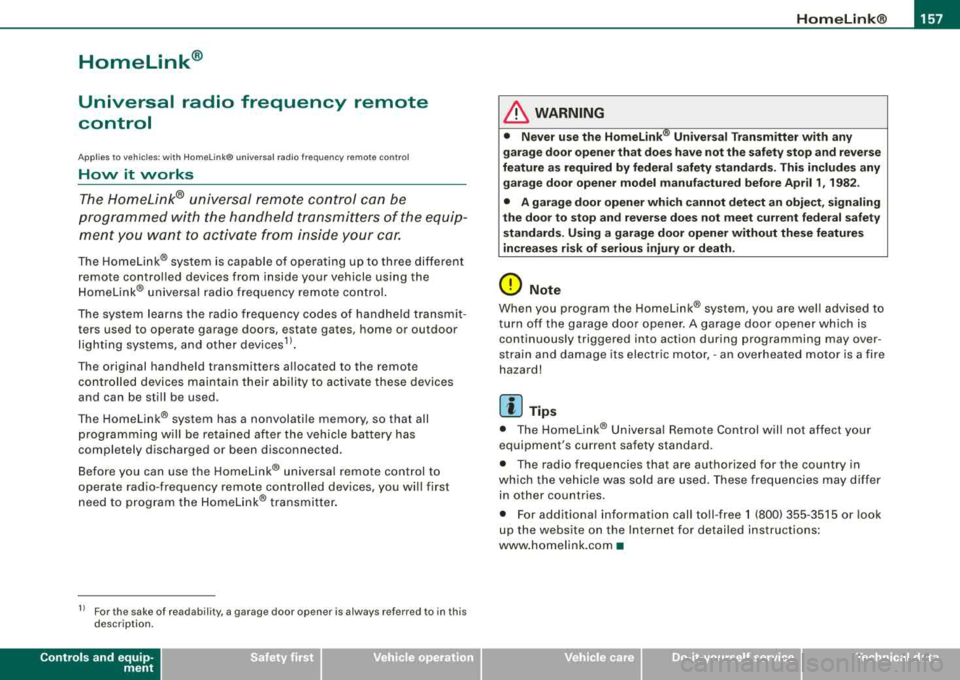

Homelink®
Universal radio frequency remote
control
Applies to vehicles: with Homelink® universal radio frequency remote cont ro l
How it works
The HomeLink® universal remote control can be
programmed with the hand held transmitters of the equip ­
ment you want to activate from inside your car.
The Homelink® system is capable of operating up to three different
remote contro lled devices from inside your vehicle using the
Homelink ® universa l radio frequency remote control.
The system lear ns t he rad io frequency codes of handheld transmit ­
ters used to operate garage doors, estate gates, home or outdoor
l ighting systems, and other devices 1
l.
The original handhe ld transmitters allocated to the remote
control led devices maintain their ab ility to activate these devices
and can be sti ll be used .
The Homelink® system has a nonvolati le memory, so that all
program ming will be retained after the vehicle battery has
completely discharged or been disconnected .
Before y ou can use the Homelink® universa l remote cont rol to
operate radio -frequency remote controlled devices, you wi ll first
need to program the Ho melink® transmitter.
ll Fo r the sake of readabil ity, a ga rage door opene r is always referred to in this
descr iption.
Controls and equip ­
ment • I I • • I
& WARNING
• Never use the Homelin kl!!I Universal Tran smitter with any
garage door opener that does have not the s afet y stop and reverse
feature a s required by federal s afety standard s. This include s any
garage door opener m odel manufa ctured before April 1 , 19 82.
• A garage door open er whi ch cannot detect an object , sign aling
the door to stop and rever se does not meet current federal s afet y
s tandard s. Using a garage door opene r without these feature s
in creases r isk of seriou s injury or de ath.
0 Note
When you program the Homelink® system, you are wel l advised to
turn off the garage door opener. A garage door opener whic h is
continuously triggered into action during programming may over ­
strain and damage its elect ric mot or, -an o verheated motor is a fire
hazard!
[ i ] Tips
• The Homelink® Universa l Remote Control will not affect your
equipment's current safety standard.
• The radio frequencies that are authorized for the country in
which the vehicle was sold are used. These frequencies may differ
in other countries.
• For addi tiona l informat ion cal l to ll-free 1 (800) 355 -3515 or look
up the website on the Internet for detai led instructions:
www .homelink .com •

___ H_ o_ m_ e_L_ i_n _k_ ® __________________________________________________ _
Applies to vehicles: with Home link® univer sal rad io frequency remote contro l

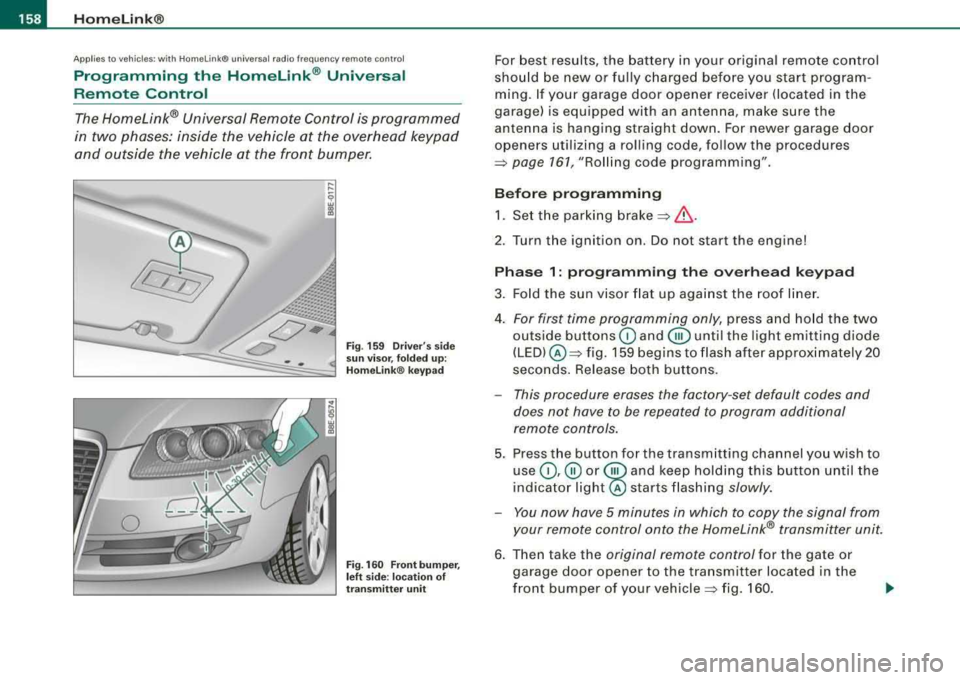

Programming the HomeLink ® Universal
Remote Control
The Homelink® Universal Remote Control is programmed
in two phases: inside the vehicle at the overhead keypad
and outside the vehicle at the front bumper.
Fig . 159 Driver's side
sun visor, folded up:
Homelink ® keypad
Fig. 160 Front bumper,
left side : location of
transmitter unit
For best results, the battery in your original remote control
should be new or fully charged before you start program­
ming. If your garage door opener receiver (located in the
garage) is equipped with an antenna, make sure the
antenna is hanging straight down. For newer garage door
openers utilizing a rolling code, follow the procedures
=> page 161, "Rolling code programming" .
Before programming 1. Set the parking
brake =>& .
2. Tur n the ignition on. Do not start the engine!
Phase 1: programming the overhead keypad
3. Fold the sun visor flat up against the roof liner.
4.
For first time programming only, press and hold the two
outside buttons
G) and @until the light emitting diode
(LED) @=> fig. 159 begins to flash after approximately 20
seconds. Release both buttons.
- This procedure erases the factory -set default codes and
does not have to be repeated to program additional
remote controls.
5. Press the button for the transmitting channel you wish to
use
G) ,@ or @ and keep holding this button until the
indica tor
light@ starts flashing slowly.
- You now have 5 minutes in which to copy the signal from
your remote control onto the Homelink® transmitter unit.
6. Then take the original remote control for the gate or
garage door opener to the transmitter located in the
front bumper of your
vehicle => fig. 160.
