Controls and equipment

Instruments and controls
Gt JP

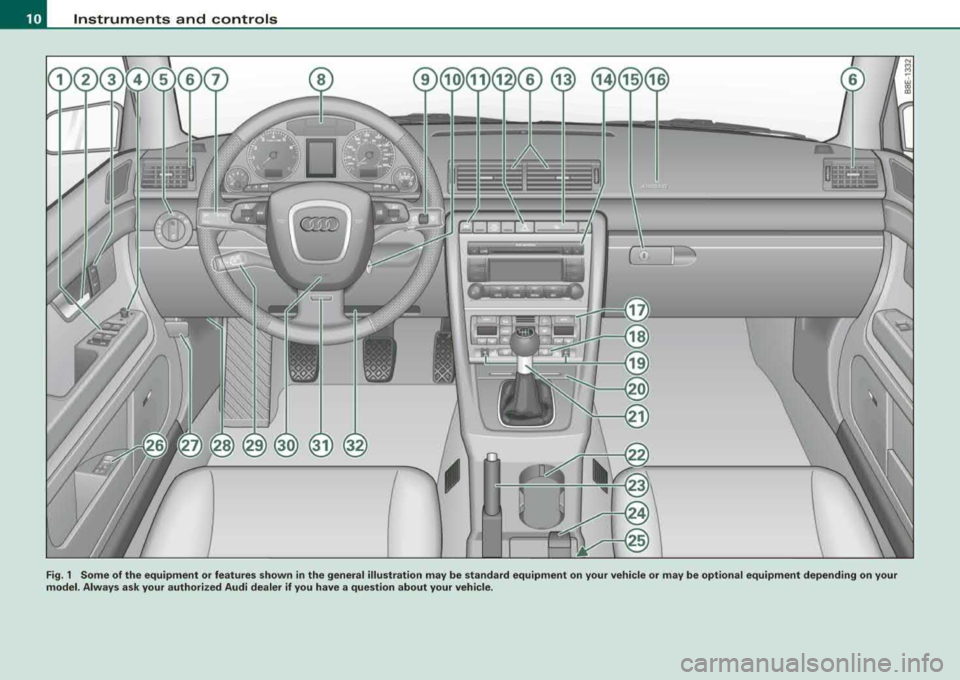

Fig. 1 Some of the equipment or features shown in the general illustration may be standard equipment on your vehicle or may be optional equipment depending on your
model. Always ask your authorized Audi dealer
if you have a question about your vehicle.

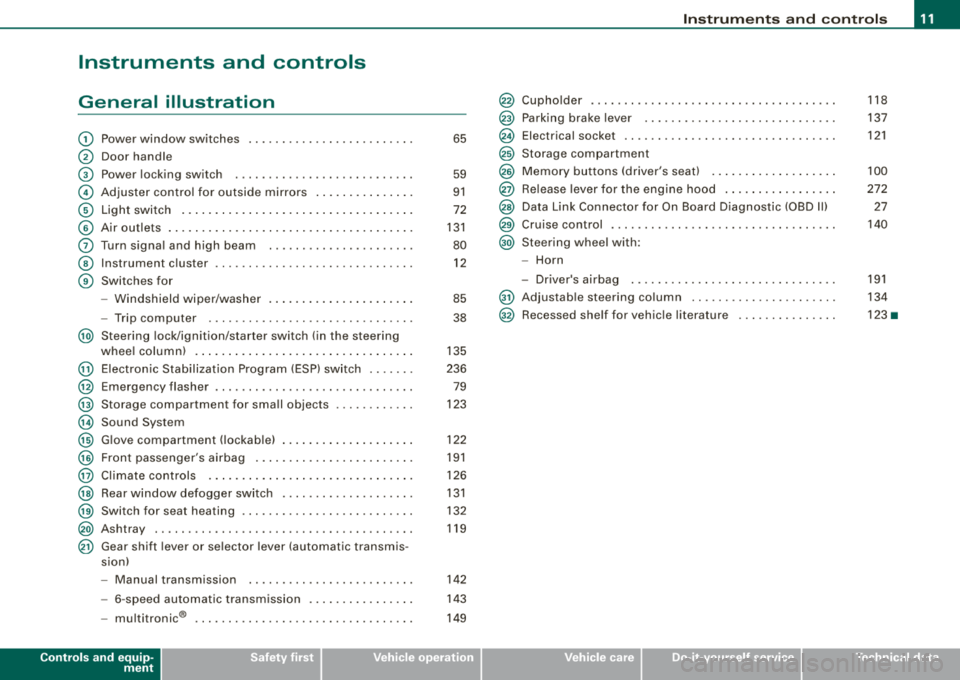

Instruments and controls
General illustration
G) Power window switches ........................ .
0 Door handle
G) Power locking switch .......................... .
© Adjuster control fo r outside mirrors ...... .... .... .
© Light switch .. ...... .... ... .... .... .... .... ... .
© Air o utlets ........ ... .. .... .... ... .... .... .... .
0 Turn s igna l and high beam .. .... .... ......... .. .
© Instrument c luster .. ... .... .... .... ... .. .... ... .
G) Switches for
- Windshield wiper/washer . ...... .... .... ... ... .
- Trip computer ...... .... .... ... .... .... .... . .
@ Steering lock/ignition/starter switch (in the steering
@
@
@
@
@
@
@
@
@
@
@
whee l column) . ...... ... .... .... .... ... .... ... .
Electron ic Stab ilization Prog ram (ESP) switc h ...... .
Emergency flasher ....... .... .... .... .... .... .. .
Storage compartment for sma ll objects
Sound System
G love compartment ( lockab le) ... .. .... .... .... .. .
Front passenger's airbag .... .... .... .... ..... .. .
Cl imate controls .. ..... .... .... ...... .... ... .. .
Rear window defogger switc h .... .... .... .... ... .
Switch for seat heating ......................... .
Ashtray .. ....... .... ............. ...... .... .. .
Gear shift lever or selector lever (automatic transmis ­
s ion)
- Manual transmission .. ...... ....... ...... ... .
- 6-speed automa tic transm ission .. ...... .... ... .
I .
.
® -mu t1tronic ................................ .
65
59
91
72
131
80
12
85
38
135
236 79
123
122
191
126
131
132
119
142
1 4 3
14 9
Controls and equip ­
ment • I I • • I
Instrum ents and controls
Cupho lder
Park ing brake lever ............................ .
Electrical socket ............................... .
Storage compartment
Memory buttons (driver's seat) .. ...... .... ... ... .
Re lease lever for t he e ngine hood ...... .... ... ... .
Data Link Connector fo r On Board D iagnostic (OBD Ill
Cruise control .... .... .... .... ....... .... .... .. .
Steering wheel with:
- Horn
D. ' . b - nversa1r ag . ................ .... ......... .
@ Adjustab le steering co lumn .. ...... .... .... .... . .
@ Recessed she lf for vehic le literature .............. .
118
137
121
100
272 27
140
191
134
123 •

Instruments and warning /indi cator lights
Instruments and warning/indicator lights
Instruments
Instrument cluster and controls
The instrument cluster is your central source of in formation .
Fig . 2 O vervie w of t he ins trument clu ster
G) Coo lant tempe rature gauge .................... . .
0 Tachometer with time and date display .. ......... .
© Warn ing/indicato r lights ..... .... ... ... .. .... .. .
© Speedometer with odome ter ..... .... .... ... ... .
© Fue l gauge . ....... ... ...... .... .... .... .... .. .
© Bu ttons to se t the:
13
1 3, 14
19
15
16
- Clock and date display ....................... .
- I nstrument cluster i llu m ination
0 Disp lay screen for:
- Service interval
............................. .
- Driver information sys tem . ...... .... .... ... .. .
© CHECK system button .. .... .... ... .. .... .. ..... .
14
15
17
24
16 .,_

® Reset button for Service indicator .... ... .. .... ... .
@ Reset button for trip odometer .... .... .... ...... .
17
18
The instrument cluster illuminates whenever you switch on the ign i­
tion with the
vehicle headlights off. The instrument cluster illumina­
tion dims automatically as the daylight begins to fade away . It goes
out completely when the outside light is very dim . The reason for
this is to remind you to turn on the headlights when the light condi ­
tions become poor.
•
Engine coolant temperature gauge
The engine coolant gauge 0~ page 12, fig . 2 only works when the
ignition is on. To prevent damage to your engine, please note the
f o llowing important points:
Engine cold
As long as the needle remains at the left end of the gauge, the
engine still has not reached its operating temperature. Avoid high
engine speeds, heavy engine loads and heavy throttle .
Normal temperature
When the engine has reached its operating temperature, the needle
wi ll move into the midd le of the gauge and remain there. If the
engine is working hard at high outside temperatures, the needle
may turn further to the right. This is no cause for concern as long as
the
J_ warning light in the instrument cluster does not illuminate.
When the
_t_ warning light starts to flash, this can mean one of two
th ings : either the coolant
temperature is to o high, or the coolant
level is too low~ page 31 .
& WARNING
• Always observe the warning in ~ page 265, "Engine compart­
ment" before opening the engine hood and checking the engine
c oolant level .
Controls and equip ­
ment
Instruments and warning /indicator lights
& WARNING (continued )
• Never open the engine hood if you see or hear steam, or if you
see engine coolant dripping from the engine compartment . You
could burn yourself. Let the engine cool off first so that you cannot
hear or see any steam or engine coolant.
0 Note
• Mounting additional lights or accessories in front of the air inlets
reduces the coo ling effect of the radiator . At high outside tempera ­
tures or high engine load, the engine cou ld overheat.
• The front spoi ler has been designed to properly distribute the
cooling air when the vehicle is moving. If the spoiler is damaged,
this could reduce the cooling effect and the engine could then over ­
heat. Ask your author ized Audi dealer for assistance .•
Tachometer {engine rev counter)
The tachometer indicates the engine RPM (revolutions per
minutes).
The tachometer 0 ~ page 12, fig. 2 is the left one of the two large
c lock -type displays.
The engine turns at a speed
1,000 times the sin gle digit in the
display, e .g . if the needle points at the "2", the engine turns at
2,000 RPM.
If the engine RPMs drop below 1,500, you shou ld downshift to the
next lower gear. The red area at the end of the scale indicates
maximum permissible engine RPMs after the break-in period.
Before reaching this area, you should either shift into the next
higher gear or ease your foot off the accelerator pedal.
.,_

Instruments and warning/indicator lights
0 Note
The tachometer needle should not move into the red range. If it
does, then only for a very short period of time. You could damage
your engine by driving at high RPM!
Upshifting early saves fuels and reduces engine noise .•
Digital clock with date display
Your vehicle is equipped with either a quartz clock or a
digital clock.
Setting the hour
Fig . 3 Instrument
cluster with the digital
clock
- Press the "MODE" button; the hour display starts to flash.
- Press the"+" button to turn the hour forward.
- Press the"-" button to turn the hour back.
Setting the minute
-Press the "MODE" button repeatedly until the minute
display starts to flash.
- Press the"+" button to turn the minutes forward.
- Press the"-" button to turn the minutes back.
Setting the date (day, month and year)
-Press the "MODE" button often until the date display
starts to flash.
- Press the"+" button or the"-" button to set the day.
- Press the "MODE" button again; the month display starts
to flash.
Press the"+" or the"-" button to set the month.
- Press the "MODE" button again; the year display starts to
flash.
- Press the"+" or"-" button to set the year.
Switching off the date display
- Press the "MODE" button repeatedly until the complete
date display starts to flash.
- Press the"-" button; the date display switches off.
Switching on the date display
- Press the "MODE" button repeatedly until the complete
date display starts to flash.
Press the"+" button; the date display will reappear.
When the date display stops flashing, this means the time and date
have been successfully stored .
~

When the ignition is switched off, the odometer reading and the digital clock with date display can be switched on for a few seconds
by pressing the CHECK
button~ page 12, fig. 2 @ . •
Instrument cluster illumination
It is possible to adjust the instrument cluster illumination.
Fig. 4 In str um ent
c luster i lluminatio n
- Press the"+" button to increase the brightness .
- Press the"-" button to dim the br ightness.
A light sensor in the instrument cluster contro ls the illumina tion for
the instrument cluster, the center conso le and the displays.
The illumination for the instrument cluster lights up whenever you
sw itch on the ignition with the
vehicle h eadlight s off. As the
daylight fades, the instrument c luster illumination likewise dims
automatically and wi ll go out comp lete ly when the outside light is
very low . This feature is meant to remind you to switch on the head­
lights when the outside light conditions become poor .
•
Controls and equip­
ment
In st rum ents and w arning /indi cator li ght s
Speedometer with odometer
The speedometer shows you the vehicle speed, and the
odometer shows you how many miles (kilometers) you
have driven .
miles 1S3. 9
S2YY
Fig . 5 Sp eedom eter
c lose-u p: od omete r
di sp lay
The odometer and trip odometer are located inside the speedom ­
eter .
• USA models -Miles
• Canadian models -Kilometers
Low er odom ete r
The lower odometer shows the total number of miles (ki lometers)
d riven .
Upper odometer (tri p odometer )
The upper odometer shows the total number of miles (kilometers)
driven since you last reset the odometer to zero . You can use this
odometer when you want to keep track of how many miles (kilome ­
ters) you have driven for a single trip or errand. The last digit indi ­
cates 1/10 of a m ile (100 meters) . You can set the trip odo meter back
to zero by pressing the reset
button~ fig. 5. -..
irechnical data

Instruments and warning /indi cator lights
M alfun ction message
I f there is a malfunction somewhere in the inst rument cluster, dEF
wi ll appear in the trip odometer and will stay on . Contact your
authorized Audi dealer to have the prob lem corrected. •
Electronic immobilizer SAFE
Trying to start the vehicle with a non -a u thorized or a
defective key will ac tivate the electronic immobilize r.
miles
52YY
Fig. 6 Odom eter
di spl ay in the spe ed ­
o me ter: electroni c
immobilizer activat ed
Each time you swi tch on the igni tion, the data stored in the vehicle
key a re e lectronical ly scanned to verify that key data and vehicle
da ta ma tch .
I f a non-coded or a defective vehicle key is used , the word SAFE will
appear and remain lit in the uppe r (trip) odo meter display . If this
happens, the vehicle cannot be started
=> page 54 . •
Fuel gauge
The fuel gauge works only when the ignition is on . When the need
le reaches the red area , the warning light in the
instr ument cl uster will
il lu mi nate ::::> page 34 . This means yo u
have approximate ly 2 .4 ga llons (9 liters) of fue l left in the tank .
Time
to refuel!
The tota l tank capacity of your veh ic le is listed in => page 343,
"Data". Be aware of the different tank capacit ies of front -wheel and
quattro ® all -wheel drive models.
0 Note
Never run the tank completely dry! An i rregular supply of fuel can
cause engine misfir ing and fuel could ent er into th e exhaust
sys tem . The catalytic conver te r could then overheat and be
damaged .•
CHECK button
F ig . 7 CHE CK button i n
the in strument clu ster
The CHECK button performs the fol lowing functions :

Switching on the clock and odometer
With the ignition is switched off, the odometer and digital clock with
date disp lay can be switched on for a few seconds by pressing the
CHECK
button => page 16, fig. 7.
Starting the Auto-Che ck sequence
The Auto -Check
system => page 28 consistently monitors certain
individual functions and components of the vehicle when the igni­
tion is turned on and when the vehicle is moving .
With the ignition switched on, you can start the "Auto-Check
sequence" by pressing the CHECK button. You can perform an Auto ­
Check sequence both when the vehicle is at a standstill and the igni­
tion is switched on or when the vehicle is moving not faster than
3 mph (5 km/h).
Calling up the driver informat ion
When a first priority symbo l starts to
flash => page 28 or when a
defective light
bulb=> page 35, has been detected, you can press
the CHECK button to display the driver information. For example:
SWITCH OFF ENGINE , CHECK OIL LEVEL
The information disappears after approximate ly five seconds .
Setting the speed warning
By pressing the CHECK button you can set speed warning
1
=> page 36, "Speed warning 1: setting a speed limit" while the
vehicle is moving.
Speed warning
2* => page 37, "Speed warning 2 : setting a speed
limit" can only be set with the ignition switched off. •
Controls and equip ­
ment
Instruments and warning /indicator lights
Service interval display
The service interval display reminds you when your next
service is due.
Display remaining distance
Fig. 8 Service interval
display in the instru­
ment cluster
With the ignition on, briefly push button G) to disp lay the distance
remaining (miles/kilometers) until the next service is due. You can
recall the service countdown with the engine in idle or while driving
at a slow speed up to
3 mph (5 km/h). The remaining distance will
be upda ted every 300 miles (500 km):
On a new vehicle, or immediately after a service has been
performed, the following message will be displayed:
SERVICE IN---- Ml (KM) ---DAYS
For the first 300 miles (500 km) of driving after a service, the display
will keep showing dashes. This
is NOT a malfunction . Rather, the
system needs the mileage to (re-)adjust to your driving
style. Only
then can it start generating and updating figures for the distance and
days until the next scheduled service .
.,
irechnical data

Instruments and warnin g/indi cat or li ghts
Se rv ice re mi nder
As soon as less than 1,200 m iles (2,000 ki lometers) of driving are left
before the next due service, the fo llowing message wi ll be disp layed
when you switc h on the ignition:
SE RV IC E IN 1 ,200 Ml (2,000 KM )··· DA YS
After about five seconds the display switches back. Each time you
sw itch on the ignition, the distance wil l be updated until the next
service date is reached .
Ser vic e due
If service is due immediately, SERVI CE! wil l appear in the display
immediately after switching on the ignition . The disp lay switches
back after about five seconds.
Re settin g th e dis pl ay
Your authorized Audi dealer wi ll reset the disp lay after performing
t he scheduled service. If the service is not performed by an autho­
ri zed Audi dealer, the display must then be reset as follows :
• Switch off the ignition .
• Press and hold the Service button
G):::::, page 17, fig . 8, then
switch on the ignition . One of the following messages appears in
the display:
S ER VIC E IN ···· MILE S or SERVIC E!.
• Press the reset button 0 unti l either of the fol lowing messages
appears in the disp lay :
SERV IC E IN ···· MILE S··· DAYS or SER VIC E!
After about five seconds the display switches back .
[ i ] Tip s
• Do not reset the display between service interva ls . Doing so will
resu lt in an incorrect d isp lay.
• The service display information wi ll remain intact even if the
battery is disconnected .
• If a pr iority 1 mal funct ion is detected (red symbol), you cannot
display the distance remaining. •
Reset button
The "0.0" button:::::, page 17, fig. 8 0 performs the fol lowing func ­
t ions:
R es etting th e trip od om ete r
The upper odome ter (tr ip odometer):::::, page 15 can be reset back to
zero by pressing the reset button.
R ese ttin g th e se rv ic e int erva l
The service interva l display :::::, page 17 can be reset by pressing t he
reset button (first se lect the "reset" mode in the service indicator
display). •
