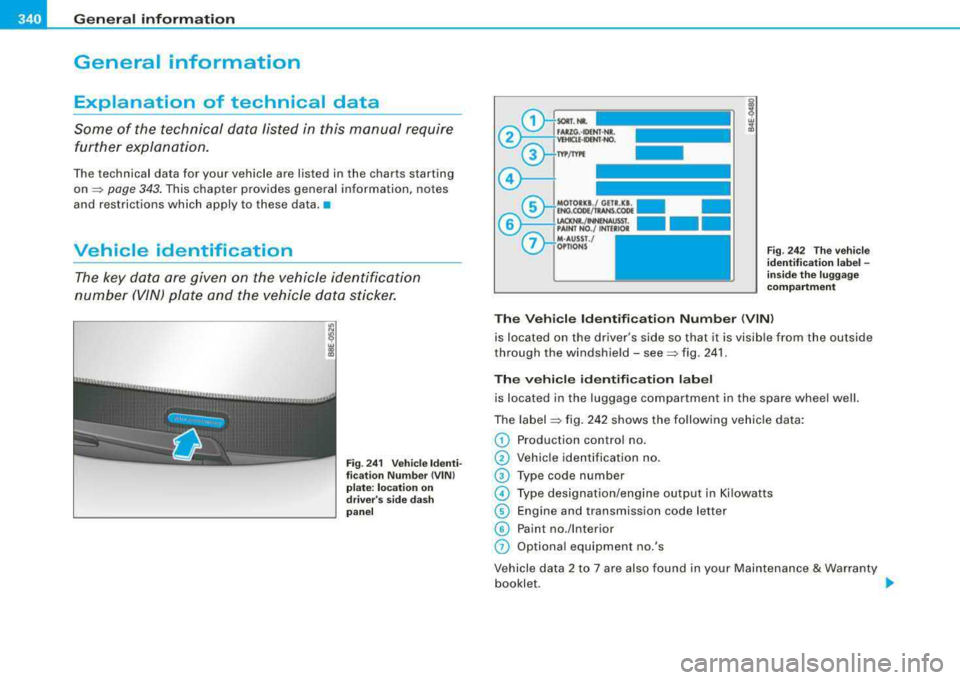

General information
Explanation of technical data
Some of the technical data listed in this manual require
further explanation.
The technical da ta for your vehicle are listed in the charts starting
on => page 343. This chapter p rovides general information, notes
and restrictions which apply to these data. •
Vehicle identification
The key data ore given on the vehicle identification
number (VIN) plate and the vehicle data sticker.
Fig . 241 Vehicle Identi­
fication Number (VIN)
plate: location on
driver's side dash
panel Fig
. 242 The vehicle
identification label
-
inside the luggage
compartment
The Vehicle Identification Number (VIN}
is located on the driver's side so that it is visible from the outside
through the windshield -
see:::::, fig. 241.
The vehicle identification label
is located in the luggage compartment in the spare wheel well.
The
label => fig. 242 shows the following vehicle data:
G) Production control no.
0 Vehicle identification no .
© Type code number
© Type designation/engine output in Kilowatts
© Engine and transmission code letter
© Pain t no./lnt erior
0 Optional equipment no.'s
Vehicle data 2 to 7 are also found in your Maintenance
& Warranty
booklet .
..,.

_________________________________________________ G_ e_ n_ e_r _a _l_ i_n _f_o _ r_ m_ a_ t
_ i
_ o _ n
__ __
T he sa fe ty co mplia nce s ticke r
is your assurance t hat your new vehicle complies with a ll applicable
Federa l Motor Vehic le Safety Standards which were in effect at the
t ime the veh ic le was manufactured . You can find t his st icker on the
left door jamb. It shows the mon th and year of production and the
vehic le identification number of your vehic le (perforation) as well as
the Gross Veh icle Weight Rating (GVWR) and the Gross Axle Weight
Rating (GAWRl.
Th e high volt ag e wa rning la bel
is located on the lock carrier .
The spark ignition syste m mee ts all requirement s of the Canadi an
Interf ere nc e-C au si ng Equipm ent Regulati ons. •
Weights
Gross Veh icle Weight R ating
The G ross Veh ic le Weight Rat ing (GVWR), and the Gross Ax le Weight
Rating (GAWR) for front and rear are listed on a sticker on the left
door jamb .
The Gross Vehicle Weight Rating includes the we ight of the basic
vehic le plus fu ll fuel tank, oil and coolant, plus maximum load,
whic h inc ludes passenger weight ( 150 lbs/68 kg per designated
seating position) and luggage weight.
Gr oss Axle Weight Ra ting
The Gross Ax le Weight Rating is the maximum load that can be
app lied at each axle of the
veh ic le =:> & .
Vehicl e cap acit y w eight
The vehicle capacity weight (max. load) is listed either on the
driver's side 8 -pillar or inside the fuel fi ller f lap .
Controls and equip­
ment Safety first Vehicle operation
Roof
weight
The maximum permissible roof we ight is
165 lb (75 kg ). The roof
weight is made up of the weight of the roof rack system and the
weight of the object being
transported =:> page 117, "L oading the
roof rack".
LJ}. WARNING
• The actual Gr oss Axle Weight R atin g at the front and re ar ax les
s hould not ex ceed the permi ssible w eight s, and th eir combination
mu st not e xceed the Gr oss Vehicle Weight R atin g.
• Exceeding pe rmi ssible weight ratin gs can re sult in vehicle
d am age , acc ident s and per son al inju ry.
0 Note
• The vehicle capacity weight figures apply when the load is
distr ibuted even ly in t he ve hicle (passengers and l uggage). When
transporting a heavy load in the luggage compartment, carry the
load as near to the rear axle as possib le so that the vehic le's
handling is not impaired .
• Do not exceed the maxim um permissib le axle loads or the
maximum gross vehic le weight. Always remember that the vehic le's
handling wi ll be affected by the extra load . Therefore, adjust your
speed according ly.
• Always observe local reg ulations. •
Dimensions
The specifications refer to the basic mode l. Differences may occur
depending on the mode l type and options ordered, for example, tire
sizes.
..,
Vehicle care Do-it-yourself service Technical data

llffl __ G_ e_n_ e_ r_
a _l _i_n _f _o _ r_ m_ a_ t_ i_ o _ n ________________________________________________ _

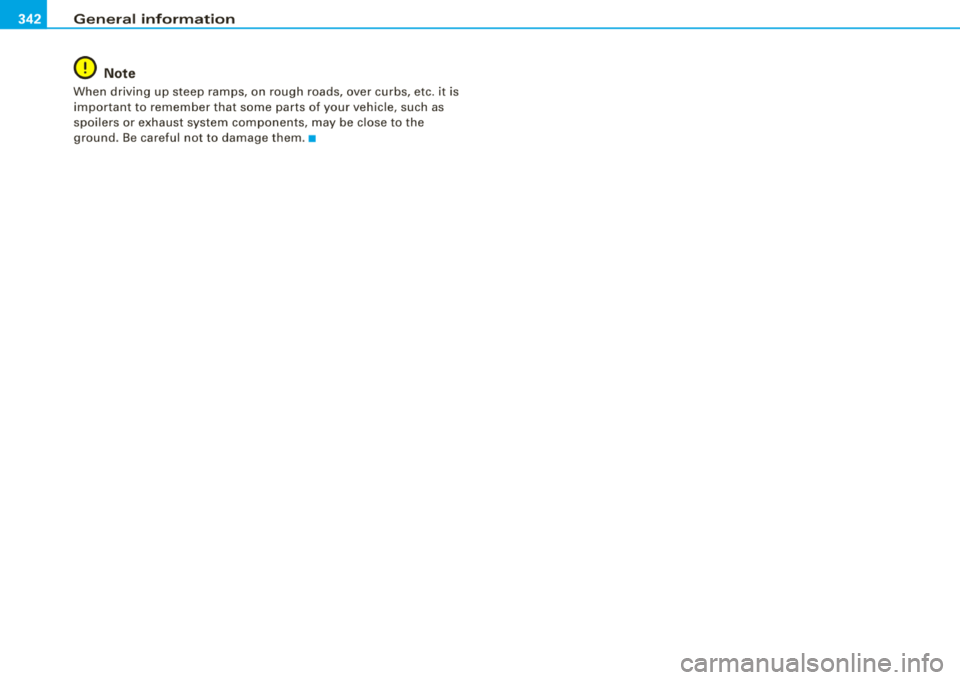

0 Note
When driving up steep ramps, on rough roads, over curbs, etc. it is
important to remember that some parts of your vehic le, such as
spo ilers or exhaust system components, may be c lose to the
ground . Be careful not to damage them .•

_____________________________________________________ D_a_ t_ a _ ___.11111
Data
Ap plies to vehicles : w ith 2 .0 lite r 4-cyl. engine
200 hp, 2.0 liter 4-cyl. turbo engine
En gin e da ta
Maximum output SAE net
Maximum torque SAE net
No . of cy linders
Displacement
Stroke Bore
Compression rat io
Fuel
Dim ensio ns
Length (with licence plate bracket)
Width (across mirrors)
Height (unloaded, incl. roof rails)
T urning circle diameter (curb to curb,
approx.!
Ca pac itie s
F u el t ank
-Total capacity
- Reserve (of total capacity) approx.
Wind shield and headlight * w as her fluid contain er
Engine oil
approx. fi lter change
Controls and equip­
ment Safety first
hp@ rpm
lb-ft@ rpm
C ID (cm
3l
in (mm)
in (mm)
200 @ 51 00 -6000
207
@ 1950 -5000
4
121 (1984)
3.65 (92.8) 3.25 (82.5) 10.5: 1
Pr emium unle aded (91 AKI) Recommended for maximum engine performance. Fur ­
ther
details=> page 267, "Gasoline"
in (mm)
in (mm)
i n ( mm)
ft. (ml
gal/litres
ga l/litres
quarts/I it res
quarts/I it res
180 (4586)
76.3 (1937)
57 .2 (1453)
36.4 (11.1
l
front-wheel drive
18.5 / 70.0
2.1 / 8.0
5.1 / 4.8
4.5 / 4.5
quattro
16.6 / 63.0
•
Vehicle operation Vehicle care Do-it-yourself service Technical data

llffl __ D_ a_ ta ______________________________________________________ _
Applies to vehi cles: with 3 .2 liter 6-c yl. engine
255 hp, 3.2 liter 6-cyl. engine
En gin e data
Maximum output SAE net
Maximum torque SAE net
No. of cylinders
Disp lacement
Stroke
Bore
Compress ion ratio
Fuel
Dim ension s
Length (with licence plate bracket)
Width (across mirrors) Height (un loaded, incl. roof rails)
Turning circle diameter (curb to curb, approx .)
Ca pac ities
Fuel tan k
-Total capacity
-Reserve (of total capacity) approx.
Windshield and headlight* wa sher fluid container
Engine oil
approx. fi lter change hp@rpm
lb-ft@ rpm
CID (cm
3l
in (mm)
in (mm) 255@ 6500
243 @3250
6
190 (3123)
3 .65 (92 .8)
3 .33 (84 .5)
10.1 : 1
P remium unle aded (91 AKI) Recommended for maximum engine performance . Fur­
t her
details~ page 267, "Gasoline"
in (mm)
in (mm)
in (mm)
ft . (ml
gal/litres
gal/litres
quarts/litres
quarts/litres 1
80 (4586)
76.3 (1937)
57.2 ( 1453)
36 .4 ( 11 .1 l
front -wheel drive
18.5 / 70 .0
2.1 / 8 .0
5 .1 / 4.8
8 .1 / 8 .1 quattro
16.6 / 63 .0
•

____________________________________________ C_ o_ n_s _u_ m_ e_ r_ ln_ f
_ o_ rm_ a_ t_ i_o _n _ ___.11111

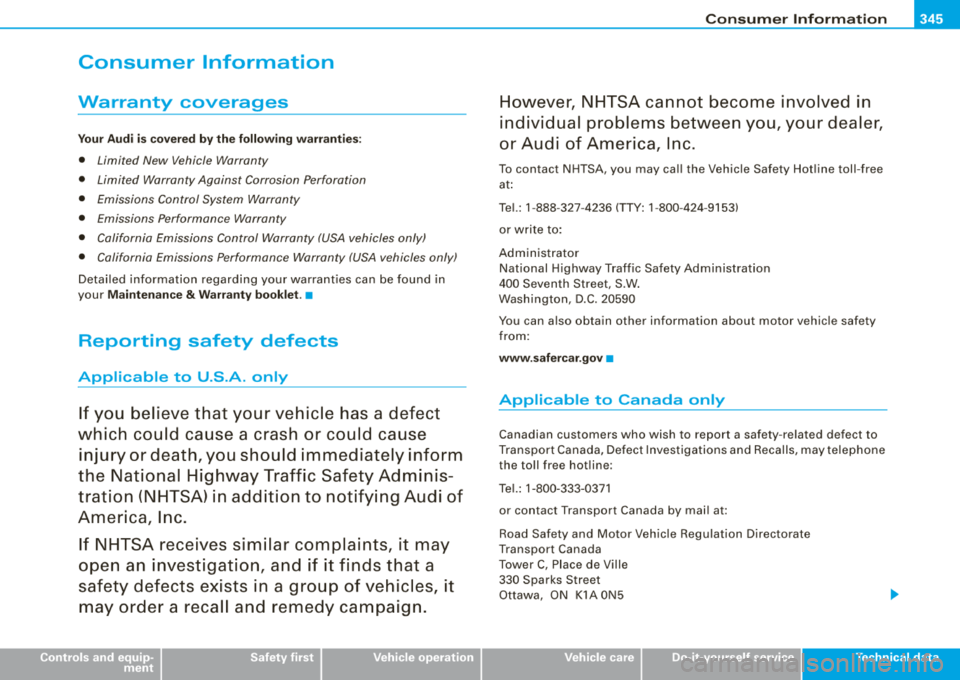

Consumer Information
Warranty coverages
Your A ud i is c ov er ed by the f ollow ing warrant ie s:
• Limited New Vehicle Warranty
• Limited Warranty Against Corrosion Perforation
• Emissions Control System Warranty
• Emissions Performance Warranty
• California Emissions Control Warranty (USA vehicles only)
• California Emissions Performance Warranty (USA vehicles only)
Detai led infor mation regarding your warra nties can be found in
your
Maintenan ce & Warr ant y booklet .•
Reporting safety defects
Applicable to U.S.A. only
If you b elieve that your vehicle ha s a d efec t
w hich could cause a cra sh or could cau se
injur y or d eath , you should immediat ely inform
th e Nation al Highway Traffic S afe ty Admini s­
tration (NHT SA ) in addition t o notifying Audi of
Am eri ca , In c.
If NHTSA r eceive s similar complaints, it ma y
op en an inv estigation , and if it find s th at a
s afet y def ect s exi sts in a group of vehicle s, it
ma y order a re call and r emedy campaign.
Controls and equip­
ment Safety first Vehicle operation
How
ever, NHTSA cannot become in vol ve d in
indi vidual problems between you , you r deal er,
or Audi of Americ a, Inc.
To contact NHTSA, you may ca ll the Vehic le Safety Hotline toll-free
at :
Tel.: 1 -888 -327 -4236 (T TY: 1 -800 -424 -9153)
or write to:
Admin istrator
National Highway Traffic Sa fety Administra tion
400 Seventh Street, S .W .
Washingto n, D .C. 20590
You can a lso obtain other information about motor vehic le safety
from:
ww w.s afer car.g ov •
Applicable to Canada only
Canadian customers who wish to report a safety -re lated defect to
Transport Canada, Defect Investigations and Recalls, may telephone
the to ll free hot line:
Te l.: 1-800 -333 -0371
or contact Transport Canada by mai l at :
Road Safety and Motor Vehic le Regulation Directorate
Transport Canada
Tower C, P lace de V ille
330 Sparks Street
Ottawa, ON K1A 0 N5
Vehicle care Do-it-yourself service Technical data

lffl __ C_ o_n_ s_ u_m _ e_ r_ ln_ f_
o _r _m _ a_ t_ i_o _n ______________________________________________ _
For additional road safety information, please visit the Road Safety
website at:
http://www.tc.gc.ca/roadsafety/menu.htm
•
Operating your vehicle outside the U.S.A. or Canada
Government regu lations in the United States and Canada require
that automob iles meet specif ic em ission regulations and safety
standards. Therefore, vehic les bui lt for the U.S.A . and Canada differ
from veh icles sold in ot her countries.
I f you p lan to take your vehic le outside the continental limits of the
Un ited States or Canada, there is the possib ility tha t
• unleaded fue ls for vehicles with cata lytic converter may not be
avai lable;
• fuel may have a considerably lower octane rating. Improper fuel
may cause engine damage;
• service may be inadequate due to lack of proper service faci lities,
t ools or test ing equ ipment;
• replacement parts may not be readily avai lable .
• Navigation syste ms for vehicles bu ilt for the U.S.A . and Canada
wi ll not necessarily work in Europe, and may not work in other coun ­
tries outside of Nort h America .
0 Note
Audi cann ot be responsible fo r mechan ical damage t hat cou ld
result from inadequate fuel, service or parts avai lab ility. •
Audi Service Repair Manuals and
Literature
Audi Official Factory Service Manuals are published as soon as
possible after model introduction Serv ice manuals are available
from :
Audi Technical Literature Ordering Center Ca ll tol l-free:
Tel. : 1 (800) 544-8021
(from 8:00 AM to 8:00 PM, EST, Monday through Friday)
or access their website www.audi .ddsltd .com on the Internet to
order repair manua ls and ot her Audi literature. •
Maintenance
General
Your vehicle has been des igne d to help keep main tenance requ ire ­
ments to a minimum. However, a certain amount of regu lar mainte ­
n ance is st ill necessary to assu re y ou r veh ic le's safety, ec onomy and
reliabi lity. For detai led vehic le maintenance consu lt your Mainte ­
nance
& Warran ty booklet.
Under difficult operating condition s, for example at extreme ly low
outside temperatures, in very dusty regions, when towing a trailer
very frequently, etc ., some service work sho uld be perfo rme d
between the intervals specified. This applies particu lar ly to :
• oil ch anges, and
• cleaning or replacing the air filter.

_______________________________________________ C
_ o_ n
_ s_u _ m_ e_ r_l_ n _f_o _ r_ m_ a_ t
_ i
_ o _ n
__ lllll
W For the sake of the environm ent
By regularly ma intain ing your vehicle, you help make sure that emis ­
sion standards are maintained, thus minimizing adve rse effects on
the e nv ironment. •
Important considerations for you and your
vehicle
T he increasing use of elec tronics, sophisticated fue l injection and
emission con trol systems, and t he gene rally increasing tec hn ical
complexity of today's automobiles, have steadily reduced the scope
of maintenance and repai rs which can be carried ou t by vehic le
owners.
Also , safety and environmental concerns p lace very strict
limits on the nature of repairs and adjustments to engine and trans ­
m iss ion parts whic h an owne r can perform.
Maintenance , adjustments and repairs usua lly require special tools ,
t es ting dev ices a nd othe r eq uipment availab le to s pec ial ly t rai ned
workshop personne l in order to assure proper performance , reli ­
abil ity and safe ty of the vehicle and its many sy stems .
Im proper maintena nce, adjustments and repairs can impa ir the
operation and reliability of your vehicle and even void your vehicle
wa rranty. T here fore, proof o f servic ing in acc orda nce with the main­
tenance schedule may be a condition for upholding a possib le
warranty cla im made with in t he war ran ty per iod .
Above all, operationa l safety can be adversely affected, creating
unnecessary risks for you and your passengers.
I f in doubt about any servicing, have it do ne by your auth orized Audi
dea ler or any other properly equipped and qua lified workshop . We
str ongly u rge y ou to give yo ur auth orized Au di d ealer the oppo rtu ­
n ity to perform all scheduled maintenance and necessary repairs .
Yo ur dealer has the faci lit ies, origi nal par ts an d trained specia lis ts
to keep your vehic le running proper ly.
Controls and equip­ ment Safety first
Vehicle operation
Performing limited maintenan ce yourself
The following pages des cribe a li mi ted numbe r of proced ures wh ic h
can be performed on your vehicle with ordinary tools, should the
need a rise a nd trained pers onnel be unavaila ble. Before perfo rm ing
any of these procedures, a lways t horoughly read all o f the app li­
cable text and carefu lly fo llow the instructions given. Always rigor ­
ously observe the
WARNINGS provided.
Before you check anything in the engine compartment , always read
and heed all
WARNINGS ~ & and~ & in "Wo rking i n th e engine
compartment" on
page 273.
& WARNING
• Serious personal injury may occur as a result of improperly
performed maintenance , adjustments or repairs .
• Always be e xtremely careful when working on the veh icle .
Always follow commonly accepted safety practice s and general
common sense . Never risk personal injury .
• Do not attempt any of the maintenance, checks or repairs
described on the following pages if you are not fully familiar with
the se or other procedures with respect to the vehicle , or are uncer ­
tain how to pro ceed .
• Do not do any work without the proper tools and equipment .
Have the necessary work done by your authorized Audi dealer or
another properly equipped and qualified work shop .
• The engine compartment of any motor vehicle is a potentially
hazardous area . Never reach into the area around or touch the
radiator fan . It is temperature controlled and can switch on
s uddenly -even when the engine is off and the ignition key has
been removed . The radiator fan swit ches on automat ically when
the coolant reaches a certain temperature and will continue to run
until the coolant temperature drops .
• Alway s remove the ignition key before anyone gets under the
vehi cle .
.,_
Vehicle care Do-it-yourself service Technical data

llffl _ __::C:::.::: o:.:.n.:.: s:::.::: u:.:.m .:.:.: e:.: r~ I n:..:.:. f.::
o :.:.r .:.m :.:.:: a:.: t:.:. i.::o :.:.n.:.... _____________________________________________ _
&, W ARNING (continued )
• Always support your vehicle with safety stands if it i s neces­
sary to work underneath the vehicle. The jack supplied with the
vehicle is not adequate for this purpose and could collapse
causing serious personal injury .
• If you must work underneath the vehicle with the wheels on
the ground , always make sure the vehicle is on level ground , that
the wheels are always securely blocked and that the engine
cannot be started .
• Always make sure the transmission selector lever (automatic
transmission) is in
" P " (Park position) and the park brake is firmly
applied.
ffi For the sake of the environment
• Changing the engine settings wi ll adverse ly affect emission
l eve ls . T hi s is detri menta l to th e envi ro nm ent and increas es fu el
consumption .
• Always observ e env ironmenta l re gulations w hen disposing of
old e ngine oil, used brake f luid, dirty engine coo lant, spent batteries
or worn out tires .•
Additional accessories,
modifications and parts replacement
Additional accessories and parts
replacement
Alway s co nsult an autho rized Audi de aler before
pu rchasing acc essories .
Your vehicle incorporates t he latest safety d esig n f eatures ensuring
a high standa rd of active and pas sive safety . Th
is saf ety could be compromised by non -approved changes to the
v ehi cle . F or thi s re aso n, if par ts have to be re pla ced , pl ease obs erve
th e fo llow ing points when insta lling add itional acc essories :
A pproved Aud i accesso ries and gen uine Audi pa rts a re avai la bl e
fr om authori zed Aud i dea lers .
Th ese dealers also have the necessary faci lities, tools and tra ined
spec ia li sts to in sta ll th e parts an d acce ssor ies pr op erly .
& WARNING
Using the wrong spare parts or using non -approved accessories
can cause serious personal injury .
• Use only accessories expressly approved by Audi and genuine
Audi spare parts .
• These parts and accessories have been specially designed to
be used on your vehicle .
• Never install accessories such as telephone cradles or
beverage holders on airbag covers or within the airbag deploy­
ment zones . Doing so will increase the risk of injury if airbags are
triggered in an accident!
• Before you check anything in the engine compartment , always
read and heed all WARNINGS
=> page 265.
0 Note
• I f item s ot her than ge nuin e Audi s pa re pa rts, add- on eq uipment
and accessory items are us ed or if r epair wor k is not performed
according to s pecified methods, thi s can re sult in severe damage to
your v ehicle's eng ine and body (suc h as c orros io n) a nd advers ely
affect yo ur vehic le 's wa rranty.
• Th e manufacturer cannot be held liable for damage w hich occurs
d ue t o fa ilur e to comply w it h these stipu lation s.•
