Clear vision
(I] Tips
Commercial hot waxes applied by automatic car washes affect t he
how easily the glass surface can be cleaned. •
Mirrors
Manual glare-dimming
Standard setting
- Move the small lever (located on the bottom edge of the
mirror) to the front.
Anti-glare setting
- Move the small lever (located on the bottom edge of the
m irror) to the rear .•
A ppli es to vehicl es: w ith automat ica lly dim ming in side m ir ro r
Automatically dimming inside mirror
The automatic dimming function con be turned on and
off if required.

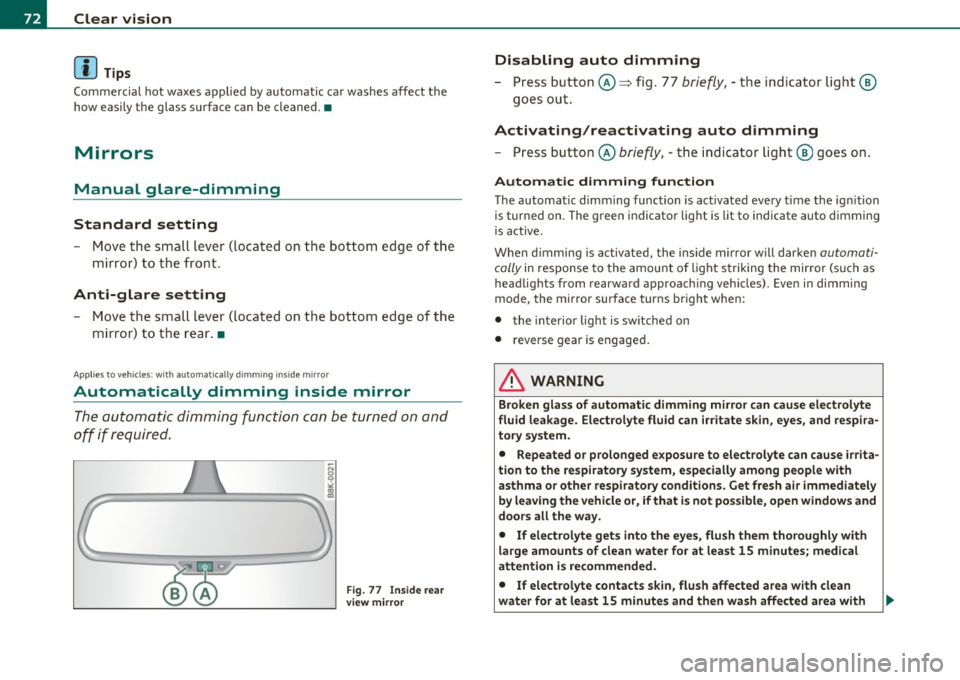

Fi g. 7 7 In sid e re ar
v iew mirr or
Disabling auto dimming
- Press button@=> fig. 77 briefly, -the indicator light ®
goes out.
Activating /reactivating auto dimming
- Press button @ briefly, -the indicator light ® goes on .
Automatic dimming function
The automat ic dimm ing function is act ivated eve ry time t he ig nitio n
is turned on. The green indicator lig ht is lit to indicate auto dimming
is active.
When d imming is activated, the inside mirror w ill darken
automati­
cally
in respo nse to the amount o f light s triking the mir ror (suc h as
headlights from rearward approach ing ve hicles). Even in dimming
mode, the mirror surface turns brigh t when:
• the interior light is sw itched on
• reverse gear is engaged .
& WARNING
Broken glass of automatic dimming mirror can cause electrolyte
fluid leak age. Electrolyte fluid can irritate skin, eyes , and resp ira­
tory sy stem.
• Repeated or p rolonged e xposu re to electrolyte can cause i rrita­
tion to the re spiratory system, especially among people with
asthma or other respiratory conditions . Get fresh air immediately
by leaving the vehicle or , if that is not po ssible , open window s and
doors all the way.
• If electrolyte get s into the eye s, flu sh them thoroughly with
large amounts of clean water fo r at least 15 minutes; medical
attention is recommended.
• If elect rolyte contacts skin , flush affected area with clean
water for at lea st 15 minute s and then wash affected area with

& WARNING (cont inued )
soap and water; medical attention is recommended. Thoroughly
wash affe cted clothing and shoes before reuse.
• If swallowed and person is conscious, rinse mouth with water
for at least 15 minutes. Do not induce vomiting unle ss instructed
to do so by medical professional. Get medical attention immedi­
ately .
0 Note
Liquid elec tro ly te le aked fro m a broken mirro r g la ss w ill damage any
plast ic surfaces it comes i n contact with . Clean up spilled electro lyte
immedi ately wit h cle ar wa te r an d a spo nge.
[ i ] Tips
• If you switch off the automatic dimming function on the inside
mirror, automatic dimming of the outside mirrors will likewise be
disabled.
• Check to make s ure there are no objects preventing light from
reach ing the inside m irro r.
• Do not attach any st ickers to the w indshield in front of the light
s ensor, as this wo uld inter fere wi th both t he a utom atic oper ation of
the headlights and the automatic d imm ing of the inside mi rror. •
Contro ls a nd e quip ­
m en t Vehicle
OP-eration
Clear vision
Outside mirrors
Th e outs ide m irrors are e lec tricall y adj ust ed ( pow er
m irr ors )
Adjusting exterior mirrors
Fig. 78 Forward
section of d river 's
armr est : p ower mirror
controls
- R otate the kn ob to the© position (driver's ex ter ior
m irror) or t o th e® p osit io n (passe nger's e xterior mi rro r)
=> fig. 78 .
- R otate the k nob a nd th e mirror so t hat you have a clear
v iew to the rea r.
Heated mirrors
- Rotat e the k nob to position
@ .
Depen ding on the outs ide te mperature, the mir ror surfa ce s a re
heated until the ignit ion is sw itched off- even if the knob is no longer
in pos itio n
@.
You are w ell -advis ed to fold th e outside m irro rs in when man euv ering
in tight spaces or when leaving the ca r parked close to other vehicles ._..
Vehicle care Do-it-yourselt service Technical data

Clear vision
Memory for exterior mirrors*
On vehicles with memory for the drive r's seat, the curren t sett ing for
t he exter io r mir rors is automatically stored a long w it h t he seat posi­
tion ~
page 80.
Tilt funct ion for the passenger's mirror* (only with
memory for exterior mirrors)
W hen the reverse gear is engaged , th e mirror su rface t ilts downwa rd
slightly if the setting is for the passenger 's mirror (knob in position
@ ~ page 73, fig . 78) . T hi s allows you to see the curb dur ing pa ralle l
par king .
T he mir ror r etur ns to it s in iti al position as soon as reverse gear is
disengaged and ve hicle speed is above about 9 mph (15 km/h). The
m irro r also retu rn s t o its in itia l pos it ion i f th e swi tch is moved to the
dr iver's outside mirror © or the ignition is sw itched off.
If t he position of t he mir ro r su rface is changed on a ti lted mirror, this
new position will be automatically assig ned to the remote key when
the vehicle is taken out of reverse gear.
0 Note
Curved mirror su rfaces (convex or spherica l*) increase your fie ld of
view. Remembe r th at veh icles o r o the r object s will appear sm alle r
and fart her away than when seen in a flat m irro r. If you use this
m irror to est ima te dis tanc es o f following vehicles when cha nging
lanes, you cou ld estimate incorrect ly and cause an accident .
[I] Tips
If there should be a malfu nction in the electrical system, you can st ill
a djus t the ou ts id e mir rors by pressing the edge o f the m irro r.•
A pp lies to vehicles: with aut omat ica lly adj usting outs id e m irr ors
Automatic dimming for the outside
mirrors
Th e o utside mirrors dim at the same time as the inside m irror. Whe n
the ignition is switched o n, the mirrors a utomatically dim depending
on the a mou nt of light s triki ng t he m irro rs (su ch as he adlights
shining into the veh icle from the rear) .
W hen the inter io r li ght ing is switche d on and when reverse gear is
engaged, the m irro rs a re switched back to their original brig htn ess
(not dimmed) .
& WARNING
Broken gla ss of automatic dimming mirror can cause electrolyte
fluid leakage. Electrolyte fluid can irritate skin, eyes, and respira­
tory sy stem.
• Repeated or prolonged exposure to electrolyte can cause irrita­
tion to the re spiratory system, especially among people with
asthma or other respiratory conditions . Get fresh air immediately
by leaving the vehicle or , if that is not po ssible , open window s and
doors all the way.
• If electrolyte gets into the eye s, flush them thoroughly with
large amounts of clean water fo r at least 15 minutes; medical
attention i s recommended .
• If electrolyte contacts skin , flush affected area with clean
water for at lea st 15 minute s and then wash affected area with
soap and water; medical attention is recommended. Thoroughly
wash affected clothing and shoes before reu se.
• If swallowed and person is conscious, r inse mouth with water
for at least 15 minutes . Do not induce vomiting unles s instru cted
to do so by medical professional. Get medical attent ion immedi-
ately .
~

Seats and storage
General recommendations
Why is your seat adjustment so important?
The safety belts and the airbag system can only provide
maximum protection if the front seats are correctly
adju sted.
Th ere a re various ways of adjusting t he front seats to provide safe and
comfortable support for the driver and the front passenger . Ad just
your seat properly so that :
• you can easily and quickly reach a ll the switc hes and contro ls in the
ins trumen t pa nel
• your body is properly supported thus reducing phys ica l stress and
fatigue
• the safety be lts and airbag system can offer maximum protection
=>
page 200 .
In the following sections, you w ill see exact ly how you can best ad just
your sea ts .
Th ere are special regulations a nd instr uctions for install ing a child
safety seat on the front passenger's sea t. Always follow the informa ­
tion regarding child safety p rovided in=>
page 222, "Child Safety ".
& WARNING
Incorrect seating posit ion of the dri ver and all other passengers
can result in seriou s personal injury.
• Always keep your feet on the floor when the vehicle is in
motion -never put your feet on top of the instrument panel, out
of the window o r on top of the seat cush ion. This applies especially
to the passengers.
If your seating po sition is incorrect, you
increase the ri sk of injury in the case of sudden braking or an acci-
Controls and equip ­
ment Safety first
Seats and storage
& WARNING
(con tinu ed)
dent . If the airbag inflates and the seating position is incorrect ,
this could result in per sonal injury or even death .
• It is important for both the dri ver and front passenger to keep
a distan ce of at least 10 inche s (25 cm) between themselves and
the steering wheel and /or instrument panel. If you 're sitting any
closer than this , the airbag system cannot protect you properly. In
addition, the front seats and head restraints must be adjusted to
your body height so that they can give you maximum protection .
• Always try to keep as much distance as possible between your­
self and the steering wheel or instrument panel.
• Do not adjust the driver's or front passenger 's seat while the
vehicle is moving. You r seat may move unexpectedly , causing
sudden loss of vehicle control and personal injury . If you adjust
your seat while the vehicle is moving , you are out of position. •
Driver's seat
The correct seat position is important for saf e and
re lax ed driving.
W e recomme nd that you a djust the drive r's sea t in the
f ollowing man ner :
- Ad just the seat in fore and aft direction so that you can
easily pus h the pedals to the floor w hile keeping your
knees slightly bent=>
& in "Why is yo ur seat a djus tme nt
so importa nt?" .
- Adjust the seatback so that when yo u sit with yo ur back
agai nst t he seatback , you can st ill grasp t he top of the
steering w heel. ..,
Vehicle care Technical data

only going to be used temporarily by a driver whose settings are not
going to be stored. •
Applies to vehicles : w ith seat memory
Storing and recalling settings
Before you can store or recall your settings, the [ ON/OFF]
switch on the seat memory must be engaged (not raised).
Storing settings
- Adjust the driver's seat.
- Adjust the two exterior mirrors .
- Press the
I SETI button and hold it down. In addition, press
one of the memory buttons for at least one second .
- Release the buttons. The settings are now stored under
the corr esponding memory button .
Recalling settings
- If the driver's door is open, tap the corresponding memory
button briefly .
- If the driver's door is closed , press the appropriate
memory button unt il the stored position is reached .
Successful storage is confirmed audibly and by the light in the [SET)
button illuminat ing=> page 80, fig . 83 .
When the vehicle is
loc ked , the current settings are stored and
ass igned to the remote contro l key. B ut the setti ngs sto red on
memory buttons 1 to 2 are not deleted. They can be reca lled at any
time. When the vehicle is
unlo ck ed , the settings stored on the
remote control key are restored.
If your vehicle is driven by other persons using your remote control
key , you should save your individua l seat position on one of the
Controls and equip ­
ment Safety first
S
eats and storage
memory buttons. You can recall your settings again simply and
conveniently by press ing the cor responding memory button. When
the vehicle is locked, these settings are automatically re-assigned to
the remote control key and stored.
& WARNING
• Fo r sa fe ty reaso ns, th e se at se tting can only b e recalled when
t h e ve hicl e is s tat ion ary -oth erwise yo u risk ha ving an acc ident .
• In an emer gency th e re ca ll pro ce du re can be cancelled b y
p ressing the [
ON/OFF) sw itch or by t appin g of the the memo ry
b utto ns. •
App lies to ve hicles: with seat memory
Activating remote control key memory
To be able to recall the stored settings with the remote
control key, the function has to be activated in the radio
or in the MM!*.
-Select : Function button I CAR]> Seat adjustment >
D river's se at > Key mem . profile > On .
(I) Tips
If you do not want another driver to store their settings on the
remote key, switch
off the Memory function using the radio or the
MMI* or the [OFF] button => page 80 . •
Vehicle care Technical data

& WARNING (co ntinued )
an accident, sudden braking or other vehicle movement , hot liquid
c ould spill, cau sing scalding burn s. Spilled hot liquid can also
cause an accident and personal injury .
• Use only soft cups in the cupholder. Hard cups and glasses can
cause inju ry in an accident.
• Never use the cupholder or adapter as an ashtray -risk of fire .
0 Note
Only drink conta iners with lids shou ld be ca rr ied in the c upholder .
Liquid could spill out and damage your vehicle's e lectronic eq uipment
or s tain t he upho ls tery, e tc. •
Ashtray
Opening the ashtray
- Slide th e cover open.
Closing the ashtray
Fi g. 91 Ce nter
c onsol e: a shtray
- Tap the lid to close the as htray a utomatically.
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
Seats and storage
Removing ashtray insert
- Release the ash tray i nsert by sliding the switch@
=> fig. 91 to t he ri ght.
- Remove t he as htr ay insert ®=> fig. 9 1.
Reinstalling ashtray insert
-Press th e as htra y insert into i ts ho ld e r.
& WARNING
Never put waste paper in the ashtray. Hot ashes or other hot
objects in the ashtray could set waste paper on fire .•
Cigarette lighter
Fig. 92 Op en front
a shtray
Using the cigarette lighter
- Open t he lid of the front ash tray.
- Push t he knob on the c igarette lig hter i n.
- Wait unti l the knob po ps o ut sligh tly.
- Remov e the cigar ette lig ht er immediat ely.
Vehicle care Do-it-yourselt service iTechnical data

Seats and storage
- Light your cigarette from the red-hot heating co il of the
cigare tte ligh ter .
- Return the cigarette lighter to its socket .
Using the socket
- Remove the cigarette lighter.
- Insert the plug of the electrical device into the cigarette
ligh ter socke t.
The socket o f the ciga re tte lighter may be used for 12-volt appliances
w ith maximum consumption of up to 100 watts, such as a flash light,
small vacuum cleane r, etc.
Before you purchase any accessor ies, always read and follow the
information in =>
page 345, "Additional accessor ies and parts
replacement" .
& WARNING
• Use care wh en u sing the cigar ette lighter . Inattentive or unsu ­
pervised u se of the cigarette lighter can cause burns -risk of
injury!
• The cigarette lighter work s when the ignition is swit ched off or
w ith the ignition key removed . Children should nev er be left unsu ­
pervised in the vehicle, or there could be risk of fire!
• The po wer outlets and therefore the electrical accesso ries
c onnected to them ope rate only with the ignition on . Improper
use of the outlet s or of electrical acce ssor ies can lead to serious
injurie s or cau se a fire. For this rea son , children should ne ver be
left unatt ended in the veh icle -they could be injured!
0 Note
• To avoid damag ing the socket, only use plugs that fit p roperly . •
Only use the cigarette lighter socket as a power source for elec­
t rical accessories for short du rat ions. Use the socke ts * in the vehi cle
w hen a power sou rce is needed for longer durations .
(I] Tips
When the engine is off and accessories a re st ill p lugged in and are o n,
the vehicle battery can sti ll be drained .•
Storage
General overview
There are numerous places to store i tems in your vehicle.
Glove compartment => page 87
Storage compartments in the front seats
& WARNING
• Alway s re mo ve object s from the instrument panel. Any item s
not put away could slide ar ound in side the vehicle while d riving or
wh en accelerating or when apply ing the brake s or wh en driving
around a co rner .
• When you ar e driving make sure that anything you may have
pla ced in the center console o r othe r st orage lo cation s cannot fall
out into the footwell s. In case of sudden braking you would not be
able to brake, depress the clutch or accelerate. •

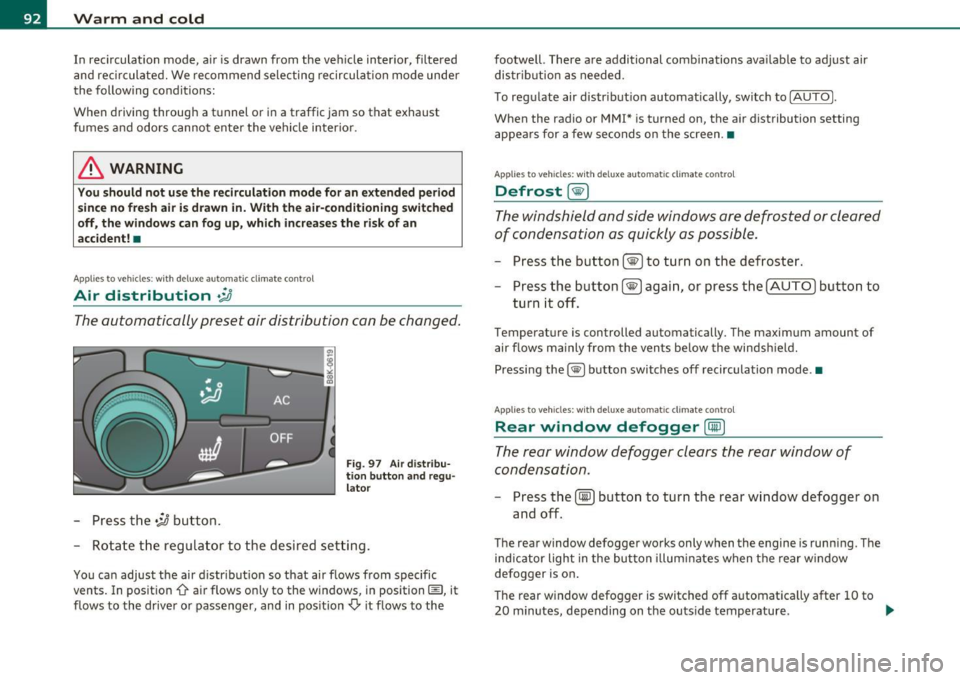

Warm and cold
In recirculat ion mode, air is drawn from the vehicle interior, filtered
and recirculated. We recommend selecting recirculation mode under
the following conditions:
When driving through a tunnel or in a traffic jam so that exhaust
fumes and odors cannot enter the vehicle interior .
& WARNING
You should not use the recirculation mode for an extended period
since no fresh air is drawn in. With the air-conditioning switched
off, the windows can fog up, which increases the risk of an
accident! •
Applies to veh icles : w ith deluxe automat ic cl imate contro l
Air distribution .JJ
The automatically preset air distribution can be changed.
-Press the .;J button.
Fig. 97 Air distribu­
tion button and regu­
lator
- Rotate the regulator to the desired setting.
You can adjust the air distribution so that air flows from specific
vents. In position
0-air flows only to the windows, in position@, it
flows to the driver or passenger, and in position
,0. it flows to the footwell.
There are additional combinations available to adjust air
distribution as needed.
To regulate air distribution automatically, switch to
!AUTO).
When the radio or MMI* is turned on, the air distribution setting
appears for a few seconds on the screen .•
Applies to veh icles: wit h deluxe automat ic cl imate control
Defrost [@)
The windshield and side windows are defrosted or cleared
of condensation as quickly as possible.
- Press the button !@)to turn on the defroster.
- Press the button[@) again, or press the [
AUTO I button to
turn it off.
Temperature is controlled automatically. The maximum amount of
air flows mainly from the vents below the windshield.
Pressing the
I@ ) button switches off recirculation mode .•
Applies to veh icles: w ith d eluxe automat ic cl imate contro l
Rear window defogger [CiID)
The rear window defogger clears the rear window of
condensation.
- Press the (!iiPJ button to turn the rear window defogger on
and off.
The rear window defogger works only when the engine is running. The
ind icator light in the button illuminates when the rear window
defogger is on.
Th e rear window defogger is switched off automatically after 10 to
20 minutes, depending on the outside temperature . ...

_________________________________________________ O_ n_t_ h _ e_ ro_ a_d __ ffl'II
& WARNING (co ntinued )
• Never remo ve the ignition key from the ignition look while the
vehicle is moving. Otherwi se, the steering lock could suddenly
engage and you would not be able to steer the vehicle.
0 Note
• In the event of a malfunction in the electronic ignit ion lock a
symbo l in th e instr umen t cluster flashes with the message
Ignition
lock defective .
• Avoid h igh eng ine speeds, fast acce lerat ion or heavy eng ine loads
whi le the engine is still co ld. This cou ld damage the engine .
<£> For the sake of the environment
To avoid unnecessary engine wear and to reduce exhaust emiss ions,
do not let your vehicle s tand and w arm up. Be re ady to dr ive off i mme­
diately after starting your ve hicle. Mai ntain mode rate speed until the
eng ine is complete ly w arm . R emembe r, the eng ine per forms best at
operat ing temperature.
[I) Tips
• If the key ca nnot be removed from the ignition lock , yo u have to
pull the mec hanica l key o ut o f the maste r key in o rde r to be able to
lock the ve hicle Th e veh icle can be locked with the mec han ical key
=> page 39.
• If you open the driver's door with the ig nit io n switched on, a
buzze r soun ds and the message
Ignition is on appea rs in the instru ­
ment cl uster d is p lay . Switch t he ig nitio n off .•
Stopping the engine
- Bring the vehic le to a fu ll s top.
Controls and equip ­
ment Safety first
M
ove the select or lever to the P or N po sit ion .
- Press on t he igni tion key. The engi ne is tu rned of f.
Emergency off
If it is necessary in unusual circ umstances, the engine can be
switched off while the vehicle is mov ing . The eng ine will be switched
off if you press on the key for an extended period.
& WARNING
• Never turn off the engine until the vehicle has come to a
complete stop .
• The brake booster and servotronic only work when the engine
is running . With the ignition turned off, you ha ve to apply more
force when steering or braking. Since you cannot steer and stop
normally, this can lead to accident s and serious injuries.
• The radiator fan can continue to run for up to 10 minute s even
after you have turned of f the engine and removed the ignition key.
The radiator fan can also turn on a gain if the engine coolant heats
up becau se of intense sunlight or heat build-up in the engine
compartment.
0 Note
Do not stop the engine immediately after har d or extended dr iving.
Keep the eng ine runni ng fo r approx imately two m in utes to p revent
excessive heat b uild -up. •
Vehicle care Technical data

ffl..__O_ n_ t_h _e_ r_o _ a_ d _________________________________________________ _
0 Note
If the eng ine has been under heavy load for an extended period, heat
builds up in the engine compartment after the engine is switched off
- there is a risk of damaging the engine. Allow the engine to run at idle
for about 2 minutes before switching it off. •
Electromechanical parking brake
Operation
The electromechanical parking brake replaces the hand
brake.
Fig. 110 Center
consol e: Par king brake
-Pull on the switch @~ fig. 110 to apply the parking
brake . The indicator light in the switch illuminates.
- Step on the brake pedal or the accelerator pedal and press
the switch at the same time to release the parking brake.
The indicator light in the switch goes out.
Your vehicle is equipped with an electromechanical parking brake.
The parking brake is designed to prevent the vehicle from rolling
unintentiona lly and replaces the hand brake. In addition to the normal functions of a traditional hand brake, the
electromecha
nical parking brake provides various convenience and
safety functions.
When starting from rest
• The integral starting assist helps you when driving by automati­
cally releas ing the parking brake=>
page 111, "Starting from rest".
• When starting on inclines, the starting assist prevents the vehicle
from unintentionally ro ll ing back. The braking fo rce of the parking
brake is not released until sufficient driving force has been built up at
the whee ls.
Emergency brake function
An emergency brake ensures that the vehicle can be slowed down
even if the
normal brakes fail=> page 112, "Emergency braking" .
Indicator lights
• If the parking brake is closed with the ignition switched on the
ind icator lights come on:::, (USA models)/ ®) (Canada models) in the
instrument cluster and the switch.
• If the park ing brake is closed with the ign it ion
switched off the
indicator lights come on
::'l'n (USA models) I © (Canada models) in the
instrument cluster and the switch fo r about 20 seconds.
& WARNING
If a gear or a drive range (automati c transmission ) is engaged
with the vehicle stationary and the engine running , you must in no
instance accelerate or release the clutch carelessly. Otherwise the
vehicle will start to move immediately -risk of an accident.
0 Note
If the symbol ID in the display or the indicator light BRAKE (USA
mode ls)/ ((j)) (Canada models) in the instrument cluster flashes, there
is a malfunct ion in the brake system. By pressing the
! SET] button,
you can bring up a driver message which explains the ma lf u nction in .,
