______________________________________________ F _u_s _e_ s_ a_ n_ d _ b _u_l_b _ s _ ___.9I
Fuses and bulbs
Fuses
Replacing a fuse
A problem in the electrical system may be caused by a
blown fuse.
Fig. 244 Instrument
panel left: Face cover
- Locate the fuse which belongs to the component which
failed.
- Switch off the ignition and the electrical component affected.
- Carefully pry the face cover
off the instrument panel using
a screwdriver => fig. 244 .
- Remove the plastic clip from its retainer in the face cover,
place it over the questionable fuse and remove the fuse.
- Replace a blown fuse (recognizable by the melted metal
strip inside) with a fuse of the
same amperage.
The individual circuits are protected by fuses. The fuse panels with
the fuses are located on the left and right front faces of the instru-
Vehicle OP-eration
ment panel behind a cover and in the right storage area in the
luggage compartment.
There is a plastic clip in the cover on the left side of the instrument
panel, which can be used to remove the fuses. You will also find a
label on both covers in the instrument panel with the fuse layout for
the corresponding fuse panel.
& WARNING
Never replace a fuse with one that has a higher amperage rating.
• A fuse with a too high amperage could damage the electrical
part and cause a fire.
0 Note
• On no account should fuses be repaired (e.g. patched up with tin
foil or wire) as this may cause serious damage elsewhere in the elec­
trical circuit or cause fire .
• If a fuse blows repeatedly, do not keep replacing it. Instead, have
the cause of the repeated short circuit or overload located and fixed.
Ii] Tips
You are well advised to keep a supply of spare fuses in your vehicle .
Fuses with the proper ampere ratings are available at your authorized
Audi dealer. •
Vehicle care Do-it-yourself service iTechnical data

-Fuses and bulbs ..._ __________________________________________ _
Fuse Location, Instrument Panel left
Fig. 2 45 F use panel
lay out
Some o f the eq uipmen t items lis ted are op tiona l o r only a vailable on
certain mode l configurations .
Note that the following table is a ccurate at the time of going t o
press and is subject to change. In the event of discrepanc ies , the
label on the inside of the cover always take s pr eceden ce.
The powe r seats are pro te cted by circuit brea kers , which automa ti­
cally reset after a few seconds a fter the ov erload has been remed ied.
No. Consumer
Fuse panel (black)
1 Dynamic steering
2 Not used
3 Homelink
4 Lane Assist
5 Climate control
6 R ight head light range adjustment
7 Left headlight range adjustment
8 Vehicl e elect ric al sys tem co ntrol mo dule 1
9 Adaptive Cruise Control 5
5
10
5
5
5
5
5
No . Consumer Amps
10 Shift gate 5
1 1 Heate r washer fluid no zzles 5
1 2 Climate con trol
5
13 Cell phone prep 5
14 Airbag 5
15 Terminal 15 25
16 Terminal 15 engine
40
Fuse panel (brown)
1 Automatic dimm ing in terior rearv iew mir ror
5
2 Not used
3 Gaso line fuel pump 25
4 Auxiliary water pump 3.2L FSI 5
5 Left seat heati
ng with/witho ut seat heating
15/30
6 Electronic Stabiliza tion Program 10
7 Horn 25
8 Left door window regulator motor
30
9 Wiper motor 30
10 Electronic Stabilization Program 25
11 Driver side doo
r co ntro l modu le
15
12 Rain and light sensor 5
Fuse panel (red)
1 Not used
2 N ot u sed
3 Lumbar support
10
4 Dynamic steering
35

______________________________________________ F _u_s _e_ s_ a_ n_ d _ b _u_l_b _ s _ ___.ffl'I
No. Consumer Amps
5 Not used
6 Veh
icle electrical system control mod ule 1 35
7 Vehicle electrical system control module 1 20
8 Vehicle electrical system control modu le 1
30
9 Left rear window regulator motor 7,5
10 Veh icle electrical system co ntrol mod ule 1
30
Right rear window regulator motor 7,5
1 2 Convenience e lec tro nics 5
Fuse Location, Instrument Panel right
Fig. 24 6 Fus e p anel
lay out
Some of the equ ipment items l isted are optio nal or only avai lab le on
certain mode l configurations.
Note that the following table is a ccurate at the time of going to
p re ss and is sub ject to change. In the ev ent of discr epancie s, the
label on the in side of the co ver alwa ys takes pre cedence.
T he power seats are p rote cted by cir cuit breaker s, which a utomat i­
cally reset after a few seconds after the over load has been remedied.
•
Vehicle OP-eration
No. Consumer Amps
Fuse panel (black )
1 Not used
2 Not used
3 Not used
4 Not used
5 Steering column switch module
s
6 Electronic Stabilization Program 5
7 Terminal 15 diagnostic connecto
r 5
8 Gateway (Databus diagnostic interface) 5
9 Not used
1 0 Not used
11 Not used
12 Not used
Fuse panel (brown)
1 C D-/DVD player 5
2 Audi drive select switch module 5
3 MMI/Radio
5/20
4 Instrument cluster 5
5
Gateway (instrument cluster control module) 5
6 Ignition lock 5
7 Rotary light switch
5
8 Climate control system blower 40
9 S teering column lock
5
Vehicle care Do-it-yourself service iTechnical data

.,.,___F_ u_ s_e _ s_ a_n_d _b_u _ l_ b_s _______________________________________________ _
No. Consumer Amps
10 Climate control 10
11 Terminal 30 diagnostic connector 10
12 Steering column switch module 5

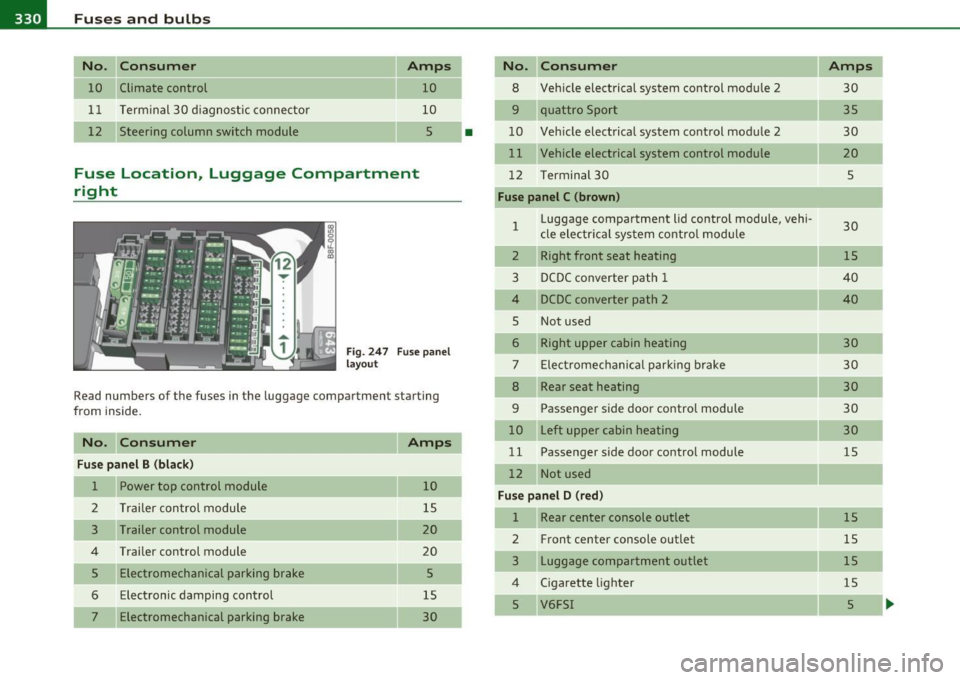

Fuse Location, Luggage Compartment
right
Fig. 247 Fuse panel
layout
Read numbers of the fuses in the luggage compartment starting
from inside.
No. Consumer
Fuse panel B (black)
1 Power top control module
2 Trailer control module
3 Trailer control module
4 Trailer control module
5 Electromechanical parking brake
6 Electronic damping control
7 Electromechanical parking brake
Amps
10
15
20
20 5
15
30
•
No. Consumer
8 Vehicle electrical system control module 2
9 quattro Sport
10 Vehicle electrical system control module 2
11 Vehicle electrical system control module
12 Terminal 30
Fuse panel C (brown)
1
2
3
4
Luggage compartment lid control module, vehi­
cle electrical system control module
Right front seat heating
DCDC converter path 1
DCDC converter path 2
5 Not used
6 Right upper cabin heating
7 Electromechanical parking brake
8 Rear seat heating
9 Passenger side door control module
10 Left upper cabin heating
11 Passenger side door control module
12 Not used
Fuse panel D (red)
1 Rear center console outlet
2 Front center console outlet
3 Luggage compartment outlet
4 Cigarette lighter
5 V6FSI
Amps
30
35
30
20 5
30 15
40
40
30
30
30
30
30 15
15
15
15
15 5

Fuses and bulbs -________________ Ef"I
No. Consumer
6 Rear Seat Entertainment supply
7 Parking system
8 Not used Electromechanical park ing brake switch
1 0 Aud i side assist
11 Rear sea t heating
12 Terminal 15 control modules
Fuse panel E (black)
1 Not used
2 Not used
3 DSP amplifier, radio
4 M MI
5 Radio/navigation/cell phone prep
6 Rearview c
amer a
7 No t used
8 Not used
9 Not use d
10 Not used
11 N
ot used
1 2 N ot used
Safety first
Amps
5
7,5
5
5
5
5
20/ 30
7,5
7,5
5
•
Bulbs
Replacing bulbs
F or your safety, we recommend that you have your autho­
ri zed Audi dealer replace any bulbs for you.
It is becoming increasingly more and more diff icult to rep lace vehicle
ligh t bulbs since in many cases, other parts o f the car must fi rst be
removed before yo u are able to get to the bulb . This applies especially
to the light bu lbs in the front of your car which you can on ly reach
throug h the engi ne compartment .
Sheet meta l and bu lb holders can have sharp edges that can ca use
ser ious cuts, parts must be co rrectly t aken ap art and the n properly
put back together to he lp prevent breakage of parts and long term
d am age fro m water t hat c an enter housings that have no t been p rop­
erly resea led.
For your safety, we recommend that you have you r authorized Audi
dealer replace any bulbs fo r you, since yo ur dealer has t he p roper
too ls, the correct bu lbs and the expertise.
Gas discharge lamp s (Xenon light s)* :
Due to the high electr ica l voltage , have the bulbs replaced by a qual­
ified technicia n. Hea dlights w ith Xenon light are ident ified by the
high voltage sticker .
& WARNING
Changing Xenon lamps w ithout the necessary equipment can
cause serious personal injury.
• Bulbs are pressur ized and can explode when being changed.
Potential risk of injury !
• On vehicles equipped with gas discharge bulbs (Xenon light )*
lif e-threatening injurie s can re sult from improper handling of the
high- voltage port ions of such lamps ! .,_
Vehicle care Do-it-yourself service Technical data

-Fuses and bulbs Pf":I..._ ______________ _

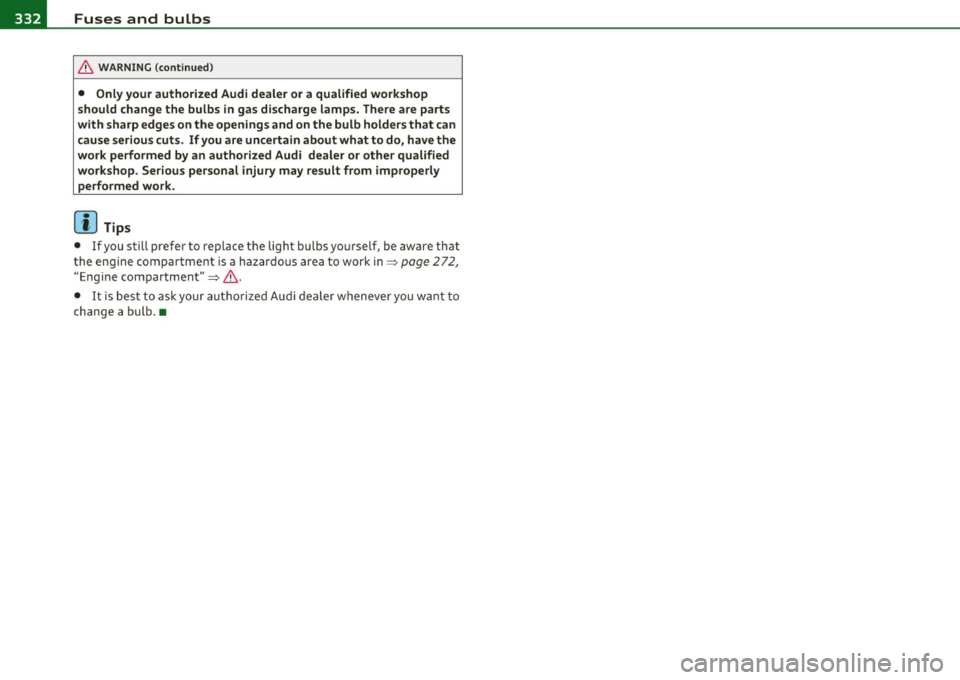

& WARNING (continued)
• Only your authorized Audi dealer or a qual ified workshop
should change the bulbs in gas discharge lamps. There are parts
with sharp edges on the openings and on the bulb holders th at can
cause serious cuts . If you are uncertain about what to do, have the
work performed by an authorized Audi dealer or other qualified
workshop . Serious personal injury may re sult from improperly
perfo rmed work.
[ i ] Tips
• If you still prefer to rep lace the light bu lbs yourself, be aware that
t he engine comp artme nt is a haza rdous area to work in =>
page 272,
"Eng ine compartment"=> &.
• It is best to ask yo ur autho riz e d Au di d ealer w henever you w ant to
change a bulb. •

Alphabetical inde x -________________ fWI
Front armrest
Adjusting ........................
82
Storage compartment ............. . 82
Front ashtray ..... .. .. ............... 85
Front seats .. ....................... 77
Adjusting ... ............. .... .. . 179
Child restra ints in the front seat ... . 202
Upper cabin heating .......... .... 104
Frontal co llisions and the laws of physics 191
Fuel
Additives .......................
274
Blended gasoline .............. .. . 274
Consumption ..................... 22
Filler neck ...... ................. 275
Fuel gauge .............. ........ . 10
Gasoline .................... ... . 274
Gasoline additives ................ 275
Octane rating .................... 274
Recommendation ................ 274
Refuelling ... .. .. .. ............ .. 276
Reserve ....... .... ... .. .. .. ..... . 10
Tank capacity ...... ... .. ..... .... 342
Unlocking the fuel filler flap by hand . 278
Fuel supply too low ................... 34
Fuse arrangement ................... 327
G
Garage door opener (Homelink®) ...... 172
Gas discharge lamps ........ .... .. .. . 331
Controls and equip­
ment Safety first
Gauges
Engine coolant tern perature .......... 8
Fuel gauge .......................
10
Tachometer ....................... 9
General illustration
Instruments and controls ............
7
Glossary of tire and loading terminology 297
Glove compartment .................. 87
Gross Vehicle Weight Rating (GVWR) ... 341
H
Head restraints .................. ... 181
Adjusting ....................... 181
Front seats ... .................... 82
Headl ight washer rese rvoir ..... ...... 295
Headl ights
Adaptive light ................ ... . 66
Fog l ights .... .................... 63
Headl ight range control defective .... 35
Rear fog lights .................... 63
Washer system ............... ... . 69
Heated
Front seats . .....................
103
Rear seats ...................... 103
Rear window . . . . . . . . . . . . . . . . 92, 100
Washer fluid nozzles ............... 69
Heated outside mirrors ............... 73
Heating . . . . . . . . . . . . . . . . . . . . . . . . 88, 95
Heavy clothing and safety belts ........ 193
High beam .. ................ ... .. .. . 67
Homelink® universal remote control ... 172
Hood
Opening ............ ... .. .... ...
279
Release lever ............ ..... .. . 279
Horn ................................ 7
How are child restraint system anchors related
to child safety .. .. ..............
235
How many airbags does my vehicle have? . ..
207
How ofte n should I check my tire pressures?
303
How safety belt pretensione rs work . .. . 198
Hydroplaning .. ...... .............. 307
I
Ignition key .......... ....... .. .. ... 106
Emergency unlocking ........... ...
39
Ignition lock ... .. .................. 106
Malfunction ............. ..... 31, 35
Immob ilizer . .. ................. 11, 37
Important things to do before driving .. 177
Improperly worn safety belts .. ... .. .. . 197
Indicator lights ...................... 12
Airbag system .............. 211,212
Dynamic steering . . . . . . . . . . . . . . 13, 32
PASSENGER A IR BAG OF F .......... 212
Infant seats .............. .... ...... 227
Ins ide rear view mirror ............. ... 72
Installing child safety seats
Safety belts .....................
232
Warning/indicator lights ........ .. . 15 Instrument lighting .................. 65
High voltage warning labe l ........... 340
Vehicle operation Vehicle care Do-it-yourself service Technical data

ffl Alphabetical index ------',.__ ___________________________________ _
Power top . . . . . . . . . . . . . . . . . . . . . . . . . . SO
Care and clean ing .... ......... ... 263
Clos ing .................. .... .... 52
Convenience ope ning/closing .. ... ... 53
Emergency operation .. .. .... ...... 56
E rro r message . . . . . . . . . . . . . . . . . . . . 51
General informat io n ...... ...... .. . SO
Indica to r li gh t ... .... ..... ... . ... . 51
Ma lf u nct io n . . . . . . . . . . . . . . . . . . . . . . 51
Opening ... .. ...... .. .. .. ... . ... . 52
Var iab le power top storage bay . .. .. . 54
Wind deflector . .. .. .. .. .... ...... 54
Power window reg ulato rs
Convenien ce ope ning/closing .. ...... 48
Ma lf u nct ions ... .. ... ..... ... . ... . 49
Power window sw itches . .............. 47
Pregnan t women
Special considerat ions when wearing a
safety be lt .. ........... .. .. .. .. 196
Programming the Homelink ® universa l re -
mote control ... .... ..... .... . .. 17 2
Prope r occupant seat ing pos it ions . .. .. 1 78
Proper safety belt position .... .... . .. 1 96
Prope r seat ing pos ition
Front passenger .. .. .. .. .... ..... 179
O cc upan ts . ................... .. 178
Re ar passengers 180
Q
Quartz clo ck . ..... .. .. .. .. ..... ..... 10 Question
What happens to u nbelted occupants? .. .
19 2
Why safety belts? .... .. .. ... .. .. . 190
R
Radiator fan ....... ... .. .. . ... .... . 289
Rain sensor ............. .... .. .... .. 69
Rain sensor defect ive .... ... .......... 33
Read ing lights . .. .... ............. .. 68
Rea r ... .. .. .. .. .... ... . ... .... .. 68
Rear fog lights . .. ................ ... 63
Rear lid Escape handle .... .... ...... ..... 318
Ope ning and closingi ........... .. .. 46
Rear lig ht Remote rear lid release
... ... .... . ... . 46
Repa ir manua ls ... .. .. ...... ... . ... 34 3
Repairs Airbag system ............... ... . 214
Replacing a fuse . ............. .. .. .. 327
Rep lacing bulbs . .. .. .. .... ......... 331
Replacing tires and wheels . ... ... ... . 308
Reporting Safety Defects ... .. .. .. 185 , 186
Reset b utton . . . . . . . . . . . . . . . . . . . . . . . . 11
Retractor .. ........... ...... .... .. 195
Rims Cast a lloy .... .. ...... .. ... .. .. .. 266
Rollbar
See Active rollove r protect ion system 187
s
Defective . . . . . . . . . . . . . . . . . . . . . . . . 34
Rear window defogger ........ .. .. 92, 100 SAF E · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1
1
Safe dr iv ing habits ............ .. .. .. 176
Rear-v iew camera
Park ing mode 2 ....... .. .. .. .. .. .
Park ing mode 1 ........... .. .... .
Rearview m irror 169
168
S
ee M irrors ... ... .... ..... ... .. .. 72
Recircu lation mode . .............. 91, 99
Red symbols ...... ...... ...... ...... 27
Refi ll engi ne oil ... .. .. .. .... .. .. .... 30
Refuelling ............... .. . ... ... . 276
Release lever for hood . .. ... .. .. .... . 279
Remote cont rol ga rage door opener
(Homelink ®) ........ .... .. ..... 172
Remote cont rol key
Unloc king and lock ing .. ........... 42 Sa
fety belt posi tion . ... ...... ... . ... 196
Sa fety belts wo rn by pregnant women .. .
196
Safety belt pretensioner . . . . . . . . . . . . . 198
Service and disposal . ....... .... .. 198
Sa fety belt w arning light . .. .. .. .. . 15, 190
Safety belts ..... .. .. .. .. .. ........ 194
Belt positioner .... ....... ... .. .. 194
cleaning ................. ... ... . 272
Dange r to passengers who do not wear a
sa fety belt ........ ...... .. .. .. 192
Fastening ... ....... ...... ...... 195
Improperly wor n ................. 197
Not worn .. .. ... ..... .. ... .. .. .. 192
