-Turn the release key counterclockwise until it stops to
open the latch.
- Remove the emergency key. •
Step 5: Closing the power top
The power top must be positioned by hand.
Fig. 58 Power top
partially open
Fig . 59 Windshield:
Power top
- Raise the power top out of the tray=> & in "Step 2:
Lifting the power top compartment cover out" on
page 57.
- Pull the power top out completely .
- Press the power top onto the windshield frame~ fig. 59.
Contro ls a nd e quip ­
m en t Vehicle
OP-eration
Power top
Have a second person assist when positioning the power top. That
person should stand on the opposite side of the vehicle and perform
the same steps.
& WARNING
• When positioning the power top, avoid contact with the
supports or other moving parts. Otherwise you could pinch your
hands.
• When pressing the power top down onto the windshield frame,
make sure that you do not pinch yourself or anyone else. •
Step 6: Retracting the power top
compartment cover
The power top compartment cover must be retracted by
hand.
Fig. 60 Power top
raised
- Raise the rear of the power top and hold it in place
=> fig. 60 (D => & in "Step 2: Lifting the power top
compartment cover out" on
page 57.
- Slide the power top compartment forward until it reaches
the end position => fig. 60
@. Release the power top. ..,
Vehicle care Do-it-yourselt service iTechnical data

Power top
& WARNING
Do not pinch yourself or others when closing the power top
compartment. •
Step 7: Locking the power top
The locking system for the power top latches are located
on the inside of the power top.
Fig. 61 Ins ide of the
power top: hex key for
emergency operation
- Insert the emergency key in the opening and turn it clock­
wise until it stops to lock the power top.
- Remove the emergency key.
- Cover the opening with the cap.
[I] Tips
Make sure the locking mechanisms are locked securely. •
Step 8 : Loosening the headliner
Fig. 62 Power top :
area around the right
side of the rear window
Fig. 63 Area around
the right side of the
rear w indow: headliner
part ially loosened
Perform the following steps in the rear window area of the
power top on each side.
- Pull the loops (marked in yellow) with the emergency key
to loosen the headliner.
- Pull at the yellow marking again to loosen the headliner
around the rear window (approximately 30 cm).

Step 9: Securing the latch
Fig. 64 Rear of th e
power top: Se curing
th e latch
The latches must be secured on the left and right sides of the
vehicle.
- Pull the power top headliner to the side in the area around
the rear headrests to secure the latches=> fig. 64 =>
& in
"Step 2: Lifting the power top compartment cover out" on
page 57.
- Then remove the emergency key and insert the short end
into the power top support at the yellow marking.
- Press the emergency key in the direction of the arrow
=> fig. 64
0 until the latc h is secure .
& WARNING
Do not pin ch yourself or othe rs when clo sing the power top
c ompa rtment. •
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
Power top
Vehicle care Do-it-yourselt service iTechnical data

Clear vision
Clear vision
Lights
Switching the lights on and off ·'t/..·
Fig. 65 Instrument
panel: Headlight
control switch
Switching on AUTO -Automatic headlight
controls*
- Turn the light switch to AUTO=> fig. 65.
Turning on the side marker Lights
-Turn the head light control switch to ~oo~.
Switching on low beams
-Turn the headlight control switch to @:D .
Switching off the Lights
- Turn the headlight control switch to 0.
The low beams only illuminate with the ign it ion turned on.
With the side marker lights or headlights switched on, the symbol next to the light switch illuminates
;o o: .
AUTO -Automatic headlight control*
With the switch in the AUTO position, the low beams are switched on
automatically depending on the ambient light, for example in a
tunnel, at dusk and when it is raining or snowing . When the low
beams are switched on, the
;oo :: symbol comes on. The low beams
remain switched on regardless of the ambient light when you turn on
the fog lights.
When you turn off the ignition, the low beams are automatically
switched off .
On vehicles w ith a rain sensor the headl ights switch on automatically
after a few windshield wiper passes . However, the instrument
lighting will not be switched on.
With automat ic headlight control, you also have the high-beam func­
tion available. However, if you have not switched high beams back to
low beams while driving with automatic headlight contro l, only the
low beams come on the next time you turn on automatic headlight
control. In order to return to high beams again, you first have to pull
the high beam lever back to the normal position and then push the lever forward.
Light sensor malfunction
In the event of a light sensor malfunction, the driver is notified in the
instrument cluster display:
Automatic driving lights/automatic wipers defective
For safety reasons, the low beams are turned on permanently w ith
the switch in
AUTO . However, you can continue to turn the lights on
and off using the light sw itch. Have the light sensor checked as soon
as possible at an authorized Audi dealer or other qualified workshop . .,_

& WARNING
Automatic headlights are only intended to assist the driver. They
do not relieve the driver of his responsibility to check the head­
lights and to turn them on manually a ccording to the current light
and visibility conditions . For example , fog cannot be detected by
the light sensors . So always switch on the headlights under these
weather conditions and when driving in the dark
tD .
[ i J Tips
• Th e light sensor for head light control is located in the rea r view
m irror mount. You shou ld therefore not app ly any st ickers to the
windshield in th is area in order to prevent m alfunct ions or fa ilure s.
• Th e sensitivity level fo r the light senso r se t a t the factory can be
changed in the MMI menu ~
page 64 in the automatic d riving lights
fu nction .
• When you remove your key from the ign ition wh ile the veh icle's
ligh ts ar e tu rned on, a bu zzer sounds as long as the d river 's door is
open.
• Please obey all laws when using the lighting systems described
here .
• The coming home/ leav ing home fu nction is avai lab le o nly with the
switch in the AU TO position. •
Contro ls a nd e quip ­
m en t Vehicle
OP-eration
Applies to vehicl es: with fog lights
Fog Lights
Clear vision
Fig . 66 Fo g light
s witch
- To t urn o n the fo g lights tD, press butto n (D:::} fig. 66.
- To turn o n the rear fog lights
0$, press butt on @ .
Fog lights
The side marker lights or low beams must be sw itched on . When the
fog lights a re switc hed on, the green check lig ht at the edge of the
switch comes on .
I f automat ic dr iv ing light cont rol AUTO is act ivated , the low beams
a re switched on whe n the fog ligh ts are turned on.
Rear fog lights
Lo w beam s or sid e ma rke r lig hts wi th f og l igh ts mus t be t urne d o n.
Wh en the rea r fog l ights are turned o n, the y ellow check light at the
edge o f the swi tch comes on .
0 Note
The rea r fog lig hts sho uld only be turned on in accor dance w it h traffic
reg ulation, as t he lights are brig ht for fo llow ing traffic .•
Vehicle care Do-it-yourselt service iTechnical data

Clear vision

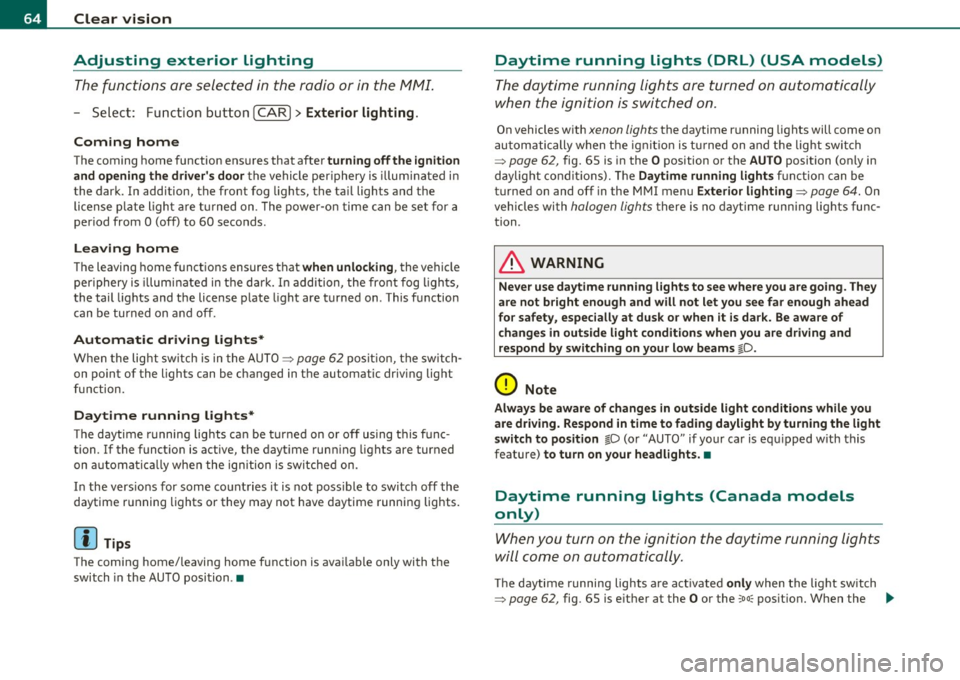

Adjusting exterior Lighting
The functions are selected in the radio or in the MMI.
- Sel ect: Function button [CARI> E x terior lighting.
Com ing home
The coming home function ensures that after
tu rning off the ignition
and op ening th e driver' s door
the vehi cle periphery is illum inated i n
the dark . In addition, the front fog lights, the ta il lights and the
license p late ligh t are tu rned on. The power-on time can be set for a
per iod from O (off) to 60 seconds .
Leaving home
The leaving home funct ions ensures that
when unlocking , the vehicle
per iphery is illuminated in t he da rk. In addi tion, the front fog l igh ts,
the tai l lights and t he license p late light are turned on . This function
can be tu rned on and off.
Automatic driving ligh ts*
W hen the light switch is in the AUTO=> page 62 position, the switch­
on point of the l ights can be changed in the automatic driving light
function.
Daytime running lights*
T he daytime running light s ca n be tu rn ed on o r off using this f unc­
tion. If the funct ion is active, the dayt ime runn ing lights are turned
on a utomat ica lly when the ignition is switched on.
In the vers ions for some co unt ries it is not poss ible to switc h off the
daytime running lights or they may not have daytime running lights.
(I) Tips
The coming home/ leaving home f unction is avai lab le only with the
switch in the AUTO position .•
Daytime running Lights (DRL) (USA models)
T he daytime running lights are turned on au tomatically
w hen the ignition is switched on.
On vehicles w ith xenon lights the daytime running lights will come on
autom atically when the ig ni tio n is t urned on and t he lig ht switch
=>
page 62, fig. 65 is in the O position or the AUTO position (only in
d aylig ht co ndit ions). T he
Daytime running light s fu nct ion can be
turned on and off in the MMI menu
E xterior lighting => page 64. On
vehicles wi th
halogen lights there is no dayt ime runn ing lights func­
tion .
& WARNING
Neve r use daytime running lights to see where you are going. They
are not bright enough and will not let you see far enough ahead
fo r safety , especiall y at dusk or when it is dark. Be aware of
c hange s in out side light condition s when you are driv ing and
r espond by switching on your low b eams
~D.
0 Note
Always be aware of changes in outside light conditions while you
are d riving. Re spond in t ime to fading daylight by tu rning the light
switch to position
~D (or "AUTO" if your ca r is equ ipped with this
feature)
to turn on your hea dlights. •
Daytime running Lights (Canada models
only)
When you turn on the ignition the daytime running lights
will come on automatically.
T he d aytime running lights a re a ct ivated only when the light sw itch
=>
page 62, fig. 65 is e it h er at the O or the coo: pos it io n. When the .,_

ignition is switched on, there is a difference between vehicles with bi­
xenon lights and halogen lamps:
• On vehicles with b i-xenon lights only the dayt ime running lamps in
the headlights will come on.
• On vehicles with halogen lights the front fog lights, side marker
lights and tail lights come on automatically.
& WARNING
Never u se daytime running lights to see where you are going . They
are not bright enough and will not l et you see fa r en ough ah ead
for safety , espe ciall y at dusk or when it i s dark. Be awar e of
c hanges in out side l ight condit ion s wh en you are dri ving and
respond b y switching on your l ow be am s
tD .
0 Note
• Alw ays be aware of changes in out side light condit ion s while you
are drivin g. Re spond in tim e to fadin g daylight b y turning the light
s witch to po sition
tD (or "AUTO") to turn on yo ur headlight s.
[I) Tips
The daytime running lights function cannot be turned off. •
Contro ls a nd e quip ­
m en t Vehicle
OP-eration
Clear vision
Instrument lighting
The basic brightness of the illumination for the instru­
ments, the center console and the display can be
adjusted.
- Press the knob to release it.
N
-0 0 >< 00
"'
Fi g. 6 7 I nst rume nt
l ighti ng
- Rotating the knob to the right"+" will increase the basic
brightness when it is dark.
- Rotating the knob to the left"-" will decrease the basic
brightness when it is dar k.
- Pressing the knob will prevent unin tentiona l changes .
0 Note
The instrument cluster and center conso le illumination (gauges and
need les) comes on when you switch o n the ignition and the
veh icle
h eadlights are off .
Be aware of the following difference between
mode ls built to US or Canadian specifications:
• USA models : illumination of the inst rument cluste r (gauges and
needle s), da sh and center c onsol e around the gearshift l ever i s
c o ntrolled b y a light senso r lo cated in the instrument panel. The
in strument panel illumination will autom atically be come dimmer
as the day light fades away and eventu all y will go out completel y .,
Vehicle care Do-it-yourselt service iTechnical data

Clear vision
when outside light is very low . This is to r emind you , the driver , to
s witch on the headlight s before it get s too dark.
• Canada models : inst rument p anel illumin ation will stay br ight
regardles s of the inten sity of ambient light. Alw ay s be aware of
changes in outs ide light conditions wh ile you are driving. Respond
in time to fading daylight by turning the light switch to po sition
io
(or "AUTO" if your car is equipped with this feat ure) to turn on your
headlights .•
A ppli es to ve hicles : wit h xe non h eadlights
Xenon headlights
After starting the engine, the xenon head lights are automat ically
adjusted to the load and ang le of t he vehicle (for e xamp le, dur ing
acce leration and brak ing) . This prevents oncom ing traffic from expe ­
r ienc ing unnecessary headlight glare from yo ur xenon head lights.
If the sy ste m is not opera ting p roperly, a warning symbol in t he Auto ­
Check Control is displayed~
page 35. •
App lies to vehicles : w ith adapti ve lig ht
Adaptive Light
Wh en driving around bends, the relevant ar ea of the road
is better illuminated .
Fig . 68 Adaptive lig ht
w hen driving
The benefit of adaptive light is that the curve and the edge of the road
are better illum inate d~ fig. 68. Dyn am ic a daptive light is con trolled
automatically, depend ing on ve hicle speed and steering whee l angle .
When driving around bends, the headlights are contro lled accord ing
t o s teer ing whee l angle . So t hat there is no bla ck ho le ahea d of the
vehicle , the two ma in beams pivot at d ifferent angles.
[I] Tips
The system works above a speed of about 6 mph (10 km/h) .•
Emergency flashers A
T h e eme rgency flash ers m akes ot her mot ori st s a ware
that you or y our vehicle a re in an eme rgency situation.
Fig. 69 Eme rgenc y
fla she r sw itch
Pr ess the swi tch~ => fig. 69 to tu rn the eme rgenc y
flash ers on or of f.
When the e merge ncy flashers are on, all fou r turn sig nals blink at the
same t ime. The turn signal indicator lights¢¢ in the i nstr ument
cl uste r, as well as the ligh t in the eme rge ncy flasher switch ~ blink
likewise . The emergency flashers also wo rk when the ignition is
t urned off. .,_

The emergency flashers will turn on automatically if you are in an acc ident where the airbag has deployed.
(I) Tips
You shou ld turn on th e emergency flashers when :
• you are the last vehicle standing in a traffic jam so that any other
vehicles com ing can see yo u, or when
• your vehicle has broken down or you are in an emergency situa­
tion, or when
• your vehicle is being towed by a tow truck or if you are towing
ano ther vehicle behind you .•
Turn signals -¢ ¢ and high beam 1[D lever
The lever on the le~ side of the steering column is used to
operate the turn signals and the high beam as well as the
headlight flasher .
Fig. 70 Turn si gnal
an d hi gh beam leve r
The turn s ignal and high beam lever has the follow ing func­
tions:
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
Clear vision
Turn signals
¢ ¢ (D @
- Push the lever up as far as it can go to turn on the right
turn signal or down to tu rn on the le ft turn signal
~ fig. 70.
- Move the lever br iefly until you meet resistance and
release it to flash three times.
- Move the lever (up or down) until you meet res istance a nd
hold it there to determine the flashing t ime for the turn
signals.
High beam ~D ®
- Push the lev er forward to switc h on the high beam .
- Pu ll the leve r back towards you to switch o ff the high
beam.
Headlight flasher ~D ©
- Pull the lever toward the steering wheel to use the head­
light flasher.
Notes on these featu res
• Th e turn signals only work with the ign ition t urne d on. The ind i­
cator lights ¢ or ¢ in the instrument cluster also blink.
• After you have t urned a corner, the tu rn signal switches off auto­
matically.
• The
high beam works only when the head lights are on . The ind i­
cator light ~Din the instrument cluster illuminates when the high
beams are on.
• T he
headlight flasher works only as long as you ho ld the lever -
even if there are no lights switched on . The ind icator light ~D in the
instrument cluster illuminates when you use the headlight flasher. _.,
Vehicle care Do-it-yourselt service iTechnical data

Clear vision
0 Note
Do not use the high beam or headlight flasher in if you know that
these could be blinding oncoming traffic. •
Interior lights
Interior lights
The interior lights include the reading lights for the driver
and the front passenger.
Activat ing door contact circuit
F ig . 71 Sect ion from
head liner: Interio r
lights
- Press the button @. The LED in the button illuminates.
Dea ctiv ating door contact circuit
- Press the button @. The LED in the button goes out.
Front r eading lights ~
- Press one of the switches @ to turn the right or left
reading light on or off.
With the door contact circuit, the interior lights turn on as soon as
you unlock the vehicle or open the doors. The interior lights are also turned on when the
ignition key is removed. The lights turn off about
30 seconds after the doors are closed . When the vehicle is locked or
when the ign ition is turned on, the inter ior lights are turned off.
When a door is open, the interior lights are turned off after about 10
m inutes to prevent battery dra ining.
The brightness of the lights is controlled automatically by a dimmer
when they are sw itched on and off. •
Rear interior lights
There are reading lights in the rear for the passengers.
,...
-0 0
"' 0, a,
Fig. 72 Headliner:
Rea r read ing lights
The reading lights are switched on and off using the buttons ~~-•
