remote control AUDI A5 CABRIOLET 2010 Owners Manual

Driver information display
When a yellow warning symbol appears, one warning tone sounds. A
dr iver message appears as well to explain the ma lfunction in more
detail. The driver warning goes out after about 5 seconds, but it can
be brought up at any time by pressing the !SET] button again.
Check the function displayed as soon as possible. The yellow symbol
will not go out again until the reason for the malfunction has been
corrected.
If several priority 2 malfunctions are present, the symbols appear in
succession and remain for about 2 seconds .
Dynamic steer ing*
=:>page 32
'O' I I , Worn brake pads =:>page33
Battery vo ltage => page34
Defective light bulb* =>page34
Check engine oil level => page 35 or
=>page 35
Engine oil sensor malfunction =:>page35
--
Low fuel leve l =>page34
Windshield washer fluid =>page34
level low
Convenience key*
=>page 33
Key not in vehicle
Light/rain sensor defective
=:>page33
--
Dynamic headlight range => page 35
control defective
[{] Tips
Battery in remote control key
Electromechanical
parking brake
Engine speed limitation*
adaptive light defective
Ignition lock malfunction
Adaptive dampers*
Windshield wiper defective
T ire pressure monitoring sys­
tem*
Loss of tire pressure
Tire pressure monitoring sys­
tem* System not available
=>page 38
-
=> page 112
-
=>page 35
=> page 35
=> page 35
=>page 35
=>page 36
-
=> page 315
=> page 315
The speed warnings warning threshold 1 and warning threshold 2
are also yellow symbols in some models. The warning is a lways
shown as a small symbol in the uppe r area of the display
=>page 25. •
Appli es to vehicles : wit h Au di dr iv e se lec t
Dynamic steering r
Dynamic steering: System malfunction

Opening and closing
Keys
Key set
Fig. 23 Key set
© Master key with remote control
You can centrally lock a nd u nlock your ve hicle and start the eng ine
with the master key with remote contro l.
® Emergency key
The emergency key is not intended for cons tant use. It should o nly be
used in an emergency . Keep it in a safe place and do not carry it on
your key ring.
Key replacement
If you lose a key , contact your a uthori zed Audi dea le r immedi ately to
have the
lost key disabled . Be sure to bring all your keys w ith you .
Data in the master key
During driving, service and maintenance-relevant data is cont inu­
o usly s tore d on yo ur maste r key. Your Aud i service adviser can re ad
out this data and tell you about the work your veh icle needs . This
a pp lies a lso to ve hicles with convenience key* .
Controls and equip ­
ment Safety first
Opening and closing
Personal comfort
settings
If two peop le use one veh icle, it is recommended that eac h person
a lw ays uses "t heir own " mas ter key. When t he ig nitio n is tu rned off
or when the vehicle is locked, personal conven ience settings for the
following systems are sto red and assigned to the remo te maste r key .
• Climate co ntrol
• C entra l lo ck ing system
• Seat memory*
• Parking sys tem *
• Audi s ide assist*
• Audi dr ive select*
T he sto red sett ings a re a utomatica lly recalled w hen you unlock the
vehicle, when you open the doors o r when you tu rn o n the ignition .
& WARNING
• Do not leave your vehicle unattended w ith the key in the igni­
tion lock. Entry by unauthorized per sons could endanger you or
result in theft or damage the vehicle. Alway s lock all doors and
take the key.
• Do not leave children unattended in the veh icle, especially with
access to vehicle key s. Unguarded acce ss to the ke ys pro vide s chil­
dren the opportun ity to start the engine and /or activate vehicle
s y stem s such as the power windows etc . Unsupervi sed operation
of any vehicle system by children can result in serious injury.
• Do not remove the ke y from the ignition lock until the vehicle
ha s come to a complete stop. Otherwise the ste ering column lock
could suddenly engage -causing the ri sk of an accident. .,_
Vehicle care Technical data

Opening and closing
(I) Tips
• The operation of the remote control key can be temporarily
disrupted by interference from transmitters in the vicinity of the
vehicle working in the same frequency range (e.g . a cell phone, radio
equipment).
• If you open the driver's door with the key left in the ignition lock,
a chime will sound. This is your reminder to remove the key and lock
the door .
• For security reasons, replacement keys are only available from
Audi dealers.
• For Declaration of Compliance to United States FCC and Industry
Canada regulations=>
page 346 . •
Check Light in the master key
The check light in the master key provides information
about different conditions.
Fig. 24 Check light in
t he master key
The check light comes on briefly once when a button is pressed, and
during an "inquiry" by the convenience key system. If the check
light does not come on, the battery is dead and has to be
replaced. In addition, when the battery is dead the symbo l appears
in the instrument cluster display as well as the message :
Please change key battery
Battery replacement => page 38. •
Master key battery replacement
•
Fig. 25 Remote
master key: Removing
the mechanical key
Fig. 26 Remote
master key: Removing
the battery holder
We recommend having the battery changed by an authorized
Audi dealer. However, if you wish to replace the dead battery
yourself, proceed as follows:
- Press the release button©~ fig. 25 . ..,.

Power locking system
General description
The power locking system locks or unlocks all doors and
the rear lid simultaneously.
You can lock and u nlock the ve hicle centrally. You have the following
choices:
• Remote master key::::>
page 42
• Door hand les with convenience key* => page 43,
• Lock cylinder at the driver's door ::::> page 44, or
• Powe r locking switch inside~
page 45.
Selecti ve unlocking
When they are closed, the door and rea r lid are locked . When
unlocking, you can set in the radio or in the MMI * whether
only the
dr ive r's door or th e entire vehicl e shou ld b e unloc ked::::>
pag e 42.
Automatic Locking
The automat ic lock ing feature locks all the veh icle doors and the rear
lid when you drive faster than 9 mph (15 km/h).
T he car is unlocked agai n once the ignit io n key is removed. I n add i­
tion, the vehicle can be un locked if the open ing function in the power
lo cki ng sys tem swit ch o r at one of t he d oor leve rs is a ctuated. The
Auto Lock function can be turned on and off in the rad io or in the
MM I*
~ page 42 .
Add itiona lly, in the event of a crash w ith a irbag dep loymen t the doors
are automatically u nlocked to allow access to the ve hicle .
Anti-theft alarm warning system
If the anti -theft alarm warning system detects a break-in into the
vehicle, acoustic and visual warning signals are triggered .
Controls and equip­
ment Safety first
Opening and closing
T
he anti-theft warning system is activated a utomat ica lly when you
lock the vehi cle. It is dea ctivated w hen unl ocking us ing t he
remote
key ,
with the mechanical key , and when you switch on the ignition .
T he alarm a lso turns off when the alarm cycle has expired .
Turn signals
When you unlock the vehi cle, the tu rn s ignals flash twi ce , when yo u
lock it once . If they do not flash, one of the doors, the rear lid or the
hood is not locked.
Unintentionally Locking yourself out
In the following cases there safeguards to preve nt yo u loc king your
remote master key in the vehicle:
• The vehicle does not lock with the centra l locking sw itch
=>
page 45 if the drive r's door is open.
• On vehicles with convenience key*, if the most recently used
master key is in the luggage compartment, the rea r lid is automati­
ca ll y unlo cked again after it is closed;;;> page 46.
Do not lock yo ur vehi cle w it h t he remote m aster key u ntil all doors
and t he rear lid are closed . In this way you avoid locking yourself out
acc iden tally .
& WARNING
• When you leave th e vehicle, alwa ys remove the ignition key
and take it with you. Th is will prevent passengers (children , for
example ) from accidentally being locked in the vehicle should
they accidentally p ress the power locking switch in the front
door s.
• Do not leave child ren inside the vehicle unsupervised . In an
emergency it would be impossible to open the door s from the
outside without the key.
Vehicle care Technical data

Opening and closing
(I) Tips
• In the event of a crash with airbag deployment all locked doors
will be automatically unlocked to give access to the vehicle occupants
from the outside .
• If the power locking system should malfunction, you can lock the
dr iver's door using the mechanical key :::::,
page 46.
• If the power locking system should fail, you can still open the fuel
tank flap in an emergency:::::,
page 2 78 .
• You are well advised not to keep valuables ins ide an unattended
vehicle, v is ible or not. Even a properly locked veh icle cannot provide
the security of a safe.
• If the LED in the upper edge of the driver's door panel comes on
for about 30 seconds after the veh icle is locked, there is a malfunc­
tion in the power locking or the anti-theft warning system . Have the
malfunction corrected by an authorized Audi dealership or qualified
repair facility .•
Setting power Locking
The driver can determine the functions for power locking
in the radio or in the MMI *.
In the Central locking menu you can decide which doors
should be unlocked when opening the vehicle.
- Press the [ CAR] function button.
- Select
Central locking . The Central locking menu
appears.
For example, if you switch the item Unlocking single door On , the
passenge r's door is no longer included in the power lo cking system,
and will not be unlocked by pressing the unlock button on the master
key remote control. You can continue to unlock all the doors and the rear lid as before.
Press the opening button on the master key twice.
In addit ion to this, the
Auto locking can be switched on and off .
When locking the vehicle, all doors and the trunk lid are locked auto­
matically.
If you switch
Trunk lid/tailgate On, then the handle on the rear lid
=> page 46, fig. 37 is locked. In this case the rear lid can be opened
with the button
c::J on the master key:::::, fig. 31. If the vehicle has the
Convenience key* feature, then the handle will continue to work even
if an valid key is near the proximity sensor.
If you select
Fold m irrors* On, the automatic outside mirror fold
function is activated -the outside m irrors fo ld when the lock ing
button on the remote master key is operated
ffJ :::::, page 73.
When you select Confirmation tone On, a confirmation tone sounds
when you lock the vehicle. •
Unlocking and Locking the vehicle with the
remote control
"'
Fig. 31 Remote
co ntrol: fu nction
buttons
Either the driver's door only or the entire vehicle will unlock
when the unlock button© is pressed once, depending on the
settings in the radio or MMI*
Central locking menu
~page 42 . _.,

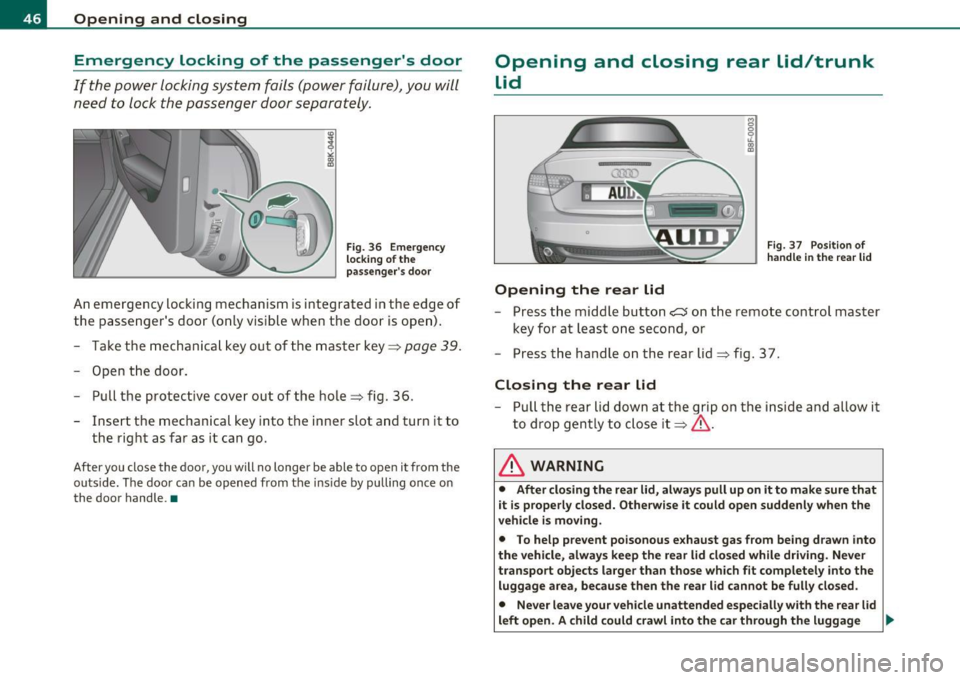

Opening and closing Emergency Locking of the passenger's door
If the power locking system fails (power failure), you will need to lock the passenger door separately.
! co a,
Fig. 36 Emergency
locking of the
passenger's door
An emergency locking mechanism is integrated in the edge of
the passenger's door (only visible when the door is open).
- Take the mechanical key out of the master key=>
page 39.
-Open the door.
- Pull the protective cover out of the hole::::> fig. 36 .
- Insert the mechanical key into the inner slot and turn it to
the right as far as it can go.
After you close the door, you will no longe r be able to open it from the
outside. The door can be opened from the inside by pulling once on
the door handle .•
Opening and closing rear lid/trunk
lid
Opening the rear lid
Fig. 37 Position of
handle in the rear lid
-Press the middle button ?:5 on the remote control master
key for at least one second, or
- Press the handle on the rear lid=> fig . 37.
Closing the rear lid
- Pull the rear lid down at the grip on the inside and allow it
to drop gently to close it=> & .
& WARNING
• After closing the rear lid, always pull up on it to make sure that
it is properly closed. Otherwise it could open suddenly when the
vehicle is moving.
• To help prevent poisonous exhaust gas from being drawn into
the vehicle, always keep the rear lid closed while driving. Never
transport objects larger than those which fit completely into the
luggage area, because then the rear lid cannot be fully closed.
• Never leave yo ur vehicle unattended especially with the rear lid
left open. A child could crawl into the car through the luggage
~

0 Note
Liquid electrolyte leaked from a broken mirror g lass w ill damage any
plastic surfaces it comes in contact with. Clean up spi lled electro lyte
immediately with clear water and a sponge.
[I) Tips
• Swit ching off the dimming function of the insid e rearview
mir ror also deact ivates the automa tic dimm ing funct ion of the
e xterior mirrors.
• Automatic dimm ing for the mirror only operates properly if the
ligh t str ik ing the inside m irror is not h indered by o ther objects. •
Digital compass
Appli es to v eh icl es: w it h dig ital comp ass
Activating or deactivating the compass
The direction is displayed on the interior rear view mirror.
Fig. 79 In side rear
vi ew m irror: digi ta l
compass ac tiva ted
To activate or deact ivate, hold the @button dow n until
the red display appears or disappears.
Con trol s and equ ip­
m ent Vehicle
OP-eration
Clear vision
The d ig ita l compass on ly works w it h the ignit ion turned on . The d irec­
ti ons are d isp layed as ini tials:
N (No rth), NE (No rthe ast), E (East), SE
(Southeast), S (South), SW (Southwest), W (West), NW (Northwest).
[I) Tips
To avoid inaccurate directions, do not allow any remote controls,
electrical systems, or metal parts close to the mirror .•
A pp lies to veh icl es : w it h d igital com pass
Setting the magnetic deflection zone
The correct magnetic d eflection zone must be set in order
t o display the directions co rrectly.
@
©
Fi g. 8 0 Nor th Am eric a : ma gnet ic d efle ction zo ne bou ndarie s
Vehicle care Do-it-yourselt service iTechnical data

only going to be used temporarily by a driver whose settings are not
going to be stored. •
Applies to vehicles : w ith seat memory
Storing and recalling settings
Before you can store or recall your settings, the [ ON/OFF]
switch on the seat memory must be engaged (not raised).
Storing settings
- Adjust the driver's seat.
- Adjust the two exterior mirrors .
- Press the
I SETI button and hold it down. In addition, press
one of the memory buttons for at least one second .
- Release the buttons. The settings are now stored under
the corr esponding memory button .
Recalling settings
- If the driver's door is open, tap the corresponding memory
button briefly .
- If the driver's door is closed , press the appropriate
memory button unt il the stored position is reached .
Successful storage is confirmed audibly and by the light in the [SET)
button illuminat ing=> page 80, fig . 83 .
When the vehicle is
loc ked , the current settings are stored and
ass igned to the remote contro l key. B ut the setti ngs sto red on
memory buttons 1 to 2 are not deleted. They can be reca lled at any
time. When the vehicle is
unlo ck ed , the settings stored on the
remote control key are restored.
If your vehicle is driven by other persons using your remote control
key , you should save your individua l seat position on one of the
Controls and equip ­
ment Safety first
S
eats and storage
memory buttons. You can recall your settings again simply and
conveniently by press ing the cor responding memory button. When
the vehicle is locked, these settings are automatically re-assigned to
the remote control key and stored.
& WARNING
• Fo r sa fe ty reaso ns, th e se at se tting can only b e recalled when
t h e ve hicl e is s tat ion ary -oth erwise yo u risk ha ving an acc ident .
• In an emer gency th e re ca ll pro ce du re can be cancelled b y
p ressing the [
ON/OFF) sw itch or by t appin g of the the memo ry
b utto ns. •
App lies to ve hicles: with seat memory
Activating remote control key memory
To be able to recall the stored settings with the remote
control key, the function has to be activated in the radio
or in the MM!*.
-Select : Function button I CAR]> Seat adjustment >
D river's se at > Key mem . profile > On .
(I) Tips
If you do not want another driver to store their settings on the
remote key, switch
off the Memory function using the radio or the
MMI* or the [OFF] button => page 80 . •
Vehicle care Technical data

___________________________________________________ O_ n_ t_h _e_ r_o _a_ d __ _
position, otherwise the vehicle is not secured aga inst rolling away.
Y ou also ca n not lock t he vehi cle using th e locking button on the door
hand le or us ing the remote key .
Convenience key defe ctive ! Use ignition lock
T hi s message appears if t he veh icle has to be sta rted not w ith the
! STAR T EN GINE STO PJ bu tton bu t with the ig nition key.
& WARNING
• Never allow the engine to run in confined spaces -danger of
asphyxiation.
• Never turn off the engine until the vehicle has come to a
complete stop.
• The brake booster and servotronic only work when the engine
is running . With the ignition turned off , you have to apply more
force when steering or braking. Since you cannot steer and stop normally, this can lead to accidents and serious injuries.
0 Note
• Avoid high engine rpm, full throttle and heavy engine loa ds until
t he e ngi ne h as r eache d op erat ing temperat ure -oth erwi se you ri sk
eng ine damage.
• Th e en gine ca nnot be sta rted by p us hi ng or tow ing t he veh icle.
• If the eng ine has bee n un der h eavy load for a n ex tended per iod,
heat b uilds up i n the engin e compartmen t after the engine is
switched off- there is a risk o f damag ing the engine. Allow the engine
t o r un at idle for abou t 2 min utes before sw itc hing it off.
[I) Tips
If y ou open t he dr iver 's door wi th th e ig nit io n sw itche d on, a bu zzer
so unds and the message
Ignition is on appears in the instrument
clu ster displa y. Swi tch t he ig nition o ff.•
Controls and equip ­
ment Safety first
App
lies to vehicles : w ith con venience key
Sw itching engine off with the
[ START ENGINE S TOP] button
- Bring yo ur ve hic le to a co mplete sto p.
- Aut omat ic tra nsmissi on*: Mo ve the select or l eve r to the P
o r N posit ion.
- Press the !ST ART EN GI NE STO P] but to n => page 108,
fig . 109 .
Emergency OFF function
If necessary, the eng ine ca n be switched off with the se lecto r lever in
t he R, Dor S* po sitio ns. To d o so, step o n the b rake pedal and pr ess
and ho ld the
! ST ART ENGINE STOPJ button (vehicle speed must be
les s than 6 mph / 10 km /h.
& WARNING
• Never turn off the engine until the vehicle has come to a
complete stop.
• The brake booster and servotronic only work when the engine
is running . With the ignition turned off , you have to apply more
force when steering or braking. Since you cannot steer and stop normally , this can lead to accidents and serious injuries .
• For safety reasons, you should always park your vehicle with
the selector lever in P . Otherwise, the vehicle could inadvertently
roll away .
• After the engine has been switched off , the radiator fan can
continue to run for up to 10 minutes -even with the ignition
switched off. It can also switch on again after some time if the
coolant temperature rises as the result of a heat buildup or if the
engine is hot and the engine compartment is additionally heated
by the sun's rays.
~
Vehicle care Technical data

____________________________________________ A_ d_ a.._p _t_ i_ v _e_ c_r_u _ i_ s _e_ c_o_ n_ t_r _o _l __ ffl'II
[I) Tips
• If the adaptive cruise control initiates brak ing, the hydraulic brake
system is under pressure. Therefore, the brake pedal distance is
shorter and the peda l "feels" harder.
• Adaptive cruise control is switched off after pressing the foot­
brake. The speed saved up this poi nt can be resumed.
• To resume the saved speed, release the brake pedal and press the
control lever:::::,
page 120, "Turning adaptive cruise control off
temporari ly".
• If you use the accelerator to go faster than the speed of the object
ahead of you, the
driver intervention prompt will not be accompa­
nied by a warn ing s ignal.
• If the speed you prev iously set is exceeded, the indicator light in
the speedometer will switch off .•
A pplie s to vehicles: w ith adapt iv e cru is e control
MMI settings
Individual settings for adaptive cruise control can be
selected in the
fV/fVII.
Settings for the driving program can be adjusted individually
to the particular user and saved in the MMI.
- Press the [CAR]function button .
- Select
Adaptive Cruise Control. The Adaptive Cruise
Control
menu appears.
- Select
driving program .
-Select the desired driving program .
Controls and equip ­
ment Safety first
Setting the driving program
In
the driving program menu you can adjust the character istics of
adaptive cru ise control to what you want using
dynamic , standard or
comfort.
Saving settings
Your individual settings are automatica lly saved and assigned to the
remote control key being used (remote key storage) . If the key is
given to another person, the saved settings remain as they are. •
System limitations
Applies to vehicles : with adaptive cruise cont rol
General information
Some driving situations which affect the function of the
radar sensor are described below.
When driving, the adaptive cru ise contro l is governed by physical and
system-specified limits. Also, under certain circumstances, the ACC
system may react unexpectedly or late from the driver's point of view.
Therefore, a lways be attentive and intervene, if necessary:
• when driving around curves:::::,
page 128
• when vehicles in front are not in line with your vehicle:::::, page 128
• whe n other ve hicles are changing lanes:::::, page 128
• when other vehicles are difficult to detect:::::, page 129.
& WARNING
The radar sensor's vision can be reduced by rain, snow and heavy
spray . This can result in vehicles driving ahead being inadequately
detected or, in some circumstances , not detected at all. If neces­
sary, take action yourself!•
Vehicle care Technical data
