Adjusting the curvature of the lumbar support
- Push the switch p late @forward or backward to increase
or red uce the curvature .
Adjusting the height of the lumbar support
-Push the sw itch p late @ up or down to position the curva­
ture higher or lower.
Fore-and-aft adjustment
- Push th e switc h® forward or backward~ pag e 78,
fig . 82.
Adjusting seat height
- Pull or push the switch ® up or down.
Front seat cushion up/ down
-Press th e sw itch ® at the fr ont up or down .
Rear seat cushion up / down
- Press t he switch ® at the rear up or down.
Adjusting seatback angle
-Push th e switc h @ forwa rd or backwar d.
Head restraint height adjustment*
-Press the switch © from up to down or t he ot her way.
Lengthening or shortening upper thigh
support*
- Lift the button @ under the seat cus hion . The front sea t
cushion moves fo rward u nder spring force .
Control s and equ ip­
m ent Vehicle OP-eration
Seats and storage
-Push the seat c ushion back w hen you have f in ished using
i t.
& WARNING
• Adjust the driver 's seat only when the vehicle is stationary . You
risk an accident otherw ise.
• The power adjustment for the front seat s al so works with the
ignit ion switched off or with the ignition key removed. For this
reason, children should never be left unattended in the vehicle -
they could be injured!
• Exerci se caution when adjusting the seat height . Unsupervised
or careless seat adjustment can pi nch fingers or hands causing
injuries .
• While the vehicle is mo ving , the seatba cks of the front seats
mu st not b e inclined to o far to the rear bec ause the effectiveness
of the safety belts and the airbag system is se verely compromised
- there is a ris k of injury.•
Easy entry function
The easy entry function makes it easier for the rear
passengers to enter and leave the vehicle.
Vehicle care
... N 0
~
~
F ig . 83 Driv er 's se at:
C ont ro ls for e asy e ntry
assi st
~
Do-it-yourselt service iTechnical data

Seats and storage Folding down the front seatbacks
- Lift the latch=> page 79, fig. 83.
- Tilt the seatbac k forward.
Moving the front seats forward
-Press and hold the switch@ until the seat has reached the
desired position.
Moving front seats back
- Press and hold the switch @ until the seat has reached the
des ired position. The seat stops automatically when it has
reached its starting position again .
To make it easier to enter and leave the rear seat, the seatbacks of the
front seats can be folded forward and the head restraints are auto ­
matically lowered. At the same time, the front seats can be moved
forward and back.
When the front seats a re moved forward, their orig inal position is
stored . When it is moved back, the seat automatically stops in this
posit ion. To move the seat even further back, you have to release the
switch @ and reactivate it.
T he head rest raints from the front seats, depending on the seat
height that has been set, are automatically retracted when the seat­
backs are folded down. They return to their original position again
when the seatbacks for the front seats are ra ised .
(I) Tips
With the driver's or passenger's door closed, the corresponding
switch to move the seat is inoperative.•
Seat memory
Applies to veh icles : wit h seat memo ry
Memory for driver's seat
The seat adjustment settings for two drivers can be
stored using the memory buttons in the driver's door .
Fig. 84 Driver 's door:
Seat memory
In addition to the setting for the driver's seat, the exterior rear view
mirror setting ca n be stored and reca lled through seat memory if the
vehicle is properly equipped.
Storing and recalling settings
With the help of the memory buttons 1 and 2 ~ fig. 84 the settings
for two different drivers can be stored and recalled~
page 81.
The current settings are also automatically stored on the remote
control key being used when the vehicle is locked. When the vehicle is
unlocked, the settings stored on the remote contro l key being used
are automatically recalled.
Turning seat memory on and off
If the [ ON/OFF] switch is depressed , the seat memory is inoperative.
The word
OFF in the [ ON/OFF] sw itch illuminates .
All the stored settings are retained. We recommend using the
I ON/OFF] switch and deact ivating the seat memory if the vehicle is .,

only going to be used temporarily by a driver whose settings are not
going to be stored. •
Applies to vehicles : w ith seat memory

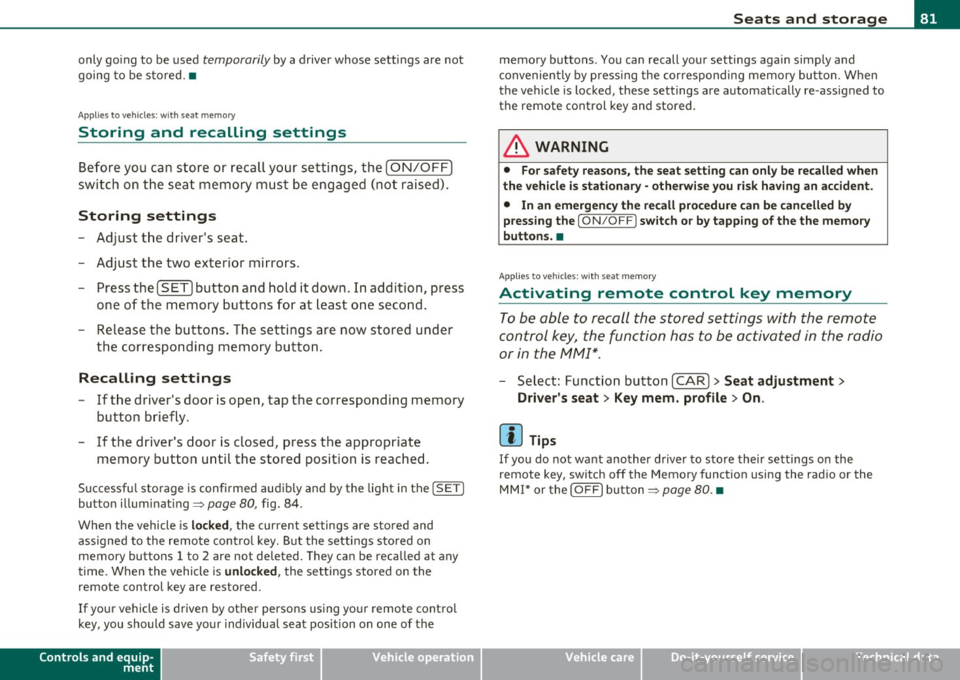

Storing and recalling settings
Before you can store or recall your settings, the [ ON/OFF]
switch on the seat memory must be engaged (not raised).
Storing settings
- Adjust the driver's seat.
- Adjust the two exterior mirrors .
- Press the
I SETI button and hold it down. In addition, press
one of the memory buttons for at least one second .
- Release the buttons. The settings are now stored under
the corr esponding memory button .
Recalling settings
- If the driver's door is open, tap the corresponding memory
button briefly .
- If the driver's door is closed , press the appropriate
memory button unt il the stored position is reached .
Successful storage is confirmed audibly and by the light in the [SET)
button illuminat ing=> page 80, fig . 84.
When the vehicle is
loc ked , the current settings are stored and
ass igned to the remote contro l key. B ut the setti ngs sto red on
memory buttons 1 to 2 are not deleted. They can be reca lled at any
time. When the vehicle is
unlo ck ed , the settings stored on the
remote control key are restored.
If your vehicle is driven by other persons using your remote control
key , you should save your individua l seat position on one of the
Controls and equip ­
ment Safety first
S
eats and storage
memory buttons. You can recall your settings again simply and
conveniently by press ing the cor responding memory button. When
the vehicle is locked, these settings are automatically re-assigned to
the remote control key and stored.
& WARNING
• Fo r sa fe ty reaso ns, th e se at se tting can only b e recalled when
t h e ve hicl e is s tat ion ary -oth erwise yo u risk ha ving an acc ident .
• In an emer gency th e re ca ll pro ce du re can be cancelled b y
p ressing the [
ON/OFF) sw itch or by t appin g of the the memo ry
b utto ns. •
App lies to ve hicles: with seat memory
Activating remote control key memory
To be able to recall the stored settings with the remote
control key, the function has to be activated in the radio
or in the MM!*.
-Select : Function button I CAR]> Seat adjustment >
D river's se at > Key mem . profile > On .
(I) Tips
If you do not want another driver to store their settings on the
remote key, switch
off the Memory function using the radio or the
MMI* or the [OFF] button => page 80 . •
Vehicle care Technical data

Seats and storage
Applie s to vehicles : wi th seat mem ory and MM I
Seat adjustments in MMI
The passenger's seat can be adjusted to various positions
by the driver.
Convenience side view
Select: Function button I CAR]> Seat adjustment>
Passenger's seat
> Convenience side view.
-Continue to press the control knob until the adjustment
process is complete.
Seat symmetry
- Select: Function button I CAR]> Seat adjustment >
Passenger's seat > Seat symmetry .
-Continue to press the control knob until the adjustment
process is complete .
Using the Convenience side view function, the passenger's seat is
adjusted so that the driver has the best possible view to the right.
When the Convenience side view is set, the specific position of the
dr iver's seat is taken into consideration.
Us ing the
Seat symmetry function, the passenger's seat can be
moved to the same position as the driver's seat. The settings for the
driver's seat are imported and set automatically. •
Head restraints
Applies to veh icles: with adjustable head restraints
Front head restraints
Fig. 8S Front seat:
Adjusting head
restraint electrically
The head restraints on the front seats can be adjusted to
provide safe support to head and neck at the optimum
height. When optimally adjusted , the top of the restraint
should be level with the top of the head. If that is not possible, try to adjust the head restraint so that it is as close
to this position as possible~
page 180, "Proper adjustment
of head restraints".
- Push the switch up or down~ fig. 85 to adjust the height
of the head restraint.
Refer to:::::, page 180, "Proper adjustment of head restraints" for
guidelines on how to adjust the he ight of the front head restraints to
suit the occupant 's body size.
& WARNING
• Driving without head restraints or with head restraints that are
not properly adjusted increases the risk of serious or fatal neck
injury dramatically. .,

& WARNING (continued )
• Read and heed all WARNINGS => page 180.
[ i J Tips
Cor rect ly ad just ed h ead r est ra int s and safe ty b elt s a re an extre mely
effective combination of safety features .•
Ap plies to veh icle s: wi th front arm rest
Front armrest
The center armrest can be adjusted to several levels.
Adjusting the center armrest
Fig. 86 Armrest
between the
driver · s/front
passenger· s seats .
- To adjust the angle , raise the armrest from the starting
pos ition detent by detent ::::> fig . 86 .
- To bring the armrest back into the starting position, raise
i t out of the top d etent and fold it back down .
The arm re st can slide forw ard a nd bac k.•
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
Seats and storage
Luggage compartment
Loading luggage compartment
Items of luggage must be stowed se curely.
Fig. 87 Place heavy
objects as far forward
as possible.
Note the following to preserve the vehicle's good handling
cha ract eris tics.
- Distribute the load as evenly as poss ible.
- Place heavy objects as far forward as possible ::::> fig. 87 .
- Secure the items of luggage with the non -elast ic retaining
straps to the ti e-down rings ::::>
page 84 .
& WARNING
• Loose objects in the luggage compartment can slide about
suddenly and alter the vehicle's handling characteristics.
• Loose objects
in the passenger compartment can fly forward
during abrupt maneuvers or accidents and injure occupants.
• Always store objects in the luggage compartment and use suit·
able straps, particularly with heavy objects.
~
Vehicle care Do-it-yourselt service iTechnical data

Seats and storage

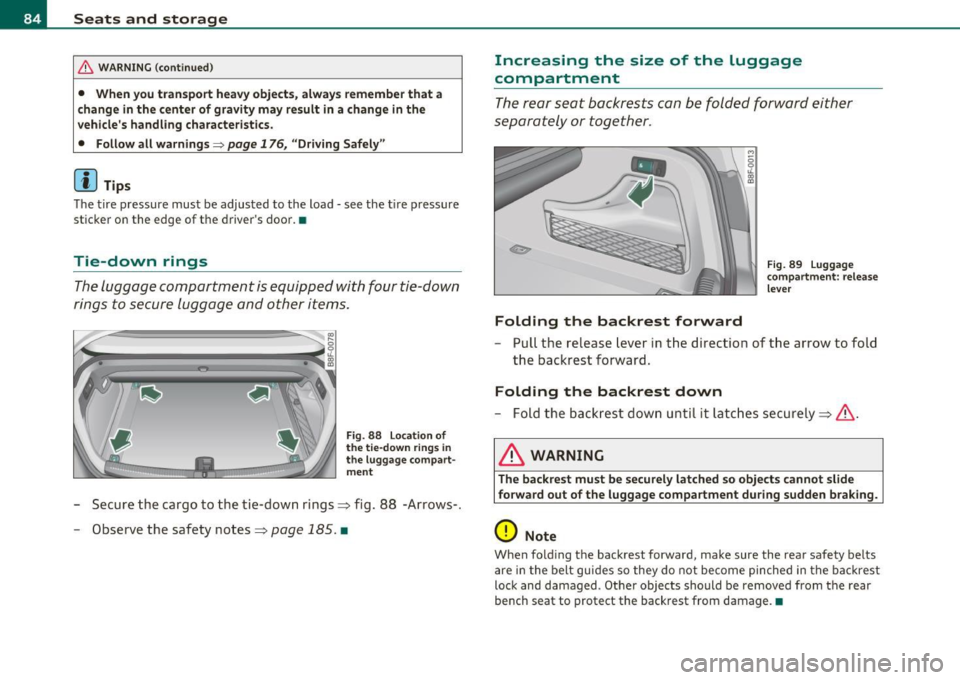

& WARN ING (con tin ue d)
• When you tran sport he avy objec ts, alw ays re membe r th at a
c hang e in the c enter of g ravity m ay result in a ch ange in th e
ve hicl e's handli ng char acte ris ti cs .
• Follo w all warnings =>
page 17 6, "Dr iving Safel y"
00 Tips
The tire pressure must be adjusted to the load -see the t ire pressure
sticker on the edge of the driver's door. •
Tie-down rings
The luggage compartment is equipped with four tie-down
rings to secure luggage and other items.
F ig. 88 Locat ion of
th e t ie-d ow n ring s in
t he lugg age com part­
m ent
- Secure the cargo to the tie-down rings=> fig. 88 -Arrows -.
- Observe the safety notes=> page 185. •
Increasing the size of the luggage
compartment
The rear seat backrests can be folded forward either
separately or together.
Folding the backrest forward
F ig. 89 Luggage
co mp artme nt: release
l e v e r
Pull the release lever in the direction of the arrow to fold
the backrest forward.
Folding the backrest down
- Fold the backrest down until it latches securely => & .
& WARNING
The ba ckr es t mu st be securel y la tched so object s cannot slide
f o rw ard o ut of the luggage compa rtment during sudd en bra king .
0 Note
When fold ing the backrest forward, make sure the rear safety belts
are in the belt guides so they do not become pinched in the backrest
lock and damaged . Other objects should be removed from the rear
bench seat to protect the back rest from damage. •

Beverage holders
Front beverage holders
Fig. 90 Center
console: Front
beverage ho lders
Fig . 91 Be ve rage
st orage* in the rear
- You can accom mod ate two beverag es in th is s torage
::::, fig.
90 .
A max imum of two beverages can be p lace d in the rear beve rage
holders *.
& WARNING
Spilled hot liquid can cause an accident and personal injury.
• Never carry any beverage containers with hot liquids , such a s
hot coffee or hot tea, in the vehicle while it is moving. In case of
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
Seats and storage
& WARNING (continued )
an accident, sudden braking or other vehicle movement, hot liquid
could spill, causing scalding burn s. Spilled hot liquid can also
cause an accident and personal injury.
• Use only soft cups in the cupholder. Hard cups and glasses can
cause injury in an accident.
• Never u se the cupholder or adapter as an ashtray -risk of fire.
0 Note
Only dri nk conta iners with l ids should be ca rr ied in t he c upholder .
L iq uid could spill out and damage your vehicle 's e lectron ic equipment
or sta in the upholstery, etc. •
Ashtray
Opening the ashtray
-Slide th e cove r open.
Closing the ashtray
Fig . 92 Cente r
cons ole : a shtray
- Tap t he Lid to c lose the ash tray automatica lly.
Vehicle care Do-it-yourselt service iTechnical data

Seats and storage Removing ashtray insert
- Release the ashtray inse rt by sliding the switch @
~ page 85, fig. 92 to the right.
- Remove the as htray insert @~
page 85, fig. 92.
Reinstalling ashtray insert
- Press th e asht ray ins ert i nto its ho ld er.
& WARNING
Never put wa ste paper in the a shtray . Hot as hes or other hot
objects in the ashtray could set waste paper on fire. •
Cigarette lighter
Using the cigarette lighter
-Ope n the lid o f the fro nt ash tray .
Fig. 93 Open fro nt
ashtray
- Push t he knob on the cigarette lighter i n.
- Wait u ntil the knob pops ou t sli ghtly.
- Remove the cigaret te lig hter immed iate ly. -
Light your c igarette from the red-hot heating coil of th e
cigare tte l ighter .
- Return the ciga rette lighte r to its socket.
Using the socket
- Remove the cigarette lighter.
- Insert the plug of the el ectrical device into the cigarette
lighter socke t.
The so cket of the ciga re tte lighter may be used for 12-volt app liances
w ith maximum consumption of up to 100 watts, such as a flash light ,
sm all vacuum cleane r, etc.
Before you purchase any accessor ies, always read and follow the
information in =>
page 345, "Additional accessor ies and parts
replacement" .
& WARNING
• Use care when using the cigarette lighter . Inattentive or unsu­
per vis ed u se of the cig arette lighter can cause bu rn s - risk of
injury!
• The cigarette lighter work s when the ignition is switched off or
with the ignition key remo ved . Child ren shou ld never be left unsu­
pervised in the vehicle, or there could be ri sk of fire!
• The power outlets and therefore the electrical acce ssories
connected to them operate only with the ignition on . Improper
use of th e outlets or of electri cal accessories can lead to seriou s
i njuries or cause a fire. Fo r thi s reason , children should neve r be
left unattended in th e vehicle -they could be injur ed!
0 Note
• T o avoid damag ing the socket, only use plugs that fit properly . _.,

• Only use the c igarette ligh ter socket as a powe r source for e lec­
tr ical a ccesso ries f or short dur ations. Use the socke ts * in the ve hicle
when a powe r so urce is needed fo r lo nger durations.
[I] Tips
When the eng ine is of f and accessories ar e st ill plugged in and are on,
the ve hicl e battery can sti ll be draine d.•
Storage
General overview
There are num er ous pla ce s to stor e item s in your v eh ic le .
Glove com par tm en t =>page 87
& WARNING
• Always remove objects from the instrument panel. Any items
not put away could slide around inside the vehicle while driving or
when accelerating or when applying the brake s or when driving
around a corner .
• When you are driving make sure that anything you may have
placed in the center console or other sto rage locat ions cannot fall
out into the footwells. In case of sudden braking you would not be
able to brake, depress the clutch or accelerate. •
Controls and equip ­
ment Safety first
Seats and storage
Glove compartment
Th
e g lov e comp artmen t is i llum inat ed and c an be lo cked.
To open glove compartment
Fig. 94 Glov e
c om partment
- Pull the h andl e i n th e dir e ct ion of t he arro w ~ fig . 9 4 and
swi ng th e co ver d own to o pen.
To close glove compartment
-Push t he gl ove co mpa rtment lid upward u ntil t he lock
engages.
T he re are holders for a pen and a pad of paper in the glove compart ­
me nt lid.
On t he right s ide in the glove compartment is a holder with the key
body into w hich t he eme rgency key mus t be clip ped to be able to start
the vehicle.
& WARNING
To reduce the risk of personal injury in an accident or sudden stop, always keep the glove compartment closed while driving. •
Vehicle care Technical data

Warm and cold
Warm and cold
Deluxe automatic climate control
Applies to vehicles: with deluxe automat ic climate cont ro l
Description
The climate control system can be used to set a comfort­
able temperature inside the vehicle .
The climate control system is a combination of a heating and ventila­
tion system as well a cooling system respons ible for dehumid ifying
and cooling the air inside the vehicle.
Th e automatic climate control system automatically maintains a
temperature once it has been set. The temperature of the air from
the vents, fan speed (air volume) and air distribution are a lso auto­
matically adjusted . The system also takes into account strong
sunlight so that manual adjustment is not necessary . So in almost all
cases, automatic mode offers the best conditions for the comfort of
the occupants at all times of the year=>
page 90.
Please note the following :
The cooling mode lowers the humidity level inside the vehicle. This
prevents fogging up of the windows.
In the case of high outside humidity and temperatures,
condensation
can drip from the air conditioning system evaporator and form a pool
under the veh icle. This is normal and not an indication of leaks!
At low outs ide temperatures, the fan automatically switches to a
higher speed when the coolant reaches a sufficient temperature
except in the defroster position.
When starting with full throttle, the compressor of the automatic
climate control system is temporarily switched off to achieve full
engine power.
T o ensure engine cooling when the engine is under an extreme load,
the compressor is switched off at h igh coolant temperatures.
Pollutant filter
The pollutant filter (particle filter) ensures that impurities in the
outs ide a ir (e.g. dust, pollen) and odors are significantly reduced or
stopped. The air is also filtered in recirculation mode.
Th e pollutant filter e lement must be changed at the intervals speci­
fied in the service plan so that the performance of the automatic
climate control system is not impaired.
If the effect iveness of the filter decreases premat urely due to opera­
tion of the vehicle in areas with significant pollution, the filter
element must be changed between the specified service dates.
Key recognition
The current climate control settings are automatically stored and
assigned to the key being used. The settings assigned to the key are
restored automatically when the vehicle is started. These settings are
different when the power top is open or closed. Each driver can use
his or her preferred settings witho ut having to man ually adjust them
when using their own key.
If another driver changes the settings while using your key, your
prefer red sett ings will be erased.
Energy management
To prevent the battery from be ing discharged and to restore the
balance of energy, components which require large amounts of
energy are temporarily cut back or switched off=>
page 247. Heating
systems in partic ular require a great dea l of energy. If you notice, for
example, that the rear window heater is not heating , the n it has been
temporarily reduced or switched off by
energy management . These
systems are available again as soon as the energy balance has been
restored. .,,_
