Opening the windows
-Press th e switc h to the first stop and hold it u ntil the
win dow re aches t he desire d pos ition.
- Press the sw itc h br iefly to the
second stop t o a uto mat i­
ca lly open t he w indow .
Closing the windows
-Pu ll t he swi tch to the first stop an d hold it unti l the
w indow reaches the desi red pos ition .
- Pull t he swi tch briefly to th e
second stop to auto mat ica lly
cl ose the wi ndow.
Power window switches
© Dr iver's door
® Passenger's door
© Left re ar door
@ Righ t rea r doo r
You can open or close all the windows with the switch=> page
48,
fig. 42.
& WARNING
• Do not leav e children unattended in the vehicle, especially with
access to vehicle keys. Unsupervised use of the keys can result in
s tarting of the engine and use of vehicle systems such as power
windows, etc. which could result in serious injury .
• Remember -you can still open or close the power window s for
about ten minutes after the ignition is switched off . Only when
either of the doors are opened are the power window s switched
off.
• Be careful when closing the window s. Check to see that no one
is in the
way, or serious injury could result!
Controls and equip ­
ment Safety first
Opening and closing
& WARNING
(co ntinued )
• Alway s remove the ignit ion key whenever you leave your
vehicle .
• If you lock your vehicle from the out side, no one, es pecially
children, should remain in the vehicle.
• Do not stick anything on the windows or the windshield th at
may interfere w ith the drive r's field of vision.
[I] Tips
• Whe n you open the doors , the windows automat ica lly lowe r about
1 0mm .
• After the ignition has been switched off, the w indows can still be
opene d or close d for about 10 min utes. The w indow reg ulators a re
no t sw itched until the driver 's or passenger's door is opened .•
Convenience opening /closing
The wind ows can be opene d and closed wit h the mecha n­
ical key or the e mergen cy k ey.
Fig. 4 3 Key turn s for
o pen ing a nd closing ...
Vehicle care Technical data

Opening and closing
Convenience opening feature
- Use the emergency key or pull the mechanical key out of
the master key=>
page 40.
-Insert the key into the lock of the driver's door.
- Turn the key to position=>
page 49, fig. 43 @until all the
windows have reached the desired position.
Convenience closing feature
- Use the emergency key or pull the mechanical key out of
the master key=>
page 40.
-Turn the key in the lock of the driver's door to the lock
position @ until the windows are closed=>
&-
& WARNING
• Never close the windows inattentively and without checking ·
there is risk of injury.
• You must always watch when the windows are being raised so
that no one can be trapped. If you release the key, the closing
action is immediately canceled.
• Always read and heed WARNING=>
& in "General description"
on
page 41. •
Correcting window regulator malfunction
After disconnecting the vehicle battery, the one-touch up
and down feature must be activated again.
- Pull and hold the power window switch until the window is
completely closed.
- Release the switch. -
Pull the switch again for one second. The automatic
closing/opening is now reactivated. •

Power top
Automatic power top
General information
The soph istic ated design of the fab ric power top allows you to
operate it eas ily and quick ly. Yo u can open and close the power top
w hil e dr iv ing as lo ng as t he veh icle is t raveling below 30 mph. When
open, the power top is stored in a special compartment which is
equipped wi th a cover.
Under normal cond it io ns, the power top is w ind- a nd wate rproof . In
rare cases, small droplets o f water may form under extreme weather
conditions such as tor rential or prolonged ra in. That is norma l and no
cause fo r concern.
F ollow t he ma intenan ce inst ructio ns to ma inta in t he att ra ctive
appea rance of t he convertib le and to ensure that it does no t leak
~ page 263, "P ower top care" . A lso obse rve the following:
• Only open and close the power top when it is clea n. Sharp-edged
part icles of d irt can sc ratch the rear window when the power top is
folde d and can c ause abrasion th at result i n damage to the power top
over time. You should also remove ice and snow befo re opening the
powe r top.
• Never remove snow and ice w ith sharp-edged ob jects . Yo u can
re move ice from the rear w indo w wit h a stand ard ice scr aper.
• You s hou ld only open the powe r top when it is comp lete ly dry.
Open ing the power top and stow ing it in the compa rtme nt whe n it is
wet can cause marks on the top t hat detract from its appearance .
M ildew can also form if th e power top is s towe d for an exte nded
period of time when it is wet.
• Do not leave the power top ope n for seve ral weeks at a time .
Always close it between uses to p revent disco lorat io n and creases
from f orming. Thi s is especi ally im porta nt if i t was not comple tely d ry
w hen stowed.
Controls and equip ­
ment Safety first
Power top
•
Open ing o r closing the power top in temperatures below 32 °F
(0 °C) is not recommended because the flexibility of the fabric
decreases is sub- ze ro te mperatures.
& WARNING
• When operating the power top, make sure the function is not
affected by wind or other factors and that it does not interfere
with other drivers .
• Never drive when the power top is not locked correctly. The
wind from driving could cause the power top to open . Thi s can
result in injuries and damage to the vehicle.
• When opening and closing the power top, make sure no one
will be injured by the supports and othe r moving parts.
• Operat ing the power top reduces the headroom in the rear of
the vehicle. Make sure there is enough clearance between the rear passenger and the power top when opening and closing it.
• When operating the power top, visibility to the rear is limited .
Avoid operating the top while driving in reverse.
0 Note
• Always make sure there is eno ugh clearance above the vehicle so
t he power top is no t damage d when o pening and closing i t.
• Do not store any objects in the power top compartment to avoid
dama ge when opening the to p.
[ i ] Tips
• T o prevent the battery from discharg in g, do no t open o r close the
power top re pea tedly when the engine is swi tched off . .,_
Vehicle care Technical data

Power top
• A message in the instrument cluster display will alert you if a
protection function was activated or if there is a malfunction
=>page 52.
• The power top can also be operated manually if there is a malfunc­
tion=>
page 57, "Power top emergency operation" . Have you autho­
rized Audi dealer correct the cause of the malfunction as soon as
possible .
• If parking the vehicle with the power top open, remember that the
vehicle interior will not be protected from the weather or from unau­
thorized entry. Closing the power top before leaving the vehicle is
recommended. If you leave items in the vehicle, lock them in the
trunk .•
Power top operation
The indicator light monitors the power top.
The . indicator light illuminates for approximately 2 seconds when
the ignition switches on to check the function and then goes out
again. The indicator light also:
• illuminates when the power top opens or closes.
• blinks if the power top switch is operated but the conditions for
opening or closing the power top are not met . A warning message
also appears in the instrument cluster display=>
page 52, "E rror
message in the instrument cluster display" .
• if the power top did not open or close completely.
[ i J Tips
The indicator light stays on if the power top was opened manually. •

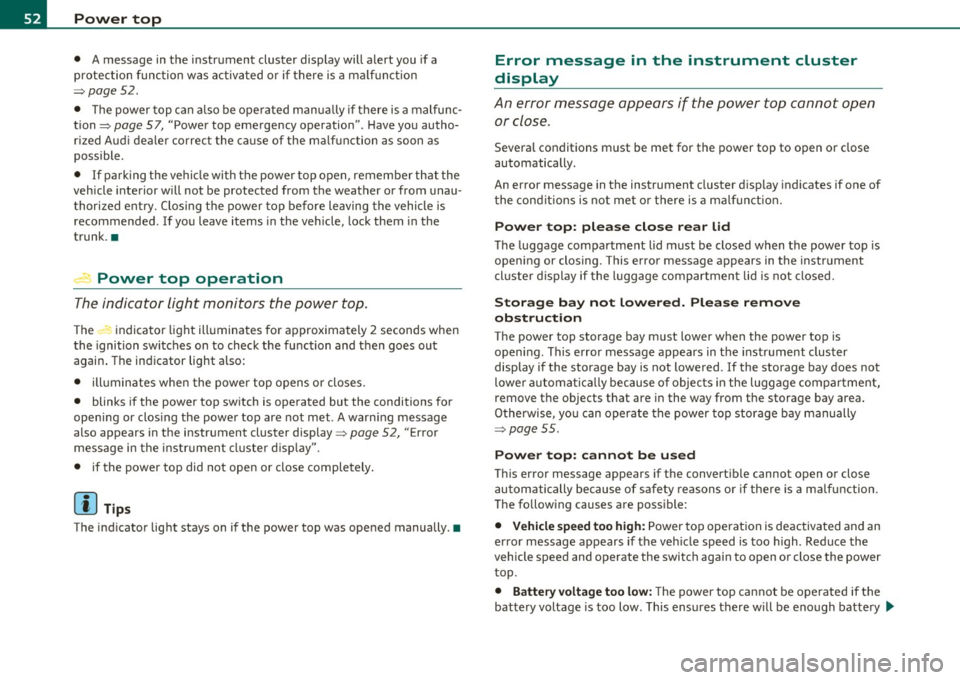

Error message in the instrument cluster
display
An error message appears if the power top cannot open
or close.
Several conditions must be met for the power top to open or close
automatically.
An error message in the instrument cluster display indicates if one of
the conditions is not met or there is a malfunction.
Power top: please close rear lid
The luggage compartment lid must be closed when the power top is
opening or closing. This error message appears in the instrument
cluster display if the luggage compartment lid is not closed.
Storage bay not lowered. Please remove
obstruction
The power top storage bay must lower when the power top is
opening. This error message appears in the instrument cluster
display if the storage bay is not lowered . If the storage bay does not
lower automatically because of objects in the luggage compartment,
remove the objects that are in the way from the storage bay area.
Otherwise, you can operate the power top storage bay manually
=>page 55.
Power top: cannot be used
This error message appears if the convertible cannot open or close
automatically because of safety reasons or if there is a malfunction.
The following causes are possible:
• Vehicle speed too high: Power top operation is deactivated and an
error message appears if the vehicle speed is too high. Reduce the
vehicle speed and operate the switch again to open or close the power
top.
• Battery voltage too low: The power top cannot be operated if the
battery voltage is too low. This ensures there will be enough battery
~

voltage left to start the vehicle. The power top can be operated again after the eng ine is sta rted .
• Rollo ve r prot ection acti ve: If the power top is operated cont inu­
ously for an extended pe riod o f time, rollover protec tion w ill act ivate
to prevent damage to the hydraulic unit . T his protect ive function
prevents the power top from opening or close for app rox imately 15
to 30 m inutes . It w ill function again after that=>&.
• Malfun ct ion : Fa ilure of system components is one possible cause
for malfunction.
If this happens, you can also operate the power top
by hand =>
page 57.
Power top not secure
This message appears with a war ning to ne if the powe r top is not
completely closed or open and the vehicle speed is above 50 km/h .
Reduce the ve hicle speed below 50 km/h and use the sw itch to open
or close the power top completely .
& WARNING
Never d rive when the power top is not lo cked co rre ctly. The wind
from driving could cau se the power top to open. This can re sult in
injuries and dam age to the vehicle. •
Opening or closing the power top~
Contro ls a nd e quip ­
m en t
Fig . 4 4 Center
co nsole: p ow er top
sw itch
Vehicle OP-eration
Power top
Opening the power top
- Switch the ignition on.
- Remove any objects that are stored in the power top
compartment to prevent damage to the top and t he rear
window .
- Pull and hold the switch until the power top opens and the
covers close co mpletely.
Closing the power top
-Swi tch th e ign it io n on.
- Remove any objec ts that are stored in the power top
compar tment to p revent da mage to the top a nd t he rear
window.
- Press and hold the switch until the c losing process is
complete.
The indicator light in the instrument clu ster goes out when the top
is com pletely open or closed . The side windows a utomatically lower
slightly during the opening/closing process.
& WARNING
• When opening and closi ng the powe r top , make sure no one
will be injured by the support s and other m oving part s.
• Operating the power top reduces the headroom in the rear of
the vehicle . Make sure there is enough clearan ce between the rear
pas senger and the power top when opening and closing it .•
Vehicle care Do-it-yourselt service iTechnical data

Power top

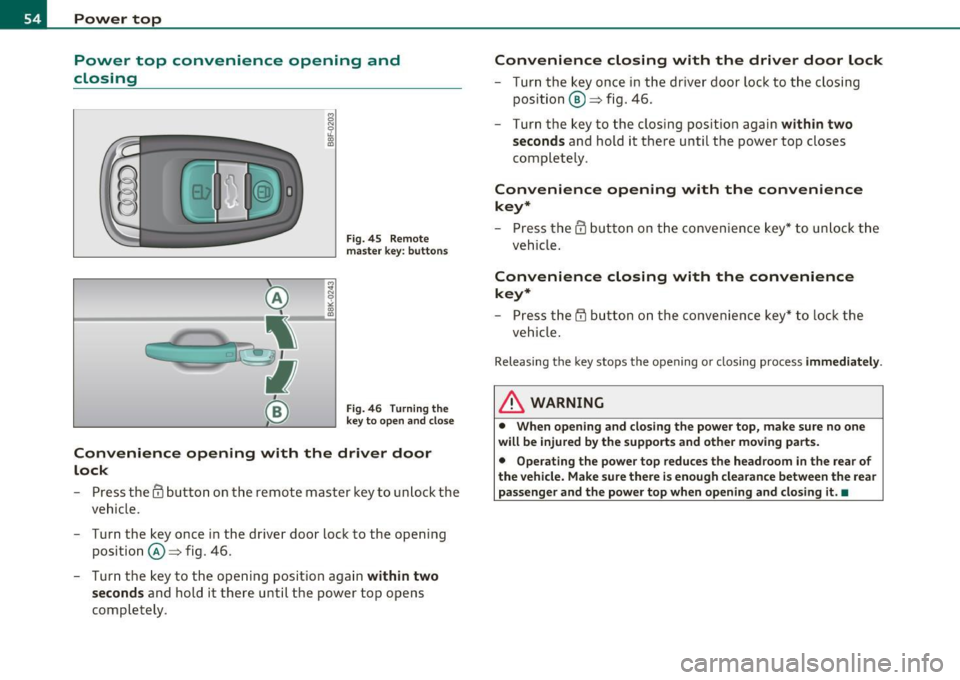

Power top convenience opening and
closing
F ig. 45 R emote
m ast er key : button s
Fig. 46 T urning the
key to open and close
Convenience opening with the driver door
lock
- Press the@ butto n on the remote master key to un lock t he
vehicle .
- Turn the key once in the dr iver door loc k to the openi ng
posi tion ©~ fig . 46.
- Tur n the key to the openi ng posit ion aga in
within two
seconds
and hold it there until the power top opens
completely .
Convenience closing with the driver door lock
- Turn the key once in the driver door lock to t he closing
pos ition ®~ fig. 46 .
- Turn the key to th e clos ing posit ion again
with in two
seconds
and hold it there until the power top closes
comple tely .
Convenience opening with the convenience
key*
- Press the@ button on t he conven ience key* to un lock the
vehicle .
Convenience closing with the convenience
key*
P ress t he l'.Il button on the convenience key* to lock the
v e hi cle .
Releasing the key stops the opening o r closing process immediately .
& WARNING
• When opening and closing the power top, mak e sure no one
will be injured by the supports and other moving parts.
• Operating the power top reduces the headroom in the rear of
the vehicle. Make sure there is enough clearance between the rear pa ssenger and the power top when opening and closing it .•

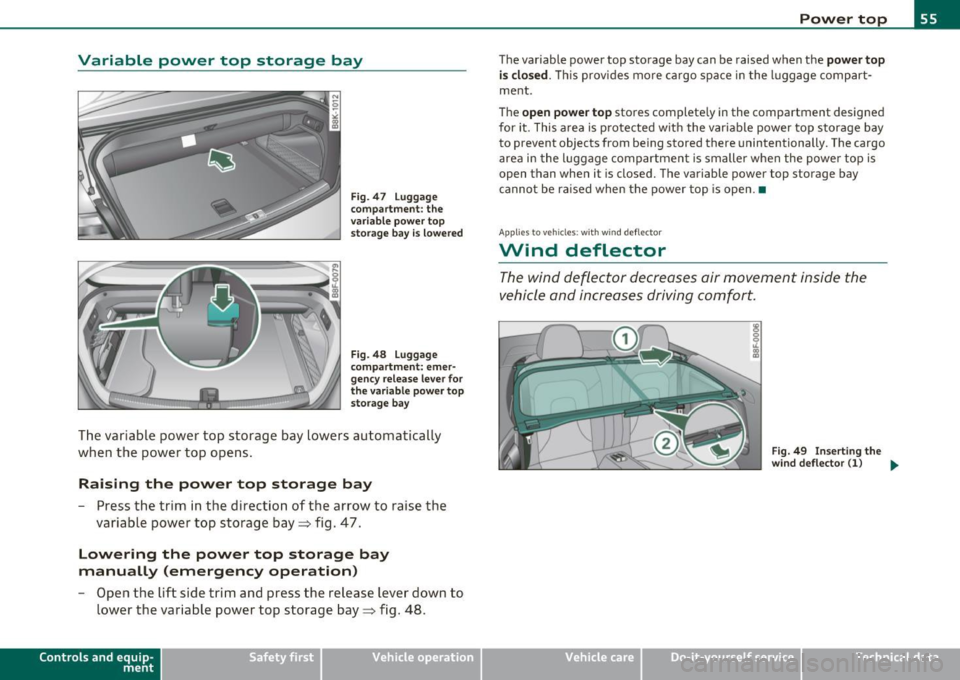

Variable power top storage bay
Fig. 47 Lugga ge
co mpar tme nt: th e
v ari able powe r to p
s t o rag e bay is lo wer ed
F ig . 4 8 Lugga ge
c o mpart ment : emer­
genc y rele ase le ver for
the var iab le powe r to p
st or ag e ba y
The var iable power top storage bay lowers automatically
when the power top opens .
Raising the power top storage bay
-Press the trim in the direction o f the arrow to raise the
variable power top storage bay=> fig. 47 .
Lowering the power top storage bay
manually (emergency operation)
-Open the lift side trim and press the release lever down to
lower t he variable power top storage bay=> fig. 48.
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
Power top
The var iable power top sto rage bay can be raised when the power top
is clo sed .
Thi s prov ides mo re ca rgo space in the l uggage comp art­
ment .
T he
open power top stores complete ly in the compartment des igned
for it . This a rea is p rotected w ith the variable powe r top storage bay
to prevent objects from be ing stored there unintent ionally. The cargo
area in the luggage compartmen t is smaller when the powe r top is
open than whe n it is closed. The variable power top storage bay
canno t be r aised when the power top is open .•
App lies to ve hicl es: with w ind defle ctor
Wind deflector
The wind deflector decreases air movement inside the
v ehicle and increases driving comfor t.
F ig. 4 9 Inse rt in g th e
wi nd deflec tor ( 1) .,
Vehicle care Do-it-yourselt service iTechnical data

Power top
Fig. 5 0 Inse rt in g th e
wind d eflec tor (2)
Reta ining p ins are located on the lo ng en ds of the wind
deflector . They secure the deflector in the mounts on the
vehicle's rear s ide trim . For safety reasons, inserting the win d
deflector from the side farthest from traff ic.
Inserting and positioning the wind deflector
- Open th e rear side wi ndow on the side fa rt hes t from
t raffic.
- Read the assembly instructions on the wind deflector
storage bag.
- Remove the wind deflector from the storage bag a nd fold
i t apart
once . The wind deflector is installed in the correct
position when the longest side is toward the front and the
wind deflector fra me is at the top .
- Insert both retaining pins in the mounts in the t rim above
the rear seat on the driver side=>
page 55, fig . 49 (D .
- Fold the handle @ at the front and center of the w ind
deflector upward and lift the deflector slig htly in the
center => fig. 50
® ·
- Now gu ide th e w ind deflector into the mounts in the sid e
tr im o n the passenger s ide
0 and press ligh tly i n the
midd le ® until the handle locks in place .
- Set t he w ind deflector up completely .
Removing the wind deflector
-Fold the w ind deflector frame bac k.
- Fold the handle=>
page 55, fig. 49 @ at the front and
center of the wind deflector upward and lift the deflector
slightly in the center .
- Remove the win d deflector fro m the mounts in the si de
tr im on the passenger side .
- Pull the wind de flector out of the moun ts on the driver
side and lift it out.
- Fold it toget her .
- Store the wind deflector in the storage bag.
& WARNING
• Do not u se the wind deflector t o se cure cargo .
• Be ca refu l when installing so you do not pinch your fingers.
• Pay attenti on to the traffi c when in stalling the wind defle ctor ,
i f necessary.
0 Note
Do not lean against the vehicle when install ing the wind deflector .
H ar d obje cts and decorations on clo thing such as belt buckles can
scratch the paint . Your clothing could also become dirty . _,,,

(]] Tips
• The w ind deflecto r wo rks best when all of the windows are ro lled
up while driving.
• Only store the w ind deflector in the sto rage bag when it is dry .•
Power top emergency operation
General information
The power top can be closed by hand if there is a malfunc ­
tion.
- Activate the parking brake.
- Open t he wi ndows
- Remove the key from the ignition.
Only close the power top manually in an emergency . T he best solut ion
is to have yo ur authorized Audi dealer cor rect the ca use of the
malfunctio n.
Power top emergency operation consists of the fo llowi ng steps:
• Unlocking the power top compartment cover : The cover on the
power top compartment must be released by hand .
• Closing the power top : The power top must be lifted o ut of the
tray and closed.
• Locking the power top : The power to p latches m ust be locked
with the emergency key.
& WARNING
• When position ing the power top , avoid conta ct with the
s upports or other moving parts . Make sure all of the window s are
lowered . Otherwise you could pinch your hands.
Con tro ls a nd e qui p­
ment Vehicle
OP-eration
Power top
& WARNI NG (continued )
• Never drive when the power top is not lo cked co rrectly. The
wind from driv ing could cau se the power top to open. This can
re sult in injuries and damage to the vehicle.
[ i ] Tips
Have a second person assist when closing the power top. Positioning
t he power top is easier when there is a se cond person to help. •
Step 1: Unlocking the power top
compartment cover
The release lever for the power top c ompartment is
located under the trim in the luggage compartment.
- --
Vehicle care
Fi g. 51 Lu ggage
c omp artm ent : re leas e
le ver ..
Do-it-yourselt service iTechnical data

Power top
Fig. 52 Luggage
compa rt m ent: side
t rim
- Open the luggage compartment lid. The emergency
release can be used if the luggage compartment lid will
not open ~
page 48.
-Reach your finger into the gap behind the trim n ear the
center of the vehicle .
- Pull the release lever down to release the power top
compartment cover~
page 57, fig. 51 .
- Open the left side trim and press the yellow lever in the
direction of the arrow~
page 58, fig. 52 .
- Remove the emergency key from the compartment on the
left side ~
page 58, fig. 52 @.
Open the right side trim and press the yellow lever in the
direction of t he arrow . •

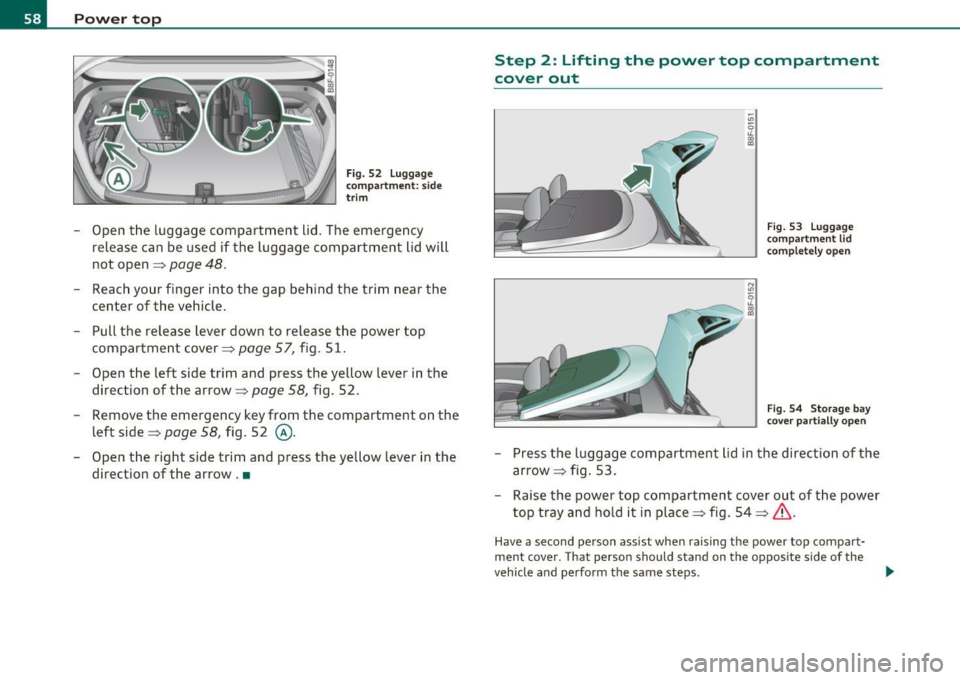

Step 2: Lifting the power top compartment
cover out
Fi g. 53 Luggage
com partme nt li d
co mp le te ly ope n
Fig . 54 Sto rage bay
cov er partia lly o pen
- Press the luggage compartment lid in the direction of the
arr ow ~ fig . 53 .
- Raise the power top compartment cover out of the power top tray and ho ld it in place~ fig . 54
~ & .
Have a second person assist when raising the power top compart­
ment cover. That pe rson should stand on the opposite side of the
vehicle and perfo rm the same steps .
