contribution to good road holding and safe
handling when in good condition and properly
inflated
¢ .&. .
We recommend that all work on t ires and
wheels be performed by an authorized A udi
dealer. They are familiar with recommended
procedures and have the necessary spec ial
too ls and spare parts as we ll as the proper fa ­
cilities for dispos ing of the old tires .
Authorized Audi dealers have the necessary information about techn ica l requ irements for
installing or changing tires and r ims.
R eplacing t ires and wheel s
Tires shou ld be rep laced at least in pairs and
not individua lly (for example both front tires
or both rear tires together).
Be s ure to read and heed the information to
the tire pressure monitoring system*
¢ page 245.
Always buy rep lacement radial tires that have
the same specifications as the t ires approved
for your ve hicle by Audi. Replacement tires
must always have the same load rating speci ­
fication as the original equipment or approved
optional tires listed in the table¢
page 231.
Audi-approved specification tires are specially
matched to your vehicle and its load limits ,
and can contribute to the important road hold­
ing, driving character istics, and safety of the
veh icle. The table
( ¢ page 231) lists spec ifica­
tions o f the t ires approved for the Audi mod­
e ls covered by your Owner 's Literature .
T he tire pressure labe l located on dr iver 's side
B-pillar
( ¢ fig . 183) lists the specifications of
the orig inal equ ipment tires insta lled on your
ve hicle at the time it was manufactured .
Federal law requires tire manufacturers to
place standa rd iz ed information on the s ide­
wall of all tires¢
fig. 186. This information
ident ifies and describes the fundamental
characterist ics, the quality grade of the tire
and a lso provides a tire identificat ion number
for safety standard certificat ion and i n case of
a recall. Tire
s an d wheel s 239
Tire specification s
Knowledge of tire specifications makes it eas­
i er to choose the co rrect tires . Radial tires
have the tire specifications marked on the
sidewa ll, for examp le:
P255 / 35 Rl9 96V XL
This conta ins the following information :
P Indicates the tire is for passenger cars
(where applicab le)
2 55 Nom inal ti re w idth in mm of the tire
from sidewall edge to sidewall edge. In general , the larger the number, the wider
the tire
35 Height/w idt h ratio in percent (aspect ra-
t io)
R Tire construct ion: Radial
19 Rim diameter code (in inches)
96 Load rating code
Y Speed rating letter code
XL (or "xl", "E XTRA LOAD", or "RF" Indicates
that the t ire is a"Re in forced" or an "Ex tra
Load" t ire
M+S (or "M/S") Indica tes that the tire has
some mud and snow capability
The tires could also have the informat ion of
direction of rotat ion
¢ page 22 7 .
Tire manuf acturing d ate
The manufacturing date is also indicated on
the tire sidewall (possibly on ly on the
inner
s ide of the wheel):
"DOT ... 2212 ... "means, for examp le, that
the tire was produced in the 22nd week of 2012 .
Speed rating (letter c ode)
The speed rating letter code on the whee ls in­
dicates the maximum permiss ible road speeds
¢ .&. in Winter tires on page 243 .
P up to 93 mph (1S0 km/h)
Q up to 99 mp h (158 km/h)
R up to 106 mph ( 170 km/h)
S up to 110 mph ( 180 km/h)
T up to 118 mph (190 km/h)
U up to 124 mph (200 km/h)
•
•

24 0 T ire s and wheel s
H up to 130 mph (210 km/h)
V up to 149 mph (240 km/h)l)
Z over 149 mph (240 km/h)ll
W up to 168 mph (270 km/h)
1l
Y up to 186 mph (298 km/h)ll
Your vehicle is norma lly factory equipped with
tires, which possess excellent driving charac­
teristics and give your Audi opt imum driving
comfort. An electronic speed limiter
c::> page 29 w ill normally prevent your vehicle
from go ing faste r than the tire speed rating
¢ & .
U.S . DOT Tire Identification Number (TIN)
and tire manufacture date
This is the t ire's "serial number". It beg ins
with the lette rs "DO T" and indicates that the
tire meets all federal standards. The next two
numbers or letters indica te the p lant where it
was manufactured, and the last four numbers
represent the week and year of manufacture .
F or examp le, the numbers 2212 mean that
the tire was produced in the 22nd week of
2012 . The other numbers are marketing co­
des that may or may not be used by the tire
manufacturer . This information is used to con ­
tact consumers if a tire defect requires a re­
call.
Audi Original tire
Tires with the ident ificat ion "AO" or "RO" have
been spec ially matched with your Aud i. We
recommend using only these tires because
they meet the highest standards regard ing
safety and d riving character istics when used
correctly. Yo ur au tho riz ed Audi dealer will
g lad ly provide you with more information.
Tire ply composition and materials used
The number of pl ies ind icates the numbe r of
l ayers of rubber-coated fabric in the t ire. In
general, the g rea ter the numbe r of p lies, the
mo re weig ht a t ire can support. Tire man ufac ­
turers a lso must indicate the materials in the
ll For tir es w it h a m ax im um spee d ca pabil ity ove r
1 4 9 mp h (2 40 k m/h) , t ire ma nufact urers somet imes
u se the lette rs "ZR. "
tir e, which include stee l, nylon, po lyester, and
others .
Maximum Load Rating
This number ind icates the maximum load in
k ilog rams and po unds t hat can be ca rr ied by
the tire .
Tire quality grading for treadwear ,
traction, and temperature resistance
T read wear, tra ct ion and tempera ture grades
c::>page 241 .
Maximum Permissible Inflation Pressure
This number is the greatest amount of a ir
pressure that should ever be put in the t ire
u nder norma l dr iv ing cond itions .
_& WARNING
- Using incorrect o r unm atc hed tires and/
or wheels or improper tire and wheel
combinat ions can lead to loss of control
'
collis ion and serio us personal i nju ry .
- A lways use t ires, rims and whee l bolts
that meet the specifications of origina l
factory- insta lled tires or other combina­
tions that have been specifically ap­ proved by the vehicle manufacturer.
- Tires age even if they are not being used
and can fai l sudden ly, especially at hig h
speeds. Tires that are more than 6 yea rs
old can only be used in an emergency
and then w it h specia l care and at lower
speeds.
- Never mo unt used tires on your veh icle if
you are not sure of the ir "previo us histo­
ry." O ld used tires may have been dam­
a ged even thoug h the damage cannot be
seen that can lead to sud den tire fa ilure
and loss of vehicle control.
- All fo ur whee ls must be fitted with r adial
tires of the same type, size (rolling cir­
cumference) an d the same tread pattern .
Driving with different tires reduces ..,_

vehicle handling and can lead to a loss of control.
- If the spare tire is not the same as the
tires that are mounted on the vehicle -
for example with winter tires -only use
the spare tire for a short period of time and drive with extra care . Refit the nor­
mal road wheel as soon as safely possi­
ble .
- Never drive faster than the maximum speed for which the tires on your vehicle are rated because tires that are driven
faster than their rated speed can fail
suddenly.
- Overloading tires cause heat build-up,
sudden tire failure, including a blowout
and sudden deflation and loss of control.
- Temperature grades apply to tires that
are properly inflated and not over or un­
derinflated.
- For technical reasons it is not always
possible to use wheels from other
vehicles -in some cases not even wheels
from the same vehicle model.
- If you install wheel trim discs on the ve­
hicle wheels, make sure that the air flow
to the brakes is not blocked. Reduced air­
flow to the brakes can them to overheat, increasing stopping distances and caus­
ing a collision .
- Run flat tires may only be used on
vehicles that were equipped with them
at the factory. The vehicle must have a
chassis designed for run flat tires and a
factory-installed tire pressure monitor­
ing system* that indicates a loss of tire
pressure. Incorrect use of run flat tires
can lead to vehicle damage or accidents.
Check with an authorized Audi dealer or
tire specialist to see if your vehicle can be
equipped with run flat tires . If run flat
tires are used, they must be installed on
all four wheels. Mixing tire types is not
permitted .
0 Note
-For technical reasons, it is not generally
possible to use the wheel rims from oth-

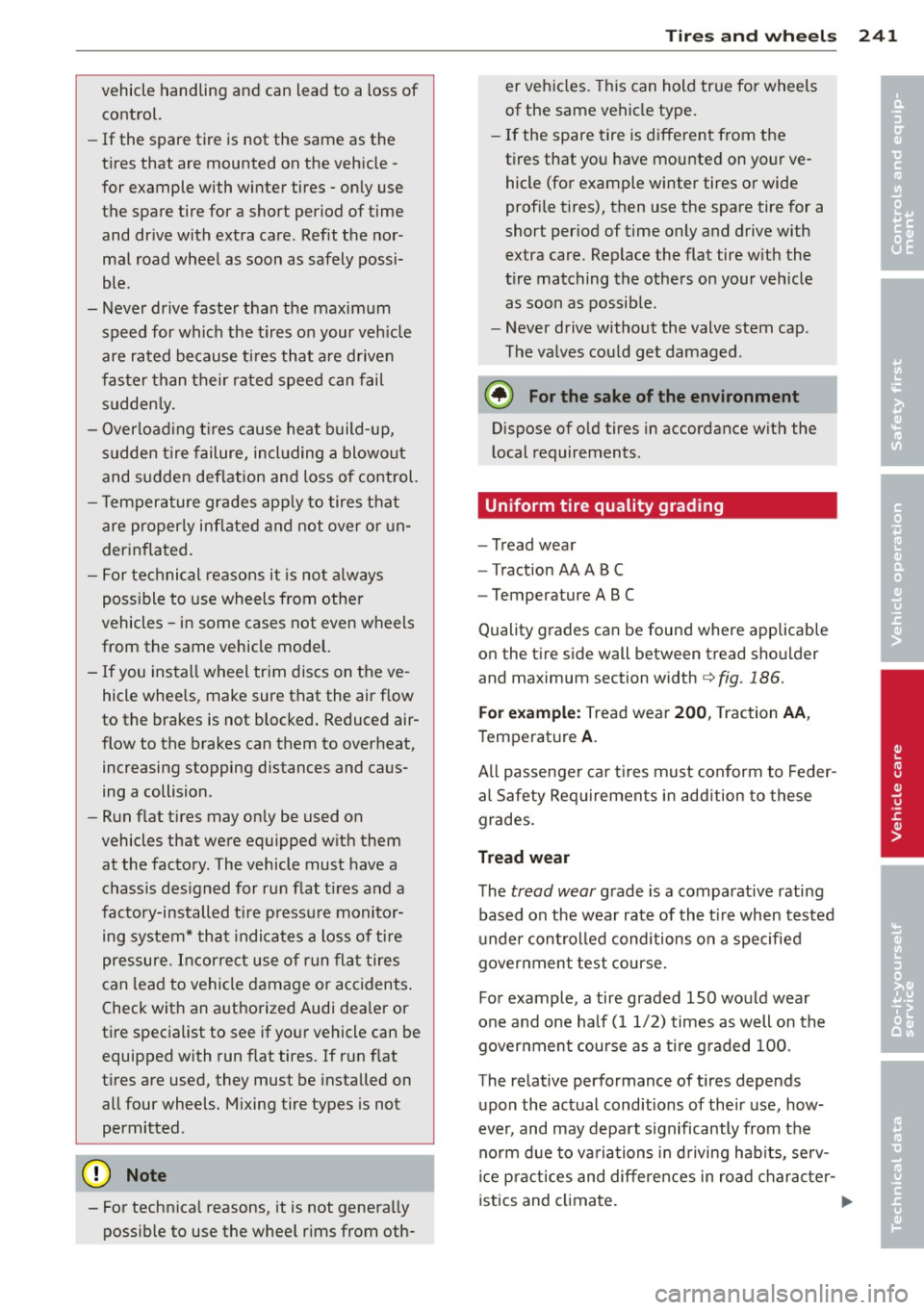

Tires and wheels 241
er vehicles. This can hold true for wheels
of the same vehicle type.
- If the spare tire is different from the
tires that you have mounted on your ve­
hicle (for example winter tires or wide
profile tires), then use the spare tire for a
short period of time only and drive with
extra care. Replace the flat tire with the
tire matching the others on your vehicle as soon as possible .
- Never drive without the valve stem cap .
The valves could get damaged .
(® For the sake of the environment
Dispose of old tires in accordance with the
local requirements.
Uniform tire quality grading
-Tread wear
- Traction AA A B C
- Temperature AB C
Quality grades can be found where applicable
on the tire side wall between tread shoulder
and maximum section width 9 fig. 186.
For example: Tread wear 200, Traction AA,
Temperature A.
All passenger car tires must conform to Feder­
al Safety Requirements in addition to these
grades.
Tread wear
The tread wear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified
government test course.
For example, a tire graded ISO would wear
one and one half (11/2) times as well on the government course as a tire graded 100.
The relative performance of tires depends upon the actual conditions of their use, how­
ever, and may depart significantly from the norm due to variations in driving habits, serv­
ice practices and differences in road character-
istics and climate.
1J1>
•
•

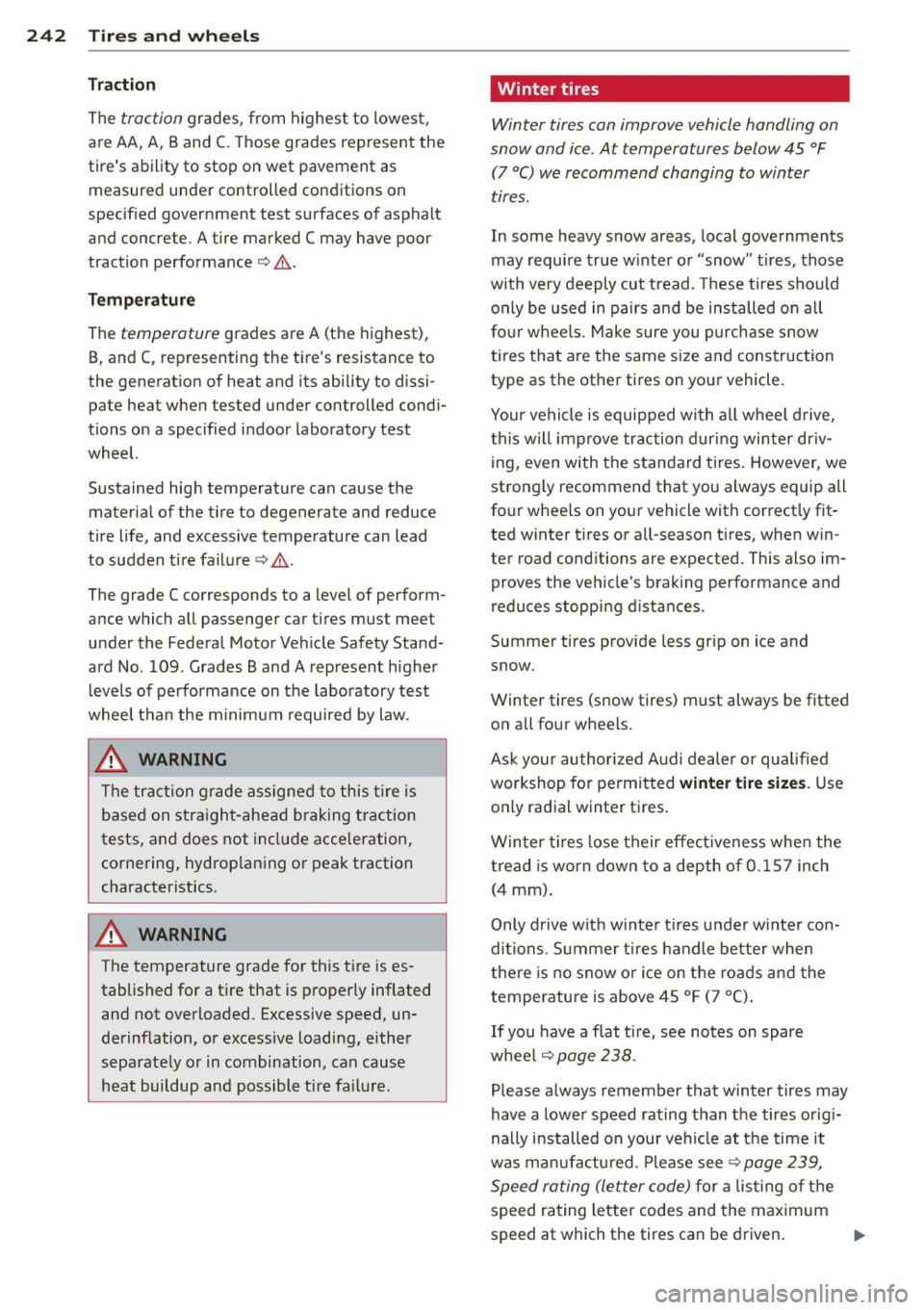

24 2 T ire s and wheel s
Traction
The traction grades, from highest to lowest,
are AA, A, Band
C. T hose grades represent the
tire's ability to stop on wet pavement as measured under controlled conditions on
specified government test surfaces of asphalt
and concrete. A tire marked C may have poor
traction performance
c:> .&. .
Te mp eratu re
The temperature grades are A (the highest),
B, and
C, representing the tire's resistance to
the generation of heat and its ability to dissi­
pate heat when tested under con trolled condi­
tions on a specified i ndoor laboratory test
wheel.
Sustained high temperature can cause the
material of the tire to degenerate and reduce
tire life, and excessive temperature can lead
to sudden tire failure
c:> ,& .
The grade C corresponds to a level of perform­
ance which all passenger car tires must meet under the Federal Motor Veh icle Safety Stand­
ard No .
109 . Grades Band A represent h igher
l eve ls of performance on the laboratory test
wheel than the m inimum required by law.
.&_ WARNING
T he traction grade assigned to this t ire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydrop laning or peak traction
characteristics.
A WARNING
The temperature grade for this tire is es­
tablished for a t ire that is properly inflated
and not overloaded. Excessive speed, un­
derinflation, or excessive loading, either
separately or in combination, can cause
heat buildup and possible tire fa ilu re.
-
Winter tires
Winter tires can improve vehicle handling on
snow and ice . At temperatures below 45 °F
(7 °C) we recommend changing to winter
tires.
In some heavy snow areas, local governments
may require true w inter o r "snow" t ires, those
with very deeply cut tread . T hese tires should
o n ly be used in pairs and be installed on a ll
f o ur wheels . Make sure you purchase snow
ti res that are the same size and construction
type as the other tires on yo ur vehicle.
You r vehicle is equipped with al l wheel d rive,
th is will improve traction d uring win ter driv­
ing, even with the standard tires. However, we
strong ly recommend that you always equip all
fo ur wheels on your vehicle with correctly fit­
ted winter tires or a ll-season tires, when win­
ter road cond itions are expected. This also im­
proves the veh icle's brak ing performance and
reduces stopping d istances .
Summer tires provide less grip on ice and
snow.
Winter tires (snow tires) must always be fitted on all fo ur whee ls .
Ask your authorized A udi dealer or qualified
workshop for permit ted
w in ter ti re size s. Use
only radial winter tires .
Winter tires lose their effec tivenes s when the
tread is wo rn down to a depth of
0 .157 inch
(4 mm) .
Only d rive w ith w inter t ires under w inte r co n­
ditions. S ummer t ires handle bette r when
there is no snow o r ice on the roads and the
temperature is above 45 °F (7 °C) .
If you have a flat ti re, see notes on spare
whee l
c:> page 238 .
Please always remember that winter tires may
have a lower speed rating than the tires origi­
nally installed on your vehi cle at the time it
was ma nufactu red. P lease see
c:> page 239,
Speed rating (Letter code)
for a lis ting o f the
speed rating lette r codes and the max imum
speed at which the tires can be driven . ..,.

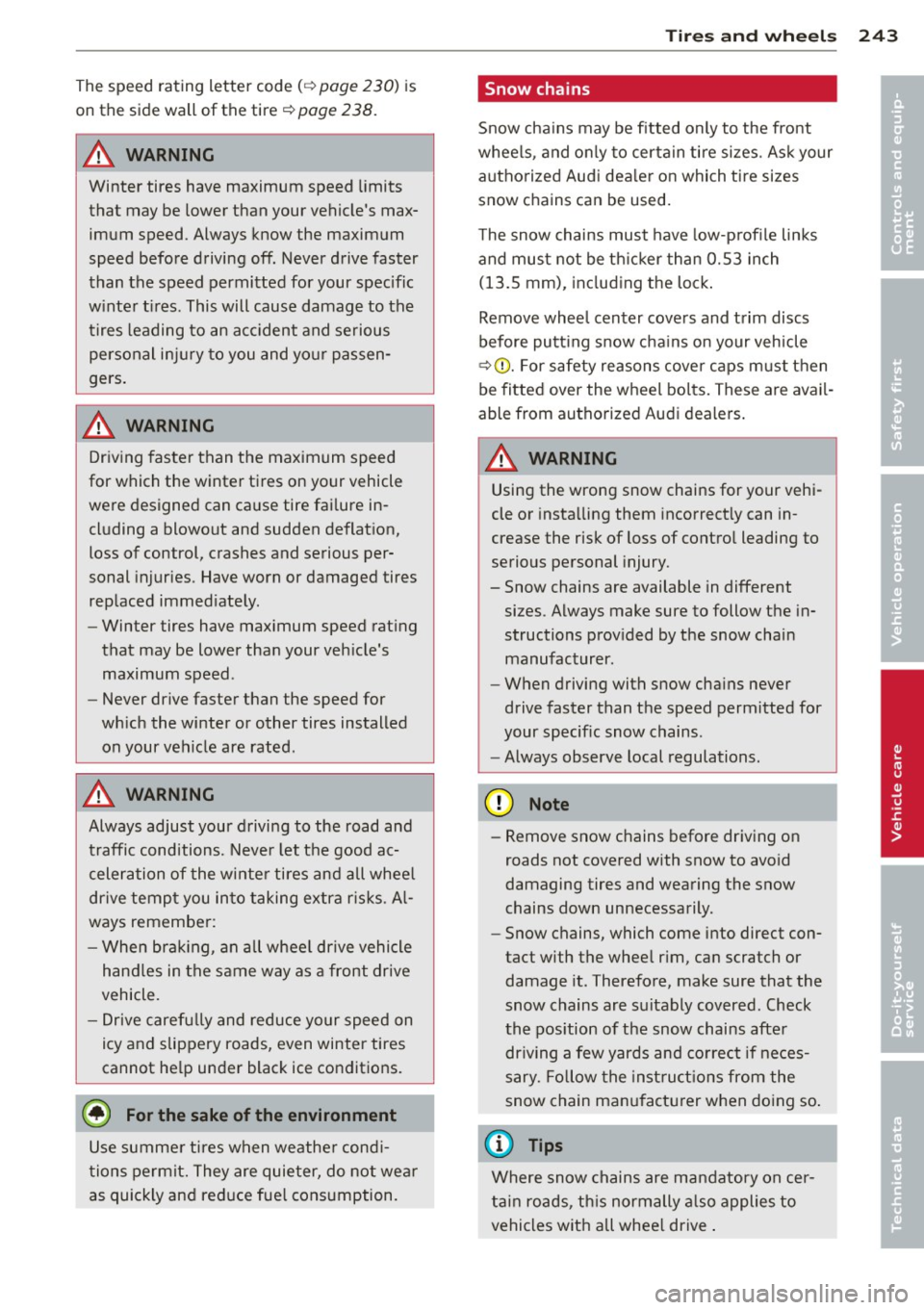

The speed rating letter code (c::> page 230) is
on the side wall of the tire
c::> page 238.
A WARNING
Winter tires have maximum speed limits
that may be lower than your vehicle's max­
imum speed . Always know the maximum
speed before driving off. Never drive faster
than the speed permitted for your specific
winter tires . This will cause damage to the
tires leading to an accident and serious
personal injury to you and your passen­
gers.
A WARNING
Driving faster than the maximum speed
for which the winter tires on your vehicle
were designed can cause tire failure in­ cluding a blowout and sudden deflation,
loss of control, crashes and serious per­
sonal injuries . Have worn or damaged tires
replaced immediately.
- Winter tires have maximum speed rating
that may be lower than your vehicle's
maximum speed .
- Never drive faster than the speed for
which the winter or other tires installed
on your vehicle are rated .
A WARNING
Always adjust your driving to the road and
traffic conditions. Never let the good ac­
celeration of the winter tires and all wheel
drive tempt you into taking extra risks . Al­
ways remember :
- When braking, an all wheel drive vehicle
handles in the same way as a front drive
vehicle.
- Drive carefully and reduce your speed on
icy and slippery roads, even winter tires
cannot help under black ice conditions.
@l For the sake of the environment
Use summer tires when weather condi­
tions permit. They are quieter, do not wear
as quickly and reduce fuel consumption.
Tires and wheels 243
Snow chains
Snow chains may be fitted only to the front
wheels , and only to certain tire sizes. Ask your
authorized Audi dealer on which tire sizes
snow chains can be used.
The snow chains must have low-profile links
and must not be thicker than 0.53 inch
(13.S mm) , including the lock.
Remove wheel center covers and trim discs
before putting snow chains on your vehicle
c::> 0 . For safety reasons cover caps must then
be fitted over the wheel bolts. These are avail­
able from authorized Audi dealers.
A WARNING
~ Using the wrong snow chains for your vehi­
cle or installing them incorrectly can in­
crease the risk of loss of control leading to
serious personal injury.
- Snow chains are available in different sizes . Always make sure to follow the in­
structions provided by the snow chain
manufacturer.
- When driving with snow chains never
drive faster than the speed permitted for
your specific snow chains .
- Always observe local regulations.
(D Note
- Remove snow chains before driving on
roads not covered with snow to avoid
damaging tires and wearing the snow
chains down unnecessarily.
- Snow chains, which come into direct con­
tact with the wheel rim, can scratch or
damage it. Therefore, make sure that the
snow chains are suitably covered. Check
the position of the snow chains after
driving a few yards and correct if neces­
sary. Follow the instructions from the
snow chain manufacturer when doing so.
(D Tips
Where snow chains are mandatory on cer­
tain roads, this normally also applies to
vehicles with all wheel drive .
•
•

24 4 T ire s and wheel s
Wheel bolts
Wheel bolts must always be tightened to the
correct torque .
The design of wheel bolts is matched to the
factory installed rims. If differen t rims are fit­
ted, the correct wheel bolts with the r ight
length and correctly shaped bolt heads must
be used. This ensures that wheels are fitted
secure ly and that the brake system funct ions
correctly .
In ce rtain circumstances, you may not use
wheel bolts from a different vehicle -even if it
i s the same model~
page 2 71.
_& WARNING
Improperly tig htened o r maintained whee l
bolts can become loose ca using loss of
contro l, a co llision and serious persona l in­
jury.
- Always keep the wheel bolts and the
threads in the wheel hubs clean so the
wheel bolts can turn easily and be prop­
erly t ightened.
- Never grease or oil the wheel bo lts and
the threads in the wheel hubs. They can
become loose while driving if greased or
oiled, even if tightened to the specif ied
torque .
- Only use wheel bolts that belong to the
rim being installed .
- Never use different wheels bolts on your
vehicle .
-Always maintain the correct tighten ing
torque for the wheel bo lts to reduce the
risk of a wheel loss. If the tightening tor ­
que of the wheel bolts is too low, they
can loosen and com e out when the veh i­
cl e is moving. If the tightening torque is
too high, the whee l bolts and threads
can be damaged and the wheel can be­
come loose.
@ Note
The spec ified torq ue fo r the wheel bo lts is
90 ft lbs. (120 Nm) wi th a toler ance of
± 7,4 ft lbs. (± 10 Nm). Torque wheel bo lts diagonally. After changing a wheel, the
torque m
ust be checked as soon as possi­
ble with a torque wrench -preferably by an
a uthori zed Audi dea ler or q ua lified work­
shop .
Low aspect ratio tires
Your Audi is factory -equ ipped w ith low aspect
ratio tires . T hese tires have been thoroughly
tested and been se lected specifically fo r your
model for their superb perfo rmance, road fee l
and hand ling under a variety o f driv ing condi ­
t ions . As k your authorized A udi dealer for
more details .
T he low aspect ratio of these tires is ind icated
by a numera l of
55 or l ess in the tire's s ize
designation. The numeral represents the ratio
of the tire's sidewa ll height in relation to its
tread width exp ressed in percentage . Conven­
tiona l tires have a he ight/w idth ratio of 60 or
more .
The performance of low-a spect-r atio tire s is
pa rt icul arly s ens itive to imp ro per i nfl ation
pressure. It is therefore import ant that low
aspect ratio tires are inflated to the specified pre ssure and that the inflation pressure is
r e gularly checked and maintained . Tire pres­
sur es should be checked at l east once a
month and always before a long trip
~ page 233, Checking tire pressure.
What you can do to avoid tire and rim
damage
Low aspect ratio tires can be damaged mo re
easily by impact w it h potholes, c urbs, g ull ies
o r ridges on the road, pa rticul arly if the tire is
u nderinfla ted .
In orde r to minimize the occurrence of impact
damage to t he tires of your vehi cle, we recom­
mend tha t you observe the following preca u­
tions:
- Always ma inta in recommended inflation
pressu res. Check your tire pressure eve ry
2 ,000 miles (3,000 km) and add air if neces -
sary. ..,.

-Drive carefully on roads with potholes, deep
gullies or ridges. The impact from driving
thro ugh or over such obstacles can damage
your tires. Impact with a curb may also cause damage to your tires.
- After any impact, immediately inspect your
tires or have them inspected by the nearest
authorized Aud i dealer. Replace a damaged
t ire as soon as possible .
- Inspect your t ires every 2,000 miles (3,000
km) for damage and wear . Damage is not al­
ways easy to see . Damage can lead to loss of
air and underinflation, wh ich could eventu­
ally cause ti re fail ure. If you be lieve that a
t ire may have been damaged , replace the
t ir e as soon as possible.
- These tires may wea r more q uick ly than oth­
ers.
- Please also remember that, wh ile these t ires
deliver respons ive handling, they may ride
less comfortably and make mo re noise than
othe r choices .
Reduced performance in winter /cold
season condit ions
All t ires are des igned for certa in pu rposes.
The low aspect ratio, ultra high pe rformance
tires originally installed o n your vehicle are in­
tended for max imum dry and wet road per­
formance and handling . They are not suitable
for cold, snowy or icy weather condit ions. If
you dr ive under those circumstances, you
should equip your veh icle with all-season or
winter t ires, which offer better traction under
those cond itions . We suggest you use the re c­
ommended snow or all-season tires specified
for your ve hicl e, or their equ ivalent .
Refer to~
page 242 for more deta iled info r­
mat ion regarding win ter t ires.
Tire pressure
monitoring system
U) General notes
Ap plies to vehicles: with tire pressure monitoring system
Each t ire , includ ing the spare (if provided),
should be che cked mo nth ly when cold and in-
Tire s an d wheel s 245
flated to the inflation pressure recommended
by the vehicle man ufact urer on the vehicle
placard or tire inflat ion pressure labe l. (If your
vehicle has tires of a different size than the
s ize indicated o n the vehicle placard or tire in­
flat ion pressure labe l, you shou ld determine
the proper t ire inflation pressu re for those
tires) .
As an added safety feature, your veh icle has
been equipped with a tire pressure monitoring
system ( TPMS) that illum inates a low tire
pr essure te lltale when one o r more of you r
tir es is s ignificant ly unde r-inflated. Acco rding ­
ly, when the low tire pressure tell tale illumi­
nates, you shou ld stop and check you r tires as
soon as possib le, and inflate them to the
proper pressure . Driving on a significant ly un­
der- inflated t ire causes the tire to overheat
and can lead to tire fa ilure. Under-inflation al­
so reduces fuel effic iency and tire tread life,
and may affect the vehicle's hand ling and
stopp ing abil ity .
Please note that the TPMS is not a substit ute
for proper tire ma intenance, and it is the driv­
er 's respons ibility to maintain correct tire
pressure, even if under-inflation has not
reached the level to tr igger illuminat ion of the
T PMS low ti re p ressu re tellta le.
Your vehicle has also been equipped with a
T PMS ma lfunction ind icator to ind icate when
the system is not operating p rope rly . T he
T PMS ma lfun ction indicator is comb ined w ith
the low tire pressure te lltale . Whe n the sys ­
tem detects a malfunc tion, the telltale will
flash for approximate ly one mi nute and then
remain continuously i lluminated. T his se­
quence will continue upon subsequent vehicle
start-ups as long as the malfunct ion exists .
When the malfunction indicato r is illum inat­
ed, the system may not be ab le to detect or
s ignal low tire pressure as intended. TPMS
malfu nctions may occur for a var iety of rea­
sons, including the installation of replace­
ment or a lternate tires or wheels on the vehi ­
cle that p revent the TPMS from functioning
properly. Always check the TPMS malfunction
t e llt ale after rep laci ng one or more tires o r ..,.
•
•

246 Tires and wheels
wheels on your vehicle to ensure that the re­
p lacement or a lternate tires and wheels allow
the TPMS to continue to function properly.
Tire pressure indicator appears
Applies to vehicles: with tire pressure monitoring system
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too
low or if there is a system malfunction.
Fig. 187 Display: underinflation warning
N :;:; 9 a:
l:l
Using the ABS sensors, the tire pressure moni ­
tor ing system compares the tire tread circum­
ference and vibration characteristics of the in­
dividual tires.
If the pressure decreases in one
or mo re tires, this is indicated in the instru­
ment cluster with a
[I] warning symbol and a
message
r:!> fig. 187 . The driver message in the
display goes out after S seconds. The driver
message can be displayed again by pressing
the
! SET ! button. If only one tire is affected,
the display will indicate its position.
The tire press ure monitoring system must be
reset via radio or MMI* each time the pres­
sures are adjusted (e. g . when switching be­
tween partial and full load pressure) or after
changing or replacing a tire on your veh icle
r:!> page 247 . The TPMS indicator only moni­
tors the tire pressure that you have prev iously
stored . You can find the recommended tire
pressures for your vehicle on the label on driv­
er's side 8-pillar
¢page 231.
Tire tread circumference and vibration charac­
ter istics can change and cause a tire pressure
warning if:
- the tire pressure in one or more tires is too
low, - the
tire has structural damage,
- the tire pressure was changed, wheels rotat-
ed or replaced but the TPMS was not reset
c;, page 247.
Warning symbols
[I] Loss of pressure in at least one tire c;, .&,..
Check the tire or tires and replace or repa ir if
necessary. The
[I] indicator light in the instru­
ment cluster also illuminates
¢page 13.
Check/correct the pressures of all four tires
and reset TPMS via radio or MMI*.
11Nl~1 (Tir e Pressure Mon itor ing System) Tire
pressure: System malfunction!.
IfllilB appears after switching the ignition
on or while driving and the
[I] indicator light
in the instrument cluster blinks for approx i­
mately one minute and then stays on, there is
a system malfunction .
Attempt to store the correct tire pressu re
c;, page 247. If the indicator light does not
turn off or if it turns on shortly thereafter, im­
mediate ly driv e your vehicle to an author ized
Audi dealer or authorized repair facility to
have the malfunct ion corrected.
A WARNING
-
- If the tire pressure ind icator appears in
the instrument cluster display, one or
more of your t ires is sign ificantly under­
inflated . Reduce yo ur speed immediately
and avoid any hard steering or braking
maneuvers. Stop as soon as possible and
check the tires and their pressures. In­
f la te the tire pressure to the prope r pres­
sure as indicated on the vehicle's tire
pressure label
r:!> page 231. Driving on a
significantly under-inflated tire causes
the t ire to overheat and can lead to tire
fa ilure . Under -inflation also is likely to
impair the vehicle's handling and stop­ ping ability.
- The driver is responsible for maintaining
the co rrect tire pressures. You must
check the tire pressures regularly.

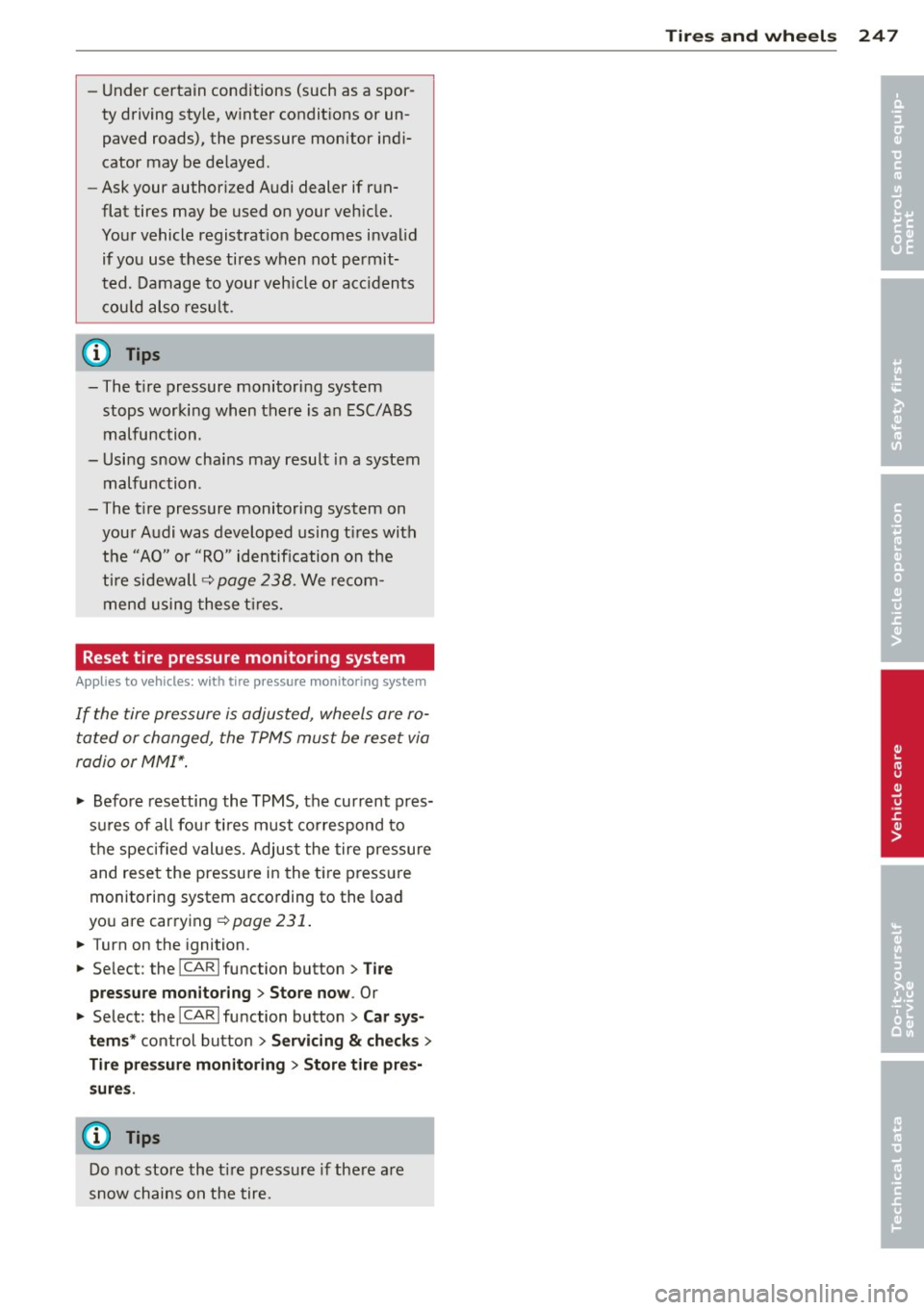

-Under certain conditions (such as a spor­
ty driving style, winter conditions or un­
paved roads), the pressure monitor indi­
cator may be delayed.
- Ask your authorized Audi dealer if run­
flat tires may be used on your vehicle.
Your vehicle registration becomes invalid
if you use these tires when not permit­
ted. Damage to your vehicle or accidents could also result.
(D Tips
- The tire pressure monitoring system
stops working when there is an ESC/ABS
malfunction.
- Using snow chains may result in a system
malfunction .
- The tire pressure monitoring system on
your Audi was developed using tires with the "AO" or "RO" identification on the
tire sidewall ~
page 238. We recom­
mend using these tires.
Reset tire pressure monitoring system
Applies to vehicles: with tire pressure monito ring system
If the tire pressure is adjusted, wheels are ro­
tated or changed, the
TPMS must be reset via
radio or
MMI*.
~ Before resetting the TPMS, the current pres­
sures of all four tires must correspond to
the specified values. Adjust the tire pressure and reset the pressure in the tire pressure
monitoring system according to the load
you are carrying
~ page 231.
~ Turn on the ignition.
~ Select: the ICARI function button> Tire
pressure monitoring
> Store now . Or
~ Select: the ICARI function button > Car sys­
tems*
control button > Servicing & checks >
Tire pressure monitoring > Store tire pres­
sures.
(D Tips
Do not store the ti re pressure if there a re
snow chains on the tire.
Tires and wheels 24 7
•
•

248 What do I do now?
What do I do now?
Vehicle tool kit
The tools ore stored underneath the floor
panel in the luggage comportment.
Fig. 188 luggage compartment: tool kit
When you need access to the vehicle tool kit
or jack*, you will need to take out the spare
tire* and cover¢
page 248.
The vehicle tool kit includes:
- Hook for removing wheel covers*
- Plastic hook to remove wheel bolt covers*
- Alignment p in for changing the whee l
- Screwdriver w ith reversible blade
- Tool for changing light bulbs
- Reversible bit (reversible Torx bit for chang-
ing light bulbs)
- Rod for jack
- Jack*
- Lug wrench
- Towing eye
Some of the vehicle items listed above are provided on certain models on ly or are opt ion­
a l extras.
Before returning the jack* to its place, retract
the jack arm fully.
A WARNING
-
-Never use the screw driver hex head to
tighten wheel bolts, since the bolts can­
not attain the necessary tightening tor­
que if yo u use the hex head, potentially
causing an accident.
- The factory-supplied jack is intended on­
ly for your vehicle model. Under no cir- cumstances should it be
used to lift
heavy veh icles or other loads; you risk in­
juring yourself.
- Never start the engine when the vehicle
is raised, which could cause an accident.
- Support the vehicle securely with appro ­
priate stands if work is to be performed
underneath the vehicle; otherwise, there is a potential risk for injury .
Space-saving spare tire
(compact spare tire)
App lies to vehicles: with space -saving spare t ire
The spare tire/wheel is located in the luggage
comportment under the cargo floor cover. It
is intended for short-term use only.
Fig. 189 Spa re tire
Removing the spare tire
.. Lift the cargo floor by the p lastic handle
¢ fig. 189 .
.. Hook the handle into the luggage compart­
ment weather strip .
.. Turn the large screw ¢
fig. 189 counter ­
clockwise .
.. Take out the spare tire .
.. Always store the vehicle tool kit, the jack*,
and the replaced tire in the luggage com­
partment
¢ page 127.
.. Unhook the cargo floor before closing the
rear lid.
Using the spare tire (compact spare tire)
The compact spare t ire is only intended for
emergencies until you can reach a repair shop .
R ep lace it as quickly as possible with a stand-
ard wheel and tire. ..,.
