AUDI A5 CABRIOLET 2013 Owners Manual

There are some restrictions on the use of the
compact spare tire. The compact spare tire
has been des igned specifically for your type of
ve hicle.
It must not be swapped with a com­
pact spare t ire from another type of veh icle.
Snow cha in s
For technica l reasons, the use of snow chains
on the compact spare tire is
not permitted .
If you do have to dr ive with snow chains and a
front tire fails, mou nt the spare whee l w ith
tire instead o f a rea r ti re . Install the snow
chains on the rear tire and use it to replace
the defective front tire.
A WARNING
- Never use the spare tire if it is damaged
o r if it is worn down to the tread wear in­
dicators.
- If the spare tire is more than 6 years o ld,
use it only in an emergency and w ith ex­
t reme caution and careful driving .
- The spare tire is intended only for tem­
porary and short-term use. It should be
replaced as soon as possib le w ith the
normal wheel and t ire.
- After mounting the compact spare tire, the tire pressure must be checked as soo n as poss ible. The tire pressure of the
c ompac t sp are tire must be 4.2 bar; o th­
erwise, yo u risk hav ing an accident.
- Do not drive faster than 50 mph (80 km/
h). You risk having an a ccident.
- Avoid fu ll-throttle acce le rat ion, heavy
braking, and fast corner ing. Yo u risk h av­
ing an acc iden t.
- Never drive us ing more t han one spa re
whee l and tire. You risk having an acci­
dent.
- No rma l su mmer or wi nte r tires m ust not
be mounted on the comp act spare whee l
rim.
- F or technical reasons, t he use of ti re
chains on the spare tire is not permitted .
If it is necessary to drive with tire chains,
the spare whee l must be mounted on the
front axle in the event of a flat in a rear
What do I do now? 249
tire. The newly available front whee l
m ust then be insta lled in place of the
rear whee l w ith the flat tire. Installing
the t ire cha in before mounting the whee l
and tire is recommended .
- Loose items in the passenger compart­
ment can cause serious personal injury
during hard bra king or in a n accide nt.
Never store the spa re tire or jack and
too ls in t he passenger compa rtment.
Changing a wheel
Before changing a wheel
Observe the following precautions for your
own and your passenger's safety when chang­
ing a wheel .
"' After you experience a t ire failure, p ull the
car we ll away from moving traffic and try to
reach
le vel ground before you stop¢ A.
"' All passengers should lea ve the car and
move to a safe location (for instance, behind
the guardrail) ¢ &, .
"' Engage the
park ing brak e to prevent your
veh icle from rolling unintentionally¢&, .
"' Move the
se lec tor lever to th e P position .
"' If you are towing a t ra iler : unhit ch the trail­
er from you r vehicle.
"' Take the
jack ¢ page 248 and the spare tire
c::> page 248 out of the luggage compart­
ment .
A WARNING
You or your passengers could be injured
while changing a wheel if you do not fo l-
l ow these safety precaut ions :
- If you have a flat tire, move a safe d is­
tance off the road. Turn off the engine,
turn the emergency flashers on and use other warning devices to a le rt other mo­
torists.
- Ma ke sure that passenge rs wait in a safe
place away from the vehicle and well
away from the road and traffic.
- To help prevent the vehicle from moving
-
suddenly and possib ly slipping off the ..,. •
•

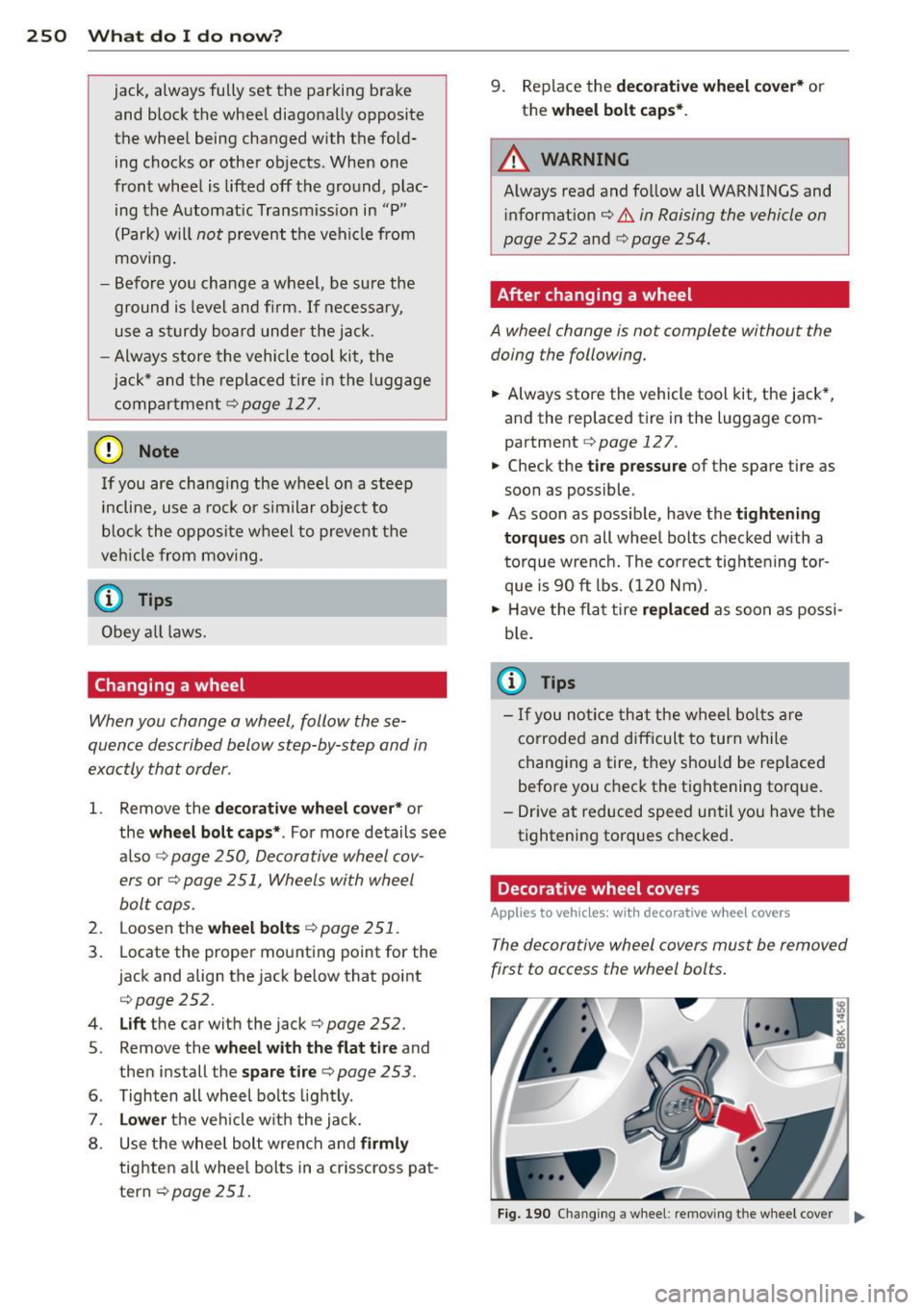

250 What do I do n ow ?
jack, always fully set the parking brake
and block the wheel diagonally opposite the wheel being changed with the fold­
ing chocks or other objects . When one
front wheel is lifted off the ground, plac­
ing the Automatic Transmiss ion in "P"
(Park) will
not prevent the vehicle from
moving.
- Before yo u change a wheel, be su re the
ground is leve l and firm. If necessa ry,
use a st urdy board under the jack.
- Always store the vehicle tool kit, the
jack * and the replaced ti re in the l uggage
compartment
r=>page 12 7.
(D Note
If you are chang ing the wheel on a steep
incline, use a rock or s imilar object to
bloc k the opposite wheel to prevent the
veh icle from mov ing.
@ Tips
Obey a ll laws.
Changing a wheel
When you change a wheel, follow these­
quence described below step-by-step and in
exactly tha t order .
1. Remove the decorativ e wheel c over* or
the
wheel bol t cap s* . Fo r more details see
a lso
r=> page 250, Decorative wheel cov­
ers
or ¢ page 251, Wheels with wheel
bolt caps.
2 . Loosen the wheel bo lts r=> page 251.
3 . Locate the proper mount ing point for the
jack and align the jack below that point
r=> page 252.
4 . Lift the car with the jack r=> page 252.
5. Remove the wheel with th e flat tire and
then i nstall the
spar e tire r=> page 253 .
6. Tighten all wheel bo lts light ly .
7 .
Low er the ve hicle w it h the jack.
8 . Use the wheel bolt wrench an d
firmly
tighte n all whee l bolts in a crisscross pa t­
tern
r=> page 251.
9. Replace the decorative wheel c over* or
the
wheel bolt cap s*.
A WARNING
A lways read and follow all WARNINGS and
i nformation
r=> .& in Raising the vehicle on
page 252
and r=> page 254.
After changing a wheel
A wheel change is not complete without the
doing the following.
.. Always store the vehicle tool kit, the jack*,
and the replaced tire in the luggage com­
partment
r=> page 127.
.,. Check the tire pressure of the spare tire as
soon as possible .
"' As soon as poss ible, have the
tighteni ng
torqu es
on all wheel bolts checked w ith a
t orque wrenc h. The correct tig hte ning tor­
que is
90 ft lbs. (120 Nm).
.,. Have the flat tire
repl aced as soon as possi­
b le.
(D Tips
- If
you not ice that the wheel bo lts ar e
corroded and difficult to turn while
changing a tire, they shou ld be rep laced
before you check the tightening torque.
- Dr ive at reduced speed until you have the
tightening torques checked .
Decorative wheel covers
Applies to vehicles: w ith decorative w hee l covers
The decorative wheel covers must be removed
first to access the wheel bolts .
Fig. 19 0 Cha nging a whee l: removing t he w heel cove r Ill>

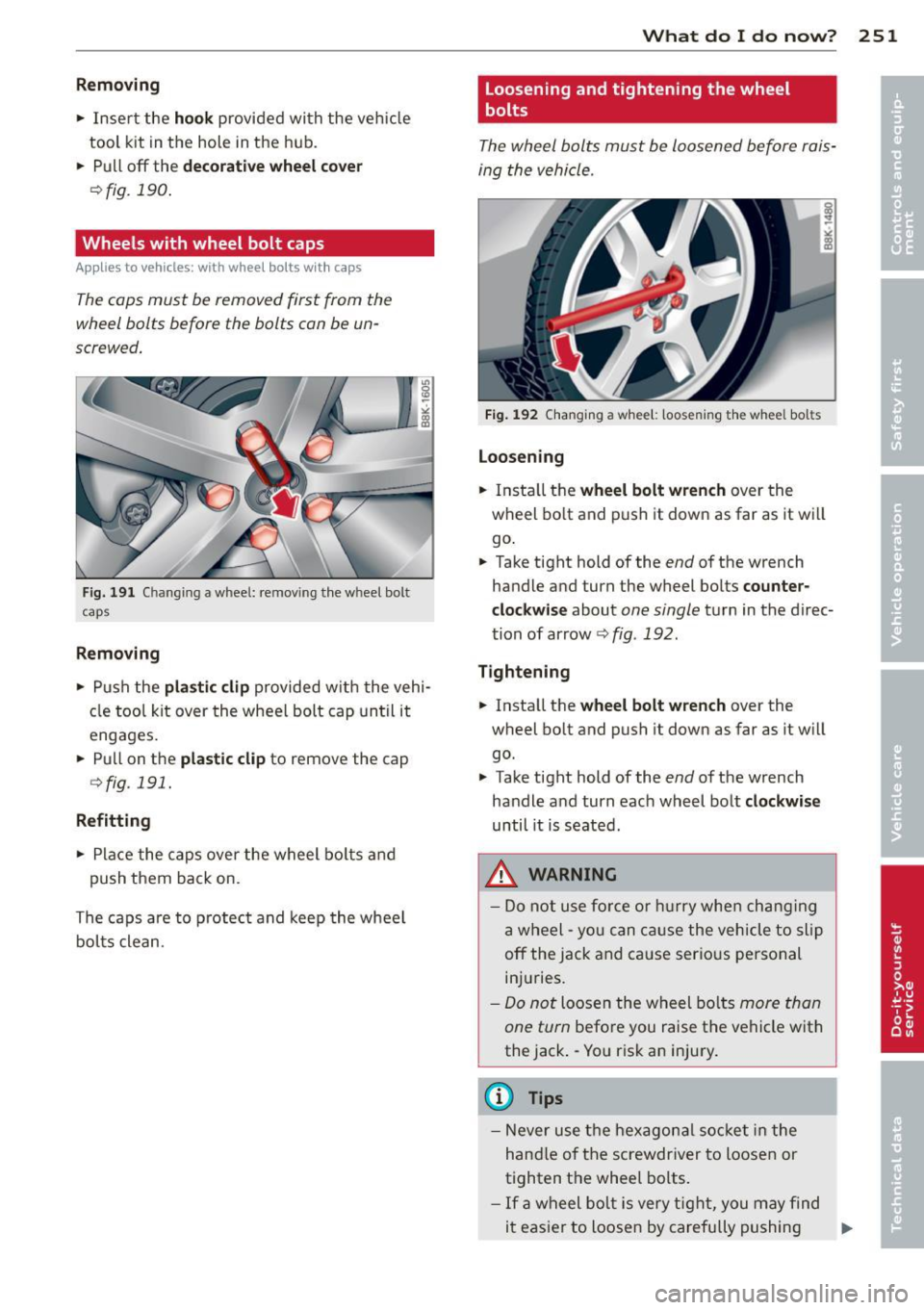

Removing
• Inse rt the hook provided with the veh icle
tool kit in the hole in the hub.
• Pull
off the decorative wheel cover
¢fig. 190 .
Wheels with wheel bolt caps
Appl ies to vehicles: with whee l bo lts w it h cap s
The caps must be removed first from the
wheel bolts before the bolts can be un­
screwed .
Fig. 191 Changing a wheel: remov in g the wheel bo lt
caps
Removing
• Push the plastic clip provided w ith the vehi ­
cle tool kit over the whee l bolt cap until it
engages.
• Pull on the
plastic clip to remove the cap
¢fig . 191.
Refitting
• Place the caps over the wheel bolts and
push them back on.
The caps are to protec t and keep the wheel
bol ts clean.
What do I do now? 251
Loosening and tightening the wheel
, bolts
The wheel bolts must be loosened before rais­
ing the vehicle.
Fig. 192 Changing a whee l: loosening the wheel bolts
Loosening
• Insta ll the wheel bolt wrench over the
wheel bolt and push it down as far as it will
go .
• Take tight hold of the
end of the wrench
handle and turn the wheel bolts
counter­
clockwise
about one single turn in the direc­
tion of arrow
¢fig . 192.
Tightening
• Install the wheel bolt wrench over the
wheel bo lt and push it down as far as it will
go.
• Take tight hold of the
end of the wrench
handle and turn each wheel bolt
clockwise
until it is seated .
.&_ WARNING
-Do not use force or hurry when chang ing
a wheel -you can cause the vehicle to slip
off the jack and cause serious personal
inj uries.
-Do not loosen the wheel bolts more than
one turn
befo re you raise the vehicle with
the jack . - Yo u risk an injury .
{D Tips
-Never use the hexagonal socket in the
hand le of the screwdr iver to loosen or
tighten the wheel bolts.
- If a wheel bolt is very tight, you may find
it easier to loosen by carefully pushing
Ill>

252 What do I do now?
down on the end of the wheel bolt
wrench with
one foot only . As you do so,
hold on to the car to keep your balance
and take care not to slip.
Raising the vehicle
The vehicle must be li~ed with the jack first
before the wheel can be removed.
Fig. 193 Sill panels: mark ings
Fig. 194 Sill: posit ion ing t he veh icle jack
The location of the jack point is indicated by
an indentat io n on the underside of the vehicle
~fig.193 .
• Activate the parking brake to prevent the
vehicle from rolling unintentionally.
• Move the
selector lever to position P.
• Find the marking (imprint) on the sill that
is nearest the wheel that will be changed
¢ fig. 193. Behind the marking, there is a
lifting point on the sill for the vehicle jack.
• Turn the
vehicle jack located under the lift­
ing point on the si ll to raise the jack until
the jaw
Q fig . 194 @ covers the notch on
the vehicle¢ &¢(D .
• Align the vehicle jack so the jaw@ covers
the notch and the base p late @ is flat on
the floor . The base plate@ must be
vertical
under the lifting point @. •
Insta ll the rod on the vehicle jack: Insert
the rod into the opening on the handwheel.
Turn the rod left or r ight to secure it.
• Continue raising the jack with the rod unti l
the wheel lifts off the ground slightly.
Position the vehicle jack
only under the desig­
nated lifting points on the si ll
¢fig. 193.
There is exactly one location for each wheel.
The jack must not be positioned at any other location ¢ ,& ¢Ci) .
Soft ground under the jack can cause the ve­
hicle to slip off the jack. Always place the jack
on firm ground. Use a flat, stable support if
necessary. Use a non -slip surface such as a
rubber mat on a
slippery surface such as tile .
.&, WARNING
-You or your passengers could be inju red
while changing a wheel if you do not fo l­
low these safety precautions:
- Position the vehicle jack on ly at the
designated lifting points and align the
jack. Otherw ise, the vehicle jack could
slip and cause an injury if it does not
have sufficient hold on the vehicle.
-A soft or unstable surface under the jack may cause the vehicle to slip off
the jack. Always provide a firm base for
the jack on the ground. If ne cessa ry,
us e a sturdy board under the jack.
- On hard, slippery su rface (such as tiles)
u se a rubber mat or similar to prevent
the jack from slipping.
- To help prevent injury to yourself and
your passengers:
- Do not raise the vehicle until you are
sure the jack is securely engaged.
- Passengers must not remain in the ve­
hicle when it is jacked up.
- Make sure that passengers wait in a
safe place away from the veh icle and
well away from t he road and traffic.
- Make sure jack position is correct, ad­
ju st as necessary and then continue to
raise the jack. .,_

CD Note
Do not lift the vehicle by the sill. Position
the vehicle jack only at the designated lift ­
ing points on the sill. Otherwise , your vehi­
cle will be damaged.
Taking the wheel off/installing the spare
tire
Follow these instructions step -by -step for
changing the wheel.
Fig . 195 Ch ang ing a w hee l: us ing the sc rewdriver han ­
d le (with the blade removed) to turn t he bo lts
Fig . 196 Ch ang ing a w hee l: al ig nme nt pin inside t he
top hole
After you have loosened a ll wheel bolts and
ra ised the veh icle off the ground, remove and
replace the wheel as follows:
R emoving th e wheel
.. Remove the topmost wheel bo lt completely
with the
he xagonal sock et in the screwdriv­
er handle (vehicle tool kit)
¢ fig. 195 and
set it as ide on a
clean surface.
.. Screw the threaded end of the
alig nm ent
pin from the tool kit hand -tight into the
empty bolt hole
¢ fig . 196.
.. Then remove the other wheel bo lts as de­
scribed above.
What do I d o now ? 253
.. Take off the wheel leaving the alignment
pin in the bolt hole ¢(D.
Putting on th e spar e tire
.. Push the spare tire over the alignment p in.
.. Sc rew on the wheel bo lts and tighten them
slightly us ing the hexagonal socket .
.. Remove the alignment pin and insert and
tighten the rema ining wheel bolt slightly
like the rest.
.. Turn the jack hand le counter-clockwise to
lower the veh icle until the jack is fully re­
leased .
.. Use the wheel bolt wrench to tighten all
wheel bo lts firm ly
¢page 251. Tighten
them
in a crisscross pattern, from one bolt
to the (approximately) opposite one, to keep
the wheel centered .
.. Perform the steps required after changing
the whee l¢
page 250, After changing o
wheel.
T he hexagonal socket makes it easier to re­
move t he wheel bolts from the rim . Care
shou ld be taken when removing the reversib le
blade .
CD Note
When removin g or i nstalling the whee l,
the r im cou ld hit the brake rotor and dam­
age the rotor. Work carefully and have a
second person to help you.
{l) Tips
- When mounting tires with unidirection al
tread de sign
make sure the tread pat­
tern is po inted the right way
¢ page 254.
-The wheel bolts shou ld be clean and easy
to turn. Check for dirt and corrosion on
the mating surfaces of both the wheel
and the hub . Remove all d irt from these
surfaces befo re remounting the whee l.
- Do not use the hexagonal socket in the
sc rewd river handle to loosen or t ighten
t he whee l bolts .

254 What do I do now? Tires with unidirectional tread design
Tires with unidirectional tread design must be
mounted with their tread pattern pointed in the right direction .
Using a spare tire w ith a tread pattern
intended for use in a specific direction
When using a spa re tire w ith a t read patte rn
i n tended fo r use in a specific direction, please
n ote t he followi ng:
- The direction of rotation is marked by a n
ar­
row on the side of the tire .
-If the spare t ire has to be installed in the in­
correct direction, use the spare tire only
tempora rily si nce the t ire will not be able to
achi eve its optimum perfo rma nce cha racter­
i st ics w ith reg ard t o aquaplani ng, noise and
we ar.
- W e reco mmend t hat you pay pa rticular at­
ten tion t o this fact during wet we ather and
t h at you a dju st you r spee d to m atc h ro ad
con ditions.
- R epl ace the fla t tire w ith a n ew one an d
have it ins talled o n your ve hicle as soon as
p oss ible to restore the handlin g ad vantages
of a uni direct io na l tire .
Notes on wheel changing
Please rea d the information c> page 238 , New
t ires and replacing tires and wheels
if you are
go ing t o use a spare tire which is d ifferent
from the tires on your ve hicle.
Afte r you chan ge a t ire :
-Check the tire pressure on the spare imme­
diately after installation.
- Have the wheel bolt tightening torque
checked with a torque wrench as soon as possible by your authorized Audi dealer or
a qualified workshop .
- With steel and alloy wheel rims , the wheel
bolts are correctly tightened at a torque of
90 ft lbs . (120 Nm) .
- If you notice that the wheel bolts are cor­
roded and difficult to turn while changing
a tire, they should be replaced before you
check the tightening torque . -
Replace the flat tire with a new one and
have it installed on your vehicle as soon as
possible. Remount the wheel cover .
Until then , drive with extra care and at re­
duced speeds.
_& WARNING
-
- If yo u are going to e quip your ve hicl e
with tires o r rims which differ from those
which were facto ry installed, then be
sure to read the informati on
¢ page 238,
New tir es and replacing tires and
w he els .
- Always ma ke sure the damaged wheel o r
even a flat tire a nd the jack a nd tool kit
a re pro pe rly s ecu red in the luggage co m­
p artm ent and are not lo ose in the pas ­
s en ger c ompa rtm en t.
- I n an acci dent or sudde n man euve r they
co uld fly forwa rd, inju ring anyone in the
ve hicl e.
- Always s to re damaged wh ee l, j ack and
t oo ls se cur ely in the l uggage co mpa rt­
ment. Otherwise, in an accident or su d­
de n maneuve r they co uld fly forwa rd,
causing inj ury to passe ngers in the ve hi­
cle.
(D Note
Do not use comm erc ia lly availabl e tire
sea lants. O therwise, t he e lectr ical co mpo ­
n ents of t he ti re pressu re mo nitoring sys­
tem * w ill no longe r work proper ly an d the
sensor fo r the tire pressure mo nitor ing
system* will have t o be replaced by a
q ualified wor ks ho p.

Fuses and bulbs
Fuses
Replacing a fuse
Fuses that have blown will have metal strips
that have burned through.
Fig . 197 Left cockp it : fuse panel cover
The fuses a re located at the front left and
r igh t of the cockpit and behi nd the trim on
the right side of the luggage compartment .
.. Turn off the ign it ion a nd the affected elec-
t rical consumers .
.. Check the following table to see which fuse
belongs to the consumer .
.. Remove the appropriate cover¢
fig. 197 or
¢fig. 171 .
.. To remove the purple plastic clip if necessa­
ry
ll, hold onto it at the small s ide and pull
it out of the fuse panel¢
fig. 198.
.. Remove the clamp from the rear side of the
fuse cover ¢
fig. 197 .
.. Remove the fuse using the clamp and re­
place the blow n fuse w ith an identical new
one.
A WARNING
-
Do not repair f uses and never replace a
blown fuse w ith one t hat has a higher amp
rating. This can cause damage to the e lec­
trical system and a fire.
(D Note
If a new fuse b urns o ut again after shortly
have you have installed it, have the electri-
11 You can dis pose of the plastic clip after removing it.
Fu se s and bulb s 255
cal system checked by your authorized
Audi dealer.
a) Tips
- Th e followi ng ta ble d oes not list fuse lo­
cations that are not used.
- Some of the equipment items liste d are
opt ional or only available on certain
mode l configurations .
Left cockpit fuse assignment
Fig. 198 Left cockpi t: fuse panel wi th plastic cl ip
No . Consumer
Fuse panel @ (black )
1 Dynamic steering
2 ESC control module
3
5
-A/C system pressure sensor,
electromechanical parking brake, Homelink, automatic
dimming interior rear view
mirror, air quality/outside
air sensor, ESC button
Sound actuator/exhaust
sound tuning
Amps
5
5
5
5/15
-

256 Fuses a nd bulb s
I
I
-No. Consumer
6 Headlight range control sys-
tern/cornering light
7 Headlight (cornering light) Control modules (electro-
mechanical parking brake,
8 shock absorber, quattro sport, trailer hitch), DCDC
converter
9 Adaptive cruise control
10 Shift gate
11 Side assist
1 2 Headlight range control,
parking system
13 Airbag
14 Rear wiper (allroad)
15 Aux
iliary fuse (instrument
panel)
1 6 Auxiliary fuse terminal 15
(engine area)
Fu se pa nel@ (brown)
2
3
4
5
6
7 Brake light sensor
Fuel pump
Clutch sensor
Left seat heating with/w ith­
out seat ventilation
ESC
Horn
Front left door (window reg-
8 ulator, central locking, mir­
ror, switch, lighting)
Two-door models: rear left
w indow regulator, Four-door
11 models: rear left door (win-
dow regulator, central lock-
ing, switch,
lighting)
12 Rain and light sensor
Fu se p ane l© (red)
3 Lumbar support
4 Dynamic steering
5 Interior lighting (Cabriolet)
Amps
5/7,5
7,5
5
s
5
5
5
5
15
10
40
5
25
5
-
15/30
5
15
30
30
25
30
5
10
35
5
No . Consumer
6
7
8
9
Windshield washer system,
headlight washer system
Vehicle electrical system
control module 1
Vehicle electr ical system
control module
1
Left rear window regulator
motor (Cabriolet)/sunroof
Amps
35
20
30
7,5/20
10 Vehicle e
lectr ical system
30
control module 1
11
Right rear window regulator
7,5/20 (Cabriolet)/sun shade motor
12 Anti-theft alarm warning
system 5
Right cockpit fuse assignment
Fig.
199 Right cockpit: fuse panel wit h plastic cl ip
No . Consume r Amps
F use panel@ (bl ac k)
5 Steering column switch
5
module
.. -.. -
7
Term inal 15 diagnos tic con-
nector
5
8 Gateway (Databus diagnos-
5
tic interface) ...

No.
9 Supplementary heater
Fuse panel B (brown)
1 CD/DVD player
2
3 MMI/Radio
4 Instrument cluster
5 Gateway (instrument cluster
control module)
6 Ignition lock
7 Light switch
8
Climate control system
blower
9 Steering column lock
10 Climate control system
11 Terminal
30 diagnostic con-
nector
12 Steering column switch
module
Right luggage compartment fuse
assignment
5
5
5/20 5
5
5
5
40
5
10
10
5
Fig. 200 Rig ht luggage compartment: fu se panel wi th
pl ast ic d ip
Fuses and bulbs 257
No. Consumer
Fuse panel @ (black)
1
Luggage compartment lid
control module (allroad) / Power top control module
(Cabriolet)
2
Trailer control module or re­
tractable rear spoiler (RS 5
Coupe)
3
4
5
6
7
8
9
Trailer control module
Trailer control module
Electromechanical parking
brake
Electronic damping control
Electromechanical parking
brake
Rear exterior lighting
quattro sport
10 Rear exterior lighting
Vehicle electrical system
11 control module
12 Terminal 30
Fuse panel © (brown)
1
2
3
Luggage compartment lid
control module (allroad)
12-volt socket, cigarette
lighter
DCDC converter path 1
--·--
-
4
DCDC converter path 2, DSP
6
7
9
amplifier, radio
Right upper cabin heating
(Cabriolet)
Electromechanical parking
brake
Rig ht front door (window
regulator, central locking,
mirror, switch, lighting)
Left upper cabin heating
10 (Cabriolet)
Two-door models : rear right
window regulator, Four-door
11 models: rear right door (window regulator, central
locking, switch, lighting)
Amps
30/10
15
20
20
5
15
30
30
35
30
20
5
30
20
40
30
30
30
30
30
30
.

258 Fuses and bulbs
--No. Consumer Amps
12 Cell phone prep 5
-
Fuse panel© (black)
1 Right front seat heating 15
4 MMI 7,5
5
Radio 5
6 Rear view camera 5
7
Rear window heater (all·
30 road)
8 Rear Seat Entertainment 5
Bulbs
Replacing bulbs
For your safety, we recommend that you have
your authorized Audi dealer replace any bulbs for you.
It is becoming increasingly more and more
difficult to replace vehicle light bulbs since in many cases, other parts of the car must first
be removed before you are able to get to the
bu lb. Thi s applies especially to the light bu lbs
in the front of your car which you can only
reach through the engine compartment .
Sheet metal and bulb holders can have sharp
edges that can cause ser ious cuts, parts must
be correctly taken apart and then properly put
back together to help prevent breakage of
parts and long term damage from water that
can enter housings that have not been proper·
ly resealed.
F or your safety, we recommend that you have
your author ized Audi dealer replace any bulbs
for you, since your dealer has the proper tools,
the correct bu lbs and the expertise.
Ga s discharge lamps (Xenon lights}*:
Due to the high electrical vo ltage, have the
bu lbs rep laced by a qualified technician.
H eadlights with Xenon l ight are identified by
the high voltage sticker.
A WARNING
Changing Xenon lamps without the neces­
sary equipment can cause serious personal
in jury.
- Bulbs are pressurized and can explode
when being changed. Potential risk of in­
jury!
- On vehicles equipped with gas discharge
bulbs (Xenon light)* life-threatening in­
juries can result from improper handling
of the high-voltage portions of such
lamps!
- Only your authorized Audi dealer or a
qualified workshop should change the
bu lbs in gas discharge lamps. There are
pa rts with sharp edges on the openings
and on the bulb holders that can cause
serious cuts. If you are uncertain about
what to do, have the work performed by
an author ized Audi dealer or other quali­
fied workshop. Ser ious personal injury
may result from improperly performed
work.
(D Tips
- If you st ill prefer to replace the light
bulbs yourself, be aware that the engine
compartment is a hazardous area to
work in
9 page 205, Engine compart­
ment
9 Lr:,. .
-It is best to ask your authorized Audi
dealer whenever you want to change a
bulb.
