AUDI A5 CABRIOLET 2013 Owner's Manual

Instrument s and warnin g/indic ator ligh ts 19
I START ENGINE STOPI button because the en ­
gine cannot be started again after the ignition has been switched off.
(D Tips
The symbol's appea rance might be differ­
ent in some models .
;';.![J Electronic Stabilization Control
(ESC)
If the JjJ indicator lamp blinks while driving,
the ESC or ASR (Ant i-S lip Regulation) is active­
l y regulating.
If the
JjJ indicator lamp illuminates, the sys­
tem has switched the ESC off. In this case, you
can switch the ignition off and then on to
sw itch the ESC on again. The system is func­
tioning completely whe n the indicator lamp
sw itches off.
If the I i ndicator lamp illuminates, the ESC
was switched off with the
I ~ OFF ! button.
Stabilization cont rol (E SC/A BS): Fault! See
owner 's manu al
If the indicator light G1 and the ABS indicator
light
E (USA models) ; (IJ (Canada mod­
els) turn on and the message appears, there is
a ma lfunction in the ABS system or e lectronic
d ifferent ial lock . This also interrupts the ESC.
The brakes still function with their normal power, but ABS is no t active.
Drive to your authorized Aud i dea ler immedi ­
ately to have the malfunct ion corrected.
For more informat ion about the ESC
¢page 179.
ABS /(8 ) Anti-lock braking system (ABS)
This warning/indicator light monitors the ABS
and the electronic differential lock (EDL).
The warning/indicator light E (USA mod ­
e ls)/ [§] (Canada models) wi ll come on for a
few seconds when the ignition is switched on.
The light will go out after an automatic check
sequence is completed .
There is a malfunction in the ABS when:
- The warning/indicato r ligh t does not illum i­
nate w hen you switch the ignition on.
- The warning/indicator l igh t does not go out
after a few seconds .
- The warning/indicato r light i llum ina tes
while driving.
The ESC i ndicator light also illuminates if
there is a ma lfunction in the ABS. The mes­
sage
Stabi liz ation control (ESC ): Fault! See
o wn er's manual
also appea rs in the ins tru­
ment cluster d isp lay and a warning tone
sounds.
Th e brak e sys te m will still re spond even
without the a ssista nce of the AB S system.
S ee y our autho riz ed Audi de aler a s soon as
po ssible to re store full braking perf ormance.
For more information regard ing the ABS
¢ page 179.
Malfunction in th e brake system
If the brake war ning ligh t ¢page 15 and the
ABS warning illum inate
together there may be
a malfunction in the ABS , and there may a lso
be a malfunction in the brake system itself
¢ A . The ABS will not work and you w ill no ­
ti ce a change in b raking response and per ­
formanc e.
In the event of a malfunction in the brake
s y stem
the warning/indicator light 11111
(USA models)/ . (Canada models) in the in­
strument cluster flashes¢
page 15.
Malfunction in th e electronic diff erential
lock (EDL)
The EDL works together w ith the ABS. The
ABS warning light will come on if there is a malfunction in the EDL system ¢
page 179.
See your author ized Audi dealer as soon as
poss ible.
&, WARNING
- I f the E (USA mode ls)/ ti] (Canada
models) warning light does not go ou t,
or if it comes on whi le driving, the ABS
-

20 Instrum ent s a nd w arn in g/i ndic ato r light s
system is not working properly. The vehi­
cle can then be stopped only with the
standard brakes (without ABS). You will not have the protection ABS provides .
Contact your authorized Aud i dealer as
soon as poss ible.
- USA models: If the
11111 warning light
and the
m!S warn ing light come on to­
gether, the rear wheels could lock up
first under hard braking. Rear wheel lock­ up can cause loss of vehicle control and
an acc ident. Have your vehicle repaired
immediately by your authorized Audi
dealer or a qualified workshop . Drive
slowly and avoid sudden, hard brake ap­
plications.
- Canada models: If the brake warn ing
light . and the ABS warning light
tiJ
come on together, the rear wheels could
lock up first under hard braking . Rear
wheel lock-up can cause loss of vehicle
control and an acc ident. Have your vehi­
cl e repaired immediately by you r author­
ized Audi dea ler or a qua lified workshop.
Drive slowly and avo id sudden, hard
brake applications.
~ I !f Safety systems
The fl (USA models) ;fll (Canada models) in­
d icator light monitors the safety systems (e.g .
a irbags, pretensioners) and ill uminates for a
few seconds each time you switch the ignition
on .
If the
fl (USA models)/ E,I (Canada mode ls)
indicator light does not go out, or if it illumi­
nates wh ile you are driv ing, or if it starts to
blink, then there is a ma lfunction somewhere
in the system . If the light does not illum inate
when you switch the ignition on, this also
means the re is a ma lfunction.
_&. WARNING
If you have a malfunc tion in the safety sys­
tems, contact your author ized Audi dealer
l ) - : USA mod els only
immediately . Otherwise the safety sys­
tems may not work properly in an acc i­
dent.
(0) Worn brake pads
IIJ Brak e pad s!
lfthe warning light illuminates, immediate ly
contact your authorized Audi dealer or qua li­
fied workshop to have all brake pads inspect­ ed. On USA models the warn ing light
IIJ
comes on together w ith the warning light
11111 . Both sets of brake pads on an axle
must a lways be replaced at the same time .
_&. WARNING
Driving w ith bad b rakes can cause a colli­
sion and ser ious perso nal in jury.
- If the warn ing light rlJ and the warn ing
light
111111 ) with the message Brak e
pads!
comes on in the inst rument cluste r
disp lay, immediately contact your au­
thorized Audi dealer or qualified work­
shop to have all brake pads checked or replaced if necessary.
EPC Electronic power control
This warning/indicator light monitors the
electronic power control.
T he ~ warning/indicator light (Elect ronic
Power Control) illuminates when you sw itch
t h e ignit ion on as a function check .
(D Tips
If this warning/ indicator ligh t illuminates
while yo u are driving, then there is a mal ­
funct ion in the engine electronics . Have
the malfunct ion corrected as soon as pos­
s ible by your authorized Audi dealer or
qualified repa ir facility.
-

Instruments and warning/indicator lights 21
o Malfunction Indicator Lamp (MIL)
The Malfunction Ind icator Lamp (M IL) is part
of the On-Board Diagnostic (OBD II) system.
The symbol
¢'4 lights up when the ignition is
switched on and wi ll turn off after the engine
has started and has sett led at a constant idle
speed. This ind icates that the MIL is working
properly .
The warning light illuminates when there is a
malfunction in the engine e lectronic system .
Contact your author ized Audi dealer and have
the ma lfunction corrected .
An improperly closed fue l fi ller cap may also
cause the MIL light to illuminate ¢
page 210.
For more informat ion ¢ page 29.
!?) Engine speed limitation
Applies to vehicles: wit h en gin e speed l im it at ion
(II Do not exceed max. engine speed of
XXXX rpm
The Ill symbo l illuminates when there is an
engine control malfunction . Th e~ indicator
light in the instrument cluster also illumi­
nates. The engine speed is limited to the
speed displayed in the driver information sys­
tem. Keep in mind that the eng ine speed will
not exceed the value displayed in the driver in­
formation system, for example when down­
shifting.
Drive to your authorized Aud i dea ler immedi­
ately to have the malfunction corrected.
~ . Engine oil level
II Add oil, max XXXX l. You may cont. driv.
When the symbo l II and driver message ap­
pear, add the amount of o il appearing i n the
d isplay at the next opportunity¢
page 217.
Ill Oil level! Sensor defective
If the symbol illuminates, contact your au­
thorized Audi dealer and have the o il sensor inspected.
Until you have this done, check the
oi l level each time you refue l just to be on the
safe sid e¢
page 217 .
Bu Tank system
flm Please refuel
If the indicator light turns on for the first
time and the message appears, there are
about 2.1 -2.4 gallons (7 -9 liters) of fuel left
in the tank . T ime to refuel ¢
page 209.
Ii] Fuel tank system malfunction! Contact
dealer
If the indicator light turns on and this mes­
sage appears, there is a malfunction in the
tank system.
Drive to your authorized Audi dealer immed i­
ate ly to have the malfunction corrected.
(-.) .>Lease refill washer fluid
If the symbol illuminates, add w indshie ld
washe r fluid to the washer system and also to
the headlight washer system * ¢
page 226.
~ Windshield wipers
£!I Windshield wiper defective
The re is a malfunction with the windshie ld
wipe rs.
Drive to your authorized Audi dealer immedi­
ately to have the malfunction corrected .
~/ }0 10 $ Defective light bulb warning
If the
l':;:'1 indicator light turns on, a bulb has
failed. The message indicates the location of
the bu lb.
- If the
II indicato r light also turns on, then
a fog light has failed. The position of the in­
dicator light corresponds with the location
on the vehicle .
- If the
[tD indicator light also turns on, then
a rear fog* light has failed. The position of ..,_

22 Instruments and warning/indicator lights
the indicator light corresponds with the lo­cation on the vehicle.
This warning can also occur if the light switch
is in an unengaged position between two sym­
bols.
Vehicle lights: System fault!
If the message appears, there is a malfunc­
tion in the headlights or light switch .
Drive to your authorized Audi dealer immedi­
ately to have the malfunction corrected.
A WARNING
- light bulbs are pressurized and could ex­
plode while they are being changed caus­
ing serious personal injury.
- Work with due care when handling the
high-voltage section of gas discharge
(xenon) lights*. Failure to do so could re­
sult in death or serious injury.
{O) Tips
Have the bulb replaced or the connection
repaired by your authorized Audi Service
department.
~(D Headlight range control
Applies to vehicles: with headlight range contro l
II Headlight range control defective !
If the symbol II illuminates, the dynamic
headlight range control is no longer working
properly. Have the system checked and re­
paired at your authorized Audi dealer.
§0 Adaptive Light
Applies to vehicles: with adaptive light
111 Audi adaptive light: defective
If the indicator light turns on and this mes­
sage appears, there is a malfunction in the
adaptive light system. The headlights still
function.
Go to an authorized dealership to have the headlights or the control unit for the adaptive
light repaired .
@? light/rain sensor
Applies to vehicles: with light/ra in sensor
ral Automatic headlights/ automatic wipers
defective
If the indicator light turns on and this mes­
sage appears, the light/rain sensor is not
functioning correctly.
For safety reasons the low beams are turned
on permanently with the switch in
AUTO.
However, you can continue to turn the lights
on and off using the light switch . You can still
control all functions that are independent of
the rain sensor through the windshield wiper
lever .
Contact your authorized Audi dealer as soon
as possible to have the problem corrected.
g Adaptive dampers
Applies to vehicles: with Audi drive select and adaptive
dampers
B Suspension: System fault!
If the B symbol in the display comes on, there
is a malfunction in the adaptive dampers .
Please go to an authorized Audi dealer or oth­
er qualified workshop to have the malfunction
repaired.
!-: Sport differential
Applies to vehicles: with Audi drive select and sport dif­
ferential
Sport differential: System fault!
There is a malfunction with the sport differen­
tial.
Drive to your authorized Audi dealer immedi­
ately to have the malfunction corrected.
Sport differential: Overheating
The transmission temperature has increased
significantly due to the sporty driving manner.
Drive in a less sporty manner until the tem­
perature returns to the normal range and the
indicator light switches of.
ll-

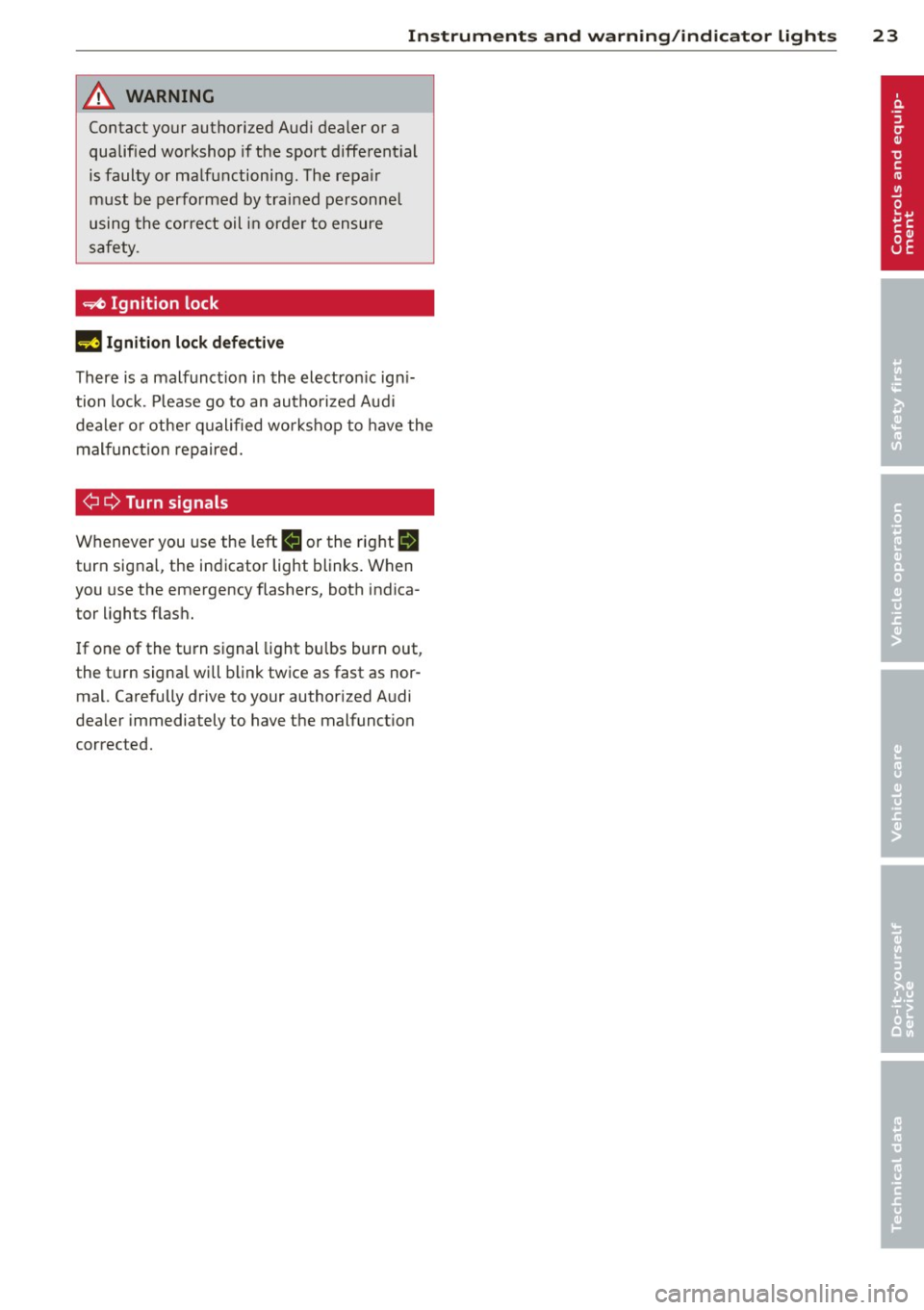

Instruments and warning/indicator lights 23
A WARNING ,~
Contact your authorized Audi dealer or a
qualified workshop if the sport differential
is faulty or malfunctioning. The repa ir
must be performed by trained personnel
using the correct oil in order to ensure
safety.
~ Ignition lock
m Ignition lock defective
There is a malfunct ion in the electron ic ign i­
tion lock. Please go to an autho rized Audi
dealer o r othe r qualified workshop to have the
mal funct ion repaired.
¢i ¢ Turn signals
Whenever you use the left B or the right B
turn signa l, the indicator light blinks. When
you use the emergency flashers, both indica­
tor lights flash.
I f one of the turn signal light bulbs burn out,
the turn signal will blink twice as fast as nor ­
mal. Carefully drive to your authorized Audi
dealer immediately to have the malfunct ion
corrected.

24 Driver information d isplay
Driver information
display
Introduction
The Driver information display inside the in ­
strument cluster provides you, the driver ,
with important information.
Fig. 7 Ins trum en t cl uster : ce nter display
Fig. 8 W iper lev er: con trols fo r th e menu disp lay
Center display
W ith the ignition on, the display in the Dr iver
I nformation System shows the following in­
formation :
- CD* inserted or Radio* station set
- Outside temperature* : At temperatures be-
low 41 °F (+5 °C), a snowflake symbol ap­
pears in front of the temperature display
c::> .&_.
-Warning if one of the doors, front lid or en-
gine compartment lid is not closed .
Additional functions
You can open the following functions in the
Driver Information System display by pressing
the
! RESET I button c::> fig. 8 one or more times:
Digital speedometer*
Tire pressure monitoring *
~page245
Trip computer
Efficiency program*
Service interval display
c::>page25
c::> page 27
c::> page 28
--·-
Gearshift selector positions
Automatic transmission
Adaptive cruise control*
Auto Check Control
<::>page 82
Some functions and vehicle components are
scanned for their operating status when you
switch the ignition on and whi le you are driv­
ing. Malfunctions or required service proce­
dures are signaled audibly and indicated by
red and yellow illuminated symbols and re­
minders in the d isplay.
A WARNING
--- Never rely exclusively on the outside
temperature display to determine if a
road surface is icy or not. Keep in mind
that road surfaces, especially br idges
and overpasses, could be ice covered and
slippery even at an outside temperature
above 41 °F (+5 °C).
- Always remember, even if the "snow­
flake" symbol (ice warning) does not ap­
pear in the disp lay, black ice cou ld be on
the road.
- Always reduce your speed and drive with
specia l care in cold weather cond itions
when the chance of encountering icy
road surfaces increases.
¢j) Tips
If the vehicle is stationary, or if you are
driving at a very low speed, the tempera­
ture shown in the display might be s light ly
higher than the actual outs ide tempera­
ture. This i.s caused by the heat being radi­
ated from the engine .

Trip computer
Introduction
The trip computer gives you information on
current and average fuel mileage, average
speed, fuel range and driving time .
Fig. 9 Trip computer display: Average fuel mileag e
The fo llowing information is continuously
eva luated by the trip computer and can be dis­
p layed sequentially in the instrument cluster
display:
Fuel range
The estimated cruising range in miles (km)
appears in the display. This tells you how far
your vehicle wi ll be able to travel on the cur­
rent tank of fue l and with the same driving
style. The display changes in increments of 6
miles (10 km).
The cruising range is calcu lated based on the
fuel cons umption for the last 18 mi les
(30 km) . If you drive conservatively, the cruis­
ing range will increase.
Average fuel mileage
The average fuel economy in MPG (l/100 km)
since you last cleared the memory appears in
this display. You can use this disp lay to adjust
your driving technique to achieve a desired
mileage .
Current fuel mileage
The instantaneous fuel consumption in miles
per gallon (l/100 km) is shown in this display .
You can use this display to adj ust yo ur driving
technique to ach ieve a desired mileage.
Driver information display 25
Fuel consumption is recalcu lated at intervals
of 33 yards (30 meters). This display switches
to gallons/hour (liters/hour) when the veh icle
is not moving.
Average speed
The average speed in mph (km/h) s ince you
last reset the memory appears in the display.
Elapsed time
The length of time that yo u have been driving
s ince you last reset the memory appears in
th is disp lay.
Distance
The distance that has been covered since the
last time the memory was cleared appears in
the d isplay .
(0 Tips
- Fuel consumptions (average and cur­
rent), range and speed are displayed in
metric units on Canadian mode ls.
- All stored values will be lost if the vehi­
cle battery is disconnected.
Memories
The trip computer is equipped with two fully
automatic memories as well as an efficiency
program* .
Fig . 10 Tri p computer display: memory leve l 1
You can switch between the trip computer 1
and 2 and the efficiency program* by pressing
the
I RESET I button @r:::> fig. 11 .
You can tell which memory leve l is currently
active by the number o r the sign in the display
II--

26 Driver in formation d isplay
¢fig . 10 . The data from the single -trip mem ­
ory (memory leve l 1) is being displayed if a
D
appears in the display . If a II is shown, then
the data from the total -trip memory is being
d isplayed (memory leve l 2). The fuel pump
nozzle
iii indicates the efficiency program*
¢ page 27.
Single-tr ip m emory (Trip computer 1 )
The single-trip memory stores the trip infor­
mat ion from the time the ignition is turned o n
until it is turned off. If the trip is continued
w ithin 2 hours from the t ime the ignition was
turned off, the new data will be included in
the calcu lation of the current trip i nfo rma­
tion .
If the t rip is inte rrupted fo r more than 2
hours the memory is reset automati ca lly.
Total -trip memory (Trip computer 2)
Unlike the sing le-trip memory, the tota l- tr ip
memory is not reset automatically . Th is per­
mits you to evaluate your d riving data for the
enti re pe riod be tween manual rese ts.
Efficiency program*
The effic iency program can help you to use
less fuel ¢
page 2 7.
Operation
The trip compu ter is controlled by two
switches on the windshield wiper lever.
F ig . 11 W ind sh ie ld wipe r lever: co ntro ls fo r the tri p
co mp ute r
.. To d isp lay the trip computer memory levels,
press t he
I RES ET I button @¢ fig. 11 re­
peatedly unt il the desired memory leve l is
shown in the d isplay. ..
To display tr ip in format ion wit hin a memory
level, press the top or bottom part of the
function se lection switch @.
T he trip computer will not ope rate un less the
ignition is on. W hen you t urn on the ignition,
the function that was in use when you last
turned the ignition off will be displayed .
In add ition to info rmation on the trip comput ­
er (trip computer 1 and 2 and the efficiency
program *), the digital speedometer and infor­
mation regard ing the nav igat ion system* can
also be displayed. To switch the d isp lay be­
tween the different information, tap the
I RESET ! button@ briefly.
Sett ing values to zero
To de lete one current va lue from the trip com ­
puter, se lect the des ired funct ion and press
t h e
I RES ET I button @for at least one second.
The following values can be set to zero
indi­
vidually :
- Average fue l mi leage
- Average speed
- Elapsed t ime
- Dis tance
All cur rently d isplayed va lues are deleted in
the eff iciency program*.
In add it ion,
all the values in the single-trip or
the total-tr ip memory can be de leted simulta­
neously ¢
page 26.
(D Tips
All stored va lues w ill be lost if the veh icle
battery is discon nected .
Basic Settings for the trip computer
Applies to vehicles: with trip computer
The radio or MMI* operating unit is used for
setting the trip computer's basic settings.
.. Select: Function b utton ICAR ! > In strument
cluster > On -board computer 1 or On-board
computer 2 . .,.

The values in the single-t rip or the total-trip
memory can a ll be reset to zero at the same
time under
Reset in the menu .
I n addition, you can determine what informa­
tion from the trip computer should be shown
in the instrument cluster display. If one of the
p ieces of driver information is turned
Off , that
driver information w ill not be shown in the
display. The information will continue to be
calculated by the trip computer and can be
turned back
On at any t ime.
(D Tips
- This function is not avai lab le on all
vehicles.
- The driving information in the efficiency
program is also reset to zero with the
s ingle-trip memory.
Efficiency program
Description
Applies to vehicles: with trip compu ter with effic iency
program
F ig. 12 Display : efficiency program
... Press the !RESET I button @c::> fig. 11 re­
peatedly until the efficiency program ap­
pears in the display .
The eff iciency program can help you to use
less fuel. It evaluates driving information in
reference to fuel consumption and shows oth­
er equipment influencing consumption as well
as shift recommendations . Fue l economy
messages c::>
page 2 7 provide tips for effi­
cient driv ing.
The eff ic iency program uses d istance and con­
sumption data from trip computer
1. If the
Driver information display 2 7
data are deleted in the efficiency program,
those values are also reset in trip computer
1.
Other equipment
Applies to vehicles: with trip computer with efficiency
program
Fig. 13 Display: othe r equ ipment
.,. In the efficiency program, press the func­
tion selection switch
c::> fig . 11 @ repeatedly
until the other equipment appears in the
disp lay.
Other equipment th at is currently affecti ng
fuel consumptio n is listed in the efficiency
program. The display shows up to three othe r
items of equipm ent@. T he equ ipme nt using
the most fuel is lis ted first .
If more than three
items using fuel are switched on, the equip ­
ment that is currently using the most fuel is
displayed.
A scale @also shows the current total con­
sumption of all other equipment .
Fuel economy messages
Applies to vehicles: with trip compute r with efficiency
program
Fig. 14 Display : fu el econo my message

28 Driver in formation d isplay
Fue l economy messages are disp layed when
fuel consumption is increased by certain con­
d itions. If you follow these fuel economy mes ­
sages, you can reduce your vehicle's consump­
tion of fuel. The messages appear automati­
cally and are on ly displayed in the eff ic iency
program. The fuel economy messages turn off
automatically after a certain pe riod of time .
.,. To turn a fuel economy message off imme-
diately after it appears, press the
I RES ET I
button r:::;, fig . 11 @ , or
.,. Press the function selection switch
r:::;, fig . 11
® ·
(D Tips
- Once you have t urned a fuel economy
message off, it will only appear again af­
te r you tu rn the ignition on aga in.
- The fuel economy messages are not dis­
played in eve ry instance, but rat her in in ­
terv als over a period of time.
Service interval display
The service interval display reminds you when
your next service is due.
F ig. 15 D is p lay : Serv ice interval d isplay
The schedule for the next oil change or inspec­
tion is calculated automatically and displayed
accordingly . The display works in two stages :
Service reminder
30 days before the next service is due, a serv ­
ice reminder appears in the display when you
turn on the ignition
c:> fig. 15.
Afte r abo ut 5 seconds the display sw itches
back to normal. The distance and time re- main
ing are upda ted each t ime the ignit ion is
turned on unt il the date d ue for service is
reached.
Service due
When the d ue date fo r se rv ice is reached, t he
message
Service due ! appears in the instru ­
ment cluster immediate ly after yo u turn on
the ignition . Additiona lly, a warning tone
sounds. After about 5 seconds the disp lay
switches back to normal.
Calling up the service schedule s
If or when an oi l change or inspec tion is due,
can be shown in the rad io or
MM I* disp lay by
selecting the service interva l display in the car
menu. Select
! CAR ! function button > Service
inte rval d isplay
or !CAR ! function button> Car
s ystems *
control button > Servicing &
checks .
Resett ing the se rv ice interval display
Your authorized Audi dea ler will reset the cor­
responding service schedule after performing
the appropr iate service on your veh icle. You
also have the possib ility to reset the oil
change schedule after hav ing perfo rmed a n
o il change acco rding to Aud i specif ications .
Select
I CAR ! functio n button > Se rvi ce interval
di splay
> Re set oil change int erval or I CAR I
funct ion b utt on > Car sy stem s* cont ro l bu t­
ton
> Servicing & check s > Reset oil ch ange
inte rval.
(D Note
If you di sconnect the battery term inals, no
ca lcula tions can be made for the service
i nterva l disp lay dur ing this time an d no
se rvice reminder will appear. Remember
that observing the proper service intervals
i s vitally important to extending the life of
your vehicle, particularly the engine, and maintain ing its value . Even if the mileage
d rive n is low, the maximum period of one
year from one servi ce to the next m ust not
be ex ceeded. .,..
