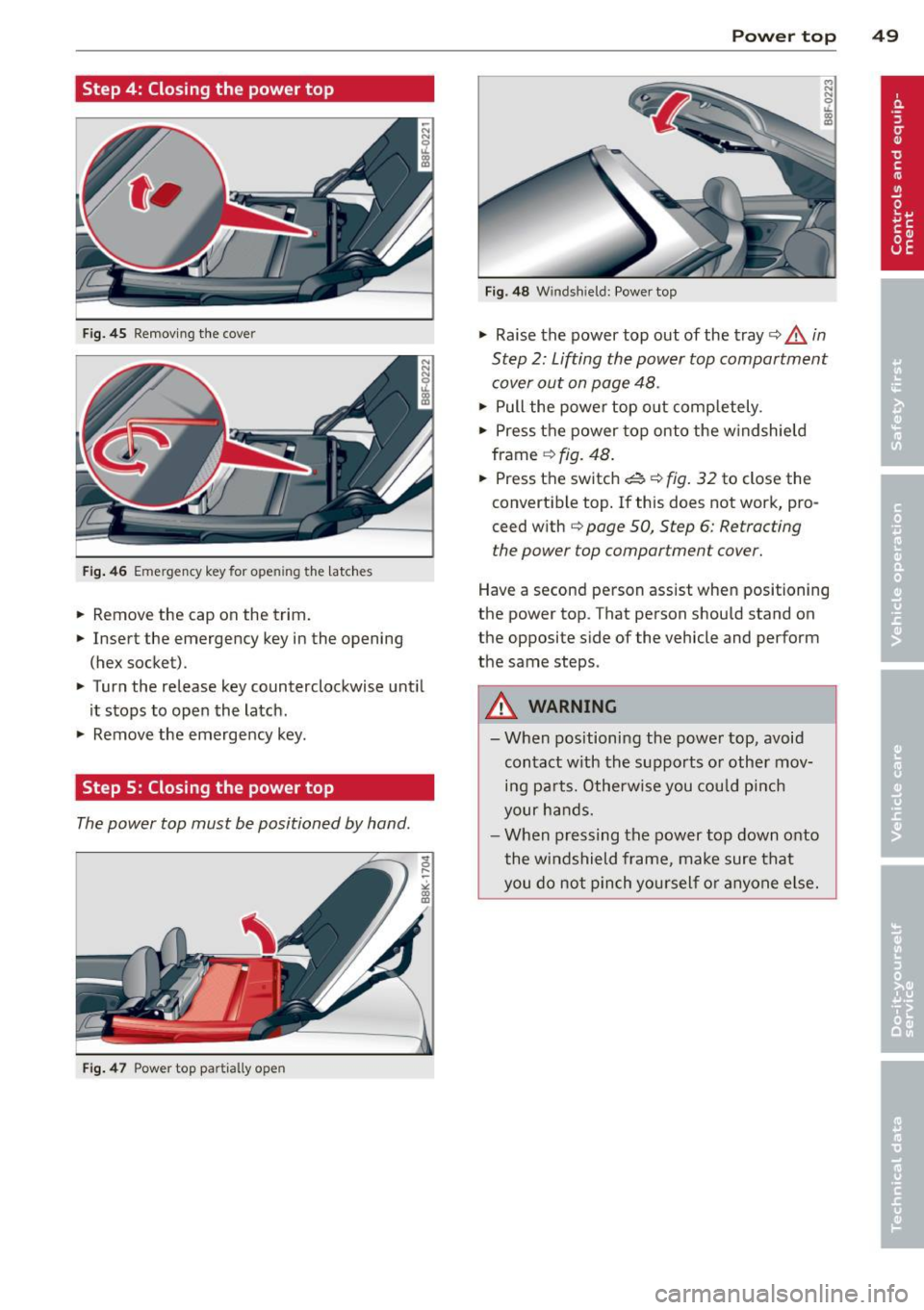

Step 4: Closing the power top
Fig . 4 5 Remov ing the cove r
Fig. 46 Eme rgency key for ope ning the latc hes
.. Remove the cap on the trim.
.. Insert the emergency key in the opening
(hex socket) .
.. Turn the release key counterclockwise unt il
it stops to ope n the latch.
.. Remove the emergency key.
Step S: Closing the power top
The power top must be positioned by hand .
Fig. 4 7 Powe r top pa rtially open
Power top 49
Fig . 4 8 W ind shield: Power top
.. Raise the power top out of the tray ¢ A in
Step 2: Lifting the power top compartment
cover out on page 48 .
.. Pull the power top o ut completely .
.. Press the power top onto the w indshield
frame
¢ fig . 48 .
.. Press the switch ~ ¢ fig . 32 to close the
convertible top . If this does not work, pro­
ceed w ith
¢ page SO, Step 6: Retracting
the power top compartment cover.
Have a second person assist whe n positioning
the power top . That person should stand on
the opposite side of the vehicle and perform
the same steps.
A WARNING
-
-When positioni ng the power top, avo id
contact w ith the s upports o r other mov­
i n g pa rts. Otherwise you cou ld pinch
your ha nds.
- W hen pressing the pow er top down onto
the wi ndshield frame, make sure that
you do not p in ch you rself or anyo ne e lse .

50 Power top

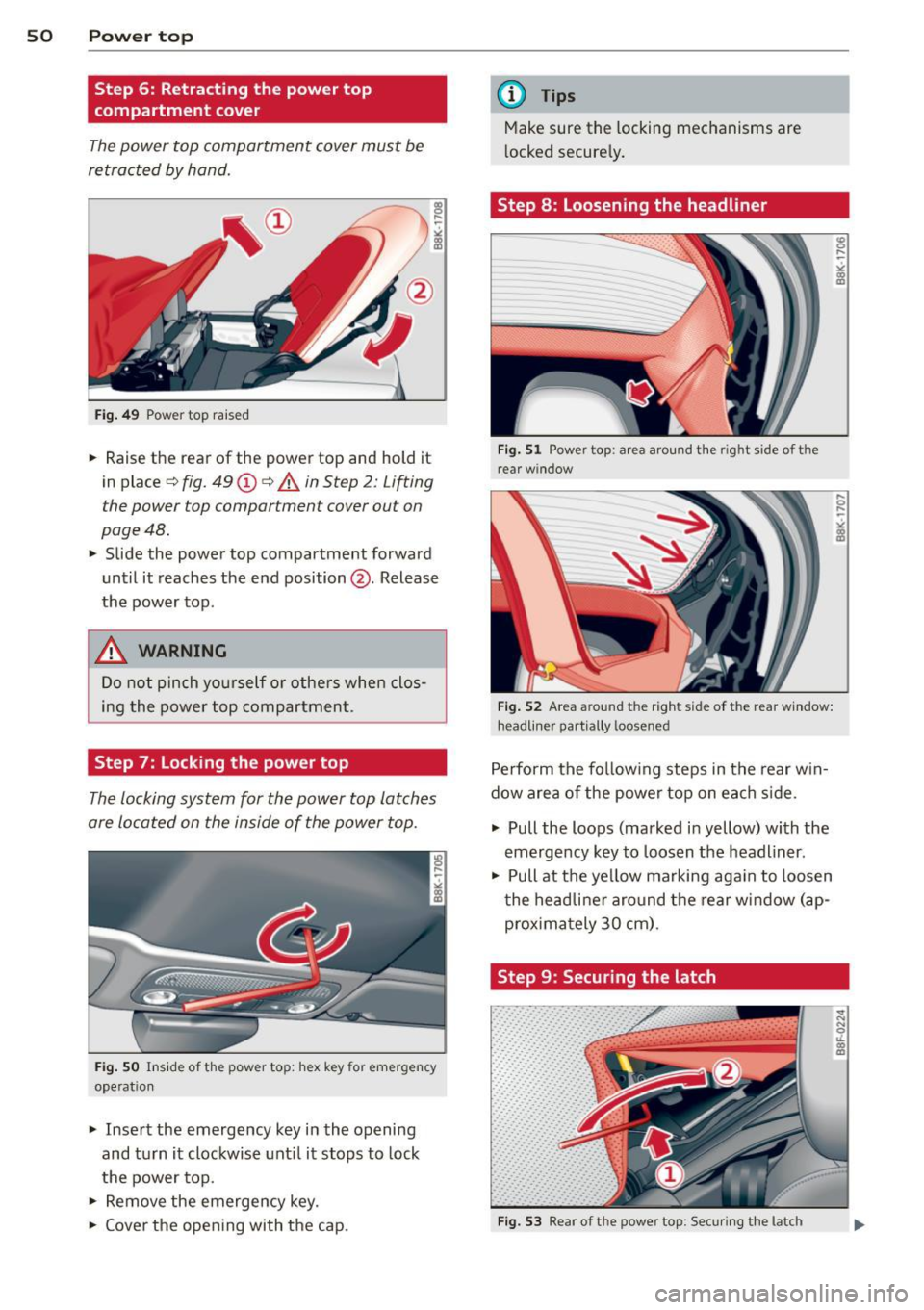

Step 6: Retracting the power top
compartment cover
The power top compartment cover must be
retracted by ha nd.
F ig . 49 Pow er top rai sed
.,.. Raise the rear of the power top and hold it
in place ¢
fig. 49@¢ A in Step 2: Lifting
the power top compartment cover out on
page 48 .
.,.. Slide the power top compartment forward
until it reaches the end position @. Release
the power top .
&_ WARNING
Do not pinch yo urself or othe rs when clos­
ing the power top compartment .
Step 7: Locking the power top
The Locking system for the power top Latches
are located on the inside of the power top.
Fi g. 50 In sid e of t he pow er to p: hex ke y fo r em erge ncy
ope rat ion
.,.. Insert the emergency key i n the opening
and turn it clockwise unt il it stops to lock
the power top .
.,.. Remove the emergency key.
.,.. Cover the open ing with the cap.
(D Tips
Make sure the locking mechanisms are
l ocked secure ly .
Step 8: Loosening the headliner
F ig . 51 Power top : ar ea arou nd the righ t s ide o f th e
r ea r wi ndow
Fi g. 52 Area aroun d t he r ight side of the rear w indow:
h eadli ne r p artiall y loose ned
Perform the fo llow ing steps in the rear w in­
dow area of the powe r top on each s ide .
.,.. Pull the loops (ma rked i n yellow) with the
emergency key to loosen the headlin er .
.,.. Pull at the ye llow marking aga in to loosen
t he headli ne r aro und the rear w indow (ap­
prox ima tely 30 cm) .
Step 9: Securing the latch
Fig. 53 Rear of t he powe r top : Secu ring t he latc h
., 0 ....
~
"'

The latches must be secured on the left and
right sides of the vehicle .
.,. Pull the power top headline r to the side in
the area around the rear headrests to sec ure
the latches ¢
fig. 53 ¢.& in Step 2: Lifting
the power top compartment cover out on
page 48 .
... Then remove the emergency key and insert
the short end into the power top support at
the ye llow marking .
... Press the emergency key in the direction of
the a rrow @unt il the latch is secure .
.&, WARNING
Do not pinch yo urself o r othe rs when clos­
ing the power top compartment.
Power top 51

52 Clear vis ion
Clear vision
Lights
Switching the lights on and off
Fig . 54 Instr ument pane l: headlight con trol switch
Light switch -~ -
Turn the switch c:> fig . 54 to the correspond ing
position . When the lights are switched on, the
,o o~ symbo l tu rns on.
0 -The lights are off or the dayt ime run ning
lights are on:
- USA models: The daytime running lights are
activated when the light sw itch
c:> fig . 54 is
i n the
O position or the AUTO position (o nly
in dayl ight conditions) . The daytime running
lights function can be turned on and off in
the radio or M MI* menu
Exterior lighting
c:> page 53 , c:> ,&..
-Canada model s: The daytime runn ing lig hts
are activated when the light sw itch
c:> fig . 54
is in the
O p osition, :o o; position or the AUTO
pos it ion (on ly in daylight cond itions) . The
dayt ime running lights function cannot be
tu rned off
c:> &. .
AUTO* -Au toma tic h eadlights switch on and
off depending on b rightness, fo r example in
tw ilight, during rain or in t unnels
c:> &. .
:o o; -Side mar ker lights
io -Low beam headlights
Fog lights /rear fog light( s)*
Press the appropriate b utton c:> fig. 54:
}0 -Fog lights
0$ -Rear fog light(s)
adaptive light*
When switched on, adap tive ligh t ad apts to
curves in the road depending on the vehicle
speed and the steering ang le . This provides
b etter l ighting t hro ugh the curve . The system
operates at speeds between app roximate ly
6 mph (10 km/h) and 68 mph (110 km/h).
Static cor nering light* (vehicles with adaptive
light) - the cornering light switches on at
speeds up to approximately 25 mph (40 km/
h) when a certain steering wheel angle is
reached or when a turn sig na l is activated. The
area to the s ide of the vehicle is illumi nated
be tte r when tur ning .
The adaptive light and the co rnering light only
funct ion when the switch is in the AU TO posi­
t ion (automatic headlights*) .
A WARNING
--
- Daytime r unning lights and automatic
headlights* are only inte nded to assist
the dr iver . Th ey do not re lieve the driver
o f his re sp onsibili ty to check t he head ­
lights and to t urn them on manua lly ac ­
cordin g to the c urrent light and visibility
conditions . For examp le, fog cannot be
detected by the light sensors *. So a lways
sw itch on t he headlights
io under these
wea ther conditions and when driving in
the dark.
- Cras hes can happen whe n you cannot see
the road ahead and when yo u cannot be
see n by other moto ris ts. Always tu rn on
the head lig hts so that yo u can se e ahead
and so th at others can see your car fr om
the b ack.
- Pl ease obey all laws w he n usi ng the
lighting sys tems descr ibed here.
(D Note
The rear fog lights * should o nly be tur ned
o n in acco rdanc e with t raff ic regu lation, as
the lights are bright for following traffic. ..,

@ Tips
-The light sensor * for headl ight control is
l ocated in the rear view m irror mount.
You should therefore not apply any st ick­
ers to the windsh ield in this area in order
to prevent malfunctions or failures .
- Some exterior lighting functions can be
ad justed
¢ page 53.
-When yo u remove you r key from the igni­
tion w hile the vehicle's lights are turned
on, a buzzer sounds as long as the driv­
er's door is open .
- In cool or damp weather, t he ins ide of
the headlights, turn signa ls and tail
li ghts can fog ove r due to the tem pera ­
ture diffe ren ce betwe en the inside and
outside. They will clear shor tly after
swi tching t hem on. This d oes not aff ect
the service life of the ligh ting.
- In the even t of a ligh t sensor malfunc­
tion, the drive r is no tifie d in the inst ru ­
ment cluster disp lay ~
page 2 2.
Turn signals and high beam lever
The lever operates the turn signal s, the high
b eams and th e headlight flash er.
F ig. 55 Turn sig na l an d high beam leve r
Turn signals ¢i ¢
Th e turn s ignals activate when you move the
l ever into a turn s ignal position when the ign i­
tion i s sw itched on.
(D -right turn signal
@ -Left turn signa l
T he turn s ignal b links three times if you just
tap the lever .
Clear vision 5 3
High beams and headlight flasher @:D
Move the lever to the corresponding posit io n:
@ -high beams on
@-high beams off or headlight flasher
T he ind icator light
II in the instr ument clus ­
ter turns on .
Notes on these features
-The turn signals on ly wor k w it h t he ignition
t urned on. The indica tor l igh ts
11 or II in
the instrument cluste r also blink .
- Aft er you have tu rned a corner, the turn s ig­
na l swi tches off au tom atically .
- The
high beam wo rks only when the head­
lights a re on. The indicator Ligh t. in the
i nstrumen t clus ter illuminates when the
high beams are on .
- The
headligh t flasher works on ly as long as
you ho ld the lev er -even if the re are no
lights switched o n. The ind icator light
Ill i n
the inst rument cluster illuminates when you
use the headlight flasher .
&_ WARNING
Do not use the high beam or head light
flasher if you kn ow that these could b lind
oncom ing traffic.
Adjusting exterior lighting
The functions are selec ted in the radio or
MM!* .
.. Select : I CAR! function b utton > Exter io r
light ing . Or
.. Select: I CAR I func tion button > Car sys ­
tems *
control button > Vehicle settings >
Exterior Lighting .
Coming home (light when leaving car )*,
Leaving home (light when unlocking car)*
T he coming home function illumi nates the
area around the vehicle when the ignition is
switched off and the dr iver's door is open ed.
Depend ing o n ve hicl e equ ipment, t he function
can be switched on and off or the length of
time the lig hts remain on* can be ad justed . .._

54 Clear vis ion
The lea ving home function i lluminates the
area around the vehicle when unlocking it.
This funct ion can be switched on and
off.
The co ming h ome and le av ing h ome func­
tions on ly operate when it is dark and the
light switch is in the AUTO position
r=:> fig. 54.
Auto headlight s*
When the light switch is in the AUTO
r=:> page 52 position, the sw itch-on po int of the
lights can be changed in the automatic dr iv ing
light function.
Daytime running lights
US A mo del s: You can switch the dayt ime run­
ni ng lights
on and off .
Ca nada mod els :
The function cannot be
turned
off . It is activated automat ically each
time the ignition is switched on.
Tra vel mode*
The headlight beam is asymmetrical. This pro­
vides stronger illum ination on the side of the
road on wh ich you are driving . If you are driv ­
ing in a country that drives on the opposite
side of the road from your own country, t his
will cause glare for oncoming dr ivers. To pre­
vent glare:
- Trave l mode must be selected in vehicles
with Xenon head lights *.
- In vehicles with halogen headlights, ce rtain
areas of the head light lenses must be cov­
ered w ith waterproof adhesive covers that
prevent light from passing through . Fo r
more information, please see your author­
ized Audi dea ler or authorized repair facility .
@ Tips
When travel mode is a ctiv ated, a displ ay in
the dr iver information system indi cates
this each time you switch t he ignition on.

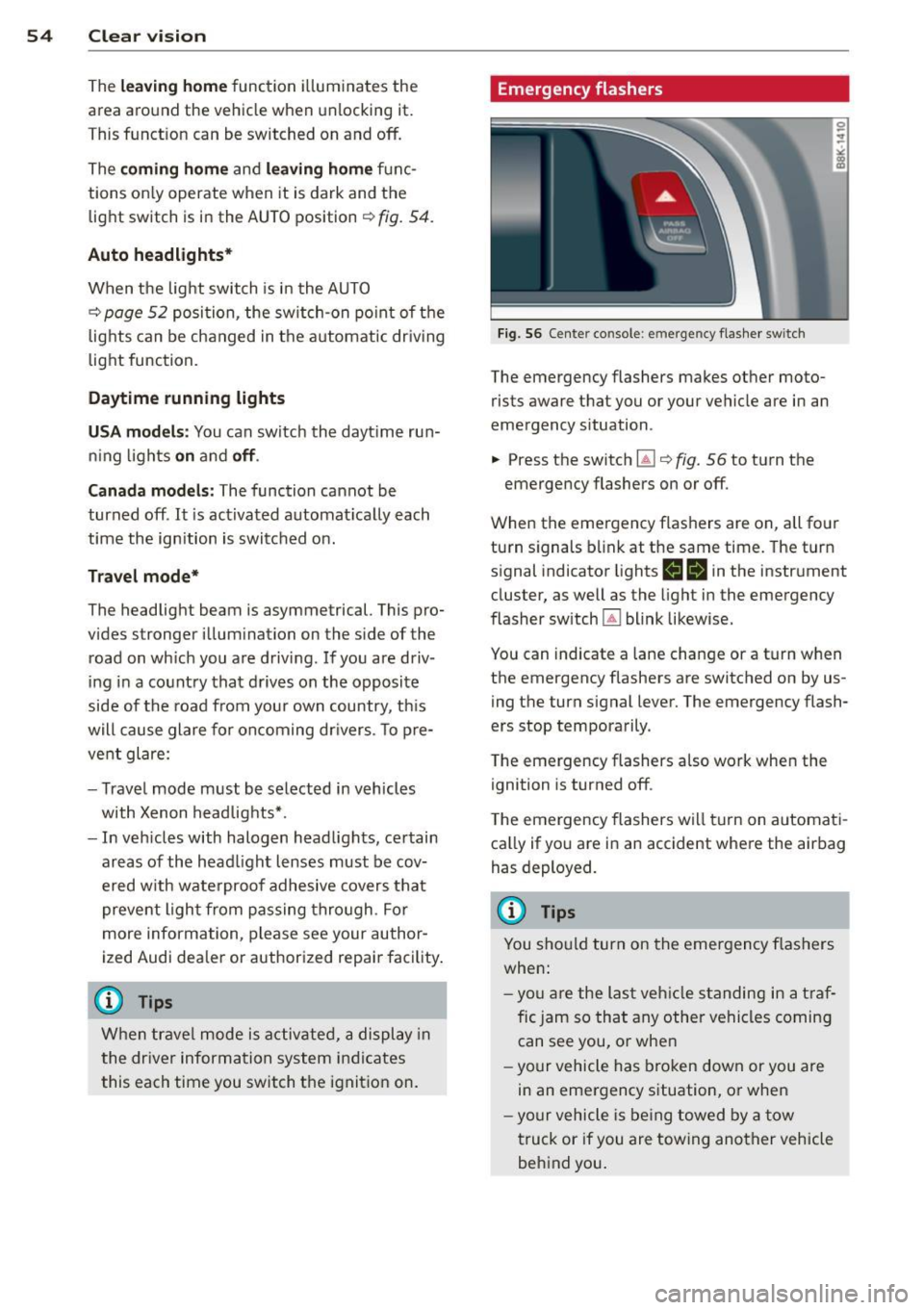

Emergency flashers
F ig. 56 Center console: em erge ncy flashe r switch
The emergency flashers makes other moto­
rists aware that you or your vehicle are in an
emergency situation.
... Press the switch ~¢
fig. 56 to turn the
emergency flashers on or
off.
When the emergency flashers are on, all four
turn signals b link at the same time. The turn
s ignal indicator lights
H II in the instrument
cluster, as well as the light in the emergency
flasher switch ~ blink likewise.
You can indicate a lane change or a tu rn when
the emergency flashers are switched on by us­
ing th e turn signal lever. The emergency flash­
ers stop temporarily .
T he emergency flashers also work when the
ignition is turned
off .
The emergency flashers wi ll tu rn on automat i­
ca lly if yo u are in an accident where the air bag
has deployed.
(D Tips
You sho uld turn on the emergency flashers
when:
- yo u are the last veh icle standing in a t ra f­
fic jam so that any other vehicles coming can see you, or whe n
- yo ur vehicle has bro ken down or you are
in an emergency situation, or when
- yo ur vehicle is be ing towed by a tow
truck or if you are towing ano ther vehicle
behind you .

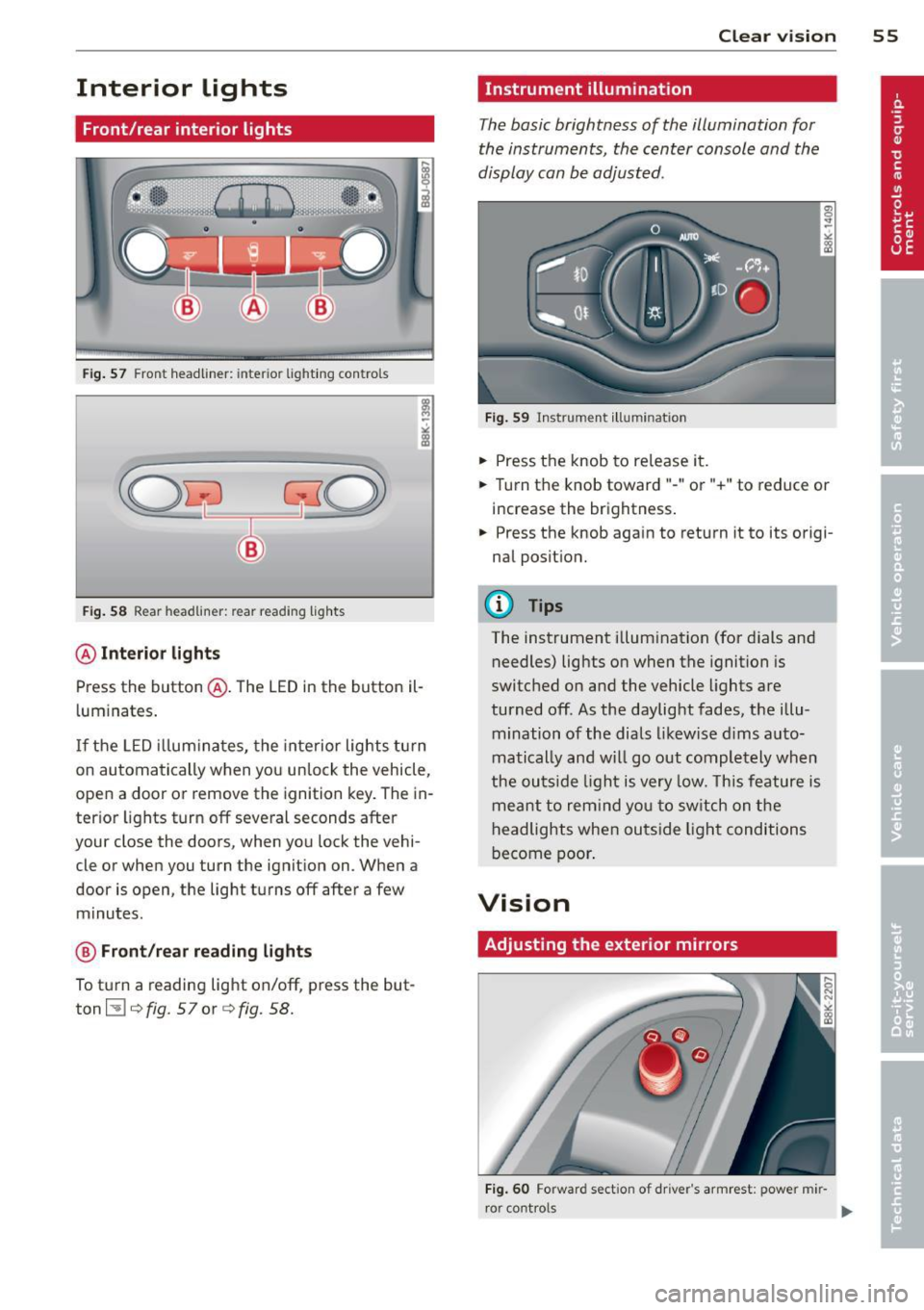

Interior lights
Front/rear interior lights
Fig. 57 Front headliner: inter ior lighti ng controls
Fig. 58 Rear headlin er: rear reading lights
@ Interior lights
Press the button @. The LED in the button il­
l uminates .
If the LED illuminates, the interior lights turn
on automatically when you unlock the vehicle,
open a door or remove the ignition key. The in­
terior lights turn off several seconds after
your close the doors, when you lock the vehi­
cle or when you turn the ignition on. When a
door is open, the light turns off after a few
minutes.
@ Front/rear reading lights
To turn a reading light on/off, press the but­
ton ~¢
fig. 57or ¢fig. 58.
Clear vision 55
Instrument illumination
The basic brightness of the illumination for
the instruments, the center console and the
display can be adjusted.
Fig. 59 Instrument illumination
.,. Press the knob to release it .
.. Turn the knob toward"-" or"+" to reduce or
increase the brightness .
.,. Press the knob aga in to return it to its origi­
nal position.
(D Tips
The instrument illumination (for dials and
needles) lights on when the ignition is
switched on and the vehicle lights are
turned off. As the daylight fades, the illu­
mination of the dials likewise dims auto­
matically and will go out completely when
the outside light is very low. This feature is
meant to remind you to switch on the
headlights when outside light conditions
become poor.
Vision
Adjusting the exterior mirrors
Fig. 60 Forward sect ion of dr iver 's armrest: power mir ­
r or cont rols

56 Clear vis ion
Turn the knob to the desired position :
Q/P -In t his position , you can adjust the
driver's and front passenger's exter ior mirrors
by turn ing the knob in the des ired direction.
(jjjl -The mirrors are heated depending on the
outside temperatu re.
P assenger exterio r m irro r tilt func tion*
( onl y with memor y for ext erior mirrow s)
To help you see the curb when backing into a pa rking space, the surface of the m irror t ilts
slightly . The knob m ust be in the
P posit ion
for this to happen .
You can adjust the ti lted mirror surface by
turning the knob in the desired direction .
When you move out of reverse and into anoth­
e r gear, the new mirror posi tion is stored and
assigned to the key you are using.
The mirror goes back into its origina l posit io n
once yo u drive forward f aster than 9 mph
(15 km/h) or switch the ignition off .
_& WARNING
Curved mirror s urfaces (convex or spheri ­
cal *) increase your field of view . Remem­
ber that vehicles or other objects will ap­
pear smaller and farther away than when
seen in a flat m irror. If you use this mirror
to estimate distances of following veh icles
when changing lanes, you could estimate incorrectly and cause an accident .
{CT) Note
- If you wash the vehicle in an automatic
ca r wash, you must fold the exterior m ir ­
r o rs in to reduce the r isk of damage to
the mirrors .
(i) Tips
- The exterior mirror settings are stored
with the memory funct ion* c::>
page 64.
-If there should be a ma lfunct ion in the
electrical system, you can st ill adjust the
exter ior mirrors by press ing the edge of
the m irror. Dimming the mirrors
F
ig. 61 Auto ma tic dimming rearview m irro r*
Manu al di mm ing re a rvi ew mirro r
• Pull the lever on th e bottom of the mirror
back .
Automat ic dimming rearvi ew mirror *
....
• Press the button @c::> fig. 61. The indicator
light @turns on . The rearview and exterior*
mirrors dim automatically when light shines
on them, for example from headlights on a
veh icle to the rear.
_& WARNING ..__
Electrolyte fluid can leak from automatic
d imm ing mirrors if the glass is broken .
Electrolyte fluid can irr itate skin, eyes and
r espiratory system.
- Repeated or prolonged exposure to e lec­
trolyte can cause irritation to the respira­
tory system, especially among people
with asthma or o ther resp ira to ry condi­
tions . Get fresh air immediately by leav­
ing the vehicle or, if that is no t possib le,
open windows and doors all the way.
- If electroly te gets into the eyes, flush
them thoroughly with large amounts of
clean water for at least 15 minutes; medical attention is recommended.
- If electrolyte contacts skin, fl ush affect­
ed area with clean water for at least 15
minutes and then wash affected area
with soap and water; medical attention
is recommended. Thoroughly wash af ­
fected cloth ing and shoes before reuse.

-If swallowed and person is conscious,
rinse mouth with water for at least 15
minutes . Do not induce vomiting unless
instructed to do so by medical professio­
nal. Get medical attention immediately.
(D Note
Liquid electrolyte leaking from broken mir­
ror glass will damage any plastic surfaces
it comes in contact with . Clean up spilled
electrolyte immediately with clean water
and a sponge.
@ Tips
- Switching off the dimming function of
the inside rear view mirror also deacti­
vates the automatic dimm ing function of
the exterior mirrors .
-Automatic dimming for the mirror only
operates properly if the light striking the
inside mirror is not hindered by other ob­
jects.
- The automatic dimming mirrors do not
dim when the interior lighting is turned
on or the reverse gear is selected .
Sun visors
._[ _ __,!
Fig. 62 Driver's s ide: s un visor
The sun visors for the driver and passenger
can be pulled out of their brackets in the cen­
ter of the vehicle and turned towards the
doors
(D .
The mirror light switches on when the cover
over the vanity mirror @opens .
Clear vision 5 7
Wiper and washer
system
Switching the windshield wipers on
Fig. 63 Win dshi eld w ipe r leve r
Move the windshield wiper lever to the corre­
sponding position:
@-Windshield wiper off
CD-Interval mode . To extend/shorten the
wiper intervals, move the switch @to the
left/right. In vehicles with a rain sensor* the
wipers turn on in the rain once the vehicle
speed exceeds approximately 2 mph (4 km/h) .
The higher the sensitivity of the rain sensor* is
set (switch @to the right), the earlier the
windshield wipers react to moisture on the
windshield. In some models, you can switch
rain sensor mode off and switch intermittent
mode on in the MMI* . Select:
!CAR I function
button
> Car systems* control button > Driver
assist
> Rain sensor. In intermittent mode,
you can adjust the interval time using the@
switch.
@ -Slow wiping
® -Fast wiping
©-Single wipe
® -Clean the windshield. To eliminate water
droplets, the windshield wiper performs one
afterwipe operation after several seconds
while driving . You can switch this function off
by moving the lever to position ® within 10
seconds of the afterwipe operation. The after­
wipe function is reactivated the next time the
ignition is switched on.
...

58 Clear vis ion
Cleanin g the headlights* . The headlight wash ­
er system* op erates on ly when the headlights
a re on. If you move the lever to pos ition
® ·
the head lights are washed in intervals.
A WARNING
- The ra in sensor is only intended to assist
the driver . The dr iver is still responsible
for manually sw itching the w ipers on ac­
co rding to the vis ibility conditions .
- The windshie ld may not be treated w it h
water-repe lling windshie ld coat ing
age nts. Unfavorable conditions, such as
wetness , darkness, low sun, can res ult in
incre ase d gla re. Wiper b lade ch atter is
also possible .
- P roperly fu nctioning windshie ld w iper
blades are required for a clear view and
sa fe dr iving
¢ page 58, Replacing
windshield wiper blades.
(D Note
- In the c ase of fro st, check whether the
winds hield wiper blad es are frozen to
the windshie ld. Switching on the wind ­
s h ield wipers can damage the wiper
blades!
- Prior to using a car wash, the win dshield
wipe r system must be switched
off (lever
i n position @). This helps to prevent un ­
i ntent ional sw itchi ng on and damage to
t h e windshie ld w iper system .
- The w indshield wipers are switched
off
when the ignition is turned off . Activate
the windshie ld w ipers afte r the ignit ion
i s sw itched back on by mov ing t he wind­
s h ield wiper leve r to any pos it io n.
- Worn or dirty windsh ie ld w iper blades
r esult in streaking . T h is can affect the
r ain senso r* function . Ch eck your wind­
s h ield wiper blades regularly.
- The was her fluid nozzles of the wind­
s h ield washer system are heated at low
temper atures w hen the ignit ion i s on.
- When stop ping temporarily , (e.g. at a
traff ic light) the se t speed of the wi nd- shield wipers is automatically
reduced by
one s peed.
Replacing windshield wiper blades
Wiper blad es in good condition help k eep th e
windshield clear.
Fi g. 6 4 Re mov ing w indsh ie ld wipe r bl ade
Wiper service posit ion /blade replacement
position
" Switch the windsh ie ld w ipers off (position
@ ¢fig. 63).
" Select: !CAR ! function b utton> Wind shield
wip ers> Service po sition > on .
Or
" Select:
I CAR I func tion button > Car sy s­
tem s*
con tro l but ton > Servicing & checks >
Wiper service po sition > On.T he windsh ield
w ipers move into the service pos ition.
Removing the wiper blade
" Lift t he windsh ie ld w iper a rm up from the
w indshie ld.
" Press the locking knob
(D c::> fig. 64 on the
wiper blade . Ho ld the wipe r blade firmly .
" Remove the wiper b lade in the direction of
the arrow .
Attaching the wiper blade
" In st all the new w ipe r blade in t he reta iner
on t he wiper a rm @ unt il yo u hear i t click in ­
to p lace on the wiper arm.
" Place the wiper arm back on the winds hield.
" To bring the w ipers back into the origina l
position, press the windshield wiper lever .
Or
" Select :
!CAR ! function button> Windshield
wipers
> Service position > off . Or
