.. Select : ICARlfunctio n button> Car sys ­
tems *
control button > Servicing & check s >
Wiper serv ice po sition > Off .
A WARNING
-If the windshield wipers smear the wind­
shield, clean the w iper blades with w ind­
shield washer fluid .
If the wiper blades
are extremely d irty, you can also clean
them w ith a soft sponge or cloth.
- For your safety, you should replace the
wiper blades once or twice a year . See
yo ur autho riz ed Aud i deale r for replace­
ment blades.
(D Note
- The w indshield wiper blades must only
be replaced when in the serv ice position!
Otherwise, yo u ris k damaging the pai nt
on the hood or the windshield wiper mo ­
tor .
- You sho uld not move yo ur vehicle or
press the w indshie ld w iper lever when
the wiper arms are folded away from the
windshield . The windshield wipers would
move back into the ir origina l position
and could damage the hood and w ind­
s h ield.
- To help prevent damage to the wiper sys­
tem, always loosen blades which are fro­
zen to the windsh ield befo re operat ing
wipers.
- To help prevent damage to wiper blades,
do not use gasoline, kerosene, pa int
th inner, or othe r solvents on or nea r the
wipe r blades.
- To help prevent damage to the wiper
arms or other compone nts, do not at­
tempt to move the w ip ers by hand.
@ Tips
- Commerc ial hot waxes applied by auto­
matic car washes affect the how eas ily
the g lass su rface can be cleaned .
- You can also use the service pos ition, for
example, if you want to protect the
windsh ield from ic ing by using a cover .
Clear vision 59
Digital compass
Switching the compass on and off
Applies to vehicles: with digital compass
The compass direction is shown in the rear­
view mirror .
NW
Fig. 65 Rearv iew mirro r: Digita l co mpass activated
.. To swi tch the compass on or off, p ress and
hold t he b utton @until the comp ass dis­
play in the mirror~
fig. 65 appears or disap­
pears .
T he dig ital compass o nly works when the igni­
tion is on . The directions are indicated with
abbreviations:
N (north), NE (northeast), E
(east), SE (southeast), S (south), SW (so uth­
west),
W (west), NW (northwest).
(D Tips
To prevent inaccurate compass readings ,
do not b ring any remote contro ls, electr i­
ca l devices or metallic objects near the
mirror.

60 Clear vis ion
Adjusting the magnetic zone
A ppl ies to vehicles: with digital compass
The magnetic zone must be adjusted correctly
for the compass to read accurately .
Fig. 66 North Amer ica: magnet ic deflect ion zo ne
bo undar ies
• Press and ho ld the button @ ~fig. 66 until
the n umber of the magnetic zone appears in
the rearview m irror.
• Press the button @repeated ly to select the
correct magnetic zone. The select ion mode
tu rns off afte r a few seconds.
Calibrating the compass
A ppl ies to veh icles : with d ig ital compass
You must recalibrate the compass if it does
not display the correct direction.
• Press and ho ld the button @unti l a C ap­
pears in the rearview mirror.
• Drive in a circle at about 6 mph (10 km/h)
until a direction is d isp layed in the rearview
mirror .
.&, WARNING
- To avoid endangering yo urself and other
dr ivers, calibrate the compass in a n area
where the re is no traff ic. -
The digital compass is to be used as a di­
rectional aid on ly. Even though you may
want to look at it while you are dr iving,
you must still pay attention to traffic, road and weather conditions as we ll as
other possible hazards.

Seats and storage
General recommen­
dations
Why is your seat adjustment so important?
The safety belts and the airbag system can
only provide maximum protection if the front
seats are correctly adjusted.
There are various ways of adjusting the front
seats to provide safe and comfortable support
for the driver and the front passenger. Adjust
your seat properly so that :
- you can easily and quick ly reach all the
switches and controls in the instrument
panel
- your body is properly supported thus reduc­ ing physical stress and fatigue
- the safety belts and airbag system can offe r
maximum protection
¢ page 140.
I n the following sections, you will see exactly
how you can best adjust your seats .
There are special regulations and instructions
for installing a child safety seat on the front passenger's seat. Always follow the informa­
tion regard ing child safety provided in
¢ page 161, Child Safety.
.&_ WARNING
-
Refer to ¢ page 121, Driving Safely for
important information, tips, suggestions
and warnings that you should read and fol­
low for your own safety and the safety of
your passengers.
.&_ WARNING
Incorrect seating position of the driver and
all other passengers can result in serious
personal injury.
- Always keep your feet on the floor when
the vehicle is in motion -never put your
feet on top of the instrument panel, out of the w indow or on top of the seat cush­
ion. This app lies especially to the passen-
S eat s an d sto rage 61
gers . If your seating position is incorrect,
you increase the risk of injury in the case
of sudden braking or an accident . If the
airbag inflates and the seating position
is incorrect, this cou ld result in pe rsonal
in jury or even death.
- It is important for both the driver and front passenger to keep a distance of at least 10 inches (25 cm) between them­
selves and the steering wheel and/or in­
s trumen t panel. If you're s itting any
closer than th is, the airbag system can ­
not protect you properly. In addition, the
front seats and head restraints m ust be
adj usted to your body height so that they
can give you max imum protect ion.
- Always try to keep as much distance as
possible between yourself and the steer­
ing wheel or instrument panel.
- Do not adjust the driver's or front pas­ senger's seat whi le the vehicle is moving.
Your seat may move unexpectedly, caus­
ing sudden loss of veh icle control and
pe rsonal injury. If you adjust you r seat
while the veh icle is moving, you are ou t
of po sit ion.
Driver's seat
The correct seat position is important for safe
and relaxed driving .
We recommend that you adjust the dr iver's
seat in the follow ing manner:
.., Adjust the seat in fore and aft direction so
that you can easily push the pedals to the
floor wh ile keeping your knees slightly bent
¢ .&, in Why is your seat adjustment so im ­
portant? on page 61 .
"" Adjust the seatback so that when you sit
w ith your back against the seatback , you can
s ti ll grasp the top of t he steering wheel.
... App lies to vehicles with adjustable head re­
straints: Adjust the head restraint so the up­
per edge is as even as possible wit h the top
of your head. If that is not possib le, try to
adjust the head restraint so that it is as .,.

62 Seats and storage
close to this position as possible
¢page 64.
A WARNING
Never place any objects in the driver's foot­
well. An object could get into the pedal area and interfere with pedal function. In
case of sudden braking or an accident, you
would not be able to brake or accelerate .
Front passenger's seat
Always move the front passenger seat into
the rearmost position.
To avoid contact with the airbag while it is de­
ploying, do not sit any closer to the instru­
ment panel than necessary and always wear
the three-point safety belt provided adjusted correctly . We recommend that you adjust the
passenger's seat in the following manner:
• Bring the backrest up to an (almost) upright
position. Do not ride with the seat reclined.
• Applies to vehicles with adjustable head re­
straints: Adjust the head restraint so the up­
per edge is as even as possible with the top
of your head. If that is not possible, try to
adjust the head restraint so that it is as
close to this position as possible
¢ page 64.
• Place your feet on the floor in front of the
passenger's seat.
Front seats
Power seat adjustment
Applies to vehicles: with power adjustab le seats
Fig. 67 Front seats: power seat adjustment
Controls
@-Adjusting the lumbar support* : press the
button in the corresponding position ¢ .&, .
@ -Moving the seat up/down: press the but­
ton up/down ¢ .&, .
@ -Moving the seat forward/back: press the
button forward/back¢ .&,.
©-Adjusting the backrest angle: press the
button forward/back¢ .&..
©-Raising/lowering * the head restraints:
press the button up/down¢.&. .
@ -Lengthening/shortening the upper thigh
support* : lift the handle. A spring moves the
front seat cushion forward ¢ .&. .
A WARNING
---Never adjust the driver's or front pas ­
senger's seat while the vehicle is moving.
If you do this while the vehicle is moving,
you will be out of position . Always adjust
the driver's or front passenger's seat
when the vehicle is not mov ing.
- Be careful when adjusting the seat
height. Check to see that no one is in the
way, or serious injury could result!
- Because the seats can be electrically ad­
justed with the ignition off or with the
ignition key removed, never leave chil­
dren unattended in the vehicle. Unsuper­
vised use of the electric seat adjust­
ments may cause serious injury.
- To reduce the risk of injury in the case of
sudden braking or accident, front pas ­
sengers must never ride in a moving ve­
hicle with the backrest reclined. Safety
belts and the airbag system only offer maximum protection when the backrest
is upright and the safety belts are prop­
erly positioned on the body. The more
the backrest is reclined, the greater the
risk of personal injury from an incorrect
seating position and improperly posi­
tioned safety belts.

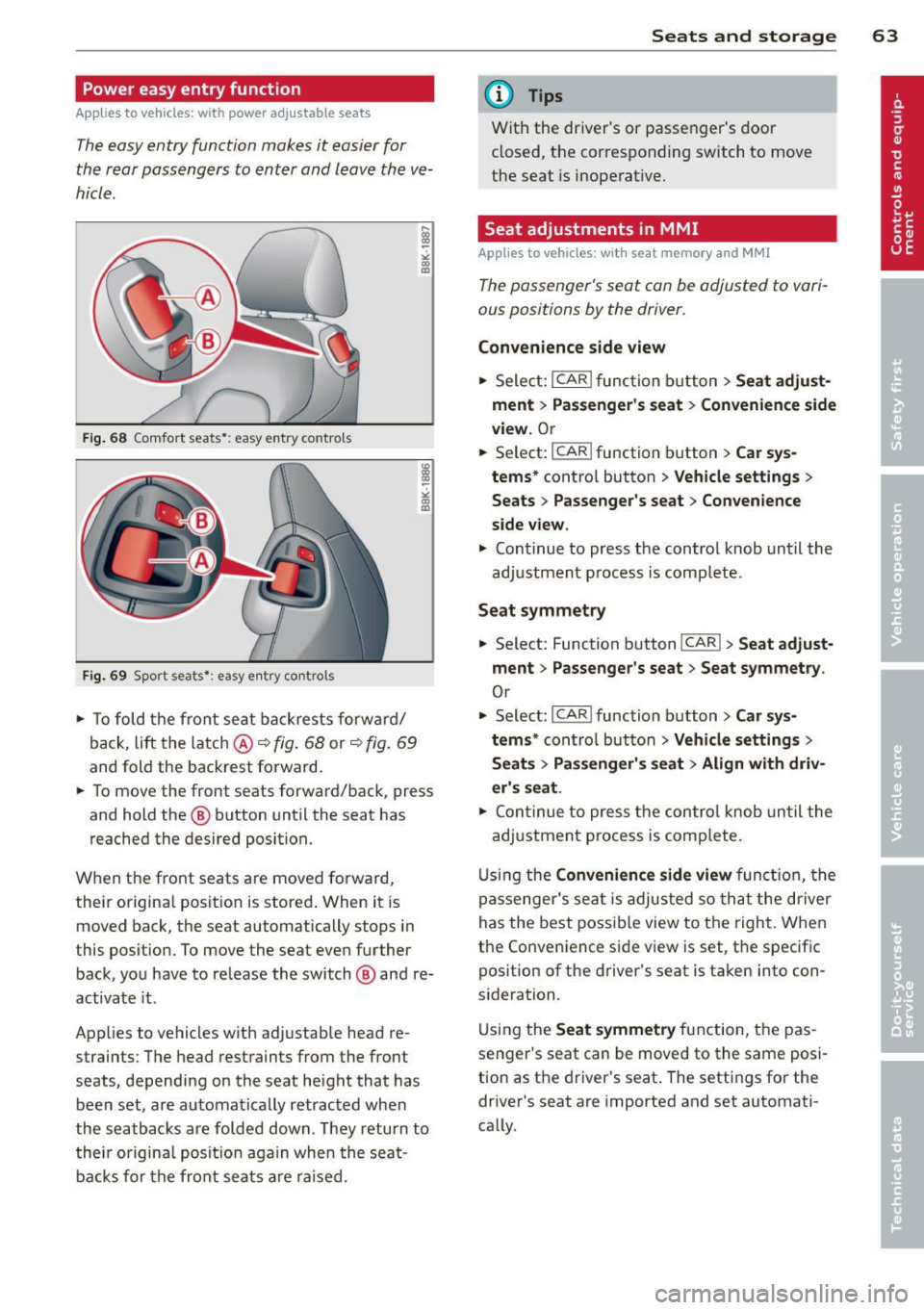

Power easy entry function
Applies to vehicles: with power ad justable seats
The easy entry function makes it easier for
the rear passengers to enter and leave the ve­
hicle.
F ig. 6 8 Comfort seats•: easy entry contro ls
Fi g. 69 Spor t seats •: easy e ntry co ntrols
.,. To fold t he front seat ba ckrests f orwar d/
back,
lift t he latch @ c:::> fig. 68 or c:::> fig. 69
and fold the backrest fo rward.
.,. To move the front seats forward/back, press
and hold the @ button until the seat has
reached the desired position.
When the front seats are moved fo rward,
their origina l posit ion is stored . When it is
moved back, the seat automatically stops in
this posit ion. To move the seat eve n further
back, you have to re lease the switch @ and re­
activa te it .
Applies to vehicles w ith ad justab le head re­
straints : T he head restraints from the front
seats, dependi ng on the seat he ight that has
been set, are au tomatically retrac ted when
the seatbacks are folded down . They return to
thei r origina l posi tion aga in whe n the seat ­
b ac ks f or th e fron t sea ts ar e ra ised .
Seats and storage 63
@ Tips
Wit h the driver's or passe nger's door
cl osed, the c orresponding switch to move
the seat is inoperat ive.
Seat adjustments in MMI
Applies to vehicles: wit h seat memory and MMI
The passenger's seat can be adjusted to vari­
ous positions by the driver.
Convenience side view
.,. Sele ct: I CAR I func tion b utton > Seat adju st­
ment > Passenger's seat > Convenience side
view.
O r
--... Select: I CAR !function button > Car sys-
tems*
contro l button > Vehicle settings >
Seats > Passenger's seat > Convenience
side view .
.,. Cont inue to press the control knob until the
adj ustment p rocess is comp lete.
Seat symmetry
.,. Select: Function b utton !CAR !> Seat adjust­
ment > Passenger's seat > Seat symmetry .
Or
.,. Select: !CAR !function button> Car sys ­
tems *
control but to n > Vehicle settings >
Seats > Pas senger' s seat > Align with driv ­
er's seat.
.,. Co nti nue to press the con trol knob unti l the
adj ustment process is comp lete.
U si ng the
Convenience side view fun ction, the
pas senger 's se at is adjus ted so th at the driver
has the best poss ible view to the right. Whe n
the Conven ience s ide v iew is set, the specific
position of the d river's seat is taken into con ­
s ideration .
U sin g the
Seat symmetry fu nction, the pas ­
senger's seat can be moved to the same posi ­
tion as the d river's seat . The settings for the
driver's seat are imported and set automati­
cally.

64 Seats and storage
Center armrest
The center armrest can be adjusted to several
levels.
Fig. 70 Armrest between the driver's/front passenger's
seats .
Adjusting the center armrest
.. To adjust the angle, raise the armrest from
t he starting position
¢ fig. 70 detent by de­
tent.
" To bring the armrest back into the starting
position, raise it out of the top detent and
fold it back down .
The armrest can slide forward and back .
Head restraints
Front head restraints
Applies to vehicles: with a djustable head restrain ts
Head restraints that are adjusted according
to body size, along with the seat belt , offer
effective protection.
Fig. 71 Fro nt seat: adjusting the manual head re­
st raint s
Fig. 72 Front seat: ad just ing the power head restraint
Adjust the head restraint so the upper edge is
as even as possible with the top of your head.
If that is not possible, try to adjust the head
restraint so that it is as close to this position
as possible
¢ page 64 .
.,. To adjust the height of the manual head re­
straint*, grip the head restraint on the sides
with both hands and slide it up/down until it
locks into p lace
¢fig. 71.
"' To adjust the height of the power head re­
straint*, press the button up/down
¢ fig. 72.
Refer to¢ page 124, Proper adjustment of
head restraints
for guidelines on how to ad­
just the height of the front head restraints to suit the occupant's body size.
A WARNING
- Driving without head restraints or with
head restraints that are not properly ad­
justed increases the risk of serious or fa­
tal neck injury dramatically.
- Read and heed all WARNINGS
¢page 124 ,
@ Tips
Correctly adjusted head restraints and
safety belts are an extremely effective
combination of safety features .
Seat memory
Description
Applies to vehicles : wi th memo ry fun ctio n
The memory function allows you to quickly
and easily store and recall personal seating

profiles for the driver . The memory function is
operated through the master key and the memory buttons in the driver's door.
The driver's seating profi le is stored and as­
signed to the master key each time the vehicle
is locked. The seating profile is recalled auto­
mat ically when the veh icle is unlocked. If two
people use one vehicle , it is recommended
that each person always uses "their own"
master key .
Up to 2 seat profiles can be stored in the
memory buttons in the driver's door. Once
they are stored, these seat profiles can be se­ lected at any time.
In addition to the driver 's seat settings, you
can also store and access the exterior mirror
adjustment settings* using the remote con­
trol key or memory button .
Remote control key
Applies to vehicles: with seat memory
To assign the driver 's seat settings to the re­
mote control key when locking the vehicle, the
function must be activated in the radio or
MMI*
~ Select: I CAR I function button > Seat adjust­
ment
> Driver's seat > Remote control key >
on.Or
~ Select: I CAR I f u nct ion button > Car sys­
tems*
control button > Vehicle settings>
Seats > Driver 's seat > Remote control key
> On.
(D Tips
If you do not want another driver's set ­
tings to be assigned to the remote key,
switch off the memory function using the
rad io or
MMI* or the ! ON/OFF I button
¢page 65.

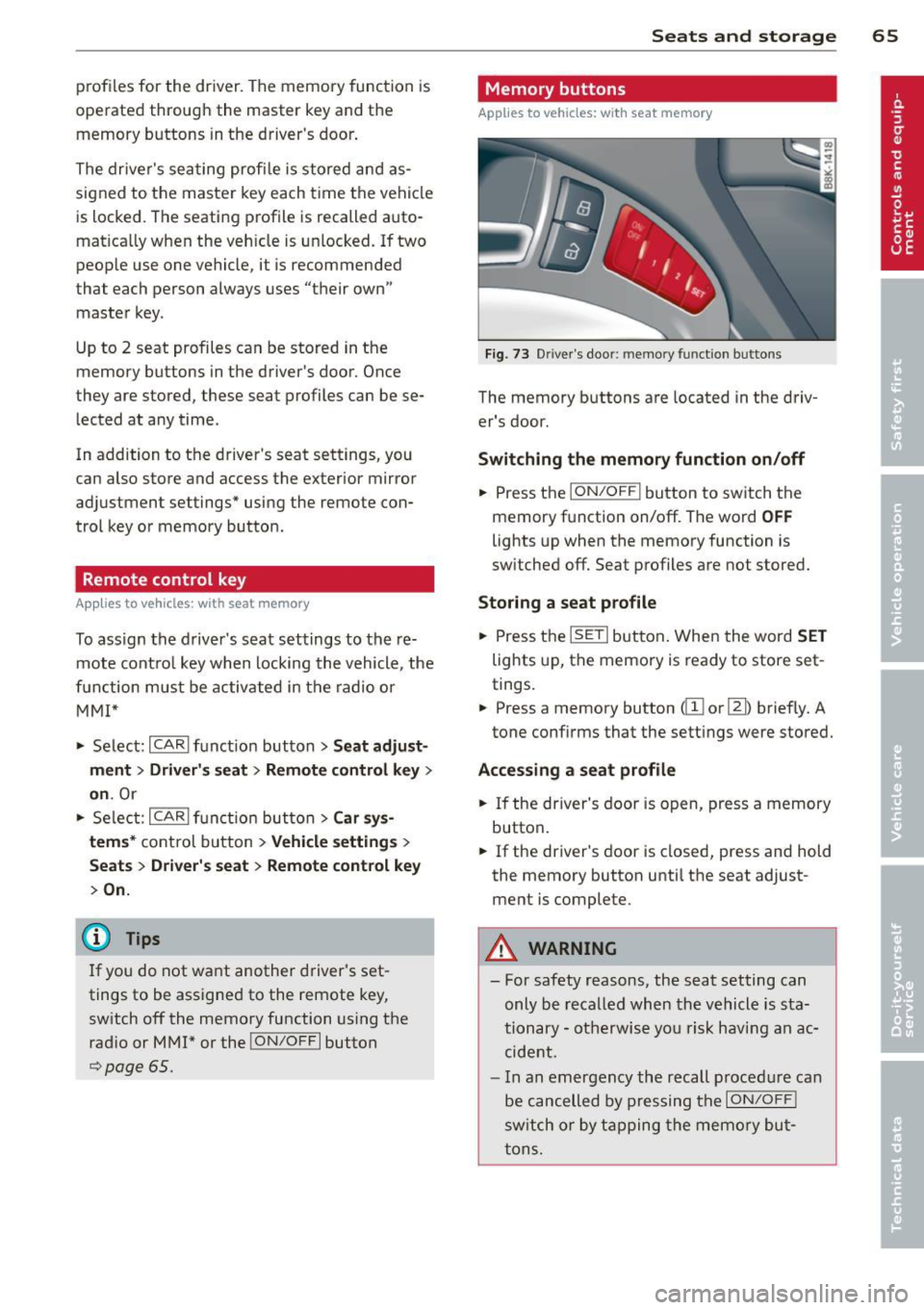

Seats and storage 65
Memory buttons
Applies to vehicles: wit h seat memory
Fig. 73 Driver's door: memo ry funct ion buttons
The memory buttons are located in the driv­
er's door.
Switching the memory function on/off
~ Press the ION/OF F! button to switch the
memory function on/off. The word
OFF
lights up when the memory function is
sw itched off. Seat profiles are not stored.
Storing a seat profile
~ Press the ISETI button. When the word SET
lights up, the memory is ready to store set­
tings.
~ Press a memory button dII or [Ii) briefly. A
tone conf irms that the settings were stored.
Accessing a seat profile
~ If the driver's door is open, press a memory
button .
~ If the driver's door is closed, press and hold
the memory button until the seat adjust­
ment is complete.
A WARNING
- For safety reasons, the seat setting can only be recalled when the vehicle is sta­
tionary -otherwise you risk having an ac­
cident.
- I n an emergency the recall procedure can
be cancelled by pressing the
I ON/OFF !
switch or by tapping the memory but­
tons.

66 Seats and st o rage
Ashtray
Fig . 7 4 Ce nter console: ash tray
Opening /closing
• To open the ashtr ay, slide the cover up
~ fig . 74 .
• To close the ashtray, press down on the cov­
er .
Em pty ing the ashtray
• To remove the inser t, slide the latch to the
right
¢ fig. 74 -arrow- .
• To i nstall the insert, press it down into the
mount .
_& WARNING
Never put waste paper in the ash tray . Hot
ashes or other hot objec ts in the ashtray
co uld set waste paper on fire .
Cigarette Lighter
Fig. 75 Fro nt cente r con so le : cigarette l ig hter
• Pre ss the ciga re tte lighter in .
• Remove the cig are tte lighter when i t pops
out .
A WARNING
-The c igarette lighter on ly works when the
i gnition is switched on . Incorrect usage
can lead to ser ious injuries or burns. For
this reason, childr en should never be left
unattended in the veh icle because this in­
creases the risk of inj ury.
(D Note
The cigarette lighter can be damaged if
you connect electrical accessor ies to it .
Storage
General overview
_& WARNING
-
- Always remove objects from the instru-
ment panel. Any items not put away
could slide around ins ide the veh icle
while driv ing or when accelerat ing o r
when applying the brakes or when driv ­
ing around a corner.
- When you are dr iving make sure that
anything you may have placed in the cen­
ter console or other storage locations
cannot fall out into the footwe lls. In case
of sudden braking you would not be able
to brake or accelerate.
-

(upholder
Fig. 76 Ce nter console: front cupholder
Fig. 77 (upho lde r• in th e rear
Front beverage holders
.,. You can accommodate two beverages in th is
storage
c::> fig . 76.
A maximum of two beverages can be placed in
the rear beverage holders* .
A WARNING
Spilled hot liquid can cause an accident
and personal injury.
-
-Never carry any beverage containers with
hot liquids, such as hot coffee or hot tea,
in the vehicle while it is moving. In case
of an accident, sudden braking or other
vehicle movement, hot liqu id could spill,
causing scald ing burns . Sp illed hot liquid
can a lso cause an accident and personal
injury .
- Use only soft cups in the cupholder . H ard
cups and g lasses can cause injury in an
accident.
- Never use the cupholder or adapter as an
ashtray- risk of fire.
Seats and storage 67
(D Note
Only drink containers with lids should be
carried in the cupholder. L iquid could spill
out and damage your vehicle's electron ic
equipment or stain t he upho lstery , etc.
Glove compartment
The glove compartment is illuminated and
can be locked.
r, - ---, 1
Fig. 78 G love com partment
.,. To open the glove compartment, pull the
handle in the direction of the ar row
c::> fig. 78
and swing the cover down to open .
.,. To close the glove compartment, push the
glove compartment lid upward until the lock
engages .
The glove compartment can be locked using
the mechanical key
c::> page 33.
On the right s ide in the glove compartment is
a holder with the key body into which the
eme rgency key must be clipped to be able to
start the vehicle.
/!\. WARNING
To reduce the risk of personal injury in an
accident or sudden stop, always keep the
glove compartment closed while driving.
-

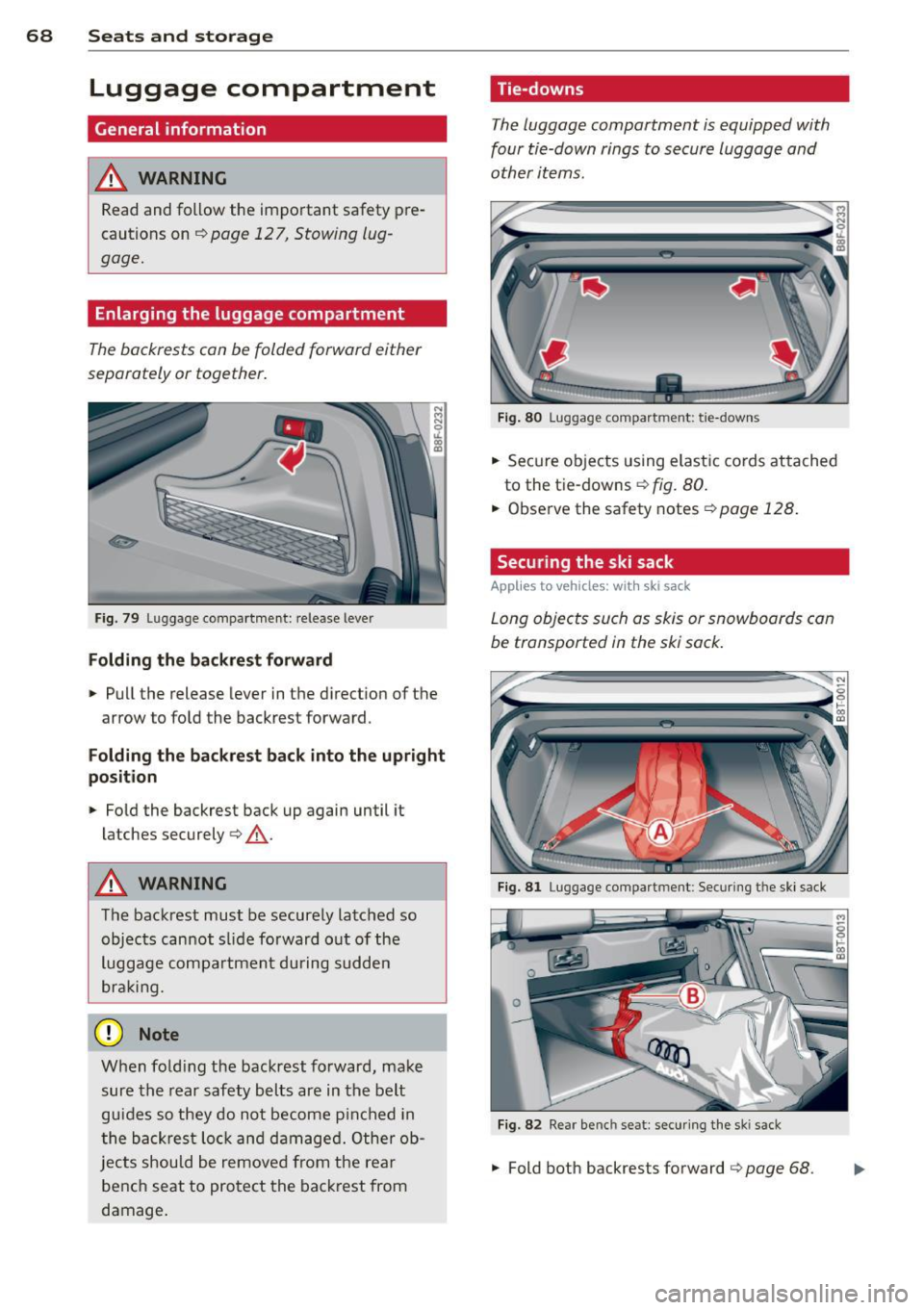

68 Seats and storage
Luggage compartment
General information
A WARNING
Read and follow the important safety pre­
cautions on
¢ page 12 7, Stowing lug­
gage.
Enlarging the luggage compartment
The backrests can be folded forward either
separately or together.
Fig. 79 Luggage compartment: release lever
Folding the backr est forwa rd
• Pull the release lever in the direction of the
arrow to fold the backrest forward.
F olding th e backre st back into the u pright
position
• Fold the backrest back up again until it
latches securely¢ &_.
A WARNING
The backrest must be securely latched so
objects cannot slide forward o ut of the
luggage compartment du ring sudden
bra king.
(CT;) Note
When fo ld ing the backrest forward, make
sure the rear safety belts are in the belt
guides so they do not become p inched in
the backrest lo ck and damaged. Other ob­
jects should be removed from the rea r
bench seat to pro tect the backrest from
damage.
Tie-downs
The luggage compartment is equipped with
four tie-down rings to secure luggage and
other items.
F ig . 80 Luggage compartment: tie -downs
• Secure objects using elastic cords atta ched
to the tie-downs
¢ fig. 80.
• Observe the safety notes ¢page 128.
Securing the ski sack
Applies to veh icles: w it h sk i sack
Long objects such as skis or snowboards can
be transported in the ski sack.
Fig. 8 1 Luggage compartment: Sec uring the ski sack
Fig. 82 Rear bench seat: secur ing the ski sack
• Fold both backrests forward ¢ page 68.
