Driver information
system
Introduction
The Driver information display inside the instru­
ment cluster provides you, the driver, with im­
portant information.
Fig. 7 Instrument cluster: ce nter display
Fig. 8 Wipe r lever: contro ls for the menu display
Center display
With the ignition on, the display in th e Driver In­
formation System shows the following informa­
tion :
- CD* inserted or Radio* station set
- Outs ide temperature*: At temperatures below
41 °f (+S
0
(), a snowflake symbol appears in
front of the temperature display¢ ,1,. .
- Warning if one of the doors, front lid or engine
compartment lid is not closed.
Additional functions
You can open the following functions in the Driv­
er Information System display by pressing the
I RESETI button¢ fig. 8 one or more t imes :
Digital speedometer*
Tire pressure monitoring*
¢pag e224
Driver in forma tion system
Trip computer ¢page22
Efficiency program* ¢page24
Service interval display ¢page25
Speed warning ¢page 78
Gearshift selector posit ions Au -i=>page 81
tomatic transm ission
Adaptive cruise control*
¢ page 88
Auto Check Control
Some functions and vehicle components are
scanned for their operating status when you
switch the ignition on and while you are driving. Malfunctions or required service procedures are
signaled audibly and indicated by red and yellow
illum inated symbols and reminders in the dis­
play.
A WARNING
--
- Never rely exclus ively on the outside tem­
pe rature display to determine if a road sur­
face is icy or not. Keep in m ind that road
surfaces, especially bridges and overpasses,
could be ice covered and slippery even at an
outside temperat ure above 41 °f (+S °C).
- Always remember, even if the "snowflake"
symbol (ice warning) does not appear in the
display, black ice could be on the road.
- Always reduce your speed and dr ive with
specia l care in cold weather conditions when
the chance of encountering icy road surfaces
increases.
(j) Tips
If the vehicle is stationary, or if you are driv­
ing at a very low speed, the temperature
shown in the disp lay might be slightly higher
than the actual outside temperature. This is
caused by the heat being radiated from the
engine.
21

messages appear automatically and are only dis­
p layed in the efficiency program. The fuel econo­
my messages turn off a utomat ically after acer ­
tain period of time.
.. To turn a fuel economy message off immedi ­
ately after it appears, press the I RESE T I button
¢ page 23, fig. 11 @, or
.. Press the function select ion switch ¢
page 23,
fig. 11
@ .
(D Tips
-Once you have turned a fuel economy mes­
sage off, it will on ly appear again after you
turn the ignit ion on again.
- The fuel economy messages are not dis­
played in every instance, but rather in inter­
vals over a period of t ime .
Service interval display
The service interval display reminds you when
your next service is due .
The schedule for the next oil change or inspec­
tion is calculated automatically and displayed ac ­
cord ingly . The display works in two stages :
Service rem inder
30 days before the next service is due, a service
reminder appears in the d isp lay when you turn on
the ignition.
After about 5 seconds the display switches back
to normal. The distance and time remain ing are
updated each time the ignition is turned on until
the date due for service is reached.
Se rvi ce due
When the due date for service is reached, the
m essage
Ser vice due! appears in the instrument
cluster immediately after you turn on the igni ­
tion . Additionally, a warning tone sounds. After
about 5 seconds the d isplay sw itches back to nor ­
mal.
Call ing up the servic e schedules
a:,
a:,
...... If or when an oil change or inspection is due, can N
~ be shown in the radio or MM!* d isplay by select-,.....
8 ing the serv ice interval d isplay in the car menu. LL 00
Dri ver informa tion system
Select I CAR I funct ion but ton > Se rvice i nterval
di spla y
or ICARI function button > Car systems *
control button > Ser vicing & checks.
Resetting the service int erval display
Yo ur autho rized Aud i dea le r will reset the co rre­
sponding serv ice schedu le after performing the
appropriate service on your vehicle . You also have
the possibility to reset the oi l change schedule
after having performed an oil change accord ing
to Audi specifications. SelectlCAR lfunction but­
ton
> Ser vice inter val display > Re set oil change
int erval
or ICARI function button > C ar systems *
control button > Se rvi cing & checks > Re set oil
change inter val.
(D Note
- Only reset the oil change display when you
have completed an o il change.
- If you disconnect the battery term inals, no
calcu lations can be made for the se rvice in­
terva l display dur ing th is time and no serv­
i c e rem inder will appear. Remembe r that
observ ing the proper serv ice i ntervals is vi­
t ally impo rtan t to ex tending the life o f your
vehicle, particular ly the engine, and ma in­
taining its va lue . Even if the mileage driven
is low, the maximum period o f one yea r
from one service to the next must not be ex­
ceeded.
(D Tips
The information in the Serv ice Reminder re­
mains stored even when the vehicle battery is
disconnected.
On Board Diagnostic
System (OBD)
Malfunction Indicator Lamp (MIL)
The Malfunction Indicator Lamp (MIL) ¢4 in the
instrument cluster is part of the On-Board Diag­
nostic (OBD II) system .
The warning/indicator light ill uminates when the
ignition is sw itched on and goes out after the en­
gine starts and the idle has stab ilized . This indi-
cates that the MIL is working properly . ..,.
25

Driver information system
If the light does not go out after the engine is
started, or illuminates whi le you are driving, a
malfunct ion may exist in the engine system. If
the light illuminates, the catalytic converter
could be damaged.
Continue driving
with reduced power (avoiding
sustained high speeds and/or rapid accelera­
tions) and have the condition corrected. Contact
your authorized Audi dealer.
If the light illuminates, the electronic speed lim­iter may a lso be malfunctioning. For more infor­
mation
c:> page 26, Electronic speed limiter.
An improperly closed fuel filler cap may also
cause the MIL light to illuminate
c:> page 190.
On-Board Diagnostics
Fig. 15 Loca tion of Data Li nk Connector (D LC)
On-Board Diagnostics monitors the components
of your emission control system. Each monitored
component in your engine system has been as­
signed a code . In case of a malfunction, the com­
ponent will be identif ied and the fau lt stored as a
code in the control module memory.
The MIL light may also illuminate if there is a
leak in the on-board fuel vapor recovery system .
If the light illuminates after a refueling, stop the
vehicle and make sure the fue l filler cap is prop­
erly closed
c:> page 190 .
In order to make an accurate diagnosis, the stor­
ed data can only be displayed using special diag­
nostic equipment (generic scan tool for OBD).
In order to connect the specia l diagnostic equip­
ment, push the plug into the Data Link Connector
(DLC). The DLC is located to the right of the hood
release
c:> fig. 15.
26
Your authorized Audi dea ler or qual ified work­
shop can interpret the code and perform the nec­
essary repair.
_& WARNING
Do not use the diagnostic connector for per­
sonal use. Incorrect usage can cause malfunc­
tions, which can increase the risk of a colli­
sion!
Electronic speed limiter
-
Your vehicle may be factory equ ipped w ith tires
that are rated fo r a maximum speed of 130 mph
(210 km/h). This is may be less than the maxi­
mum speed of your vehicle. To reduce the risk of
sudden tire failure and loss of control if the vehi­
cle is operated at excessive speeds , your vehicle
has an e lectronic speed limiter. The electronic
speed limiter prevents your vehicle from going
faster than the tire speed rating . For more infor­
mation
c:> page 207.
If the engine control unit receives faulty vehicle roadspeed signals, the Malfunction Indicator
Light (MIL)
II will illuminate. If this occurs, con­
tact the nearest authorized Audi dealer for ass is­
tance .
_& WARNING
Always observe the posted speed limits and
adjust your speed to suit prevailing road, traf­
fic and weather conditions. Never drive your
vehicle faster than the maximum speed rating
of the tires insta lled .
-

Opening and clo sin g
- If the power locking system should fail, you
can still open the fuel tank flap in an emer­
gency ¢
page 192.
-You are well advised not to keep val uables
inside an unatte nded vehicle, v is ible or not.
Even a properly locked vehicle cannot pro­
v ide the security of a safe.
- If the LED in the upper edge of the driver's
door panel comes on for about 30 seconds
after t he vehicle is locked, there is a mal­
funct ion in the power lock ing or the anti­
theft warning system . Have the malf unct io n
cor rected by an authorized Audi dealership
or q ualified repair facility.
Key set
F ig . 16 Key set
m 0 ±
~
@ Remote control key with mechanical key
You can centrally lock and unlock your veh icle
and start the engine w it h the master key with re­
mote cont rol. A mecha nical key is i nteg rated in
the master key¢
page 29.
@ Eme rgency key
The emergency key is not intended for constant
use . It shou ld only be used in an emergency, for
example, in place of the ign ition key
t:!:> page 72 . Ke ep it in a safe place and do not
car ry it on yo ur key r ing o r store it in the ve hicle.
Key replacement
If you lose a key, contact your author ized Audi
dealer immediately to have the
lost key disab led .
Be s ure to bring all your keys with you .
28
Number of keys
You can chec k the num ber of assigned keys to
your vehicle ¢
page 9. This allows you to make
sure yo u have received all of the keys when you
purchase a used vehicle .
Data in the master key
Dur ing driving, serv ice and maintenance-re levan t
da ta is cont inuous ly stored on your master key.
Your A udi service adviser can read out this data
and te ll yo u about the work your vehicle needs.
This applies also to veh icles with convenience
key *.
Personal comfort settings
If two people use one vehicle, it is recommended
that each person always uses "their own" maste r
k ey . W hen the ig nit ion is turned off or when the
vehicle is loc ked, personal conven ience settings
for the following systems are stored and as­
s igned to the remote master key.
- Climate control
- Power locking sy stem
- Sea t memory *
- Park ing system*
-Adapt ive cr uise control*
- Side assist*
- Drive se lect*
The stored settings are a utomat ica lly rec alled
when you unlock t he vehicle, when yo u ope n the
doo rs or when yo u turn on the ignition.
A WARNING
- Do not leave you r vehicle unattended with
the key in the ignition lock. Entry by una u­
thor ized persons could endanger you o r re­
sult i n theft o r damage the vehicle .
- Do not leave childre n unattended in the ve­
hicle, especially with access to vehicle keys .
Ungua rded access to the keys provides chil­
dren t he opport unity to start the engine
a nd /or ac tiva te ve hicl e sys tems s uch as the
power wi ndows etc. Unsu perv ised ope ration
of any vehicle system by children c an res ult
in ser ious injury.
.

a:,
a:,
...... N
" N ...... 0
0
LL co
Once the front passenger's door has been closed,
you cannot open it again from the outside. The
door can be opened from the inside by pulling
the door hand le.
A WARNING
Read and follow all WARNINGS¢&. in Gener­
al description on page 2
7 .
@ Tips
After the ignition is switched on, the power
locking system switch is enabled.
Electronic immobilizer
The immobilizer prevents your vehicle from being
started by unauthorized persons .
Inside the key there is a computer chip. This chip
automatically activates/deactivates the electron­ ic immobilizer.
Applies to vehicles with ignition lock:
The electronic immobilizer deact ivates automati­
cally when you insert the remote control key into
the ignition lock . It activates again automatically
when you remove the remote control key from
the ignition lock .
Applies to vehicles with convenience key:
If the remote control key is located inside the ve­
hicle and you press the
I START ENGINE STOPI
button , the electronic immobilizer deactivates
automatically. If you switch the ignition off and remove the remote control key from the vehicle,
the electronic immobilizer activates again auto­
matically .
A WARNING
Always take the key with you when you leave
the vehicle. The key can disarm the electronic
eng ine immobi lizer and permit an unauthor­
ized person to start the engine and enable op­
erat ion of the vehicle systems such as power
window or power sunroof leading to serious
personal injury.
Open ing and closing
(D Tips
-The vehicle cannot be started if an unau­
thorized key is used. The vehicle may not
start if another radio device such as a key
for another veh icle or a transponder is lo­
cated on the key ring.
- For Declaration of Compliance to United
States FCC and Industry Canada regulations
¢ page 249.
Luggage compartment
Lid
Opening /closing rear lid
Fig. 24 Rear lid: handle
Opening the rear lid
.. Press the button ~ on the remote control
master key for at least one second . The rear lid
unlocks and opens slightly. Or
.. Press the handle on the rear lid ¢
fig. 24.
Closing the rear lid
.. Pull the rear lid down at the gr ip on the inside
and allow it to drop gently to close it
Q &_.
A WARNING
-After closing the rear lid, always pull up on
it to make sure that it is properly closed.
Otherwise it could open suddenly when the
veh icle is moving.
- To help prevent po isonous exhaust gas from
being drawn into the vehicle, always keep
the rear lid closed while driving . Never
transport objects larger than those which fit
comp letely into the lu ggage area, because
then the rear lid cannot be fully closed. .,._
33

a:,
a:,
...... N
" N ...... 0
0
LL co

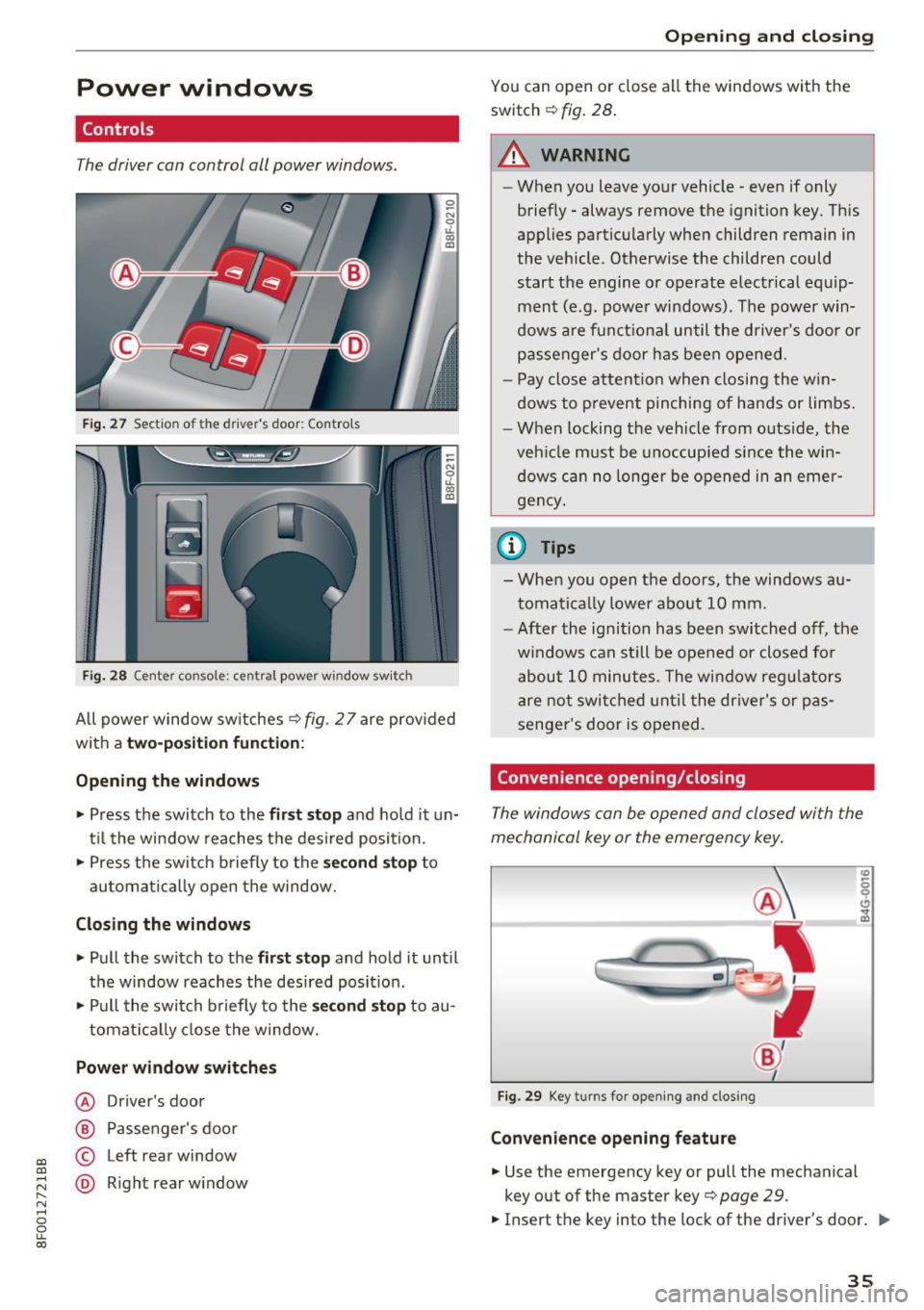

Power windows
Controls
The driver can control all power windows.
Fig. 27 Section of the driver's door: Controls
l
l
f
I
I !
I
Fig. 28 Center console : central power window switch
All power window switches ¢ fig. 2 7 are provided
with a
two-position function:
Opening the windows
"'Press the switch to the first stop and hold it un­
til the window reaches the desired position.
"' Press the switch briefly to the
second stop to
automatically open the window.
Closing the windows
"' Pull the switch to the first stop and hold it until
the window reaches the desired position.
"' Pull the switch briefly to the
second stop to au-
tomatically close the window.
Power window switches
@ Driver's door
@ Passenger 's door
© Left rear window
@ Right rear window
Opening and closing
You can open or close all the windows with the
switch ¢
fig. 28.
.&_ WARNING
-
-When you leave your vehicle -even if only
briefly - always remove the ignition key. This
applies particularly when children remain in
the vehicle. Otherwise the children could start the engine or operate electrical equip­
ment (e.g. power windows). The power win­
dows are functional until the driver's door or
passenger's door has been opened.
- Pay close attention when closing the win­
dows to prevent pinching of hands or limbs.
- When locking the vehicle from outside, the
vehicle must be unoccupied since the win­
dows can no longer be opened in an emer­
gency.
(D Tips
- When you open the doors, the windows au­
tomatically lower about 10 mm.
- After the ignition has been switched off, the
windows can still be opened or closed for
about 10 minutes. The window regulators
are not switched until the driver's or pas­
senger's door is opened.
Convenience opening/closing
The windows can be opened and closed with the
mechanical key or the emergency key.
Fig. 29 Key turns for opening and closing
Convenience opening feature
"'Use the emergency key or pull the mechanical
key o ut of the master key¢
page 29.
.,. Insert the key into the lock of the driver's door . ..,_
35

a:,
a:,
...... N
" N ...... 0
0
LL co
(D Note
-To prevent damage to the power top:
- do not store any objects in the power top
compartment .
- make sure there is enough space above
the vehicle when opening or closing the power top.
- To reduce the risk of damage, make sure
there are no fragile objects within the stor­
age bay's range of motion.
(D Tips
- To prevent the battery from draining, do not
open or close the power top repeatedly
when the engine is switched off.
- A message will appear in the instrument
cluster display if there is a power top mal­
funct ion ¢
page 42.
-The power top can also be operated manual­
l y if there is a malfunction
c:> page 44,
Power top emergency operation. The ca use
of the malfunction should be corrected by
an a uthorized Audi dea ler or authorized re­
pair facility as soon as possible.
- The vehicle is not prote cted from the weath­
er or from unauthorized entry if the vehicle
is left parked with the power top open. Lock
any objects you are leaving in the vehicle in
the luggage compartment. Close the power
top before leav ing the vehicle.
- The side windows lower slightly automati­
cally when opening/closing the power top.
Power top convenience opening/closing
Fig . 35 Remote control key: buttons
Powe r top
Fig. 36 Turning the key to open and close
Conven ienc e opening with the driver's door
l o ck
.,. Press the @ button on the remote control key
to unlock the vehicle .
.,. Tu rn the key once in the driver's door lock to
the opening position @¢
fig. 36.
-0
0
0 ... m
.,. Turn the key to the opening position again
within tw o second s and hold it there until the
power top opens completely.
Convenienc e closing with the dri ver's door
lock
.,. Turn the key once in the driver's door lock to
the closing position @¢
fig. 36.
.,. Turn the key to the closing position again with ­
in tw o second s
and hold it there until the pow ­
er top closes completely .
Releasing the key stops the opening or clos ing
process
imm edi ate ly .
A WARNING
Read and follow the important safety precau­
tions~ .&.
in Opening/closing the power top
on page 40.
41

Power top
Variable power top storage bay
Fig . 37 Luggage compartment: the variable powe r top
storage bay is lowe red
F ig. 38 Luggage compartment : emergency release lever
for t he va riable power top sto rage bay
The variab le power top storage bay lowers auto­
mat ically when the power top opens. To reduce
the risk of damage, make sure the re are no frag­
ile objects w ithin the sto rage bay's range of mo­
tion .
Raising the power top storage bay
• Press the trim in the direct ion of the arrow to
raise the variable power top storage bay
¢ fig . 37.
lowe ring the power top storage bay
manually (emergency operation )
• Open the left side trim and press the release
lever dow n to lowe r th e variable power top
storage bay ¢
fig. 38.
The variable power top storage bay can be raised
when the
pow er top is closed . This provides
mo re ca rgo space in the luggage compa rtment .
The
opened power top i s stored in the storage
bay and protected. The power top bay cannot be
raised when the power top is open. The cargo
area in the luggage compartment is smaller
42
whe n the powe r top is open tha n when it is
closed.
Messages
Convertible top Please close trunk
This message ap pears in the instrume nt cl uster
display if the luggage compa rtment lid is not
closed w hen ope rating the power top. C lose the
lu ggage compartment lid.
Convertible top storage box not lowered . Please
remo ve obstacle
This message appears w hen the power top s to r­
age bay is not lowe re d when opening the power
top.
If the power top storage bay is b locked by
ob jects in t he luggage compartment, remove the
objects that are in the way . If t he power top sto r­
age bay is still not lowered automatically, you
can lower it manually
c:;,poge42.
Convertible top Cannot be used
This message appears if the power top c annot
open or clo se a utomat ically because of safety
reasons o r if the re is a ma lf u nct ion . The follow­
i ng ca uses are possib le:
- Vehicle speed too high : The automatic p ower
t op is deac tiva ted for safe ty reason s if t he ve hi­
cle speed is too high . Red uce the vehicle speed
and try closing/open ing t he power top again.
- Battery voltage too low: The automa tic powe r
top is deactivated i f the battery cha rge level is
too low. You can o pen/close the power top
aga in after start ing the engine .
-Rollover p rotection acti ve: If the power top
runs continuously for a long period of time, the
overload protection will activate for approxi ­
mate ly 15 to 30 minutes. You can open/close
the power top again after that
c:> .&. .
-Malfunction: Failure of system components is
one poss ible cause for ma lfunction. The power
top can be operated manually¢
page 44.
Convertible top not secure
This message ap pears and a warning tone soun ds
if the power top is not completely closed/ open
and t he vehicle speed is above 50 km/h. Reduce .,.

Warm and cold
Warm and cold
Climate control system
Description
The climate control system warms, cools and
adds humidity to the air in the veh icle inter ior. It
is the most effective when the windows and pow­
er top are closed. If there is a bui ld-up of heat in­
side the vehicle, ventilation can help to speed up
the cooling process.
I n all heating mode functions except
defrost, the
b lower only switches to a higher speed once the
engine coolant has reached a certain tempera­
ture .
Condensat ion from the cooling system can drip
and form a puddle of water under the veh icle.
This is normal and does not mean there is a leak.
P ollutant filt er
The pol lutant filte r removes pollutants such as
dust and pollen from the a ir.
The air pollutants filter must be changed at the intervals specif ied in your Warranty
& Mainte­
nance booklet, so that the a ir cond it ioner can
properly work.
If you drive your vehicle in an area with high air pollut ion, the filter may need to be changed
more frequently than specified i n your Aud i War­
ranty
& Maintenance booklet. If in doubt, ask
your author ized Audi Service Advisor for advice.
Ke y cod ed setting s
The climate control settings are automatically
stored and assigned to the remote control key
that is in use . These sett ings are different whe n
the powe r top is open or closed.
_& WARNING
Reduced visibility is dangerous and can ca use
accidents.
6 6
- For safe driving it is very important that all
w indows be free of ice, snow and condensa­
tion.
- Completely familiarize yourself with the
proper use and function of the heating and
ventilation system and especially how to de­
fog and defrost the windows .
- Never use the windshield wiper/washer sys­
tem in freezing weather until you have
warmed the windshield first, using the heat­
ing and vent ilation system . The washe r solu­
tion may freeze on the windshield and re­
duce visibility.
(U;) Note
- If you suspect that the air conditioner has
been damaged, sw itch the system off to
avoid furthe r damage and have it inspected
by a q ualified dealership .
- Repa irs to the Aud i air cond itioner requ ire
special techn ica l know ledge and spec ial
tools. Contact an a uthorized Audi dea ler fo r
assistance .
@ For the sake of the environment
By reduc ing the amo unt of fuel you use, you
a lso red uce the amount of pollutants emitted
into the air.
(D Tips
- Keep the a ir intake slots (in front of the
windshield) free from ice, snow and debr is
in order to maintain the proper function of
the climate control system .
- The energy managemen t sys tem may sw itch
the seat heating * or rear window defroster
off temporarily. These systems are available
again as soon as the energy balance has
been restored.
- Air escapes through vents under the rear
window. When placing items of clothing on
the luggage compartment cover, ensure
that the openings are not covered.

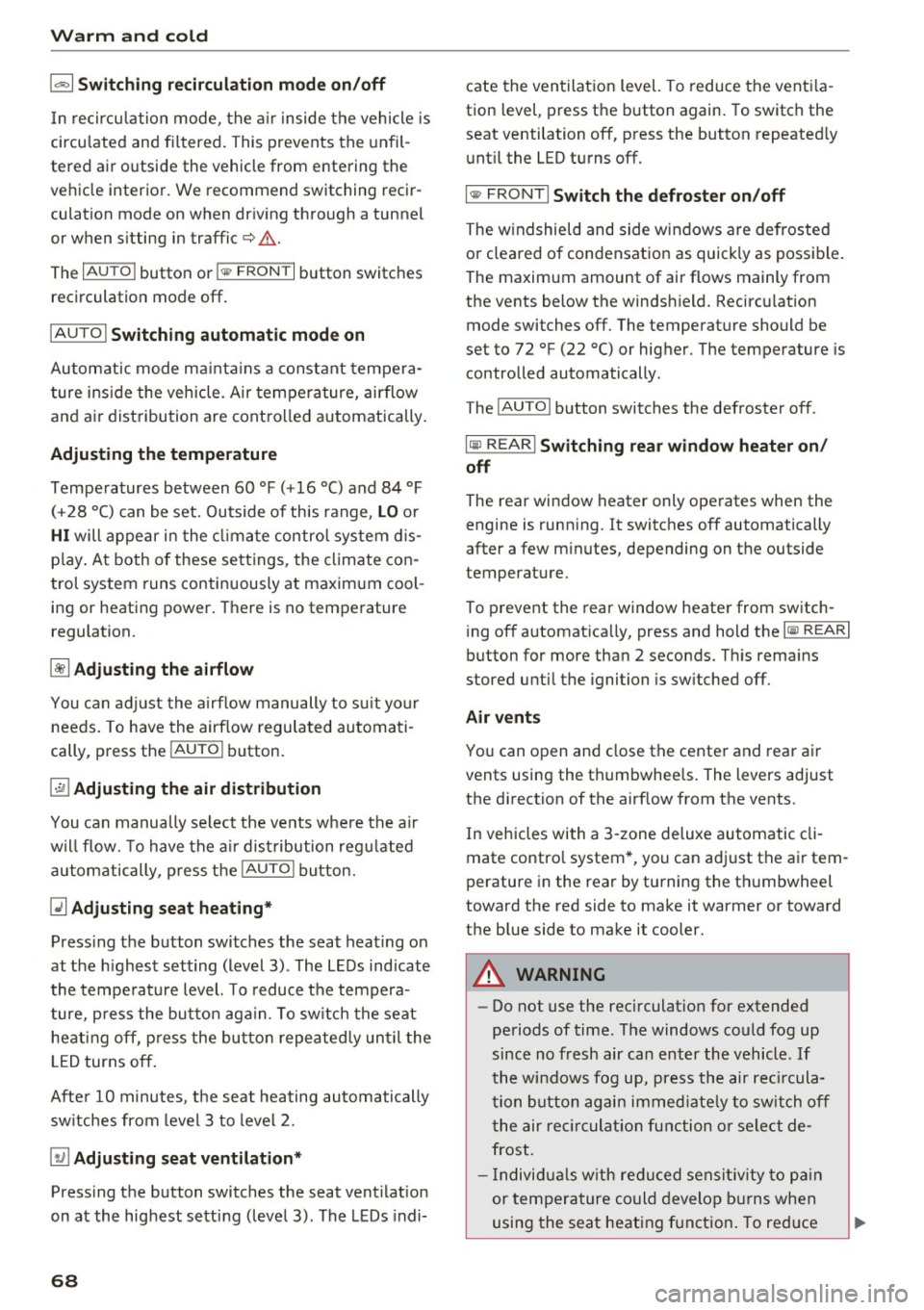

Warm and cold
1- 1 Switching recirculation mode on/off
In r ecirculation mode, the air inside the vehicle is
circu lated and filtered. This prevents the unfil­
tered air outside the vehicle from entering the
ve hicl e interior. We recommend switching recir­
culation mode on when driving through a tunnel
or when sitting in traffic¢.&,.
The
IAUTOI button or l recirculation mode off.
IAUTO I Switching automatic mode on
Automatic mode maintains a constant tempera­
ture inside the vehicle. Air temperature, airflow
and air distribution are controlled automatically.
Adjusting the temperature
Temperatures between 60 °f (+16 °C) and 84 °f
( + 28 °C) can be set. Outside of this range,
LO or
HI will appear in the climate control system dis­
p la y. At both of these settings, the climate con­
trol system runs continuously at maximum cool ­
ing or heating power. There is no temperature
regulation.
~ Adjusting the airflow
You can adjust the airflow manually to suit your
needs. To have the airflow regulated automati­
cally, press the
IAU TO I button.
~ Adjusting the air distribution
You can manually select the vents where the air
will flow. To have the air dist ribution regulated
automatically , press the
IAU TO I button.
QJ Adjusting seat heating*
Pressing the button switches the seat heating on
at the highest setting (level 3) . The LEDs indicate
the temperature level. To reduce the tempera­
ture, press the button aga in. To switch the seat
heating off, press the button repeated ly until the
L ED turns off.
After 10 minutes, the seat heating automatically
switches from level 3 to level 2.
~ Adjusting seat ventilation*
Pressing the button switches the seat vent ilation
on at the highest setting (level 3). The LEDs indi-
68
cate the ventilation level. To reduce the venti la­
tion level, press the button again. To switch the
seat ventilation off, press the button repeatedly
until the LED turns off.
I@ FRONT I Switch the defroster on/off
The windshield and side windows are defrosted
or cleared of condensation as quick ly as possible.
The maximum amount of air f lows mainly from
the vents below the windshield. Recirculation
mode switches off. The temperature should be
set to 72 °f (22 °C) or higher. The temperature is
controlled automatically.
The
! AU TOI button switches the defroster off.
lliil REAR I Switching rear window heater on/
off
The rear window heater only operates when the
engine is running. It switches off automatically
after a few m inutes, depending on the outside
temperature.
To prevent the rear window heater from switch­
ing off automatica lly, press and hold the
loo REARI
button for more than 2 seconds. T his remains
stored until the ignition is sw itched off.
Air vents
You can open and close the center and rear air
vents using the thumbwheels. The levers adjust
the direction of the airflow from the vents.
In vehicles with a 3-zone deluxe automatic cli­
mate contro l system*, you can adjust the air tem­
perature in the rear by turning the thumbwheel
toward the red side to make it warmer or toward
the blue side to make it cooler.
A WARNING
- Do not use the rec irculat ion for extended
periods of time. The windows could fog up
since no fresh air can enter the vehicle . If
the windows fog up, press the air recircula­
tion button again immediate ly to switch off
the air recirculat ion function or select de­
frost.
- Individuals with reduced sensitiv it y to pain
or temperature could develop burns when
using the seat heating function. To reduce
-
