AUDI A5 COUPE 2010 Workshop Manual

& WARNING
• Do not leave children unattended in the vehicle, especially with
access to vehicle keys. Unsupervised use of the keys can result in
starting of the engine and use of vehicle systems such as power
windows, etc. which could result in serious injury.
• Remember -you can still open or close the power windows for
about ten minutes after the ignition is switched off. Only when
either of the doors are opened are the power windows switched
off.
• Be careful when closing the windows . Check to see that no one
is in the way, or serious injury could result!
• Always remove the ignition key whenever you leave your
vehicle.
• If you lock your vehicle from the outside, no one, especially chil­
dren, should remain in the vehicle.
• Do not stick anything on the windows or the windshield that
may interfere with the driver's field of vision.
[ i) Tips
• When you open the doors, the windows automatically lower
about 10 mm .
• Afte r the ignition has been switched off , the windows can still be
opened or closed for about 10 minutes . The window regulators are
not switched until the driver's or passenger 's door is opened. •
Controls and equip ­
ment
Opening and closing
Convenience opening /closing
The windows and the panoramic tilting sunroof can be
opened and closed with the mechanical key or the emer­
gency key.
Convenience opening feature
~ N 0
"' "' m
Fig. 46 Key turns for
opening and closing
- Use the emergency key or pull the mechanical key out of
the master key::} page
40.
- Insert the key into the lock of the driver's door.
Turn the key to position ::} fig. 46
@ until all the
windows have reached the desired position and the
panoramic tilting sunroof is tilted.
Convenience closing feature
-Use the emergency key or pull the mechanical key out of
the master key::} page
40.
Turn the key in the lock of the driver's door to the lock
position @ until the windows and the panoramic tilting
sunroof are closed::}& .
When the panoramic tilting sunroof is tilted/closed, the electric sun
shade * is also opened /closed. ._
I • •

Opening and closing
& WARNING
• Never close the windows and thepanoramic tilting sunroof
inattentively and without checking -there is risk of injury.
• You must always watch when the windows are being raised so
that no one can be trapped. If you release the key, the closing
action is immediately canceled.
• Always read and heed WARNING~
& in "General description"
on
page 41 . •
Correcting window regulator malfunction
After disconnecting the vehicle battery, the one-touch up
and down feature must be activated again.
- Pull and hold the power window switch until the window
is completely closed.
- Release the switch.
- Pull the switch again for one second. The automatic closing/opening is now reactivated. •
Valet parking
Through the "valet parking" feature the luggage compart­
ment of your vehicle is secured from unauthorized access
during the valet parking service.

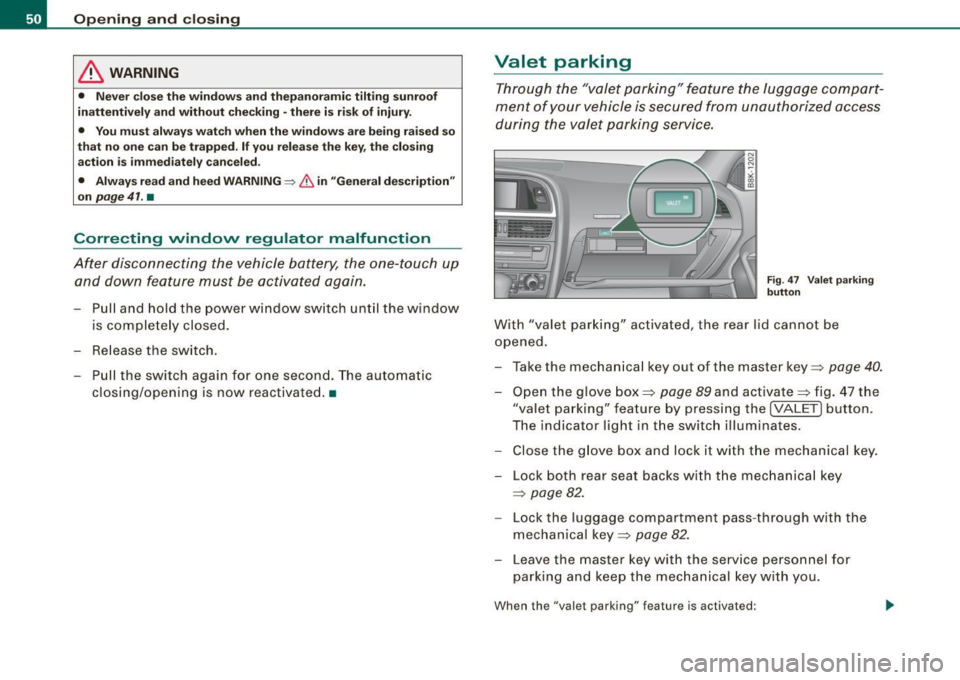

Fig . 47 Valet parking
button
With "valet parking" activated, the rear lid cannot be
opened.
- Take the mechanical key out of the master key=>
page 40.
- Open the glove box=> page 89 and activate => fig. 47 the
"valet parking" feature by pressing the [VALET] button.
The indicator light in t he switch illuminates.
- Close the glove box and lock it with the mechanical key.
- Lock both rear seat backs with the mechanical key
=> page 82.
-Lock the luggage compartment pass -through with the
mechanical key=>
page 82.
-Leave the master key with the service personnel for
parking and keep the mechanical key with you.
When the "valet parking" feature is activated:

• the unlocking button for the rear lid~ in the driver's door is
inactive
• the button
~ on the master key is inactive
• the opening hand le in the rear lid is inactive.
T he vehic le can be driven and locked and unlocked with the master
key. Access to the luggage compartment is blocked. •
Panoramic tilting sunroof
Tilting and closing
""' CT;B ,;;.
;i N 0 ,;
"' CX)
Fig. 4 8 Sec tio n of
he adlin er: Sw itch fo r
pa noram ic til ting
s u nro of
To tilt the panoramic t ilting sunroof, press the switc h
brie fly.
To close the panoramic tilting sunroof, pu ll the sw itch
brie fly.
To set an intermediate position, press/pull the switch until the roof reaches the desired position.
After the ignition is switched off, you can sti ll operate the Panorama
for about 10 minutes . As soon as the driver's or passenger's door is
opened, the switch is inoperative.
Con tro ls and eq uip­
ment
Op ening and clo sing
S un blind
The sun b lind can be opened and closed manually in any position .
& WARNING
Pay careful attention when clo sing the panoramic tilting sunroof -
other wise seriou s injury could re sult! For t his r easo n, a lwa ys
remove the ignition key when leaving the vehi cle.
• Never le ave children or per sons requiring a ssist ance alone in
the v ehicle , e spe cially when they cou ld acce ss the vehi cle ke ys.
Un supervised use of the ke ys c an re sult in the engine being
s ta rted or use of vehicle system s such as the pow er windows, etc.
whi ch co uld r esult in serio us injur y. The door s could b e locked
with th e re m ote ke y, del aying h elp in an em ergency .
• The panor ami c tilting sunro of w ill continue to operate until the
igniti on ke y has been r em oved and one of th e front d oors ha s been
o pened .
0 Note
Always close your panoramic tilting sunroof when leaving your
vehicle . Sudden rain can cause damage to the interior equipment of
your vehicle, particularly the electronic equipment.
[ i ] Tip s
• Information on convenience opening/closing=> page 49. •
Vehicle care I I irechnical data

Opening and closing
Emergency closing of the panoramic tilting
sunroof
The panoramic tilting sunroof can be closed manually in
an emergency.
"' "' N 0 ,;
"' (D

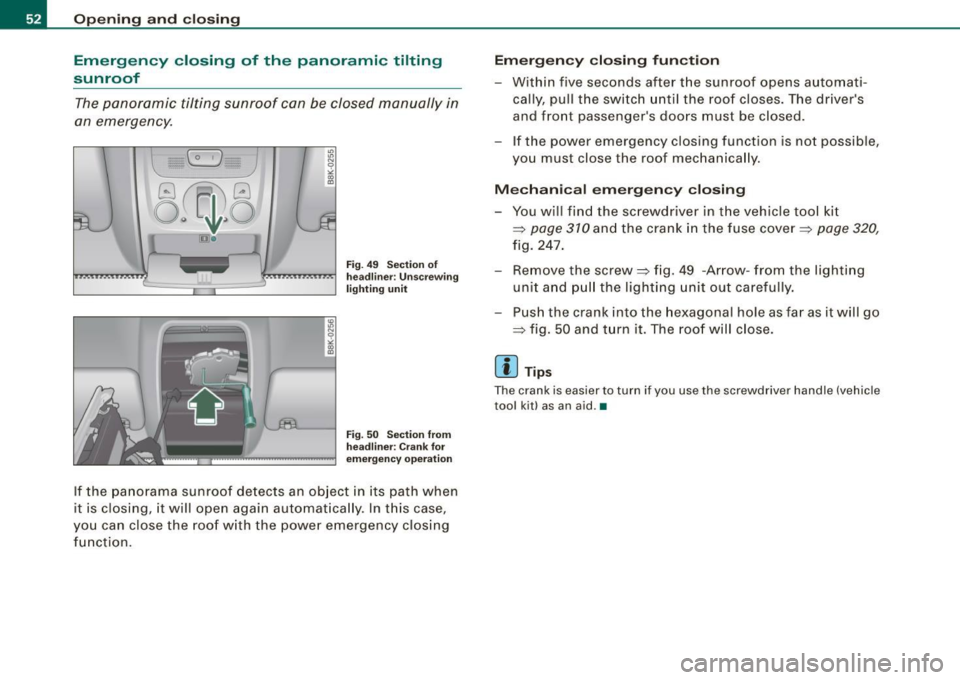

Fig. 49 Section of
. .. . ..... ..• . ... .. . ..•.. ...• headliner : Unscrewing
L._--==~~=--__:; lighting unit
Fig . 50 Section from
headliner: Crank for
emergency operation
If the panorama sunroof detects an object in its path when
it is closing, it will open again automatically. In this case,
you can close the roof with the power emergency closing
function.
Emergency closing function
- Within five seconds after the sunroof opens automati ­
cally, pull the switch until the roof closes. The driver's
and front passenger's doors must be closed.
- If the power emergency closing funct ion is not possible,
you must close the roof mechanically .
Mechanical emergency closing
-You will find the screwdr iver in the vehicle tool kit
=;> page 310 and the crank in the fuse cover::::;> page 320,
fig. 247.
- Remove the screw ::::;> fig. 49 -Arrow- from the lighting
unit and pull the lighting unit out carefully.
- Push the crank into the hexagonal hole as far as it will go
::::;> fig. 50 and turn it. The roof will close.
Ii ] Tips
The crank is easier to turn if you use the screwdriver handle (vehicle
tool kit) as an aid .•

Clear vision
Lights
Switching the lights on and off -'t.5--
0 9
" l8
Fig. 51 Ins trument
pane l: H eadlight
co ntr ol sw itch
Switching on AUTO -Automatic headlight
control*
- Tur n t he light switch to AUTO => fig. 51 .
Turning on the side marker lights
-Tur n t he head light co ntrol switc h to :oo~.
Switching on low beams
- Tu rn t he headlight contro l sw itc h to ~D.
Switching off the lights
- Tur n t he headlight control switc h to 0.
The low beams only il luminate with the ignition turned on.
With the side marker lights or headlights switched on, the symbol next to t he light switch illuminates
::oo: .
Con tro ls and eq uip­
ment
Clear vision
A UTO -Automat ic headlight contro l*
With the switch in the AUTO position, the low beams are switched
on automatically depending on the ambient ligh t, for e xample in a
tunnel, at dusk and when it is raining or snowing. When the low
b ea ms are switche d on, th e
:oo : symbol comes on . The low beams
remain switched on regardless of the ambient light when you turn
on the fog lights .
When you turn off the ignition, the low beams are automatica lly
switched off .
On vehicles with a rain senso r* the head ligh ts switch on au tomat i­
cally after a few windshield wiper passes. However, the instrument
lighting will n ot be switched on.
With automatic headligh t control, you a lso have the high-beam
function available . However, if you have not switched high beams
back to low beams wh ile driving with automatic headlight control,
only the low beams come on the next time you turn on automatic
head light control. In order to return to high beams again, you f irst
have to pul l the high beam lever back to the normal position and
t hen pu sh the lever forward .
Light sens or* m alfun ctio n
In the event of a ligh t sensor* malfunct ion, the driver is no tifi ed in
the instrument cluster display:
Automatic driving light s/autom atic wiper s defective
For safety reasons, the low beams are turned on permanently with
the switch in
AUTO . However, you can continue to turn the lights on
and o ff using the light switch. Have the light sensor checked as soon
as possible at an authorized Audi dealer or other qualified work -
shop .
~
Vehicle care I I irechnical data

Clear vision
& WARNING
Automatic headlights are only intended to assist the driver. They do not relieve the driver of his responsibility to check the head­
lights and to turn them on manually according to the current light
and visibility conditions. For example, fog cannot be detected by
the light sensors. So always switch on the headlights under these
weather conditions and when driving in the dark
tD .
[ i ) Tips
• The light sensor* for headlight control is located in the rear view
mirror mount. You should therefore not apply any stickers to the
windshield in this area in order to prevent malfunctions or failures.
• The sensitivity level for the light sensor* set at the factory can be
changed in the MMI* menu ~
page 55 in the automatic driving
lights function.
• When you remove your key from the ignition while the vehicle's
lights are turned on, a buzzer sounds as long as the driver's door is
open.
• Please obey all laws when using the lighting systems described
here.
• The coming home/leaving home function* is available only with
the switch in the AUTO position. •
Fog lights
Fig. 52 Fog light
switch
To turn on the fog lights }D, press button (D => fig. 52.
- To turn on the rear fog lights
Ot press button @.
Fog lights
The side marker lights or low beams must be switched on. When the
fog lights are switched on, the green check light at the edge of the
switch comes on.
If automatic driving light control AUTO is activated, the low beams
are switched on when the fog lights are turned on.
Rear fog lights
Low beams or side marker lights with fog lights must be turned on.
When the rear fog lights are turned on, the yellow check light at the
edge of the switch comes on.
0 Note
The rear fog lights should only be turned on in accordance with
traffic regulation, as the lights are bright for following traffic. •

Adjusting exterior lighting
The functions are selected in the radio or MM/*.
Fig. 53 MMI Display:
Exterior l ighting
-Select: Function button [CAR]> Exterior lighting .
Coming home*
The coming home function ensures that after
turning off the igni ­
tion and opening the driver's door
the vehicle periphery is illumi ­
nated in the dark. In addition, the front fog lights, the tail lights and
the license plate light are turned on. The power-on time can be set
for a period from
O (off) to 30 or 60 seconds.
Leaving home*
The leaving home functions ensures that
when unlocking, the
vehicle periphery is illuminated in the dark. In addition, the front fog
lights, the tail lights and the license plate light are turned on. This
function can be turned on and off.
Auto headlights*
When the light switch is in the AUTO~
page 53 position, the switch­
on point of the lights can be changed in the automatic driving light
function.
Controls and equip ­
ment
Clear vision
Daytime running lights
The daytime running lights can be turned on or off using this func ­
tion. If the function is active, the daytime running lights are turned
on automatically when the ignition is switched on.
[ i] Tips
The coming home/leaving home function * is available only with the
switch in the AUTO position . •
Daytime running lights
When you turn on the ignition the daytime running lights
will come on automatically .
USA models
The daytime running lights are activated when the light switch
~ page 53, fig. 51 is in the O position or the AUTO position (only in
daylight conditions). The daytime running lights function can be
turned on and off in the radio or
MMI* menu Exterior lighting
~ page 55.
Canada models
The daytime running lights are activated when the light switch
~ page 53, fig. 51 is in the O position, ooo: position or the AUTO posi­
tion (only in daylight conditions). The daytime running lights func­
tion cannot be turned off.
& WARNING
Never use daytime running lights to see where you are going. They
are not bright enough and will not let you see far enough ahead for
safety, especially at dusk or when it is dark. Be aware of changes
in outside light conditions when you are driving and respond by
switching on your low beams
io. ~
I • •

Clear vision
0 Note
Always be aware of changes in outside light conditions while you
are driving. Respond in time to fading daylight by turning the light
switch to position
gO (or "AUTO") to turn on your headlights. •
Instrument lighting
The basic brightness of the illumination for the instru ­
ments, the center console and the display can be
adjusted.
Press the knob to release it.
Fig. 54 Instrument
lighting
- Rotating the knob to the right"+" will increase the basic
brightness when it is dark.
Rotating the knob to the left" -" will decrease the basic
brightness when it is dark.
- Pressing the knob will prevent unintentiona l changes.
0 Note
The instrument cluster and center console illumination (gauges and
needles) comes on when you switch on the ignition and the
vehicle headlights are off
.
Be aware of the following difference between
models built to US or Canadian specifications:
• USA models: illumination of the instrument cluster (gauges and
needles), dash and center console around the gearshift lever is
controlled by a light sensor located in the instrument panel. The
instrument panel illumination will automatically become dimmer
as the daylight fades away and eventually will go out completely
when outside light is very low. This is to remind you, the driver, to
switch on the headlights before it gets too dark.
• Canada models: instrument panel illumination will stay bright
regardless of the intensity of ambient light . Always be aware of
changes in outside light conditions while you are driving. Respond
in time to fading daylight by turning the light switch to position
gD
(or "AUTO" if your car is equipped with this feature) to turn on your
headlights. •
Applies to vehicles : w ith xenon head ligh ts
Xenon headlights
After starting the engine, the xenon headlights are automatically
adjusted to the load and angle of the vehicle (for example, during
acceleration and braking!. This prevents oncoming traffic from
experiencing unnecessary headlight glare from your xenon head­
lights.
If the system is not operating properly, a warning symbol in the
Auto-Check Control is displayed
:::::> page 36. •

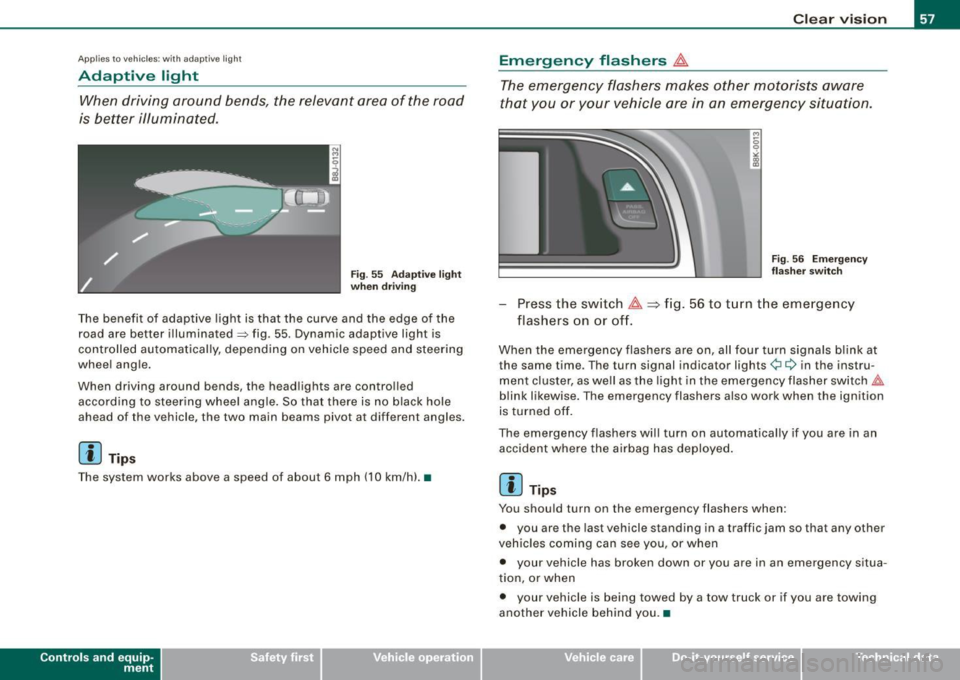

Applies to veh icles : w ith ad aptive light
Adaptive light
When driving around bends, the relevant area of the road
is better illuminated.
Fig. 55 Adaptive light
when driving
The benefit of adaptive light is that the curve and the edge of the
road are better illuminated~ fig. 55 . Dyna mic adaptive light is
controlled automatically, depending on vehicle speed and steering
wheel angle.
When driving around bends, the head lights are controlled
according to steering wheel angle . So that there is no black hole
ahead of the vehicle, the two main beams pivot at different angles.
[ i ] Tips
Th e system works above a speed of about 6 mph (10 km/hl. •
Contro ls and eq uip­
ment
Clear vision
Emergency flashers
&.
The emergency flashers makes other motorists aware
that you or your vehicle are in an emergency situation.
Fig. 56 Emergency
flasher switch
Press the switch ~=>fig. 56 to turn the emergency
flashers on or off.
When the emergency flashers are on, all four turn signals blink at
the same time. The turn signal indicator lights¢¢ in the instru­
ment cluster, as well as the light in the emergency flasher switch
fftt.
blink likewise. The emergency flashers also work when the ignition
is turned off.
The emergency flashers will tu rn on automatically if you are in an
accident where the airbag has deployed .
[ i ] Tips
You should turn on the emergency flashers when :
• you are the last vehicle standing in a traffic jam so that any other
vehicles coming can see you, or when
• your vehicle has broken down or you are in an emergency situa­
t io n, or when
• your vehicle is being towed by a tow truck or if you are towing
another vehicle behind you.•
Vehicle care I I irechnical data

Clear vision
Turn signals -
¢ ¢ and high beam j[D lever
The lever on the left side of the steering column is used to
operate the turn signals and the high beam as well as the
headlight flasher.
Fig . 57 Turn signal and
high beam lever
The turn signal and high beam lever has the following func ­
tions:
Turn signals ¢ Q G) ®
- Push the lever up as far as it can go to turn on the right
turn signal or down to turn on the left turn signal
=> fig. 57.
- Move the lever briefly until you meet resistance and
release it to flash three times.
- Move the lever (up or down) until you meet resistance
and hold it there to determine the flashing time for the
turn signals.
High beam ~D 0
- Push the lever forward to switch on the high beam.
- Pull the lever back towards you to switch off the high
beam.
Headlight flasher ~D ©
- Pull the lever toward the steering wheel to use the head ­
light flasher.
Notes on these features
• The turn signals only work with the ignition turned on. The indi­
cator lights ¢ or¢ in the instrument cluster also blink.
• After you have turned a corner, the turn signal switches off auto ­
matically.
• The
high beam works only when the headlights are on. The indi ­
cator light [D in the instrument cluster illuminates when the high
beams are on.
• The
headlight flasher works only as long as you hold the lever -
even if there are no lights switched on. The indicator light [D in the
instrument cluster illuminates when you use the headlight flasher .
0 Note
Do not use the high beam or headlight flasher in if you know that
these could be blinding oncoming traffic. •
