& WARNING !continued)
• When you transport heavy objects, always remember that a
change in the center of gravity may result in a change in the
vehicle's handling characteristics.
• Follow all warnings=>
page 168, "Driving Safely" .
[ i] Tips
The tire p ressu re must be adjusted to the load -see the tire p ressure
st icker on the edge of the driver's door. •

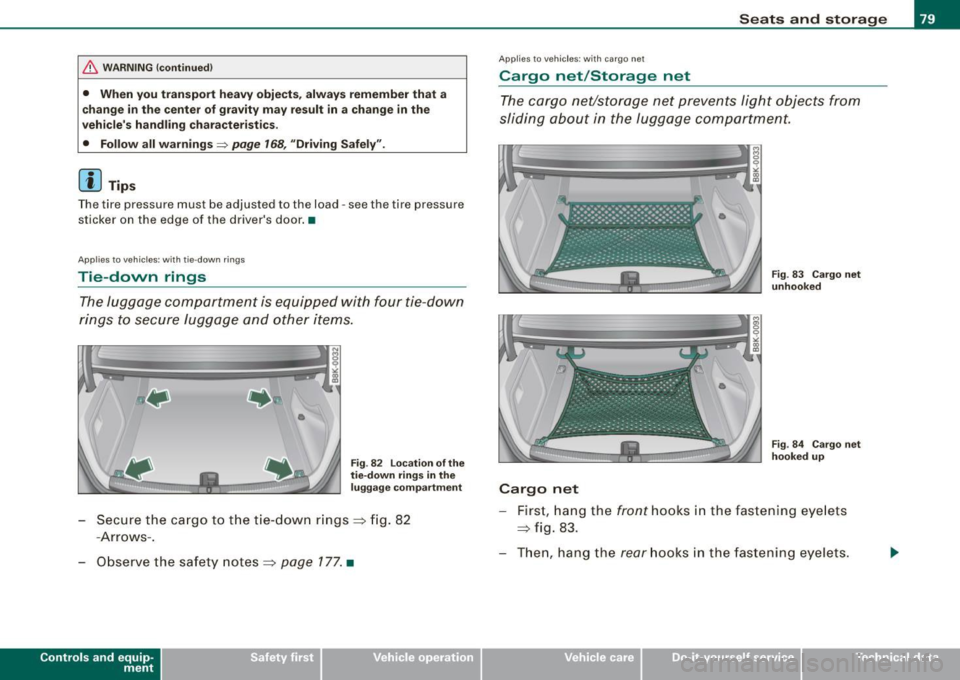

Applies t o ve hicles: w it h tie -do wn rings
Tie-down rings
The luggage compartment is equipped with four tie -down
rings to secure luggage and other items.
Fig . 82 Location of the
tie-down rings in the luggage compartment
Secure the cargo to the tie-down rings => fig. 82
-A rrows- .
Observe the safety notes =>
page 177. •
Contro ls and eq uip­
ment
Seats and storage
A pp lies to vehicles: with ca rgo net
Cargo net /Storage net
The cargo net/storage net prevents light objects from
sliding about in the luggage compartment.
Cargo net
Fig . 83 Cargo net
unhooked
Fig . 84 Cargo net
hooked up
- First, hang the front hooks in the fastening eyelets
::::> fig. 83 .
- Then, hang the
rear hooks in the fastening eyelets.
Vehicle care I I irechnical data

Seats and stor ag e

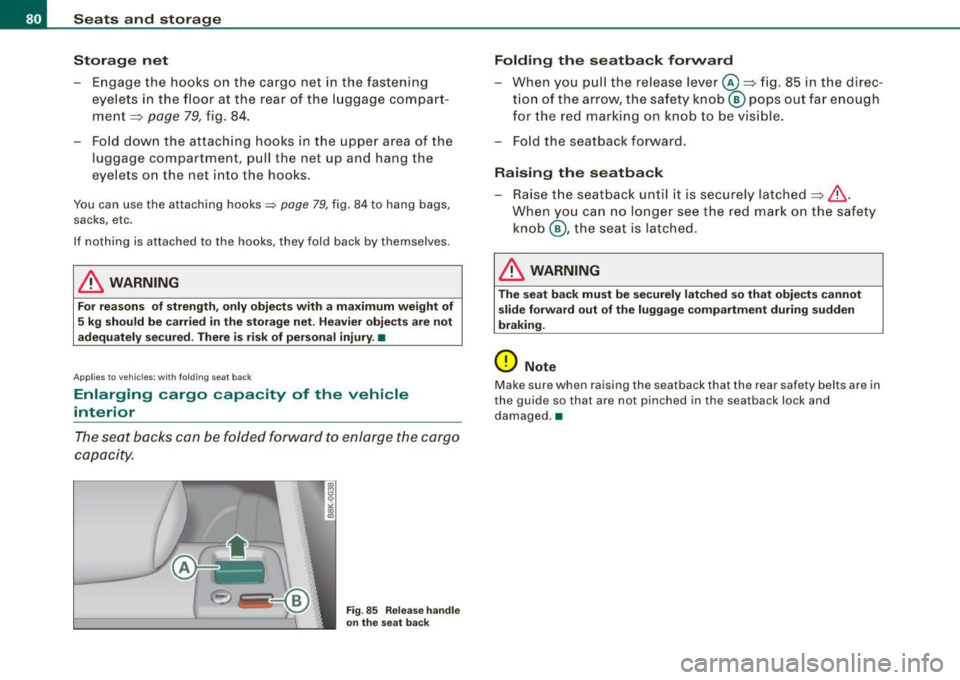

St orage n et
- Engage the hooks on the cargo net in the fastening
eyelets in the f loor at the rear of the l uggage compart ­
me nt
~ page 79, fig . 84 .
Fo ld down the attaching hooks in t he upper area of the
luggage compartment, pull the net up and hang the
eyelets on the net into the hooks .
You can use the attaching hooks~ page 79, fig. 84 to hang bags,
sacks, etc.
If nothing is attached to the hooks , they fold back by themselves.
& WARNING
Fo r rea sons of str ength , only o bjects wit h a m axim um weight of
5 kg should b e carri ed in the sto rag e net . H ea vier obje cts a re not
a d equ atel y s ecur ed . T here is risk of p ers onal inj ury. •
Ap plies to vehicle s: with fo lding s ea t b ack
Enlarging cargo capacity of the vehicle
interior
The seat backs can be folded forward to enlarge the cargo
capacity.
Fi g. 85 Release handle
on the seat bac k
Folding th e se atback forward
- When you pull the release lever@~ fig. 85 in the direc ­
tion of the a rrow, the safety knob© pops out far enough
for the red mar king on knob to be vis ible .
- Fo ld the seatback forward .
Raising the seatback
- Ra ise t he seatback un til it is securely latched~& .
When yo u can no longer se e the red ma rk o n the safety
knob @, the seat is latched.
& WARNING
The sea t ba ck mu st be securely l atc h ed so that obje cts c annot
s lide for ward out of the luggage compartm ent during sudd en
br ak ing.
0 Note
Make sure when raising the seatback that the rear safety belts are in
the guide so that a re not pinched in the seatback lock and
damaged. •

Applies to vehi cle s: wi th fo ldi ng seat bac k

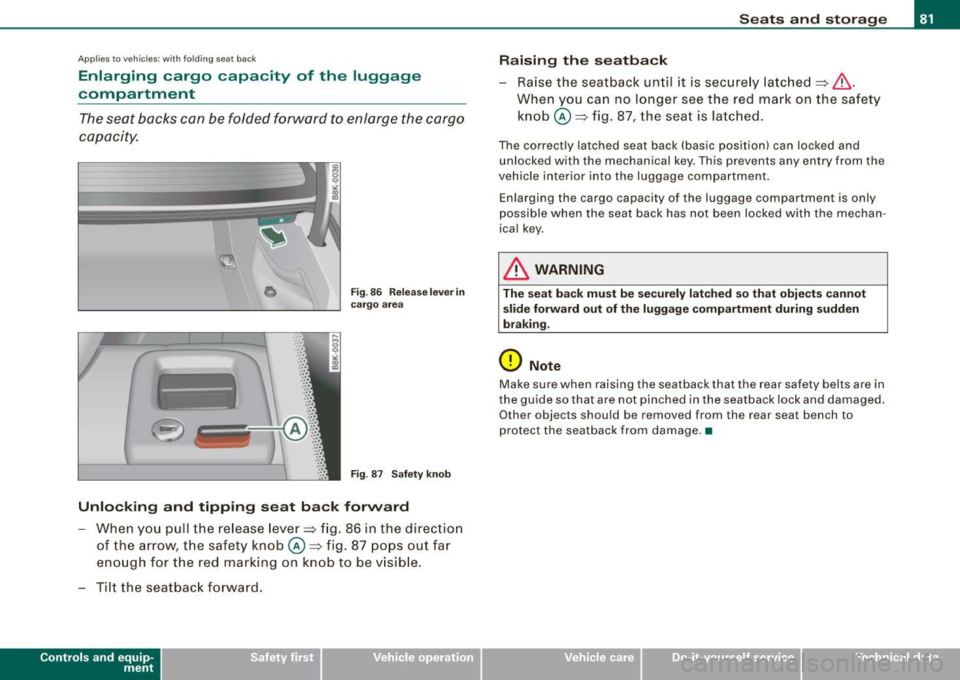

Enlarging cargo capacity of the luggage
compartment
The se at backs can be folded f orw ard to enl arge the c argo
c ap acity.
0 Fi g. 86 Relea se lev er in
car go ar ea
Fig . 8 7
S afet y k nob
Unlocking and tipping seat back forward
-When y ou pu ll the re le a se lev er=? fig. 86 in the di rec tion
of th e arr ow, t he safe ty knob @~ fig. 87 pops ou t far
eno ugh for t he re d markin g on kno b to be visib le.
- Tilt th e sea tb ac k f orwa rd .
Con tro ls and eq uip­
ment
Seats and storag e
Raising the seatback
- Raise the seatback un til it is secure ly la tc h ed =? &.
When you can no lon ger see the red mark on the safety
knob @~ fig. 87, the sea t is l atch ed .
The correctly latched seat back (basic position) can locked and
unlocked with the mechanical key . This preven ts any entry from the
vehicle interior into the luggage compartment .
Enlarging the cargo capacity of the luggage compartment is only
possible when the seat back has not been locked with the mechan ­
ica l key.
& WARNING
The seat back must be se curely lat ched so that obje cts cannot
s lide forward out of the luggage compartment during sudden
braki ng.
0 Note
Make sure when raising the seatback that the rear safety be lts are in
t he guide so that a re not pinched in th e sea tback lock and damaged .
Other objects should be removed from the rear seat bench to
protect the seat back from damage. •
Vehicle care I I irechnical data

Seats and storage
Applies to vehicles: wi th fo lding seat back

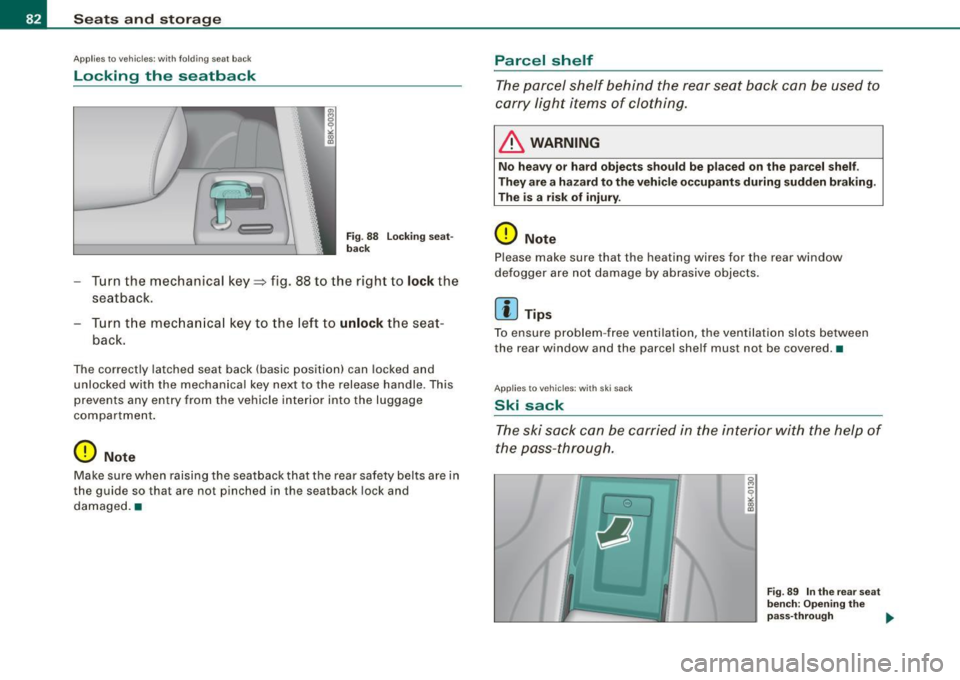

Locking the seatback
Fig. 88 Locking seat­
back
- Turn the mechanical key~ fig . 88 to the right to lock the
seatback.
- Turn the mechanical key to the left to
unlock the seat­
back.
The correctly latched seat back (basic position) can locked and
unlocked with the mechanical key next to the release handle . This
prevents any entry from the vehicle interior into the luggage
compartment.
0 Note
Make sure when raising the seatback that the rear safety belts are in
the guide so that are not pinched in the seatback lock and
damaged. •
Parcel shelf
The parcel shelf behind the rear seat bock con be used to
carry light items of clothing.
& WARNING
No heavy or hard objects should be placed on the parcel shelf.
They are a hazard to the vehicle occupants during sudden braking.
The is a risk of injury.
0 Note
Please make sure that the heating wires for the rear window
defogger are not damage by abrasive objects.
[ i ] Tips
To ensure problem -free ventilation, the ventilation slots between
the rear window and the parcel shelf must not be covered. •
Applies to vehicles: with ski sack
Ski sack
The ski sock con be carried in the interior with the help of
the poss-through.
e
Fig. 89 In the rear seat
bench: Opening the
pass-through
~

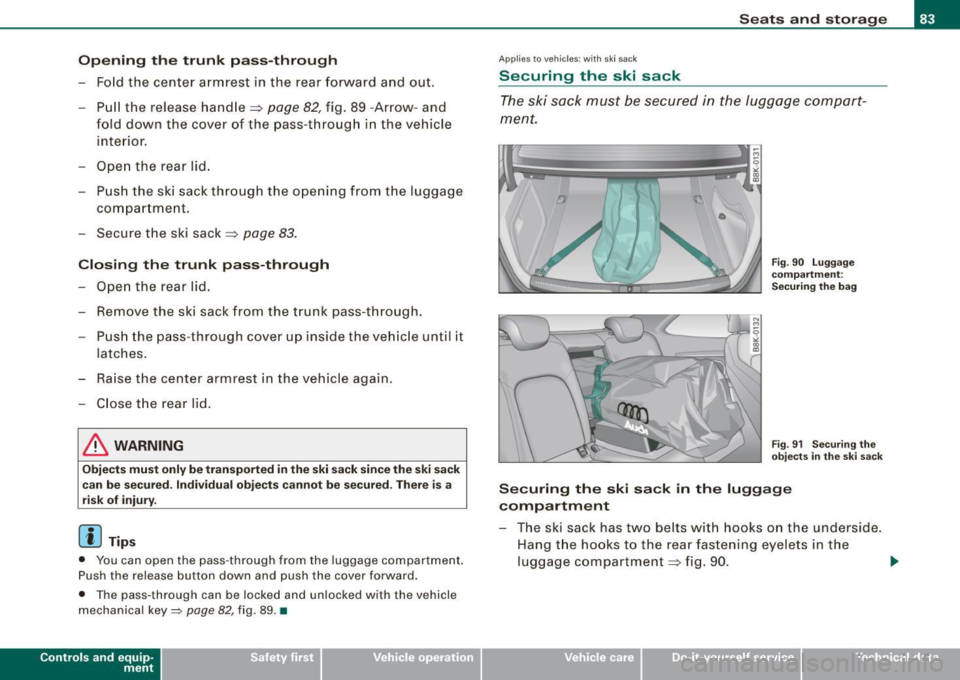

Opening the trunk pass-through
-Fold the center armrest in the rear forward and out .
- Pull the release handle=:> page
82, fig. 89 -Arrow- and
fold down the cover of the pass-through in the vehicle interior.
- Open the rear lid.
- Push the ski sack through the opening from the luggage
compartment.
- Secure the ski sack => page
83.
Closing the trunk pass-through
- Open the rear lid.
- Remove the ski sack from the trunk pass-through.
- Push the pass-through cover up inside the vehicle until it
latches.
- Raise the center armrest in the vehicle again .
- Close the rear lid .
& WARNING
Objects must only be transported in the ski sack since the ski sack
can be secured. Individual objects cannot be secured. There is a
risk of injury.
[ i] Tips
• You can open the pass -through from the luggage compartment.
Push the release button down and push the cover forward.
• The pass -through can be locked and unlocked with the vehicle
mechanical key:::::, page
82, fig. 89 . •
Con tro ls and eq uip­
ment
A pp lies to vehicles: wit h ski sa ck
Securing the ski sack
Seats and storage
The ski sack must be secured in the luggage compart­
ment.
Fig . 90 Luggage
compartment :
Securing the bag
Fig . 91 Securing the
objects in the ski sack
Securing the ski sack in the luggage
compartment
- The ski sack has two belts with hooks on the underside.
Hang the hooks to the rear fastening eyelets in the
luggage compartment => fig. 90.
Vehicle care I I irechnical data

Seats and storage

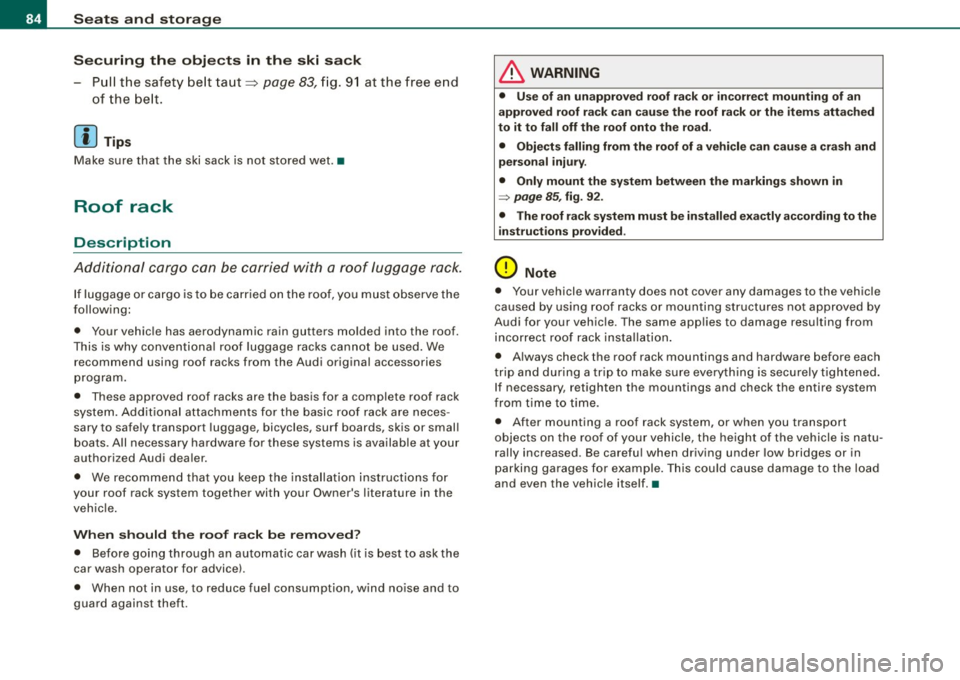

Securing the objects in the ski sack
- Pull the safety be lt taut=> page 83, fi g. 91 at the free e nd
of the be lt.
[ i J Tips
Make sure that the ski sack is not stored wet. •
Roof rack
Description
Additional cargo can be carried with a roof luggage rack.
If luggage o r cargo is to be carr ied on the roof, you must observe the
following:
• Your vehic le has aerodynamic rain gutters mo lded into the roof.
This is why co nventiona l roof luggage rac ks cannot be used . We
recommend using roof racks from the Audi original accessories
program.
• These approved roof racks are the basis fo r a complete roof rack
system . Addit ional attachments for the basic roof rack are neces ­
sary to safely transport luggage, bicycles, surf boards, skis or smal l
boats. All necessary ha rdware for these sys tems is available at your
authorized Audi dealer.
• We rec ommend tha t you keep the installation instructions for
your roof rack system together with your Owner's literature in the
vehic le .
When should the roof r ack be removed?
• Before goin g through an automat ic car wash (it is best to ask the
car wash operator for advice).
• When not in use, to reduce fue l consumption, wind noise and to
guard against theft.
& WARNING
• Use of an unappro ved roof rack o r in correct mounting of an
approved roof r ack can cause the roof rack or the items attached
to it to fall off the roof onto the road .
• Objects falling from the roof of a vehi cle can cau se a crash and
person al injur y.
• Only mount the system between the markings shown in
=> page 85 , fig . 92 .
• The roof rack sy stem mu st be in stalled e xactly according to the
instruct ions provided .
0 Note
• Your vehicle warranty does not cover any damages to the vehicle
caused by using roof racks or mounting structures not approved by
Audi for your vehicle. The same app lies to damage resulting from
incorrect r oof rac k in sta llation .
• Always check the roof rack mountings and hardware before each
trip and du ring a tr ip to make su re everything is securely tightened.
I f necessary, retighten the mountings and check the entire system
from time to time.
• After mounting a roof rack system, or when you transport
objects on the roof of your vehicle, the he ight of the vehicle is nat u­
rally increased . B e carefu l when driving under low bridges or in
parking garages for example . This could cause da mage to th e lo ad
and even the vehic le itself .•

Mounting points
The roof r ack must be a ttached onl y at the loc ations
marked .
Installation
Fig . 92 Mou ntin g lo ca­
tion s for r oof rac k
When ins tall ing the front fee t, make sure that they are p ositioned
exactly on the positioning bolts provided @between the side panel
and the upper roof frame=> fig. 92. The bol t is visible as soon as you
push back the seal from the upper roof frame us ing the insta llation
t ool s upplied with the roof rack . The rear markings ® are identified
at the upper edge of the side g lass by two smal l arrowheads.
& WARNING
After tra veling several mile s, ens ure that the roof ra ck is secure .
[ i ] Tip s
The roof rack indicates whether it is to be mounted in the front or
b ack .•
Con tro ls and eq uip­
ment
Seats and storag e
Roof load
The cargo on the roof must be securely attached.
Han dling c har acteristic s change when c argo is trans­
ported .
The permissible roof load for your vehicle is 165 lb s. (75 kgl. The roof
load is a combination of the weight of the carrier system and the
cargo .
W hen using roof rack systems with a lower load capacity, you
cannot use the maximum permissib le roof load . In this case , the
ro of rack can only be loaded to the we ight li mit given in the instal ­
lation guide.
& WARNING
• The cargo must be se curel y attached on the roof ra ck, other­
wise you risk an a ccident.
• You mu st under no cir cumstances exceed the permissible roof
load , the permi ssible axle load s and the permis sible overall we ight
of your vehicle -risk of an a ccident.
• Consider that when tra nspo rting heavy obje cts or one with a
la rg e surface , the handling characteristi cs change due to shift in
the center of gravity or the greater surface exposed to the w ind.
So adapt your driv ing and your speed to pre vailing condit ion s.
<£> For the sake of the environment
As a result of the increase wind resistance created by a roof rack ,
your vehicle is using fuel unnecessarily . So remove the roof rack
after using i t.•
Vehicle care I I irechnical data

Seats and storage

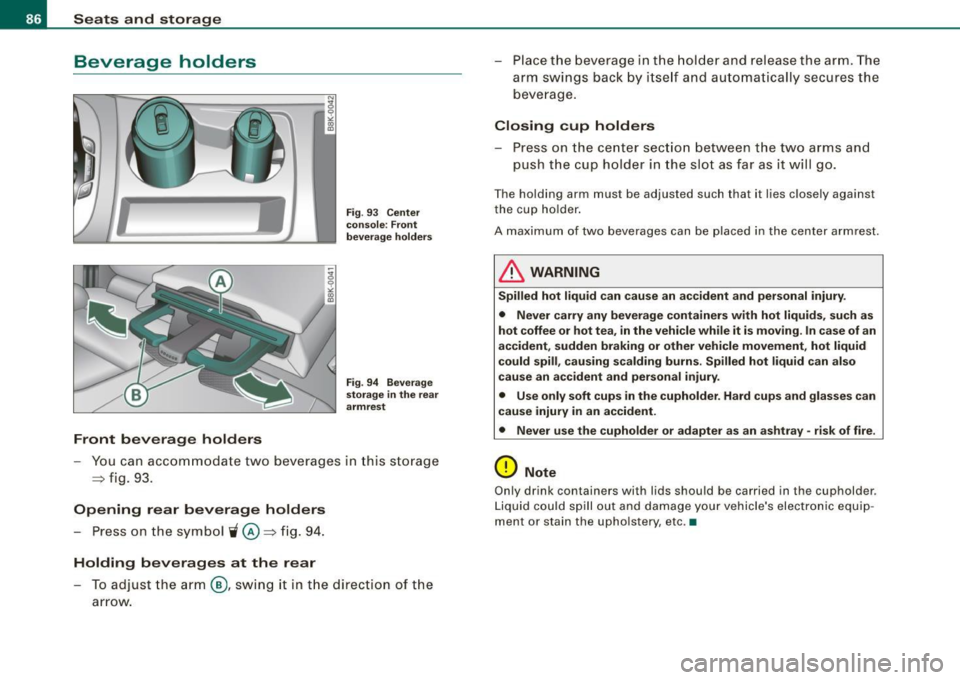

Beverage holders
Front beverage holders
Fig. 93 Center
console: Front
beverage holders
Fig .
94 Beverage
storage
in the rear
armrest
- You can accommodate two beverages in this storage
=> fig . 93.
Opening rear beverage holders
- Press on the symbol W@ ::::;, fig. 94.
Holding beverages at the rear
To adjust the arm ®, swing it in the direction of the
arrow. Place the
beverage in the holder and release the arm. The
arm swings back by itse lf and automatically secures the
beverage.
Closing cup holders
Press on the center section between the two arms and
push the cup holder in the slot as far as it will go.
The holding arm must be adjusted such that it lies closely against
the cup holder.
A maximum of two beverages can be placed in the center armrest.
& WARNING
Spilled hot liquid can cause an accident and personal injury.
• Never carry any beverage containers with hot liquids, such as
hot coffee or hot tea, in the vehicle while it is moving. In case of an
accident , sudden braking or other vehicle movement, hot liquid
could spill, causing scalding burns. Spilled hot liquid can also
cause an accident and personal injury.
• Use only soft cups in the cupholder. Hard cups and glasses can
cause injury in an accident.
• Never use the cupholder or adapter as an ashtray -risk of fire .
0 Note
Only drink containers with lids should be carried in the cupholder.
Liquid could spill out and damage your vehicle's electronic equip ­
ment or stain the upholstery, etc.•

Ashtray
Opening the ashtray
-Slide the cover open.
Closing the ashtray
Fig . 95 Center
console : front ashtray
- Tap the lid to close the ashtray automatically.
Removing ashtray insert
-Release the ashtray insert by sliding the switch ©
=:, fig. 95 to the right.
- Remove the ashtray insert®=:, fig. 95.
Reinstalling ashtray insert
- Press the ashtray insert into its holder.
& WARNING
Never put waste paper in the ashtray. Hot ashes or other hot
objects in the ashtray could set waste paper on fire. •
Con tro ls and eq uip­
ment
Seats and storage
Cigarette lighter /outlet
Cigarette lighter
Fig . 96 Open front
ashtray
Using the cigarette lighter
- Open the lid of the front ashtray.
- Push the knob on the cigarette lighter in.
- Wait until the knob pops out slightly.
Remove the cigarette lighter immediately.
- Light your cigarette from the red -hot heating coil of the
cigarette lighter.
- Return the cigarette lighter to its socket.
Using the socket
-Remove the cigarette lighter.
- Insert the plug of the electrical device into the cigarette lighter socket.
The socket of the cigarette lighter may be used for 12-volt appli­
ances with maximum consumption of up to 100 watts, such as a
flash light, small vacuum cleaner, etc .
Vehicle care I I irechnical data

Seats and storage
Before you purchase any accessories, always read and follow the
information in=> page 341, "Additional accessories and parts
replacement".
& WARNING
• Use care when using the cigarette lighter. Inattentive or unsu­
pervised use of the cigarette lighter can cause burns -risk of
injury!
• The cigarette lighter works when the ignition is switched off or
with the ignition key removed . Children should never be left unsu­
pervised in the vehicle, or there could be risk of fire!
• The power outlets and therefore the electrical accessories
connected to them operate only with the ignition on. Improper use
of the outlets or of electrical accessories can lead to serious inju­
ries or cause a fire. For this reason, children should never be left
unattended in the vehicle -they could be injured!
0 Note
• To avoid damaging the socket, only use plugs that fit properly .
• Only use the cigarette lighter socket as a power source for elec­
trical accessories for short durations . Use the sockets* in the
vehicle when a power source is needed for longer durations.
[ i] Tips
When the engine is off and accessories are still plugged in and are
on, the vehicle battery can still be drained .•
Storage
General overview
There are numerous places to store items in your vehicle.
Glove compartment => page 89
Storage compartment in the roof =>
page 89
Coat hooks => page 89
- -Storage in the trim panels in the luggage
compartment
& WARNING
• Always remove objects from the instrument panel. Any items
not put away could slide around inside the vehicle while driving or
when accelerating or when applying the brakes or when driving around a corner .
• When you are driving make sure that anything you may have
placed in the center console or other storage locations cannot fall
out into the footwells. In case of sudden braking you would not be
able to brake, depress the clutch or accelerate.
• Any pieces of clothing that you have hung up must not interfere
with the driver's view. The coat hooks are designed only for light­
weight clothing. Never hang any clothing with hard, pointed or
heavy objects in the pockets on the coat hooks . During sudden
braking or in an accident - especially if the airbag is deployed -
these objects could injure any passengers inside the vehicle . •
