AUDI A5 COUPE 2010 Owners Manual

Glove compartment
The glove compa rtmen t is illumin ated an d can be Jocke d.
To open glove compartment
Fig . 97 Glov e comp art ­
m ent
- Pull t he handle i n th e direc tion o f the arrow =:> fig. 97 and
swing t he cover down to open .
To close glove compartment
-Push the glove compartment lid upward unt il the loc k
engages.
T here are holders for a pen and a pad of paper in the glove compart ­
ment l id .
On the right side in the glove compartment is a holder with the key
b ody into which the emergency key must be clipped to be a ble to
start the vehicle .
& WARNING
To reduce the risk of personal inju ry in an a ccident or sudde n stop ,
alway s keep the glove compartment closed while driving . •
Con tro ls and eq uip­
ment
Seats and storag e
Storage compartment in the roof
,.,,,O;E\ 11111
fl([]') G)
o .. o
!.---~\.;;;;;;;;. ] Fig. 98 Storage p ocket
in th e roof
- T o open t he li d yo u have to tou ch the bar =:> fig. 98
(Ar row). T he lid opens a utom atic ally.
- To close the lid, push i t up un til it enga ges.
& WARNING
Alway s keep the lid closed while driving to reduce the risk of injury
during a sudden braking maneuver or in the event of an a ccident. •
Coat hooks
The coat hooks are lo cated on the side on t he pillar in the
rear.
& WARNING
• Make sure that hanging clothing doe s not obscure the view to
the rear .
• Hang only lightweight clothing and be sure that there are no
heavy or sharp -edged object s in the po cket s.
• Do not u se co at hanger s to han g the clothing otherwi se the effi ­
c a cy of the head a ir b ags* is compromi sed. •
Vehicle care
I I irechnical data

Warm and cold
Warm and cold
Deluxe automatic climate control
App lies to vehicles: with deluxe automat ic climate cont ro l
Description
The climate control system can be used to set a comfort­
able temperature inside the vehicle.
The climate control system is a combination of a heating and venti ­
lation system as we ll a cooling system responsible for dehumid i­
fying and cooling the air inside the vehicle.
The au tomatic c limate control system aut omatically mainta ins a
temperature once it has been set. The temperature of the air from
the vents, fan speed (air volume) and ai r distribution are also auto ­
matical ly adjusted . The system also takes into account strong
sun light so that manual adjustment is not necessary. So in almost
a ll cases,
automati c mode offers the best conditions fo r the com fort
of the occupants at all times of the year =>
page 92.
Please n ote the following :
The cooling mode lowers the humidity level inside the vehicle. This
prevents fogging up of the windows.
In the case of high outside humidi ty a nd temperatures,
condensa ­
tio n
can drip from the air conditioning system evaporator and form
a po ol under the vehicle . This is normal and not an indica tion of
leaks!
At low outside temperatures, the fan automatica lly switches to a
higher speed when the coolant reaches a sufficient temperature
except in the defroster position .
When star ting with ful l throttle, the compressor of the au toma tic
climate control system is temporari ly switched off to achieve full
engine power. To ensure engine cooling when the engine is under an extreme
load,
the compressor is switched off at high coo lant temperatures.
Pollutant filter
The pollutant filter (pa rticle fi lter) ensu res that impurit ies in the
outside air (e .g . dust, pollen) and odors are significant ly reduced or
stopped. The air is also fi ltered in recirculation mode .
The pol lutant fi lter e leme nt m ust be changed at the i nterva ls spec i­
fied in the service plan so that the performance of the automatic
cli mate con trol syste m is not impaired.
If the effectiveness of the filter decreases prematurely due to oper ­
ation of the vehicle in areas with significant pollution, the f ilter
e lement must be changed between the speci fied s ervice dates.
K ey recognition
The current automatic climate contro l settings are automatica lly
stored and assigned to the mas ter key .
Energy managem ent
To p revent t he ba ttery from being discharged and t o res to re the
balance of energy, components which require large amounts of
ene rgy are temporarily cut back or switched off=>
page 241.
Heating systems in particu lar require a great deal of energy. If you
notice, for examp le, that the rear window heater is not heating, then
it has been temporarily reduced or switched o ff by
energy manage ­
ment .
These systems are available again as soon as the energy
balance has been restored .
& WARNING
Traffic safety require s all windo ws to be clear of ice , sn ow, and
condensation . Only then c an good visibility be ensured . Famil-
ia rize yourself with the co rre ct operation of the automatic climate
~

& WARNING !continued)
control system as well as the proper procedure for defog­
ging/defrosting the windows.
0 Note
• If you suspect that the automatic climate control system has
been damaged, switch the system off to avoid further damage and
have it inspected by a qualified dealership.
• Repairs to the Audi automatic climate control system require
specialized knowledge and special tools. Therefore, contact an
authorized dealer in the event of malfunctions.
[ i) Tips
• To avoid adversely affecting heating and cooling performance
and to prevent condensation on the windows, the air intake in front
of the windshield must be free of ice, snow and leaves .
• The air flowing out of the vents and throughout the vehicle's
entire interior is discharged at the rear of the vehicle. Make sure that
the outlet slots are not covered by clothing, etc.
• Th e automatic climate control system works most effectively if
the windows and the panorama/tilting sunroof* are closed.
However, if the interior of a parked vehicle is extremely hot from the
sun, briefly opening the windows can speed up the cooling
process. •
Contro ls and eq uip­
ment
Warm and cold
Ap plies to veh icles: with deluxe automat ic climate contro l

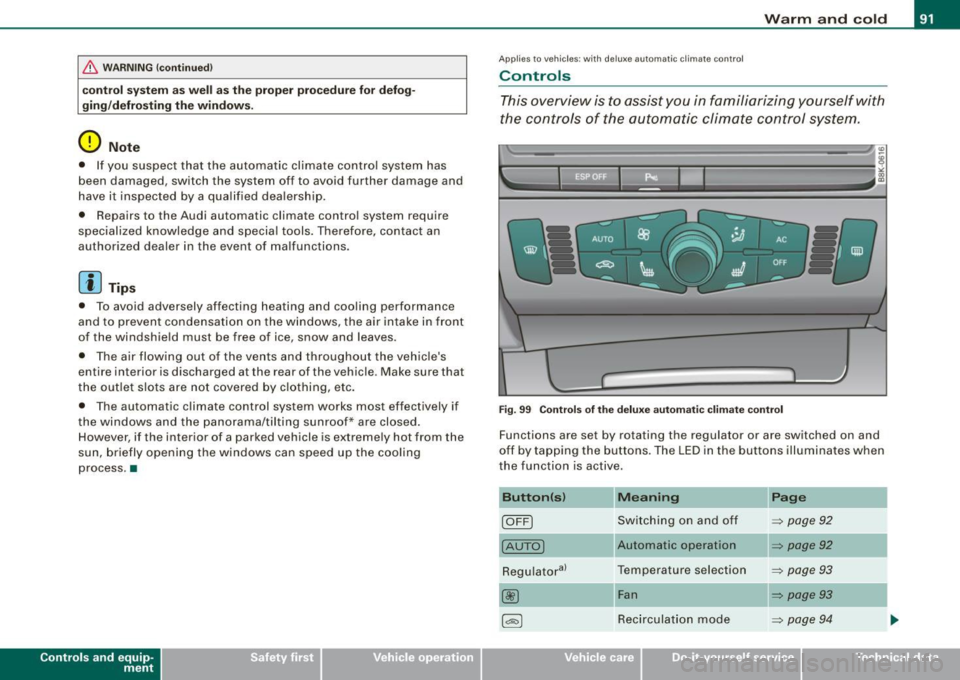

Controls
This overview is to assist you in familiarizing yourself with
the controls of the automatic climate control system.
Fig. 99 Controls of the deluxe automatic climate control
Functions are set by rotating the regulator or are switched on and
off by tapping the buttons . The LED in the buttons illuminates when
the function is active .
Button(s) Meaning Page
!OFF] Switching on and off => page 92
(AUTO] Automatic operation => page 92
Regu latoral T
emperature selection => page 93
@ Fan => page 93
1~1 Recirculation mode => page 94
Vehicle care
I I irechnical data

Warm and cold
Button(s) Meaning Page
@] Air distribution => page 94
--
~ Defrost => page 95
~ Rear window defogger => page 95
[AC]
Turn cooling system => page 95 on/off
QJ => page 105
al The regulator is also used to set the fan speed, air distribution and seat
he ating.
[ i I Tips
The grille on the controls=> page 91, fig. 99 must remain unob­
structed and must not be taped over. Measuring sensors are located
behind it. •
Applies to veh icles: w ith de luxe automatic cl imate contro l
Turning the climate control system on and off
Briefly press the [ON] button, or press the [AUTO] button
to turn the climate control system
on .
- Press the [ OFF] button to turn the climate control system
off and to block the air supply from the outside.
The climate control system switches back on when a control button
is operated. •
Applies to vehicles: with deluxe automatic climate control
Automatic mode [AU TO)
The standard operating mode for all times of the year.
Turning on automatic mode
Set the temperature between 60°F (+ 16°C) and 84°F
(+28°C).
- Press the [AUTO] button.
Automatic mode ensures constant temperatures in the interior and
dehumidifies the air inside the vehicle. Air temperature, volume and
distribution are controlled automatically to reach or maintain the
desired interior temperature as quickly as possible. Fluctuations in
exterior temperature and the effects of temperature from the posi­
tion of the sun are compensated for automatically .
This operating mode works only in an adjustable temperature range of 60°F (+ 16°C) to 84°F (+28°Cl . If a temperature below 60°F (+ 16°C)
is selected, LO appears in the display. At temperatures above 84°F
( +28 °C),
HI is displayed. At both extreme settings, climate control
runs continuously at maximum cooling or heating power . There is
no temperature regulation. •

Applies to vehic les: w ith de lu xe a utomat ic c limate co ntro l
Setting the temperature
Fig . 100 Te mperature
sett ing regu lator
Fi g. 10 1 Di spl ay :
Settin g the t emp era­
ture
- Rotate the regulator to the left to red uce the temp era­
t ur e, or to the right to in crease the tem perature
~ fig. 100.
The se lected temperature appears on the climate contro l display .
The temperature set ting wil l also appear for a few seconds in the
radio or MMI* display~
page 100, fig. 108. The radio display may be
d ifferent than what is shown in the illustration .•
Con tro ls and eq uip­
ment
W arm and cold
A pp lies to ve hicles: with d elux e a utomat ic c limat e co ntro l
Fan @
The automatically preset fan speed can be reduced or
increased .
Press the [St?) butto n.
Fig . 1 02 Fa n butto n
a nd r egulator
F ig . 103 Dis play:
Se tting t he fan
Rotate the regulator to set the desired fan speed (air
vo lume).
We recommend a lways running the fan at a low speed when driving
s low ly .
To prevent polluted outside ai r (smell) from entering the interior of
the vehicle, sw itch to
r e cir cula tion mode by pr essing the button I= ). _.,
Vehicle care I I Technical data

Warm and cold
When the radio or MM1 ·• is turned on, the fan speed setting appears
for a few seconds on the screen =:.
page 93, fig. 103.
[ i ] Tips
• It is possible that the fan speed may c hange automatically. This
occurs to ensure that the desired temperature se tting is reached as
quickly as possible.
• The fan speed cannot be regulated separately for the driver and
front passenger. •
App lies to v ehicl es: with d eluxe a utom ati c clim ate contro l

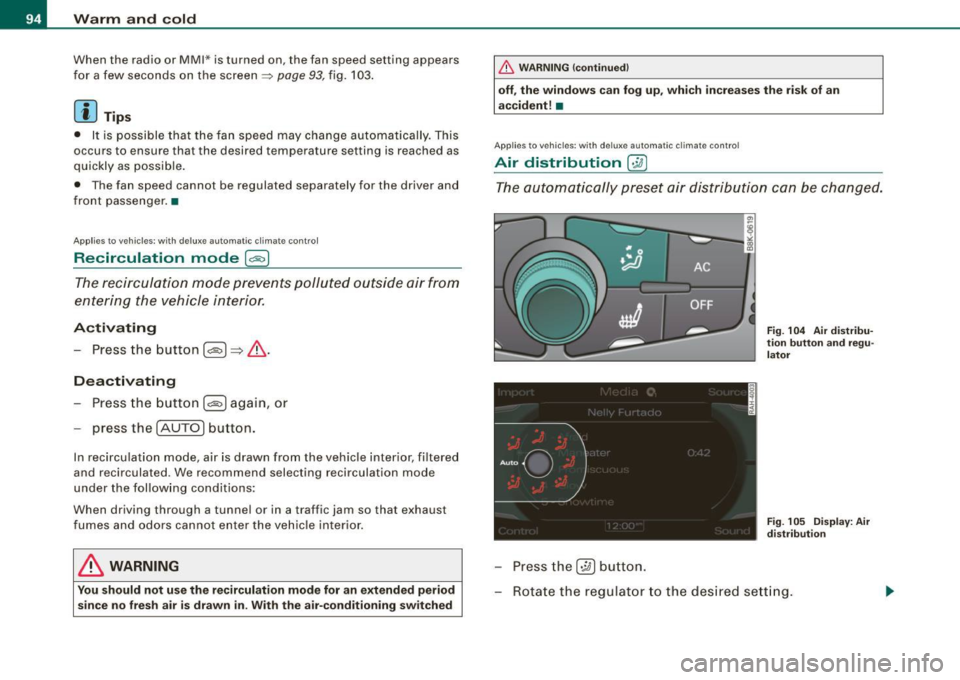

Recirculation mode [¢7:;) ]
The reci rculation m ode preve nts po llute d ou tside a ir from
entering the vehicle interior.
A ctivating
- Press the button joE::> ] ~ &.
Deactivating
Press the button [~ I again, or
press the [AUTO
I button.
In recircu lation mode , air is drawn from the vehicle interior , fi ltered
and recirculated. We recommend select ing recirculation mode
under the fol low ing conditions:
When driving through a tunnel or in a traffic jam so that exhaust
fumes and odors cannot enter the veh icle in terior.
& WARNING
Y ou should not use the re circulation mode for an ext ended period
since no fres h air is drawn in . W ith the air- co nd itio ning sw itched
& W ARNING (continu ed )
off , the window s ca n fog up , which increases the risk of an
accident! •
Applies to veh icle s: wi th de luxe automat ic c limate con trol
Air distribution I in ]
The automati cally pr eset air distribu tion c an be change d.
- Press th e [ in ] bu tton.
F ig . 104 Air distr ibu ­
t io n bu tt o n and r egu­
l a tor
F ig . 10 5 Display: A ir
d is tribu tion
- Rota te the regulator to the des ired sett ing.

You can adjust the air distribution so that air flows from specific
vents. In position
;J air flows only to the windows, in position :,J, it
flows to the driver or passenger, and in position
!,a it flows to the
footwell. There are additional combinations available to adjust air
dist ribution as needed .
To regu late air distribution automatically, switch to
( AU TO] .
When the radio or MMI* is turned on, the air distribution setting
appears for a few seconds on the screen=>
page 94, fig. 105 . •
A pp lies to vehicles: w ith de lu xe a utomat ic c limate co ntro l
Defrost [@ I
The windshield and side windows are defrosted or cleared
of condensation as quickly as possible.
- Press the button [@)to turn on the defroster .
- Press the b utton
(@J again, or press the [AUTO I button to
t ur n it off.
Temperature is control led automatical ly . The maximum amount of
air flows main ly from the vents below the windshield .
Pressing the[@] button sw itches off recirculation mode .•
Ap plies to ve hicles: w ith d elu xe au to m at ic c limate co ntro l
Rear window defogger [[jiiJ )
The rear window def ogger clears the rear window of
condensati on.
- Press the [QWJ button to turn the rear w indow defogger on
and off .
The rear window defogger works only when the engine is running .
T he indicator light in the button illuminates when the rear window
defogger is on .
Controls and equip ­
ment
W arm and cold
The rear window defogger is switched off automatica lly after 10 to
20 minu tes, depending on the ou tside tempera ture .
The rear window defogger can be turned on permanently by pressing the
[Ciul] button for more than two seconds. This remains
stored until the ignition is switched off . A rear window defogger that
was switched on also remains stored for 15 minutes after the igni ­
t ion is sw itched off .
I f the engine is restarted within these 15 minutes, the rear window
defogger is activated for 10 to 20 minutes, depending on ou tside
temperature . When a vehic le is parked for a short time , the rear
window defogger does not need to be manually activated again.
ci> For th e sake of the environment
As soon as the rear window is clea r, you shou ld switch the rear
window defogger off . The reduced power consumption has a bene ­
ficial effect on fuel consumption .•
Ap plies to vehic les: w it h d eluxe au tomat ic c limate co ntro l
AC mode [ACJ
Deactivating
- Press the [AC I button.
Activating
- Press the [AC] button again.
The cooling system is turned on in AC mode. The heating and venti ­
lation system is controlled automatica lly.
[ i ] Tip s
If the LED in the switch continues to illuminate after AC mode has
been turned off( = turning the AC off), there is a fault in an air -condi -_,.
I • •

Warm and cold
tioning component. Please cons ult an authori zed dealersh ip if there
is an operating problem. •
Applies t o ve hicles: w it h d elu xe au to m ati c clim ate con tro l
Rear air vents
The rear air vents are located in the center console.
- Rotate the thumbwheel to open and close the vents.
- To ad just the direction of the airflow from the outlet,
move the tab in the center of the outlet in the desired
direction. The direction of the air delivered from the
vents can be adjusted horizontally and vertically.
The air vents are actuated either automatically or manually d e pending on the op erating mode selec ted . H eated or unh eated
fresh air, or cooled air flows from the vents.
i he ai r ven ts to heat the rear footwell are located under the front
seats.
[ i J Tips
If the climate control is operating in cooling mode, air flows prima ­
rily from the vents in the center console. To achieve adequate
cooling, you should never close these v ents completely. •
Applies to ve hicles: with delu xe au to m atic c limate con tro l
Economical use of the climate control system
Economical use of the climate control system helps save
fuel.
When the climate control system is working in cooling mode, engine performance is reduced and fuel consump- tion is affected. To keep the time
the climate control system
is on as short as possible, you should do the following:
- To save fuel, turn off cooling mode by pressing the
[AC )
button (ind icator light goes out).
- In addition, if you open the window or the
panorama/tilting sunroof* while driving, turn off cooling
mode by pressing the
[AC) button (indicator light goes
out).
- If the vehicle is extremely hot due to the heat of the sun,
briefly open doors and windows .
c£> For the sake of the environment
When you save fuel, you reduce emissions from the vehicle. •
Deluxe automatic climate control
plus
Applies to vehicle s: with D elu xe a utoma tic cl ima te co ntrol p lus
Description
The air conditioner is fully automatic and is designed to
maintain a comfortable and uniform climate inside the
vehicle.
We recommend the following settings :
- Set the temperature to 75 °F (+23 °Cl.
- Press the [AUTO
I button.
With this setting, you attain maximum comfort in the least amount
of time . Change th is s etting, as des ired, to meet your personal
needs .
~

The climate controls are a combination of heating, ventilation and
cooling sys tems, which automa tica lly reduce humidity and cool the
air inside your vehic le .
The climate contro l automatically maintains a temperature once it
has been set. The temperature of the air from the vents, fan speed
(air volume) and air distribution are also automatica lly adjusted. The
system also takes into account strong sunsh ine so that manual
adjustment is not necessary . So in almost all cases,
a ut oma tic mode
offers the best co nditions for the comfort of the occupants at all
times of the year~
page 99.
Please note the following :
Turn on the air conditioner to reduce hum idity in the veh ic le. This
a lso prevents the windows from fogging up.
When the outside temperature is high and the air is very humid,
c onden sation from the evaporator may drip under the vehicle . T his
is normal and does no t indicate a leak.
If the outside temperature is low, the fan norma lly on ly switches to
a higher speed once the engine coo lant has warmed up sufficiently .
The air conditioner temporarily switches off when you drive off from a standstill using fu ll throttle to save engine power .
The compressor also switches off if the coolant temperature is too high, so that the engine can be adequately cooled under extreme
loads.
Du st and poll en filte r
The dust and pollen filter (a combined particle filter and activated
cha rcoal fi lter) reduces or prevents outside air pol lut ion (dust, or
pollen) from entering the vehic le .
The dust and pollen filter must be changed at the intervals specified
in your Maintenance booklet, so that the air conditioner can prop­
erly work .
I f you drive your vehicle in an area with a high degree of a ir pollu­
tion, the filter may need to be changed more frequent ly than speci-
Controls and equip ­
ment
W arm and cold
fied in your Audi Warranty & Maintenance book let. If in doubt, ask
your authori zed Aud i Service Advisor for advice .
Key recognition
The cu rrent climate contro l settings are automatically stored and
assigned to the remote key
Energ y mana gement
To prevent the battery from being discharged and to restore the
balance of energy, components which require large amounts o f
energy are temporarily cut back or switched off~
page 241.
Hea tin g systems in particu lar req uire a great dea l of energy. I f you
notice, for examp le, that the rear window heater is not heating, then
it has been temp orarily cut back or switched off by
energy manage ­
ment .
These systems are available again as soon as the energy
balance has bee n res tored .
& WARNING
Redu ced vi sibilit y is dangerou s and c an cau se a ccidents .
• For safe driving it is very important th at all windows be free of
ice , snow and conden sation .
• Completely familiari ze yourself with the proper use and fun c­
tion of the heating and ventilation sy stem and e speci ally how to
defog and defrost the windo ws.
• Never use the wind shield wiper /w asher sy stem in freezing
w ea ther until you have warmed the wind shield first , using the
heating and ventil ation sy stem . The wa sher solution m ay fre eze
on the w ind shield and r edu ce v isibilit y.
0 Note
• If you suspect that the climate contro l system has been
damaged, switc h the system off to avoid fur ther damages, and have
it inspected by a qualified dealership. .,_
I • •

Warm and cold
• Repairs to the Audi ai r conditioner require special technical
know ledge and special tools. Contact an authorized Audi dea ler for
assistance.
[ i ) Tips
• To avoid adversely affecting hea ting and cooling performance
and to preven t condensation on the windows, the air intake in front
of the windshield must be free of ice , snow and leaves.
• The air flowing out of the ven ts and throughout the vehicle 's
entire interior is d ischarged at the rear of the vehicle . Make sure tha t
the outle t slots are not cover ed by clothing, etc .
• Climate control works mos t effectively if the windows and the
panoramic s liding /ti lting sunroof * are closed. Howeve r, if the in te ­
rior of a parked vehicle is extremely hot from the sun, briefly
opening the windows can speed up the cooling process. •
App lies to ve hicles : w it h D elux e auto matic cli mate co ntrol plu s
Controls
This overview will help you to familiarize yourself with the
climate controls.

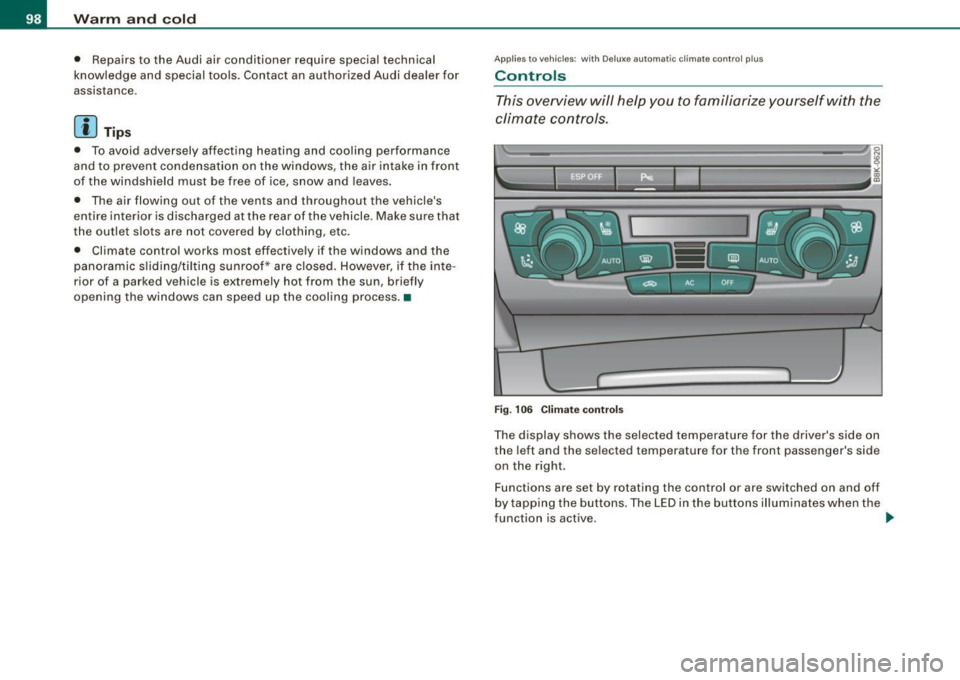

F ig . 106 Climate control s
The display shows the selected temperature for the driver's side on
the left and the selected temperature for the front pas senger's side
on the right.
Functions are set by rotating th e control or are switched on and off
b y tapping the buttons . The LED in the bu ttons illum inates when the
function is active . ..,_
