AUDI A5 COUPE 2013 Owner's Manual

Instruments and warning/indicator lights 19
@ Tips
The symbol's appearance might be differ­
ent in some models .
n,/{J Electronic Stabilization Control
(ESC)
If the G1 indicator lamp blinks while driving,
the ESC or ASR (Ant i-S lip Regulation) is active­
ly regulating.
If the G1 indicator lamp illuminates, the sys­
tem has switched the ESC off. In this case , you
can switch the ignition off and then on to
sw itch the ESC on again . The system is func­
tioning completely when the indicator lamp
switches off .
I f the
Ii indicator lamp illuminates, the ESC
was switched off with the
I.!? O FF ! button.
Stabilization control (ESC/ABS): Fault! See
owner's manual
If the indicator light G1 and the ABS indicator
light
l!SJ (USA models) / li] (Canada mod­
els) turn on and the message appears, there is
a malfunct ion in the ABS system or electronic
differential lock. This also interrupts the ESC.
The brakes still function with their normal
power, but ABS is not active.
Drive to your autho rized Aud i dealer immedi­
ately to have the malfunction corrected.
For more informat ion about the ESC
c::> page 185.
ABS /(8) Anti-lock braking system (ABS)
This warning/indicator light monitors the ABS
and the electronic differential lock (EDL) .
T he warning/indicator light
E (USA mod­
els)l[i] (Canada models) will come on for a
few seconds when the ignition is switched on .
T he light will go out after an automatic check
sequence is completed .
There is a malfunction in the ABS when:
- The warning/indicator light does not illumi ­
nate when you switch the ignition on. -
The warning/indicator light does not go out
after a few seconds.
- The warning/indicator light il luminates
while driving.
T he ESC indicator lig ht also illuminates if
there is a ma lfunct ion in the ABS. The mes­
sage
Stabilization control (ESC): Fault! See
owner 's manual
also appears in the instru­
ment cluster display and a warning tone
sounds.
The brake system will still respond even
without the assistance of the ABS system.
See your authorized Audi dealer as soon as
possible to restore full braking performance.
For more information regarding the ABS
c::> page 185.
Malfunction in the brake system
If the brake warning light c::> page 15 and the
ABS warning illuminate together there may be
a malfunction in the ABS, and there may a lso
be a malfunction in the brake system itself
c::> .&. . The ABS will not work and you will no­
tice a change in braking response and per­
formance.
In the event of a malfunction in the brake
system
the warning/indicator light 1111
(USA models)/ . (Canada models) in the in ­
strument cluster flashes
c::> page 15 .
Malfunction in the electronic differential
lock (EDL)
The EDL works together w ith the ABS . The
ABS warning light will come on if there is a
malfu nction in the EDL system ¢ page 185 .
See your authorized Audi dealer as soon as
poss ible.
A WARNING
-If the ma:1 (USA mode ls)/ [i] (Canada
models) warning light does not go out,
or if it comes on whi le dr iving, the ABS
system is not working properly. The vehi­
cle can then be stopped only w ith the
standard brakes (without ABS). You w ill
not have the protect ion ABS provides.
-
...

20 Instruments and warning /indicator lights
Contact your authorized Audi dealer as
soon as possible.
-USA models: If the la warning light
and the
E warn ing light come on to­
gether, the rear wheels could lock up
first under hard braking. Rear wheel lock­
up can cause loss of vehicle control and
an acc ident. Have your vehicle repaired
immediately by your authorized Audi
dealer or a qualified workshop. Dr ive
slowly and avoid sudden, hard brake ap­
plications.
- Canada models: If the brake warning
light . and the ABS warning light
li]
come on together, the rear wheels could
lock up first under hard braking. Rear
wheel lock-up can cause loss of vehicle
control and an accident. Have your vehi­
cle repaired immediately by your author­
ized Audi dea ler or a qualified workshop.
Drive slowly and avo id sudden, hard
brake applicat ions.
I I !f Safety systems
The fl (USA models),£,1 (Canada models) in­
dicator light monitors the safety systems (e.g.
airbags, pretensioners) and ill uminates for a
few seconds each time you switch the ignition
on.
If the fl (USA models)/ fll (Canada mode ls)
indicator light does not go out, or if it illumi­
nates while you are driv ing, or if it starts to
blink, then there is a ma lfunction somewhere
in the system.
If the light does not illuminate
when you switch the ignition on, this also
means there is a malfunction.
& WARNING
If you have a malfunction in the safety sys­
tems, contact your author ized Audi dealer
immediate ly. Otherw ise the safety sys­
t ems may not work properly in an acci­
dent.
l ) - : USA mod els only
(0) Worn brake pads
EiJ Brake pads!
If the warning light illuminates, immediately
contact your authorized Audi dealer or quali­
fied workshop to have all brake pads inspect­ ed . On USA models the warn ing light
EiJ
comes on together with the warning light
la-Both sets of brake pads on an ax le
must a lways be rep laced at the same time.
A WARNING
Driving with bad brakes can cause a colli­
sion and serious personal injury.
- If the warning light
EiJ and the warning
light
la1 l with the message Brake
pads! comes on in the instrument cluster
d isplay, immediately contact your au­
thor ized Audi dealer or qualified work­
shop to have all brake pads checked or
replaced if necessary.
EPC Electronic power control
This warning/indicator light monitors the
electronic power control.
The ~ warning/indicator light (Electronic
Power Control) illuminates when you switch
the ignition on as a function check.
(D Tips
If this warning/ indicator light illuminates
while you are driving, then there is a mal­
funct ion in the engine electronics. Have
the malfunction corrected as soon as pos­
s ib le by your authorized Audi dealer or
qualified repa ir facility.
Ci Malfunction Indicator Lamp (MIL)
T he Malfunction Indicator Lamp (MIL) is par t
of the On-Board Diagnostic (OBD II) system.
-
The symbo l ¢4' lights up when the ignition is
switched on and will turn off after the engine
has started and has settled at a constant idle
IJ>,

Instruments and warning/indicator lights 21
speed. This ind icates that the MIL is working
properly.
The warning light illuminates when there is a
mal funct ion in the engine e lectronic system.
Contact your authorized Audi dealer and have
the ma lfunction corrected .
An improperly closed fuel filler cap may also
cause the MIL light to illum inate
r::!,> page 213.
For more informat ion r:!,> page 30 .
!?) Engine speed limitation
App lies to vehicles: wit h eng ine speed lim itat ion
(II Do not exceed max. engine speed of
XXXX rpm
The (I! symbol illuminates when there is an
engine control malfunction. Th e~ indicator
l ight in the instrument cluster also illumi­
nates. The engine speed is lim ited to the
speed displayed in the driver information sys ­
tem . Keep in mind that the engine speed will
not exceed the va lue displayed in the driver in­
formation system, for example when down­
shifting.
Drive to your authorized Audi dea ler immedi­
ately to have the malfunction corrected .
~ .. Engine oil level
1111 Add oil , max XXXX l. You may cont. driv.
When the symbo l l!I and driver message ap­
pear , add the amount of oil appearing in the
disp lay at the next opportunity
r:!,> page 221.
~;.., Engine oil sensor
II Oil level! Sensor defective
If the symbol illuminates, contact your au­
thor ized Audi dealer and have the o il sensor
inspected. Until you have this done, check the
oil level each time you refuel just to be on the
safe side
r:!,> page 221 .
Bu Tank system
liJl Please refuel
If the indicator light turns on for the first
time and the message appears, there are
about 2. 1 -2.4 gallons (7 -9 liters) of fuel left
in the tank . T ime to refuel
r::!,> page 213.
Ii] Fuel tank system malfunction! Contact
dealer
If the indicator light turns on and this mes­
sage appears, there is a malf unct ion in the
tank system.
Drive to your authorized Audi dealer immed i­
ate ly to have the malfunction corrected.
<:::> Windshield washer fluid level
- Please refill washer fluid
If the symbol illum inates, add w indshie ld
washe r fluid to the washer system and also to
the headlight washer system*
r:!,> page 230.
'1:> Windshield wipers
El'J Windshield wiper defective
The re is a malfunction with the windshield
wipers.
Drive to your authorized Audi dealer immedi­
ately to have the malfunction corrected .
~/ }D 10 $ Defective light bulb warning
If the Fl indicator light turns on, a bulb has
failed. The message ind icates the location of
the bulb.
- If the
IIJ indicato r light also turns on, then
a fog light has fai led. The position of the in­
dicator ligh t corresponds wi th the locatio n
on the vehicle .
- If the
ftD indicator light also turns on, then
a rear fog* light has fai led. The position of
the indicator light cor responds wi th the lo­
cation on the vehicle .
T his wa rning can also occu r if the light switch
is in an unengaged posi tion between two sym­
bols .
Vehicle lights: System fault!

22 Instruments and warning/indicator lights
If the message appea rs, there is a mal func ­
tion in the headlights or lig ht switch.
Dr ive to yo ur autho rize d Audi deale r i mmedi­
a te ly to have the mal func tion cor re cte d.
8_ WARNING
- Ligh t bul bs are pressurized and co uld ex ­
plode while t hey are being changed caus­
ing ser ious persona l injury.
- W ork w ith due care when handling the
high-volta ge section of gas discha rge
(xenon) lights*. Fai lure to do so could re­
sult in death or se rious i njury.
Have the bulb replaced or t he connection
re paired by yo ur auth o rized Au di Service
department.
~()) Headlight range control
Applies to vehicles: with headlight range control
El Headlight range control defective !
If t he symbo l El il lum inates , the dynam ic
headlight range cont ro l is no longer wo rking
properly . Have the system checked and re ­
pa ired at your author ized Audi dealer.
§0 Adaptive Light
Applies to vehicles: with adaptive light
mil Audi adaptive light : defective
If the indicator light turns on and th is mes­
sage appears, there is a malfunction in the
adapt ive light system. The headlights still
f u nction .
Go to an authori zed dea lership to have the
headlights or the contro l unit for the adapt ive
light repa ired .
~D Light/rain sensor
Applies to vehicles: with light/rain sensor
tfl Automatic headlights / automatic wipers
defective
If the indica to r li ght turns on and this mes ­
sage a ppears, the light/ rain senso r is not
f unct ioning correct ly .
F o r sa fe ty reasons the low be ams are turne d
o n pe rmanen tly with the sw itch in
AUTO.
However, you can conti nue to turn the lights
o n and off using the light switch. Yo u can st ill
control a ll functions that are independent of
the ra in sensor through the w indshield w iper
l ever .
Contact your a uthorized Aud i dea ler as soon
as possible to have the problem co rrected .
Q Adaptive dampers
Applies to vehicles: with Audi drive select
B Suspension : System fault!
If the B symbol in the disp lay comes on, there
is a ma lf u nction in the adaptive dampers.
Please go to an authori zed A udi dealer or ot h­
er qualified wo rkshop to have the malfunct ion
r epaired .
I-: Sport differential
Applies to vehicles: with Audi drive select
Sport differential : System fault!
There is a malfunction with t he sport d iffe ren­
tia l.
Drive to your auth orized A udi dealer immedi ­
ate ly to have the malfunction corrected .
Sport differential: Overheating
The t ransm iss ion t empe ra tur e has in cr eased
s ignific antly due to t he spo rty dr iving manner .
D rive in a less sporty m anner un til the tem­
pera ture re turns to the normal range and the
indicato r light switches of.
8_ WARNING
Contact your author ized Audi dealer or a
q ua lified workshop if the spo rt differential
i s faulty or malfunct io ning . T he repair
must be performed by train ed perso nnel
usi ng the co rr e ct oil in o rder to e nsure
s a fety.

Instruments and warning/indicator lights 23
=/4 Ignit ion lock
l!J Ignition lock defective
There is a malfunction in the electron ic igni­
tion lock. Please go to an authorized Aud i
dealer or other qualified workshop to have the
malfunct ion repaired.
¢ Q Turn signals
Whenever you use the left II or the right IJ
turn signal, the indicator light blinks. When
you use the emergency flashers, both indica­
tor lights flash .
If one of the turn signal light bulbs burn out,
the turn signal will blink twice as fast as nor ­
mal. Carefully drive to your authorized Audi
dealer immediately to have the malfunction
corrected.

24 Driver information d isplay
Driver information
display
Introduction
The Driver information display inside the in ­
strument cluster provides you, the driver ,
with important information.
Fig. 7 Ins trum en t cl uster : ce nter display
Fig. 8 W iper lev er: con trols fo r th e menu disp lay
Center display
W ith the ignition on, the display in the Dr iver
I nformation System shows the following in­
formation :
- CD* inserted or Radio* station set
- Outside temperature* : At temperatures be-
low 41 °F (+5 °C), a snowflake symbol ap­
pears in front of the temperature display
c::> .&_.
-Warning if one of the doors, front lid or en-
gine compartment lid is not closed .
Additional functions
You can open the following functions in the
Driver Information System display by pressing
the
! RESET I button c::> fig. 8 one or more times:
Digital speedometer*
Tire pressure monitoring *
~page249
Trip computer
Efficiency program*
Service interval display
c::>page25
c::> page 27
c::> page 29
--·-
Gearshift selector positions
Automatic transmission
Adaptive cruise control*
Auto Check Control
c::> page 78
Some functions and vehicle components are
scanned for their operating status when you
switch the ignition on and whi le you are driv­
ing. Malfunctions or required service proce­
dures are signaled audibly and indicated by
red and yellow illuminated symbols and re­
minders in the d isplay.
A WARNING
--- Never rely exclusively on the outside
temperature display to determine if a
road surface is icy or not. Keep in mind
that road surfaces, especially br idges
and overpasses, could be ice covered and
slippery even at an outside temperature
above 41 °F (+5 °C).
- Always remember, even if the "snow­
flake" symbol (ice warning) does not ap­
pear in the disp lay, black ice cou ld be on
the road.
- Always reduce your speed and drive with
specia l care in cold weather cond itions
when the chance of encountering icy
road surfaces increases.
¢j) Tips
If the vehicle is stationary, or if you are
driving at a very low speed, the tempera­
ture shown in the display might be s light ly
higher than the actual outs ide tempera­
ture. This i.s caused by the heat being radi­
ated from the engine .

Trip computer
Introduction
The trip computer gives you information on
current and average fuel mileage, average
speed, fuel range and driving time .
Fig. 9 Trip computer display: Average fuel mileag e
The fo llowing information is continuously
eva luated by the trip computer and can be dis­
p layed sequentially in the instrument cluster
display:
Fuel range
The estimated cruising range in miles (km)
appears in the display. This tells you how far
your vehicle wi ll be able to travel on the cur­
rent tank of fue l and with the same driving
style. The display changes in increments of 6
miles (10 km).
The cruising range is calcu lated based on the
fuel cons umption for the last 18 mi les
(30 km) . If you drive conservatively, the cruis­
ing range will increase.
Average fuel mileage
The average fuel economy in MPG (l/100 km)
since you last cleared the memory appears in
this display. You can use this disp lay to adjust
your driving technique to achieve a desired
mileage .
Current fuel mileage
The instantaneous fuel consumption in miles
per gallon (l/100 km) is shown in this display .
You can use this display to adj ust yo ur driving
technique to ach ieve a desired mileage.
Driver information display 25
Fuel consumption is recalcu lated at intervals
of 33 yards (30 meters). This display switches
to gallons/hour (liters/hour) when the veh icle
is not moving.
Average speed
The average speed in mph (km/h) s ince you
last reset the memory appears in the display.
Elapsed time
The length of time that yo u have been driving
s ince you last reset the memory appears in
th is disp lay.
Distance
The distance that has been covered since the
last time the memory was cleared appears in
the d isplay .
(0 Tips
- Fuel consumptions (average and cur­
rent), range and speed are displayed in
metric units on Canadian mode ls.
- All stored values will be lost if the vehi­
cle battery is disconnected.
Memories
The trip computer is equipped with two fully
automatic memories as well as an efficiency
program* .
Fig . 10 Tri p computer display: memory leve l 1
You can switch between the trip computer 1
and 2 and the efficiency program* by pressing
the
I RESET I button @r:::> page 26, fig. 11 .
You can tell which memory leve l is currently
active by the number o r the sign in the display
II--

26 Driver in formation d isplay
¢fig . 10 . The data from the single -trip mem ­
ory (memory leve l 1) is being displayed if a
D
appears in the display . If a II is shown, then
the data from the total -trip memory is being
d isplayed (memory leve l 2). The fuel pump
nozzle
iii indicates the efficiency program*
¢ page 27.
Single-tr ip m emory (Trip computer 1 )
The single-trip memory stores the trip infor­
mat ion from the time the ignition is turned o n
until it is turned off. If the trip is continued
w ithin 2 hours from the t ime the ignition was
turned off, the new data will be included in
the calcu lation of the current trip i nfo rma­
tion .
If the t rip is inte rrupted fo r more than 2
hours the memory is reset automati ca lly.
Total -trip memory (Trip computer 2)
Unlike the sing le-trip memory, the tota l- tr ip
memory is not reset automatically . Th is per­
mits you to evaluate your d riving data for the
enti re pe riod be tween manual rese ts.
Efficiency program*
The effic iency program can help you to use
less fuel ¢
page 2 7.
Operation
The trip compu ter is controlled by two
switches on the windshield wiper lever.
F ig . 11 W ind sh ie ld wipe r lever: co ntro ls fo r the tri p
co mp ute r
.. To d isp lay the trip computer memory levels,
press t he
I RES ET I button @¢ fig. 11 re­
peatedly unt il the desired memory leve l is
shown in the d isplay. ..
To display tr ip in format ion wit hin a memory
level, press the top or bottom part of the
function se lection switch @.
T he trip computer will not ope rate un less the
ignition is on. W hen you t urn on the ignition,
the function that was in use when you last
turned the ignition off will be displayed .
In add ition to info rmation on the trip comput ­
er (trip computer 1 and 2 and the efficiency
program *), the digital speedometer and infor­
mation regard ing the nav igat ion system* can
also be displayed. To switch the d isp lay be­
tween the different information, tap the
I RESET ! button@ briefly.
Sett ing values to zero
To de lete one current va lue from the trip com ­
puter, se lect the des ired funct ion and press
t h e
I RES ET I button @for at least one second.
The following values can be set to zero
indi­
vidually :
- Average fue l mi leage
- Average speed
- Elapsed t ime
- Dis tance
All cur rently d isplayed va lues are deleted in
the eff iciency program*.
In add it ion,
all the values in the single-trip or
the total-tr ip memory can be de leted simulta­
neously ¢
page 26.
(D Tips
All stored va lues w ill be lost if the veh icle
battery is discon nected .
Basic Settings for the trip computer
The radio or MMI* operating unit is used for
setting the trip computer's basic se ttings.
.. Select: Function b utton ICAR ! > Instrument
cluster > On-board computer 1 or On -board
computer 2 .
The values in the sing le-trip or the total -t rip
memory can all be reset to zero at the same
time under
Reset in the menu. ...

In addition, you can determine what informa­
tion from the trip computer should be shown
in the instrument cluster display. If one of the
pieces of driver information is turned
O ff , that
driver information will not be shown in the
d isp lay. The information will continue to be
calculated by the trip computer and can be
turned back
On at any time .
(D Tips
-This function is not availab le on all
vehicles.
- The driving information in the efficiency
program is also reset to zero with t he
s ingle-trip memo ry.

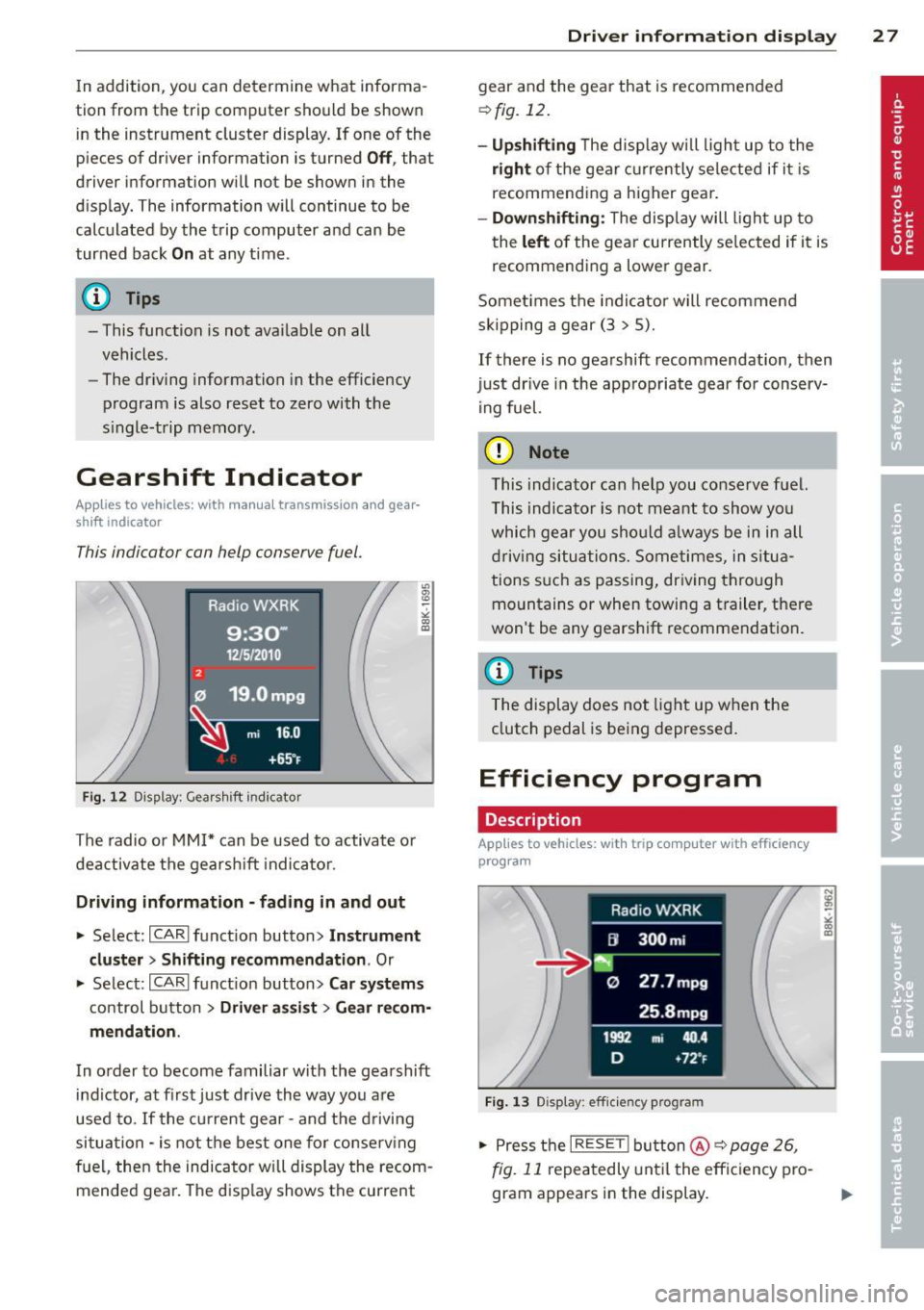

Gearshift Indicator
Applies to vehicles: with manual transmission and gear·
shift indica tor
This indicator can help conserve fuel.
Fig. 12 D isplay : Gea rs hi ft indicator
The radio or MMI* can be used to activate or
deactivate the gearshift indicator.
Driving informat ion -fa ding in and out
~ Select: ICARlfunction button> In st rum ent
clu ster
> S hifting r eco mm endati on. Or
~ Se lect: ICARI funct ion button> Car syste m s
control button > Driv er as sist > G ear reco m­
m en dation .
In order to become familiar with the gearshift
i ndictor, at first just drive the way you a re
used to.
If the cu rrent gear· and the d riving
situation· is not the best one for conse rv ing
fuel, then the indicator will display the recom­
mended gear. The disp lay shows the current
Dri ver inform ation di spl ay 2 7
gear and the gear that is recommended
~ fig. 12.
-Up shifting T he disp lay w ill l igh t up to the
right of the gear c urrently selected if i t is
recommending a higher gear .
-Down shifting : The display will ligh t up to
the
left of the gear currently se lected if it is
recommend ing a lower gear.
Somet imes the indi cator will recommend
skipping a gear (3 > S).
If there is no gearshift recommendation, then
just drive in the appropriate gear for conserv­
i ng fuel.
(D Note
This indicator can help you conserve fuel.
This indicator is not meant to show you
which gear you should a lways be in in all
driving situations. Sometimes, in situa­
tions s uch as passing, driving through
mountains or when towing a t railer, there
won't be any gears hift recommendation.
a) Tips
The display does not light up when the
clutch pedal is being depressed.
Efficiency program
Description
Applies to vehicles: with trip computer with efficiency
program
Fi g. 1 3 Display: eff iciency program
~ Press the I RESET I button @~ page 26,
fig. 11
r epeatedly unt il the effic iency p ro­
gram appears in the display.

28 Driver information d isplay
The efficiency program can help you to use
less fuel.
It evaluates driving information in
reference to fue l consumption and shows oth ­
er equipment influencing consumption as well
as shift recommendations. Fuel economy
messages
¢ page 29 provide tips for effi ­
cient dr iv ing .
The efficiency program uses distance and con­
sumption data from trip computer
1. If the
data are deleted in the efficiency program,
those values are also reset in trip computer
1.
Enhanced shift indicator
Applies to vehicles: with manua l transmission and trip
co mpute r with efficiency program
Fig. 14 Dis play : enh ance d shi ft ind icato r
.. In the efficiency program, press the func­
tion selection switch
r=> page 26, fig. 11 @
repeated ly until the enhanced shift indicator
appears in the display .
The effic iency program also has an enhanced
shift indicator. This enhanced shift indicator
follows the same concept as the "standard"
shift indicator ¢
page 27. The selected and
the recommended gears are highlighted in
colors like a traffic light .
The color of the circle indicates if the most
suitable gear is engaged or if you should sh ift
up or down.
Green circle without No gear or the most
or with a gear suitable gear is en­
gaged
Yellow circle¢
fig. 14 Shift up or down one
gear
Red circle Shift up two gears
(D Note
This enhanced shift indicator can help you
conserve fuel. It is not designed to recom­
mend the correct gear in all driving situa­
tions. Only the dr iver can decide wh ich
gear is correct in certa in driving situations
such as when passing another vehicle,
driving on hills or towing a trailer.
(0 Tips
-The enhanced shift indicator display is
different in vehicles with a monochrome
display .
- The "standard" shift indicator* disap­
pears when the enhanced shift indicator
is displayed.
Other equipment
Applies to vehicles: with trip computer with efficiency
program
Fig. 1 5 Display : other eq uipm en t
.. In the efficiency program, press the func­
tion selection switch¢
page 26, fig. 11 @
repeatedly until the other equ ipment ap­
pears in the display.
Other equipment that is currently affecting
fuel consumption is listed in the efficiency
program. The display shows up to three other
items of equipment @. The equipment using
the most fuel is listed first . If more than three
items using fuel are switched on, the equip­
ment that is currently using the most fuel is
displayed .
A scale @also shows the current total con ­
sumption of all other equipment .
