Emptying the ashtray
• To remove the insert , slide the latch to the
right
r:!) fig. 58 -arrow-.
• To install the insert , press it down into the
mount.
A WARNING
Never put waste paper in the ashtray . Hot
ashes or other hot objects in the ashtray
could set waste paper on fire.
Cigarette Lighter
Fig . 59 Fron t cen te r con so le: cigarette ligh ter
• Press the cigarette lighter in.
• Remove the cigarette lighter when it pops
out.
A WARNING
The cigarette lighter only works when the ign ition is switched on. Incorrect usage
can lead to serious injuries or burns. For
this reason, children should never be left
unattended in the vehicle because this in­
creases the risk of injury .
(D Note
The cigarette lighter can be damaged if
you connect electrical accessories to it .
Storage
General overview
A WARNING
-Always remove objects from the instru­
ment panel. Any items not put away
Seats and storage 59
could slide around inside the vehicle
while driving or when accelerat ing or
when applying the brakes or when driv­
ing around a corner .
- When you are dr iving make sure that
anyth ing you may have placed in the cen­
ter conso le or other storage locations
cannot fall out into the footwells . In case
of sudden braking you would not be able
to brake, dep ress the clutch or acce le r­
ate.
- Any pieces of clothing that you have
hung up must not interfere wit h the driv­
er's view. The coat hooks are designed
only for lightweight clothing. Never hang
any clothing with hard, pointed or heavy
objects in the pockets on the coat hooks.
During sudden braking or in an accident -
especially if the a irbag is deployed -
these objects could injure any passen ­
ge rs in side the vehicle.
Cupholder
Fig. 60 Cen ter c on sol e: fr ont cupholde r
Fig. 61 Rea r armrest: rear cupho ld er
Opening rear cupholders
• To open the cupholder, press on the symbo l
'i@ ¢ fig. 61 . ....

60 Seats and st o rage
• To adjust the arm @, swing it in the direc­
tion of the arrow .
• Place the beverage in the holder and release
the arm. The arm swings back by itself and
automatically secures the beverage.
Clo sing cuphold ers
• To close the cupholder, press on the center
section between the two arms and push the
cupholder in the s lot as far as it will go.
A WARNING
Spilled hot liquid can cause an accident
and personal i njury .
-
-Never carry any beverage containers with
hot liquids, such as hot coffee or hot tea,
in the vehicle while it is moving. In case
of an accident, sudden braking or other
vehicle movement, hot liqu id could spill,
causing sca ld ing bur ns. Sp illed hot liq uid
can also ca use an accident and persona l
injury.
- Use only soft cups in the cuphol der. H ard
c u ps and g lasses can ca use in jury in an
accident.
- Never use the cupho lder or adapter as an
ashtray- risk of fire.
@ Note
On ly dr ink containe rs with lids should be
car ried in the cupho lde r. Liqu id could sp ill
out and damage your veh icle's e lectronic
equipment or stain the upholstery, etc.
Glove compartment
The glove compar tment is illuminated and
can be locked.
F ig . 62 G love compart men t
• To open the g love compartment, pull the
handle in the direction of the arrow ¢
fig. 62
and sw ing the cover down to open.
• To close the glove compartment, push the
glove compartment lid upward until the lock
engages.
The glove compartment can be locked using
the mechanical key¢
page 34.
On the right side in the glove compartment is
a holder with the key body into which the
emergency key must be clipped to be able to
start the vehicle.
A WARNING
--To reduce the risk of pe rsonal injury in an
accident or sudden stop, always keep the
glove compartment closed while d riving .
Additional storage
The re are a var iety of storage compartments
and fasteners in various places in the veh icle.
- In the roof headliner above the rearv iew
m irror.
- On the back of the front seat . The compart­
ment can hold a maximum we ight of 1 kg .
- On the left and right of the luggage com­
partment, behind the side trim.
- Garment hooks on the pillars in the rear of
the vehicle.
A WARNING
-- When driving, do not leave any hard ob -
jects on the rear w indow shelf o r allow
your pet to sit on the shelf. They co uld
become a hazard fo r vehicle occupants in
the event of sudden braking or a cr ash.
- Always remove objects from the instru­
men t panel. A ny item s not stored could
slide around inside the vehicle wh ile dr iv­
ing or when acce le rat ing or when app ly ­
ing the brakes or when driving around a
corner.
- When you are driving make sure that
anything you may have placed in the cen­
ter conso le or other storage locations

cannot fall out into the footwells. In case
of sudden braking you would not be able
to brake or accelerate.
- Any articles of clothing that you have
hung up must not interfere with the driv­
er's v iew. The coat hooks are designed
only for lightweight clothing. Never hang any clothing w ith hard, pointed or heavy
objects in the pockets on the coat hooks.
During sudden braking or in an accident -
especially if the airbag is deployed -
these objects cou ld injure any passen­
gers inside the vehicle .
- To reduce the r isk of personal injury in an
accident or sudden stop, always keep the
glove compartment closed while driving.
- Read and fo llow all WARN INGS
~ page 161, Important safety instruc­
tions on the side airbag system.
- Hang clothes in such a way that they do
not impair the driver's vision .
- T he coat hooks must only be used for
lightweight clothing. Do not leave any
heavy or sharp edged objects in the pock­
ets which may interfere with the side cur­
tain airbag deployment and can cause personal injury in a crash.
- Do not use coat hangers for hanging clothing on the coat hooks as this can in­
terfere with proper deployment of the
side curtain airbags in an accident.
- Do not hang heavy objects on the coat
hooks, as they could cause personal in­
jury in a sudde n stop.
- Always keep the compartment above the
rearview mirror closed while driving to
reduce the risk of injury in the event of
sudden braking maneuvers or a col lision.
(D Note
Objects located on the rear shelf that rub
aga inst the rear w indow cou ld damage the
heating wires for t he rear w indow defog­
ger.
S ea ts a nd s to rage 61
@ Tips
-A vent slot is located between the shelf
and the rear w indow . Do not block the
vent with any items you may place on the
rear window she lf.
- Do not place bu lky items on the rear win­
dow shelf as they could restrict or block
the driver's vision in the rear view m irror.

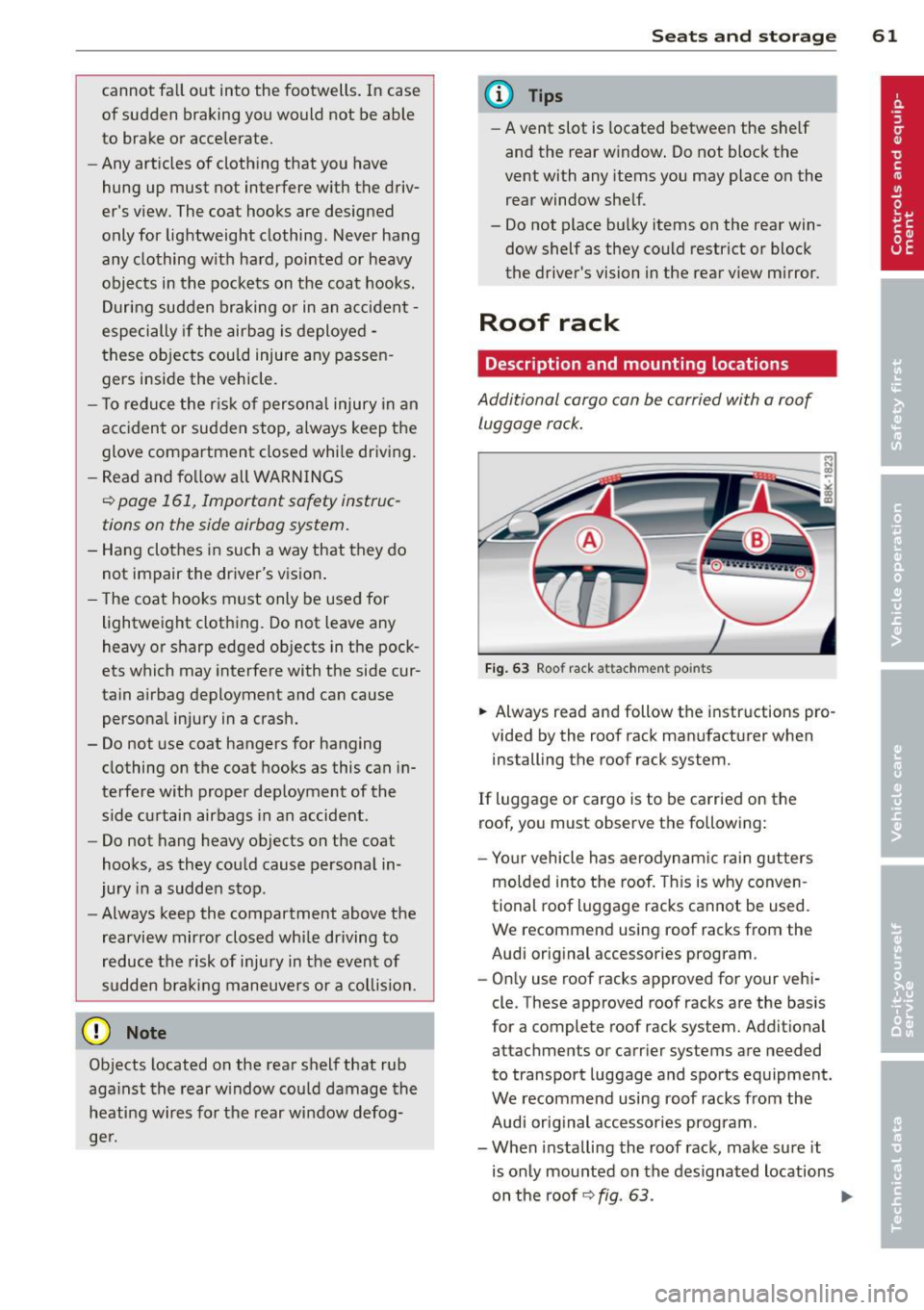

Roof rack
Description and mounting location s
Additional cargo can be carried with a roof
luggage rack.
F ig . 63 Roof rack attachmen t po ints
.,. Always read and follow the i nstructions pro­
vided by the roof rack manufacturer when
installing the roof rack system.
If luggage or cargo is to be carried on the
roof, you must observe the fo llowing:
- Yo ur vehicle has aerodynam ic rai n gutters
mo lded into the roof. This is why conven­
tional roof luggage racks cannot be used.
We recommend using roof racks from the
Audi orig inal accessories program.
- On ly use roof racks approved for your vehi­
cle. These approved roof racks are the bas is
for a complete roof rack system. Addit ional
attachments or carrier systems are needed
to transport luggage and sports equipment.
We recommend using roof racks from the
Audi orig inal accessories program .
- When installing the roof rack, make sure it
is only mounted on the designated locations
on the roof
Q fig . 63 . ..,.

62 Seat s a nd s tor ag e

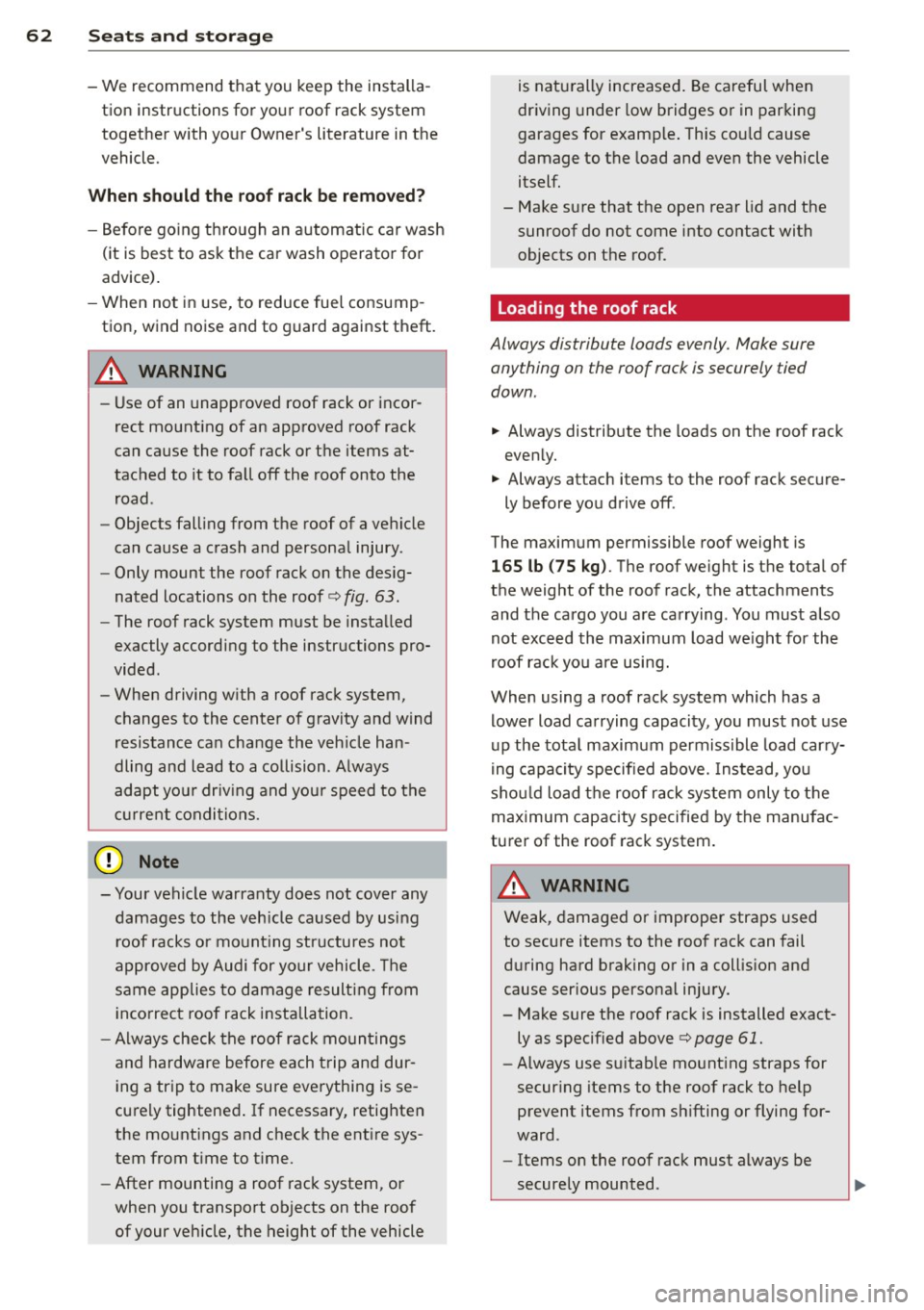

- We recommend that you keep the installa­
tion instructions for your roof rack system
together with your Owner's literature in the
vehicle.
Wh en shoul d th e roof rack b e re mo ved?
-Before going th rough an automatic car wash
(it is best to ask the car wash operator for
advice).
- When not in use, to reduce fuel consump­
tion, wind no ise and to guard against theft.
A WARNING
- Use of an unapproved roof rack or incor­
rect mount ing of an approved roof rack
can cause the roof rack or the items at­
tached to it to fall off the roof onto the road .
- Objects fall ing from the roof of a vehicle
can cause a crash and personal injury .
- Only mount the roof rack on the desig­
nated locations on the roof¢ fig. 63.
- The roof rack system must be insta lled
exactly according to the instructions pro­
vided.
- When driving w ith a roof rack system,
changes to the center of gravity and wind
resistance can change the veh icle han­
dling and lead to a collision . Always
adapt you r driv ing and you r speed to the
cu rrent conditions.
@ Note
- Your vehicle warranty does not cover any
damages to the veh icle caused by using
roof racks or mo unt ing structures not
approved by Audi for yo ur vehicle . T he
same applies to damage resulting from
i ncorrect roof rack installation.
- Always check the roof rack moun tings
and hardware before each trip and dur­ ing a trip to make sure everything is se­
curely tightened . If necessary, retighten
the mount ings and check the ent ire sys­
tem from t ime to t ime.
- After mounting a roof rac k system, or
when you transport objects on the roof
of your veh icle, the height of the vehicle is naturally increased
. Be careful when
driving under low bridges or in parking
garages for example . This cou ld cause
damage to the load and even the vehicle
itself.
- Make sure that the open rear lid and the sunroof do not come into contact with
objects on the roof.
Loading the roof rack
Always distribute loads evenly. Make sure anything on the roof rack is securely tied
down.
.. Always distribute the loads on the roof rack
even ly.
.,. Always attach items to the roof rack secure-
ly before you drive off .
The maxim um permissible roof weight is
165 lb (75 kg ). The roof we ight is the total of
the weight of the roof rack, the attachments and the ca rgo you a re carrying. You must also
not exceed the max imum load we ight for the
r oof rack yo u are using.
When using a roof rack system which has a lower load carrying capacity, you must not use
up the tota l maximum permiss ible load carry­
ing capac ity specif ied above. Ins tead, you
sho uld load the roof rack system only to the
maximum capacity specified by the manufac­
turer of the roof rack system.
A WARNING
Weak, damaged or improper straps used
to secure items to the roof rack can fail
during hard braking or in a coll is ion and
cause ser ious persona l injury.
- Make sure the roof rack is installed exact­ ly as specified above¢ page 61.
- Always use s uitable mount ing straps for
secur ing items to the roof rack to help
prevent items from s hifting or flying for­
ward .
- Items on the roof rack must always be
securely mounted.

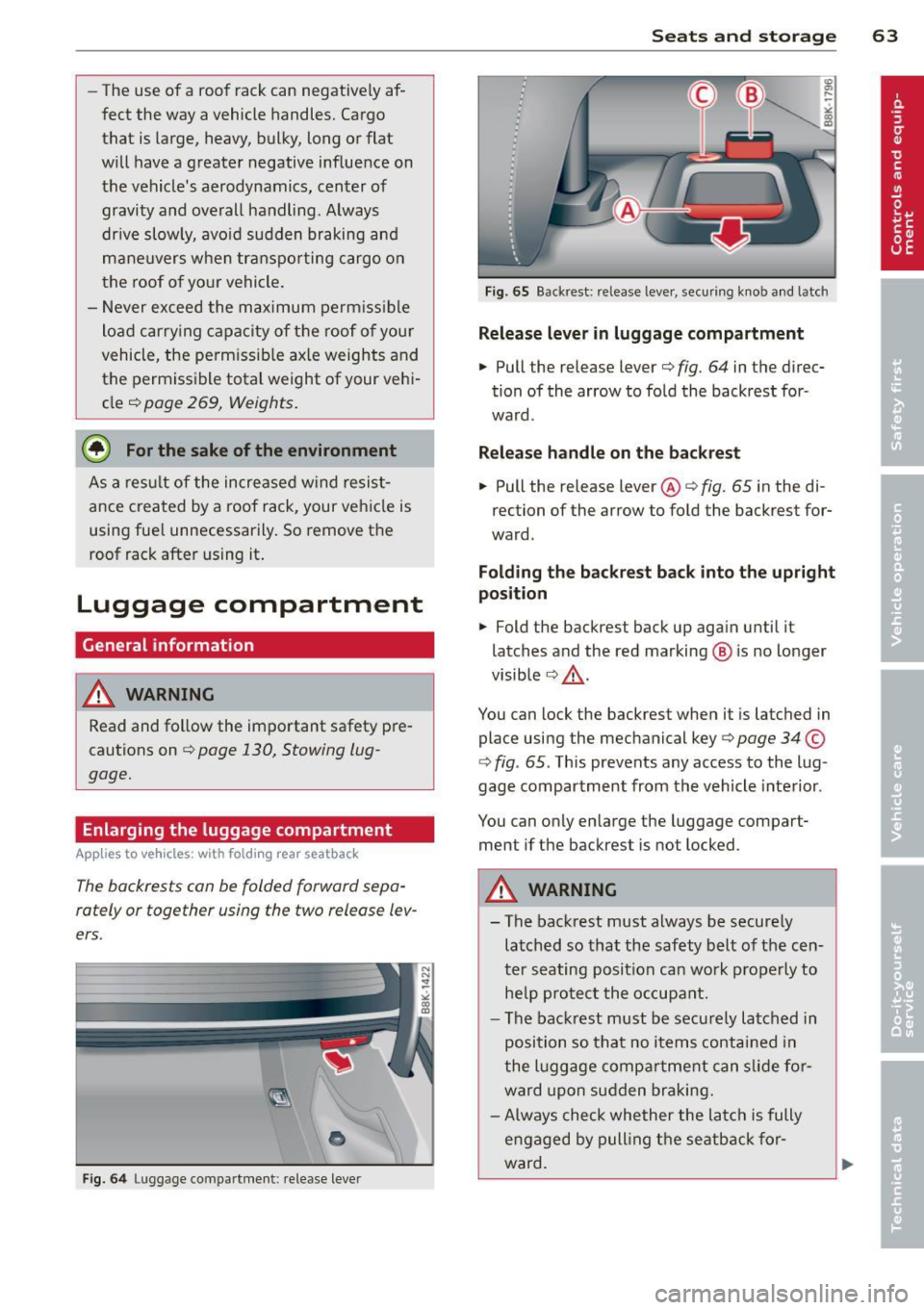

-The use of a roof rack can negative ly af­
fect the way a vehicle handles. Cargo
that is large, heavy, bulky, long or flat
will have a greater negative influence on
the vehicle's aerodynamics, center of
gravity and overall handling . Always
dr ive slowly, avo id sudden braking and
maneuvers when transporting cargo on
the roof of your vehicle.
- Never exceed the max imum permissible
load carry ing capacity of the roof of your
vehicle, the perm issib le axle weights and
the permissible total weight of your vehi­
cle
c::> page 269, Weights.
@) For the sake of the environment
As a result of the increased w ind resist­
ance created by a roof rack, your vehicle is
using fue l unnecessarily . So remove the
roof rack after using it .
Luggage compartment
General information
A WARNING
Read and follow the important safety pre­
cautions on c:>
page 130, Stowing lug­
gage.
Enlarging the luggage compartment
App lies to vehicles: with fold ing rear seatback
The backrests can be folded forward sepa­
rately or together using the two release lev ­
ers .
0
Fig. 64 Luggage compartment: re lease leve r
Seats and storage 63
Fig. 65 Backrest: release lever, securing knob and latc h
Release lever in luggage compartment
... Pull the release lever c:> fig. 64 in the direc­
tion of the arrow to fo ld the backrest for ­
ward .
Release handle on the backrest
... Pull the release lever@c:> fig. 65 in the di­
rection of the arrow to fold the backrest for­
ward .
Folding the backrest b ack into the upright
position
... Fold the backrest back up again until it
latches and the red marking @ is no longer
visible
c:> .&_ .
You can lock the backrest when it is latched in
place using the mechanical key
c:> page 34 ©
c:> fig . 65 . This prevents any access to the lug ­
gage compartment from the vehicle interior.
You can only enlarge the luggage compart­ ment if the backrest is not locked.
A WARNING
-
- The backrest must always be securely
latched so that the safety belt of the cen­
ter seating position can work properly to
he lp protect the occupant.
- The backrest must be securely latched in
position so that no items contained in
the lu ggage compa rtment can slide for­
ward upon sudden braking.
- Always check whether the latch is fully
e ngag ed by pull ing the seatback for­
ward .

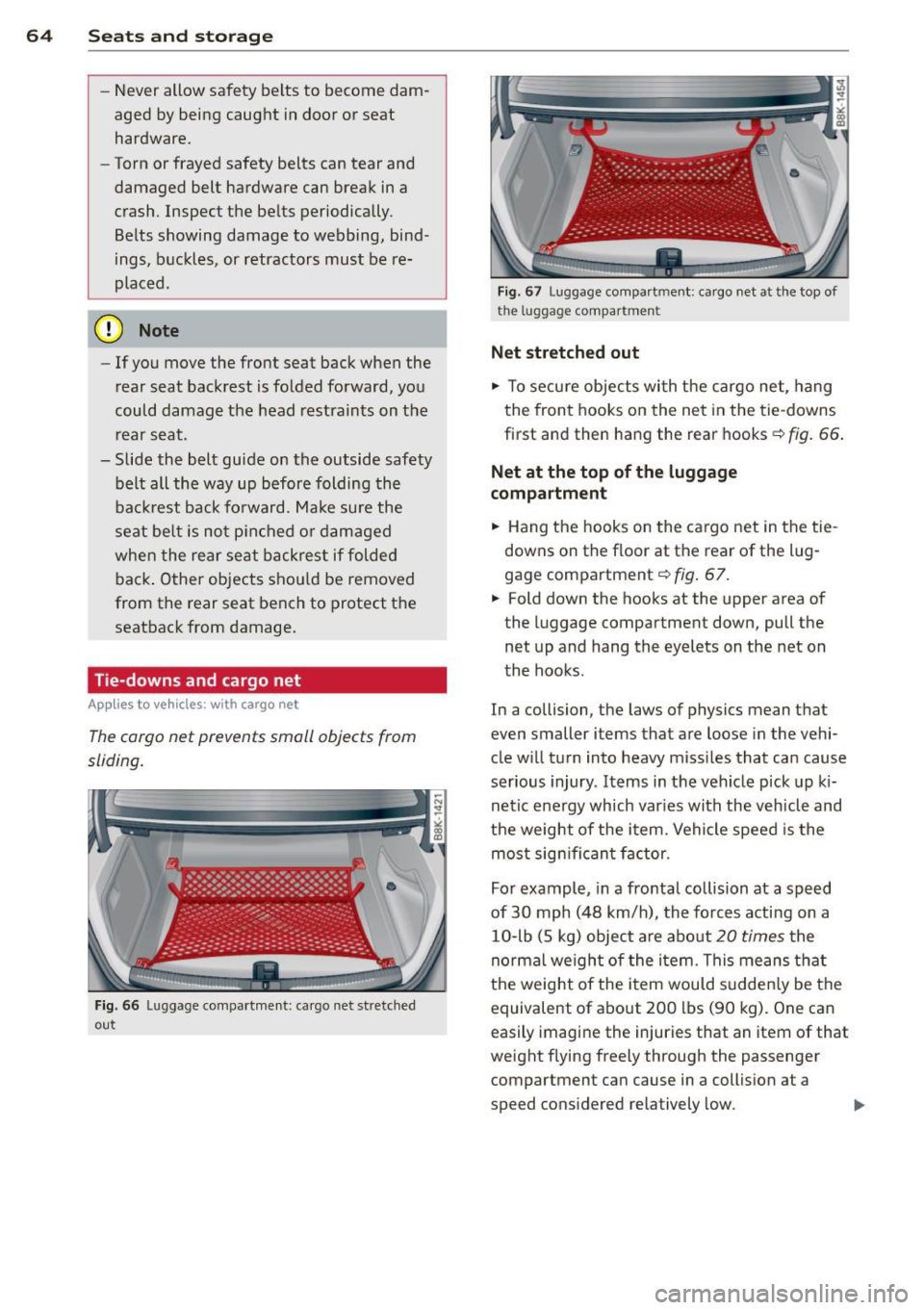

64 Seats and storage
-Never allow safety belts to become dam­
aged by being caught in door or seat
hardware.
- Torn or frayed safety belts can tear and
damaged belt hardware can break in a
crash. Inspect the belts periodically.
Belts showing damage to webbing, bind­
ings, buckles, or retractors must be re­
placed.
(D Note
- If you move the front seat back when the
rear seat backrest is folded forward, you
could damage the head restraints on the
rear seat.
- Slide the belt guide on the outside safety
belt all the way up before folding the
backrest back forward. Make sure the
seat belt is not pinched or damaged
when the rear seat backrest if folded
back. Other objects should be removed
from the rear seat bench to protect the
seatback from damage.
Tie-downs and cargo net
Applies to vehicles: with cargo net
The cargo net prevents small objects from
sliding.
Fig. 66 Luggage compartment: cargo net stretched
ou t
Fig. 67 Luggage compart ment : cargo net at the top of
t he lu ggage compar tmen t
Net stretched out
.. To secure objects with the cargo net, hang
the front hooks on the net in the tie-downs
first and then hang the rear hooks~
fig. 66.
Net at the top of the luggage
compartment
.. Hang the hooks on the cargo net in the tie­
downs on the floor at the rear of the lug­
gage compartment ~
fig. 67.
.. Fold down the hooks at the upper area of
the luggage compartment down, pull the
net up and hang the eyelets on the net on
the hooks .
In a collision, the laws of physics mean that
even smaller items that are loose in the vehi­
cle will turn into heavy missiles that can cause
serious injury. Items in the vehicle pick up ki­
netic energy which varies with the vehicle and
the weight of the item. Vehicle speed is the
most significant factor.
For example, in a frontal collision at a speed
of 30 mph (48 km/h), the forces acting on a
10-lb (S kg) object are about
20 times the
normal weight of the item. This means that
the weight of the item would suddenly be the
equivalent of about 200 lbs (90 kg). One can
easily imagine the injuries that an item of that
weight flying freely through the passenger compartment can cause in a collision at a
speed considered relatively low.

_& WARNING
Weak, damaged or improper straps used
to secure items to tie-downs can fa il dur ­
ing hard brak ing or in a collision and cause
ser ious personal injury .
- Always use suitable retaining straps and properly secure items to the tie-downs in
the luggage compartment to help pre­
vent items from shifting or flying for­
wa rd.
- Never attach a child seat tether strap to
a tie-down .
- For strength-related reasons, the mount­
ing hooks can only be used to secure ob ­
jects we ighing up to 10 lb. (5 kg). Heavi­
er objects will not be adequately secured
- there is a risk of injury .
Ski sack
Applies to vehicles: with ski sack
Long objects such as skis or snowboards can
be transported in the ski sack .
Fig . 68 B ackr est: pass-thr ough cover
.. To load the sk i sa ck in the veh icle, fold the
rea r cente r arm res t down.
.. Fo ld the pass- through cover down
Q fig . 68.
.. Slide the sk i sa ck from the luggage com ­
partment through the opening with the zip­
per at the rear .
.. Secure the sk i sack
Q page 65.
_& WARNING ,..__
Objects must on ly be transported in the ski
sack since the ski sack can be sec ured . In­
dividual objects cannot be secured. There
is a risk of injury .
Sea ts a nd s to rage 65
@ Tips
-You can open the pass-through from the
luggage compartment. Push the release
button down and push the cover for­
ward.
- You can lock or unlock the pass-through
using the mechanical key. This preven ts
any access to the luggage compar tment
from the vehicle interior .
Securing the ski sack
Applies to vehicles: w ith ski sack
The ski sa ck mu st be secured in the luggage
compartment.
F ig. 69 Luggage compar tment: Se curing the s ki s ack
F ig. 70 Rea r ben ch s eat: secur ing the sk i sack
There are two straps with hooks on the bot­
tom side of the ski sac k
q fig. 69@. There is
also a secu ring strap ®
q fig. 70 on the sack.
.. To secu re the ski sack in the luggage com-
pa rtment, hang the hooks in the rear t ie­
downs
q fig. 69 .
.. Tighten the strap on the ski sack to prevent
the objects in the sack from sliding
q fig. 70. ...

66 Seat s a nd s tor ag e
8_ WARNING
-
- The ski sack is intended only for the
transportation of skis and other light ob ­
jects . To reduce the risk of serious per­
sonal injury, never transport heavy or
pointed objects in the ski sack.
- When brak ing rapidly or during an acci­
dent, the load could be displaced and
ca use injury to occupants.
- Sharp edges on the load must be covered
for protect ion. Always fasten the belt
t ightly around the sack and its contents
¢ fig. 70.
-For safety reasons, do not transport
more than two pairs of skis in the ski
sack .
- You must sec ure the ski sac k with the
st rap after loading.
- Make su re a ll objects that you are t rans­
porting in the pass-through are secured.
Otherwise they cou ld slide around during
sudden braking maneuvers and cause in­
jury.
(D Tips
- Never stow the sk i sack away when it is
still wet or damp (for examp le, snow
melting from skis). Allow it to dry com­
plete ly before stowing it away.
- When transporting skis or snowboards, tighten the securing strap between the bindings.
- Position skis in the ski sack wit h the
pointed ends facing the front and ski
po les with the pointed ends facing the
rear.
- You can lock or un lock the pass-through
u sing the mechanical key. This prevents
any access to the luggage compartment
from the vehicle interior .
Parcel shelf
The parcel shelf behind the rear seatback can
be used to car ry light items of cloth ing .
8_ WARNING
No heavy or hard objects should be p laced
on the parcel shelf. They are a hazard to
the veh icle occupants during s udden brak­
i ng . The is a risk of injury .
(D Note
Please make sure that the heating w ires
for the rear window defogger are not dam ­
age by abrasive objects .
(D Tips
To ensure problem-free ven tilation , the
vent ilation slots between the rear window
and the pa rcel she lf must not be covered .

Warm and cold Climate controls
Description
Th e climate control sy stem warms, cools and
adds humidity to the a ir in the veh icle inter io r.
It is the most effect ive when the windows and
sunroof are closed . If the re is a build-up of
h eat inside the vehicle, ventilation can help to
speed up the cooling process .
I n all he ating mode functions except
defrost,
the blower on ly switches to a higher speed
once the engine coolant has reached a certain
temperature.
Condensat ion from the cooling sys tem can
d rip and form a puddle of water under the ve­
h icle. This is normal and does not mean there
is a leak .
Pollutant filter
The po llutant filte r removes po llutants such
as dus t and pollen from the air.
The air pollutants filte r must be changed at
the intervals spec ified in you r Wa rra nty
&
M aintenance book let, so tha t the air condi­
tioner can prope rly work .
If you drive your vehicle in an area w ith h igh
a ir po llution, the fi lter may need to be
changed more frequent ly than specified in
your Aud i Warranty
& Ma intenance bookle t. If
in doubt, ask your authorized A udi Service Ad ­
v isor for advice .
Key coded settings
The clima te control sett ings are automat ically
stored and assigned to the remote co ntro l key
that is in use.
WARNING
Reduced vis ibili ty is dangero us and can
cause accidents.
Warm and c old 67
-For safe driving it is very important that
all windows be free of ice, snow and con­
densat ion.
- Comp letely fam iliarize yourse lf with the
proper use and funct ion of the heat ing
and ve nti lation system and especially
how to defog and defrost the w indows.
- Never use the windshield wiper/washer
system in freez ing weather unt il you
have warmed the w indshield first, using
the heating and ventilation system. The
washer sol ution may free ze o n the wind­
shie ld an d red uce visib ility.
(D Note
- If you suspect that the air conditioner has been damaged, switch the system
off to avoid furt her damage and have it
i n spected by a q ua lified dea lership.
- Repairs to the Audi air condition er re­
quire specia l techni cal know ledge and
speci al tools. Contact an autho rized Aud i
dealer fo r ass istance.
@ For the sake of the environment
B y reduci ng the amou nt of f uel you use,
you also re duce the amount of pollu tan ts
emitted in to the a ir.
(D Tips
- Keep the air intake s lo ts ( in fro nt of the
w indshield) free from ice, snow and de­
br is in order to maintai n the proper f unc ­
tion of the climate control system.
- T he energy m anagement system may
switch the seat heating* or rear window
defroster off temporar ily . These systems
are available again as soon as the energy
balance has been restored.
- Air escapes through vents under the rear
window. When placing items of clothing
on the luggage compartment cover, en­
sure that the openings are not covered.

68 Warm and cold
Operation
We recommend pressing the IAUTOI button and setting the temperature to 72 °F (22 °C) .
Fig. 71 Automat ic cl imate control system: control
Fig. 72 3-zo ne de luxe automatic cl imate contro l' : contro ls
Press the buttons to turn the funct ions on or
off. Use the d ials to adjust the temperature,
the blower speed and the a ir distribution . The
LED in a button will light up when the func­
tion is switched on. The settings are disp layed
for a few seconds in the radio or MMI* display .
In vehicles with a 3 -zone deluxe automat ic cl i­
mate control systems*, the dr iver and front
passenger side can be adjusted separately .
The settings are also displayed in the climate
control sys tem display.
IOFF I Switching the climate control
system on/off
The IOFFI button switches the climate control
sys tem on or off . It also switches on when you press the knob. Airflow from outside
is
blocked when the climate control system is
switched off .
IAC I Switching cooling mode on/off
The air is not coo led and humidity is not re­
moved when cooling mode is switched off .
This can cause fog on the windows. Cooling
mode switches off automatically when the
outside temperature is below ze ro .
1- 1 Switching recirculation mode on/off
In recircu lation mode, the air inside the vehi­
cle is c irculated and filtered. This prevents the
unfiltered air outside the vehicle from enter­
ing the vehicle interior . We recommend
