AUDI A5 COUPE 2013 Manual PDF

switching recirculation mode on when driving
through a tunnel or when sitting in traffic
c::>_& .
The IAU TO I button or I@ FR ON T I button
switches recircu lation mode off .
IAUTO I Switching automatic mode on
Automatic mode ma inta ins a constant tem­
peratu re inside the vehi cle. Air temperature,
a irflow and air d istribution are controlled au­
tomatically.
Adjusting th e tempe ratur e
Temperatures between 60 °F (+16 °C) and
84 °F ( +28 °C) can be set . Outside of this
range,
L O or HI will appear in the cl imate con­
trol system disp lay. At both of these settings,
the climate control system runs continuously
at maximum cooling or heating power . There
is no temperature regu lation.
~ Ad just ing the airflow
You can adjust the airflow manually to su it
your needs . To have the airflow regulated au­
tomatically, press the IAUTO ! button.
~Adjusting the air distribution
You can manually se lect the vents where the
a ir will flow. To have the air d istr ibution regu­
l ated automatically, press the
IAU TOI button .
~ Adjusting seat heat ing *
Pressing the button switches the seat heating
on at the highest sett ing (level 3). The LEDs
indicate the temperature leve l. To reduce the
temperature, press the button again . To
switch the seat heating off , press the button
repeatedly unt il the L ED turns off.
After 10 minutes , the seat heat ing automati­
cally switches from level 3 to level 2.
I @ FRON T I Switch the d efro ster on /off
The windshield and s ide windows are defrost­
ed or cleared of condensation as quickly as
possible. The max imum amount of air flows
mainly from the vents below the windsh ield.
Recirculation mode switches off . T he tempera­
ture is controlled a utomat ica lly.
Warm and c old 69
The !AUTO ! button switches the defroster off.
lmn R EAR ! Switching rear window heater
on /off
T he rea r window heater on ly operates when
the engine is running. It sw itches off auto ­
matically after a few m inutes, depending on
the outs ide temperature .
T o p reven t the re ar window heater from
switching off automatically, press and hold
the
l oo REARI b utton for more than 2 seconds .
This remains stored until the ign ition is
switched off .
Air vents
You can open and close the center and rear air
vents using the thumbwheels . The levers ad­
just the direction of the airflow from the
vents.
In vehicles with a 3 -zone deluxe automatic cli­
mate control system*, you can adjust the air
temperature in the rear by turning the thumb­
whee l toward the red side to make it warmer
or toward t he blue side to make it coo ler.
A WARNING ...
- Do not use the recircu lation for extended
pe riods of time . The windows could fog
up since no fresh a ir can enter the vehi­
cle .
If the windows fog up, press the air
reci rculation button aga in immediately
to switch off the air reci rc u lation func­
tion or se lect defrost .
- I ndividuals w ith red uced sensitivity to
pa in or temperature cou ld deve lop burns
when using t he seat heating function. To
red uce the risk of injury, these individu­
a ls shou ld not use seat heating.
(D Note
To avoid damage to the heat ing e lements
i n the seats, do not kneel on the seats or
place heavy loads on a small area of the
seat.

70 Warm and cold
The seat heating only works when the seat
detects body weight on it. P lacing objects
on the seat cou ld create enough we ight to
sw itch seat heat ing on.
Setup
The basic climate control settings can be ad­
justed in the radio or MM!* .
.. Se lect:
ICARI function button> A /C control
button . Or
.. Se lect:
I CARI funct ion button> Car sys -
tems "
control button > AC.
Automatic recirculation*
When switched on, automatic recirculation
controls the recirculation mode automatica lly.
If the windows fog up, press the
1 ~ FRONT I
button.
Synchronization*
When synch roniza tion is switched on, the
same settings are applied to both the drive r
and front passenger, except for the seat heat­ ing/ventilation*. Synchronization switches off
when you ad just the settings on the front pas­
senger's side.
You can a lso switch synchronization on by
press ing and ho lding the knob on the driver's
side.

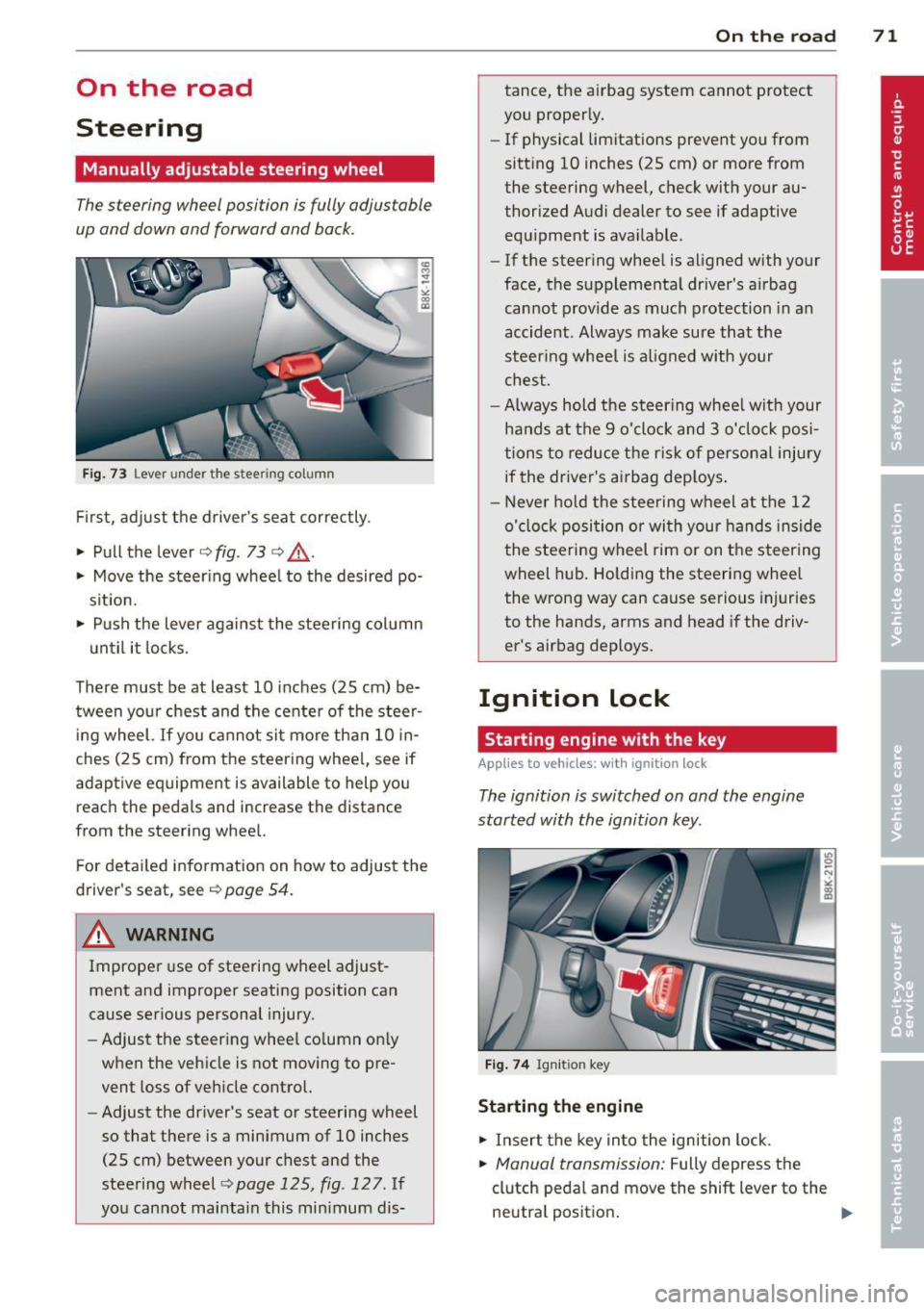

On the road
Steering
Manually adjustable steering wheel
The steering wheel position is fully adjustable
up and down and forward and back.
F ig . 73 Lever under the steer ing column
Fir st, adj ust t he d river's sea t correctly.
• Pull the lever
i:> fig . 73 ¢ Lo, .
• Move the steer ing wheel to th e desired po­
s it ion.
• Push the lever against the steering col umn
u ntil it locks.
There must be at least 10 inches (25 cm) be­
tween your chest and the cente r of the stee~
i ng wheel. If you cannot si t more than 10 in­
ches ( 25 cm) from the steering whee l, see if
adaptive equipment is available to help yo u
reach the peda ls and increase the distance
from the steering whee l.
F or detai le d informatio n on how to adjust the
d river's seat, see
i:> page 54.
& WARNING
Imprope r use of stee ring wheel adjust ­
ment and improper seating position can
cause serious personal injury.
- Adjust the steer ing whee l co lumn on ly
when the veh icle is not moving to pre­
vent loss of veh icle control.
- Adjust the driver's seat or steering wheel
so that there is a minimum of 10 inches
(25 cm) between your chest and the
steering wheel¢
page 125, fig . 127. If
yo u cannot mai ntain this mi nimum dis -
On the road 71
tance, the a irbag system cannot protect
you proper ly.
- If physical limitations prevent you from
sitt ing 10 inches (25 cm) or more from
the steering wheel, check with your au­
thorized Audi dealer to see if adaptive
equ ipment is ava ilable.
- If the steer ing wheel is aligned with your
face , the suppleme nta l dr iver's a irbag
cannot provide as much protection in an
accident . Always make sure that the
steer ing whee l is a ligned with your
ches t.
- Always h old the ste ering whee l w ith your
hands at t he 9 o'clock and 3 o'clock posi­
tions to redu ce the risk of persona l injury
if the driver's airbag dep loys .
- N ever hold the stee ring wheel at the 12
o' clock posi tion or wi th your hands in si de
the stee rin g wheel rim or on t he steering
wheel h ub. Holding the steering whee l
the wrong way can cause se rious injuries
to the hands, arms and head if the driv­
er 's airbag deploys.
Ignition lock
Starting engine with the key
App lies to vehicl es: wi th igni tion lo ck
The ignition is switched on and the engine
started with the ignition key .
Fig . 7 4 Ig nition key
Starting the engine
• Insert the key in to the ignition lock.
• Manual transmi ssion: Fully depress the
clutch peda l and move the shift lever to the
neutra l positio n.

72 On the road
• Automatic transmission: Step on the brake
pedal and move th e se lector lever to the P
or
N position.
• Press the key c::>
fig. 74 -the eng ine will
start.
Sw itching the i gni tion on /off
If you wou ld like to switch the ignition on
without starting the engine, follow these
steps :
• Inse rt the key into the ignition lock .
• Press the key briefly
wi thout pressing the
c lutch pedal (for man ual transmissions) or
the brake peda l (for automatic transmis­
s ions) .
• To sw itch the igni tion off, press the key
again.
When starting the engine, major e lectr ical
loads are swi tched off temporarily .
You can on ly remove the key with the ignition
switched off.
I f the engine should not sta rt immediately,
the starting process is automatically stopped
after a short time. Repeat starting procedure .
A WARNING
-Never allow the engine to run in confined
spaces -danger of asphyxiation .
- Never remove the ign ition key from the
ignition look whi le the vehicle is moving.
Otherw ise, the steering lock cou ld sud­
denly engage and you would not be able
to steer the vehicle.
- Always take the key with you whenever
you leave your vehicle . Otherwise, the
engine could be started or electr ica l
equipment such as the power w indows
c ou ld be operated. This can lead to seri­
o us inj ury.
- Never leave children or persons requiring
assistance u nattended in the vehicle . The
doors c an be locked using the remo te
transmitter, preventing people from es­
caping from the vehicle on their own in
the event of an eme rgency. Depending
on the time of year, people inside the ve- h
icle can be exposed to very high or very
low temperatu res.
@ Note
Avoid high eng ine rpm, f ull throttle and
heavy engine loads unti l the engine has
r eached operating tempe rat ure -other­
wise you risk eng ine damage.
@ For the sake of the environment
Do not let the engine run w hile parked to
warm up. Begin driving immediately. This
reduces unnecessary emissions.
(D Tips
- If the key cannot be removed from the
ignition lock, you have to pull the me­
chanical key out of the master key in or­
der to be able to lock the vehi-
cle c::>
page 35 .
-After starting a cold engine, there may
be a brief period of increased noise be­
cause the oil pressure must first bu ild up
in the hydraulic valve ad justers. This is
normal and not a cause for concern.
- If you leave the veh icle with the ignition
switched on, the ignit ion w ill switch off
afte r a certain per iod of t ime . P lease
no te that electrical eq uipment such as
exterior ligh ts will sw itch off as well
when that happens .

Starting the vehicle with the emergency
key
Applies to vehicles: with ignition lock
You can use the emergency key as an ignition
key in an emergency.
Fig . 75 G love compar tmen t: Adapter for emergency
key
Fig. 76 Insert emergency key into the adapter
.,.. Take the adapter for the emergency key out
of the glove compartment
<=:> fig . 75 .
.,.. Push the emergency key~
fig. 76 fully into
the adap ter . Make sure that the Audi r ings
are facing up.
.,.. Press the emergency key in the adapter
down until it latches audibly .
.,.. Insert the adapter with the emergency key
forward into the ignition switch . The engine
can now be started as usual.
Stopping the engine
App lies to vehicles: with ig ni tion loc k
.,.. Bring the vehicle to a full stop.
.,.. Automatic transmission: Move the selector
lever to the P or N pos ition .
.,.. Press on the ignition key. The engine is
tu rned off.
.,.. You can now remove the key.
On th e road 73
Ste ering lock
The steering locks when yo u remove the ig ni­
tion key . The lo cked steering helps prevent ve ­
hicle theft .
Emergency off
If it is necessary in unus ual circumstances, the
engine can be switched off while the veh icle is
moving. The engine will be switched off if you
press on the key for an extended period .
A WARNING
-Never turn off the engine before the ve­
hicle has come to a comp lete stop. The
full funct ion of the brake booster and the
power steering is not guaranteed . You
must use more force to turn or brake if
necessary. Because you cannot steer and
brake as you usually wo uld, this could
lead to crashes and ser ious injuries.
- For safety reasons , you should always
pa rk your vehicle w ith the selector lever
in P . Otherwise, the vehicle could inad ­
verten tly roll away .
- The radiator fan can continue to run fo r
up to 10 minutes even after you have
turned off the engine and removed the ignition key. The radiator fan can a lso
turn on again if the engine coo lant heats
up because of intense sunlight or heat
build-up in the engine compartment.
- Always take the key with you whenever
you leave your vehicle. Otherw ise, the
engine could be started or electrical
equipment such as the power windows
could be operated . This can lead to seri­
ous injury.
- Never leave children or persons requiring
assistance unattended in the vehicle. The
doors can be locked using the remote
transmitter, preven ting people from es­
caping from the veh icle on their own in
the event of an emergency. Depending
on the time of year, peop le inside the ve­
hicle can be exposed to very high or very
low temperatures .

7 4 On the road
(D Note
If the engine has been under heavy load
for an extended period, heat builds up in
the engine compartment after the engine
is switched off -there is a risk of damaging
the engine . Allow the engine to run at idle
for about two minutes before switching it
off.
Convenience key
Starting the engine
Applies to vehicles: with co nve nience key
The I S TA RT EN GINE ST OP ! button switches
the ignition on and starts the engine .
Fig. 77 Center console : S TART ENGINE STOP bu tto n
Starting the engine
.. Manual transmission: Fully depress the
clutch pedal and move the shift lever to the
neutral posi tion .
.. Automatic transmission: Step on the brake
pedal and move the selector lever to P or N
I:?&_ .
.. Press on the I STAR T ENG IN E ST OP I bu tton
<=? fig . 77 -the engine w ill sta rt .
Switching the ignition on/off
If you would like to switch the ignition on
without starting the engine, follow these
steps :
.. Press the
!START ENGIN E STOP! button
without pressing the clutch pedal (for man ­
ual transmissions) or the brake pedal (for
automatic transmiss ions) .
.. To switch the ignition off, press the but ton
again. If
the engine should not start immediately,
the sta rting process is automatically stopped
afte r a short t ime. Repeat start ing procedure.
When sta rting the engine, major elect rical
loads are switched off temporar ily .
After a cold engine is started, there may be a
brief period of increased noise because oil
pressure must first build up in the hydrau lic
valve adjusters . This is norma l and not a cause
for concern .
.&_ WARNING
-
-Never allow the engine to run in confined
spaces -danger of asphyxiation.
- Never turn off the engine until the vehi­
cle has come to a complete stop.
- Always take the key with you whenever
you leave your veh icle . Otherw ise, the
engine could be started or electrical
equ ipment such as the power windows
could be operated . This can lead to seri­
ous injury .
- Never leave children or persons requiring
assistance unattended in the vehicle . The
doors can be locked using the remote
tr an smitter, preventing people from es­
caping from the veh icle on their own in
the event of an emergency. Depending
on the time of year, peop le inside the ve­
hicle can be exposed to very high or very
low temperatures .
(D Note
-Avo id high engine rpm, full throttle and
heavy eng ine loads until the engine has
reached operating temperature -other­
wise you risk engine damage.
@ For the sake of the environment
Do not let the engine run while parked to
warm up. Begin driving immediately. This
reduces unnecessary emissions .
(D Tips
-After starting a cold engine, there may
be a brief period of increased noise be-
cause the oil pressure must first build up .,.

in the hy draulic valve adjus ters. This is
norma l and not a cause for concern .
- If you leave the vehicle with the ignit ion
switched on, the ignition will switch off
after a certain pe riod of time . Please
note that e lectr ica l equipment such as
exterior lights will swi tch off as well
when tha t happens .
Switching engine off
Applies to vehicles: with conven ie nce key
.,. Bring your vehicle to a complete stop .
.,. Automat ic transm iss ion: Move the se lector
lever to the P or N pos it ion.
.. Press the
!S TAR T ENGINE STOPI button
~ page 74, fig. 77.
St eering lock
The steering locks when you turn the engine
off us ing the
I STAR T ENGIN E STOP I button
and open the dr iver's door. The locked stee r­
i ng helps prevent vehi cle theft.
Emergency off
If necessary , the eng ine can be sw itched off
with the selector lever in the R or D/S pos i­
tions. To do so , step on the brake peda l and
p ress and hold the
I S TA RT ENGINE STO PI bu t­
ton vehicle speed must be less than 6 mph (10 km/h).
A WARNING
- Never turn off the eng ine before the ve­
hicle has come to a complete stop . The
full function of the brake booster and the
power steering is not guaranteed. You
must use more force to turn or brake if
necessary . Because you cannot steer and
brake as you usua lly would, t his could
lead to crashes and serious injur ies .
- For safety reasons, you should always
par k your vehicle with the se lector lever
in P. Otherwise, the ve hicle co uld i nad­
vertent ly roll away.
- T he rad iator fan ca n con tinue to ru n for
u p to 10 mi nutes eve n after yo u have
t ur ned o ff the eng ine and removed the
On th e ro ad 75
ignition key. The radiator fan can a lso
turn on again if the engine coo lant heats
up because of intense sunlight or heat
bu ild-up in the engine compa rtment.
- Always take the key w ith you whenever
you leave your ve hicle. Otherw ise, the
engine could be started or electrical
equ ipme nt such as the power windows
could be ope rated. This can lead to seri­
ous injury.
0 Note
If the engine has been under heavy load
fo r an extended pe riod, heat bu ilds up in
the engine compartm ent after the engine
i s sw itched off -th ere is a r is k of damag ing
the engine . A llow the engi ne to run at id le
fo r abo ut two minutes before switching it
off.
Driver messages
Ignition is o n
This message appears and a warning tone
sou nds if you open the d river's door when the
ignition is sw itched on .
No key ident ified
This message appears when the
I S TART ENG IN E STOP I bu tton is pressed if
there is no master key ins ide the veh icle or if
the system does not recognize it . Fo r exam­
ple , the master key cannot be recogni zed if it
is covered by an obje ct (e.g . al uminum brief
case) which
screens t he radio s ignal. Elec tron­
ic dev ices such as cell phones can also inter­
fere with the radio s ignal.
Pre ss brak e pedal to start engine
This message appears if you do not press the
brake pedal to start the eng ine in a vehicle
with an automat ic transm iss ion.
Press clutch pedal to start engine
T his message appears if you do not press the
clutch pedal to start the engine in a veh icle
with a manual tr ansmission . ..,.

76 On the road Shift to N or P to start engine
This message appears when attempting to
start the engine if the selector lever for the
automatic t ransmission is not in the P or N
position. The engine can on ly be started with
the selector in these posi tions.
Is the ke y in the vehicl e?
This message appears if the master key is re­
moved from the vehicle with the eng ine run­
n ing .
If the master key is no longer in the ve ­
hi cle, yo u cannot swit ch o n the ignition after
stopping the engine and you also cannot star t
the engine again. Moreover, yo u cannot lock
the vehicle from the outside with the key .
Shift to P otherwise vehicle ca n roll away .
Door s do not l ock if l ev er i s not in P.
This m essage appears for safety reasons
a long w ith a warning signa l.
It appears if the
selec tor lever for the automat ic transm iss ion
is not in the P position when switch ing
off the
i gnition . Move the selector lever to the P posi ­
t ion, otherwise the vehicle is not sec ured
against rolling away. You also cannot lock the
vehicle using the locking button * on the door
handle or using the remo te key.
C on ven ience key defecti ve! U se ignition loc k
This message appea rs if the engine mus t be
started or s topped using the igni tion key and
not the
I S TART ENGINE ST OP ! button.
Electromechanical
parking brake
Operation
The electromechanical parking brake replaces
the hand brake.
F ig . 78 Cen ter co nsole: Park ing b rake
.,. Pull on the switch@¢ fig. 78 to apply the
parking brake. The indicator light in the
sw itch ill um inates.
.,. Step on the brake pedal or the accelerator
pedal and p ress the switch at the same t ime
to re lease the park ing brake. The indicator
light in the sw itch goes out.
Your vehicle is equipped with an electrome ­
chanical parking brake . The parking b rake is
designed to p revent the veh icle from rolling
u nintentionally and replaces the hand b rake .
I n add ition to the normal functions of a tradi ­
tional hand brake, the electromechanical
parking brake provides vario us convenience
and safe ty f unct io ns.
When starting from rest
- The integral start ing ass ist helps you when
driving by automat ically releasi ng the park ­
ing brake ¢
page 77, Starting from rest .
-When start ing on i nclines, the start ing as ­
sist prevents the vehicle from uni ntentional­
ly ro lling back . The braking force of the
pa rk ing brake is no t released unt il suff ic ient
driving force has been bui lt up at the
wheels . ..,.

Emergency brake fun ction
An emergency brake ensures that the vehicle
can be slowed down even if the
normal b rakes
fail
c::> page 78, Emergency broking.
Ind icat or light s
-If the par king b rake is closed w ith the igni­
t ion
s wit ched on the . (USA models)/
• (Canada models) indicato r lights come
on in the instrument cluster and the switch .
-If the par king brake is closed w ith the igni ­
tion
s witc hed off the . (USA models)/
• (Canada mode ls) indicator lights come
on in the instrument cluster and the switc h
for about 20 seconds.
A WARNING
If a gear or a drive range (automat ic trans­
m ission) is engaged with the vehicle sta­
tionary and the engine runn ing, you must
in no instance accelerate or release the
clutch carelessly. Othe rwise the vehicle
w ill sta rt to move immediately- r isk of an
accident.
(D Note
If the . symbol in the display or the
.. (USA models) . (Canada models)
ind icator light in the instr ument cluster
flashes, there is a ma lfunction in the b rake
system. By press ing the
!SETI button, you
can bring up a driver message which ex­
plains the malfunction in more detail. If
the driver message
Pa rking brake! ap­
pears, there is an operating malfunction in
the parking brake which you should have
repaired immediately by an authorized
Aud i dealer or other q ual ified workshop
c::> poge 15.
(j) Tips
- You can apply the parking brake at any
time -even w ith the ignition switched
off . T he ignit io n must be tu rned on in o r­
der to release the parking b rake.
On th e ro ad 77
-Occasional noises when the parking
brake is app lied and released are normal
and are not a cause for concern.
- When the vehicle is pa rked, the park ing
brake goes through a self -test cycle at
regu lar interva ls. Any associated noises
are normal.
Parking
Parking
.,. Press the brake pedal to stop the veh icle .
.,. Pull the button
@ c::> page 76, fig. 78 to set
the parking brake .
.,. Automatic transmission: Move the selector
lever to P.
.,. Tur n the engine off
c::> &_ .
.,. Manual transmiss ion: Shift into 1s t gear.
In addition on inclines and grades
.,. Turn the steering wheel so that your vehicle
w ill roll aga inst the curb in case it shou ld
start to move.
_&. WARNING
- When you leave you r vehicle -even i f on­
ly briefly -always remove the ignition
key. This app lies particularly when chil­
dren remain in the vehicle. Otherwise the
children could start the eng ine, release
the parking brake or operate electrical
equ ipment (e .g . power windows) . There
is the risk of an acc ident .
- When the veh icle is locked, no one -par­
ticularly not childre n should rema in in
the vehicle . Locked doors make it mo re
difficult for emergency wo rke rs to get in­
to the vehicle -put ting lives at risk .
Starting from rest
The starting assist function ensures that the
parking broke is released automatically upon starting.
Stopping and applying p arking brake
.,. Pull the switch @ c::> page 76, fig. 78 to ap-
ply the parking brake .
Ill>-

78 On the road
Startin g and automati cally r ele a s ing the
p ark ing b rake
.. When you start to drive as usua l, the park­
ing brake is automatically released and your
vehicle begins to move.
When stopping at a traffic signal or stopping
in city traffic on vehicles with an automatic
transmission, the parking brake can be ap­
plied. The vehicle does not have to be held
with the footbrake. The park ing brake elimi­
nates the tendency to creep with a drive range
engaged. As soon as you dr ive off as usual,
the park ing brake is released automatically
and the veh icle starts to move .
Starting on slopes
When starting on inclines, the start ing ass ist
prevents the vehicle from unintentionally roll­
ing back. The braking force of the parking
b rake is not released until sufficient dr iving
fo rce has been bu ilt up at the whee ls.
(D Tips
For safety reasons, the park ing brake is re­
leased automatically only when the dr iv­
er 's sa fety belt is engaged in the bu ck le.
Starting off with a trailer
To prevent rolling back unintentionally on an
incline, do the following:
.. Keep the switch@c::> page 76, fig. 78
pulled and depress the accelerator . The
parking b rake stays applied and prevents
the vehi cle from rolling backward.
.. You can release the switch @once you are
s u re that yo u are developing enough driving
force at the wheels by depressing the accel ­
erator.
Depending on the weight o f the rig (vehicle
and trai ler) and the severity of the incline, you
may roll backwards as you start . Yo u can pre­
vent roll ing backwards by holding the parking
brake switch @pulled out and accelerating -
just as you would when starting on a hill with
a conventional hand brake.
Emergency braking
In the event that the conventional brake sys­
tem fails or locks .
.. In an emergency, pull the switch@
c::> page 76, fig. 78 and continue to pull it to
slow your vehicle down with the parking brake .
.. As soon as you release the switch @or ac-
celerate, t he b ra ki ng pro cess stops.
If you pull the switch @and hold it above a
speed of about 5 mph (8 km/h), the emergen­
cy bra king funct ion is initiated. The ve hicl e is
braked at all fou r whee ls by activating the hy­
draulic brake sys tem. The brake performance
is similar to making an emergency stop
c::> ,&.
In order not to a ct ivate the eme rgency brak­
ing by mis take, an audib le warning tone (buz­
zer) so unds when the switch @is pulled. As
soon as the switch @ is released, or the acce l­
erator pedal is depressed, emergency braking
stops.
A WARNING ,-
Emergency braking should only be used in
an emergency, when the normal foot brake
has fa iled or the brake pedal is obstructed .
Using the par king brake to pe rform eme r­
gency b raking will s low your veh icle down
as if you had made a full brake application.
The laws of phys ics cannot be suspended
even with ESC and its associated compo ­
nents (ABS, ASR, EDS). In corners and
when road or weathe r cond itions are bad,
a full brake application can cause the vehi ­
cle to skid or the rear end to break away­
risking an accident.
Speed warning system
Overview
The speed warning system helps you to keep
your driving speed below a set speed limit.
T he speed warn ing system warns if the driver
exceeds a p reviously sto red max imum speed.
A warning tone w ill sound as soon as the
Ill-
