Page 35 of 286
-If the power lock ing system should ma l
function, you can lock the driver's door
using the mechanical key
~ page 3 7.
- If the power locking system should fail,
you can still open the fue l tank flap in an
emergency <=>
page 205.
-You are well advised not to keep valua
bles inside an unattended vehicle, visible
or not . Even a properly locked vehicle
cannot provide the security of a safe .
- If the LED in the upper edge of the driv
er's door panel comes on for about
30
seconds after the vehicle is locked, there
i s a malfunction in the power locking or
the anti-theft warning system. Have the
malfunction corrected by an author ized
Audi dealersh ip or qua lified repair fac ili
ty.

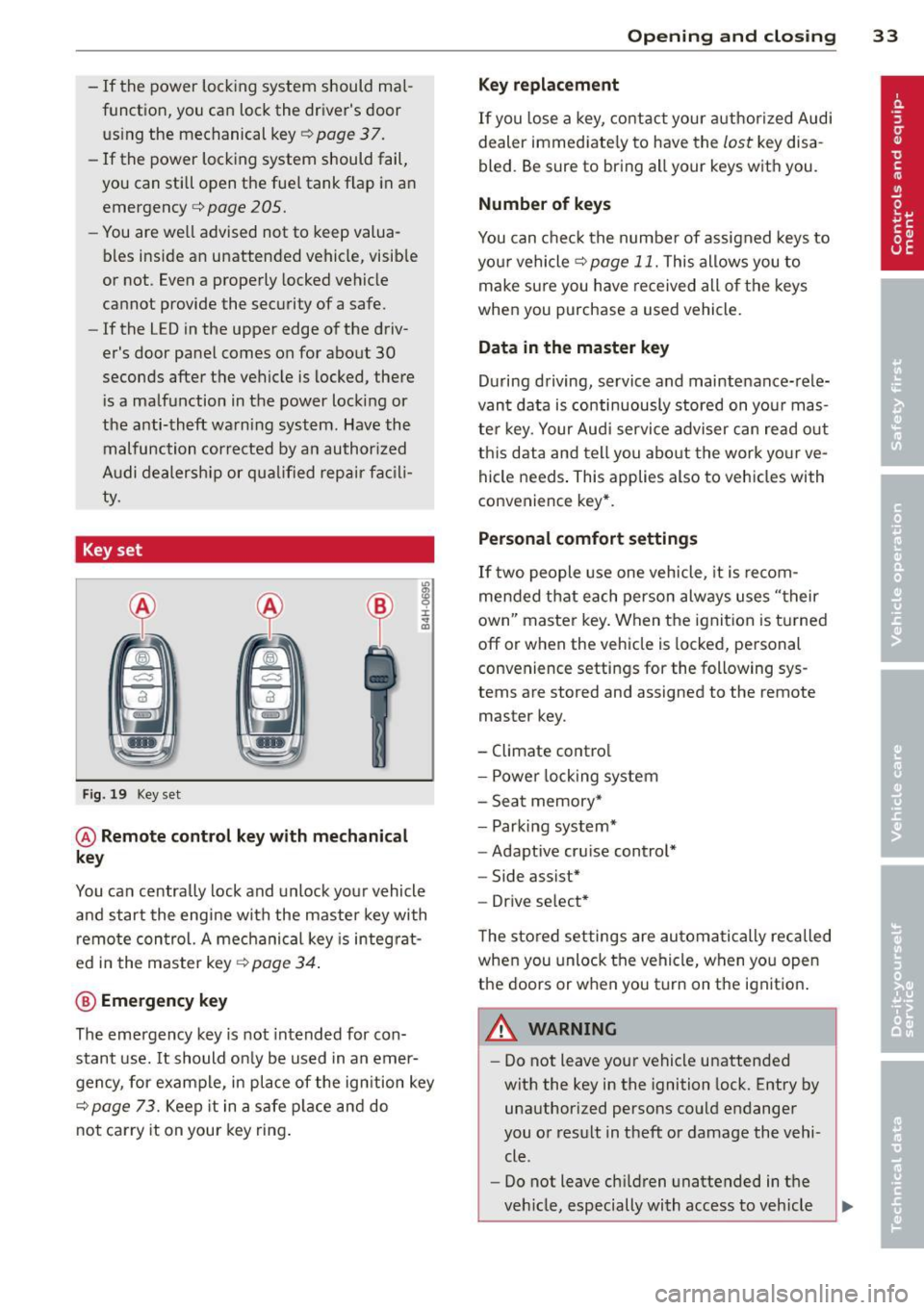

Key set
Fig. 19 Key set
@ Remote cont rol k ey with me chanical
ke y
You can centrally lock and unlock your vehicle
and start the engine with the master key with
remote control. A mechanical key is integrat
ed i n the master key
<=> page 34 .
@ Emerg ency key
The emergency key is not intended for con
stant use.
It should on ly be used in an emer
gency, for example, in place of the ign ition key
<=> page 73. Keep it in a safe p lace and do
not carry it on your key ring .
Openin g an d clos ing 33
Ke y re plac ement
If you lose a key, contact your author ized Audi
dealer immediate ly to have the
lost key disa
bled. Be sure to bring all your keys with you .
Number of keys
You can check the number of assigned keys to
you r vehicle <=>
page 11. This allows you to
make sure you have re ceived all of the keys
when you purchase a used vehicle.
Data in th e mast er ke y
During driving, service and maintenance-rele
vant data is continuously stored on your mas
ter key. Your Audi service adviser can read out
this data and tell you abo ut the work yo ur ve
hicle needs . This applies also to vehicles with
convenience key*.
Person al comf ort settings
If two people use one vehicle, it is recom
mended that each person always uses "their
own'' master key. When the ignition is turned
off or when the vehicle is locked, pe rsonal
convenience settings for the following sys
tems are stored and assigned to the remote
master key.
- Climate control
- Powe r locking system
- Seat memory*
- Parking system*
- Adaptive cruise control*
- Side assist*
- Drive select*
T he sto red settings are automatically recalled
when you unlock the vehicle, when you open
the doors or when you turn on the ignition .
A WARNING
--
-Do not leave your vehicle unattended
with the key in the ignition lock . Entry by
unauthorized persons could endanger
you or result in theft or damage the vehi
cle .
- Do not leave ch ildren unattended in t he
veh icle, especially with access to vehicle
Page 69 of 286

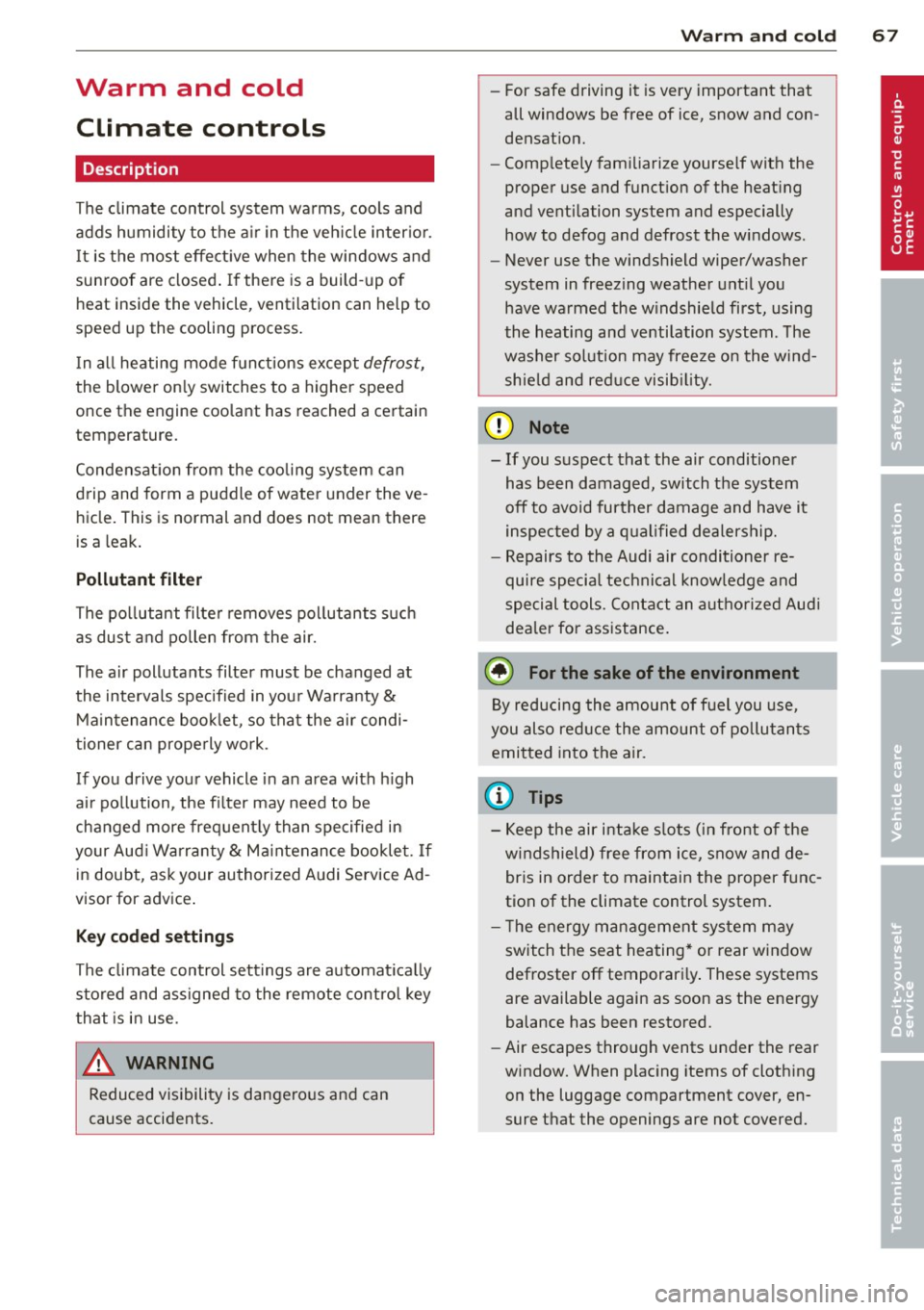

Warm and cold Climate controls
Description
Th e climate control sy stem warms, cools and
adds humidity to the a ir in the veh icle inter io r.
It is the most effect ive when the windows and
sunroof are closed . If the re is a build-up of
h eat inside the vehicle, ventilation can help to
speed up the cooling process .
I n all he ating mode functions except
defrost,
the blower on ly switches to a higher speed
once the engine coolant has reached a certain
temperature.
Condensat ion from the cooling sys tem can
d rip and form a puddle of water under the ve
h icle. This is normal and does not mean there
is a leak .
Pollutant filter
The po llutant filte r removes po llutants such
as dus t and pollen from the air.
The air pollutants filte r must be changed at
the intervals spec ified in you r Wa rra nty
&
M aintenance book let, so tha t the air condi
tioner can prope rly work .
If you drive your vehicle in an area w ith h igh
a ir po llution, the fi lter may need to be
changed more frequent ly than specified in
your Aud i Warranty
& Ma intenance bookle t. If
in doubt, ask your authorized A udi Service Ad
v isor for advice .
Key coded settings
The clima te control sett ings are automat ically
stored and assigned to the remote co ntro l key
that is in use.
WARNING
Reduced vis ibili ty is dangero us and can
cause accidents.
Warm and c old 67
-For safe driving it is very important that
all windows be free of ice, snow and con
densat ion.
- Comp letely fam iliarize yourse lf with the
proper use and funct ion of the heat ing
and ve nti lation system and especially
how to defog and defrost the w indows.
- Never use the windshield wiper/washer
system in freez ing weather unt il you
have warmed the w indshield first, using
the heating and ventilation system. The
washer sol ution may free ze o n the wind
shie ld an d red uce visib ility.
(D Note
- If you suspect that the air conditioner has been damaged, switch the system
off to avoid furt her damage and have it
i n spected by a q ua lified dea lership.
- Repairs to the Audi air condition er re
quire specia l techni cal know ledge and
speci al tools. Contact an autho rized Aud i
dealer fo r ass istance.
@ For the sake of the environment
B y reduci ng the amou nt of f uel you use,
you also re duce the amount of pollu tan ts
emitted in to the a ir.
(D Tips
- Keep the air intake s lo ts ( in fro nt of the
w indshield) free from ice, snow and de
br is in order to maintai n the proper f unc
tion of the climate control system.
- T he energy m anagement system may
switch the seat heating* or rear window
defroster off temporar ily . These systems
are available again as soon as the energy
balance has been restored.
- Air escapes through vents under the rear
window. When placing items of clothing
on the luggage compartment cover, en
sure that the openings are not covered.
Page 70 of 286
68 Warm and cold

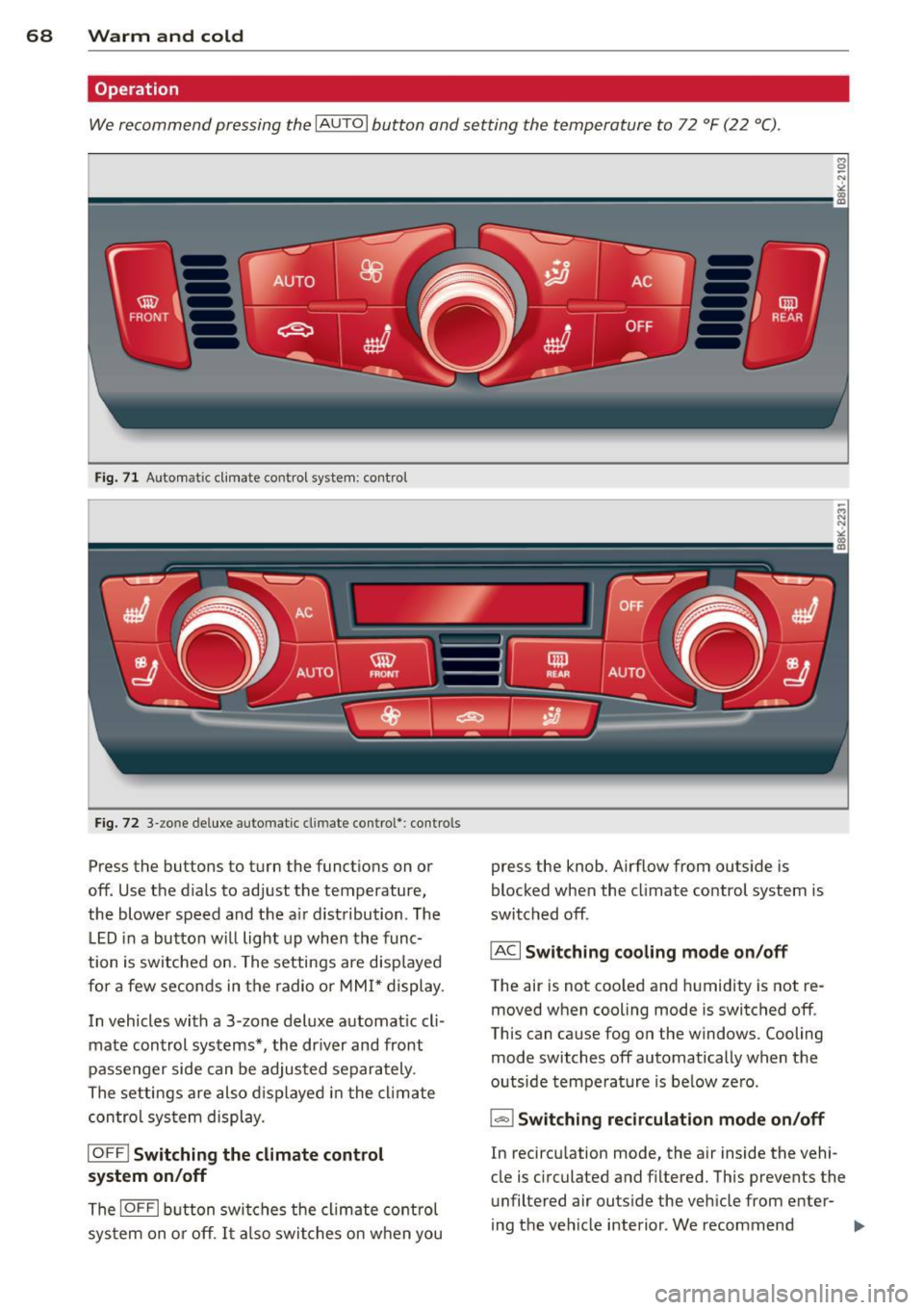

Operation
We recommend pressing the IAUTOI button and setting the temperature to 72 °F (22 °C) .
Fig. 71 Automat ic cl imate control system: control
Fig. 72 3-zo ne de luxe automatic cl imate contro l' : contro ls
Press the buttons to turn the funct ions on or
off. Use the d ials to adjust the temperature,
the blower speed and the a ir distribution . The
LED in a button will light up when the func
tion is switched on. The settings are disp layed
for a few seconds in the radio or MMI* display .
In vehicles with a 3 -zone deluxe automat ic cl i
mate control systems*, the dr iver and front
passenger side can be adjusted separately .
The settings are also displayed in the climate
control sys tem display.
IOFF I Switching the climate control
system on/off
The IOFFI button switches the climate control
sys tem on or off . It also switches on when you press the knob. Airflow from outside
is
blocked when the climate control system is
switched off .
IAC I Switching cooling mode on/off
The air is not coo led and humidity is not re
moved when cooling mode is switched off .
This can cause fog on the windows. Cooling
mode switches off automatically when the
outside temperature is below ze ro .
1- 1 Switching recirculation mode on/off
In recircu lation mode, the air inside the vehi
cle is c irculated and filtered. This prevents the
unfiltered air outside the vehicle from enter
ing the vehicle interior . We recommend
Page 71 of 286
switching recirculation mode on when driving
through a tunnel or when sitting in traffic
c::>_& .
The IAU TOI button or I@ F RONT I button
switches recircu lation mode off .
IAUTO I Switching automatic mode on
Automatic mode mainta ins a constant tem
peratu re in side the vehi cle. Air temperature,
airflow and air distribution are controlled au
tomatically.
Adjusting the temperature
Temperatures between 60 °F (+16 °C) and
84
°F (+ 28 °C) can be set. Outside of this
range,
LO or HI will appear in the climate con
trol system display. At both of these settings,
the climate control system runs continuously
at maximum cooling or heating power. There
is no temperature regu lation.
~ Adjusting the airflow
You can adjust the airflow manually to suit
your needs . To have the airflow regulated au
tomatically, press the IAUTO ! button.
~Adjusting the air distribution
You can manually select the vents where the
a ir will flow. To have the air d istr ibution regu
lat ed automatically, press the
IAUTOI button.
~ Adjusting seat heating*
Pressing the button switches the seat heating
on at the highest sett ing (level 3). The LEDs
indicate the temperature leve l. To reduce the
temperature, press the button again. To
switch the seat heating off , press the button
repeatedly until the LE D turns off.
After 10 minutes, the seat heating automati
cally switches from level 3 to level 2.
[ill Adjusting seat ventilation*
Pressing the button switches the seat ventila
tion on at the highest setting (level 3) . The
LE Ds ind icate the ventilat ion level. To reduce
the ventilation leve l, press the button aga in.
To switch the seat ventilat ion off, press the
button repeatedly until the LED turns off.
Warm and cold 69
l F RON T I Switch the defroster on/off
The w indshield and side windows are defrost
ed or cleared of condensation as quickly as
possible. The maximum amount of air flows
main ly from the vents below the windshield.
Recirc ulation mode switches off. The tempera
ture should be set to 72
°F (22 °() or higher.
The temperature is controlled automatically.
The
! AUTO I button switches the defroster off.
lliil R EAR ! Switching rear window heater
on/off
The rear window heater on ly operates when
the engine is running .
It switches off auto
matically after a few minutes, depending on
the outside temperature.
To prevent the rear window heater from
switching off automatically, press and hold
the
l oo REARI button for more than 2 seconds.
This remains stored until the ign ition is
switched off .
Air vents
You can open and close the center and rear air
vents using the thumbwheels . The levers ad
just the direction of the airflow from the
vents.
In vehicles with a 3-zone deluxe automatic cli
mate control system *, yo u can adjust the air
temperature in the rear by turn ing the thumb
whee l toward the red side to make it warmer
or toward the b lue side to make it cooler .
A WARNING
-Do not use the recirculation for extended
periods of time. The windows could fog
up since no fresh air can enter the vehi
cle. If the windows fog up, press the air
recircu lation button again immediately
to switch off the air recirc ulation func
tion or se lect defrost.
- Individuals with reduced sensitivity to
pain or temperature could develop burns
when using the seat heating function. To
reduce the risk of injury, these indiv idu
als should not use seat heating.
Page 72 of 286
70 Warm and cold
To avoid damage to the heating elements
in the seats, do not kneel on the seats or
place heavy loads on a small area of the
seat.

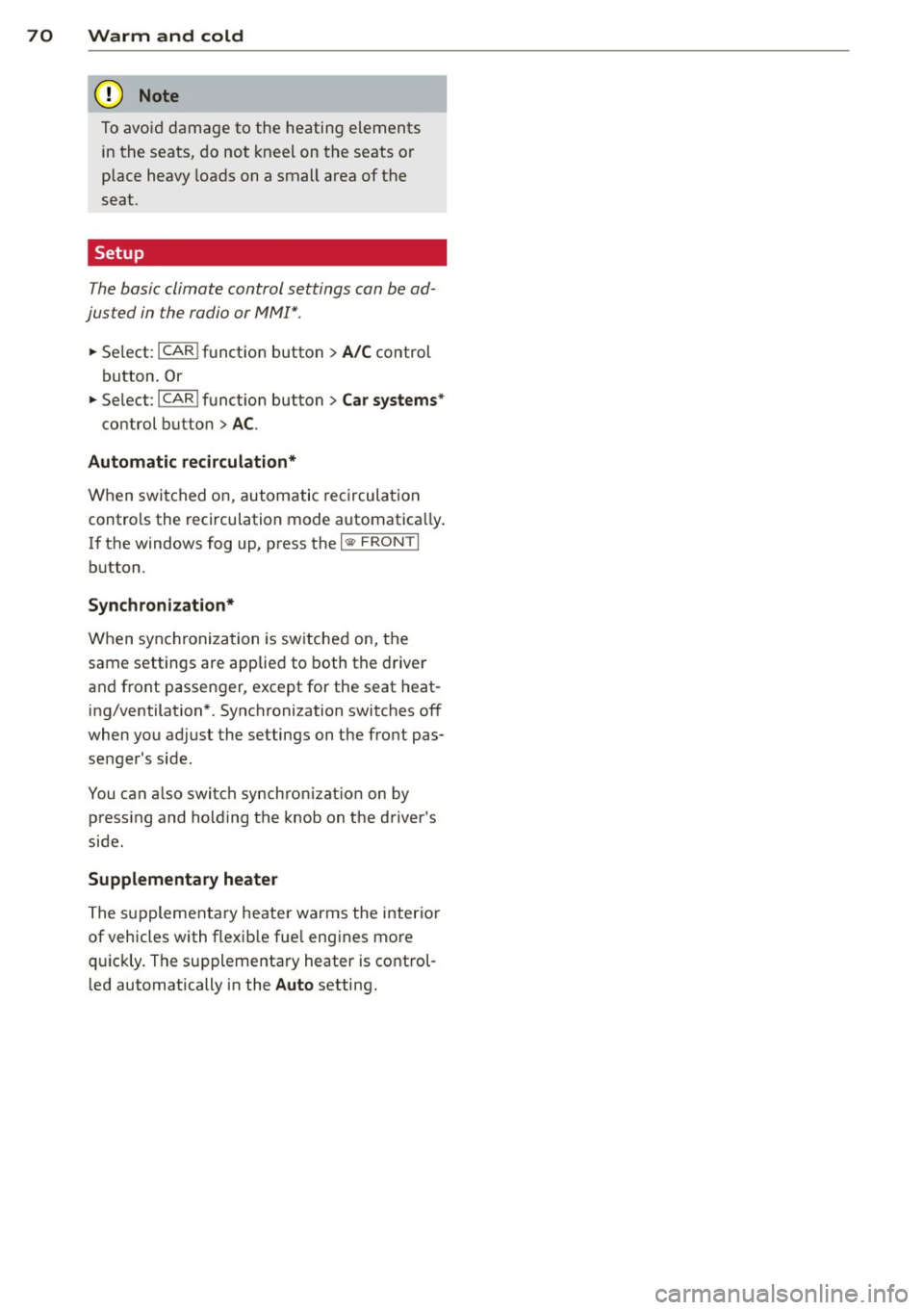

Setup
The basic climate control settings can be ad
justed in the radio or MM!* .
.. Se lect :
I CAR ! function button > A/C control
button. Or
.. Se lect :
I CAR ! function button > Car systems*
control button > AC.
Automatic recirculation*
When switched on, automatic recirculation
controls the recirculation mode automatica lly.
If the windows fog up, press the
I ~ FRONT!
button.
Synchronization*
When synchroniza tion is switched on, the
same settings are applied to both the driver
and front passenger, except for the seat heat
ing/ventilation*. Synchronization switches off
when you ad just the settings on the front pas
senger's side.
You can a lso switch synchronization on by
press ing and ho lding the knob on the driver's
side.
Supplementary heater
The supplementa ry heater warms the interio r
of vehicles with flexib le fue l engines more
quickly. The supplementary heater is control
led automatically in the
Auto setting.
Page 239 of 286

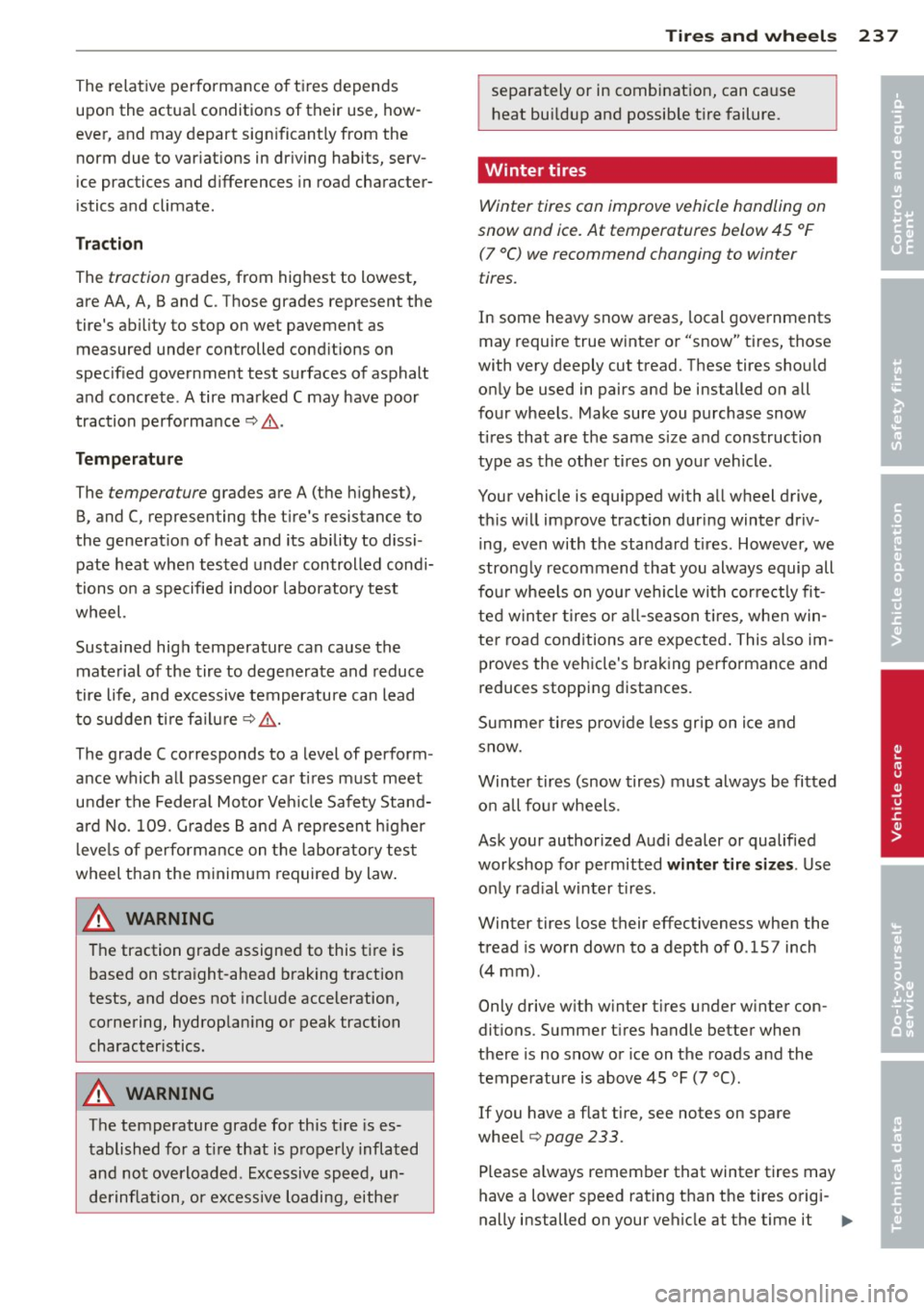

The relative perform a nee of ti res depends
upon the actua l conditions of their use, how
ever, and may depart sign ificantly from the
norm due to var iat ions in dr iving habits, serv
ice practices and differences in road character
istics and climate .
Trac tion
The traction grades, from highest to lowest,
are AA, A, Band
C. Those grades represent the
tire's ability to stop on wet pavement as measured under controlled cond itions on
specified government test surfaces of asphalt
and concrete . A tire marked C may have poor
traction performance ¢,&. .
Temp erature
The temperature grades are A (the h ighest),
B, and
C, representing the t ire's resistance to
the generat ion of heat and its ability to dissi
pate heat when tested under controlled condi
tions on a specified i ndoor laboratory test
wheel.
Sustained high temperature can cause the
materia l of the tire to degenerate and reduce
tire life, and excessive temperature can lead
to sudden ti re fa ilu re ¢ ,&. .
The grade
C corresponds to a level of perform
ance which all passenger car tires must meet
u nder the Federa l Moto r Veh icle Safety Stand
a rd No.
1 09. G rades Band A represent h igher
l eve ls of perfo rmance on the laboratory tes t
wheel than the m inimum required by law .
A WARNING
The traction grade assigned to this ti re is
based on stra ight-ahead b raking t raction
tests, and does not include acceleration,
cornering, hydrop lan ing or peak traction
character istics.
A WARNING
The temperature grade for this t ire is es
tablished for a t ire that is p roperly inflated
and not overloaded. Excessive speed, un
derinflation, or excessive loading, either
-
Tire s an d wheel s 237
separately or in combinat ion, can ca use
heat bui ldup and possible tire failure.
Winter tires
Winter tires can improve vehicle handling on
snow and ice. At temperatures below 45 °F (7 °C) we recommend changing to winter
tires.
In some heavy snow areas, local governments
may require true winter o r "snow" tires, those
with very deeply cut tread. These tires should
o nly be used in pairs and be installed o n all
four wheels . Make sure you purchase snow
t ires that are the same size and construction
type as the other tires on you r vehicle.
Your vehicle is equipped with all wheel drive,
th is w ill improve traction during winter driv
i ng, even with the standa rd tires . However, we
strong ly recommend that you always equip all
fo ur wheels on you r vehicle wit h corre ct ly fit
ted winter tires or all-season t ires, when win
te r road cond itions are expected . This also im
proves the veh icle's braking per formance and
reduces stopping dista nces.
Summe r tires provide less grip on i ce and
snow.
Winter tires (snow tires) must always be fitted
o n all fo ur wheels .
Ask your authorized Audi dealer or qualified
workshop for permitted
winter tire size s. Use
o nly rad ial w inter t ires.
Winter tires lose their effectiveness when the
tread is worn down to a depth of
0 .157 inch
(4 mm) .
Only drive w ith w inter t ires under w inter con
dit ions. Summer t ires handle better when
there is no snow or ice on the roads and the
temperature is above 45 °F (7 °() .
If you have a flat tire, see notes on spare
whee l
¢page 233.
Please a lways remember that winter tires may
have a lowe r speed rating than the tires o rigi -
nally installed on your vehicle at the time it .,.
•
•
Page 254 of 286

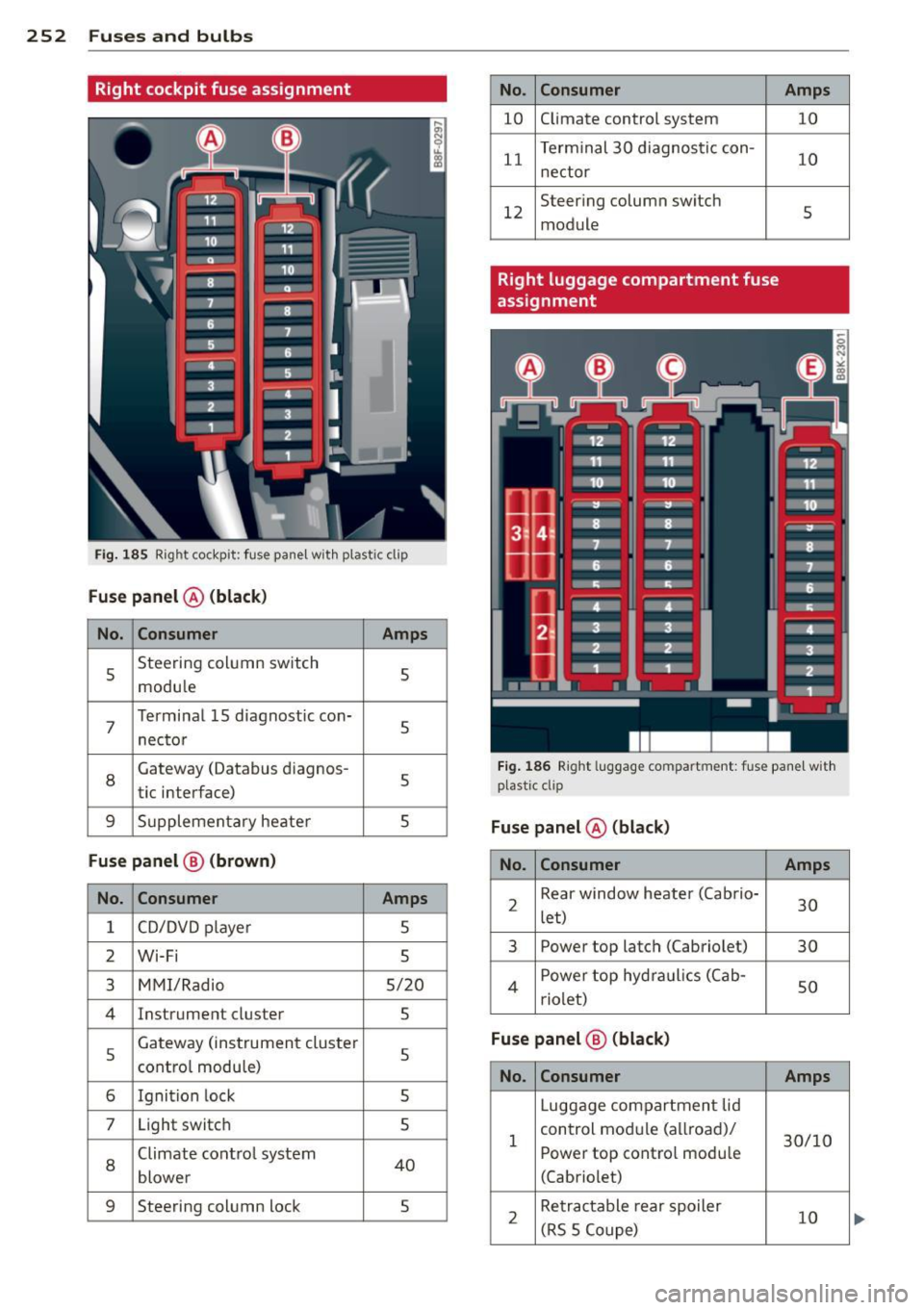

252 Fuses and bulbs
Right cockpit fuse assignment
Fi g. 185 Right cockpit: f use pane l w it h plastic clip
Fuse panel @ (black )
No. Consumer Amps
5 Steering col
umn sw itch
5
modu le
7
Terminal 15 d iagnostic con-
nec tor 5
8
Gateway (Databus d
iagnos -
5
tic interface)
9 S u pplemen tary heate r 5
Fuse panel @ (brown )
No. Consumer
Amps
1 CD/DVD p laye r 5
2 Wi·Fi 5
3
M MI/Radio 5/20
4 Instrume nt cluster
5
5
Gateway (ins trumen t cluster
5 contro l modu le)
6 Igni tion lock
5
7 Light switch
5
8
Climate contro l system 40
blowe r
9 Steering column lock 5
No . Consumer
10 C
limate control system
11 T
erm inal 30 diagnosti c con-
n ectar
12 Steer
ing column switch
module
Right luggage compartment fuse
assignment Amps
10
10
5
F ig . 18 6 Right lu ggage compartment: fu se pane l w it h
plast ic clip
Fuse panel @ (black)
No . Consumer Amps
2 Rear window heater (Ca b
rio-
30
let)
3 Power
top latch (Cabriolet)
30
4 Power top hyd ra ulics ( Cab-
so rio let)
Fuse panel @ (black)
No. Consumer Amps
Luggage compartmen t lid
1 control mod
ule (a llroad)/
30/10
Power top contro l modu le
(Cabriolet)
2 Re
tra ctable rear spoiler
10
( R S 5 Coupe)
Page 271 of 286

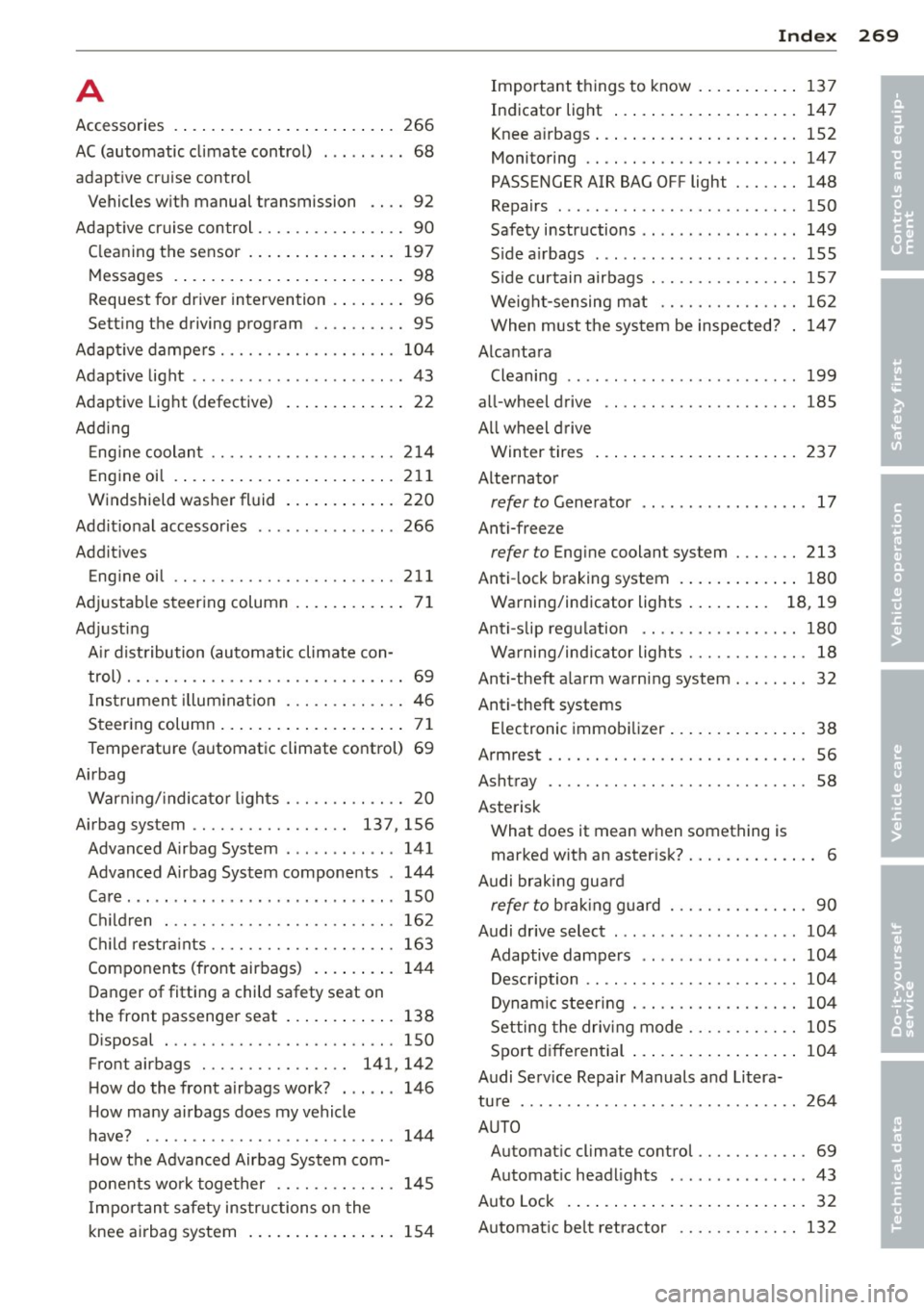

A
Accessories ..... ... ...... ... .. .. ... 266
AC (automatic climate control) ... .. .. .. 68
adaptive cruise control Vehicles with manual transmission .. .. 92
Adapt ive cr uise control ...... .. .. .. .. .. 90
C leaning the sensor ........ ... .. .. . 197
Messages . . . . . . . . . . . . . . . . . . . . . . . . . 98
Request for driver intervention . . . . . . . . 96
Setting the driving program .. .. .. .. .. 95
Adapt ive dampers .......... .. .. .. .. . 104
Adapt ive light ................ ... ... . 43
Adaptive Lig ht (defective) .... ... .. .. .. 22
Adding Eng ine coolant ........... .. .. .. ... 214
E ng ine oi l .. ... .. ....... ... .. .. ... 211
Windshield washer fluid ... .. .. .. .. . 220
Addit ional accessories
Addit ives 266
Engine oil .. ............. .... .. .. . 211
Adjustab le steering column . ... .. .. .. .. 71
Adjusting Air dist ribution (automatic climate con -
trol) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
I nstrument illum inat ion . .. .. .. .. .. .. 46
Steering column .. ..... ... .. .. .. .. .. 71
Temperature (automatic climate control) 69
A irbag
War ning/ indicator lights . .. .. .. .. .. .. 20
Airbag system . . . . . . . . . . . . . . . . . 137, 156
Advanced Airbag System ....... ... .. 141
Advanced Airbag System components . 144
Care . .. ... . .... ... ..... ..... .. ... 150
Ch ildren . .. ............. .... .. .. . 16 2
C hi ld restraints ........... .. .. .. ... 163
Components (front airbags) . ... .. .. . 144
Danger of fitting a child safety seat on
the front passenger seat . . . . . . . . . . . . 138
Disposal . .. .. ........... .. .. .. ... 150
Front airbags . . . . . . . . . . . . . . . . 141, 142
H ow do the front airbags work? . . . . . . 146
H ow many airbags does my vehicle
have? ... ... ............. ...... .. 144
H ow the Advanced Airbag System com-
po nents work together .... .. .. .. .. . 145
I mportant safety ins tructions on the
knee airbag system .... ... .. .. .. .. . 154
Inde x 269
Important things to know .... ... .. .. 137
Indicator light ..... . ... ...... ... .. 147
Knee a irbags ... .. .. . .. ... .... ... .. 152
Monitoring .. .. .. ................. 147
PASSENGER AIR BAG OFF light ..... .. 148
Repairs ......... .. ............... lSO
Safety instructions .. . .. .. .. ... ... .. 149
S ide a irbags ..... .. ..... .......... 155
S ide cur tain airbags . ........... .... 15 7
Weigh t-sensing mat ........... .. .. 162
When must the system be inspected? 147
Alcantara Cleaning ........ .. ............... 199
all-wheel drive
All wheel d rive 185
Winter tires ... .... . ... ...... ... .. 237
Alternato r
refer to Generator . . . . . . . . . . . . . . . . . . 17
Anti-free ze
refer to Eng ine coolant system ..... .. 213
Anti- lock braking system . ..... ... .. .. 180
Warning/indicator lights . . . . . . . . . 18 , 19
Anti-slip regu lation .... ......... .. .. 180
Warning/ind icator lights ........ .. .. . 18
Anti-theft a larm warning system ... .. .. . 32
Anti-theft systems Electronic immob ilizer .. ..... ... .. .. . 38
A rm rest .... .. .. .. .. . ............... 56
Ashtray ...... .. .. .. . ............... S8
Aste risk
What does it mean when something is marked w ith an aster isk? . . . . . . . . . . . . . . 6
A udi braking gu ard
refer to b ra ki ng g uard . ............. . 90
Audi drive select ... .. ............... 104
Adaptive dampers .. .......... .... . 104
Desc ription .. .. .. ................. 104
Dynam ic steer ing . .... ......... .... 10 4
Set ting the dr iv ing mode ........ .. .. 105
Spo rt differential .... .. ..... ... .. .. 104
Audi Se rv ice Repair Manuals and Litera-
tu re ..... .. .. .. .. .. . .. .......... .. 26 4
AUTO Automat ic climate control . . . . . . . . . . . . 69
Automat ic headlights ............. .. 43
Auto Lock . ... .... .. . .. .. ..... ... .. . 32
Automat ic be lt ret ractor ......... .. .. 132
•
•
Page 272 of 286
270 Index
Automatic climate control Ai r vents ... ... . ...... ... .. .. .... .. 69
Operation . . . . . . . . . . . . . . . . . . . . . . . . . 68
Setup . .. ............... .. .. .... .. 70
Autom atic S hift Lock (ASL) . . . . . . . . . . . . 8 4
Automatic transmission . . . . . . . . . . . . . . . 82
Automatic Sh ift Lock (ASL) . . . . . . . . . . . 84
D riving .. ... ............ .. .. .. .. .. 84
E mergency mode . . . . . . . . . . . . . . . . . . . 8 8
E mergency release . . . . . . . . . . . . . . . . . . 89
K ick -dow n . . . . . . . . . . . . . . . . . . . . . . . . . 87
M anual s hift program ... .. .. .... .. . . 86
Remova l lock (ignition key) ... .. .... . . 71
Selector lever . . . . . . . . . . . . . . . . . . . . . . 83
Autom atic wi pers .......... .... .... .. 49
Auto Safety Hotline ............ .. ... 127
Average speed . . . . . . . . . . . . . . . . . . . . . . . 2S
Avoid damaging the vehicle .. .... .... . 188
B
Battery ... .. ...... ............ 17,217
B attery locat io n in side the luggage com-
pa rtment ................. .. .... . 217
C ha rging . ............... .. .. .... . 219
I mpor tan t war nings when wo rking on
the battery . . . . . . . . . . . . . . . . . . . . . . . 217
Jump starting .. .. ..... ... .. .. .... . 255
Low . .. .. .. ............. .. .. .. ... 186
Replacing the battery ..... .. .. .. .. . 220
State of charge . . . . . . . . . . . . . . . . . . . . 186
W inter operation . . . . . . . . . . . . . . . . . . 217
Wo rking on the battery . . . . . . . . . . . . . 217
Before driving .. ........... .. .. .... . 119
B io-e thanol ( Fue l) .......... .. .. .. .. . 202
Blended gasoline ... ... .. .. .. .. .. .. . 201
Blower (automatic climate control) . . . . . . 69
B ooste r seats ............. .. .. .. .. . 169
Brake fl uid
C hanging the brake fl uid ..... .. .... . 216
Check ing the brake fluid level ..... .. . 216
Reservoir .. .......... ...... ... .. . 216
What is the cor rect brake fl uid leve l? .. 2 16
What should I do if the bra ke flui d warn-
i ng light comes on? ....... .. .. .. .. . 216
Brake system .... ... .... ... .. .. .. .. . 216
Anti-lock braking system ....... .. .... 19
B rake ass ist system ..... .. .. .. .. .. . 180 B
rake fluid .... .. ... .. ..... ... .. .. 216
B rake fluid specifications for refill and re-
placement . ... .. ... .. ..... ... .. .. 216
Brake light defective ........... .... . 21
B rake power ass ist unit ......... .... 183
Brakes ....... ... .. .............. . 183
Ceram ic brakes ... ... .. .. ... ..... .. 183
El ectromechanical pa rking brak e ..... . 76
Wa rning/ind icator lights ...... .. .. .. . 15
Worn b rake pads symbo l ........ .. .. . 20
B rak ing
E mergency brak ing funct ion ... .. .. .. . 78
braking guard ..... ... .. ..... .... . .. . 90
Messages . .. .. .. .. ........... .... . 98
Settings .. .... .. ............. .... . 97
Break-in per iod .... .. ... ..... ... .. .. 188
T ires ... .. .... .. .. ... ..... ... .. .. 188
Bul bs .. .. .. .. .. .. .. .. ...... ... .. .. 253
C
Californ ia Proposition 65 Warn ing .... . 207
Battery specific .. ..... ........... . 218
Capacities .. .... .. ............. .... 262
Carbon p arts
Cleaning . . . . . . . . . . . . . . . . . . . . 198, 199
Care ........ ... .. .. ... ........... . 196
Cargo area
refer to Luggage compartment. . . 63, 125
Ca talyt ic co nve rter . . . . . . . . . . . . . . . . . . 189
Center armrest .. .. ................ .. 56
Central locking .... ... .. ..... .... . .. . 32
Central lock ing switch .......... .. .. . 36
Convenience key . . . . . . . . . . . . . . . . . . . . 36
Remote contro l key .............. .. . 35
Ceramic brake rotors New brake pads . ... .... .... ... .. .. 183
Ce rtifi cation .. .. .. ... .......... .. .. 267
Chang ing a f lat t ire . ............. .... 244
Chang ing a wheel . ... .... .... ... .. .. 244
Chang ing engine oil ..... .. ... ..... .. 212
Checking Engine coolant level . ........... .. .. 213
Checking t ire press ure . ... .... ... .. .. 228
Page 273 of 286

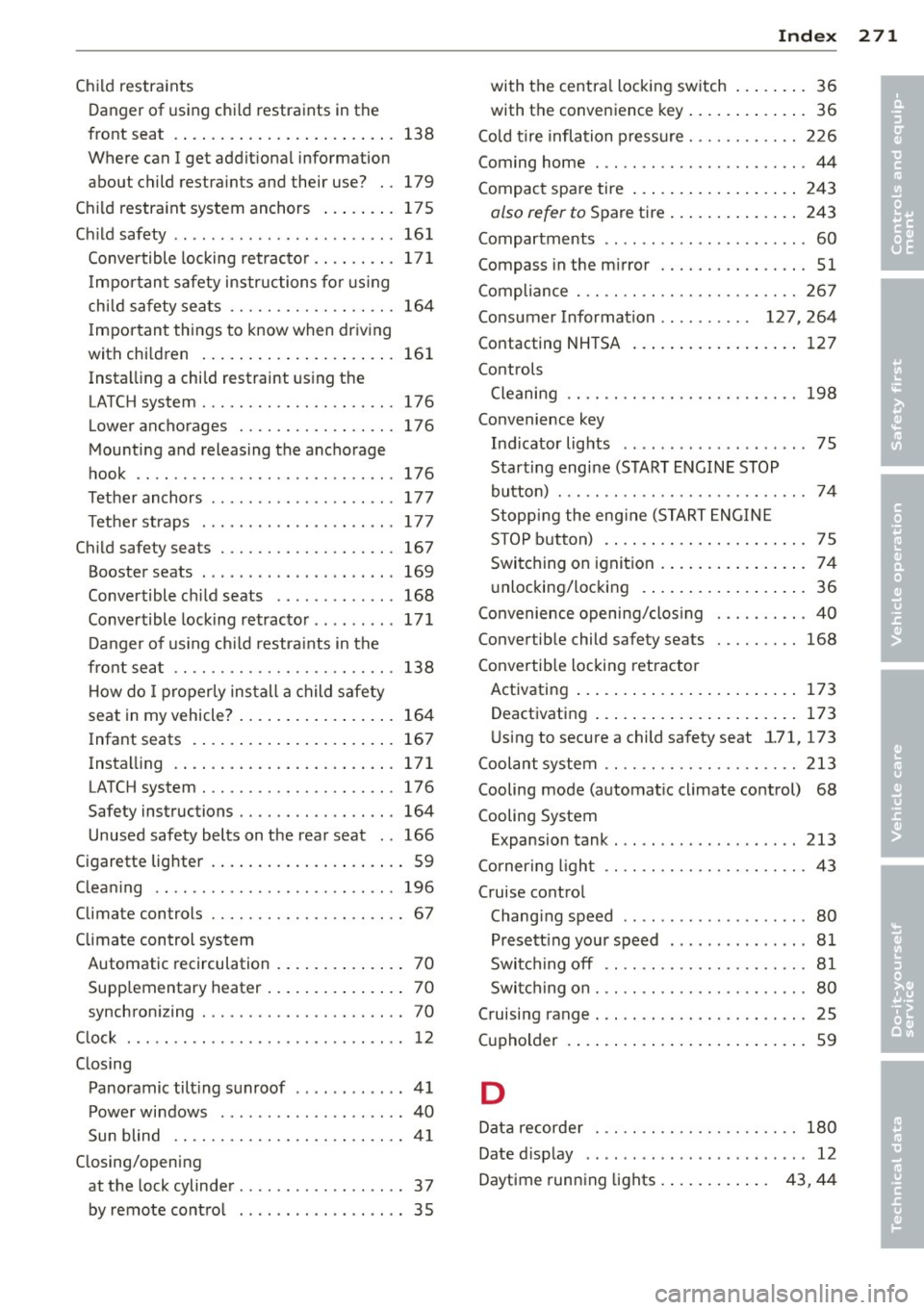

Child restraints
Dang er of using chi ld rest raints in th e
front seat . . . . . . . . . . . . . . . . . . . . . . . . 138
Where can I get addit ional information
about child restra ints and their use? . . 179
Ch ild restra int system anchors ... .. .. . 175
Ch ild safety .. ................ ... ... 161
Convertible locking retracto r . . . . . . . . . 17 1
I mportant safety instr uctions fo r using
ch ild safety seats ......... .. .. .. .. . 164
I mportant things to know when dr iv ing
with chi ld ren .... ..... ... .. .. .. ... 161
Instal ling a chi ld restraint using the
LATCH system ............ .... .. .. . 176
Lower anchorages ........ .. .. .. .. . 176
Mounti ng and releasing the anchorage
hook .. .. ... ............. ...... .. 176
Tether anchors . . . . . . . . . . . . . . . . . . . . 177
Tet her st raps . . . . . . . . . . . . . . . . . . . . . 177
Ch ild safety seats .......... .... .. .. . 167
Booster seats . ... .. ... ... .. .. .. ... 169
Convertible c hild seats .. ..... .... .. 168
Conver tible locking retracto r .. .. ... .. 171
D anger of using c hild restra ints in the
fro nt sea t .. ............. .... .. .. . 138
H ow do I properly ins tall a child s afety
seat in my vehicle? ..... ... .. .. .. .. . 164
Infant seats . .. .. ..... ... .. .. .. ... 167
Install ing .... .. .. .... ... .. .. .... . 17 1
LATCH system . . . . . . . . . . . . . . . . . . . . . 176
Safety instructions ........ .. .. .. .. . 164
Unused safety belts on the rear seat .. 166
Cigarette lig hter . . . . . . . . . . . . . . . . . . . . . 59
Clea ning .. .. .. ........... .. .. .. ... 196
Climate controls . . . . . . . . . . . . . . . . . . . . . 67
Climate con trol sys tem
Automatic recirculation . . . . . . . . . . . . . . 70
Supp lementary heater .. ... .. .. .. .. .. 70
synchron izing . ........... .. .. .. .... 70
C lo ck . .. .. .. .... ............. .. .. .. 12
Closing Panoramic tilt ing s unroof ...... . ... .. 4 1
P owe r windows . .......... ... ... ... 40
Sun blind .. ............. .... .. .... 41
Closing/open ing
at the lock cylinder ............ ... ... 37
by remote cont ro l ........... .. .... . 35
Inde x 271
with t he centra l locking sw itch ... .. .. . 36
with the conve nience key ..... ... .. .. . 36
Cold tire infla tion p ress ure ............ 226
Coming home . .. .. ................. .
44
Compact spa re tire ... . ... .... ... .. .. 24 3
also refer to Spare tire .. ..... ... .. .. 243
Compartments . . . . . . . . . . . . . . . . . . . . . . 60
Compass in the m irror ............... . 51
Compliance . .. .. .. ................. 267
Consumer Informat ion . . . . . . . . . . 127, 264
Co ntacting NHTSA ... . ... .... ... .. .. 127
Cont rols
Cleaning .. .. .. .. .... ........... .. 198
Convenience key Ind icator lig hts .. .. . .. .. .. ... ... .. . 75
Starting engi ne (S TART E NGINE STOP
bu tton) . .. .. .. .. .. . .............. . 74
Stoppi ng the eng ine (STAR T ENG INE
STOP b utton) . ... .. .. .. ...... ... .. . 75
Switching on ignition . .. ..... ... .. .. . 74
u nlocking/loc king . .. ... .... ... .. .. . 36
Convenie nce opening/clos ing
Convertib le child safety seats
Conve rtib le locking retractor 40
168
Activating ... .... .. . .. .. ..... ... .. 173
Deactivating ... .... . ... ...... ... .. 173
Using to secure a child sa fety seat 1.71, 173
Cool ant system .. .. ............... .. 213
Cooling mode (automat ic climate control) 68
Cooling System Expansion tank . .. .. ............... 213
Corner ing l igh t .. ...... ........... .. . 43
Cruise contro l
Changi ng speed .................. .. 80
Presett ing your speed ............. .. 81
Switch ing off .. .. .... ........... .. . 81
Swi tching on . .. .. .. ............... . 80
Cruising range . .. .. ... ... ...... ..... . 2S
( upholder . ... .... .. . .. .. ..... ... .. . 59
D
Dat a recorde r . . . . . . . . . . . . . . . . . . . . . . 180
Date d isp lay ...... .. ..... ........... 12
Daytime running lights. . . . . . . . . . . . 43 , 44
•
•
