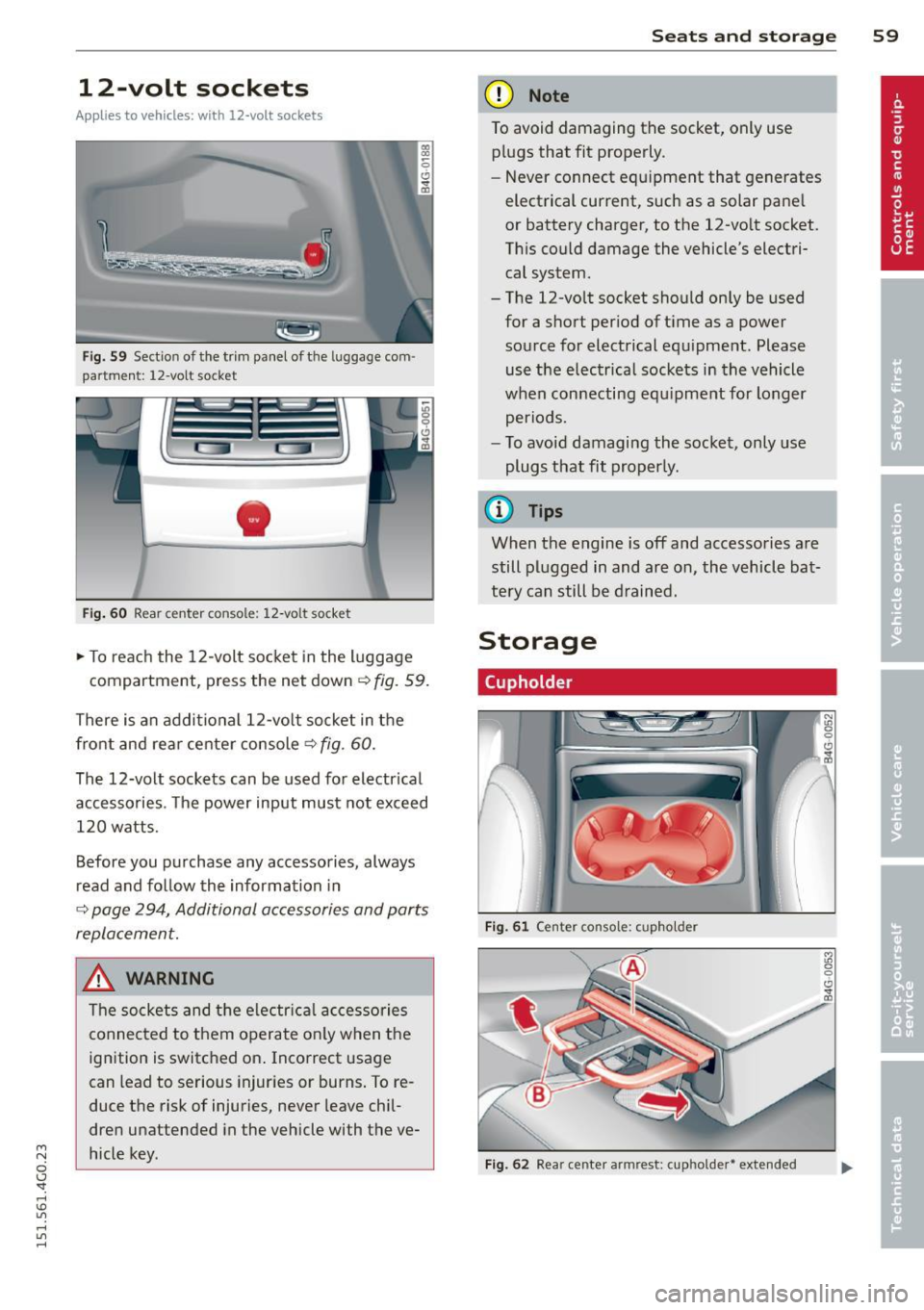

12-volt sockets
Applies to vehicles: with 12-volt sockets
Fig. 59 Section of the trim panel of the luggage com ·
partment: 12-volt socket
Fig . 60 Rear center console: 12-volt socket
~ To reach the 12-volt socket in the luggage
compartment, press the net down
<=> fig. 59.
There is an additional 12-volt socket in the front and rear center console
c:> fig. 60.
The 12-volt sockets can be used for electrical
accessories . T he power input must not exceed
120 watts.
Before you purchase any accessories, always
read and fo llow the information in
c:> page 294, Additional accessories and parts
replacement.
_& WARNING
The sockets and the electr ical accessories
connected to them operate on ly when the
ignition is switched on . Incorrect usage
can lead to serious injuries or burns. To re­
duce the risk of injuries, never leave chil·
dren unattended in the vehicle with the ve­
hicle key.
S ea ts a nd s to rage 59
(D Note
To avoid damaging the socket, only use
plugs that fit properly.
- Never connect equipment that generates
electrical current, such as a solar pane l
or battery charger, to the 12-vo lt socket.
This could damage the vehicle's electri­ cal system.
- The 12-vo lt socket should only be used
for a short period of ti me as a power
source for electrical equ ipment. Please
use the electr ical sockets in the vehicle
when con necting equ ipment for longer
periods.
- To avoid damaging the socket, only use
plugs that fit properly.
(D Tips
When the engine is off and accessories are
still plugged in and are on, the vehicle ba t­
tery can still be d rained.
Storage
(upholder
Fi g. 61 Ce nter console: cupholder
Fig. 62 Rear center armrest: cupholde r• extended

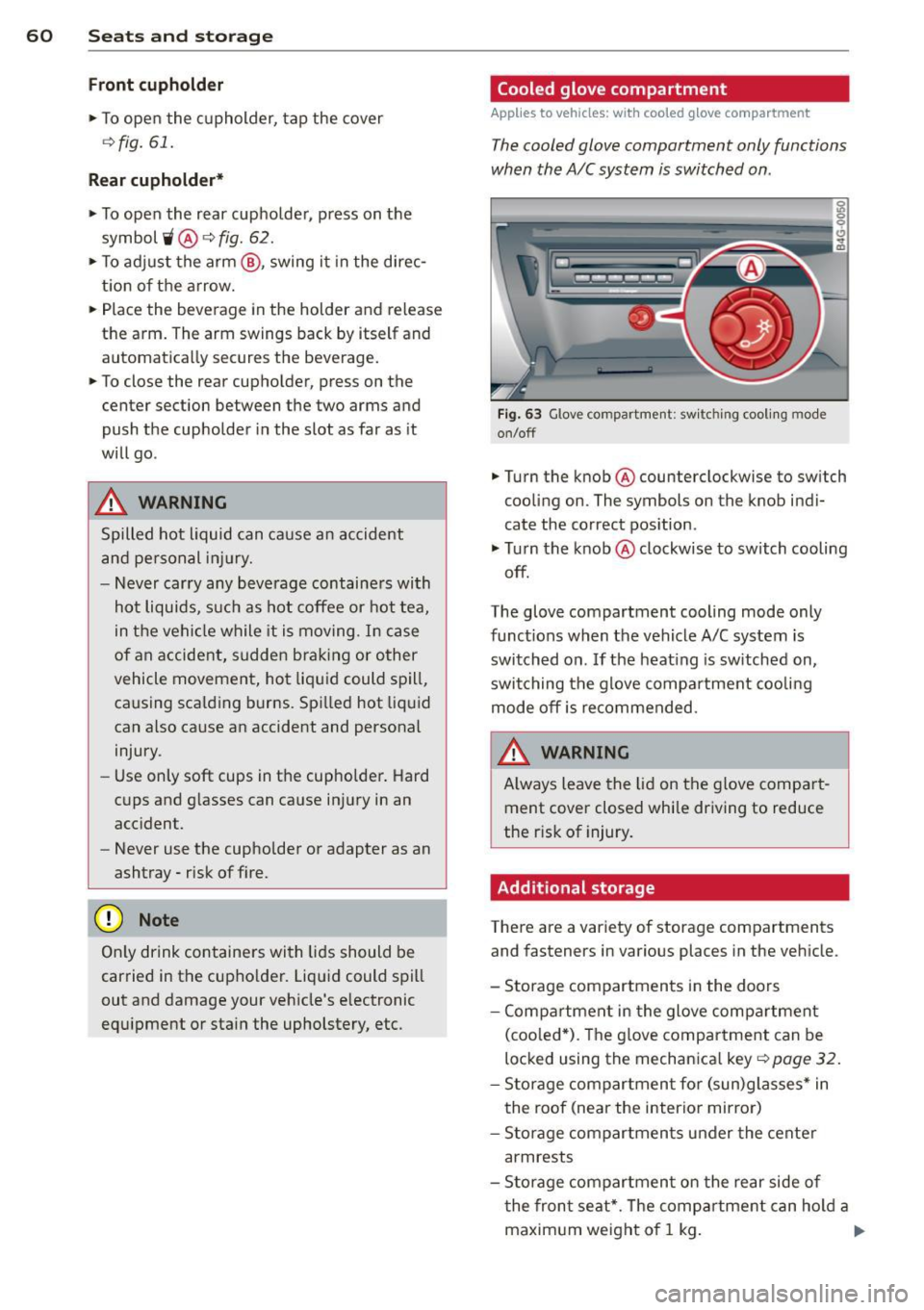

60 Seats and st o rage
Front cuphold er
.,. To open the cupholder, tap the cover
~ fig. 61.
Rear cuphold er*
.,. To open the rear cupholder, press on the
symbol
'i @ ~ fig. 62 .
.,. To ad just the arm @, swing it in the direc­
tion of t he arrow .
.,. Place the beverage in the holder and release
the arm. The arm swings back by itself and automatica lly secures the beverage .
.,. To close the rear cupho lder, press on the
center section between the two arms and
push the cupholder in the slot as far as it
will go .
A WARNING
Spilled hot liquid can cause an accident
and pe rsonal inj ury.
-
- Never carry any beve rage containe rs with
hot liquids, such as hot coffee or hot tea,
in t he veh icle while it is moving. I n case
of an accident, s udden brak ing or other
vehicle movement, hot liquid could spill,
causing sca lding burns. Spi lled hot liqu id
can also cause an accident and personal
injury.
- Use only soft cups in the cupholder . Hard
cups and glasses can cause in jury in an
acc ident.
- Never use the cupholder or adapter as an
ashtray- risk of f ire.
Q;) Note
On ly drink containers wi th lids should be
carried in the cupho lder. Liquid could spill
out and damage your vehicle's e lectronic
equ ipment or sta in the upholstery, etc.
Cooled glove compartment
Applies to vehicles: with cooled g love compartment
The cooled glove compartment only functions
when the A/C system is switched on .
Fig . 63 Glove compartme nt: sw itching cooli ng mode
on/off
.,. Turn the knob @ counterclockwise to sw itch
cooling on. The symbols on the knob indi­
cate the correct pos ition .
.,. Tu rn the knob @ clockwise to switch cooling
off.
The glove compartment cooling mode only
funct ions when the vehicle A/C system is
switched on . If the heating is sw itched on,
switching the g love compa rtment coo lin g
mode off is recommended.
WARNING
A lways leave the lid on the glove compar t­
ment cover closed while driving to reduce
the r isk of injury.
Additional storage
There are a variety of storage compartments
and fasteners in various places in the vehicle.
- Storage compartments in the doors
- Compartmen t in the glove compa rtment
(coo led *) . T he g love compar tment can be
locked using the mechanica l key~
page 32.
- Storage comp artmen t fo r (sun)glasses * in
the roof (near the interior mirro r)
- Storage compartments under the cente r
armrests
- Storage compartmen t on the rear side of
t he fron t seat*. The comp artment can hold a
maxim um weight of 1 kg . ..,_

M N
0 I.J "". rl I.O
"' rl
"' rl

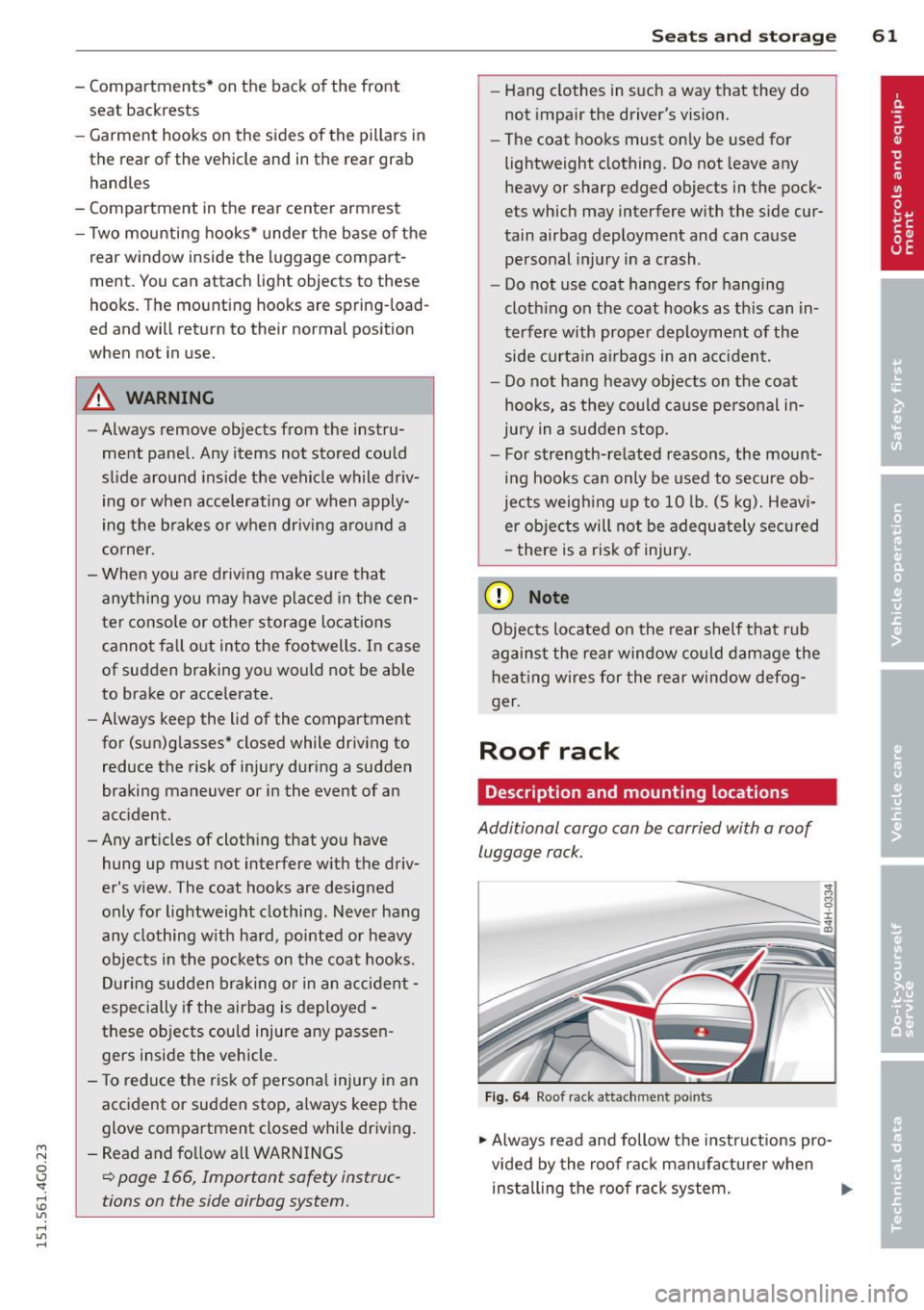

- Compartments* on the back of the front seat backrests
- Garment hooks on the sides of the pillars in
the rear of the vehicle and in the rear grab handles
- Compartment in the rear center armrest
- Two mounting hooks* unde r the base of the
rear window inside the luggage compart­
ment. You can attach light objects to these
hooks. The mounting hooks are spring-load ­
ed and will return to their normal position
when not in use.
A WARNING
-
- Always remove objects from the instru­
ment panel. Any items not stored could
sl ide around inside the vehicle while driv­
ing or when accelerating or when apply­
ing the brakes or when driving a round a
corner.
- When you are driving make sure that
anything you may have placed in the cen­
ter console or other storage locations cannot fa ll out into the footwells. In case
of sudden braking you would not be able
to brake or accelerate.
- Always keep the lid of the compartment
for (sun)glasses* closed while driving to
reduce the risk of injury dur ing a sudden
braking maneuver or in the event of an
accident.
-Any articles of clothing that you have
hung up must not interfere with the driv­
er's v iew. The coat hooks are designed
only for lightweight clothing. Never hang
any clothing w ith ha rd, pointed or heavy
objects in the pockets on the coat hooks.
During sudden braking or in an accident -
especially if the airbag is deployed -
these objects cou ld injure any passen ­
gers inside the vehicle.
- To reduce the risk o f persona l injury in an
accident or sudden stop, always keep the
glove compartment closed while driving.
- Read and fo llow all WARN INGS
¢ page 166, Important safety instruc­
tions on the side airbag system.
S ea ts a nd s to rage 61
- Hang clothes in such a way that they do
not impair the driver's vision.
- The coat hooks must only be used for
lightweight clothing. Do not leave any
heavy or sharp edged objects in the pock­
ets which may interfere with the side cur­
tain airbag deployment and can cause pe rsonal injury in a crash .
- Do not use coat hangers for hanging
cloth ing on the coat hoo ks as th is can in­
terfere with prope r deployment of the
side curta in a irbags in an acc ident.
- Do not hang heavy objects on the coat
hooks, as they could cause personal in­
jury in a sudden stop.
- For strength-re lated reasons, the mount­
ing hooks can only be used to secure ob­
jects weigh ing up to 10 lb. (5 kg). Heavi­
er objec ts will not be adequately sec ured
- there is a risk of injury.
(D Note
Objects located on the rear shelf that rub
against the rea r window could damage the
hea ting wires for the rear window defog­
ger.
Roof rack
Description and mounting locations
Additional cargo can be carried with a roof
luggage rack.
F ig. 6 4 Roof r ack attac hment po ints
.., Always read and follow the instructions pro­
vided by the roof rack manufa ctu rer when
installing the roof rack system. .,.

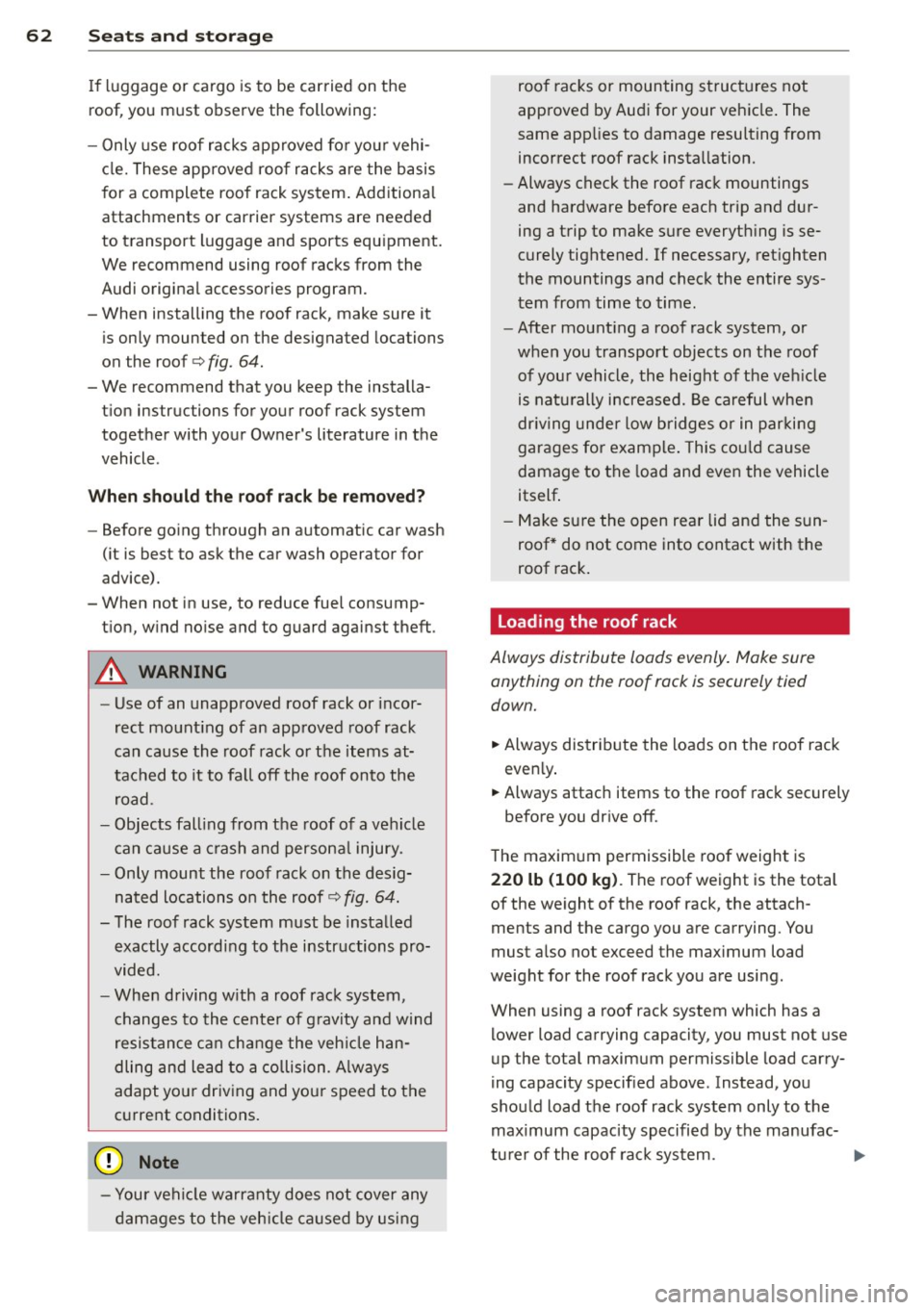

62 Seat s a nd s tor ag e
If luggage or cargo is to be carried on the
roof, you must observe the follow ing:
- Only use roof racks approved for yo ur vehi­
cle. These approved roof racks are the basis
for a complete roof rack system . Additional
attachments or carrier systems are needed
to transport luggage and sports equipment.
We recommend using roof racks from the
Audi original accessories program.
- When installing the roof rack, make sure it is only moun ted on the designated locations
on the
roof <=> fig. 64.
- We recommend that you keep the installa­
tion instructions for your roof rack system
together with your Owner 's literature in the
vehicle .
When sh ould the roo f ra ck be remo ved ?
-Before going through an automatic car wash
(it is best to ask the car wash operator for
advice).
- When not in use, to reduce fuel consump­ tion, wind no ise and to guard against theft .
A WARNING
-Use of an unapproved roof rack or incor­
rect mount ing of an approved roof rack
can cause the roof rack or the items at­
tached to it to fa ll off the roof onto the
road .
- Objects fall ing from the roof of a vehicle
can cause a crash and persona l injury.
- Only mount the roof rack on the desig­
nated locations o n the roof <=>
fig. 64.
-The roof rack system must be installed
exactly according to the instructions pro­
vided.
- When driving w ith a roof rack system,
changes to the center of g ravity and wind
resistance ca n change the veh icle han­
dling and lead to a collision . A lways
adapt yo ur driving and you r speed to the
c u rrent conditions.
@ Note
- Your vehi cle warranty does not cover any
damages to the veh icle caused by using roof
racks or mounting structures not
approved by Audi for your vehicle . The
same app lies to damage resulting from
incorrect roof rack installation.
- Always check the roof rack mountings
and hardware before each trip and dur­
ing a trip to make sure everyth ing is se­
curely tightened . If necessary, ret ighten
the mountings and check the entire sys­
tem from time to time .
- After mount ing a roof rack system, or
when you t ransport objects on the roof
of your vehicle, the heig ht of the veh icle
is natu rally increased. Be careful when
dr iving under low bridges or in par king
garages for example . This cou ld cause
damage to the load and eve n the vehicle
itself .
- Make sure the open rear lid and the sun­
roof* do not come into contact with the
roof rack.
Loading the roof rack
Always distribute loads evenly. Make sure
anything on the roof rack is secur ely tied
down.
.. Always distribute the loads on the roof rack
even ly .
.. Always attach items to the roof rack s ecurely
before you drive off.
The maximum permissible roof weight is
2 20 lb (100 kg ). The roof weight is the total
of the weight of the roof rack, the attach­
ments and the cargo you are carrying. You
must also not exceed the max imum load
weight for the roof rack you a re using.
When using a roof rack system which has a
lower load carrying capacity, you must not use
up the total maximum permissible load carry­
ing capacity specified above . Instead, you
shou ld load the roof rack system only to the
maximum capacity specified by the manufac-
tu rer of the roof rack system. ..,.

M N
0 I.J "". rl I.O
"' rl
"' rl

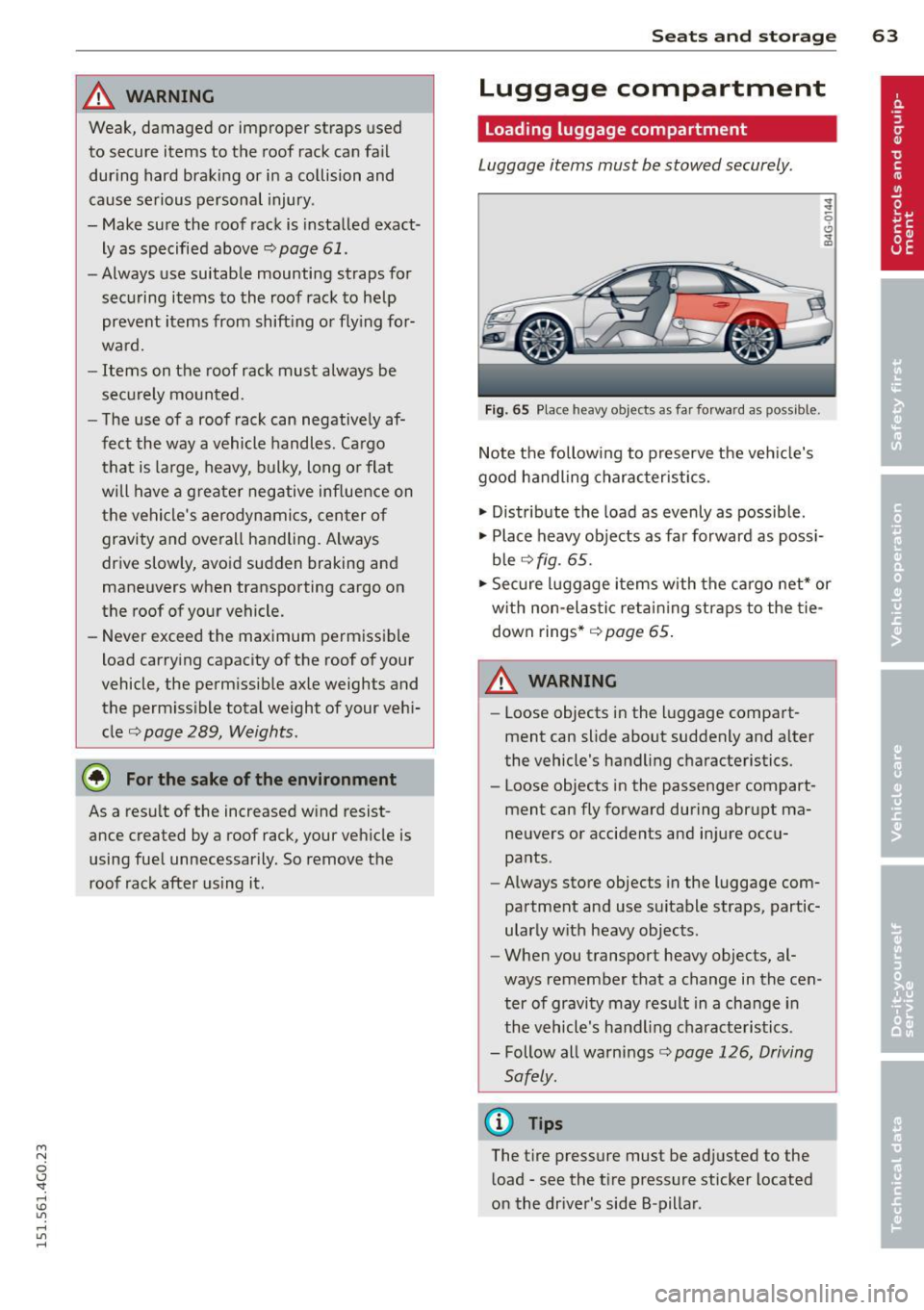

_& WARNING
Weak, damaged or improper straps used
to secure items to the roof rack can fail
during hard braking or in a collision and
cause serious personal injury .
- Make sure the roof rack is installed exact ­
ly as specified above
c::;, page 61 .
-Always use suitable mounting straps for
securing items to the roof rack to help
prevent items from shift ing or fly ing for­
ward.
- Items on the roof rack must always be
securely mounted .
- The use of a roof rack can negatively af­
fect the way a vehicle handles . Cargo
that is large, heavy, bulky, long o r flat
will have a greater negative inf luence on
the vehicle 's aerodynamics, center of
gravity and overall handling . Always
drive slowly, avoid sudden braking and
maneuvers when transporting cargo on
the roof of your vehicle.
- Never exceed the maximum permissible
load carrying capacity of the roof of your
vehicle, the perm issible axle weights and
the permiss ible total weight of your vehi­
cle
c::;, page 289, Weights .
@ For the sake of the environment
As a result of the increased wind resist­
ance created by a roof rack, your veh icle is
using fuel unnecessarily. So remove the
roof rack after using it.
S ea ts a nd s to rage 63
Luggage compartment
Loading luggage compartment
Luggage i tems must be stowed securely.
Fig. 65 P la ce h eavy o bject s as far forward a s possible .
Note the following to preserve the vehicle's
good handling charac teristics.
.., Distribute the load as evenly a s possible.
.., Place heavy objects as far forward as poss i­
ble
c::;, f ig . 65.
.., Secure luggage items with the cargo net* or
w ith non-elastic retain ing straps to the tie­
down rings*
c::;, page 65.
A WARNING
- Loose objects in the l uggage compart­
ment can slide about suddenly and a lter
the vehicle's handling characteristics.
- Loose objects in the passenger compart­
ment can fly forward during abr upt ma­
neuvers or accidents and injure occu­
pants .
- Always store objects in the luggage com­
partment and use suitable straps, partic­
ularly with heavy objects .
-
-When you transport heavy objects, al­
ways remember that a change in the cen ­
ter of gravity may result in a change in
the vehicle's handling characteristics.
- Follow all warnings
c::;, page 126, Driving
Safely .
(D Tips
The tire pressure must be ad justed to the
load -see the t ire pressure sticker located
on the dr iver's side B -pillar .

64 Seats and storage
Enlarging cargo capacity of the vehicle
interior
The seat backs can be folded forward to en­
large the cargo capacity .
Fig . 66 Re lease hand le on the seatback
Folding th e seatback forward
.. When you p ull the release lever @c:::> fig. 66
in the d irection o f the arrow, the safety knob
@ pops out far enough for the red marking
on knob to be visible.
.. Fold the seatback forward.
Rai sing th e seatback
.. Raise the seatback until it is securely latch­
ed
c:::> &_ . When you can no longer see the
red mark on the safety knob @, the seat is
l atched.
When the seatback is latched in its upright position, it can be locked and unlocked with
the mechanical key
c:::> page 32 next to the re­
lease handle ©
c:::>fig. 66. Th is prevents any
entry from the vehicle interior into the lug­
gage compartment .
The luggage compartment can only enlarged when the seatback is unlocked .
A WARNING
-
-The backrest must a lways be securely
latched so that the safety belt of the cen­
ter seating pos ition can work properly to
help protect the occupant .
- The backrest must be securely latched in
posit ion so that no items contained in
the luggage compar tment can slide for­
wa rd upo n sudden b raking . -
Always check whether the latch is fully
engaged by pull ing the seatback for­
ward.
- Never allow safety belts to become dam­
aged by be ing caught in door or seat
hardware.
-Torn or frayed safety be lts can tear and
damaged be lt hardware can break in a
crash . Inspect the belts periodica lly.
Belts show ing damage to webb ing, b ind­
ings, buckles, o r retractors must be re­
p laced.
(D Note
- If you move the front seat back when the
rear seat backrest is folded forward, you
cou ld damage the head r estraints on th e
rea r seat.
- Slide the be lt guide on the outside safety
be lt a ll the way up befo re fold ing the
backrest back forward. Make sure the
sea t belt is not pinched or damaged
when the rear seat backrest if fo lded
back. Other objects should be removed
from the rear seat bench to protect the
seatback from damage.

M N
0 I.J "". rl I.O
"' rl
"' rl
Tie-downs and cargo net
The cargo net* prevents small objects from
sliding .
Fig. 67 Location of th e tie -downs in the luggage com­
partment
Fig. 68 Lugg age compartment: cargo net•
.. To secure objects with the luggage com part·
ment net*, fold the tie-dow n bracket up­
ward
cc> fig. 67.
.. Insert the hooks on the luggage compart­
ment net* into the tie-downs ¢
fig. 68 .
.. Read and heed all WARNINGS ¢ page 132,
Stowing luggage.
In a collis ion, the laws of phys ics mean that
even smaller items that are loose in the vehi­
cle will turn into heavy missiles that can cause
serious injury. Items in the veh icle pick up ki­
netic energy which varies with the vehicle and
the weight of the item. Vehicle speed is the
most significant factor.
F or example, in a frontal coll is ion at a speed
of 30 mph (48 km/h), the forces acting on a
10- lb (5 kg) object are about
20 times the
normal weight of th e item. This means that
the weight of the item would suddenly be the
equivalent of about 200 lbs (90 kg). One can
easi ly imagine the injuries that an item of that
weight flying freely through the passenger
Seats and storage 65
compartment can cause in a collision at a
speed considered relatively low.
A WARNING
Weak, damaged or improper straps used
to secure items to tie-down s can fail dur­
ing hard braking or in a collision and cause
serious personal injury.
- Always use suitable retaining straps and
properly secure items to the tie-downs in
the luggage compartment to help pre­
vent items from shifting or flying for­
ward.
- Never attach a child seat tether strap to
a t ie-down .
- For strength-related reasons, the mount­
ing hooks can only be used to secure ob­
jects weigh ing up to 10 lb. (5 kg). Heavi­
er objects will not be adequately secured
- there is a risk of injury.
Pass-through with ski
sack
Pass-through with ski sack
App lies to vehicles : wi th ski sack
Long objects such as skis can be transported
in the ski sack* .
Fig. 69 Rear bench seat: opening the pass -through
Fig. 70 Sk i sack: secu ring with rea r seat safety belt

66 Seats and storage
Opening the trunk pass-through
.. Fold the center armrest in the rear forward
and out .
.. Pull the release handle ¢
fig. 69 and fold
down the cover of the pass -through in the
vehicle interior .
.. Open the rear lid .
.. Push the ski sack* through the opening from
the luggage compartment .
Securing the ski sack*
.. Insert the ski sack strap @¢ fig. 70 in the
center buck le @ .
.. Pull the safety belt taut on the free end of
the belt @.
A WARNING
-The ski sack is intended only for the
t ransportation of skis and other light ob­
jects . To reduce the risk of serious per­
sonal inj ury never t ransport heavy o r
pointed objects in the ski sack .
- When brak ing rapidly or during an acci­
dent the load could be displaced and
cause injury to occupants .
- Sharp edges on the load must be covered
for protection . Always fasten the belt
tightly around the sack and its contents
¢ fig. 70.
(D Tips
- Never stow the ski sack away when it is
still wet or damp (for example, snow
melting from skis). Allow it to dry com­
pletely before stowing it away.
- Position skis in the ski sack with the
pointed ends facing the front and ski
poles with the pointed ends facing the
rear.

M N
0 <.J 'SI: ,...., \!) 1.1'1 ,...., 1.1'1 ,....,
Warm and cold Climate controls
Description
App lies to vehicles: with three -zone cl imate contro l or
four -zone a uto mat ic climate contro l
The climate control system warms, cools and
adds humidity to the air in the vehicle interior.
It is the most effective when the windows and
sunroof* are closed . If the temperature inside
the parked veh icle becomes very warm, open­
i ng the w indow br iefly will speed up the cool­
ing process.
In all heating mode functions except
defrost,
the blower on ly switches to a higher speed
once the engine coolant has reached a certain
temperature.
Condensat ion from the cooling system can
drip and form a puddle of wate r under the ve­
h icle. This is normal and does not mean there
is a leak .
Pollutant filt er
The pollutant filter removes pollutants such
as dust and po llen from the air.
The air pollutants filter must be changed at
the intervals specified in your Warranty
&
Maintenance booklet, so that the air condi­
tioner can properly work .
If you drive your vehicle in an area with high
a ir pollution, the filter may need to be
changed more frequently than specified in
your Aud i Warranty
& Ma intenance booklet. If
i n doubt, ask your authori zed Audi Service Ad­
visor for adv ice.
K ey coded settings
Three-zone climate control: T he b lower set­
ting and air d istribution are stored automati­
cally and ass igned to the remote control key
that is in use .
Four-zone automatic climate control: The cli­
mate contro l settings are automatica lly stor­
ed and assigned to the remote control key
that is in use .
Warm and c old 67
A WARNING
-
Reduced visibi lity is dangerous and can
cause acc idents .
- For safe driving it is very important that
all windows be free of ice, snow and con­
densat ion.
- Comp letely fam il iarize yourse lf with the
proper use and funct ion of the heat ing
a nd ventilation system and especially
how to defog and defrost the w indows.
- Never use the windshield wiper/washer system in freez ing weathe r unt il you
have wa rmed the windshie ld first, using
the heating and ventilation system. The
washer sol ution may freeze on the wind­
shie ld and red uce visibi lity.
CJ) Note
- If you s uspect that the air conditioner
has been damaged, switch the system
off to avoid furt her damage and have it
inspected by a qualified dea lership .
- Repairs to the Audi air conditioner re­
quire specia l technical know ledge and
special tools. Contact an authorized Audi
dealer fo r ass istance.
@ For the sake of the envi ronment
By reducing the amount of f uel you use,
you also red uce the amount of pollutants
emitted into the air.
(D Tips
- Keep the air intake s lo ts ( in front of the
w indshield) free from ice, snow and de­
bris in order to maintain the proper func­
tion of the climate control system.
- The energy ma nagement system may
switch the seat heating* or rear window defroster off temporar ily. These systems
are available again as soon as the energy
balance has been restored .
- Air escapes through vents under the rear window. When plac ing items of cloth ing
on the luggage compartment cover, en­
sure that the openings are not covered.

68 Warm and cold
Three-zone climate control
Operation
Applies to vehicles: with three -zone climate control
We recommend pressing the IA UT O I button and setting the temperature to 72 °F (22 °C).
Fig . 71 Thr ee-zone cl imate control: co ntro ls
Press the buttons to t urn the func tions on o r
off. The dia l adjusts the te mperat ure and the
bl ower. The LED i n the bu tto ns ill umi nates
when the funct ion is a ctive.
IAU TO I Switching automatic mode on
Automatic mode ma inta ins a constant tem­
pe rat ure ins ide the vehi cle. Air temp erature,
a ir flow an d air d ist ribution a re controlled au­
tom atically.
e °Fe Adjusting the temperature
The temperature can be adjusted individ ua lly
for the dr iver and fro nt passenger using the
d ials @and @.
8fr Adjusting the airflow
Using the dial@, you can manually adj ust t he
amount of air generated by the blower to suit
your preferences . To have the ai rflow regu lat­
ed automatically, p ress the
!AU TO ! bu tton .
~.~ .~ Adjusting the air distribution
You can manually se lect the vents whe re the
a ir will flow. To have the air distribution regu­
lated automatically, press the
I AUTOI b utton .
1..,., 1 Switching recirculation mode on/off
In recirc ulation mode, the a ir inside the vehi­
cle is c irculated a nd filtered . T his prevents th e
unfiltered air outs ide the ve hicle from enter­
ing t he ve hicl e inte rio r. We recommend
swi tching recirc ulati on mode on when driving
t hr ou gh a tunne l o r w hen sit ting in t ra ffic
¢ ,& .
The !AUTO ! button or ! swi tche s reci rc ula tion mode off.
I OFF I Switching the climate control
system on/off
T he IOFF ! button switches the cli mate con trol
s y ste m on or off. It also sw it c hes on whe n yo u
tu rn the dia l or press any bu tton . Airflow from
o utside is blocked when the climate control
system is switched off .
IA/Cl Switching cooling mode on/off
The air is n ot co oled a nd hu midity is not re­
moved when cooling mode is swi tched off .
T his can ca use fog on the w in dows. Cooling
mode switches off automatically when t he
outside temperat ure is be low ze ro.
