AUDI A6 2017 Owners Manual

co
co
.... N
" N .... 0 0 <..:l 'SI"

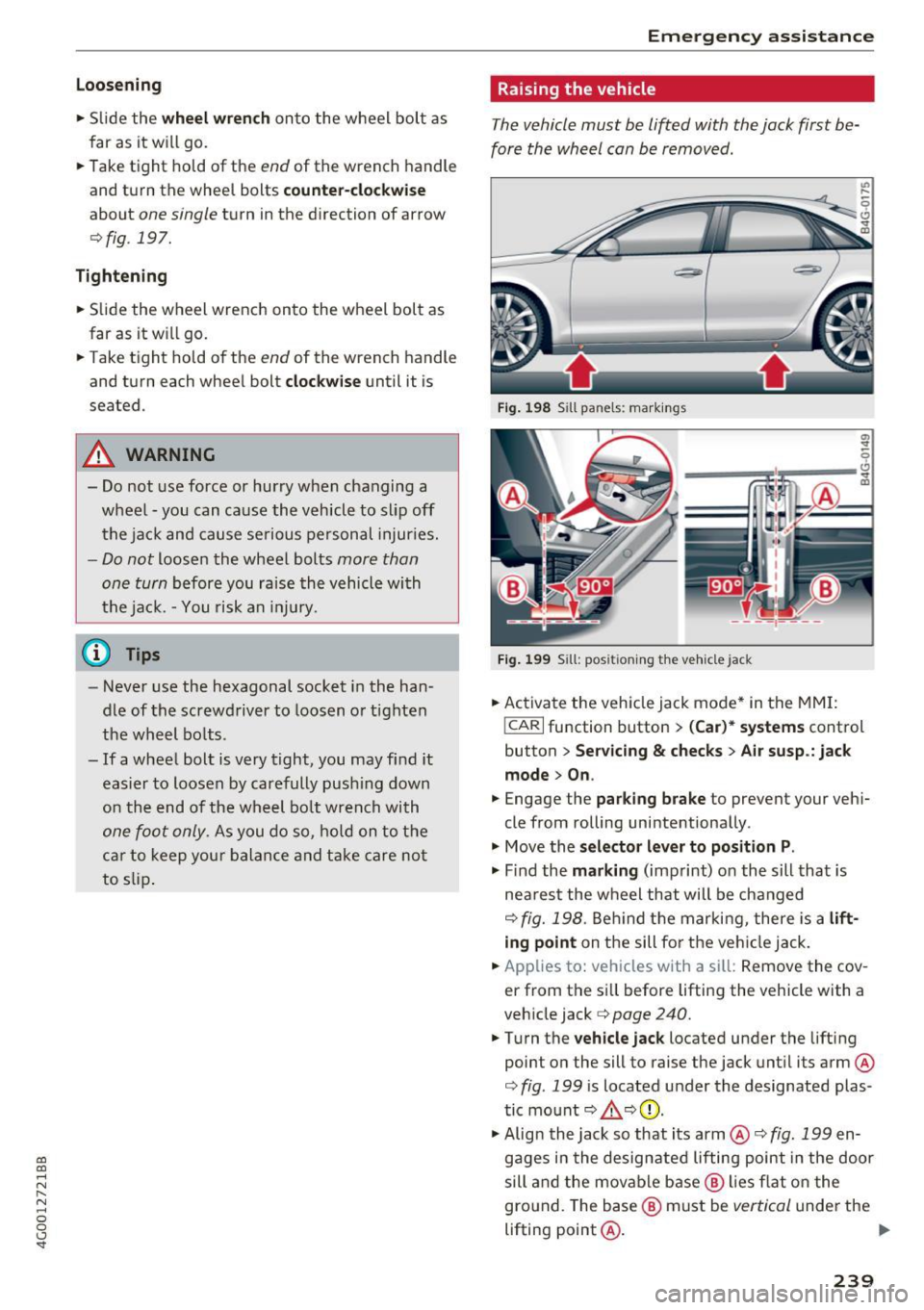

Loosening
• Slide the wh eel wr ench onto the wheel bolt as
far as it will go.
• Take tight hold of the
end of the wrench handle
and turn the wheel bolts
counter-cloc kwise
about one single turn in the direction of arrow
<=>fig. 197.
Tightening
• Slide the wheel wrench onto the wheel bolt as
far as it will go.
• Take tight hold of the
end of the wrench handle
and turn each wheel bolt
cloc kwise until it is
seated.
A WARNING
- Do not use force or hurry when changing a
wheel· you can cause the vehicle to slip off
the jack and cause se rious personal injur ies.
- Do not loosen the wheel bolts more than
one turn
before you raise the vehicle with
the jack. -You risk an injury.
(D Tips
- Never use the hexagonal socket in the han­
dle of the screwdriver to loosen or tighten
the wheel bo lts .
- If a wheel bolt is
very tight, you may find it
easier to loosen by carefully push ing down
on the end of the wheel bo lt wrench with
one
foot only . As you do so, hold on to the
car to keep your balan ce and take care no t
to slip .
Emergen cy a ssis tanc e
Raising the vehicle
The vehicle must be lifted with the jack first be­
fore the wheel can be removed.
Fig . 1 98 Sill panels: markings
0, ...
0
---~~ i~~:--~
F ig . 1 99 Sill: posit ioning the vehicle jack
• Activate the vehicle jack mode* in the MM I:
!CARI function button > (Car )* s ystem s control
button
> Ser vicin g & checks > A ir su sp .: jac k
m ode > On .
• Engage the pa rki ng br ake to prevent your veh i­
cle from rolling unintentionally .
"' Move the
selector l eve r to position P .
"' Find the mark ing (imprint) o n the sill that is
nea rest the wheel that will be changed
<=> fig. 198 . Behind t he marking, there is a lift ­
ing point on the sill fo r th e vehi cle jack.
• Applies to: vehicles with a si ll: Remove the
cov ­
er from the sill before lifting the vehicle with a
vehicle jack<=>
page 240.
"'Turn the vehicle jack located under the lifting
point on the sill to raise the jack until its arm @
<=> fig . 199 is located under the designated plas­
tic mount <=> &. <=>0 .
"' Alig n the jack so that its arm@¢
fig. 199 en­
gages i n the designated lifting point in the door
sill and the movable b ase @ lies flat o n the
gro und. The base @ must be
vertical under the
lifting point@.
Ii"'
239

Emergency assistance
.,. Wind the jack up further until the flat tire
comes off the ground
c:::> A_ .
Position the vehicle jack only under the designat­
ed lifting points on the sill
c:::> fig. 198. There is ex­
actly
one location for each wheel. The jack must
not be positioned at any other location
c:::> ,1. c:::>Q) .
An unstable surface und er the jack can cause the
vehicle to slip off the jack. Always provide a firm
base for the jack on the ground. If necessary
place a sturdy board or similar support under the
jack . On
hard, slippery surfaces (such as tiles)
use a rubber mat or similar to prevent the jack
from slipping
c:::> ,1..
A WARNING
- You or your passengers could be injured
wh ile chang ing a wheel if you do not follow
these safety precautions:
- Position the vehicle jack on ly at the desig­
nated lifting points and align the jack.
Otherwise, the vehicle jack could slip and
cause an injury if it does not have suffi­
cient hold on the vehicle.
- A soft or unstable surface under the jack
may cause the vehicle to slip off the jack.
Always provide a firm base for the jack on
the ground. If necessary, use a sturdy
board under the jack.
- On hard, sl ippery surface (such as tiles)
use a rubber mat or similar to prevent the
jack from slipping.
- To help prevent injury to yourself and yo ur
passengers:
- Do not raise the vehicle until you are sure
the jack is securely engaged.
- Passengers must not remain in the vehicle
when it is jacked up.
- Make sure that passengers wait in a safe
place away from the vehicle and well away
from the road and traff ic.
- Make sure jack position is correct, adjust
as necessary and then continue to raise
the jack.
- Changes in temperature or load can affect
the height of the vehicle.
240
(D Note
Do not lift the vehicle by the si ll. Position the
vehicle jack only at the des ignated lift ing
points on the sill. Otherw ise, your veh icle will
be damaged.
@ Tips
The vehicle jack mode * switches off automati­
cally at speeds above 6 mph (10 km/h).
Removing and installing the sill extension
cover
App lies to: vehicles with sill extension
Fig. 200 S ill: r em ov ing the cover
.. Pull the cover down to remove it. c:::> fig. 200
.. To install the cover, insert it in the mount and
press it upward until it clicks into place . The
cover must be flush with the surface of the sill
extens ion.
@ Tips
Some models may also have a cover for the
rear vehicle lift point.

co
co
.... N
" N .... 0 0 <.,;) 'SI"
Taking the wheel off/installing the spare
Follow these instructions step-by-step for chang­
ing the wheel.
Fig. 201 Changing a wheel: us ing the screwdriver hahd le
(with the blade removed} to turn the bolts
F ig. 202 C hangin g a whee l: alignment pin ins ide the top
hole
After you have loosened all wheel bo lts and
raised the vehicle
off the ground, remove and re­
p lace the whee l as follows:
Removing th e wheel
.. Use the hexagon al so cket in the screwdri ver
handle
to completely remove the topmost
wheel bolt and set it aside on a
clean surface
¢ fig. 201 .
.. Screw the threaded end of the alignment pi n
from the tool kit hand-tight into the empty bolt
hole ¢
fig. 202 .
.. Then remove the other wheel bolts as described
above .
.. Take
off the wheel leaving the a lignment pin in
the bolt ho le ¢ 0 .
Puttin g on the spa re wh eel
.. Lift the spare wheel and carefully slide it over
the alignment pin to guide it in place ¢0 .
Em ergen cy a ssis tanc e
.. Use the hexagonal socket in the screwdr iver
handle to screw in and tighten all wheel bolts
slightly.
.. Remove the alignment pin and insert and tight­
en the remaining wheel bo lt slight ly like the
rest .
.. Tu rn the jack handle counter-clockw ise to lower
the vehicle unt il the jack is fully released .
.. Use the wheel bo lt wrench to t ighten a ll wheel
bol ts fi rmly¢
page 238. Tighten them cross­
wise,
from one bo lt to the (approx imately) op­
posite one, to keep the wheel centered.
(D Note
When removing o r insta lling the wheel, the
rim could h it the brake rotor and damage t he
rotor . Work carefully and have a second per­
son help you .
@ Tips
Never use the hexagonal socket in the hand le
of the screwdrive r to loosen or t ighten the
whee l bolts.
- Pull the reversible blade from the screwdriv ­
er before you use the hexagonal socket in
the handle to turn the whee l bolts.
- When mount ing tires with
unidirectional
tread de sign
make sure the tread pattern is
pointed the right way¢
page 241 .
-The wheel bolts should be clean and easy to
turn. Check for dirt and corrosion on the
mating surfaces of both the wheel and the
hub. Remove all dirt from these surfaces be­
fore remounting the wheel.
Tires with unidirectional tread design
Tires with unidirectional tread design must be
mounted with their tread pattern pointed in the
right direction .
Usi ng a sp are t ire w ith a tread patte rn
intended f or u se in a sp ecific direction
When using a spare tire with a tread pattern in­
tended for use in a specific direction, please note
the following:
- The direction of rotation is marked by an arrow
on the side of the tire. "'
241

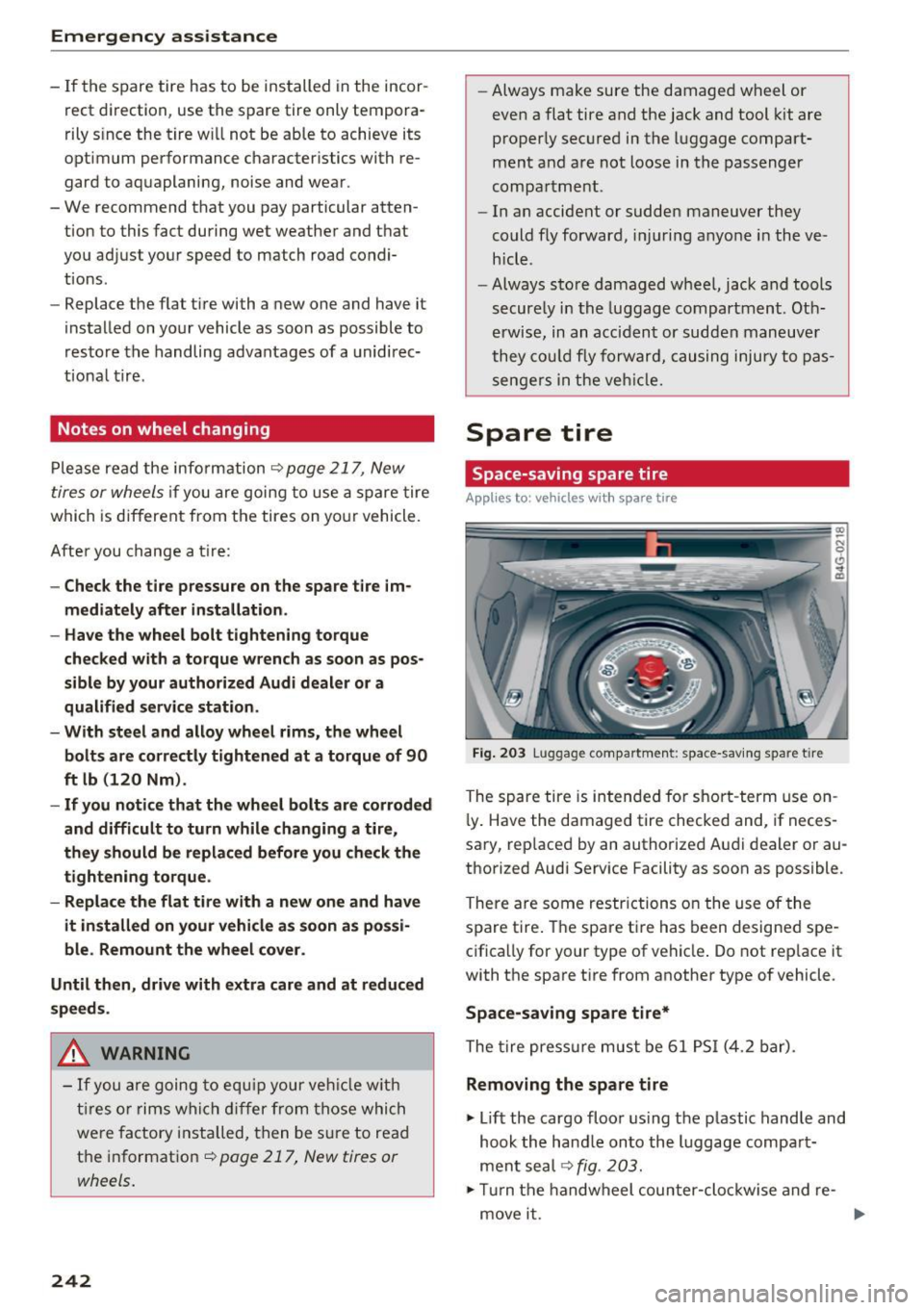

Emergency assistance
-If the spare tire has to be installed in the incor ­
rect direction, use the spare tire only tempora­
rily since the tire w ill not be able to achieve its
optimum performance characteristics with re­
gard to aquaplaning, noise and wear.
- We recommend that you pay particular atten­
tion to this fact during wet weather and that
you adjust your speed to match road condi­
tions.
- Replace the flat tire with a new one and have it
installed on your vehicle as soon as possible to
restore the handling advantages of a unidirec­
tional tire .
Notes on wheel changing
Please read the informat ion ~ page 217, New
tires or wheels
if you are going to use a spare tire
which is different from the tires on your vehicle.
After you change a tire:
-Check the tire pressure on the spare tire im­
mediately after installation.
- Have the wheel bolt tightening torque
checked with a torque wrench as soon as pos­
sible by your authorized Audi dealer or a
qualified service station .
- With steel and alloy wheel rims, the wheel
bolts are correctly tightened at a torque of 90
ft lb
(120 Nm) .
- If you notice that the wheel bolts are corroded
and difficult to turn while changing a tire,
they should be replaced before you check the
tightening torque.
- Replace the flat tire with a new one and have
it installed on your vehicle as soon as possi­
ble. Remount the wheel cover.
Until then, drive with extra care and at reduced
speeds.
_& WARNING
- If you are going to equ ip your vehicle with
tires or rims which differ from those which
were factory installed, then be sure to read
the information
~ page 217, New tires or
wheels .
242
-Always make sure the damaged wheel or
even a flat tire and the jack and tool kit are
proper ly secured in the luggage compart­
ment and are not loose in the passenger
compartment.
- In an accident or sudden maneuver they
could fly forward, injuring anyone in the
ve­
hicle.
- Always store damaged w heel, jack and tools
securely in the luggage compartment. Oth­
erwise, in an accident or sudden maneuver
they could fly forward, causing in jury to pas­
sengers in the vehicle.
Spare tire
Space-saving spare tire
App lies to : vehicles wit h spare tire
Fig. 203 Luggage com partment: space-sav ing spare t ire
The spare tire is intended for short -term use on­
l y . Have the damaged tire checked and, if neces­
sary, replaced by an authorized Audi dealer or au­
thorized Audi
Serv ice Facility as soon as possible .
There are some restr ictions on the use of the
spare tire. The spare tire has been designed spe­
cifica lly for your type of vehicle . Do not replace it
with the spare tire from another type of vehicle .
Space-saving spare tire*
The tire pressure must be 61 PSI (4.2 bar).
Removing the spare tire
"' Lift the cargo floor using the plastic handle and
hook the hand le onto the luggage compa rt­
ment seal
~fig . 203.
"'Tur n the handwheel counter-clockwise and re­
move it.

co
co
.... N

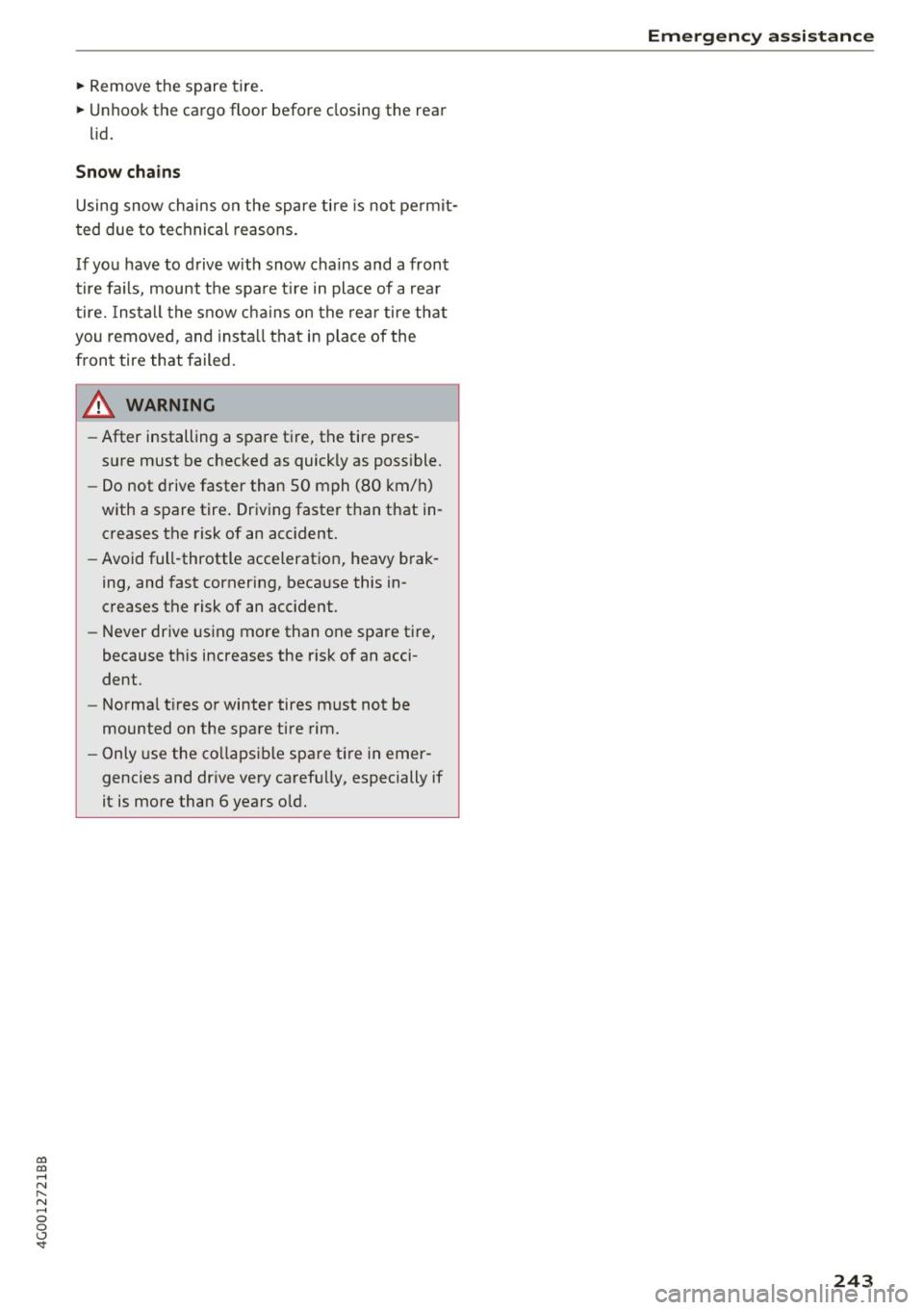

" N .... 0 0 <..:l ' ~ Remove the spare tire.
~ Unhook the cargo floor before closing the rear
li d.
Snow chains
Using snow chains on the spare tire is not permit­
ted due to technical reasons.
I f you have to drive with snow chains and a front
tire fa ils, mount the spa re tire in place of a rear
tire. Install the snow chains on the rear tire that
you removed , and insta ll that in place of the
front tire that failed.
A WARNING
-
-After installing a spare tire, the tire pres­
sure must be checked as quickly as possible.
- Do not drive faster than 50 mph (80 km/h)
with a spare tire . Driving faster than that in­
creases the risk of an acc ident.
- Avoid full-throttle acceleration, heavy brak­
ing, and fast cornering, because this in­
creases the risk of an acc ident.
- Never drive using more than one spare tire,
because this increases the r isk of an acci­
dent .
- Norma l tires or winter tires must not be
mounted on the spare tire rim.
- Only use the collaps ible spare tire in emer­
gencies and drive very carefully, especially if
it is more than 6 years o ld.
Emergency assistance
243

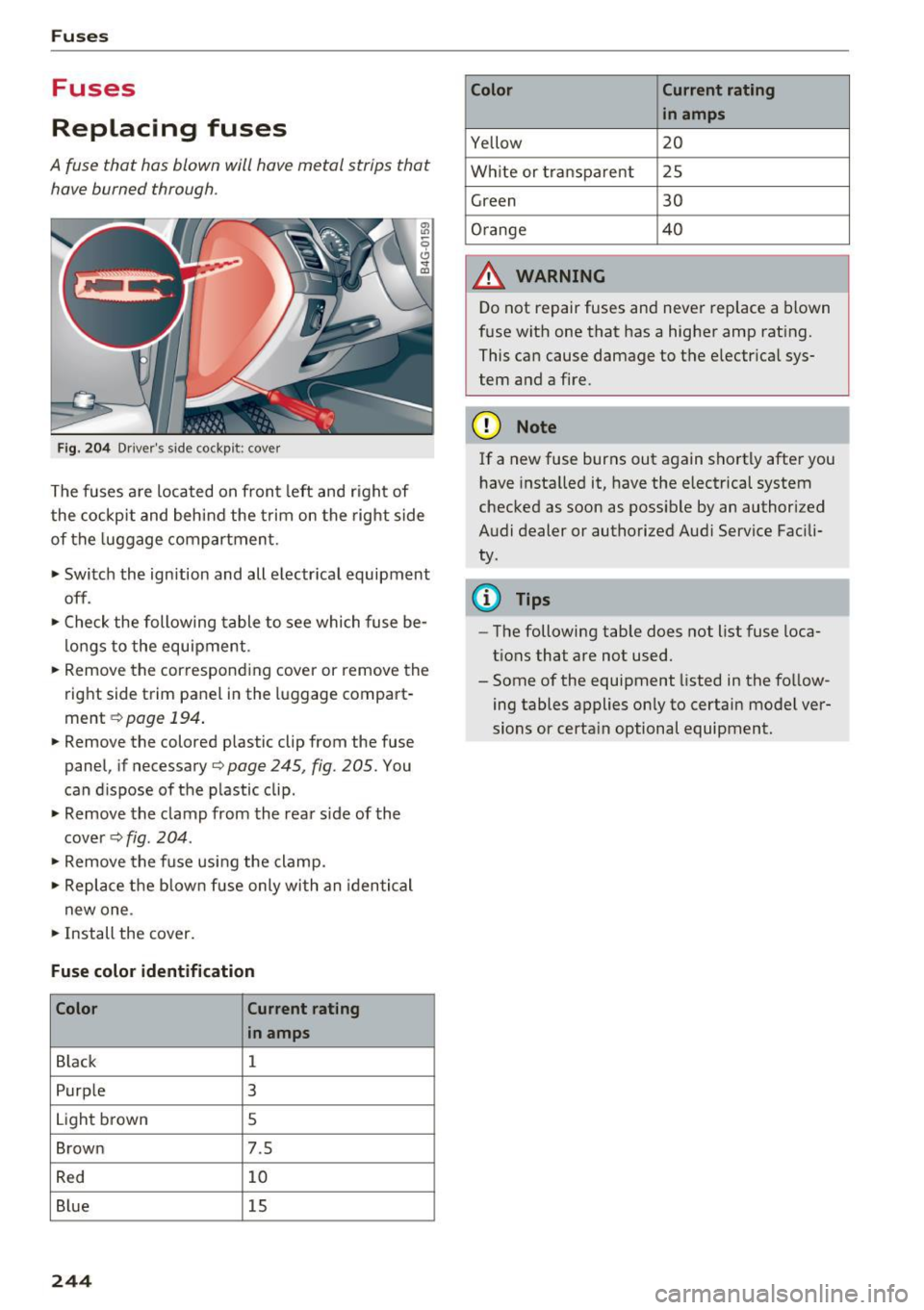

Fuses
Fuses
Replacing fuses
A fuse that has blown will have metal strips that have burned through .
Fig . 204 Driver 's side cockp it: cove r
The fuses a re located on front left and r ight of
t he cockpit and beh ind the trim on the rig ht s ide
of the luggage compartmen t.
"' Switc h the ignition and all e lectr ica l equipment
off.
"' Che ck the following table to see which fuse be­
l o ngs to the equipment.
... Remove the correspond ing cover or remove the
right side trim panel in the l uggage compart­
ment ¢
poge 194.
... Remove the colored plastic clip from the fuse
panel, if necessary ¢
page 245, fig. 205. You
can d ispose of t he p lastic clip .
... Remove the clamp from the rea r side of the
cove r¢
fig . 204 .
... Remove the fuse usi ng the clamp.
"' Re pla ce t he b low n fus e only wi th an iden tical
new one .
"' Install the cover.
Fuse color identification
Color Current rating
in amps
Black 1
Purp le 3
Li ght b rown 5
B rown 7.5
R ed 10
Blue 15
244
Color Current rating
in amps
Yellow 20
Wh ite or transpa rent 2 5
Green 30
O range 4 0
A WARNING
Do not repair fuses and neve r replace a blown
f u se with one that has a higher amp rat ing.
This can cause damage to the e lectr ica l sys­
tem and a fire .
(D Note
If a new fuse burns out again shortly after you
h ave insta lled it, have the e lectrical system
checked as soon as possible by an authorized
Audi dealer o r authorized Aud i Service Fac ili­
ty .
(D Tips
-The following tab le does not list fuse loca ­
t ions that are not used .
- Some of the equipment listed in the fo llow­
ing tables a pplies on ly to certain model ver­
sions or certa in optional equipment .

co
co
.... N
" N .... 0 0 <.,;) 'SI"
Driver side cockpit fuse
assignment
Fig. 205 Drive r side cockp it : fuse panel w ith plastic bracket
Fuse panel @ (black)
No. Equipment
Electromecha nica l powe r steering, trailer
1 hitch,
ionizer, switch strip, seat heating
(rear), electromechan ica l park ing brake
Horn, climate con trol system, Gateway,
2 automatic
dimm ing in ter ior rearview mir-
ro r, On-Board Unit
4 Park ing aid, headlight range adjustment
5
Dynamic steering, E lectron ic Stabilization
Control (ESC)
6 Headlights
7 Adapt ive cruise control
8 Front passenger's seat sensors, airbag
9 Gateway
10 Engine
sound, night vision ass ist, garage
door opener (Homelink), parking aid
11 Video camera
image processing
12 Headlights
13 Steering column sw
itch module
Fuses
Fuse panel @ (black)
14 Termina l 15 (luggage compartment)
15 Starter
Fuse panel @ (brown)
No. Equipment
1 Infotainment system
2 Infotainment system
3 Front
passenger's seat
5
Airbag, Electronic Stabilization Control
( ESC )
6 Anti
-theft alarm system
7 Electromec hanical pa rking brake
8 Inter io r li ghts
9
Windshield video camera heating, light/
rain sensor
10 Lumba r support (driver's seat)
11 Driver
's seat
12 Electronic sta bilization control
13 Horn
1 4 Headlights
15 Front seat heating
16 Dynamic steering
Fuse panel © (red)
No. Equipment
1 C lutch peda l
2 Fuel pump
3 Brake
light sensor
4 AdB lue (diese l engine)/engine aco ustics
5 Rear
door
6 Fro
nt door
7 Electronic stabilization control
8 Windshield wip er motor
9 Headlight washer system
10 Interio
r lighting, climate control system
1 1 Headlights
12 Sunroof
245

Fuses
Front passenger side
cockpit fuse assignment
Fig. 206 Front passenger side cockpit: fuse panel wit h
plastic bracket
Fuse panel @ (red)
No. Equipm ent
1 Infotainment, CD changer
2 Inf
ota inment (display)
3 Emergency call
Fuse panel @ (brown)
No. Equipment
1 Climate control system
2 Climate control
system (blower)
3 Diagnostic interface
4 Electrical ignit ion lock
5 Electronic steering column lock
6 Steering column switch module
7 Power steering column adjustment
8 Light switch
9 Head-up display
10 Instrument cl uster
11 Infotainment, DVD
changer
246
Luggage compartment
fuse assignment
Fig. 207 Luggage compa rtme nt: fuse panel with plast ic
bracket
Fuse panel @ (black)
No . Equipment
1 Tra
iler hitch/220 volt socket
2 Trailer hitch/climatized cup holder
3
Trailer hitch/adjusting front passenger's
seat from the rear
4 El ec trom echan ical parking brake
5 Electromechanical parking brake
6 Front door (front passenger's side)
7 Rear exterior lighting
8 Central locking, closing aid
9 Seat heating (fro nt)
11 Seat heating
(rear), climate control system
12 Trailer hitch
Fuse panel @ (red)
No. Equipment
1 L
eft safety belt tensioner
2 Right safety belt tensioner
3 Ad Blue tank (diesel engine)/fuel pump
4 Ad Blue tank (diesel engine)/engi ne mount
(gaso lin e eng ine)
5
Se nsor-controlled luggage compartment
lid
6 Air suspension, adaptive dampers
7 Rear door (front passenger's side)
8 Tail lights
9 Luggage compartment lid

co
co
.... N

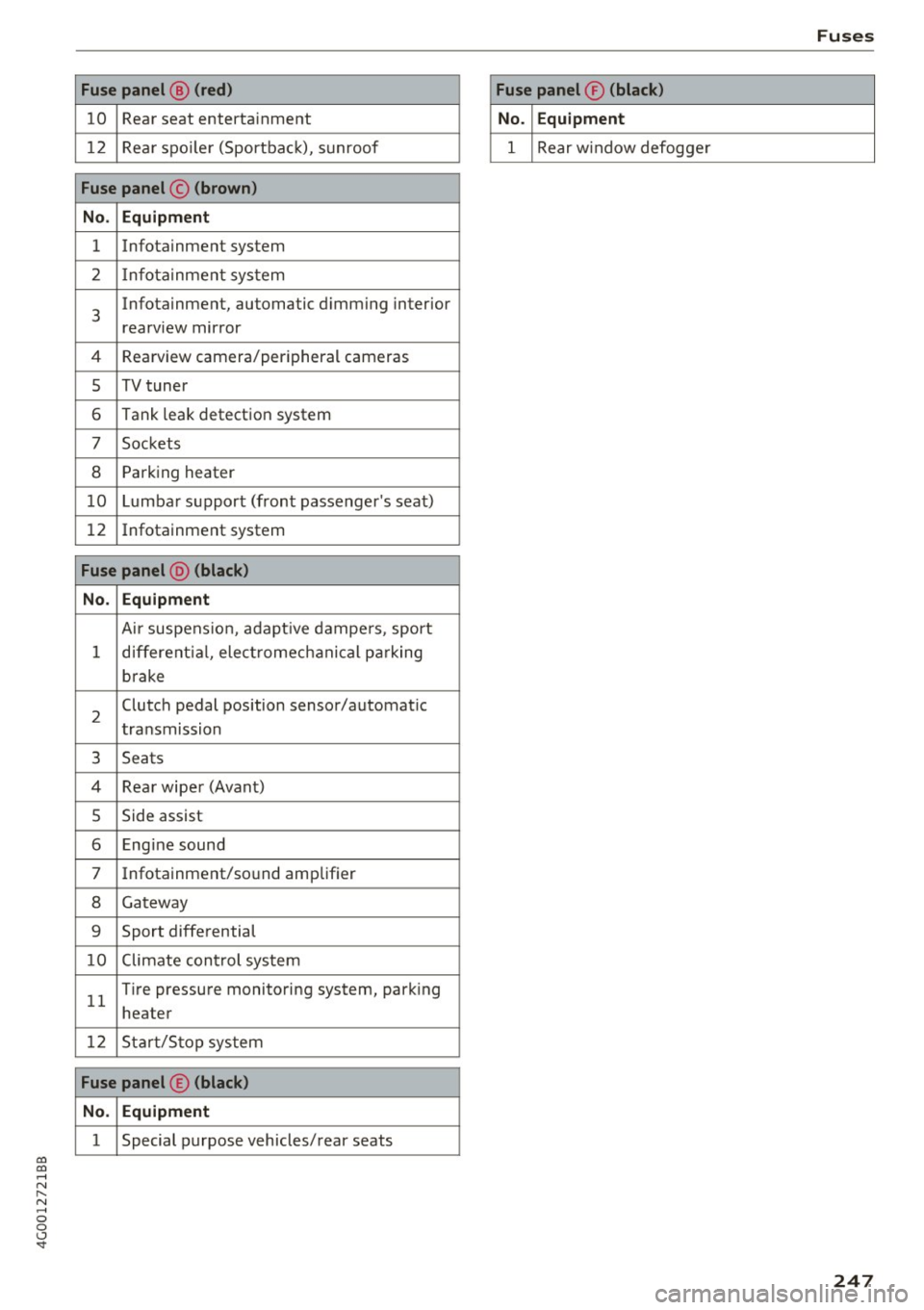

" N .... 0 0 <..:l ' Fuse panel @ (red)
10 Rea r seat enterta inment
12 Rear spo ile r (Sportbac k), s unroof
Fuse panel © (brown)
No . Equipment
1 Infotainment system
2 I nfot ainme nt sys tem
3
Infotainment, automatic d imm ing interior
rearview mirror
4 Rearview camer a/peripheral cameras
5 TV tuner
6 Tank leak detect io n system
7 Sockets
8 Pa rk ing heater
1 0 Lumba r su pport (fro nt passenger 's seat)
1 2 Infotainment system
Fuse panel @ (black)
No. Equipment
Ai r suspe nsion , adaptive d ampe rs , sport
1 d ifferent ia l, elec tromec hanical p arking
b rake
2 Clutch pedal
position sensor/a utomat ic
t ra nsmission
3 Seats
4 Re ar wipe r (Avan t)
5 Side assist
6 Eng ine sound
7 Infotainment/so und amplif ier
8 G ateway
9 Sport diffe rential
1 0 Climate con trol sys te m
1 1 T
ire pressure m onito ring system, park ing
heater
12 Start/S top sys tem
Fuse panel ® (black)
No . Equipment
1 Special purpose vehicles/ rear seats
Fuses
Fuse panel ® (black)
No . Equipment
1 Rear w indow defogge r
247

Bulbs
Bulbs
Replacing light bulbs
For your safety, we recommend that you have
your authori zed Audi dealer replace burned out
bulbs for you.
It
is becoming increasingly more and more diffi­
cult to replace vehicle light bulbs since in many
cases, other parts
of the car must first be re­
moved before you are able to get to the bulb.
This applies especially to the light bulbs in the
front of your car which you can only reach
through the eng ine compartment.
Sheet metal and bulb holders can have sharp
edges that can cause serious cuts, and parts must be correctly taken apart and then properly
put back together to help prevent breakage of
parts and long term damage from water that can
enter housings that have not been properly re­
sealed.
For your safety, we recommend that you have
your author ized Audi dealer replace any bulbs for
you, since your dealer has the proper tools, the
correct bulbs and the expertise .
Gas discharge lamps (Xenon lights):
Due to the high electrical voltage, have the bulbs
replaced by a qualified technic ian . Headlights
with Xenon light can be identified by the high
voltage sticker.
LED headlights*
LED headlights require no maintenance. Please
contact your authorized Audi dealer if a bulb needs to be replaced.
A WARNING
Contact w ith high-voltage components of the
electrical system and improper replacement
of gas d ischarge (Xenon) headlight bulbs can
cause se rious personal injury and death.
- Xenon bulbs are pressurized and can ex­
plode when be ing changed .
- Chang ing Xenon lamps requires the spec ial
training, instructions and equipment .
248
-Only an authorized Audi dealer or other
qualified workshop should change the bu lbs
in gas discharge lamps.
A WARNING
There are parts with sharp edges on the open­
ings and on the bulb holders that can cause
serious cuts .
- If you are uncertain about what to do, have
the work performed by an authorized Audi
dealer or other qualified workshop . Ser ious
personal injury may result from improperly
performed work.
(D Tips
- If you still prefer to replace the light bulbs
yourself, be aware that the engine compart­
ment is a hazardous area to work in
~page 198~.&.
- It
is best to ask your authorized Audi dealer
whenever you need to change a bulb.
