" N .... 0 0 <..:l ' Emergency situations
General
This chapter is intended for trained emergency
crews and working personnel who have the nec­
essary tools and equipment to perform these
ope rations.
Starting by pushing or
towing
CD Note
Veh icles with an automatic transmission can­
not be started by pushing or towing.
Starting with jumper
cables
If necessary, the engine can be started by con­
necting it to the battery of another vehicle.
If the engine shou ld fail to start because of a dis ­
charged or weak battery, the battery can be con­
nected to the battery of
another vehicle, using a
pair of jumpe r cables to start the engine.
Jumper cables
Use only jumper cables of suffic iently large cross
section
to carry the starter current safely. Refer
to the manufacturer's specifications.
Use only jumper cables with
insulated term inal
clamps which are dis tinct ly marked:
plus (+) cable in most cases colored re d
minus( -) cable
in most cases colored black.
A WARNING
Batteries contain electricity, acid, and gas.
Any of these can cause very serious or fatal in­
jury. Follow the instructions below for safe
handling of your vehicle's battery.
- Always shield your eyes and avo id leaning
over the battery whenever poss ible.
- A dead battery can freeze at temperatures
around 32 °F (0 °C). If the vehicle battery is
frozen, you must thaw it before connecting
the jump start cab les. If you do not, this in-
Emergency situations
creases the risk of an explosion and chemi­
cal burns. After jump starting the vehicle,
drive to an authorized Aud i dealer or author­
ized Audi Service Facility immediately to
have the vehicle battery checked.
- Do not allow battery ac id to contact eyes or
skin . Flush any contacted area with water
immed iately.
- Improper use of a booster battery to start a
veh icle may cause an explosion .
- Veh icle batteries generate explosive gases.
Keep sparks, flame and lighted cigarettes
away from batter ies.
- Do not try to jump start any vehicle with a
low acid level in the battery .
- The voltage of the booster battery must also
have a 12-volt rat ing . The capacity (Ah) of
the booster battery should not be lower
than that of the discharged battery. Use of
batter ies of different voltage or substantial­
ly different "Ah" rating may cause an exp lo­
sion and personal injury.
- Never charge a frozen battery. Gas trapped
in the ice may cause an explosion.
- Never charge or use a battery that has been
frozen . T he battery case may have be weak­
ened.
- Use of batteries of different voltage or sub­
stantially different capacity (Ah) rating may
cause an exp losion and injury . The capacity
(Ah) of the booster battery should not be
lower than that of the discharged battery.
- Before you check anything in the engine
compartment, always read and heed all
WARNINGS
qpage 198.
CD Note
-App lying a higher voltage booster battery
wi ll ca use expensive damage to sensitive
electronic components, such as control
units, relays, radio, etc.
- There must be no electrical contact between
the vehicles as otherwise current could al­
ready start to flow as soon as the positive
(+) terminals are connected.
249

Emergency situations
@ Tips
The discharged battery must be properly con­
nected to the vehicle's electrical system .
When jump starting or charging the battery,
never connect the negative ground cable to
the battery negative post because the battery
manager system must be able to detect the
battery's state of charge . Always connect the
negat ive ground cable to the negative ground
pos t of the battery manager control unit.

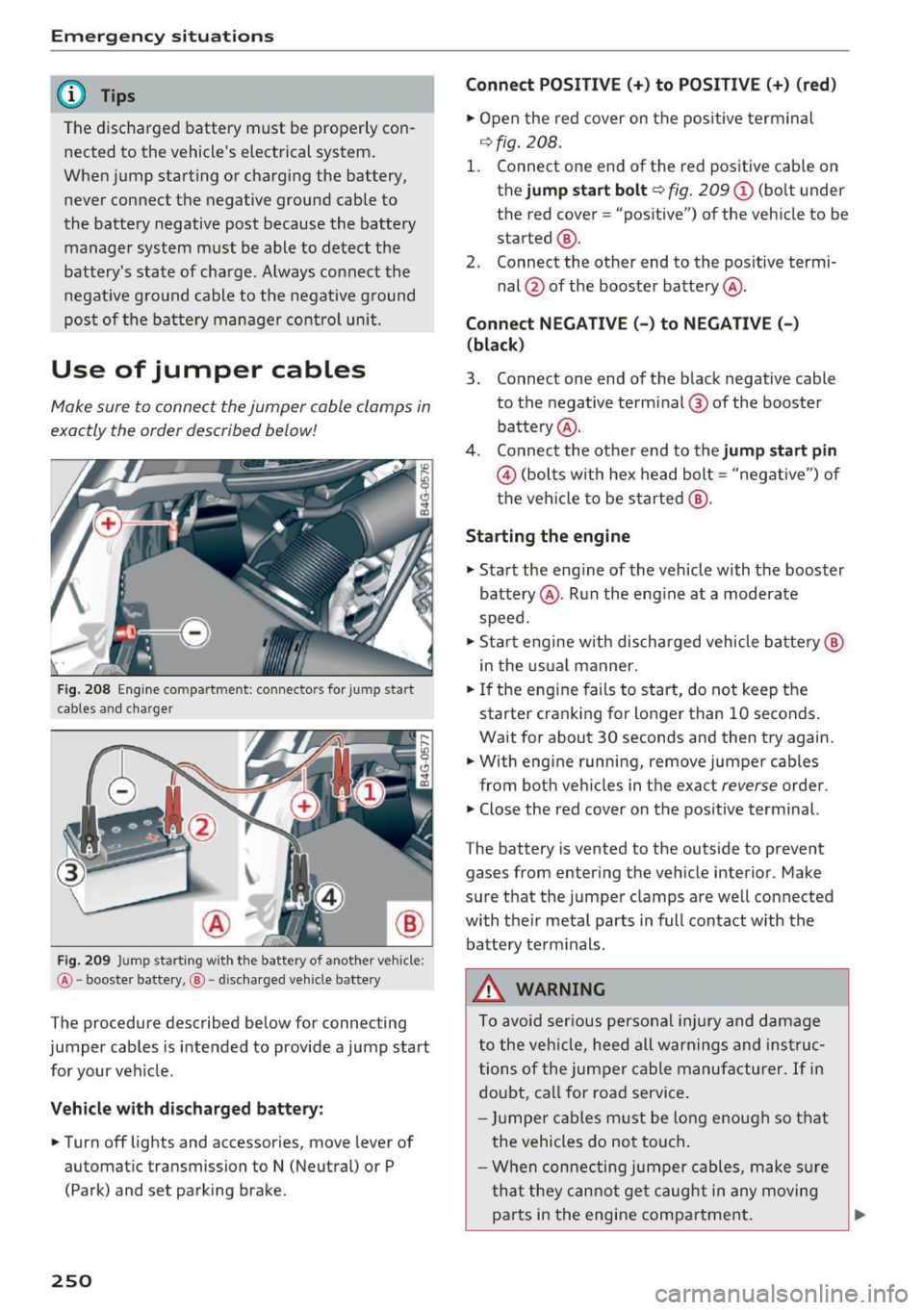

Use of jumper cables
Make sure to connect the jumper cable clamps in
exactly the order described below!
Fig. 208 Engine compartmen t: connecto rs for ju mp start
cables a nd charger
@
Fig. 209 Ju mp starting w ith the battery of another vehicle :
@-booster battery, @- discharged vehicle batte ry
The procedure described below for connecting
jumper cables is intended to provide a jump start
for your veh icle.
Vehicle with discharged battery:
.. Turn
off lights and accessories, move lever of
automatic transmission to
N (Neutral) or P
(Park) and set park ing brake .
250
Connect POSITIVE(+) to POSITIVE (+) (red)
.. Open the red cover on the positive terminal
o::> fig.
208.
1. Connect one end of the red positive cable on
the jump start bolt
Q fig. 209 (i) (bolt under
the red cover= "positive") of the vehicle to be
started @.
2. Connect the other end to the positive termi-
nal@ of the booster battery @.
Connect NEGATIVE(-) to NEGATIVE(-)
(black)
3. Connect one end of the black negative cable to the negative terminal ® of the booster
battery @.
4. Connect the other end to the jump start pin
© (bolts with hex head bolt= "negat ive") of
the vehicle to be started @.
Starting the engine
"' Start the eng ine of the vehicle with the booster
battery @. Run the eng ine at a moderate
speed.
"' Start engine w ith discharged vehicle battery@
in the usual manner.
"' If the engine fails to start, do not keep the
starter cranking for longer than 10 seconds.
Wait for about 30 seconds and then try again.
"' With engine running, remove jumper cables
from both vehicles in the exact
reverse order.
"' Close the red cover on the positive terminal.
The battery is vented to the outside to prevent gases from entering the vehicle interior . Make
sure that the jumper clamps are well connected
with their metal parts in full contact w ith the
batte ry terminals.
A WARNING
To avoid serious personal inju ry and damage
to the veh icle, heed all warnings and instruc­
tions of the jumper cable manufacturer.
If in
doubt, call for road service.
- Jumper cables must be long enough so that
the vehicles do not touch .
- When connecting jumper cables, make sur e
that they cannot get caug ht in any moving
pa rts in the engine compartment. ..,.

-Before you check anything in the engine
compartment, always read and heed all
WARNINGS
o page 198.
(D Note
Improper hook-up of jumper cables can ruin
the generator.
-Always connect POSITIVE( +) to POSITIVE
(+), and NEGATIVE(-) to NEGATIVE(-)
ground post of the battery manager control
unit.
- Check that all screw plugs on the battery
cells are screwed in firmly. If not, t ighten
plugs prior to connecting clamp on negative
battery terminal.
- Please note that the procedure for connect­
ing a jumper cable as described above ap­
plies specifically to the case of your vehicle
being jump started. When you are giv ing a
ju mp start to another vehicle, do
not con­
ne ct the negative( -) cab le to the negative
(-) terminal on the discharged ba ttery @
o fig. 209. Instead, securely connec t the
negative (-) cable to either a solid metal
component that is firm ly bolted to the en­
gine block or to the engine block itself. If
the battery that is be ing charged does not
vent to the outs ide, escaping battery gas
could ignite and explode!
Towing with a tow truck
General hints
Your Audi requires special handling for towing .
The following information is to be used by com­
mercial tow truck operators who know how to op­
erate the ir equipment safely.
-Never tow your Audi. Towing will cause dam­
age to the engine and transmission .
- Never wrap the safety chains or winch cables
around the brake lines.
- To prevent unnecessary damage, your Audi
must be transported with a flat bed truck .
co
co -To load the vehicle on to the flat bed, use the ....
~ towing loop found in the vehicle tools and at-N .... 0 0 <.,;) 'SI"
Emergency situations
tach to the front or rear anchorage
opage251 and opage252.
.&_ WARNING
-
A vehicle being towed is not safe for passen-
gers. Never allow anyone to ride in a vehicle
being towed, for any reason.
Front towing loop
Fig. 210 Front bumper: cover
Fig. 211 Front bu mper: insta lling t he towing loop
The threaded open ing for the towing loop is lo­
cated behind a cover on the right side of the front
bumper .
.,. Remove the towing loop from the vehicle too l
kit
c:::, page 236.
.,. Press the cap inward with brief, forceful pres ­
sure
o fig. 210 . The cap will loosen from the
bumper.
., Tighten the towing loop in the threaded open­
ing until it stops
r:';> fig. 211 and then tighten it
w ith a wheel wrench .
.,. After usi ng, p lace the towing loop back in the
veh icle tool kit . "'
251

Emergency situations
_& WARNING
If the towing loop is not tightened until it
stops when installing, the threads may be
pulled out when towing the vehicle and that
could cause an accident.

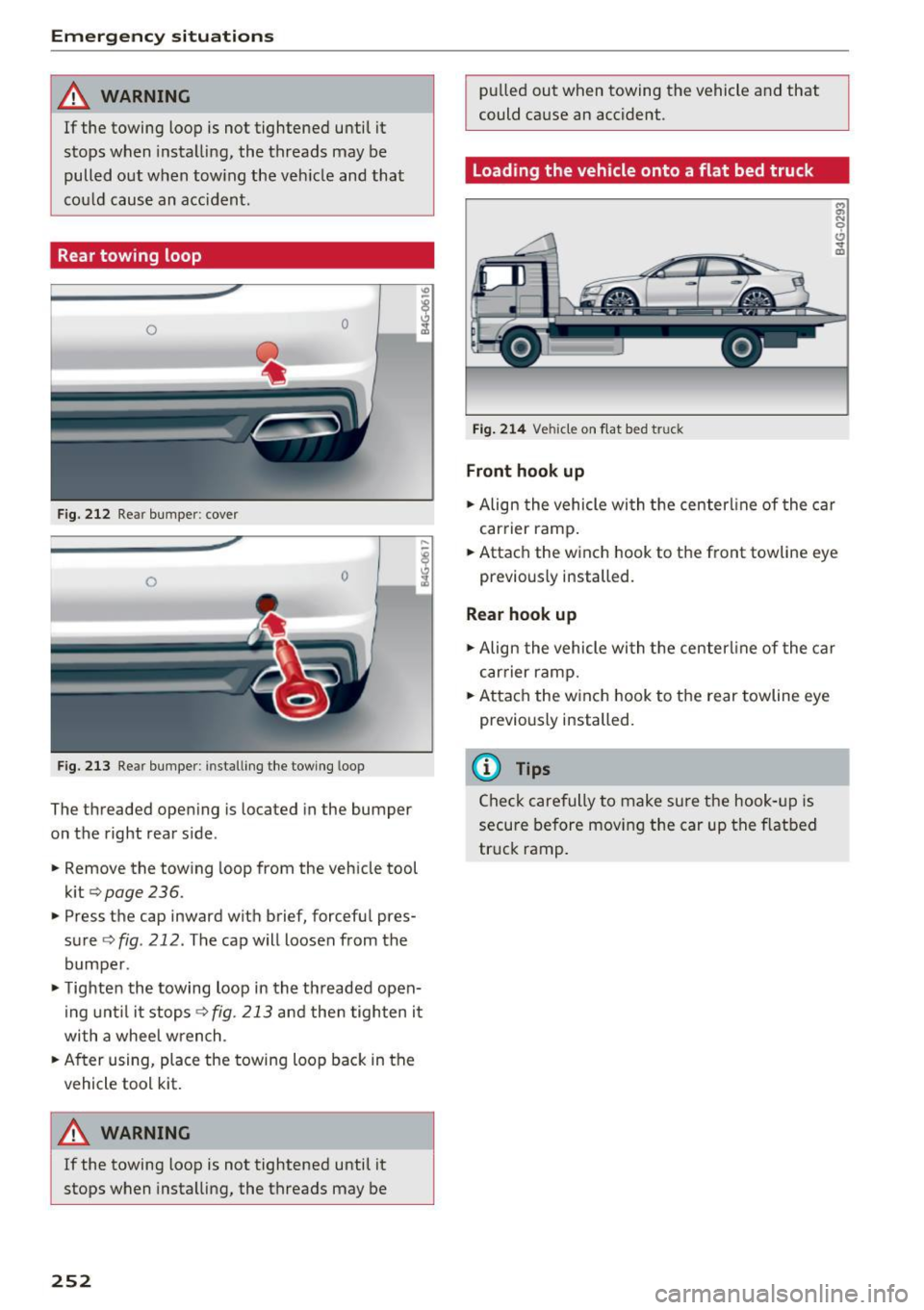

Rear towing loop
0 0
Fig. 212 Re ar bumper : cover
0 0
F
ig. 213 Re ar bumpe r: in stalli ng the towing loop
The threaded open ing is loca ted in the bumper
on the right rear side .
.,. Remove the towing loop from the vehicle tool
kit
c> page 236 .
.,. Press the cap inward with brief, forceful pres­
sure
c> fig . 212 . The cap will loosen from the
bumper .
.,. Tighten the towing loop in the threaded open­
ing until it stops
c>fig. 213 and then tighten it
with a wheel wrench .
.,. After using, place the towing loop back in the
vehicle tool kit.
8_ WARNING
If the towing loop is not tightened until it
stops when installing, the threads may be
252
-
pulled out when towing the vehicle and that
could cause an accident .
Loading the vehicle onto a flat bed truck
Fig. 214 Vehicle on f lat bed tru ck
Front hook up
:;i N 0 t!, .., m
.,. Align the vehicle with the centerl ine of the car
car rier ramp .
.,. Attach the winch hook to the front towline eye
previously installed.
Rear hook up
.,. Align the vehicle wi th the centerl ine of the car
car rier ramp .
.,. Attach the w inch hook to the rear towline eye
previously installed.
@ Tips
Check carefully to make sure the hook-up is
secure before moving the car up the flatbed
truck ramp .

co
co
.... N
" N .... 0 0 <.,;) 'SI"
Raising the vehicle
Lifting with workshop hoist and with floor
jack
The vehicle may only b e li~ ed at the lifting
points illustra ted.
F ig. 215 Front lift ing po int
F ig. 216 Rea r lift ing po int
.,. Read and heed WARNING c:> &_ .
.. Activate the vehicle jack mode* in the MMI:
I CAR I funct ion button> (Car) * systems contro l
button >
Servicing & checks > Air susp.: jack
mode > On .
.. Loca te lift ing po ints c:> fig . 215 and c:> fig . 216 .
.. Adju st lifting arms of wo rkshop ho ist o r floo r
j ac k t o ma tch vehicl e lifting poin ts.
.. In se rt a rub ber pa d between the f loor jack/
wor kshop hoist a nd the lifting points .
T he vehicle ja ck mode* mus t be activa ted so th at
the au tomatic a djustment of the Adaptive Air
Suspension * does not make it more d ifficult to
raise the ve hicle w it h the floo r jack.
If you must lift your vehicle with a floor jack to
work underneath , be sure the vehicle is safely
supported on stands intended for this purpose .
Emergency situations
Front lifting point
The li fting poin t is lo cate d on the floor p an rein ­
f orceme nt ab out at the same level as the ja ck
mounting point
c:> fig . 215 . Do not lift the vehi­
cle at the vertical sill reinforcement.
Rear lifting point
T he lifting point is lo cated on the ver tic al rein ­
f orcement o f the lower s ill for the on- bo ar d jac k
<=>fig. 216.
Lifting with vehicle jack
Refer to c:> pag e 239 .
A WARNING
- To reduce the r is k of se rious inju ry and vehi ­
cle damag e.
- Always lift the vehicle on ly at the special
workshop h oist a nd floor jack lift points
il ­
lustrated c:>fig. 215 and c:>fig. 216.
-Failure to lift t he veh icle at these points
could cause t he veh icle to tilt o r fall from
a lift i f th ere is a change in vehicle weight
dist ribution and balance . This might hap­
pen, fo r example, when heavy compo­
n en ts such as the eng ine block o r tran s­
mis sio n a re re moved .
- Whe n re mov ing heavy co m ponents like
these, an ch or vehicle t o hois t or ad d co rre­
spon ding weig hts t o m aintai n the cen ter of
g ravi ty . Ot herw ise, the vehicle mig ht tilt or
slip off t he hoist, caus ing se rious pe rsonal
i njur y .
(D Note
-Be aw are of the fo llow ing points b efor e lift­
ing the vehicle:
-The vehicle should never be lifted or
jacked up from underneath the engine oil
pan, the transmission housing, the front
or rear axle or the body side members.
This could lead to serious damage .
- To avoid damage to the underbody or
chassis frame, a rubber pad must be in­
serted between the floor jack and the lift
points . .,.
253

Emergency situations

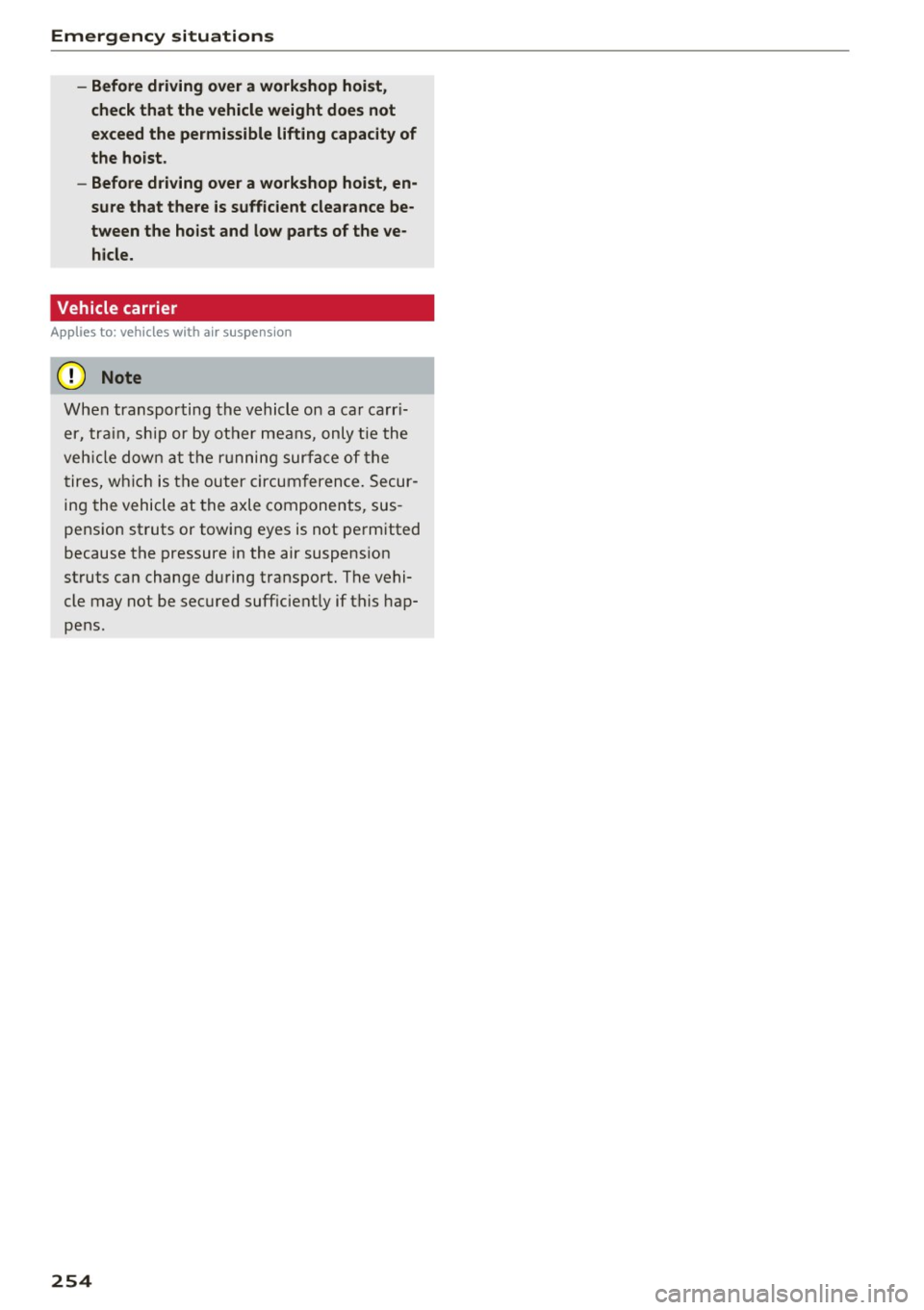

-Before driving over a workshop hoist,
check that the vehicle weight does not
exceed the permissible lifting capacity of
the hoist.
- Before driving over a workshop hoist, en­
sure that there is sufficient clearance be­
tween the hoist and low parts of the ve­ h icle.
Vehicle carrier
App lies to: veh icles w ith air suspens ion
0 Note
When transpo rting the vehicle on a c ar carr i­
er, tr ain, ship or by ot her mea ns, only tie the
veh icle dow n at the r un ning surfa ce of the
t ires, wh ic h is the outer circumferen ce . Secur­
ing the vehicle at the axle components, sus ­
pens ion struts or towi ng eyes is not pe rmitted
because the pressure in the air suspens ion
struts can change du ring transpo rt . The vehi­
cle may not be sec ured suff icient ly if this hap­
pens.
254

co
co
.... N
" N .... 0 0 <.,;) 'SI'
Technical data
Vehicle specifications
F ig. 2 17 W indshield (front left) : Ve hicl e Iden tificat ion
N umber ( VIN)
XXXXX XX -X -XXXX XXX XX
CD+ ~t :1:: xxxxxxxx xx x xxxxxxxx
TVP/fffl XXX XXX
XX XXXXXXX XX X X XX
XXX
KW XXX
®i ~:J ·f lfils~~ XXXX XXX XXX
®-+ ~N:a=i~ l xxxx ; xxxx xxx ; xx
11. • AUSS, I OPTIONS
E0A
7D5 4UB 6XM 5SG 5RW
2EH J0Z lLB l
A S lB A
3FC SMU 7Xl
F0A 9G3 0G7 0YH 0JF
TL6 3KA 8EH Ul A X98 QZ7
lX W 803 908 824 020
7T6 CV7 7K0 4X3 2K2
3L4
4KC 3 Y0 413
502
lSA 7GB 01A 4G0
XX. X XX X XX X xxxx
Fig. 218 Vehi cle identifica tion la b el
Vehicle Identification Number (VIN)
The VIN number is located in the following pla­
ces :
- In the Infotainment system : select: the
!CARI
function button > (Car) * systems control but­
ton
> Serve & checks> VIN number .
-on the vehicle identification label
- under the windshield on the driver's side*
Technical data
Vehicle identification label
The vehicle identification label ¢ fig. 218 is locat ­
ed in the luggage compartment under the cargo
floor cover .
T he information of the vehicle identification label
can also be found in your Warranty
& Mainte­
nance booklet.
The sticker contains the follow ing vehicle data:
(D Vehicle Iden tification Number (V IN)
@ Vehicle type, eng ine output , transm ission
@ Eng ine and transmission codes
@ Paint and interior codes
® Optional equipment numbers
Safety compliance sticker
The safety compliance sticker is your assurance
that your new vehicle complies w ith all applicable
Federal Motor Vehicle Safety Standards which
were in effect at the time the vehicle was manu­
factured. You can find this sticker on the door
jamb on the driver 's side. It shows the month and
year of production and the vehicle identification number of your vehicle (perforation) as well as
the G ross Vehicle Weight Rating (GVWR) and the
Gross Axle Weight Rating (GAWR).
High voltage warning label
The high voltage warn ing label is located in the
engine compartment next to the engine hood re­
lease. The spark ignition system complies with
the Canadian standard ICES-002.
Notes about technical
data
The values may differ for some markets depend­
ing on eq uipment installed in certain markets
and the measur ing methods.
Please note that the specifications listed in the
vehicle documentation always take precedence .
@ Tips
Missing technical data was not available at
the time of printing .
255

Tech nical data
Weights
Gross V ehicl e We ight Rat ing
The G ross Vehicle Weight Ra ting (GVWR) , and
the Gross Axle Weight Rating (GAWR) for front
and rear are listed on a sticker on the door jamb
on th e driver's side .
The G ross Vehicle Weight Ra ting includes the
weight of the basic vehicle p lus full fuel tank, oi l
and coolan t, p lus maximum load, which includes
passeng er w eight (150 lbs/68 kg p er designated
seating position) and luggage weight ¢&. .
Gross Axle W eight Rating
The G ross Ax le We ight Rating is the max imum
load that can be applied at each axle of the vehi ­
cle
¢ ,1.. .
Vehicle capacity weight
The vehicle capacity we ight (max . load) is l isted
either on the dr iver's side B-pillar o r inside the
fue l filler f lap .
& WARNING
-The actual Gross Axle Weight Rating at the
front and rear axles shou ld not exceed the
permissible weights, and their combination
must not exceed the Gross Veh icle Weight
Rating .
- Exceeding perm iss ible weight ratings can
result in vehicle damage, acc idents and per­
so nal injury .
Dimensions
(D Note
-The vehicle capacity weight figures apply
when the load is d istr ibuted evenly in the
vehicle (passengers and luggage) . When
transport ing a heavy load in the luggage
compartment, carry the load as near to the
rea r axle as possible so that the vehicle's
hand ling is not impaired .
- Do not exceed the maximum perm iss ible
axle loads or the maximum gross vehicle
we ight. Always remember that the ve hicle's
hand ling will be affected by the extra load .
T herefore , adjust your speed accordingly.
- Always observe local regulations.
Length (in (mm )) Width (in (mm ))
Width across the H eight at curb
mirrors (in (mm )) w eight (in (mm ))
A6 sedan 194.2 (4,932) 73.8 (1 ,874) 82.1 (2,086) 57 .8 (1,468)
S6 sedan 194
.4 (4,937) 73 .8 ( 1,874) 82 .1 (2,086) 56 .8 (1,443)
When driving on poor roads, by curbs and on
steep ramps, make sure that low -hanging com ­
ponents such as the spoiler and exhaust system
do not come into contact with these or they could
256
be damaged. This especially applies to vehicles
that are equipped with adaptive air suspension *
and when the vehicle is at full load.

co
co
.... N
" N .... 0 0 <..:l ' Technical data
Capacities
Approximate capaci-
ties
Gasoline engine fuel tank 19.8 gal (75.0 L)
Diesel engine fue l tank 19.3 gal
(73.0
L)
Windshield washer system 3.7 qt (3.5 L)
Windsh ield and headlight washer system* 5
.2 qt (4.9
L)
Gasoline engines
A6 2.0, 4 cylinder
Maximum output SAE net hp@rpnn 252 @ 4900
-5900
Maximum torque SAE net lb-ft@ r pm 273 @ 1600 - 4700
Displacement CID (cm
3
) 12 1 (1984)
Engine oil with fi lter change
1l
Fuel
Premium unleaded (91 AKI ),¢ page 190, Fuel supply
A6 3.0, 6 cylinder
Maximum output SAE net hp@rpnn 333 @ 5300 - 6S00
Max imum torque SA E net lb-ft@ rpm 325@ 2900 - 4500
Displacement CID (cm
3
) 182 (2995)
En gine oil with filter change
1>
Fuel Premium unleaded (91 AKI) ,¢ page 190, Fuel supply
This vehicle is availab le with different specifica ­
tions in some markets (see car documentat ion).
S6 4 .0 , 8 cylinder
Maximum outpu t SA E net hp@ rpnn 4
50 @ 58 00 -6400
Max imum torque SA E net lb-ft@ rpm 406@ 1 400 - 5700
Displacement C
ID (cm
3
) 243.7 (3993)
E ngine oil with filter change
1l
Fuel
Premium unleaded (91 AKI) ,¢ page 190, Fuel supply
257

Tech nical data

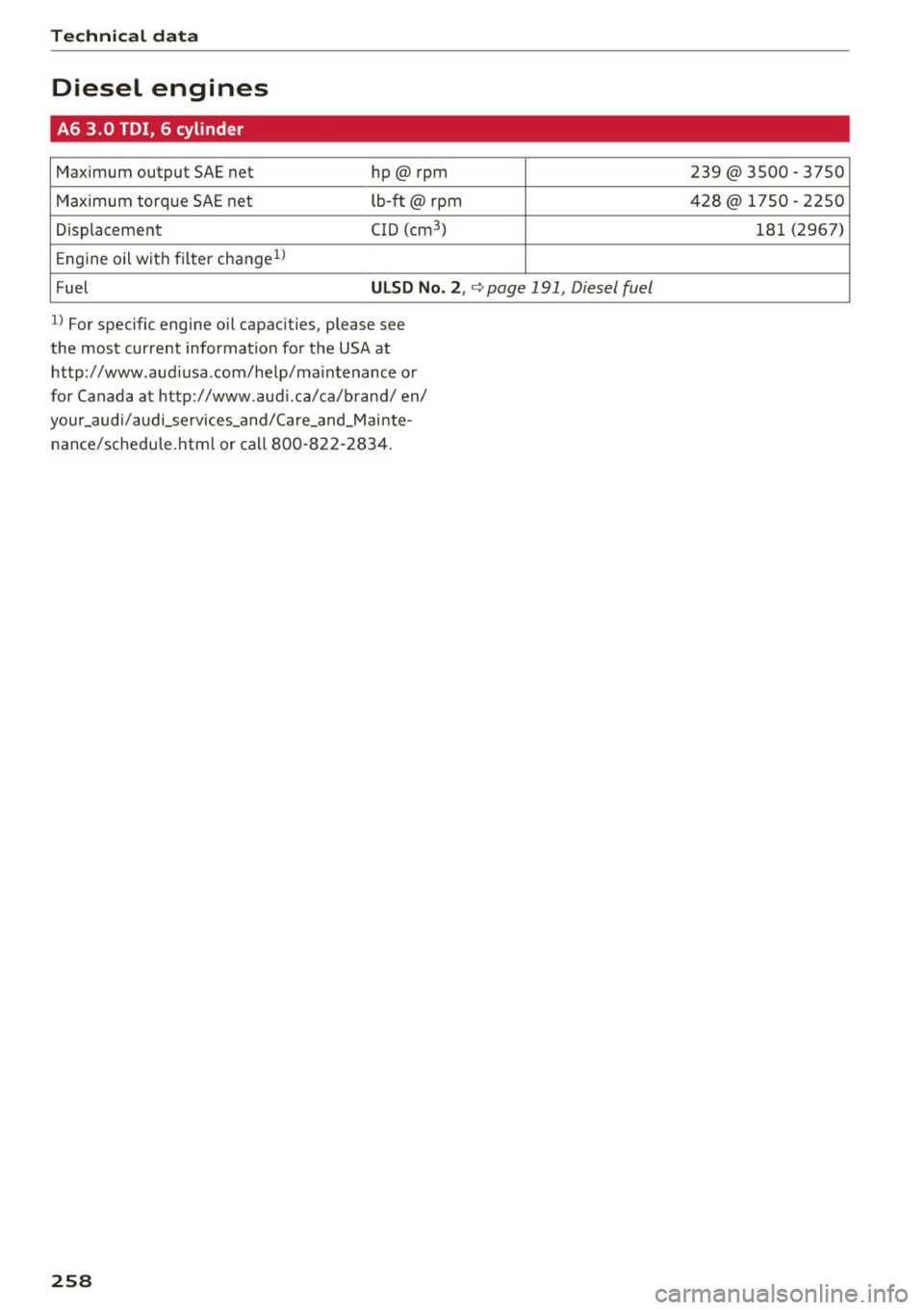

Diesel engines
A6 3.0 TDI, 6 cylinder
Maximum output SAE net hp@ rpm
Max imum torq ue SAE net lb-ft@ rpm
Displacement CID (cm
3
)
Engine oil with filter change1>
Fuel ULSD No . 2, ¢ page 191, Diesel fuel
ll For specific engine oil capac ities, please see
the most current information for the USA at http :/ /www .aud iusa.com/help/ma intenance or
for Canada at http ://www .aud i.ca/ca/b rand/ en/
your _aud i/ aud i_services_a nd/Ca re_and_M a i nte­
na n ce/ schedu le.htm l or call 800-82 2-2834.
258
239@ 3500 -3750
428@ 1750 -2250
181 (2967)
