Wheels

As an added safety feature, your vehicle has been
equipped with a tire pressure monitoring system
(TPMS) that illuminates a low tire pressure tell-
tale when one or more of your tires is significant-
ly under-inflated. Accordingly, when the low tire
pressure telltale illuminates, you should stop and
check your tires as soon as possible, and inflate
them to the proper pressure. Driving ona signifi-
cantly under-inflated tire causes the tire to over-
heat and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life,
and may affect the vehicle's handling and stop-
ping ability.
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver's re-
sponsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire pres-
sure telltale.
Your vehicle has also been equipped with a TPMS
malfunction indicator to indicate when the sys-
tem is not operating properly. The TPMS mal-
function indicator is combined with the low tire
pressure telltale. When the system detects a
malfunction, the telltale will flash for approxi-
mately one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the mal-
function exists.
When the malfunction indicator is illuminated,
the system may not be able to detect or signal
low tire pressure as intended. TPMS malfunctions
may occur for a variety of reasons, including the
installation of replacement or alternate tires or
wheels on the vehicle that prevent the TPMS
from functioning properly. Always check the
TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure
that the replacement or alternate tires and
wheels allow the TPMS to continue to function
properly.
If the tire pressure monitoring indicator
appears
Applies to: vehicles with Tire Pressure Monitoring System in-
dicator
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too low
or if there is a system malfunction.
Using the ABS sensors, the tire pressure monitor-
ing system compares the tire tread circumference
and vibration characteristics of the individual
tires. If the pressure changes in one or more
tires, this is indicated in the instrument cluster
display with an indicator light @ and a message.
If only one tire is affected, the location of that
tire will be indicated.
The tire pressures must be stored again each
time you change the pressures (switching be-
tween partial and full load pressure) or after
changing or replacing a tire on your vehicle
= page 276. The tire pressure monitoring system
only monitors the tire pressure you have stored.
Refer to the tire pressure label for the recom-
mended tire pressure for your vehicle
=> page 266, fig. 169.
Tire tread circumference and vibration character-
istics can change and cause a tire pressure warn-
ing if:
— The tire pressure in one or more tires is too low
— The tires have structural damage
— The tire was replaced or the tire pressure was
changed and it was not stored > page 276
— Tires that are only partially used are replaced
with new tires
Indicator lights
If the @ indicator light turns on, there is a loss
of pressure in at least one tire .> A\ Check the
tires and replace or repair if necessary. Check and
correct the pressures of all four tires and store
the pressure again > page 276.
ia Tire pressure: malfunction! See owner's
manual
fe appears after switching the ignition on or
while driving and the @ indicator light in the in-
strument cluster blinks for approximately one
275
>

Wheels

minute and then stays on, there is system mal-
function. Try to store the correct tire pressures
= page 276. Insome cases, you must drive for
several minutes after storing the pressures until
the indicator light turns off. If the indicator light
does turn off or turns on again after a short peri-
od of time, drive to an authorized Audi dealer or
authorized Audi Service Facility immediately to
have the malfunction corrected.

ZA\ WARNING
— If the tire pressure indicator appears in the
display, reduce your speed immediately and
avoid any hard steering or braking maneu-
vers. Stop as soon as possible and check the
tires and their pressure.
— The driver is responsible for maintaining the
correct tire pressure. You must check the
tire pressure regularly.
— Under certain conditions (such as a sporty
driving style, winter conditions, or unpaved
roads), the tire pressure monitoring system
indicator may be delayed.

(i) Tips
— The tire pressure monitoring system can al-
so stop working when there is an ESC mal-
function.
— Using snow chains may result in a system
malfunction.
— The tire pressure monitoring system in your
Audi was calibrated with “Audi Original
Tires” > page 263. Audi recommends using
these tires.
Storing tire pressures
Applies to: vehicles with Tire Pressure Monitoring System in-
dicator
If the tire pressure changes or a tire is replaced,
it must be confirmed in the MMI.
> Before storing the tire pressures, make sure the
tire pressures in all four tires meet the speci-
fied values and are adapted to the load
=> page 266.
> Switch the ignition on.
> Applies to MMI: Select on the home screen: VE-
HICLE > Settings & Service > Tire pressure
276
monitoring > Store tire pressure > Yes, store
now.
@) Tips
Do not store the tire pressures if snow chains
are installed.
Tire pressure monitoring
system
(1) General notes
Each tire, including the spare (if provided),
should be checked monthly when cold and inflat-
ed to the inflation pressure recommended by the
vehicle manufacturer on the vehicle placard or
tire inflation pressure label. (If your vehicle has
tires of a different size than the size indicated on
the vehicle placard or tire inflation pressure la-
bel, you should determine the proper tire infla-
tion pressure for those tires).
As an added safety feature, your vehicle has been
equipped with a tire pressure monitoring system
(TPMS) that illuminates a Low tire pressure tell-
tale when one or more of your tires is significant-
ly under-inflated. Accordingly, when the low tire
pressure telltale illuminates, you should stop and
check your tires as soon as possible, and inflate
them to the proper pressure. Driving ona signifi-
cantly under-inflated tire causes the tire to over-
heat and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life,
and may affect the vehicle's handling and stop-
ping ability.
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver's re-
sponsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire pres-
sure telltale.
Your vehicle has also been equipped with a TPMS
malfunction indicator to indicate when the sys-
tem is not operating properly. The TPMS mal-
function indicator is combined with the low tire
pressure telltale. When the system detects a
malfunction, the telltale will flash for approxi-
mately one minute and then remain continuously >

4K0012721BE
Wheels

illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the mal-
function exists.
When the malfunction indicator is illuminated,
the system may not be able to detect or signal
low tire pressure as intended. TPMS malfunctions
may occur for a variety of reasons, including the
installation of replacement or alternate tires or
wheels on the vehicle that prevent the TPMS
from functioning properly. Always check the
TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure
that the replacement or alternate tires and
wheels allow the TPMS to continue to function
properly.
General information
Applies to: vehicles with tire pressure monitoring system
The tire pressure monitoring system monitors
the pressure in the four tires when driving.
The system uses sensors that measure the tem-
perature and pressure in the tires. The data is
sent from these sensors to the control module by
radio frequency.
The tire pressure monitoring system shows the
current pressures and temperatures of the tires
in the MMI while driving > page 277. It also
compares the current tire pressures with the stor-
ed tire pressures and gives a warning in the driver
information system if the tire pressure is differ-
ent from what is stored > page 278.
The system does not detect if the stored tire
pressures match the recommended tire pres-
sures. You must store the tire pressures again in
each of the following situations > page 278:
— Each time the tire pressures change, for exam-
ple when the load in the vehicle changes
— After replacing a tire
— If wheels with new wheel sensors are used

Z\ WARNING
— The tire pressure monitoring system assists
the driver in monitoring tire pressures. The
driver is responsible for having the tires in-
flated to the correct pressure.

— Do not change the tire pressure when the
temperature of the tire is extremely high.
This could result in serious damage to the
tire and even cause the tire to burst, increas-
ing the risk of an accident.
— A tire with low pressure flexes more. This
heats the tire up too much. This could cause
the tread to separate and even cause the tire
to burst, increasing the risk of an accident.
— The tire pressure monitoring system does
not warn about damage or defects in the
tire construction that could cause the tire to
burst, for example. Inspect your tires regu-
larly.
G) Tips
—If tires are replaced, the sensors and valves
do not need to be removed or replaced. Only
replace the valve stem and, if necessary, the
valve and the wheel electronics. If you have
questions, see an authorized Audi dealer or
authorized Audi Service Facility.
—An incorrect display or a malfunction in the
tire pressure monitoring system can occur
after using the tire mobility kit*. Have the
sensors replaced by an authorized Audi
dealer or authorized Audi Service Facility.
— The system complies with United States FCC
regulations and ISED regulations
=> page 311.
Displaying tire pressures and temperatures
Applies to: vehicles with tire pressure monitoring system


Requirement: you must be driving the vehicle.
> Applies to MMI: Select on the home screen: VE-
HICLE > Settings & Service > Tire pressure
monitoring > Display tire pressure.
The current tire pressures are shown in green,
yellow, or red numbers:
— Green: the current tire pressure and the speci-
fied tire pressure are approximately the same.
— Yellow: the current tire pressure is lower than
the specified tire pressure.
— Red: the current tire pressure is much lower
than the specified tire pressure.
277

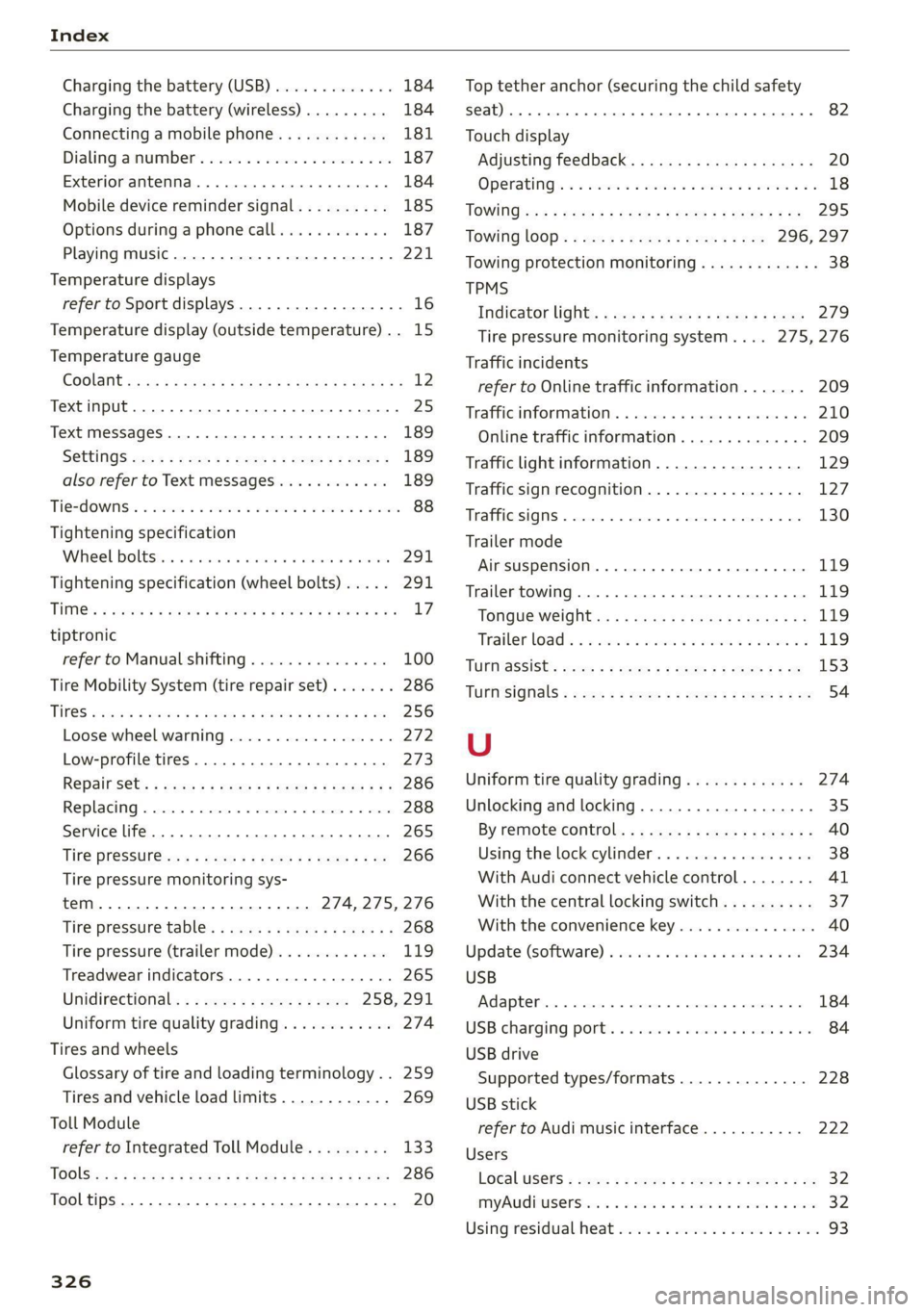

Index

Charging the battery (USB)............. 184
Charging the battery (wireless) ......... 184
Connecting a mobile phone............ 181
Dialing asnumbe t's e:csce e cco ee waneve ¥ 0 ene 187
Exterior antenna...............200005 184
Mobile device reminder signal.......... 185
Options during aphonecall............ 187
Playing music........ 0.0... eee ee eee 221
Temperature displays
refer to Sport displays...............00. 16
Temperature display (outside temperature).. 15
Temperature gauge
COOlANt sssan 2 » cqum 3 x aR ot Raw SB Meee Fe 12
Text input... 2... ee eee eee 25
Text MesSageS .....--. cee eee eee eee 189
SGttingS coms + waeu & x seeR ee NORE Ey NESE 189
also refer to Text messages............ 189
Tie2d OWNS: & soso oo sents 2 3 oes oo meme o Bem 88
Tightening specification
Wheel bolttstic si scsues emsie 6 « intaive a 6 amivine 291
Tightening specification (wheel bolts).... . 291
THM: » saees go sae ¢ © Rees oe eH ge eo eB L7
tiptronic
refer to Manual shifting............... 100
Tire Mobility System (tire repair set)....... 286
Tit@S e2cses s meses ¢ = waren 2 & weseS 3 & TE sg Re 256
Loose wheel warning.............-.... 272
Low-profile tires..............000 000. 273
RepainSets « awa « « worms s mem 9 be a Be 286
Replacing « srr « susnene x osercm wo sseeone o 5 wees 288
Service life... .......... 0... c eee eee 265
Tine PresSut@wes « news: = s gems & x Home EP ae 266
Tire pressure monitoring sys-
TEM eee 274, 275, 276
Tire pressure table: « sews = ¢ ses + ¢ seeps ¢ 268
Tire pressure (trailer mode)............ 119
Treadwear indicators............-..00- 265
Unidirectional; « » aes « s wees ce ewes 258, 291
Uniform tire quality grading............ 274
Tires and wheels
Glossary of tire and loading terminology.. 259
Tires and vehicle load limits............ 269
Toll Module
refer to Integrated Toll Module......... 133
TOGlSis:s s nace 2 & wea = & Seem FE Hee E x De 286
TooltipS..... 0.0... eee eee eee ee 20
326
Top tether anchor (securing the child safety
SQat) occ ce cee cece teen eee eee 82
Touch display
Adjusting feedback. ..............-.05. 20
OPeratinG)s « 2 vices «2 oem = 2 arene © woo vo 18
TOWI0Gise5 : wee 2 wees & x Here 5 epee 5 2 Bs 295
Towing lOOp< « ss<2 = seen < sae8 ¢ s oes 296, 297
Towing protection monitoring............. 38
TPMS
Indicator light:: « sss ¢ + sees se zeae ss ews 279
Tire pressure monitoring system.... 275,276
Traffic incidents
refer to Online traffic information....... 209
Trafficsin formations. « svesese » s sexe 1 amuse 0 0s 210
Online traffic information.............. 209
Traffic light information................ 129
Traffic sign recognition................. 127
Traffic SignS.. 0.0... eee eee eee eee 130
Trailer mode
Air suspension ..........000 eee e eee 119
Trailer towing..........0.-. eee eee eee ee 119
Tongue weight.............eeeeeeeeee 119
Trailer loads 2 3 sev s wae ae wane ne one 3 2 119
Turtassist): oss = ¢ eee 5 ¢ cee + ¢ sae x ee 153
Turtsignials = sex «> sees ye sees go eee te es 54
U
Uniform tire quality grading............. 274
Unlocking and locking................005 35
By remote control..............--000-- 40
Using the lock cylinder...............05 38
With Audi connect vehicle control........ 41
With the central locking switch.......... 37
With the convenience key............... 40
Update (software) ........ 0. cece eee ee 234
USB
Adapter. ...... 0.0... cee eee eee eee 184
USB
charging Ports. « = sce « wassown & meses s «ave 84
USB drive
Supported types/formats.............. 228
USB stick
refer to Audi music interface........... 222
Users
LOGalUSES 2 se: « 2 emee 2 e eee ts Heme se 32
IMYAUPUSERS ie . sane « vcemene a x esemeen a noo 32
Using residual heat...............2..000. 93
