\.J ' avoid scratches, move the scraper only in
one direction and not back and forth.
- Never remove snow or ice from door win­
dows and mirrors using warm or hot water
because this could cause cracks to form.
- To avoid damage to the rear window de­
fogger, do not apply any stickers on the
heating wires on the inside of the window.
- Decorative part .s/trim
- Never use chrome care or cleaning prod-
ucts .
-Paint
- To reduce the risk of scratches, the vehicle
must be free of dirt and dust before pol­
ishing or waxing.
- To prevent paint damage, do not polish or
wax the vehicle in direct sunlight .
- To reduce the risk of paint damage, do not
polish away rust spots .
- Remove cosmetics and sunscreen immedi­
ately- these could damage the paint.
-Displays
-To avoid scratches, do not use dry cleaning
methods on displays.
-Controls
- Make sure that no fluids enter the con-
trols, because this could cause damage.
- Safety belts
- Do not remove the safety belts to clean
them.
- Never clean safety belts or their compo­
nents chemically or with corrosive fluids
or solvents and never allow sharp objects
to come into contact with the safety belts.
This could cause damage to the belt web­
bing.
- If there is damage to the webbing, the
connections, the retractors or the buckles,
have them replaced by an authorized Audi
dealer or authorized Audi Service Facility.
- Textiles/artificial leather/ Alcantara
- Never treat artificial leather/ Alcantara
with leather care products, solvents, floor
polish, shoe polish, spot remove or similar
products .
- Have a specialist remove stubborn stains
to prevent damage.
Care and cleaning
-Never use steam cleaners, brushes, hard
sponges, etc. when cleaning.
- Do not turn on the seat heating* to dry the
seat.
- Objects with sharp edges, such as zippers
or rivets on clothing or belts, can cause
damage to the surface.
- Open hook and loop fasteners, for exam­
ple on clothing, can damage seat covers.
Make sure hook and loop fasteners are
closed.
- Natural leather
- Never treat leather with solvents, floor
polish, shoe polish, spot remover or simi­
lar products.
- Objects with sharp edges, such as zippers or rivets on clothing or belts, can cause
damage to the surface.
- Never use steam cleaners, brushes, hard
sponges, etc . when cleaning.
- Do not turn on the seat heating* to dry the
seat.
- To help prevent the leather from fading,
do not leave the vehicle in direct sunlight
for long periods of time. If leaving the ve­
hicle parked for long periods of time, you
should cover the leather to protect it from
direct sunlight.
(D Tips
-Insects are easier to remove from paint that
has been freshly waxed.
- Regular waxing can prevent rust spots from
forming.
Placing your vehicle out
of service
If you would like to take your vehicle out of serv­
ice for a longer period of time, contact an author­
ized Audi dealer or authorized Audi Service Facili­
ty. They will advise you of important measures,
such as corrosion protection, service and storage procedures . Also follow the information about
the vehicle battery~
page 207.
239

Emerg ency assis ta nce
Emergency assistance
General information
... Park the vehicle as far as possible from moving
traffic in the event of a breakdown. In the event
of a flat tire, park the vehicle on a level surface .
It you are on a steep hill, be especially careful.
.,. Set the parking brake .
.,. Switch the emergency flashers on .
... Set up the warning triangle
r=;,page 240 .
... Have the passengers exit the vehicle . They
should move to a safe place, for example be­
hind a guard rail.
A WARNING
Follow the steps given above. This is for your
protection and the for the safety of other driv­
ers.
Equipment
Warning triangle
A ppl ies to: ve hicles w ith warning triangle
Fig. 196 Luggage compartment lid : wa rnin g triangle
The warning triangle placed in the vehicle at the
factory is located in the luggage compartment.
... Turn the twist lock
r::;, fig. 196 and pull the cover
downward to open the cover .
.,. Remove the warning triangle from its holder.
The luggage compartment lid is only designed to
hold the warning triangle offered by the Audi
Genuine Accessories program.
240
Vehicle tool kit
Fig. 197 Luggage compartment: vehicle tool kit, tire mob i­
lity kit and comp ressor
The vehicle tool kit, vehicle jack*, tire mobility
kit* and compressor are stored in the luggage
compartment under the cargo floor cover.
.,. Lift the cargo floor by the plastic handle .
.,. Tu rn the handle counter-clockwise and remove
the cover or the spare ti re*.
A WARNING
Improper use of the vehicle jack can cause se­
rious personal injuries.
- Never use the screw driver hex head to
tighten wheel bolts, since the bolts cannot
attain the necessary tightening torque if you
use the hex head, potentially causing an ac­
cident.
- The factory-supplied jack is intended only
for your vehicle model. Under no circum­ stances should it be used to lift heavy
veh icles or other loads; you risk injuring
yourself.
- Never start the engine when the veh icle is
raised, which could cause an accident.
- Support the vehicle securely with a ppropri­
ate stands if work is to be performed under­
neath the vehicle; otherwise, there is a po­
tential risk for injury .
- Never use the jack supplied with your Aud i
on another vehicle, particularly on a heavier
one. The jack is only suitable for use on the
veh icle i t came with.
¢j) Tips
The vehicle jack* in your vehicle is mainte­
nance-free.

co
co
.... N
" N .... 0
00
<.,;) 'SI"
Tire mobility kit
Preparation
Applies to: ve hicles with tire mobility ki t
~ Read and follow the important safety precau­
tions
c:::> page 240, General information.
~ Select the P selector leve r pos ition.
~ Check if a repair with the tire mobility kit is pos­
sible
c:::> page 241 .
Using the tire mobility kit
Appl ies to: ve hicles with tire mobili ty kit
Fig . 198 Tire: tire damage that canno t be repa ired
The ti re repa ir is only mea nt for temporary use .
Change the spare tire as soon as possib le
c:::> &. .
If the tire is pierced by an object such as a nail,
do not remove the object from the tire.
The tire repa ir set is able to be used at tempera­
tures as low as -4 °F ( -20 °C) .
The tire mobility kit ma y not be u sed:
- if the tire has cuts or punctures that are larger
than 0.16 in (4 mm)
(D c:::> fig. 198.
-If the rim is damaged @.
- if you drove with very low tire pressure or with-
out air in the tire @.
See an au thorized Aud i dealer or a utho rized Aud i
Service Facility for assistance in these situations.
A WARNING
- Please note that the tire mobility kit cannot
be used in a ll situations, and that it may on­
ly be used temporari ly.
- The tire sealant must not come in contact
with sk in, eyes, or clothes.
Em ergen cy a ssis tanc e
-If tire sealant gets in your eyes or on yo ur
skin, tho roughly rinse the affected area im­
mediately with clean water.
- Do not inha le the fumes.
- If you swa llow any of the tire sea lant, thor-
ough ly rinse your mo uth immediate ly and
drink a lot of water. Do not induce vomiting.
Seek med ical attention immed iate ly.
- Change yo ur clothes immediately if they get
tire sealant on them.
- If an a llergic reaction occurs, seek immedi­
ate med ica l attent ion.
- Keep the t ire sealant away from chi ldren.
- I n vehicles with a tire press ure monitor ing
system, using tire sealant can results in an
incorrect display or a system malfunction. Drive carefully to the nearest authorized
Aud i dealer o r authorized Audi Serv ice Facili­
ty.
(D Tips
- If sea lant leaks, allow it to dry in place . You
can then peel it off like a st icker.
- Note the expi ration date on the sea lant bot­
tle. Rep lace the t ire sealant at an author­
ized Audi dea ler or a uthorized Aud i Serv ice
Facility.
- Radio recept ion can be interrupted when
operating the compressor*.
- Obey all laws .
241

Emergency assistance

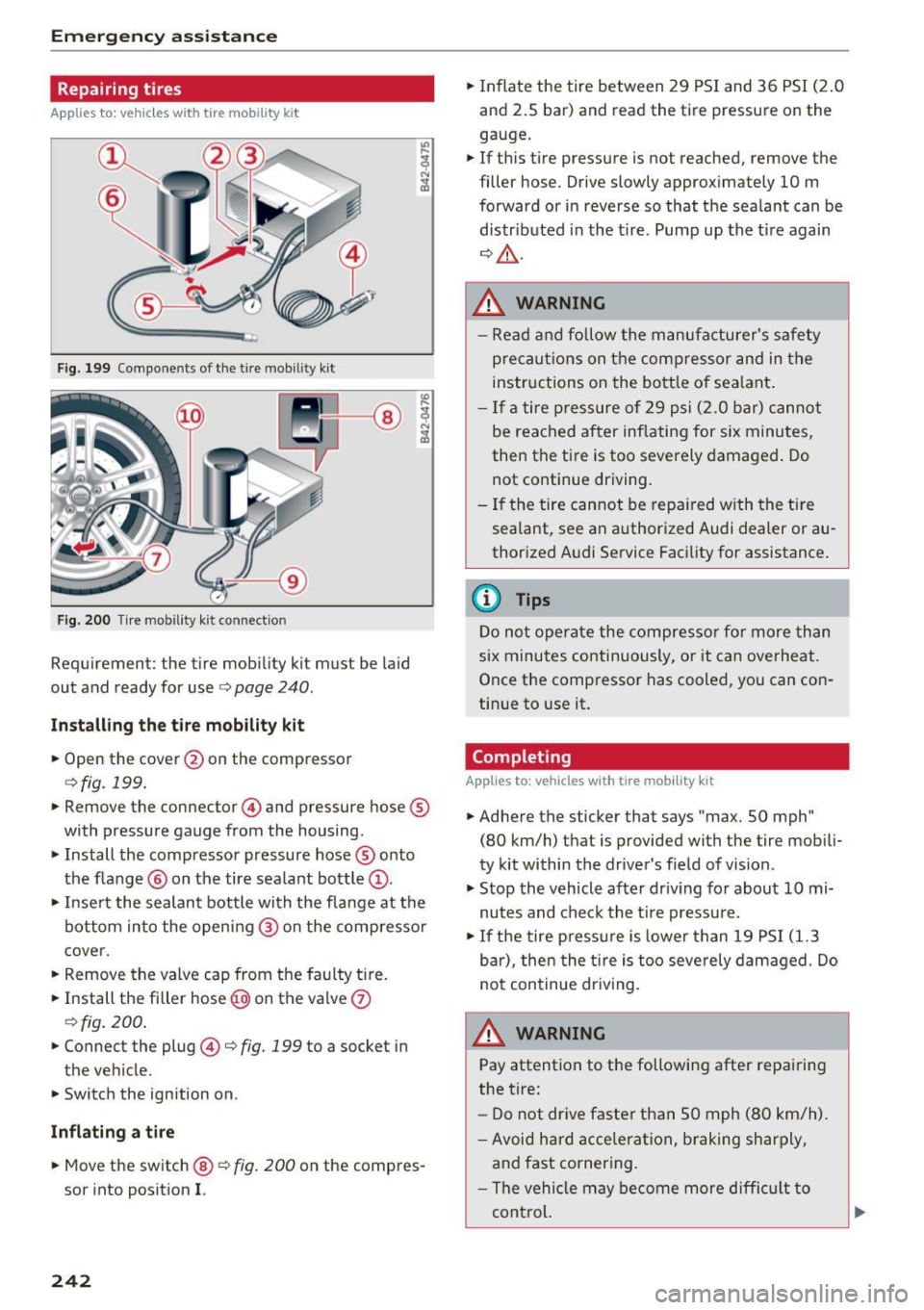

Repairing tires
Applies to: vehicles w ith tire mob ility k it
Fig. 199 Components of the tire mobility kit
F ig. 200 Tire mobility k it connecti on
Requirement: the tire mobility kit must be laid
out and ready for use
o page 240.
Installing the tire mobility kit
.. Open the cover @on the compressor
¢fig. 199 .
.. Remove the connector@) and pressure hose®
with pressure gauge from the housing.
• Install the compressor pressure hose ® onto
the f lange @ on the tire sea lant bottle
(D .
.. Insert the sealant bottle with the flange at the
bottom into the opening @ on the compressor
cover.
.. Remove the valve cap from the fau lty tire.
.. Install the filler hose@) on the valve
0
ofig. 200 .
.. Connect the plug @¢ fig. 199 to a socket in
the vehicle.
.. Switch the ignition on.
Inflating a tire
.. Move the switch @ o fig. 200 on the compres­
sor into position
I.
242
.. Inflate the tire between 29 PSI and 36 PSI (2 .0
and 2.5 bar) and read the tire pressure on the
gauge .
.. If this tire pressure is not reached, remove the
filler hose. Drive slowly approximately 10 m
forward or in reverse so that the sealant can be
distr ibuted in the t ire. Pump up the tir e again
¢ _&. .
.&_ WARNING
-Read and follow the manufacturer's safety
precaut ions on the compressor and in the
instructions on the bottle of sea lant .
- If a tire pressure of 29 psi (2.0 bar) cannot
be reached after inflating for six minutes,
then the tire is too severely damaged. Do
not continue driving.
- If the tire cannot be repa ired with the tire
sealant, see an authorized Audi dealer or au­
thorized Audi Service Facility for assistance.
(D Tips
Do not operate the compressor for more than
six minutes continuously, or it can overheat.
Once the compressor has cooled, you can con­
tinue to use it.
Completing
App lies to : vehicles wit h tire mob ility kit
.. Adhere the sticker that says "max. 50 mph"
(80 km/h) that is provided with the tire mob ili­
ty kit within the driver's field of vision.
.. Stop the vehicle after driv ing for about 10 mi­
nutes and check the tir e pressure.
.. If the tire press ure is lower than 19 PSI (1.3
bar), then the tire is too severely damaged. Do
not continue driving .
.&_ WARNING
Pay attention to the following after repairing
the tire:
- Do not drive faster than 50 mph (80 km/h).
- Avoid hard acceleration, braking sharply,
and fast cornering .
- The vehicle may become more difficult to
control.

co
co
.... N
" N .... 0
00
\.J ' -If the tire is too severely damaged, see an
authorized Aud i dealer or authorized Audi
Service Facility for assistance.
@ For the sake of the environment
You can give the used tire sealant bottle to an
authorized Audi dealer or authorized A udi
Service Facility for disposal.
@ Tips
Remember to obtain a new bottle of sea lant
from an authorized Audi dea ler or authorized
Audi Service Facility after repairing a tire.
Replacing wheels
Before changing a wheel
Observe the following precautions for your own
and your passenger's safety when changing a
wheel.
.. After you experience a tire failure, pull the car
well away from moving traffic and try to reach
level ground before you stop c::> &.,.
.. All passengers should leave the car and move
to a safe location (for instance, beh ind the
guardrai l) ¢ ,&. .
.. Engage the
parking brake to prevent your vehi­
cle from rolling unintentionally ¢,&. .
.. Move
selector lever to position P ¢ ,&. .
.. If you are towing a trailer, unhitch the trailer
from your vehicle .
.. Take the
jack and the spare tire* out of the lug­
gage compartment ¢
page 240.
.8, WARNING
You or your passengers could be injured while
changing a wheel if you do not follow these
safety precautions:
- If you have a flat tire, move a safe distance
off the road. Turn off the engine, turn the
emergency flashers on and use other warn­
ing devices to alert other motorists.
- Make sure that passengers wait in a safe
place away from the vehicle and well away
from the road and traffic.
Emergency assistance
- To help prevent the vehicle from moving
suddenly and possibly slipping off the jack,
always fully set the parking brake and block
the wheel diagonally opposite the wheel be­
ing changed . When one front wheel is lifted
off the ground, placing the Automatic
Transmission in P (Park) wi ll
not prevent the
veh icle from moving.
- Before you change a wheel, be sure the
ground is leve l and firm. If necessary, use a
sturdy board under the jack.
- Always store the vehicle tool kit, the jack
and the replaced tire in the luggage com­
pa rtment
¢page 135.
(D Tips
Before changing the wheel, you must activate
the jacking mode, so that the automatic con­
trols for the Adaptive Air Suspension* do not
make it more difficult to lift the vehicle with
the jack ¢
page 245 .
Changing a wheel
When you change a wheel, follow the sequence
described below step-by-step and in exactly that
order.
1. Activate the vehicle jack mode*¢ page 245.
2. Remove the decorative wheel cover* or the
wheel bolt caps*. For more details see also
¢ page 244, Decorative wheel covers or
¢ page 244, Wheels with wheel bolt caps .
3. Loosen the wheel bolts ¢page 245.
4. Locate the proper mounting point for the
jack and align the jack below that point
¢page 245.
5. Raise the car with the jack¢ page 245 .
6. Remove the wheel with the flat tire and then
install
the spare ¢ page 247.
7. Tighten all whee l bolts lightly.
8.
Lower the vehicle with the jack.
9. Use the wheel bolt wrench and
firmly tighten
all wheel bolts
c::>page 245.
10. Replace the decorative wheel cover* or the
wheel bolt caps*.
11. Deactivate the vehicle jack mode* in the
MMI:
I CARI funct ion button> (C ar )* systems .,.
243

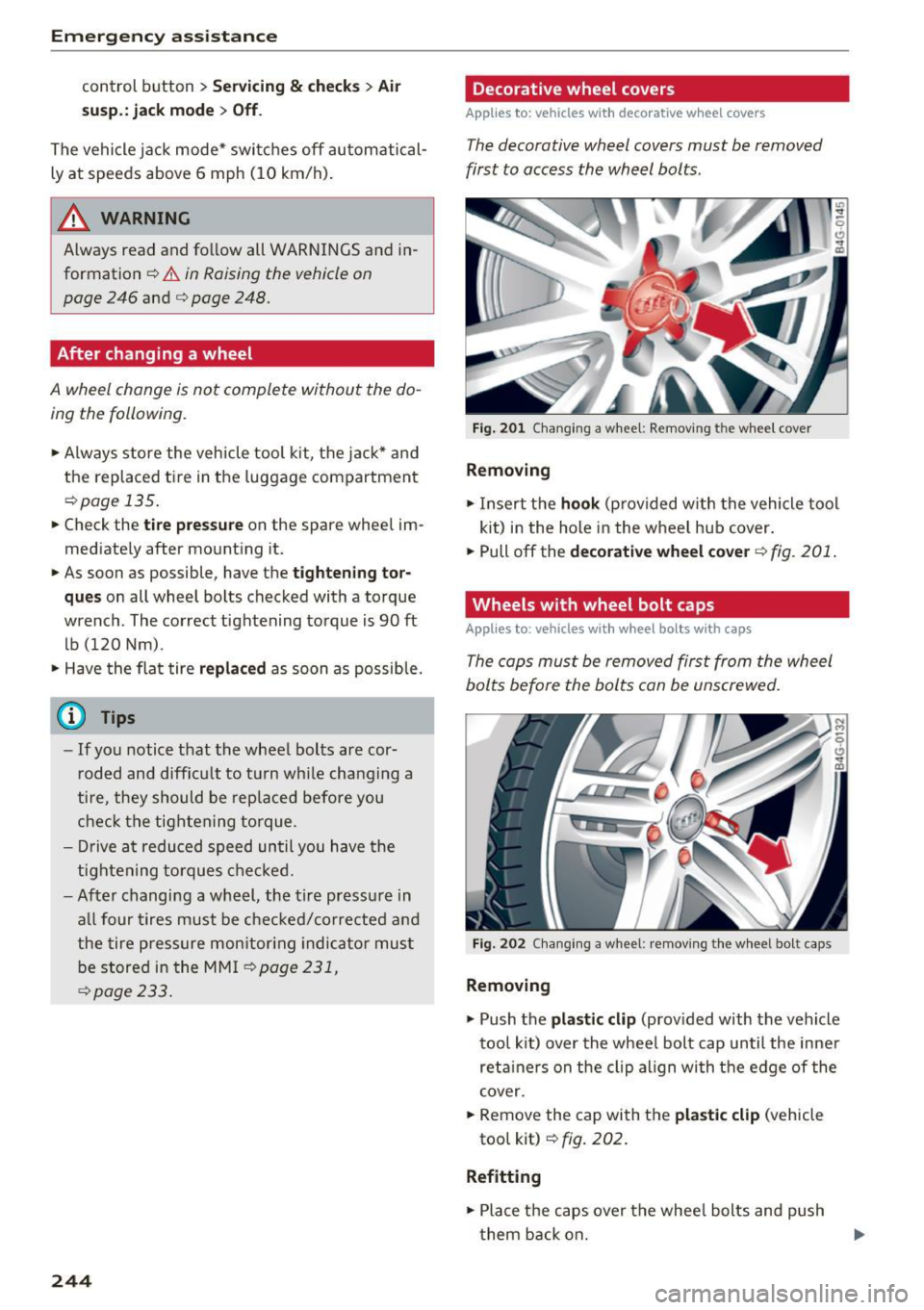

Emergency assistance
control button > Servicing & checks > Air
susp.: jack mode> Off .
The vehicle jack mode* switches off automatical­
ly at speeds above 6 mph (10 km/h).
&_ WARNING
Always read and fo llow all WARNINGS and in­
formation ¢
.&. in Raising the vehicle on
page 246
and¢ page 248.
After changing a wheel
A wheel change is not complete without the do­
ing the following.
.. Always store the vehicle tool kit, the jack* and
the replaced tire in the luggage compartment
¢page 135.
.. Check the tire pressure on the spare wheel im­
med iately after mounting it.
.. As soon as possible, have the
tightening tor­
ques
on all wheel bolts checked with a torque
wrench. The correct tightening torque is
90 ft
lb (120 Nm).
.. Have the flat tire
replaced as soon as possible.
(D Tips
-If you notice that the wheel bolts are cor­
roded and difficu lt to t urn wh ile changing a
tire, they should be replaced before you
check the tightening torque.
- Drive at reduced speed until you have the
tightening torques checked.
- After changing a wheel, the tire pressure in
a ll four tires must be checked/corrected and
the tire pressure mon itor ing indicato r must
be stored in the MMI
¢page 231,
¢pa ge 233 .
244
Decorative wheel covers
Applies to: vehicles with decorative wheel covers
The decorative wheel covers must be removed
first to access the wheel bolts.
Fig. 201 Changing a whee l: Removing the whee l cover
Removing
.. Insert the hook (provided w ith the vehicle tool
kit) in the hole in the wheel hub cover.
.. Pull off the
decorative wheel cover ¢ fig. 201 .
Wheels with wheel bolt caps
Applies to: vehicles with wheel bolts with caps
The caps must be removed first from the wheel
bolts before the bolts can be unscrewed.
Fig. 202 Chang ing a wheel: remov ing the wheel bolt caps
Removing
.. Push the plastic clip (provided with the vehicle
tool kit) over the wheel bolt cap until the inne r
reta iners on the clip align with the edge of the
cover .
.. Remove the cap with the
plastic clip (vehicle
tool kit)
<:!> fig. 202.
Refitting
.. Place the caps over the wheel bolts and push
them back on.

co
co
.... N
" N .... 0 co <.,;) 'SI'
The caps are to protect and keep the wheel bolts
clean.
Loosening and tightening the wheel bolts
The whe el bolts must be loosen ed b efor e raising
the vehicle.
F ig. 20 3 Chan gin g a w hee l: l oose ning t he wheel bo lts
Loo sening
.. Slide the w he el wr enc h onto the wheel bolt as
far as it will go .
.. Take t ight hold of the
end of the wrench hand le
and turn the wheel bolts
c o unt er-clockwis e
about one single turn in the d irection of arrow
¢fig . 203.
Tightening
.. Slide the wheel wrench onto the wheel bolt as
far as it w ill go.
.. Take t ight hold of the
end of the wrench handle
and tu rn each whee l bolt
clockwi se unt il it is
seated .
& WARNING
- Do not use force or hurry when changing a
wheel -you can cause the vehicle to slip off
the jack and cause serious personal injuries .
-Do not loosen the wheel bolts more than
one turn
before you raise the vehicle w ith
the jack. - You risk an injury.
(D Tips
- Never use the hexagonal socket in the han­
dle of the screwdriver to loosen o r tighten
the wheel bo lts .
- If a whee l bolt is very tight, you may find it
easier to loosen by carefully push ing down
Em ergen cy a ssis tanc e
on the end of the whee l bolt wrench with
one foot only . As you do so, hold on to the
car to keep your balance and take care not
to slip .
Raising the vehicle
The vehicl e must b e lift ed with the jock first be­
fore the wheel can be removed.
F ig. 20 4 Sill pane ls: ma rkin gs
F ig. 205 S ill: pos it ion ing t he veh icle jac k
.. Activa te the veh icle jack mode* in the MMI:
!CARI function button > (Car )* sy stems control
button
> S erv ici ng & ch ecks > Air su sp .: jack
mode > On .
.. Engage the parking brake to prevent your vehi­
cl e from rolling unintentiona lly .
.. Move the
selector le ver to p osit ion P .
.. Find the mar king (impr int) on the sill that is
nearest the wheel that will be changed
¢
fig . 204 . Behind the marking , there is a lift­
ing poin t on the sill for the vehicle jack .
.. App lies to: veh icles with a s ill: Remove the cov­
er from the s ill before lifting the vehicle with a
veh icle jack ¢
page 246.
.. Turn the vehicle jack located under the lift ing
point on the sill to raise the jack unt il its arm @
¢
fig. 205 i s locat ed und er the d esignat ed plas-
tic mount ¢
,&¢0. ..,.
245

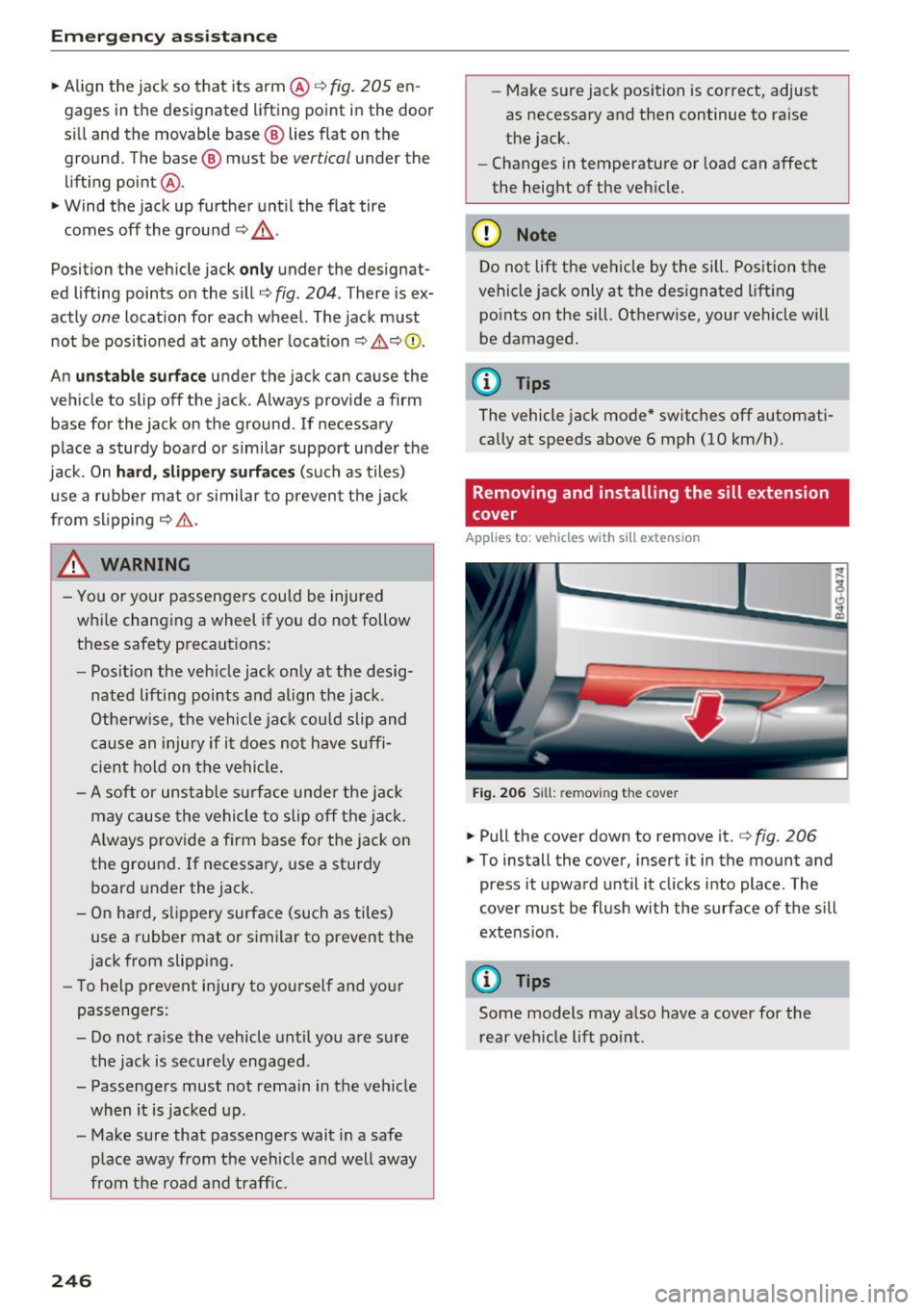

Emerg ency assis ta nce
• Align the jack so that its arm @ c::> fig. 205 en­
gages in the designated lifting point in the door
s ill and the movable base ® lies flat on the
ground. The base ® must be
vertical under the
lifting point @.
• Wind the jack up further until the flat tire
comes off the ground
c::> ,&. .
Position the vehicle jack on ly unde r the designat­
ed lifting points on the sill
c::> fig . 204 . There is ex­
actly
one locat ion for each wheel. The jack must
not be positioned at any other location
c::> .&. c::>0.
An unst able s urfa ce under the jack can cause the
ve hicle to slip off the jack . Always provide a firm
base for the jack on the ground . If necessary
p lace a sturdy boa rd or simi lar support under the
jack . On
h ard, slipp ery su rface s (such as tiles)
use a rubbe r mat or similar to prevent the jack
from sl ipping
c::> .&. .
& WARNING
- Yo u or your passengers could be injured
whi le changing a wheel if you do not follow
these safety precautions:
- Position the veh icle jack only at the desig­
nated lifting points and align the jack .
Othe rw ise, the vehicle jack cou ld slip and
cause an injury if i t does not have suffi­
cient hold on the vehicle.
- A soft or unstable s urface unde r the jack
may cause the vehicle to slip off the jack.
A lways provide a firm base for the jack on
the ground. If necessary, use a sturdy
board under the jack .
- On hard, s lippery surface (such as tiles)
use a rubber mat or similar to prevent the
jack from slipping.
- To help prevent injury to yourself and your
passenge rs:
- Do not raise the vehicle unt il you are sure
the jack is securely engaged .
- Passengers must not remain in the vehicle
when it is jacked up.
- Make sure that passengers wait in a safe
place away from the vehicle and well away
from the road and traff ic.
246
- Make sure jack position is correct, adjust
as necessary and then continue to ra ise
the jack .
- Changes in temperature or load can affect
the height of the veh icle.
(D Note
Do not lift the vehicle by the si ll. Position the
vehicle jack only at the des ignated lift ing
points on the sill. Otherwise, your vehicle will
be damaged.
(D Tips
The vehicle jack mode * switches off automati­
cally at speeds above 6 mph (10 km/h).
Removing and installing the sill extension
cover
App lies to: vehicles with sill extension
Fig . 206 S ill: rem ovin g the cover
• Pull the cover down to remove it. c::> fig. 206
• To install the cover, insert it in the mount and
pre ss it upward until it clicks into place . The
cover must be flush with the surface of the sill
extens ion .
@ Tips
Some models may also have a cover for the
rear veh icle lift point .

co
co
.... N
" N .... 0
00
<.,;) 'SI"
Taking the wheel off/installing the spare
Follow these instructions step-by-step for chang­
ing the wheel.
Fig. 207 Changing a wheel: using the screwdriver hahd le
(with the blade removed} to turn the bolts
F ig. 208 Changing a wheel: alignment pin ins ide the top
hole
After you have loosened all wheel bo lts and
raised the vehicle
off the ground, remove and re­
p lace the whee l as follows:
Removing th e wheel
" Use the hexagon al so cket in the screwdri ver
handle to completely remove the topmost
wheel bolt and set it aside on a
clean surface
¢fig. 207.
.. Screw the threaded end of the alignment pi n
from the tool kit hand-tight into the empty bolt
hole
¢ fig. 2oa1>.
" Then remove the other wheel bolts as described
above .
" Take
off the wheel leaving the a lignment pin in
the bolt ho le
¢ 0 .
l) Applies to vehicles with ceram ic brake rotors•: Use a sec­
ond alignme nt pin• (stored in t he spa re wheel well mold ­
ing} for the lower hole , fo llow ing the descript ion for the
first alignment pin.
Em ergen cy a ssis tanc e
Putting on th e spar e wheel
" Lift the spare whee l and caref ully slide it over
the alignment pin to guide it in place¢(!).
.. Use the hexagona l socket in the screwdriver
handle to screw in and tighten all wheel bolts
slightly .
"Remove the alignment pin and insert and tight­
en the remaining wheel bo lt slightly like the
rest .
.. Turn the jack hand le counter-clockw ise to lower
the vehicle unt il the ja ck is fully released.
" Use the wheel bo lt wrench to t ighten a ll wheel
bolts firmly¢
page 245. Tighten them cross­
wise,
from one bo lt to the (approx imately) op­
posite one, to keep the wheel centered.
(D Note
When removing or installing the wheel, the
rim could hit the brake rotor/ceramic brake
rotor* and damage the rotor . Work carefully
and have a second person he lp you.
(D Tips
Never use the hexagonal socket in the hand le
of the screwdriver to loosen or tighten the
whee l bolts.
- Pull the reversible blade from the screwdr iv ­
er before you use the hexagona l socket in
the handle to turn the wheel bolts.
- When mounting tires with unidirectional
t read de sign make sure the tread pattern is
pointed the right way
¢ page 248.
- The wheel bolts sho uld be clean and easy to
turn. Check for dirt and corrosion on the
mating surfaces of both the wheel and the
hub. Remove all dirt from these surfaces be­
fore remounting the wheel.
247

Emergency assistance
Tires with unidirectional tread design
Tires with unidirectional tread design must be
mounted with their tread pattern pointed in the
right direction .
Using a spare tire with a tread pattern
intended for use in a specific direction
When using a spare t ire with a tread pattern in­
tended for use in a specific direction, please note
the following:
- The direction of rotation is marked by an arrow
on the side of the tire.
- If the spare tire has to be installed in the incor­
rect direction, use the spare tire only tempora­
rily since the tire will not be able to achieve its
optimum performance characteristics with re­
gard to aquaplaning, noise and wear.
- We recommend that you pay particular atten­
tion to this fact during wet weather and that
you adjust your speed to match road condi­
tions.
- Replace the flat tire with a new one and have it
installed on your vehicle as soon as possible to
restore the handling advantages of a unidirec­
tional tire.
Notes on wheel changing
Please read the information q page 218, New
tires or wheels
if you are going to use a spare tire
which is different from the tires on your vehicle.
After you change a tire:
- Check the tire pressure on the spare tire im­
mediately after installation.
- Have the wheel bolt tightening torque
checked with a torque wrench as soon as pos­
sible by your authorized Audi dealer or a
qualified service station.
- With steel and alloy wheel rims, the wheel
bolts are correctly tightened at a torque of 90
ft lb
(120 Nm).
- If you notice that the wheel bolts are corroded
and difficult to turn while changing a tire ,
they should be replaced before you check the
tightening torque.
248
- Replace the flat tire with a new one and have
it installed on your vehicle as soon as possi­
ble. Remount the wheel cover.
Until then , drive with extra care and at reduced
speeds.
~ WARNING
- If you are going to equip yo ur vehicle with
tires or rims which differ from those which
were factory installed, then be sure to read
the information
q page 218, New tires or
wheels.
- Always make sure the damaged wheel or
even a flat tire and the jack and tool kit are
properly secured in the luggage compart­
ment and are not loose in the passenger
compartment.
- In an accident or sudden maneuver they
could fly forward, injuring anyone in the ve­
hicle.
- Always stor e damaged wheel, jack and tools
secure ly in the luggage compartment. Oth­
erwise, in an accident or sudden maneuver
they could fly forward, causing injury to pas­
sengers in the vehicle.
Spare tire
Space-saving spare tire
App lies to: vehicles wit h spare tire
Fig. 209 Luggage compartment: space -saving spare t ire
The spare tire is intended for short-term use on-
-
ly. Have the damaged tire checked and, if neces­
sary, replaced by an authorized Audi dealer or au­
thorized Audi Service Facility as soon as possible . .,..
