Weights
Gross Vehi cle We ight Rating
The G ross Veh icle Weight Rating (GVWR), and
the Gross Axle Weight Rating (GAWR) for front
and rear are listed on a sticker on the door jamb
on the driver's side.
The G ross Veh icle Weight Rating includes the
weight of the basic vehicle p lus full fuel tank, oi l
and coolant, p lus maximum load, which includes
passenger weight (150 lbs/68 kg per designated
seating position) and luggage we ight
c:> A .
Gross Axle Weight Rating
The Gross Axle We ight Rating is the max imum
l oad that can be applied at each axle of the vehi ­
cle
c:> &, .
Vehicle capacity weight
The vehicle capac ity we ight (max . load) is listed
e ithe r o n the dr iver's side 8-pilla r or inside the
fuel filler f lap .
A WARNING
-
-The actual Gross Ax le Weight Rating at the
front and rear axles sho uld not exceed the
permissible weights, and their comb inat ion
must not exceed the Gross Vehicle We ight
Rating.
- Exceeding perm iss ible weight ratings can
result in vehicle damage, acc idents and per­
sonal inj ury .
Dimensions
Techn ical data
(D Note
- The vehicle capacity weig ht figures apply
when the load is d istributed evenly in the
vehicle (passengers and luggage). When
transport ing a heavy load in the luggage
compartment, carry the load as near to the
rear axle as possible so that the vehicle's
hand ling is no t impa ired .
- Do not exceed the maximum perm iss ible
ax le loads or the maximum gross vehicle
we igh t. A lways remember that the vehi cle's
hand ling will be affected by the extra load.
T he refore, adjust your speed acco rd ingly.
- Always observe lo cal regulations.
Length (in (mm)) Width (in (mm ))
Width across the Height at curb
A7 Sportback 196.2 (4,984)
RS 7 Sportback 197
.3 (5,012)
S7 Spo rtback 196.3 (4,985)
W hen driving on poor roads, by curbs and on
steep ramps, make sure that low-hang ing com­
ponents such as the spo ile r and exhaust system
mirrors (in (mm)) weight (in (mm))
75 .2 ( 1,911) 84.2 (2,139) 55 .9 ( 1,420)
75 .2 (1,911) 84 .2 ( 2,139) 55 .9 ( 1,419)
75 .2 ( 1,911) 84.2 (2,139) 55.0 ( 1,398)
be damaged . This especially applies to vehicles
that are eq uipped w ith adapt ive a ir suspension*
and when the vehicle is at full load .
co ~ do not come into contact with these o r they could
N
" N ..... 0
00
\.J ' 261

Tech nical data

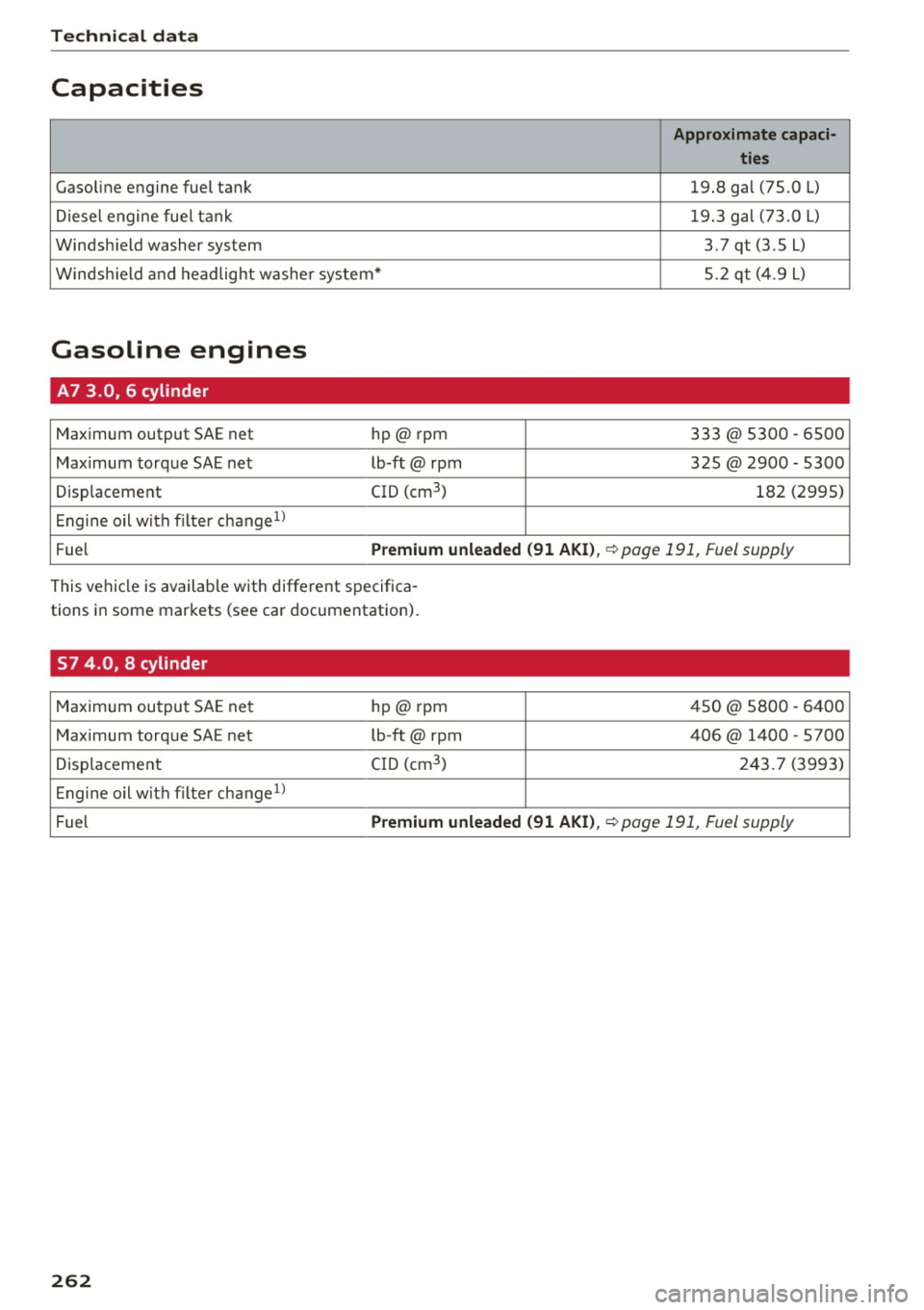

Capacities
Appro ximate capaci -
ties
Gasoline engine fuel tank 19.8 gal (75.0 L)
Diesel engine fuel tank 19.3 gal (73
.0 L)
Windshield washer system 3.7 qt (3.5
L)
Windshield and headlight washe r system* 5.2 qt (4.9 L)
Gasoline engines
A7 3.0, 6 cylinder
Maximum output SAE net
hp@rpm 333 @ 5300 - 6500
Maximum torque SAE net lb-ft@ rpm 325@ 2900 - 5300
Displacement CID (cm
3
) 182 (2995)
Engine oil with filter change
1l
Fuel
Premium unl eaded (91 AKI) , ¢page 191, Fuel supply
This vehicle is available with different specifica­
tions in some markets (see car documentation).
57 4.0 , 8 cylinder
Maximum output SA E net hp@ rpm
Max imum torque SAE net lb-ft@ rpm
Displacement C
ID (cm
3
)
Engine o il w ith filter change1l 450 @ 5800 - 6400
406@ 1400
-5700
243.7 (3993)
Fuel
Premium unleaded (91 AKI) , ¢page 191, Fuel supply
262

co
co
.... N
" N .... 0
00
\.J ' Technical dat a

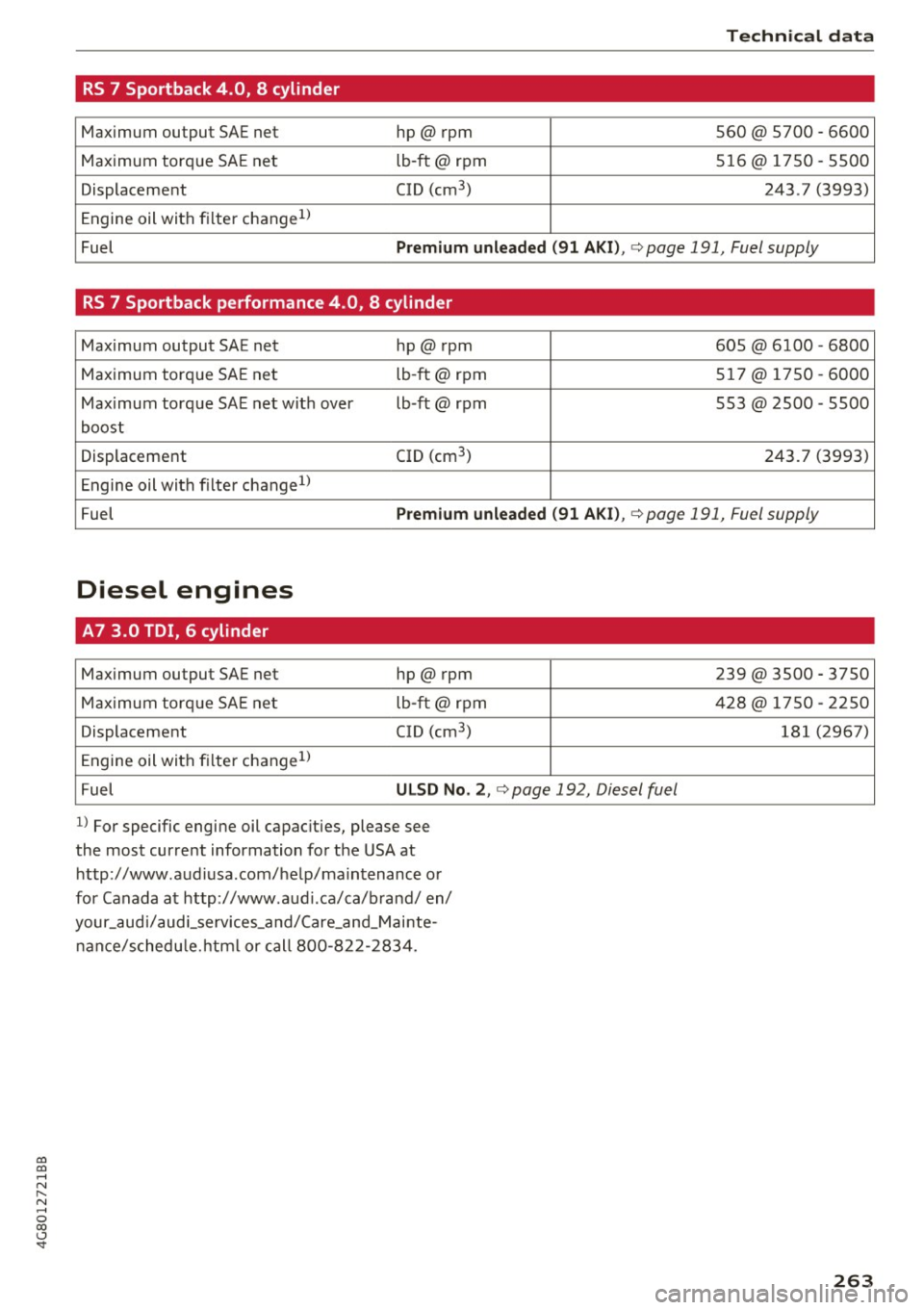

RS 7 Sportback 4.0, 8 cylinder
Maximum output SAE net hp@rpnn 560@ 5700 -6600
Maximum torque SAE net lb
-ft@ rpm
516@ 1750 -5500
Displacement CID (cm
3
) 243 .7 (3993)
Engine oil with f ilter change
1>
Fuel Pr emium un lead ed (91 A KI), c> page 191, Fuel supply
RS 7 Sportback performance 4.0 , 8 cylinder
Maximum output SAE net hp@ rpnn 605@ 6100 -6800
Maximum torque SAE net lb
-ft@ rpm 517@ 1750 -6000
Maximum torque SAE net with over lb-ft@ rpm 553 @ 2500 -5500
boost
Displacement CID (cm
3
) 243.7 (3993)
Engine oil with filter change
1l
Fuel
P remium unle aded (91 A KI) , c> page 191, Fuel supply
Diesel engines
A7 3.0 TOI, 6 cylinder
Maximum output SAE net hp@ rpnn
Ma ximum torq ue SAE net lb-ft@ rpm
Displacement CID (cm
3
)
Engine oil with f ilter change1>
Fuel ULSD No . 2 , c> page 192, Diesel fuel
ll For specific engine oil capacities, please see
the most current information for the USA at
http ://www.aud iusa.com/help/maintenance or
for Canada at http://www.audi.ca/ca/brand/ en/
your _aud i/ aud i_services_a nd/Care_and_M a i nte­
na nce/ schedu le.html or call 800-822-2834. 239@ 3500
-3750
428@ 1750 -2250
181 (2967)
263

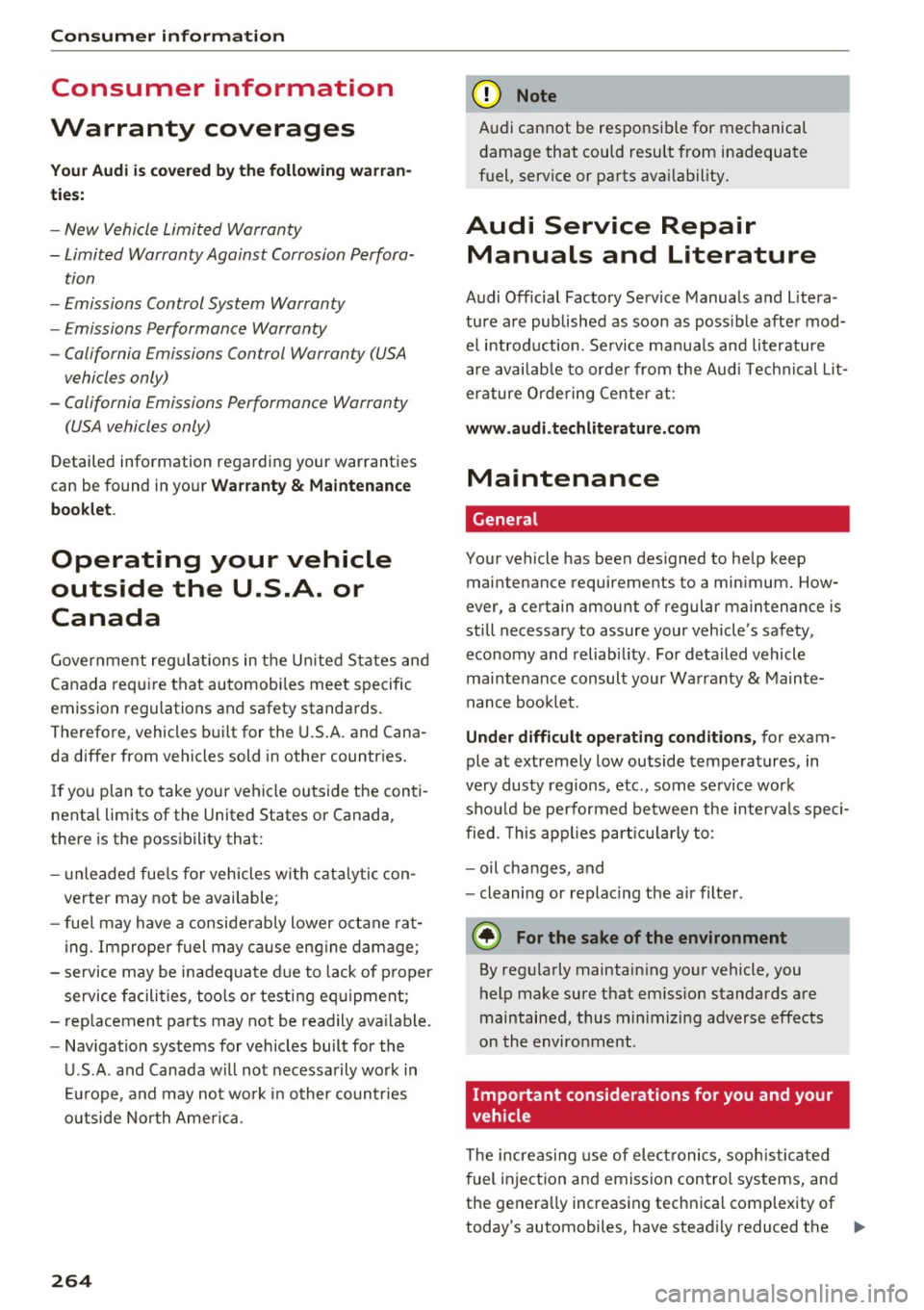

Consumer information
Consumer information
Warranty coverages
Your Audi is covered by the following warran­
ties:
- New Vehicle Limited Warranty
- Limited Warranty Against Corrosion Perfora-
tion
- Emissions Control System Warranty
- Emissions Performance Warranty
- California Emissions Control Warranty (USA
vehicles only)
- California Emissions Performance Warranty
(USA vehicles only)
Detailed information regarding your warranties
can be found in your
Warranty & Maintenance
booklet .
Operating your vehicle
outside the U.S.A. or
Canada
Government regulati ons in the United States and
Canada require that automobi les meet specific
emission regulations and safety standards.
Therefore, vehicles built for the U.S.A. and Cana ­
da differ from vehicles sold in other countries.
If you plan to take your vehicle outside the conti­
nenta l limits of the United States or Canada,
there is the poss ibility that:
- un leaded fue ls for vehicles with catalytic con­
verter may not be available;
- fuel may have a considerably lower octane rat­
ing . Improper fuel may cause engine damage;
- service may be inadequate due to lack of proper
service facilities, tools or testing equipment;
- r eplacement parts may not be readily available.
- Nav igation systems for veh icles built for the
U.S .A . and Canada will not necessarily work in
Europe, and may not work in other countries
outside North America.
264
(D Note
Audi cannot be responsib le for mechanical
damage that could result from inadequate
f u el, service or parts ava ilability.
Audi Service Repair
Manuals and Literature
Audi Official Factory Service Manuals and Litera ­
ture are published as soon as poss ible after mod­
el introd uction . Service manuals and literature
are available to order from the Audi Technical Lit ­
erature Ordering Center at :
www.audi.techliterature .com
Maintenance
General '
Your vehicle has been designed to help keep
maintenance requirements to a min imum. How­
ever, a certain amount of regular maintenance is
still necessary to assure your vehicle's safety,
economy and reliability . For detailed vehicle
maintena nce consult your Warranty & Mainte­
nance booklet .
Under difficult operating conditions, for exam ­
ple at extremely low outside temperatures, in
very dusty regions, etc., some se rvice work
should be performed between the intervals speci­
fied. This applies particularly to:
- oil changes, and
- cleaning or replac ing the a ir filter .
@ For the sake of the environment
By regularly maintaining your vehicle, you
help make sure that emission standards are
maintained, thus min imizing adverse effects
on the environment.
Important considerations for you and your
vehicle
The increas ing use of elect ronics, soph istica ted
fuel injection and emission control systems, and
the genera lly increasing technica l complexity of
today's automobiles, have stead ily reduced the ..,_

co
co
.... N
" N .... 0
00
\.J ' scope of maintenance and repairs which can be
carried out by vehicle owners.
Also, safet y and
en vir onm enta l
concerns place very strict limits
on the nature of repairs and adjustments to en ­
g ine and transm ission parts wh ich an owner can
perform .
Maintenance, adjustments and repairs usually re ­
qu ire special tools, test ing devices and other
equ ipment available to specially trained work­
shop perso nnel i n order to assure proper per ­
forma nce, re liability and safety of the ve hicle and
i ts many systems.
Improper maintenance, adjustments and repairs
can impair the operation and reliability of your
vehicle and even void your veh icle warranty.
Therefore, proof of se rvicing in accordance with
the ma intenance sc hedule may be a condition for
upho ld ing a possib le wa rranty claim made wi thin
the warranty pe riod.
Above all, operational safety can be adversely af­
fected, creating unnecessa ry risks fo r you and
your p assengers.
If in doubt about any se rvicing, have it done by
your author ized Audi dealer or any other properly
eq uipped and qua lified workshop. We strongly
urge yo u to g ive your author ized Audi dealer the
opport unity to perform a ll scheduled ma inte­
nance and necessary repairs . Your dealer has the
facilities, origina l parts and trained specialists to
keep your veh icle running properly .
Performing limited maintenance yourself
The follow ing pages des cribe a lim ited number of
p rocedures w hich can be per formed o n your veh i­
cle with ordinary tools, should the need arise and
trained personnel be unavailable . Before per­
forming any of these procedures, always thor­
ough ly read a ll of the app licab le text and carefu l­
ly follow the instructions g iven. Always rigorously
observe the
WARNING S provided .
Before you check anything in the engine com ·
partment , always read and heed all WARNINGS
c:> &. and c:> &. in Working in the engine compart­
ment on page 199.
Con sumer inf ormation
A WARNING
- Ser ious personal in jury may occur as a result
of improperly performed maintenance, ad­
justments or re pairs .
- Always be extremely careful when work ing
on the vehicle. Always follow commonly ac­
cepted safety practices and general com­ mo n sense. Never risk pe rsonal injury.
- Do not attempt any of the mai ntenance,
checks or repairs described on t he following
pages if you are not fu lly familiar wi th these
or other proce dures with respect to the ve­
h icle, o r are uncerta in how to pro ceed.
- Do not do a ny work withou t the prope r tools
a nd eq uipment. H ave the necessary wo rk
done by your au thorized Audi dealer or an­
other proper ly equipped and qualified wo rk ­
shop.
- The engine compa rtment of any motor ve hi­
cle is a potent ially hazardous area . Never
reach into the area around or touch the radi­
ator fan.
It is temperature controlled and
can switch o n suddenly - even when the en­
g ine is off . The radiato r fan switches on au ­
tomatically when the coolan t reaches a cer­
tain tempe ra ture and w ill cont inue to run
until the coolant temperature d rops.
- Always sw itch off the ignition before anyone
gets under the vehicle.
- Always support your veh icle with safety
s tands if it is necessary to work underneat h
the vehicle . The jack supp lied with t he veh i­
cle is no t adequ ate for t his pu rpose and
could collapse ca us ing serious personal in­
jury.
- If you m ust wor k unde rne ath the vehicle
with the wheels on the ground, always make
sure the vehicle is on level ground, that the
wheels a re always sec urely blocked and that
the engine cannot be started.
- Always make sure the transmission se lector
lever (automatic t ransmiss ion) is in P (Park
position) and the pa rk brake is applied .
II>
265

Consumer inf orm ation
@ For the sake of the env ironment
- Changing the engine settings wi ll adversely
affect emission levels. Th is is detrimental to
the environment and increases fuel con­
sumption.
- A lways observe environmental regu lations
when disposing of old engine o il, used brake
fl ui d, d irty engine coolant, spent batteries
or worn out tires.
- Undeployed airbag modules and pretension­
ers mig ht be classified as Perchlorate Mate­
rial -special handl ing may apply, see
www.dtsc .ca.gov/hazardouswaste/perchlo­
r ate. When the vehicle or parts of the re­
straint system including airbag modu les
safety be lts wi th pretensioners are scrap­
ped, all applicab le laws and regulations
must be observed. Your authorized Audi
dealer is familiar with these requirements
and we recommend that you have your deal­ er perform this service for you.
Accessories and technical changes
Additional accessories and parts replacement
Always consult an authorized Audi dealer before
purchasing accessories.
Your vehicle incorporates the latest safety design
features ensuring a high standard of active and passive safety.
This safety could be comp romised by non-ap­
proved changes to the vehicle . For this reason, if
parts have to be replaced, please observe the fo l­
lowing points when insta lling addit ional accesso­
ries:
Approved Audi accessories and genuine Audi parts are available from author ized Audi dealers.
These dealers also have the necessary faci lities,
too ls and trained specialists to install the parts
and accessories properly.
266
A WARNING
-
Using the wrong spare parts or using non-ap-
proved accessories can cause damage to the
vehicle and serious personal injury.
- Use only accessories expressly approved by
Aud i and genuine Audi spare parts
- These parts and accessor ies have been spe­
cially designed to be used on your vehicle.
- Do not use license plate brackets in the
front area that are d ifferent from the one
installed at the factory, or add additional li­
cense plate brackets.
- Never install accessor ies such as telephone
cradles or beverage holders on airbag covers
or w it hi n the airbag deployment zones. Do­
ing so will i ncrease t he risk of injury if a ir­
bags are triggered in an accident!
- Before you check anything in the eng ine
compa rtment, always read and heed all
WARN INGS ¢page 199.
(D Note
-If items other than genu ine A udi spa re
parts, add-on equipment and accessory
i t ems are used or if repair wor k is not per­
formed according to specified me thods, this
can resul t in severe damage to your vehi ­
cle's eng ine and body (such as corrosion)
and adve rsely affect your vehicle's warranty.
- If emergency repai rs must be per formed
elsewhere, have the vehicle examined by an
authorized Audi dealer as soon as possib le .
- The manufacturer cannot be held liable for
damage which occurs d ue to failure to com­
ply with these stipulations.
Technical Modifications
Our guidelines must be complied with when tech­
nical modifications are made .
A lways consu lt an authorized Audi dea ler
before
start ing work on any modifications .
This will help ensure tha t vehi cle fu nction, per-
fo rmance and s afety are not impaired¢ &,.
ll-

co
co
.... N
" N .... 0
00

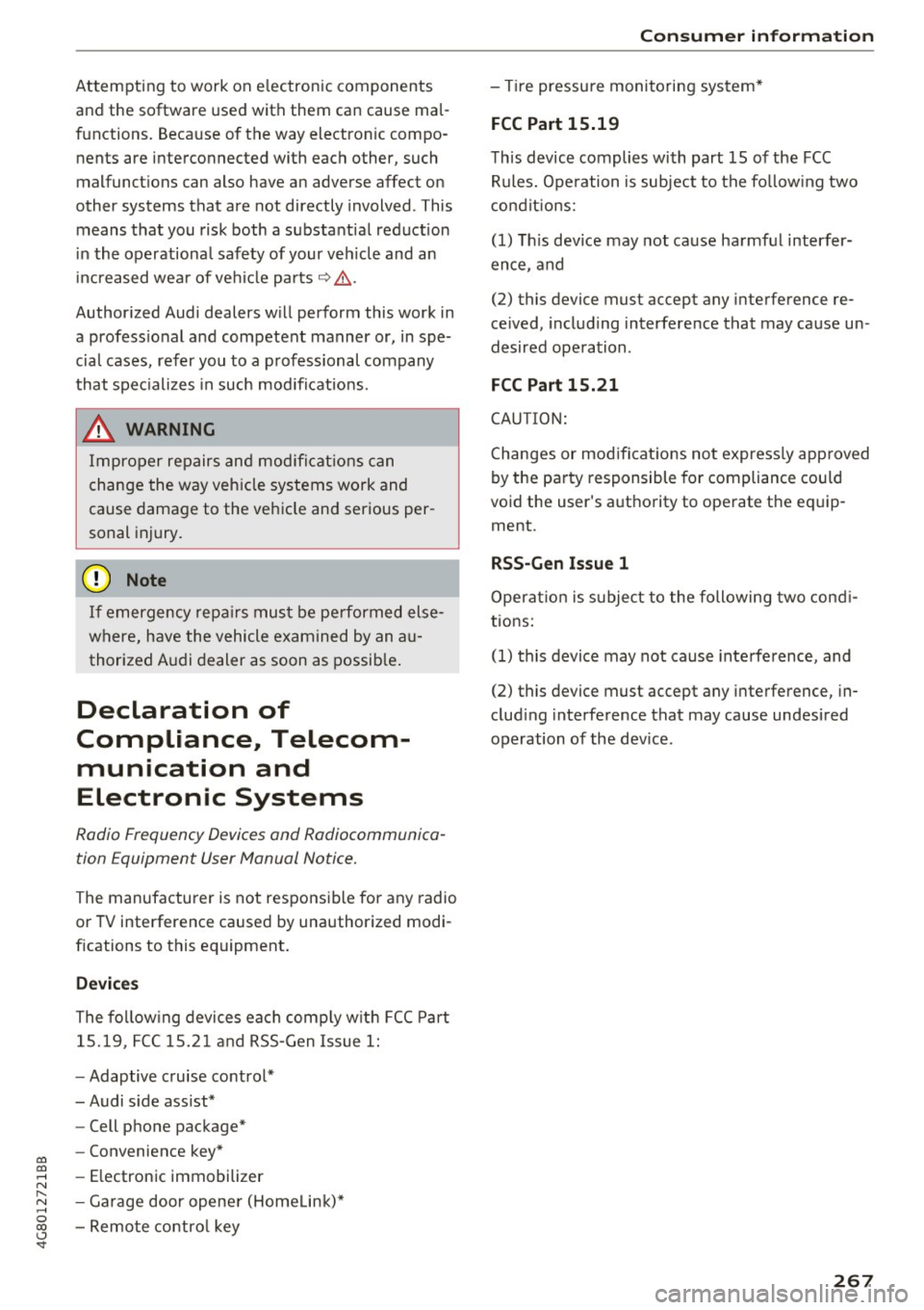

\.J ' Attempting to work on electronic components
and the software used with them can cause mal­
functions. Because of the way electronic compo­ nents are interconnected with each other, such
malfunct ions can also have an adverse affect on
other systems that are not directly involved . This
means that you risk both a substa ntial reduct ion
in the operationa l safety of your veh icle and an
i ncreased wea r of ve hicle parts~
& -
Author ized Audi dealers w ill perform this work in
a profess ional and competent manner or, in spe­
cia l cases, refer you to a p rofessional company
that spec ializes in such modificatio ns.
_& WARNING
Improper repairs and mod ificat ions can
change the way veh icle systems work and
cause damage to the vehicle and serious per ­
sonal injury.
(D Note
If emergency repa irs mus t be performed else ­
where, have the vehicle examined by an a u­
thorized Audi dealer as soon as possib le .
Declaration of
Compliance, Telecom­
munication and
Electronic Systems
Radio Frequency Devices and Radiocommunica ­
tion Equipment User Manual Notice.
The manufacturer is not responsible for any radio
or TV interference caused by unauthorized modi­
fications to this equipment .
Devices
The following devices each comp ly w ith FCC Part
15.19, FCC 15.21 and RSS-Gen Issue
1:
-Adaptive cruise control*
- Audi s ide ass ist*
- Cell phone package*
- Convenience key*
- Electronic immobilizer
- Garage door opene r (Homelink)*
- Remote control key
Consumer inf ormation
-Tire pressu re monitoring system*
FCC Part 15.19
This device complies with part 15 of the FCC
Rules. Ope ration is subject to the follow ing two
conditions:
(1) This dev ice may not cause harmful interfer­
ence , and
(2) this device must accept any interference re­
ce ived, including interference that may cause un­
desired operation .
FCC Part 15.21
CAUTION:
Changes or mod ifications not express ly app roved
by the party responsible for compliance could
void the user's authority to operate the equip­ ment .
RSS-Gen Issue 1
Operat ion is s ubject to the following two cond i­
tions:
(1) this device may not cause interference, and
(2) this device must accept any interference, in­
clud ing interference that may cause undesired
operation of the dev ice .
267

Index
Numbers and
Symbols
4-zone deluxe automatic climate control 59
Air vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Key recognition . . . . . . . . . . . . . . . . . . . . . . 59
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Residual heat . . . . . . . . . . . . . . . . . . . . . . . . 63
Synchronizing . . . . . . . . . . . . . . . . . . . . . . . . 63
A
A/C (4-zone deluxe automatic climate
control) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
A/C (deluxe automatic climate control) 60
ABS
refer to Anti-Lock Braking System . . . . . . 120
Accessories . . . . . . . . . . . . . . . . . . . . . . . 53, 266
Active lane assist . . . . . . . . . . . . . . . . . . . . . . 96
Adjusting the vibration warning . . . . . . . . . 98
Cleaning the camera area . . . . . . . . . . . . . 236
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 97
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Sw itching on/off . . . . . . . . . . . . . . . . . . . . . 97
Adaptive air suspension . . . . . . . . . . . . . . . . 105
Adaptive cruise control. . . . . . . . . . . . . . . . . . 88
braking guard . . . . . . . . . . . . . . . . . . . . . . . . 94
Cleaning the sensor . . . . . . . . . . . . . . . . . . 236
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Request for driver intervention . . . . . . . . . . 94
Stop -and -go traffic . . . . . . . . . . . . . . . . . . . 92
Adaptive dampers . . . . . . . . . . . . . . . . . . . . . 105
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 19
AdBlue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Opening the tank door . . . . . . . . . . . . . . . . 196
Refilling . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Adjusting air distribution (4 -zone deluxe auto­
mat ic cl imate control) . . . . . . . . . . . . . . . . . . 62
Adjusting air distribution (deluxe automatic
climate control) . . . . . . . . . . . . . . . . . . . . . . . 60
Adjusting the temperature (4-zone deluxe au­
tomatic climate control) . . . . . . . . . . . . . . . . 62
Adjusting the temperature (deluxe automatic
climate control) . . . . . . . . . . . . . . . . . . . . . . . 60
advanced key
refer to Convenience key . . . . . . . . . . . . . . . 69
268
Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . 168
Advanced Airbag-System . . . . . . . . . . . . . . 152
Advanced Airbag System components . . . 155
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Children . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 4
Child restraints . . . . . . . . . . . . . . . . . . . . . 174
Components (front airbags) . . . . . . . . . . . 155
Danger of fitting a child seat on the front
passenger seat . . . . . . . . . . . . . . . . . . . . . . 149
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Front airbags . . . . . . . . . . . . . . . . . . . 152, 153
How do the front airbags work? . . . . . . . . 158
How many a irbags does my vehicle have? 155
How the Advanced Airbag System compo-
nents work together . . . . . . . . . . . . . . . . . 157
Important information . . . . . . . . . . . . . . . 148
Important safety instructions on the knee
airbag system . . . . . . . . . . . . . . . . . . . . . . . 166
Knee air bags. . . . . . . . . . . . . . . . . . . . . . . . 164
Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . 160
PASSENGER AIR BAG O FF light . . . . . . . . . 160
Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Safety instructions . . . . . . . . . . . . . . . . . . . 162
Side a irbags . . . . . . . . . . . . . . . . . . . . . . . . 166
Side curtain airbags . . . . . . . . . . . . . . . . . . 169
Warning/Indicator lights . . . . . . . . . . . . . 160
When must the system be inspected? 160
Air pressure (tire pressure monitoring system) ......................... 230,231
Air suspension . . . . . . . . . . . . . . . . . . . . . . . 105
Alignment pin (tire changing) . . . . . . . . . . . 240
All season tires . . . . . . . . . . . . . . . . . . . . . . . 227
All weather lights . . . . . . . . . . . . . . . . . . . . . . 40
All wheel drive . . . . . . . . . . . . . . . . . . . . . . . 124
Alternator
refer to Alternator (indicator light) . . . . . . 14
Alternator (indicator light) . . . . . . . . . . . . . . 14
Ambient lighting . . . . . . . . . . . . . . . . . . . . . . 43
Anti-freeze Windshield washer system 209
Anti-lock braking system Ind icator light . . . . . . . . . . . . . . . . . . . . . . . 16
Anti-Lock Braking System . . . . . . . . . . . . . . 120
Anti-slip regulation Indicator light . . . . . . . . . . . . . . . . . . . . . . . 16
Anti-Slip Regulation . . . . . . . . . . . . . . . . . . . 120
