AUDI A8 2000 D2 / 1.G AHA Engine Motronic Ignition System Workshop Manual

AUDI A8 2000 D2 / 1.G AHA Engine Motronic Ignition System Workshop Manual https://www.carmanualsonline.info/img/6/1044/w960_1044-0.png AUDI A8 2000 D2 / 1.G AHA Engine Motronic Ignition System Workshop Manual

Page 1 of 34

AUDI A8 2000 D2 / 1.G AHA Engine Motronic Ignition System Workshop Manual 28-1
 Motronic ignition system Technical data, spark plugs

Engine code
AHA

Engine idle RPM

Idle RPM cannot be adjusted, is corrected by Idle Air Control (IAC) 620 - 740 RPM
(all-wheel d

Page 2 of 34

AUDI A8 2000 D2 / 1.G AHA Engine Motronic Ignition System Workshop Manual 1) Part numbers listed here are for reference only. Always check with your Parts department for the latest information.
Pa
ge 2 of 34 Motronic i
gnition s
ystem
11/23/2002 htt
p://127.0.0.1:8080/aud

Page 3 of 34

AUDI A8 2000 D2 / 1.G AHA Engine Motronic Ignition System Workshop Manual 28-2

Camshaft Position (CMP) sensor -G40-,
checking


Notes:

Camshaft Position (CMP) sensor -G40- is
located on the rear of the left cylinder head
(bank 2).
     Checking -G16

Page 4 of 34

AUDI A8 2000 D2 / 1.G AHA Engine Motronic Ignition System Workshop Manual 28-3

Checking

-  Disconnect 3-pin harness connector from
Camshaft Position (CMP) sensor -G40-.

If voltage is OK:  -  Connect multimeter US1119 (Fluke 83 or equivalent) to measure

Page 5 of 34

AUDI A8 2000 D2 / 1.G AHA Engine Motronic Ignition System Workshop Manual 28-4


If wiring is OK (and voltage across terminals 1 and 3 is OK):
If wiring is OK (but still no voltage across terminals 1 and 3):  -  Check wiring for short circuit between ECM/test box and

Page 6 of 34

AUDI A8 2000 D2 / 1.G AHA Engine Motronic Ignition System Workshop Manual 28-5

Camshaft Position (CMP) sensor 2 -
G163-, checking


Notes:

Camshaft Position (CMP) sensor 2 -G163- is
located on the front of the right cylinder head
(Bank 1).
     Check

Page 7 of 34

AUDI A8 2000 D2 / 1.G AHA Engine Motronic Ignition System Workshop Manual 28-6

Checking

-  Disconnect 3-pin harness connector from
Camshaft Position (CMP) sensor 2 -G163-.

If voltage is OK:  -  Connect multimeter US1119 (Fluke 83 or equivalent) to meas

Page 8 of 34

AUDI A8 2000 D2 / 1.G AHA Engine Motronic Ignition System Workshop Manual 28-7


If wiring is OK (and voltage across terminals 1 and 3 is OK):
If wiring is OK (but still no voltage across terminals 1 and 3):  -  Check wiring for short circuit between ECM/test box and

Page 9 of 34

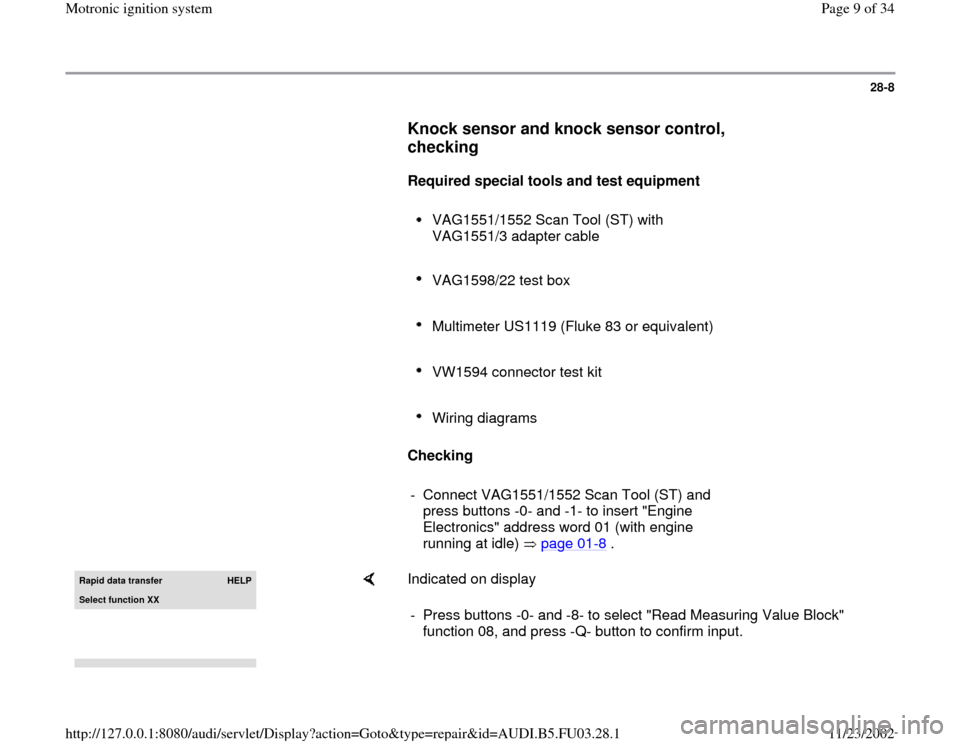

AUDI A8 2000 D2 / 1.G AHA Engine Motronic Ignition System Workshop Manual 28-8

Knock sensor and knock sensor control,
checking


Required special tools and test equipment

VAG1551/1552 Scan Tool (ST) with
VAG1551/3 adapter cable
     VAG1598/22 test b

Page 10 of 34

AUDI A8 2000 D2 / 1.G AHA Engine Motronic Ignition System Workshop Manual Read Measurin
g Value Block
HELP
Input display group number XXX

Indicated on display
Pa
ge 10 of 34 Motronic i
gnition s
ystem
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Go
