0 co .... N ,..... N .... 0 0 :c ' restraints on the front seat -some impor­
tant things to know .
A WARNING
Always take special precautions if you must
install a forward or rearward-facing child re­
straint on the front passenger's seat in excep­
tional situations:
- Whenever a forward or rearward-facing
child restraint is installed on the front pas ­
senger seat, the
PASSENGER AIR BAG OFF
light must come on and stay on whenever
the ignition is switched on .
- If the
PASSENGER AIR BAG OFF light does
not come on and stay on, perform the
checks described~
page 236, Monitoring
the Advanced Airbag System.
- T ake the ch ild restraint off the front passen­
ger seat and install it p roperly at one of the
rear seat positions if the
PAS SEN GER AIR
BAG OFF
light does not stay on whenever
the ignition is switched on .
- Improper installation of chi ld restraints can
reduce their effectiveness or even prevent
them from providing any protection.
- An improper ly installed chi ld restraint can
interfere with the airbag as it deploys and
seriously injure or even kill the child .
- Always carefu lly follow the manufacturer 's
instructions provided with the child safety
seat or carrier.
- Never place additional items on the seat
that can increase the total weight registered
by the weight-sensing mat and can cause in­
jury in a crash .
A WARNING
Forward-facing child restraints :
-Always make sure the forward-facing seat has been designed and certified by its man­
ufacturer for use on a front seat with a pas­
senger front and s ide a irbag .
- Never put the forward-facing child restraint
up, against or very near the instrument pan ­
el.
-Always move the front passenger seat to
the highest position in the up and down ad-
Ch ild safety
justment range and move it back to the
rearmost posit ion in the seat's fore and aft
adjustment range, as far away from the air­ bag as possible , before installing the for­
ward-facing child restraint.
- Always make sure that the safety belt upper
anchorage is behind the ch ild restraint and
not next to or in front of the child restraint
so that the safety be lt will be properly posi­
tioned.
- Make sure that the
PASSENGER AIR B AG
OFF
li ght comes on and stays on a ll the time
wheneve r the ignit ion is switched on.
A WARNING
Rearward-facing ch ild restraints:
- A child in a rearward-fac ing ch ild safety sea t
installed on the front passenger seat will be
serio usly injured and can be killed if the
front airbag inflates -even with an Ad­
vanced Airbag System.
- The inflating airbag will h it the ch ild safety
seat or infant carrier with great force and
will smash the child safety seat and child
aga inst the backrest, center armrest, door
or roof.
- Always be especially carefu l if you must in­
stall a rearward facing child safety seat on
the front passenger seat in except iona l cir­
cumstances.
- A t ight tether strap on a rearward-facing
child restraint attached to the front passen­
ger seat can put too much pressure on the
weight-mat in the seat and reg ister a heav i­
er weight in the Advanced Airbag System .
The heavier weight reg istered can make the
system work as though an ad ult we re on the
seat and deploy the Advanced A irbag when
it must be suppressed causing serious or
even fata l injury to the child.
- Make sure that the
PASSENGER AIR BAG
OFF
li ght comes on and stays on all the time
whenever the ignition is switched on .
- If the
PASSENGER AIR BAG OFF li ght does
not come on and stay on, immediately in­
stall the rear-facing child safety seat in a rear seating posit ion and have the airbag
system inspected by your Audi dealer.
259

Child safet y

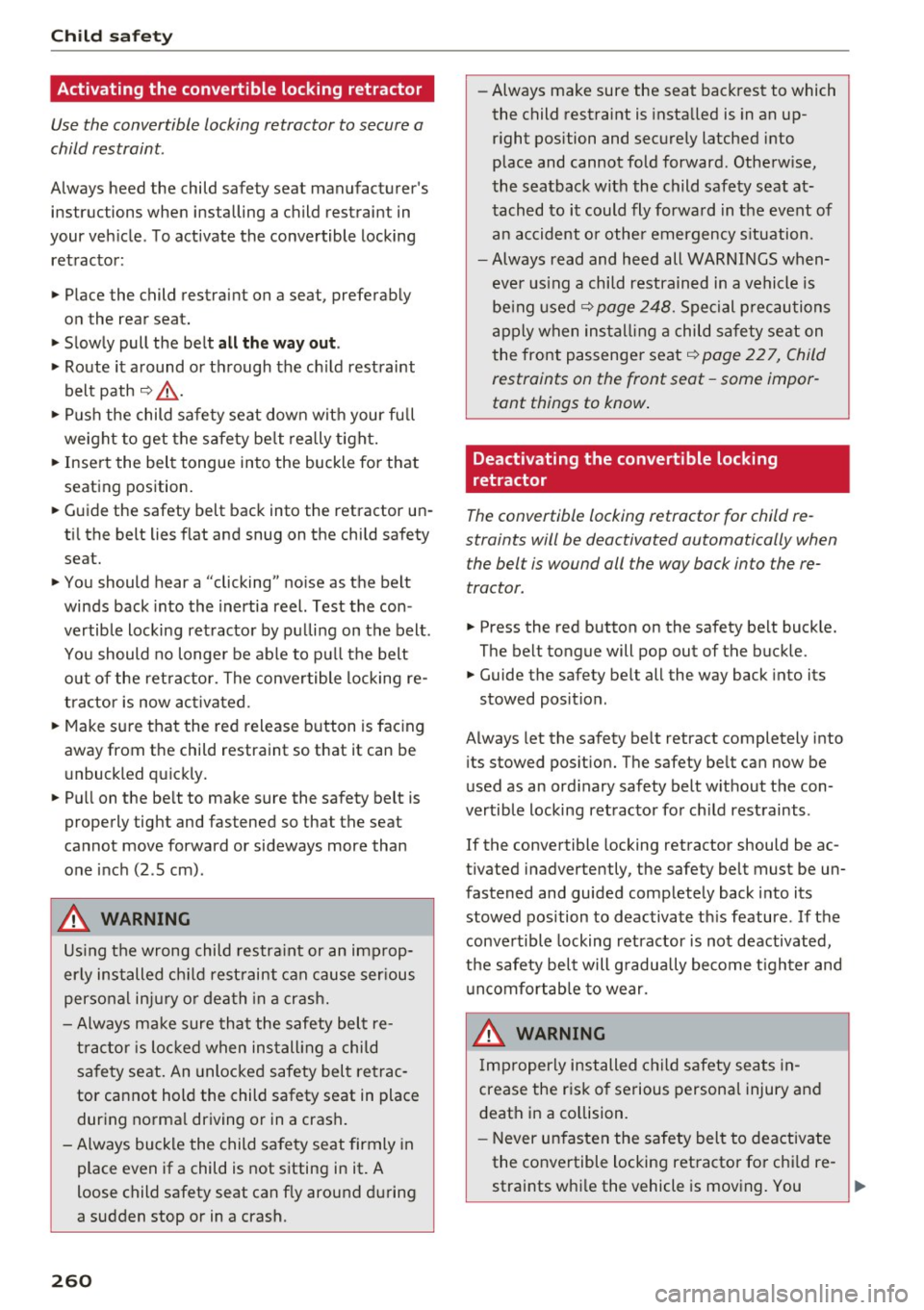

Activating the convertible locking retractor
Use the convertible locking retractor to secure a
child restraint.
Always heed the child safety seat manufacturer 's
instructions when installing a child restraint in
your veh icle . To activate the convertible locking
retractor:
.,. Place the child restraint on a seat, preferab ly
on the rear seat.
.,. Slowly pull the belt
all the wa y out .
.,. Route it around o r through the ch ild restraint
belt path
~ ,&. .
""Pu sh the child safety seat down wit h your fu ll
weight to get the s afety be lt rea lly tight.
.,. Inse rt the belt tongue into the buckle for that
seating position .
.,. Guide the safety belt back into the retractor un­
ti l the belt lies flat and snug on the child safety
seat.
.,. You should hear a "clicking" no ise as the belt
winds back into the inertia reel. Test the con ­
vertib le locking ret ractor by pu lling on the belt .
Yo u should no longer be ab le to pu ll the belt
out of the retracto r. The conve rtible locking re­
tra cto r is now act ivated .
.,. Make s ure that the red release b utton is fac ing
away from the child restraint so that it can be
u nbuck led q uickly.
.,. Pull on the be lt to make sure the safety belt is
properly tight and fastened so that the seat
cannot move forward or sideways more than
one inch (2 .5 cm) .
A WARNING
Using the wrong child restra int or an im prop­
erly installed ch ild rest raint can cause ser ious
perso nal in jury o r de ath in a crash.
- Always make sure tha t the safety belt re­
t ra ctor is loc ked when ins tall ing a child
safe ty seat. An unlocke d safety bel t re trac­
tor cannot hold the child safety seat in place during no rma l driving or in a crash .
- Always buckle the child safety seat firmly in
place even if a child is not s itting in it. A
loose child safety seat can f ly arou nd du ring
a sudden stop or in a crash.
260
- Always make sure the seat back rest to which
the child restraint is installed is in an up­
r ight position and securely latched into
place and cannot fold forward. Otherw ise,
the seatback with the child safety seat at­
tached to it could fly forward in the event of
an accident o r othe r emergency s ituation.
- Always read and heed all WARNINGS when­
eve r us ing a child restrained in a vehicle is
be ing used~
page 248. Spe cial p recau tions
ap ply when installing a child safety seat on
the front passenge r seat ~
page 22 7, Child
restraints on the front seat -some impor­
tant things to know .
' Deactivating the convertible locking
retractor
The convertible locking retractor for child re ­
straints will be deactivated automatically when
the belt is wound all the way back into the re­
tractor .
.,. Press the red button on the safety belt buck le.
The belt tongue will pop out of the buckle.
.,. Guide the safety be lt all the way back into its
stowed posit io n.
Always let the safety be lt retract completely into
i ts stowed pos it ion. The safety be lt can now be
u sed as an ord inary safety belt w it h out the con­
vertib le locking retractor for ch ild restraints .
If the conve rtible locking retractor should be ac­
tivated inadvertently, the safety belt must be un­
fastened and guided comp letely back i nto its
stowed pos ition to deactiva te th is feature . If the
conve rtible locking retractor is not deactivated,
the safety be lt will g radually become t ighter and
u n comfortab le to wear.
A WARNING
Improperly installed c hild safety seat s in­
crease the r is k of serious personal injury and
death in a co llision.
-
- Never unfasten the safety belt to deactiv ate
the convertible locking ret ractor fo r ch ild re-
straints wh ile the vehicle is mov ing. You
~

C) C0 ....
"' " "' .... 0 0 :r would not be restrained and could be
seriously injured in an accident.
- Always read and heed all WARNINGS when­
ever using a child restrained in a vehicle is
being used
c::> page 248 . Special precautions
apply when installing a child safety seat on
the front passenger seat
c::> page 22 7, Child
restraints on the front seat -some impor­
tant things to know.

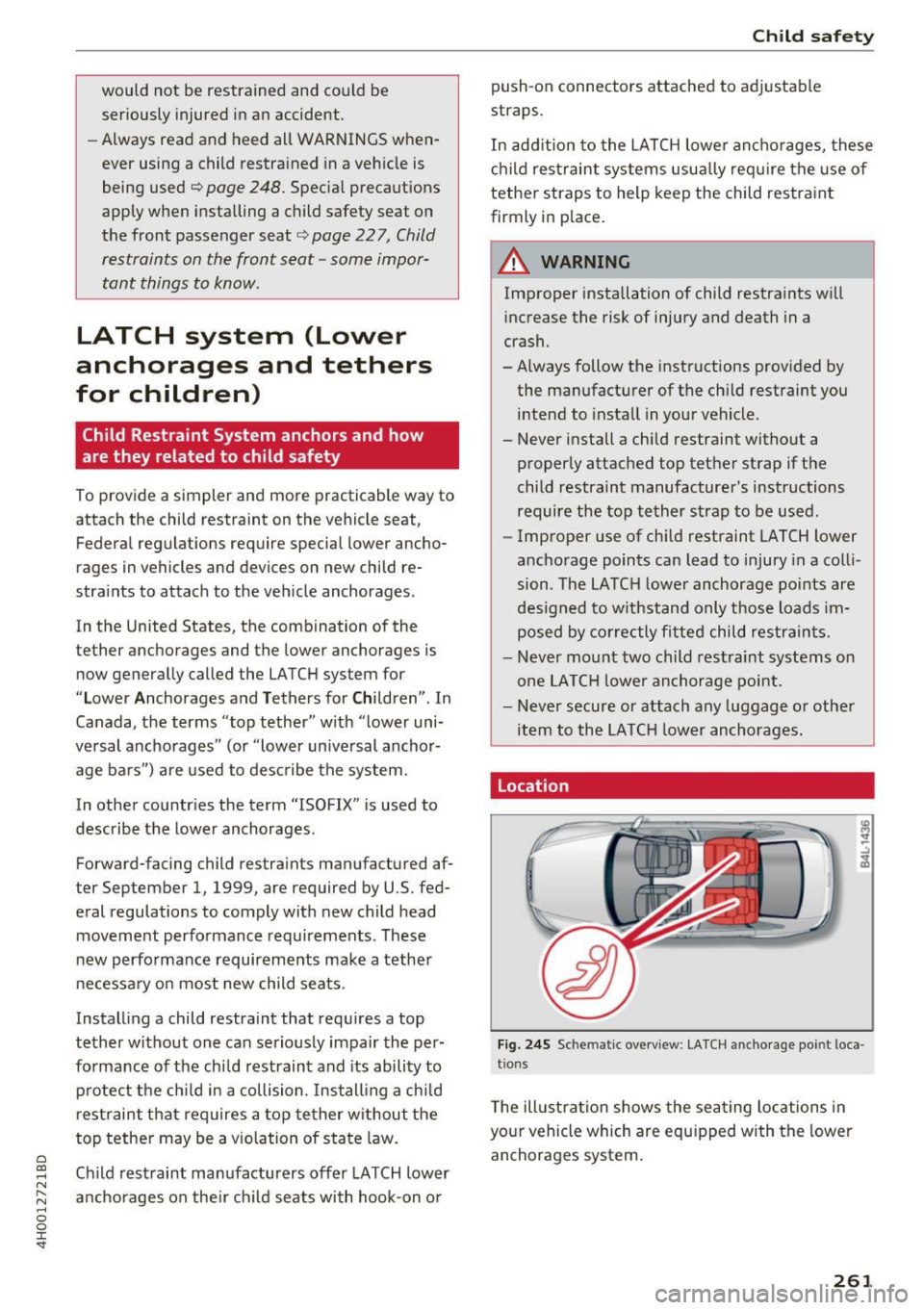

LATCH system (Lower
anchorages and tethers
for children)
Child Restraint System anchors and how
are they related to child safety
To provide a simpler and more practicable way to
attach the child restraint on the vehicle seat,
Federal regulations require special lower ancho­
rages in vehicles and devices on new child re­
straints to attach to the vehicle anchorages.
In the United States, the combination of the
tether anchorages and the lower anchorages is
now generally called the LATCH system for
" L ower Anchorages and Tethers for Children" . In
Canada, the terms "top tether" w ith "lower uni­
versal anchorages" (or "lower universal anchor­ age bars") are used to describe the system.
In other countries the term ''ISO FIX" is used to
describe the lower anchorages .
Forward-facing child restraints manufactured af­
ter September 1, 1999, are required by U .S. fed­
eral regulations to comply with new child head
movement performance requirements. These
new performance requirements make a tether
necessary on most new child seats.
Installing a child restraint that requires a top
tether without one can serious ly impair the per­
formance of the chi ld restraint and its ability to
protect the child in a collision. Installing a child
restraint that requires a top tether without the
top tether may be a v iolation of state law.
Ch ild restraint manufacturers offer LATCH lower
anchorages on the ir ch ild seats with hook-on or
Child safety
push-on connectors attached to adjustable
straps.
In addition to the LATCH lower anchorages, these
child rest raint systems usua lly require the use of
tether straps to help keep the child restraint
firmly in place.
A WARNING
-
Improper installation of child restraints will
in crease the risk of injury and death in a
crash.
-Always follow the instructions provided by
the manufacturer of the child restraint you
intend to insta ll in your vehicle.
- Never install a child restraint without a
proper ly attached top tether strap if t he
child restraint manufacturer's instructions
require the top tether strap to be used.
- Improper use of child restraint LATCH lower
anchorage points can lead to injury in a colli­
sion. The LATC H lower anchorage points are
des igne d to withstand only those loads im­
posed by correctly fitted child restraints.
- Never mount two child restraint systems on
one LATCH lower anchorage point.
- Never secure or attach any luggage o r other
item to the LA TCH lower anchorages.
Location
Fig. 245 Schematic overv iew: LATCH anchorage poi nt loca­
tio ns
T he illustration shows the seating locations in
your vehicle which are equipped with the lower
anchorages system.
261

Child safety

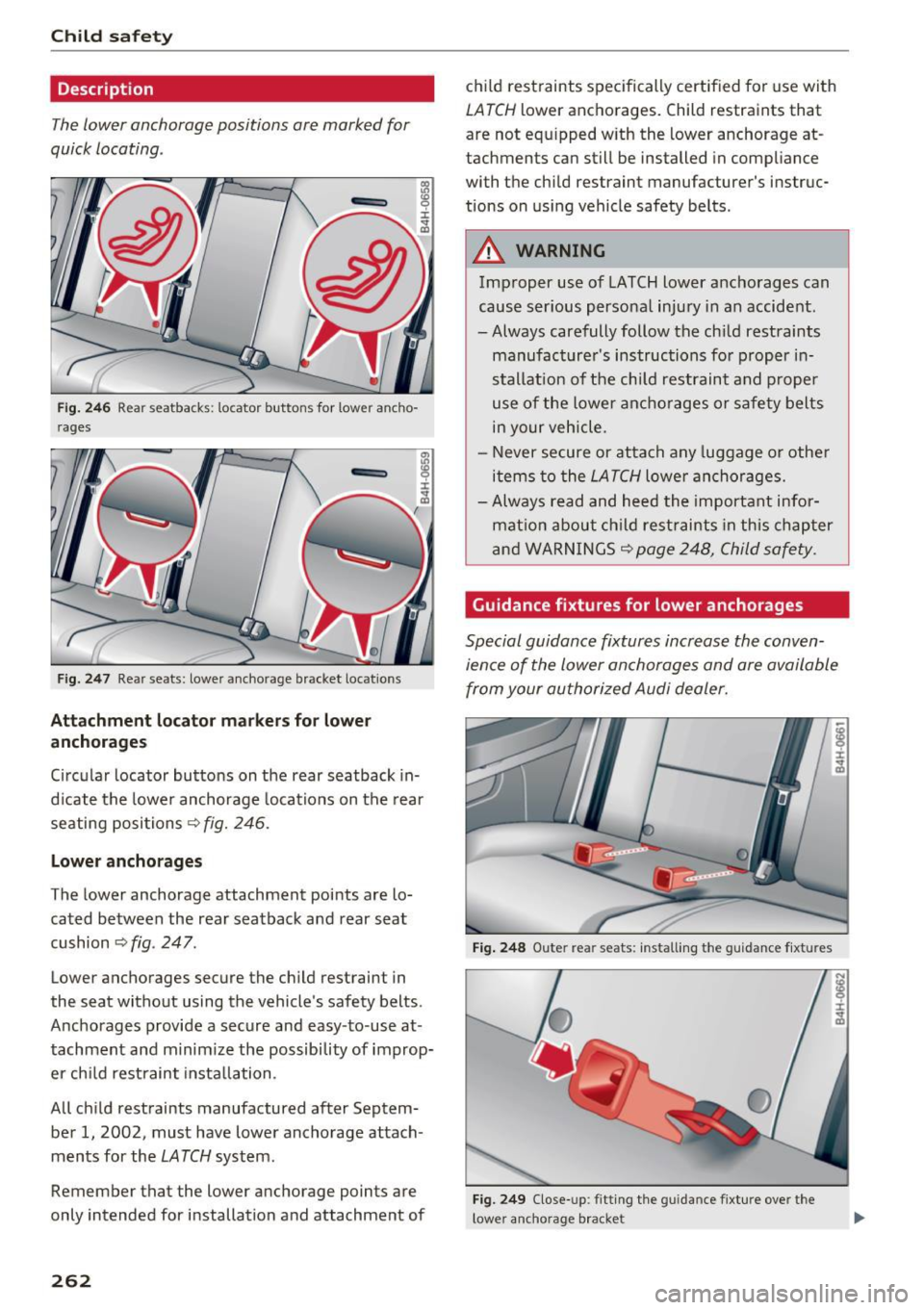

Description
The lower anchorage positions are marked for
quick locating .
Fig. 246 Rear seatbacks: locator buttons for lower ancho­
rag es
/(
Fig. 247 Rear seats: lower anchorage bracket locations
Attachment lo cator m arke rs for lo wer
a nchorages
:c
~ I
Circular locator buttons on the rear seatback in­
d icate the lower anchorage locations on the rear
seating positions
Q fig. 246.
Lowe r ancho rages
The lower anchorage attachment points are lo­
cated between the rear seatback and rear seat
cushion
Q fig . 247 .
Lower anchorages secure the child restraint in
the seat without using the vehicle's safety belts .
Anchorages provide a secure and easy-to -use at ­
tachment and m inim ize the possibility of improp­
er ch ild rest raint insta llation .
All child restraints manufactured after Septem­
ber 1, 2002, must have lower anchorage attach ­
ments for the
LATCH system .
Remember that the lower anchorage points are
only intended for installation and attachment of
262
child restraints specifically certified for use with
LATCH lower anchorages. Child restraints that
are not equ ipped with the lower anchorage at­
tachments can still be installed in compliance
with the chi ld restraint manufacturer's instruc­
tions on us ing vehicle safety be lts .
_& WARNING
Imp roper use of LATCH lower anchorages can
cause ser ious persona l injury in an accident.
-Always carefully follow the ch ild restraints
manufact urer's ins tructions for proper in­
stallation of the child restraint and prope r
use of the lower an chor ages or safety belts
in your vehicle .
- Never secure or attach any luggage or othe r
items to the
LATCH lowe r anchorages.
- Always read and heed the important infor­
mat ion about ch ild rest raints in this chap ter
and WARNI NGS
Q page 248, Child safety .
Guidance fixtures for lower anchorages
Special guidance fixtures increase the conven­
ience of the lower anchorages and are available
from your authorized Audi dealer.
Fig . 248 Oute r rear seats: install ing the guidance fixtures
Fig. 249 Close -up: fitting the guidance fixture ove r the
lower anchorage b racket

C) C0 ....
"' " "' .... 0 0 :r The lower anchorage attachment points are lo­
cated on the rear seats between the seatback and
the seat cushion. Special guidance fixtures in­
crease the convenience of the lower anchorages
and help protect the seat material from possible
damage when installing child restraints .
In stall ing th e guidanc e fixtu re s
.,. Push down on the seat cushion so that the low­
er anchorages are visible.
.,. Hold the guidance fixture with the part number
facing downward and push it in the direction of
the arrow onto the anchorage
c> fig. 249 .
.,. Make sure that each of the two guidance f ix­
tures per seat snaps into place.
R emo ving the gu idanc e fixtu re s
.,. Remove the child restraint according the child
restraint manufacturer's instructions.
.,. Push down on the seat cushion so that the low ­
er anchorages are visible .
.,. Pull off the guidance fixtures from the lower
anchorages.
.,. Always remove the guidance fix tures and keep
them in a safe p lace when not in use.
You may find it easier to install ch ild restraints
eq uipped w ith hooks attached to st raps without
the guidance f ixt ures in place. If th is is t he case,
remove the guidance fixtures by pu lling them off
the anchorages . However, the guidance fixtures
can help you to locate the
LATCH anchorages.
A WARNING
Improper use of tether anchorages or lower
anchorages can cause serious persona l injury
in a crash .
- Always carefully follow the child restra int
manufacturer's instruct ions for proper in­
stallation and use of child restra int systems .
- Never use the
LATCH or tether anchorages
to attach safety belts or other kinds of occu­
pant restra ints.
- Child restra int tether attachments and low­
er attachments are only designed to secure
a ch ild restraint that has been equipped to
use these anchorages .
-
Child sa fety
- Tether anchorages and lower anchorages
are designed to withstand only those loads
imposed by correctly fitted child restraints.
Under no circumstances can they be used
safely for adu lt or ch ild safety belts or har­
nesses.
- Never mount more than one child restraint to a sing le tether or to a lower anchorage
point. Attaching two child restra ints to a
sing le anchorage point can cause the an­
chorage to fail and cause serious personal
i n ju ry in a crash.
(D Note
- Remove the guidance f ixt ures before fo ld­
ing the rear seatback to preven t damag ing
the seat cushion .
- T o attach the c hild rest raint securely, the
sea t must be moved to the farthest rear po­
sition, the seat heigh t set to the lowest po­
sition and the head restraint must be ad­
justed to the vertical position.
- If you leave the guidance fixtures i nstalled
for several days, they cou ld leave a mark on
the upholstery on the seat cushion and backrest in the area that the guidance fix­
tures were installed. The upholstery would
also be permanently stretched around the
guidance fixtures. Th is applies especially to
leather seats.
Installing a child restraint with LATCH
lower anchorages
Whenever you install a child restraint always fol­
low the child restraint manufacturer's instruc­
tions.
F ig. 250 Lower ancho rages: proper mounting
263

Child safety
Mounting
.. Make sure the seatback of the rear seat bench
is in the upright position and securely latched
in place .
.. Attach both hook-on connectors with the spring
catch re lease on the child safety seat onto the
LATCH lower anchorage so that the connectors
lock into place
c> fig. 250.
.. Pull on the connector attachments to make
sure they are properly attached to the LATCH
lower anchorage .
.. Pull straps tight follow ing the child restra int
manufacturer's instructions.
Releasing
.. Loosen the tension on the straps following the
child restraint manufacturer's instructions.
.. Depress the spring catches to release the an­
cho rage hooks from the lower anchorages.
Remember: Use tether straps to help keep the
child restraint firmly in place .
.,&. WARNING
Improper use of the LATCH system can in­
crease the risk of serious personal injury and
death in an accident .
- Th ese anchors were deve loped only for child
safety seats using the "LA TCH" system.
- Never attach other child safety seats, belts
or other objects to these anchors .
- Always make sure that you hear a click when
latch ing the seat in place. If you do not hear
a click the seat is not secure and could fly
forward and hit the interior of the vehicle,
or be ejected from the vehicle .
.,&. WARNING
Improper installation of child restraints will
increase the risk of injury in an acc ident.
- Always follow the child restraint system
manufacturer's instructions for proper in­
stallation of the child restraint system and
proper use of tether straps as well as the
lower anchorages or safety belts in your ve­
hicle .
- Always read and heed the important infor­
mation and WARNINGS about child safety
264 and the installation of child restraint sys­
tems
c> page 248, Child safety .
(D Note
On vehicles with power adjustable rear seats*
some crite ria must be observed when attach­
ing the child restraint using the
LATCH sys­
tem:
- To attach the ch ild restraint securely, the
seat must be moved to the farthest rear po­
sition, the seat height set to the lowest po­
sit ion and the head restraint must be ad­
justed to the vertical position.
- If a child safety seat is attached to one of
the rear seats, this seat must not be adjust­
ed using the power controls under any c ir­
cumstances. The
Entry assistance for this
seat must also be deactivated in the MMI
c> page 58. Th e child safety seat as well as
the rear seat can be damaged by the adjust­
ment process.
Tether anchors and tether straps
Fig. 251 Tether ancho rs: recess flaps behind the rear seat­
backs
The tether anchors for the two* /three rear seat­
ing positions are located in recesses in the rear
window shelf
c> fig . 251 . Vehicles with two rear
seat ing positions* are equipped with two tether
anchors .
A tether is a straight or V-shaped strap that at­
taches the top part of a chi ld restraint to special
anchorage points in the veh icle.
The purpose of the tether is to reduce the for­
ward movement of the child restraint in a crash,
in order to help reduce the risk of head injury
111JJ,

C) C0 ....
"' ,....
"' .... 0 0 :r that could be caused by striking the vehicle inte­
rior .
Fo rward facing child restraints manufactured af­
ter September 1, 1999, are required by U .S. fed­
eral regulations to comply with new child head
movement performance requirements. These
new performance requirements make a tether
necessary on most new child safety seats.
A WARNING
Improper installation of child restraints will
increase the risk of injury and death in a
crash.
- Always follow the instructions provided by
the manufacturer of the child restraint you
intend to install in your Audi.
- Improper use of child restraint anchors (in­
cluding tether anchors) can lead to injury in
a collision. The anchors are designed to
withstand only those loads imposed by cor­ rectly fitted child restraints.
- Never mount two child restraint systems on
one LATCH lower anchor point.
- Never attach two child restraint systems to
one tether strap or tether anchorage.
- Never attach a tether strap to a tie-down
hook in the luggage compartment.
- Never use child restraint tether anchorages
to secure safety belts or other kinds of occu­ pant restraints.
- Never secure or attach any luggage or other
items to the LATCH lower anchorages or to
the tether anchors.
- If a tether or other strap is used to attach a
child restraint to the front passenger seat,
make sure that it is not so tight , that it
causes the weight-sensing mat to measure
more weight than is actually on the seat.
- The heavier weight registered can make the
Advanced Airbag System work as though an adult were on the seat and deploy the Ad­
vanced Airbag when it must be suppressed causing serious or even fatal injury to the
child.
- If you must install a rearward facing child
safety seat on the front passenger seat be­
cause of exceptional circumstances and the
Child safety
PASSENGER AIR BAG OFF light does not
come on and stay on, immediately install
the rear-facing child safety seat in a rear
seating position and have the airbag system inspected by your Audi dealer.
Installing the upper tether strap on the
anchorage

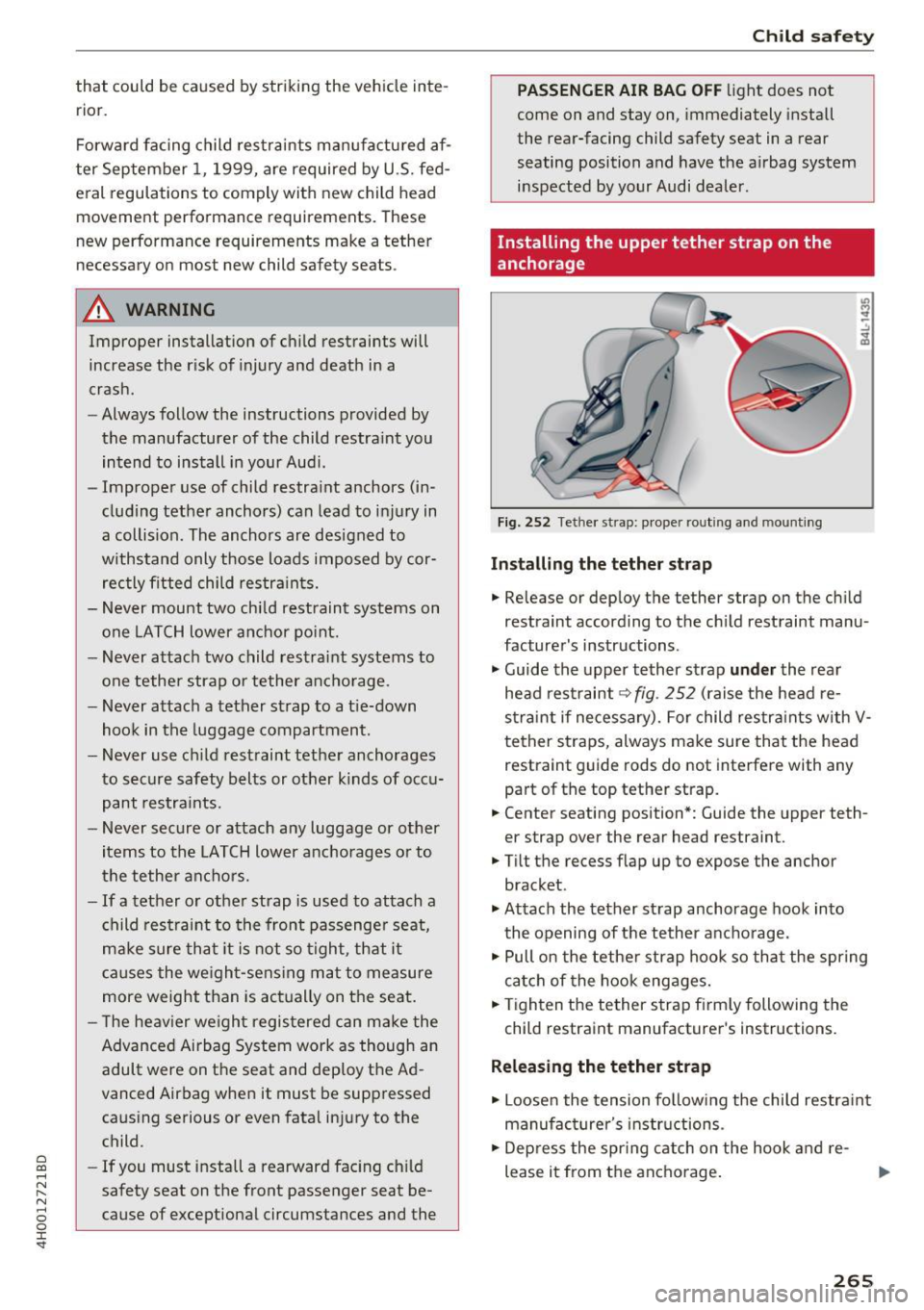

Fig. 252 Tether st rap: proper routing and mount ing
Installing the tether strap
.,. Release or deploy the tether strap on the child
restraint according to the child restraint manu­
facturer's instructions .
.,. Guide the upper tether strap
under the rear
head restraint ¢
fig. 252 (raise the head re­
straint if necessary). For child restraints with V­
tether straps, always make sure that the head
restraint guide rods do not interfere with any
part of the top tether strap .
.,. Center seating position*: Guide the upper teth­
er strap over the rear head restraint.
.,. Tilt the recess flap up to expose the anchor
bracket.
.,. Attach the tether strap anchorage hook into
the opening of the tether anchorage .
.,. Pull on the tether strap hook so that the spring
ca tch of the hook engages.
.,. Tighten the tether strap firmly following the
child restraint manufacturer's instructions.
Releasing the tether strap
.,. Loosen the tension following the child restraint
manufacturer's instructions .
.,. Depress the spring catch on the hook and re­
lease it from the anchorage.
265

Child safet y
CJ) Note
If you leave the chi ld restraint with the tether
strap firmly installed for several days, this
could leave a mark on the upholstery on the
seat cush ion and backrest in the area where
the tether strap was installed. The upholstery
would also be permanently stretched around the tethe r strap . This applies especially to
lea ther seats .
Using tether straps on rearward-facing
child restraints
Curre ntly, few rear -facing chi ld restraint systems
come w ith a tether . P lease read and heed the
child restra int system manufact urer 's instruc­
t ions carefully to determine how to properly in­
stall the tether .
A WARNING
A child in a rearwa rd-faci ng chi ld safety seat
installed o n the front passenge r seat w ill be
ser iously injured and c an be killed if the fron t
airb ag infla tes -even w ith an Adv ance d Airbag
System.
- T he infl ati ng air bag w ill hit the child sa fety
seat or infant carrier wi th great force and
will smash t he chi ld safety seat and child
against the bac krest, center armrest, o r
doo r.
- A tight tether or other strap on a rearward­
facing child restraint attached to the front
passenger seat can put too m uch pressure
on the we ight-mat in the seat and register a
heavie r weig ht in the Advanced Airbag Sys­
tem . The heav ier weight registered can
make the system wo rk as though an adult
were on the sea t and deploy the Advanced
Air bag whe n it must be supp res sed ca using
serious o r even fa tal i njur y to the ch ild.
- If you mus t install a rearward fac ing ch ild
sa fe ty seat on the front passenger sea t be­
ca use of exceptiona l circumstances and the
PASSENGER AIR BAG OFF light does not
come on and stay o n, immed iate ly install
the rear-fac ing ch ild safety seat in a rear
seat ing pos ition and have the airbag system
inspected by your Audi dealer.
266
Additional information
· Sources of information about child
restraints and their use
There are a n umber of sources of addi tional in ­
formation about ch ild rest raint se lection, instal ­
l ation and use :
N HT SA advises t hat the bes t chi ld safety seat is
the one tha t fits yo ur child and fits in yo ur vehi ­
cle, and that you will use correct ly and consis­
te ntly.
Try befo re yo u buy!
U.S National Highway Traffic Safety Administra ­
tion
Tel.: 1 -888 -3 27- 42 36 ( TTY: 1-800- 424 -9153)
htt p://www.nh tsa.gov
http:/ /www .sa ferca r.gov
National SAFE KIDS Campaign
Tel.: ( 202) 662-0600
htt p://www.safekids .org
Safety BeltSafe U.S .A
T el.: (800) 745-SA FE (E nglish)
Tel.: (8 00) 747-SA NO (Spanish)
htt p://www.ca rseat.o rg
Transport Canada Information Centre
Tel.: 1-800-333-0371 o r ca ll 1 -613-998-86 16 if
yo u are in the Ottawa area
h ttp://www.tc.gc.ca/ eng/ roadsafety/menu. htm
Audi Customer Re lat ions
Tel.: (800) 82 2-2834

Checking and Filling
Gasoline
Fuel supply
Applies to: vehicles with gaso line engine
Using the right fuel helps keep the environment
clean and prevents engine damage .
Fuel recommendation
The fuel recommended for your vehicle is unlead­
ed premium
grade gasoline. Audi recommends
using TOP TIER Detergent Gasoline with a mini­
mum octane rating of 91 AKI (95 RON). For more
information on TOP TIER Detergent Gasoline,
please go to the official website
(www.toptiergas .com) .
The recommended gasoline octane rating for
your engine can also be found on a label located
on the inside of the fuel filler flap. This rating
may be specified as AKI or RON.
Your vehicle may also be operated using unlead­
ed regular gasoline with a min imum octane rat ­
ing of 87 AKl/91 RON. However, using 87 AKl/91
RON octane fuel will slightly reduce engine per­
formance.
Use unleaded gasoline only. Unleaded gasoline
is available throughout the USA, Canada, and in
most European countries . We recommend that
you do not take your vehicle to areas or countries
where un leaded gasol ine may not be available.
For more information on refueling your vehicle,
see
~ page 268.
Octane rating
Octane rating indicates a gasoline's ability to re­
sist engine damaging "knock" caused by prema­
ture ignit ion and detonation . Therefore , buy ing
the correct grade of gasoline is very important to
h e lp prevent possible engine damage and a loss
of eng ine performance.
Gasoline most commonly used in the United
States and Canada has the following octane rat-
~ ings that can usually be found on the filler pump: .... N
~ -Premium Grade: 91 -96 AKI .... 0 0 :c ' Checking and Filling
-Regu lar Grade: 87 -90 AK I
Exp lanation of the abbreviations:
AK I=
Anti Knock Index = (R +M)/2 = (RON +MON)/
2
RON = Research Octane Number
MON= Moto r Octane Number.
(D Note
- Do not use any fuel with octane ratings low­
er than 87 AKI or 91 RON otherwise expen­
sive engine damage will occur.
- Do
not us e leaded gasoline. The use of lead­
ed gasoline will severe ly damage your vehi­
cle's catalytic converter and its ability to
control exhaust emissions .
Blended gasoline
Applies to: vehicles with gasoline engine
Use of gasoline containing alcohol or MTBE
(methyl tertiary butyl ether)
You may use unleaded gasoline blended with al­
cohol or MTB E (commonly referred to as oxygen ­
ates) if the blended mixture meets the following
criteria:
Blend of gasoline methanol (wood alcohol or
methyl alcohol)
-Anti -knock index must be 87 AKI or higher.
- Blend must contain no more than 3% metha-
nol.
- Blend must contain more than 2% co-solvents.
Blend of gasoline and ethanol (grain alcohol or
ethyl alcohol)
- Anti-knock index must be 87 AKI or higher.
- Blend must not conta in more than 15% etha-
nol.
Blend of gasoline and MTBE
- Anti-knock index must be 87 AK I or higher.
- Blend must contain not more than 15% MTBE.
Seasonally adjusted gasoline
Many gasoline grades are blended to perform es­
pecially well for winter or summer dr iving . Dur-
ing seasonal change-over, we suggest that you ..,.
267

Checking and Filling
fill up at busy gas stations where the seasonal
adjustment is more likely to be mad e in time.
0 Note
- Methanol fuels which do not meet these re­
quirements may cause corrosion and dam­
age to plastic and rubber components in the
fuel system.
- Do not use fuels that fail to meet the speci­
fied criteria in this chapter .
- If you are unable to determine whether or
not a particular fuel blend meets the speci­
fications, ask your service station or its fuel
supplier.
- Do not use fuel for which the contents can­
not be identified.
- Fuel system damage and performance prob­
lems resulting from the use of fuels differ­
ent from those specified are not the respon­
sibility of Audi and are not covered under
the New Vehicle or the Emission Control
System Warranties.
- If you experience a loss of fuel economy or
driveability and performance problems due
to the use of one of these fuel blends, we
recommend that you switch to unblended
fuel.
Gasoline additives
A pp lies to: ve hicles w ith gasoline engine
A major concern among many auto manufactur­
ers is carbon deposit build-up caused by the type
of gasoline you use .
Although gasoline grades differ from one manu­
facturer to another, they have certain things in
common. All gasoline grades contain substances
that can cause deposits to collect on vital engine
parts, such as fuel injectors and intake valves. Al­
though most gasoline brands include additives to keep engine and fuel systems clean, they are not
equally effective .
Audi recommends using TOP TIER Detergent Gas­
oline. For more information on TOP TIER Deter­
gent Gasoline, please go to the official website (www.toptiergas .com) .
268
After an extended period of using inadequate
fuels, carbon deposit build-ups can rob your en­
gine of peak performance.
([) Note
Damage or malfunction due to poor fuel qual­
ity is not covered by the Audi New Vehicle
Limited Warranty.
Refueling
· Fuel filler neck
The fuel filler neck is located on the right rear
side panel behind the fuel filler flap .
If the power locking system should fail, you can
still open the flap manually -for detailed instruc­
tions see
~ page 2 70.
You can find the fuel tank capacity of your vehicle
in
~ page 334 .
The label on the inside of the fuel filler flap tells
you the correct fuel for your vehicle. For more in­
formation about fuel specifications, see
~ page 267.
Your vehicle fuel tank has an on board refuelling
vapor recovery system. This feature helps to pre­
vent fuel vapors from escaping from the tank and
polluting the environment while you refuel your
vehicle . In order to fill the tank properly while
protecting the environment, please follow this
refueling procedure carefully.
& WARNING
-Under normal operating conditions, never car­
ry additional fuel containers in your car. Gas
canisters and other containers used to trans­
port fuel can be dangerous. Such containers,
full or empty, may leak and could cause a fire
in a collision. If you must transport fuel to
use for your lawn mower, snow blower, etc .,
be very careful and always observe local and
state laws regarding the use, transportation
and storage of such fuel containers. Make cer­
tain the container meets industry standards
(ANSI/AS TM F8S2 -86).
