Cockpit overv iew
CD Note
-Auxiliary headlights and other accessories in
front of the cooling-a ir intake impair the
cooling effect of the coolant. This increases
the r isk of the engine overheat ing during
high outside temperatures and heavy en-
gine load.
- The front spoiler also he lps to distr ibute
cooling air correctly wh ile driving. If the
spoiler is damaged, the cooling effect will
be impaired and the risk of the engine over­
hea ting will inc re ase. See an a uthorized
A udi dealer or au thori zed A udi Service Fa­
cility for assistance .
Tachometer
The tachometer display s the engine speed in rev­
olutions per minute
(RPM).
You shou ld shift to the nex t lowest gea r whe n
the speed is below 1,500 R PM. The beginn ing of
the red zone in the t achometer indic ates the
maxim um permissible eng ine speed fo r all gears
once the engine has been broken in an d when it is
warmed up to operating temperature . Before
reaching this zone, you should shift into the next
h ighest gear, select the D selector lever pos ition,
or remove your foot from the accelerator pedal.
CD Note
The needle in the tachometer @ <=:> page 9,
fig. 3 may only be in the red area of the gauge
for a short t ime or the re is a risk of engine
damage. The locat ion where the red zone be­
gi ns varies depending on the engine.
@ For the sake of the environment
Upshifting early helps you to save fuel a nd re­
duce operating noise.
Fuel level
The display ® only works when the ignition is
sw itched on. If the fuel level d rops below 4 gal
(15
L), a red L ED will light up and the ll) ind ica­
tor light will tur n on
<=:> page 24 . The red LED
will blink when the fuel level is very low.
10
The fuel tank capacity of your ve hicl e is listed in
the
Techn ical Data section <=:> page 334 .
CD Note
Never dr ive until t he ta nk is comp letely emp­
ty. The irreg ular su pp ly of fuel t hat res ults
from that can cause engine m isfires . Uncom­
b uste d fue l w ill then enter the exhaust sys ­
tem. This ca n cause overheating and damage
to the catalyt ic converter.
Odometer
Fi g. 4 Instru ment cluster: odometer a nd reset button
Upper odomet er
The trip odometer shows the distance driven
since it was last reset. It can be used to measure
short distances.
The trip odometer can be reset to zero by press ­
ing the ~ reset button.
Lower odometer
The lower odomete r shows the tota l distance
that the vehicle has d riven.
Malfunction indicator
If there is a malfunction in the instr ument clus­
te r,
DEF will appear in the trip odometer display.
Have the malfu nction corrected as soon as possi­
ble.

0 co .... N ,..._
N .... 0 0 :c ' the risk that the vehicle will slide. Drive care­
fully to the nearest authorized Audi dea ler or
authorized Audi Service Fac il ity and have the
malfunction corrected.
(D Tips
For addit ional information on ESC and ABS,
refer to¢
page 126.
ffl;/ !f Safety systems
The II (USA models)/ m (Canada mode ls) indi­
cator light monitors the safety systems.
If the
II (USA mode ls)/ m (Canada models) in­
d ic ator light turns on or blinks, there is a mal­
function in a safety system such as the airbag or belt tensioner system .
Drive to an authorized Aud i dea ler or a uthori zed
Aud i Service Facility immedia tely to have the
malfunct ion corrected.
A WARNING
Have the malf unct ion in the safety systems
inspected immediately. Otherwise, the re is a
r is k th at the systems may not activate du ring
a co llision, which increases the risk of serio us
injury or death.
& Brake booste r
II Brake servo : limited functionality . You can
continue driving. Contact workshop
-
There is a malfunction in the brake boos ter. The
b ra ke booster is availab le, bu t its effec tiveness is
r educed. Braking behavior may be diffe rent from
h ow it no rmally functions and t he brake peda l
may vibrate.
D rive to an aut ho rize d Aud i dea le r o r au thorized
Aud i Service Facility immediately to have t he
malfunct ion corrected.
(0) Brake pads
llJ Brake pads!
T he br ake pads are wo rn. Cockpit o
verview
Drive to an authori zed A udi dealer or au thorized
Audi Service Facility immediate ly to have the
brake pads checked.
Applies to USA models
T he llJ indica tor light turns on togethe r wi th the
1111 indicator light
EPC Engine control (gasoline engine)
~ Engine start system fault . Please contact
deale r
The re is an eng ine contro l ma lf u nction.
Immed iate ly dr ive s low ly to an author ized A udi
dealer or au thor ized A udi Se rvice Fa cility to have
t h e mal func tion corre cted.
a Malfunction indicator lamp (MIL)
The ma lf u nction indicator lamp ( MIL) is part of
the On Board Diagnostic system (OBD II). The
¢4 c;ymbol turns on when the ignition is sw itched
on and turns off aga in once the engine is started
and ru nning at a steady idle speed . This indicates
t h at the MIL is f unct ion ing cor rectly .
The ind icator light turns on if there is a malfunc­
t ion in the engine electronics . See an authorized
Audi dealer or authorized A udi Service Fac ility to
have t he mal funct ion cor rected . Fo r additional
informa tion, see
¢ page 25 .
The ind icator light can a lso turn o n if the fuel fill­
er cap is not closed correctly¢
page 269.
!?' Engine speed limitation
Applies to : vehicles with engine speed limitatio n
~ Maximum engine speed XXXX RPM
The eng ine speed is automatically limited to the
RPM shown in the instrument cluster d isplay.
This protects the engi ne from overheat ing .
The eng ine speed limitation deactivates once the
engine is no longe r in the critical temperatu re
range and you have re leased the accelerator ped­
al once .
If the engine speed limitation was activated by
an engine cont rol malfunction, the~ indicator ..,.
23

Cockpit overview
On-Board Diagnostics
Fig. 19 Location of Data Link Connector (DLC)
On-Board Diagnostics monitors the components
of your emission control system. Each monitored
component in your engine system has been as­
signed a code . In case of a malfunction, the com­
ponent will be identified and the fault stored as a
code in the control module memory.
The MIL light may also illuminate if there is a
leak in the on-board fuel vapor recovery system.
If the light illuminates after a refueling, stop the
vehicle and make sure the fuel filler cap is prop­
erly closed
¢ page 269.
In order to make an accurate diagnosis, the stor­
ed data can only be displayed using special diag­
nostic equipment (generic scan tool for OBD).
In order to connect the special diagnostic equip­ ment, push the plug into the Data Link Connector
(DLC). The DLC is located to the right of the hood
release
¢ fig. 19.
Your authorized Audi dealer or a qualified service
station can interpret the code and perform the
necessary repair.
A WARNING
Do not use the diagnostic connector for per­
sonal use. Incorrect usage can cause malfunc­
tions, which can increase the risk of a colli­
sion!
Electronic speed limiter
-
Your vehicle may be factory equipped with tires
that are rated for a maximum speed of 130 mph (210 km/h). This is less than the maximum speed
of your vehicle . To reduce the risk of sudden tire
26
failure and loss of control if the vehicle is operat­
ed at excessive speeds, your vehicle also has an
electronic speed limiter. The electronic speed
limiter prevents your vehicle from going faster
than the tire speed rating. For more information
¢ page 290.
If the engine control unit receives faulty vehicle
road speed signals, the Malfunction Indicator
Lamp (MIL)
¢'4 will illuminate. If this occurs,
contact the nearest authorized Audi dealer for
ass istance.
58
Your vehicle's top speed is electronically limited
to 155 mph (250 km/h).
If the engine control unit receives faulty vehicle
roadspeed signals, the Malfunction Indicator
Lamp (MIL)
¢'4 will illuminate. If this occurs,
contact the nearest authorized Audi dealer for
assistance.
A WARNING
Always observe the posted speed limits and
adjust your speed to suit prevailing road, traf­
fic and weather conditions. Never drive your vehicle faster than the maximum speed rating
of the ti res installed.
-

Checking and Filling
fill up at busy gas stations where the seasonal
adjustment is more likely to be mad e in time.
0 Note
- Methanol fuels which do not meet these re­
quirements may cause corrosion and dam­
age to plastic and rubber components in the
fuel system.
- Do not use fuels that fail to meet the speci­
fied criteria in this chapter .
- If you are unable to determine whether or
not a particular fuel blend meets the speci­
fications, ask your service station or its fuel
supplier.
- Do not use fuel for which the contents can­
not be identified.
- Fuel system damage and performance prob­
lems resulting from the use of fuels differ­
ent from those specified are not the respon­
sibility of Audi and are not covered under
the New Vehicle or the Emission Control
System Warranties.
- If you experience a loss of fuel economy or
driveability and performance problems due
to the use of one of these fuel blends, we
recommend that you switch to unblended
fuel.
Gasoline additives
A pp lies to: ve hicles w ith gasoline engine
A major concern among many auto manufactur­
ers is carbon deposit build-up caused by the type
of gasoline you use .
Although gasoline grades differ from one manu­
facturer to another, they have certain things in
common. All gasoline grades contain substances
that can cause deposits to collect on vital engine
parts, such as fuel injectors and intake valves. Al­
though most gasoline brands include additives to keep engine and fuel systems clean, they are not
equally effective .
Audi recommends using TOP TIER Detergent Gas­
oline. For more information on TOP TIER Deter­
gent Gasoline, please go to the official website (www.toptiergas .com) .
268
After an extended period of using inadequate
fuels, carbon deposit build-ups can rob your en­
gine of peak performance.
([) Note
Damage or malfunction due to poor fuel qual­
ity is not covered by the Audi New Vehicle
Limited Warranty.
Refueling
· Fuel filler neck
The fuel filler neck is located on the right rear
side panel behind the fuel filler flap .
If the power locking system should fail, you can
still open the flap manually -for detailed instruc­
tions see
~ page 2 70.
You can find the fuel tank capacity of your vehicle
in
~ page 334 .
The label on the inside of the fuel filler flap tells
you the correct fuel for your vehicle. For more in­
formation about fuel specifications, see
~ page 267.
Your vehicle fuel tank has an on board refuelling
vapor recovery system. This feature helps to pre­
vent fuel vapors from escaping from the tank and
polluting the environment while you refuel your
vehicle . In order to fill the tank properly while
protecting the environment, please follow this
refueling procedure carefully.
& WARNING
-Under normal operating conditions, never car­
ry additional fuel containers in your car. Gas
canisters and other containers used to trans­
port fuel can be dangerous. Such containers,
full or empty, may leak and could cause a fire
in a collision. If you must transport fuel to
use for your lawn mower, snow blower, etc .,
be very careful and always observe local and
state laws regarding the use, transportation
and storage of such fuel containers. Make cer­
tain the container meets industry standards
(ANSI/AS TM F8S2 -86).

C) C0 ....
"' ,....
"' .... 0 0 :r (D Note
Never drive your vehicle until the fuel tank is
completely empty. The irregular supply of
fuel can cause misfiring. Gasoline could enter
the exhaust system and damage the catalytic
converter.
Fueling procedure
Fig. 253 R ight rear side of the vehicle: opening the fue l
f iller door
Fig. 254 Fu el fil ler door w ith attached fuel cap
The fuel filler door is unlocked or locked by the
central locking system.
Opening the fuel cap
"" Press on the left side of the fuel filler door to
open
c:!;> fig . 2 53.
""Unscrew the tank cap counterclockw ise.
"" Place the cap from above on the open fuel filler
door
c:!;> fig. 254.
Closing the fuel cap
""Screw the tank cap on to the right on the filler
neck until it cannot turn any farther .
""Then press on the left side of the tank door un­
ti l it latches .
Checking and Filling
Once the pump nozzle switches off, the fuel tank
is "full". Do not fill the tank more . Otherwise the
expansion space in the tank will be filled.
The correct fuel type for your vehicle can be
found on a label located on the inside of the fuel
filler door. For additional information on fuel,
see
c:!;> page 267.
The fuel tank capacity of your vehicle is listed in
the
Technical Data section c:!;> page 334.
To avo id fuel spilling or evaporat ing from the fuel
tank always close fuel cap properly and com­
pletely. An improperly closed fuel filler cap may
also cause the MIL lamp
c:!;> page 25 to come on.
A WARNING
Not paying attention when fueling or han­
dling fuel incorrectly can lead to fires, explo­
sions or serious injuries.
- Fuel ignites easily and can cause serious
burns and other injuries.
-
-If you do not switch the engine off when fu­
eling and/or do not insert the fuel nozzle
completely into the tank opening, fuel can
leak out or run over. Leaked fuel can ignite
and start a fire.
- Do not use the telephone while fueling. The
electromagnetic rays can cause sparks,
which can ignite fuel vapors and start a fire .
- Do not sit in your vehicle while fueling. If
you must make an exception and enter your
veh icle aga in while fueling, close the door
and touch metal to discharge static electric­
ity before touching the fuel nozzle. Static
electricity can create sparks, which can ig­
nite vapors when fueling.
- Do not smoke or have an open flame in the
area when fueling your vehicle or filling a
fuel container because this increases the
risk of an explosion.
- For your safety, carrying fuel containers in
your vehicle is not recommended. Whether
full or empty, the container can leak and
cause a fire in the event of an accident.
- If you must make an exception and trans­
port a fuel container, note the following:
269

Checking and Filling
-Set the parking brake.
- Select the P selector lever position.
- Let the engine cool down.
- Never open the hood when there is steam or
coolant escaping from the engine compart­
ment, because there is a risk that you could
be burned. Wait until no steam or coolant is
escaping.
- Keep children away from the engine com­
partment.
- Never spill fluids on a hot engine. These flu­
ids (such as the anti-freezing agent con­
tained in the coolant) can ignite.
- Avoid short circuits in the electrical system.
- When working in the engine compartment,
remember that the radiator fan can switch
on even if the ignition is switched off, which
increases the risk of personal injury.
- Never open the cap on the coolant expan­
sion tank when the engine is warm. The
cooling system is under pressure.
- To protect your face, hands, and arms from
hot steam or coolant, cover the cap with a
large cloth when opening.
- Do not remove the engine cover under any
circumstances. This increases the risk of
burns.
- If tests need to be performed with the en­
gine running, there is additional danger due
to moving components (such as the ribbed
belt, alternator and radiator fan) and from
the high-voltage ignition system .
- Do not under any circumstances activate the
throttle inadvertently (for example, by hand
from the engine compartment) if the vehi­
cle is stationary but the engine is running
and a gear is engaged. Otherwise, the vehi­
cle will start to move immediately and this
could result in an accident.
- Pay attention to the following warnings list­
ed when work on the fuel system or on the
electrical equipment is required.
- Do not smoke .
- Never work near open flames.
- Always have a working fire extinguisher
nearby
- All work on the battery or electrical system
in your vehicle can result in injuries, chemi-
272
cal burns, accidents or burns. Because of
this, all work must be performed
only by an
authorized Audi dealer or authorized Audi
Service Facility .
- To reduce the risk of electric shock and in­
jury, never touch the following components when the engine is running or is being start­
ed:
- Ignition cable
- Other components in the electronic high-
voltage ignition system
- If you must check or perform work on the
engine while it is running:
- Set the parking brake and place the selec­ tor lever in the P (park) position first.
- Always proceed with extreme caution so
that clothing, jewelry or long hair do not
become caught in the radiator fan, fan
belt or other moving components or do
not come into contact with hot compo­
nents . Tie back long hair before beginning
work and do not wear clothing that can
hang down into the engine .
- Limit your exposure to exhaust and chemi­
cals to as short a time as possible
c:> ,&. .
.&_ WARNING
California Proposition 65 Warning:
- Engine exhaust, some of its constituents,
and certain vehicle components contain or
emit chemicals known to the State of Cali­
fornia to cause cancer and birth defects and
reproductive harm. In addition, certain flu­
ids contained in vehicles and certain prod­
ucts of component wear contain or emit
chemicals known to the State of California
to cause cancer and birth defects or other
reproductive harm .
- Battery posts, terminals and related acces­
sories contain lead and lead compounds,
chemicals known to the State of California
to cause cancer and reproductive harms .
Wash hands after handling.

Checking and Filling
have the cause of your concern properly di­
agnosed. Keep in mind that the accurate
measurement of oil consumption requires
great care and may take some time. Your
Audi dealer has instructions about how to
measure oil consumption accurately.
Checking the engine oil level
A pp lies to: ve hicles w ith oil leve l indicator
The engine oil level can be checked in the Info­
tainment system
Observe the safety precautions c:::> &. in Working
in the engine compartment on page 2 71.
.. Park your vehicle on a level surface.
.. Shut the engine off when it is warm .
.. Switch only the ignition back on.
.. Wait approximately two minutes.
.. Select: the
ICARI function button > Car systems
control button > Servicing & checks> Oil level.
.. Read the oil level in the display . Add engine oil
if the bar in the oil level indicator is just before
"min"
<=:> page 276.
The engine oil consumption may be up to
0.5 quart/600 miles (0.5 liter/1,000 km), de­
pending on driving style and operating condi­
tions. Consumption may be higher during the
first 3,000 miles (5,000 km). Because of this, the
engine oil level must be checked regularly. It
would be best to check each time you refuel your
vehicle and before long drives.
@ Tips
The oil level indicator in the display is only an
informational display. If the oil level is too
low, a minimum oil warning appears in the in­
strument cluster. Add oil and close the hood.
The current oil level is displayed in the Info­
tainment system the next time the ignition is
switched on .
276
· Adding engine oil~
Fig. 260 En gine compartment : engine oil f iller opening
cover
Read and follow the WARNINGS before check­
ing anything in the engine compartment
c:::> page 2 71 .
.. Turn the engine off .
.. Unscrew the engine oil filling opening cap
"I::?:
c:::> fig. 260, c:::> page 2 74.
.. Carefully add 0.5 quart (0.5 liter) of the correct
oil
c:::> page 2 74.
.. Check the oil level again after two minutes
c:::> page 2 76, Checking the engine oil level .
.. Add more oil if necessary.
.. Close the engine oil filler opening cap.
A WARNING
- When adding oil, do not let oil drip onto hot
engine components. This increases the risk
of afire.
- Always clean skin thoroughly if it comes into
contact with engine oil.
(D Note
- Check the oil level. If the message Please
reduce oil level
appears, contact an author­
ized Audi dealer or authorized Audi Service
Facility to have excess oil extracted if neces­
sary.
- Do not mix any additional lubricants into
the engine oil. Damage caused by such addi­
tives is not covered by the warranty.
(® For the sake of the environment
-Oil should never enter the sewer system or
come into contact with the ground.

Wheels
Bead
means the part of the tire that is
made of steel wires, wrapped or
reinforced by ply cords and that is
shaped to fit the rim .
Bead separation
means a breakdown of the bond
between components in the bead.
Cord
means the strands forming the
plies in the tire.
Cold tire inflation pressure
means the tire pressure recom­
mended by the vehic le manufac­
turer for a tire of a des ignated
size that has not been driven for more than a couple of miles (kilo­
meters) at low speeds in the
three hour period before the tire pressure is measured or adj usted.
Curb weight
means the weight of a motor ve­
hicle w ith standard equipment in ­
cluding the maximum capacity of
fuel, oil, and coolant, air condi ­
tioning and additiona l weight of
op tional equipment.
E x tra load tire
means a tire des igned to operate
at higher loads and at h igher in -
286
flation pressures than t he corre­
spond ing standa rd tire. Extra load
tires may be identified as "XL",
"xl" , "EXTRA LOAD" , or "RF" on
the sidewall.
Gross A xle Weight Rating
("GAWR ")
means the load-carrying capacity
of a single axle system , measured
at the ti re-gro und interfaces.
Gross Vehicle Weight Rating
("GVWR")
means the max imum total loaded
weight of the vehicle .
Groove
means the space between two ad­
jacent tread ribs .
Load rating (code)
means the maximum load tha t a
tire is rated to carry for a given in­
flation pressure. You may not find
this informat ion on all ti res be­
cause it is not required by law .
Maximum load rating
means the load rating for a tire at
the maximum permissible infla­
tion p ressure for that ti re .
Maximum loaded vehicle
weight
means the sum of:

Wheels

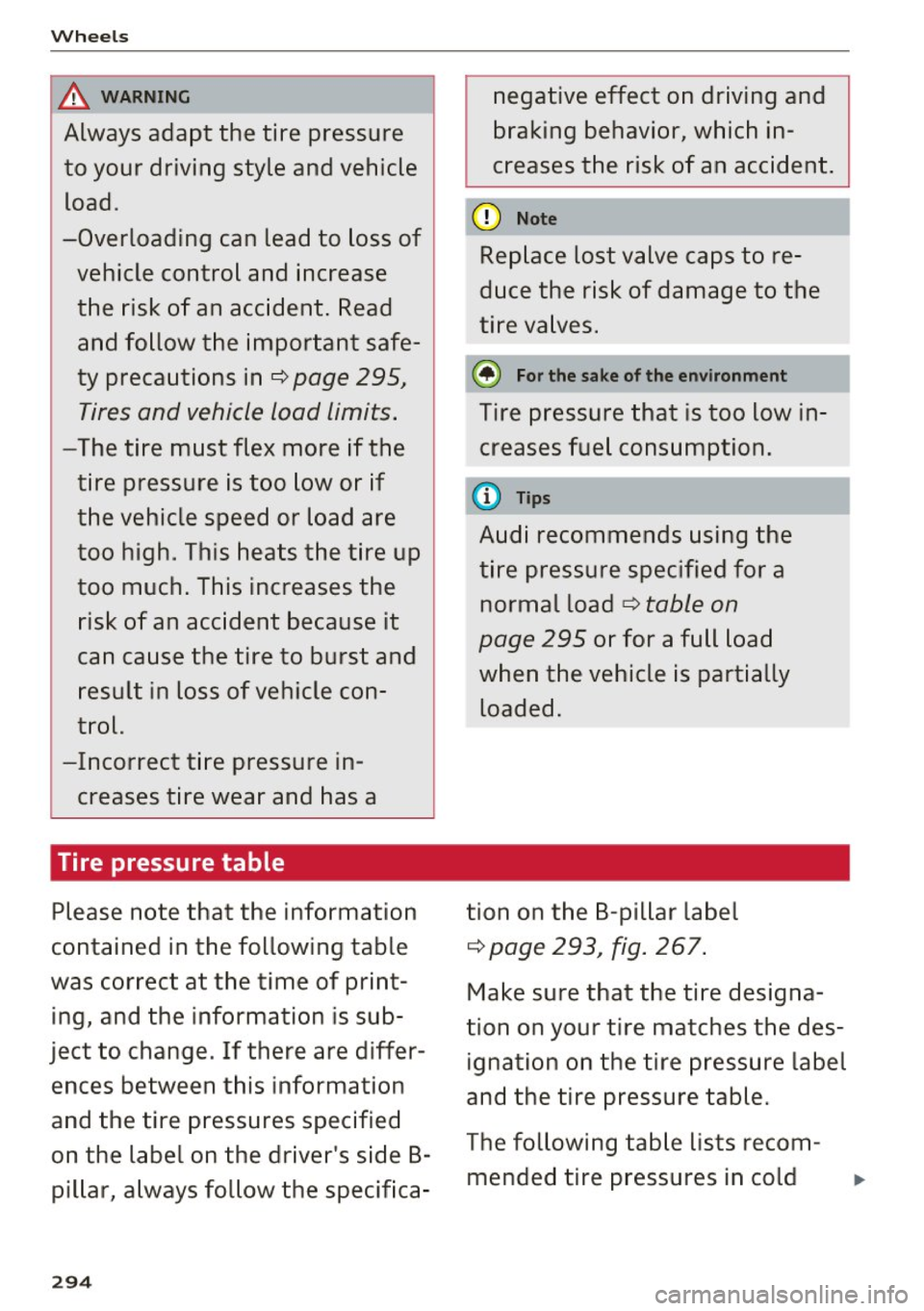

A WARNING
Always adapt the tire pressure
to your driving style and vehicle load.
-Overloading can lead to loss of vehicle control and increase
the risk of an accident. Read and follow the important safe­
ty precautions inc:::> page 295,
Tires and vehicle load limits.
-The tire must flex more if the
tire pressure is too low or if
the vehicle speed or load are
too high. This heats the tire up
too much. This increases the
risk of an accident because it
can cause the tire to burst and
result in loss of vehicle con­
trol.
-Incorrect tire pressure in­ creases tire wear and has a
Tire pressure table
Please note that the information
contained in the following table
was correct at the time of print­ ing, and the information is sub­
ject to change . If there are differ­
ences between this information
and the tire pressures specified
on the label on the driver's side 8- pillar, always follow the specifica-
294
negative effect on driving and
braking behavior, which in­
creases the risk of an accident.
(D Note
Replace lost valve caps to re­
duce the risk of damage to the
tire valves.
@ For the sake of the environment
Tire pressure that is too low in­
creases fuel consumption.
(D Tips
Audi recommends using the
tire pressure specified for a normal load c:::>
table on
page 295
or for a full load
when the vehicle is partially
loaded.
tion on the 8-pillar label c:::>
page 293, fig. 267.
Make sure that the tire designa­
tion on your tire matches the des­ ignation on the tire pressure label
and the tire pressure table.
The following table lists recom- mended tire pressures in cold ..

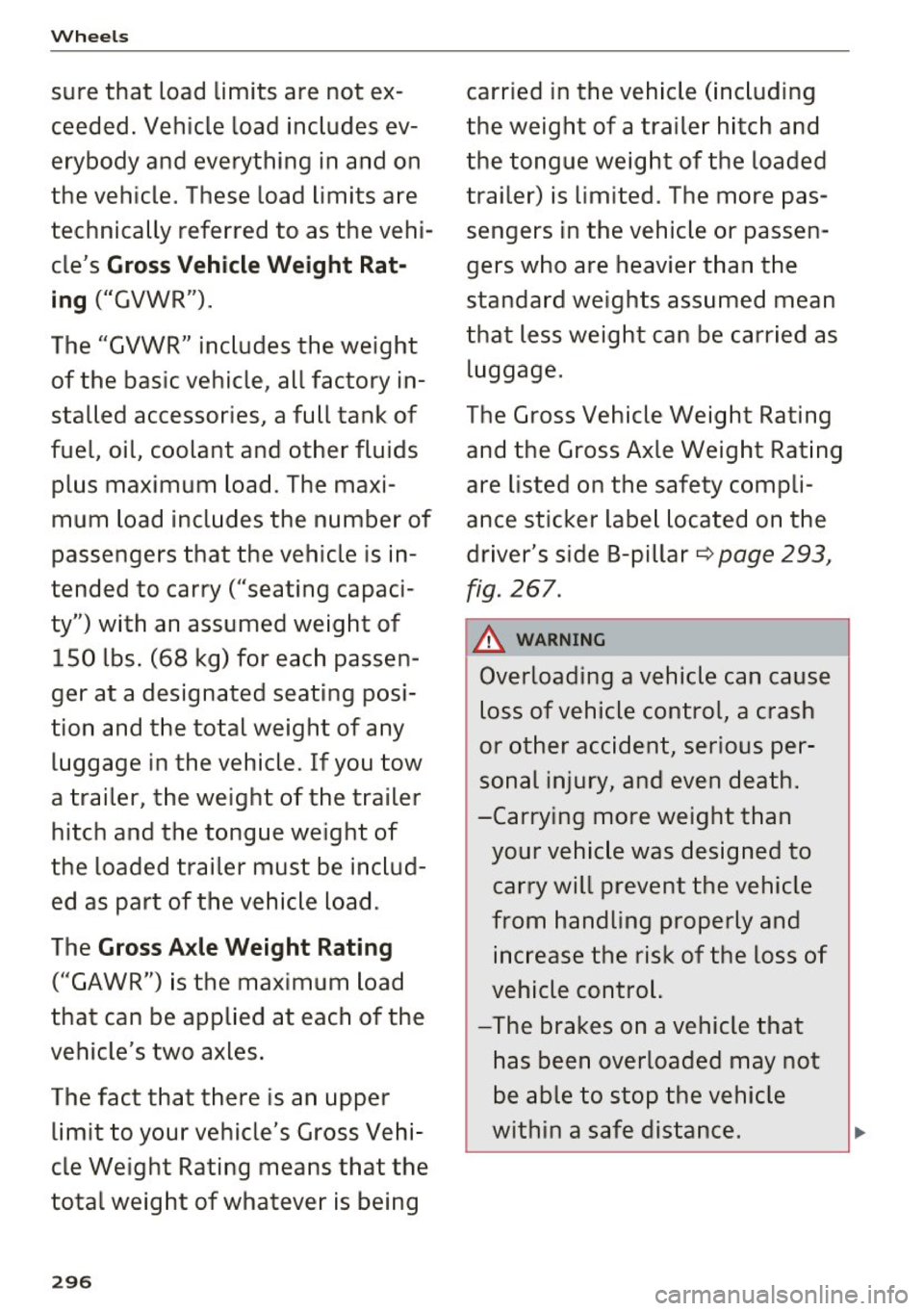

Wheels
sure that load limits are not ex­
ceeded. Vehicle load includes ev­
erybody and everything in and on
the vehicle. These load limits are
technically referred to as the vehi­
cle's
Gross Vehicle Weight Rat­
ing
("GVWR").
The "GVWR" includes the weight
of the basic vehicle, all factory in­
stalled accessories, a full tank of
fuel, oil, coolant and other fluids plus maximum load. The maxi­
mum load includes the number of
passengers that the vehicle is in­
tended to carry ("seating capaci­
ty") with an assumed weight of
150 lbs. (68 kg) for each passen­
ger at a designated seating posi­
tion and the total weight of any luggage in the vehicle. If you tow
a trailer, the weight of the trailer
hitch and the tongue weight of
the loaded trailer must be includ­
ed as part of the vehicle load.
The
Gross Axle Weight Rating
("GAWR") is the maximum load
that can be applied at each of the
vehicle's two axles.
The fact that there is an upper
limit to your vehicle's Gross Vehi­
cle Weight Rating means that the
total weight of whatever is being
296
carried in the vehicle (including
the weight of a trailer hitch and the tongue weight of the loaded
trailer) is limited. The more pas­
sengers in the vehicle or passen­
gers who are heavier than the
standard weights assumed mean
that less weight can be carried as l uggage .
The Gross Vehicle Weight Rating
and the Gross Axle Weight Rating
are listed on the safety compli­
ance sticker label located on the
driver's side B-pillar
¢ page 293,
fig. 267.
.&_ WARNING
-
Overloading a vehicle can cause
loss of vehicle control, a crash
or other accident, serious per­
sonal injury, and even death.
-Carrying more weight than
your vehicle was designed to
carry will prevent the vehicle
from handling properly and increase the risk of the loss of
vehicle control.
-The brakes on a vehicle that
has been overloaded may not
be able to stop the vehicle
within a safe distance.
