-Yo u will also receive serious injuries and
cou ld even be killed if you are up aga inst the
airbag or too close to it when it inflates
-
even with an Advanced Airbag 9 page 269 .
More important things to know about front
airbags
F ig. 235 Inf lated fro nt a irbags
0 0 M
-.:,
~
Safety belts are important to help keep front
seat occupants in the proper seated position so
that airbags can unfold prope rly and provide sup·
p lemental pro tection in a frontal collision.
The front airbags are designed to provide add i­
tional protect ion for the chest and face of the
d river and the front seat passenger when:
- safety belts are worn properly
- the seats have been positioned so that the
oc -
cupant is properly seated as far as possible
from the airbag
- and the head restraints have been proper ly
ad-
justed
Because airbags inflate in the blink of an eye with
g reat fo rce, things you have on your lap or have
p laced on the seat cou ld become dangerous pro­
jectiles, and be pushed into you if the airbag in·
flates .
W hen an airbag deploys, fine dust is released.
This is normal and is not caused by a fire in the
veh icle. This dust is made up mostly of a powder
used to lubricate the airbags as they deploy . It
could irr itate skin .
It is important to remember that while the sup ­
p lemental a irbag system is designed to reduce
the likelihood of ser ious injuries, other injuries,
for example swelling, bruising and minor abra -
Airbag system
sions, can also happen when airbags inflate . Air­
bags do not protect the arms or the lower parts
of the body. Front airbags supp lement the three ­
po int safety belts only in some frontal collisions
in which the vehicle dece leration is high enough
to dep loy the airbags .
Front airbags will not depl oy :
- if the ignition is switche d off when a crash oc-
curs
- in side co llisions
- in rear -end co llisions
- in rollovers
- when the crash decele ration measured by the
airbag system is less than the m inimum thresh­
old needed for airbag dep loyment as registe red
by the electronic con trol un it
The front passenger airbag also w ill not
deploy:
- when the fron t passenger seat is not occupied,
- when the e lectr ica l capacitance measured by
the capacit ive passenger detection system for
t he front passenge r seat ind icates that the pas­
senger side frontal airbag must be switched off
by the e lectronic control unit (the
PASSENGER
AIR BAG
OFF ~; light 9 page 281 comes on
and stays on).
A WARNING
Sitting in the wrong position can increase the
risk of ser ious injury in crashes.
- To reduce the r isk of injury when the a irbags
inflate, the driver and passengers must al·
ways sit in an upright posit ion, must not
lean aga inst or place any part of their body
too close to the area where the airbags are located.
- Occupants who are unbelted, out of posit ion
or too close to the airbag can be serio usly
inj ured by an airbag as it unfolds with g reat
for ce in the blink of an eye
r=> page 2 70.
A WARNING
A child in a re arward-fa cing child safety seat
i nsta lled on the front passenger seat will be
seriously in jured and can be ki lled if the front
.,,.
279

Airbag syste m
airbag inflates -even with an Advanced Airbag
System.
- The inflating airbag will hit the child safety
seat or infant carrier with great force and
will smash the child safety seat and child
against the backrest, center armrest, door
or roof .
- Always install rear-facing child safety seats
on the rear seat .
- If you must install a rearward-fac ing child
safety seat on the front passenger seat be­
cause of exceptional circumstances and the
PASSENGER AIR BAG OFF ~; light does not
come on and stay on, immed iate ly install
the rear-fac ing ch ild safety seat in a rear
seat ing pos ition and have the airbag system
inspected by your a uthorized Audi dea ler.
A WARNING
Objects between you and the a irbag w ill in ­
crease the risk of inj ury in a crash by interfer­
ing with the way the airbag unfo lds or by be­
ing pushed into you as the a irbag inflates.
- Never hold things in your hands or on your
lap when the vehicle is in use.
- Never transport items on or in the area of
the front passenger seat . Objects could
move into the area of the front airbags dur­
ing brak ing or other sudden maneuvers and
become dangerous projectiles that can
cause serious personal injury if the a irbags
inflate .
- Never place or attach accessor ies or other
objects (such as cupholders, telephone
brackets, large, heavy o r bulky objects) on
the doors, over or nea r the area marked
"AIRBAG" on the steering wheel, instru­
ment pane l, sea t backrests or between
those areas and yoursel f. These objects
could cause injury in a crash, especially
when the airbags inflate.
- Never recline the front passenger's seat to
transport objects . Items can also move into
the area of the side airbag o r the front a ir­
bag dur ing braking or in a sudden maneu­
ver. Objects near the airbags can become
280
-
pro jecti les and cause injury, part icularly
when the seat is reclined.
- Never p lace or transport objects on the
front passenger seat. Objects on the front passenger seat could cause the capacitive
sensor in the seat to signal to airbag system
that the seat is occupied by a person when it
in fact is not, or that the pe rson on the seat
is heavie r than he or she act ually is . The
change in elec tric capa citan ce beca use of
such o bje cts can c ause the p assenge r front
airbag to be turned on when it should be
off, or can cause the airbag to work in a way
that is different from the way it would have
wo rked without objects on the seat.
- Always make sure that there is nothing on
the front passenge r seat that will cause the
capacitive passenge r detection system in
the seat to signal to the Airbag System that
the seat is occup ied by a person when it is
not , or to signal that it is occupied by some­
one who is heavier than the person act ually
sitt ing on the seat. The presence of an ob­
ject could ca use the passenger front air bag
to be turned on when it should be off, or
could cause the airbag to work in a way that is different from the way it would have
worked without the object on the seat.
A WARNING
The fine dust created when airbags deploy can
cause breathing prob lems for people with a
h istory of asthma or other breath ing cond i­
tions .
- To reduce the r isk of breathing p roblems,
those with asthma or other respiratory con­
ditions should get fresh a ir right away by
getting out of the vehicle or opening win­
dows or doors .
- If you are in a collision in which airbags de­
ploy, wash your hands and face with m ild
soap and water before eating.
- Be ca refu l not to get the dust into your eyes,
or into any cuts or scratches.
- If the residue should get into your eyes,
flush them w ith wate r.

u co ..... N r-­N .....
~ 0 co
Monitoring the
Advanced Airbag System
Airbag monitoring indicator light
Two separate indicators monitor the function of
the Advanced Airbag System : the
El light and
the
PAS SENGE R AIR BAG OFF ~; ON @ light.
The Advanced Airbag System as we ll as the side
a ir bags and side curtain airbags with eject ion
m it igation feat ures ( including the e lectron ic con ­
trol unit, sensors and system wiring) are a ll
monitored continuously to make sure that they
a re funct ioning properly whenever the ignition is
on. Every time you turn on the ignition, the air ­
bag system ind icator
light E,lwill come on for a
few seconds (function check).
Th e sys tem mu st be in spect ed wh en the
indicato r light
E,I:
- does not come on when the ignit ion is switched
on
- does not go out a few seconds after you have
switched on the ign ition, or
- comes on while driving
If an airbag system malfunction is detected, the
indicator light wi ll come on to serve as a constant
reminder to have the system inspected immedi­
ately .
If a malfunction occurs that turns the front air ­
bag on the passenger side
off, the PASSENGER
AIR BAG
OFF ~. light wi ll come on and stay on
whenever the ignition is on.
A WARNING
An airbag system that is not funct ioning prop­
erly cannot provide supplemental protection
in a frontal crash .
- If the airbag indicator
light¢ page 26
comes when the vehicle is be ing used, have
the system inspected immed iate ly by your
au thorized Aud i dealer.
It is possible that
the a irbag will inflate when it is not s up­
posed to, or will not inflate when it shou ld.
Airbag system
PASSENGER AIR BAG OFF '1; ON @ light
"' -N
i
F ig. 236 Sectio n fro m th e headliner : PASSENGER AIR BAG
OFF~ ; ON @ lig ht
T he PAS SEN GER AIR BAG OFF ~; ON @ light is
located in the
headliner ¢ fig. 236.
T he PASS ENG ER AIR BAG OFF ~; light will come
o n and stay on to tell you when the fron t Ad­
vanced Airbag o n the passenger s ide has been
turned
off by the e lectronic control unit . If the
bulb for the
PA SSENGER AIR BAG O FF ~; ON @
light burns out, the airbag ind icator light El will
come on to signal a malfunction in the Advanced
Airbag System. Although the burned-out bu lb
will not change the way the front passenger's
frontal a irbag works , it will no longer be possible
to use the
PAS SENGER A IR BAG OFF ~; ON@
light to make sure that the airbag on/off status is
correct fo r the occ upan t on the front passenge r
seat. Have the airbag system inspected immedi­
ately by your authorized Audi dealer.
Th e PA SSENGER AIR BAG OFF ~; ON @ light
will blink for about 5 second s wh en :
- the capacit ive passenger detection system,
which switches the front seat passenger's fron­ tal Advanced Airbag o n and off, detects a
change in the status of the front passenger
seat.
As soon as the
PASSEN GER AIR BAG OFF ~; ON
@ light stops blinking, a lways make sure that the
airbag status (on or off) as shown by the ligh t is
proper fo r the age, size and e lectrical capacitance
of the person occ upying the front passenger
seat . Always make sure that the safety belt for
the front passenger seat is properly fastened .
The PASSENGER AIR BAG OFF ~/ PASSEN GER
AIR BAG ON
@ ligh t will show th e sta tu s o f the .,..
28 1

Airbag syste m
front seat p assenge r's frontal Ad vanced Airbag.
The PASSENGER AIR BAG
OFF ~; light:
-will come on if the front passenger seat is not
occupied;
- will come on if t he e lectr ica l capacitance meas ­
u red by the c apac it ive passenger detect ion sys ­
tem for the front passenger seat equals the
combined capacitance of an infant up to about
one year of age and one of the rearward -facing
or forward-facing chi ld rest raints listed in Fed­
eral Motor Vehicle Safety Standard 208 w ith
which the Advanced Airbag System in your veh i­
cle was certif ied; For a list ing of the child re­
straints that were used to cert ify your vehicle 's
compliance with t he U .S. Safety Standard
¢ page 293.
- will go out if the front passenger seat is occu­
pied by an adult as reg istered by the capacitive
passenger detection system .
- T he
PASSEN GER AIR BAG OFF ~; light must
come on and stay on if the ignition is on and . ..
- a car bed has been insta lled on the front pas­
senger seat, o r
-a rearward-fac ing ch ild restrai nt has been in­
stalled on the front passenger seat , or
- a forward-facing child restra int has been instal­
l ed on the front passenger seat,
- and if the electrical capacitance registered on
the front passenger seat is equal to or less than
the comb ined capac itance of a typical 1 year­
o ld infant a nd one of t he rearward-fac ing o r
fo rwa rd -fa cing ch ild restrain ts lis ted in Federal
Motor Ve hicle Safety Standard 208 with w hich
the Advanced Airbag System in your vehicle was
certified .
I f t he fron t passenger sea t is no t occ upied, the
fron t ai rbag w ill not dep loy, and the
PA SSENGER
AIR BAG OFF
"1 ; lig ht wi ll stay on.
Neve r install a rearward-fac ing ch ild rest rai nt on
t he fro nt passenge r sea t, the safest p lace for a
chi ld in any k ind of chi ld restraint is at one of t he
seating positions on the rear seat
¢ page 2 70,
Child restraints on the front seat
-some impor­
tant things to know
and ¢ page 291, Child safe ­
ty .
282
If the PASSENGER AIR BAG OFF ~; light
comes on . ..
If the PASSENGER AIR BAG OFF ~; light comes
on when one of the condit ions listed above is
met, be sure to check the light regularly to make
certain that the
PA SSENGER AIR BAG OFF ~;
light stays on cont inuously whenever the ign ition
i s on . If the
PASSENGER AIR BAG OFF ~; light
does not appear on and does not stay on all the
t ime, stop as soon as it is safe to do so and
- reactivate the system by turn ing the ignit ion
off for more than 4 seconds and then tur ning it
on
again;
- remove and re install the ch ild restraint . Make
sure that the child restra int is prope rly insta l­
led and that the safety belt for the front pas­
senge r sea t has bee n correct ly rou ted th rough
t he ch ild restraint as desc ribed in the c hild r e­
straint man ufacturer's instructions;
- ma ke sure that t he convert ible loc king re tra c­
tor on the safety belt for the front passenger
seat has been activated and that the safety belt has been pu lled tight .
- make sure that no e lectrica l device (s uch as a
laptop , CD p layer , e lectronic games d evice,
power inverte r or seat heater for chi ld seats) is
placed or used on the front passenger seat if
the device is connected to the 12-volt socket or
the c igarette lighter socket;
- make sure that no seat heater has been retro­
fitted or otherw ise added to the front passen­
ger seat;
- make sure that noth ing can interfere with the
safety belt buckles and that they are not ob­
structed;
- make sure that there are no wet objects (such
as a wet towel) and no water or other liquids on
the front passenger seat cushion .
If the PASSENGER AIR BAG OFF~; light still
does not come on ...
If the PASSENGER AIR BAG OFF ~; light still
does not come on and does not stay on cont in u­
ous ly (when the ign ition is switched on),
- take the child restra in t off the front passenger
seat and install it properly at one of the rear
..,.

u co .... N ,..._
N .... 0 <( 0 00
seat positions. Have the airbag system inspect­
ed by your Audi dealer immediately.
- move the chi ld to a rear seat position and make
sure that the child is properly restrained in a
child restraint that is appropriate for its size
and age.
The PASSENGER AIR BAG OFF ~; light
should NOT come on ...
The PASSENGER AIR BAG OFF ~; light should
NOT come on when the ignition is on and an
adu lt is sitting in a proper seating position on the
front passenger seat. If the
PASS ENGER AIR
BAG
OFF ~; light comes on and stays on while
driving, under these circumstances, make sure
that:
- the adult on the front passenger seat is proper­
ly seated on the center of the seat cushion with
his or her back up aga inst the backrest and the
backrest is not reclined,
- the adult is not tak ing weight off the seat by
ho ld ing on to the passenger assist handle
above t he front passenger door o r supporting
the ir we ight on the
a rm rest,
- the safety be lt is be ing properly wo rn and that
the re is not a lot of slack i n the safe ty belt web­
bing,
- the re are no aftermar ket seat covers or cush­
ions or other things (s uch as blankets) on the
front passenge r seat tha t migh t cau se the ca ­
pacit ive passenger detection system to miscal ­
cu late electrical capacitance .
Important safety instructions on
monitoring the Advanced Airbag System
A WARNING
- If the status of the Adv a need A irbag System
has changed while the vehicle is moving, the
PASSENGER AIR BAG OFF ~; ON@ light
blinks for about 5 seconds to catch the driv­
er's attention. If this happens, always stop
as soon as it is safe to do so and check the
steps described above.
- If the
PASSENGER AIR BAG OFF ,;; light
does not go
off when an adult who is not
very sma ll is sitting on the front passenger
Airbag syste m
seat a fter tak ing the steps described above,
make sure the adu lt is properly seated and
restrained at one of the rear seating posi­
tions. Have the a irbag system inspected by
your author ized Audi dealer before trans­
port ing anyone on the front passenge r seat.
A WARNING
-
An a irbag system that is not functioning prop­
e rly cannot prov ide supplemental prote ct ion
i n a front al cra sh.
- I f the ai rbag ind icator light
~page 26
comes when the veh icle is being used, have
the system inspe cted immedia tely by your
author ized Audi dealer . It is possib le that
the airbag will inflate when it is not sup­
posed to, or will not inflate when it should.
A WARNING
,= -
If the front airbag inflates, a child witho ut a
chi ld restraint, or in a rea rward-facing child
safety seat, or in a forward-fac ing child re­
stra int that has not been properly insta lled
will be serious ly injured and can be killed.
- Even though your vehicle is equipped with
an Advanced A irbag System, make certain
that all children, espec ially 12 years and
younge r, always ride on the back sea t prop­
erly rest rained for the ir age and s ize.
- Always install fo rwa rd or rea r-facing child
safety seats on the rear seat - even with an
Advan ced Airb ag Sys tem.
- I f you must install a rea rwa rd-facing child
safety seat on the front passenger seat be­
c a use of ex cep tional cir cums tan ces and the
PASSENGER AIR BAG OFF "1; light does not
appear and stay on, immediately install the rear-facing chi ld safety seat in a rear seat ing
position and have the a irbag system in­
spected by your authorized Aud i dea ler.
- If, in exceptional circumstances, you must
install a forward- facing child restraint on
the front passenge r seat, always move the
seat into its rearmost position in the seat 's
fore and aft ad justmen t range, as far away
from the a irbag as poss ible. The back res t
m ust be adjusted to an upr ight position.
283

Airbag syste m

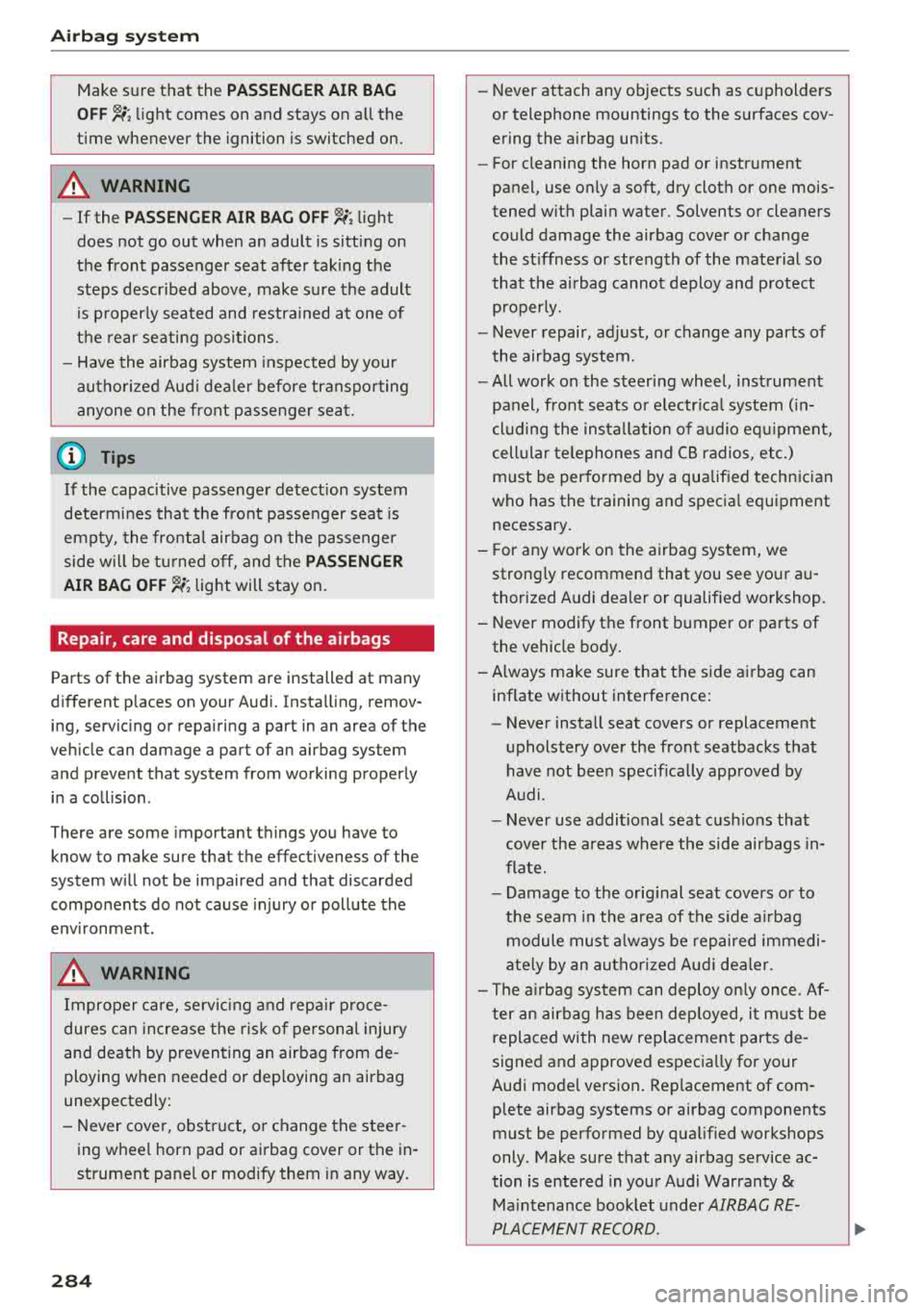

Make sure that the PASSENGER AIR B AG
OFF ,;; light comes on and stays on all the
t ime whenever the ignition is switched on.
A WARNING
- If the PASS ENGER AIR B AG O FF 1'i; light
does not go out when an adult is sitting on
the front passenger seat after tak ing the
steps described above, make sure the adult
is p roperly seated and restrained at one of
the rear seating positions.
- Have the airbag system inspected by your
authorized Aud i dealer before transporting
anyone on the front passenger seat.
(D Tips
If the capacitive passenger detection system
determines that the front passenger seat is
empty, the frontal airbag on the passenge r
side w ill be tu rned off, and the
PA SSENGER
AIR BAG OFF
1'i ; light will stay on.
-
Repair, care and disposal of the airbags
Parts of the airbag system are installed at many
different places on your Audi. Installing, remov ­
ing, servic ing or repa iring a part in an area of the
veh icle can damage a part of an airbag system
and prevent that system from working properly
in a collision .
There are some important things you have to
know to make sure that the effectiveness of the
system w ill not be impaired and that discarded
components do not cause injury or pollute the
env ironment.
A WARNING
Improper care, serv icing and repai r proce­
dures can increase the r is k of personal injury
and death by preventing an airbag from de­
ploying when needed or dep loying an airbag
unexpectedly:
-
- Never cover, obstruct, or change the steer ­
ing wheel horn pad or airbag cover or the in­
strument pane l or modify them in any way.
284
- Never attach any objects such as cupholders
or telephone mountings to the surfaces cov­
ering the a irbag un its.
- For cleaning the horn pad or instrument
panel, use only a soft, dry cloth or one mois­
tened w ith plain water. Solvents or cleaners
could damage the airbag cover or change
the st iffness or strength of the material so
that the airbag cannot deploy and protect
properly.
- Never repair, adjust, or change any parts of
the airbag system.
- All work on the steering wheel, instrument
panel, front seats or e lectr ica l system ( in­
cluding the installation of a udio eq uipment,
cellular telephones and CB radios, etc.) m ust be performed by a qualified techn ician
who has the training and specia l equipment
necessary.
- For any work on the airbag system, we strong ly recommend that you see your au­
thorized Audi dealer or qualified workshop.
- Never modify the front b umper or parts of
the vehicle body.
- Always make sure that the side a irbag can
inflate without interference:
- Never install seat covers or replacement
upholstery over the front seatbacks that
have not been specifically approved by
A udi.
- Never use additional seat c ushions that
cover the areas where the side airbags in­
flate.
- Damage to the orig inal seat cove rs or to
the seam in the area of the s ide airbag
module mus t always be repaired immedi­
ate ly by an autho rized Aud i dealer .
- The a irbag sys tem can deploy on ly once. Af­
ter an airbag has been deployed, it m ust be
replaced with new replacement parts de­
signed and approved especia lly for your
Audi model version . Replacement of com­
plete airbag systems or airbag components
must be performed by qua lified workshops
only . Make sure that any airbag service ac­
tion is entered in your Audi Warranty
&
Ma intenance booklet under AIRBAG RE-
PLAC EMENT RECORD.
Ii)-

u co ..... N r-­N .....
~ 0 co
-For safety reasons in severe accidents, the
alternator and starter are separated from
the vehicle battery with a pyrotechnic circuit
interrupter.
- Work on the pyrotechnic circuit interrupt­
er must only be performed by a qualified
technicians who have the experience, in ­
formation and special tools necessary to
perform the work safely.
- If the vehicle or the circuit interrupter is
scrapped, all applicable safety precautions
must be followed .
@ For the sake of the environment
Undeployed airbag modules and pretension­
ers might be classified as Perchlorate Materi­
al
-special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlo­ rate. When the vehicle or parts of the re­
straint system including airbag modules and
safety belts with pretensioners are scrapped,
all applicable laws and regulations must be
observed. Your authorized Audi dealer is fa­
miliar with these requirements and we recom­
mend that you have your dealer perform this
service for you.
Other things that can affect Advanced
Airbag performance
Changing the vehicle's suspension system can
change the way that the Advanced Airbag System performs in a crash . For example, using tire-rim
combinations not approved by Audi, lowering the
veh icle, chang ing the stiffness of the suspens ion,
including the springs, suspension struts, shock
absorbers etc. can change the forces that are
measured by the airbag sensors and sent to the
electronic contro l unit. Some suspension changes
can, for example, increase the force levels meas­
ured by the sensors and make the airbag system
deploy in crashes in which it would not deploy if
the changes had not been made. Other kinds of changes may reduce the force levels measured by
the sensors and prevent the airbag from deploy­
ing when it should .
Airbag system
A WARNING
Changing the vehicle's suspension including
use of unapproved tire-rim combinations can
change Advanced Airbag performance and in­
crease the risk of serious personal injury in a
crash.
- Never install suspension components that
do not have the same performance charac­
teristics as the components originally instal­
led on your vehicle.
- Never use tire-rim combinations that have
not been approved by Audi.
Side airbags
· Description of side airbags
The airbag system can provide supplemental
protection to properly restrained occupants.
Fig. 237 Side a irbag locatio n in the driver's seat
The side airbags are located in the sides of the
front seat backrests
¢ fig . 23 7 and the rear back­
rest* facing the doors.
The side airbags installed for the front seating
pos itions have been des igned and certified to
help reduce the risk of injury that can be caused
by airbags when they inflate, particularly when
the occupant s itting next to it is not seated prop­
erly. The side airbag for the front passenger seat
can be used w ith proper ly installed chi ld re­
straints . Please be sure to read the important in­
formation and warnings whenever using a child
restraint in a vehicle: Safety belts¢
page 261,
Airbag system ¢ page 269, Child safety
r:=> page 291.
The side airbag system basically consists of:
.,..
285

Airbag system
-the e lectronic control module and externa l side
impact sensors
- th e two side airbags located in the sides of the
front backrests
- two rear side airbags*
- the air bag wa rn in g light in the instrument clus-
te r.
The a irbag system is monitored electronically to
make certa in that it is functioning properly at all
times. Each time you turn on the ignition, the air­
bag system ind icator light will come on for a few
seconds (self diagnostics).
The s ide a irbag system supplements the safety
be lts and can help to reduce the risk of injury to
the driver's, front and rear* passenger's upper
torso on the side of the vehicle that is struck in a
side co llision . The airbag dep loys on ly in side im­
pacts and on ly when the vehicle acceleration reg ­
istered by the control unit is high enough. If this
rate is below the reference value programmed in­
to the control un it, the side airbags w ill not be
tr iggered, even though the car may be badly
damaged as a result of the collision. It is not pos­
sib le to define an ai rbag tr igger ing range that
w ill cover every possible angle of impact, s ince
t he circumstances will vary considerably between
one collision and another. Important factors in­
clude, for example, the nature (hard or soft) of
the impacting object, the angle of impact, vehicle
speed, etc.
c> page 287, Important safety in­
structions on the side airbag system.
Aside from their normal safety function, safety
be lts work to help keep the driver or front pas ­
senger in position in the event of a side collision
so that the side a irbags can provide protection.
The airbag system is
not a substitute for your
safety belt . Rather, it is part of the overa ll occu ­
pant restraint system in your vehicle. Always re­
member that the s ide airbag system can only
help to protect you if you are wearing your safety
belt and wearing it properly. This is another rea­
son why you should always wear you r safety
be lts, not just because the law requ ires you to do
soc> page 261, General information.
It is important to remember that while the sup­
plemental s ide a irbag system is designed to re-
286
duce the likelihood of serious injuries, other inju­
ries, for example, swelling, bruising, friction
burns and m inor abras ions can also be assoc iated
with deployed side airbags. Remember too, side
airbags will dep loy only once and only in certa in
kinds of accidents
-your safety belts are always
there to offer protection .
Vehicle damage, repair costs or even the lack of
vehicle damage are not necessar ily an ind ication
of over-sens itive or fa iled airbag activat ion . In
some collis ions, both front and side airbags may
i nflate. Remember too, that air bags w ill dep loy
only once and only in certain kinds of collisions
-
your safety belts are always there to offer protec­
tion in those accidents in which airbags are not
supposed to deploy or when they have alr eady
deployed.
The side airbag system will not deploy:
-when the ignition is turned off
- in side co llisions whe n the accele ration meas-
ured by the sensor is too low
- in fro nt-end coll is ions
- in rear-end collisions
- in rollovers.
In some types of accidents t he front airbags, side
curtain airbags and side airbags may be triggered
together.
A WARNING
- Safety belts and the airbag system will only
provide protection when occupants are in
the proper seat ing position
c> page 287.
-If the airbag ind icator light c> page 26
comes when the vehicle is being used, have
the system inspected immediately by your
author ized Audi dealer . It is possible that
the airbag will inflate when it is not sup­
posed to, or will not inflate when it should.

u co ..... N r-­N .....
~ 0 co

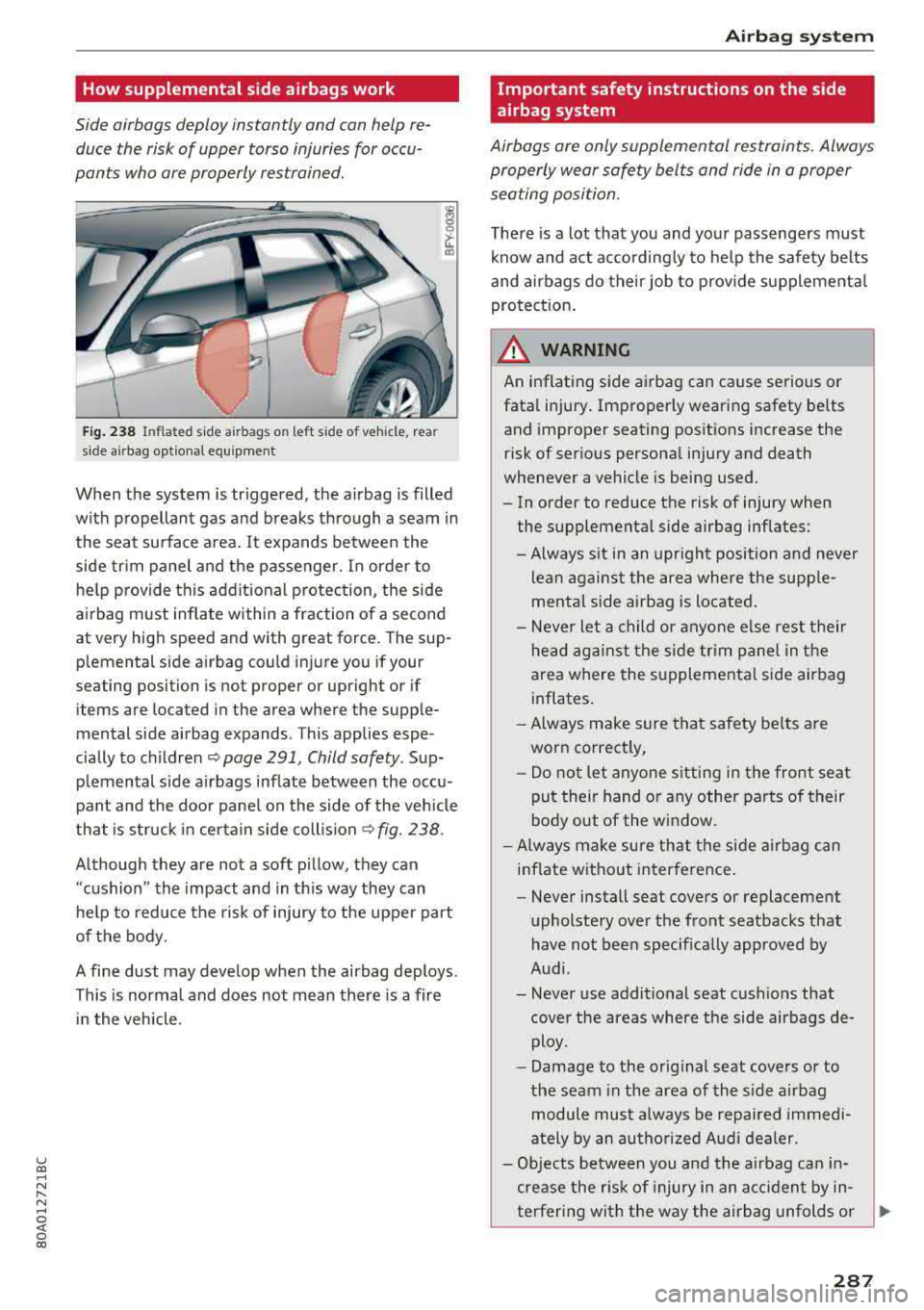

How supplemental side airbags work
Side airbags deploy instantly and can help re­
duce the risk of upper torso injuries for occu­
pants who are properly restrained.
Fig. 238 Inflated side airbags on left side of vehicle , rea r
side airbag optiona l equipment
When the system is triggered, the airbag is filled
with propellant gas and breaks through a seam in the seat surface area.
It expands between the
side trim panel and the passenger. In order to
help provide this additional protection, the side
airbag must inflate within a fraction of a second
at very high speed and with great force. The sup­ p leme ntal side airbag could injure you if your
seating position is not proper or upright or if
items are located in the area where the supp le­
mental side airbag expands. This applies espe­
cially to children
<=:>page 291, Child safety . Sup­
plemental side airbags inflate between the occu­
pant and the door panel on the side of the vehicle
that is struck in certain side collision<=:>
fig. 238.
Although they are not a soft pillow, they can
"cushion" the impact and in this way they can
help to reduce the risk of injury to the upper part
of the body.
A fine dust may develop when the airbag deploys.
This is normal and does not mean there is a fire
in the vehicle.
Airbag system
Important safety instructions on the side
airbag system
Airbags are only supplemental restraints. Always
properly wear safety belts and ride in a proper
seating position .
There is a lot that you and your passengers must
know and act accordingly to help the safety belts
and airbags do their job to provide supplemental
protection.
_&. WARNING
An inflating side airbag can cause serious or
fatal injury. Improperly wearing safety belts
and improper seating positions increase the
risk of serious personal injury and death
whenever a vehicle is being used.
- In order to reduce the risk of injury when
the supplemental side airbag inflates:
- Always sit in an upright position and never
lean against the area where the supple­
mental side airbag is located.
- Never let a child or anyone else rest their
head against the side trim panel in the
area where the supplemental side airbag inflates.
- Always make sure that safety belts are
worn correctly,
- Do not let anyone sitting in the front seat
put their hand or any other parts of their
body out of the window.
- Always make sure that the side airbag can
inflate without interference.
- Never install seat covers or replacement
upholstery over the front seatbacks that
have not been specifically approved by
Audi.
- Never use additional seat cushions that
cover the areas where the side airbags de­ ploy.
- Damage to the original seat covers or to
the seam in the area of the side airbag
module must always be repaired immedi­
ately by an authorized Audi dealer.
-
- Objects between you and the airbag can in­
crease the risk of injury in an accident by in­
terfering with the way the airbag unfolds or
.,.
287

Airb ag syste m
by being pushed into you as the airbag in­
flates.
- Never p lace or attach accessories or other
objects (such as cupho lders, telephone
brackets, or even large, bulky objects) on
the doors, over or near the area marked
"AIRBAG" on the seat backrests.
- Such objects and accessories can become
dangerous projectiles and cause injury
when the supplemental side airbag de­ ploys.
- Never carry any objects or pets in the de­ ployment space between them and the
airbags or allow children or other passen­
gers to travel in this position.
- Always use the built-in coat hooks* only for
lightweight clothing . Never leave any heavy
or sharp-edged objects in the pockets that
may interfere w ith side airbag deployment
and can cause personal injury in an accident.
- Always prevent the side airbags from being
damaged by heavy objects knocking against
or hitting the sides of the seatbacks.
- The airbag system can only be triggered
once . If the airbag has been triggered, the
system must be replaced by an author ized
Audi dealership .
- Damage (cracks, deep scratches etc .) to the
original seat covers or to the seam in the
area of the side a irbag mod ule m ust always
be repa ired immed iate ly by an authorized
Audi dealer .
-If children are seated imp roperly, their risk
of injury increases in the case of an acc ident
¢ page 291, Child safety.
- Never attempt to modify any components of
the a irbag system in any way.
- In a side collision, side a irbags w il l not func­
t ion properly if sensors cannot correct ly
measure increasing air pressure ins ide the
doors when air escapes through larger, un­
closed openings in the door panel.
- Never drive with inter ior door tr im panels
removed .
- Never drive when parts have been re ­
moved from the inside door panel and the
open ings they leave have not been proper­
ly closed.
288
- Never drive when loudspeakers in the
doors have been removed unless the
speaker holes have been properly closed.
- Always make certain that openings are
covered or filled if additional speakers or
other equipment is installed in the inside
door panels.
- Always have work on the doors done by an
authorized Aud i dea ler or qualified work­
shop.
Side curtain airbags
Description of side curtain airbags
The side curtain airbags can provide supplemen­
tal protection to properly restrained occupants.
Fig. 239 S id e curt ain air bags, driver's side : loc atio n
The side curtain airbags are located on both sides
of the inter ior
above the front and rear side win­
dows
¢ fig . 239 .
The side curtain airbags contain features that
provide ejection mitigation to help prevent vehi­
cle occupants or parts of the ir bodies from being
completely or part ially ejected from the vehicle
i nterior i n certa in side impacts and veh icle roll­
overs .
The side curtain airbag system supplements the
safety belts and can help to reduce the risk of in­
jury for occupants' heads and upper torso in a
s ide collision . The side curtain airbag inflates in
s ide impacts and on ly when the veh icle accelera­
tion registered by the control unit is high enough. If this rate is be low the reference va lue
programmed into the contro l unit, the side cur ­
tain airbag will not be triggered, even though the car may be badly damaged as a result of the
..,.
