-When the trailer socket is being used (for
example, for a bicycle rack), the luggage
compartment lid can be opened and closed using the handle or the foot motion activa­
tion (vehicles with convenience key*).
Opening/closing the luggage compartment
lid with foot motion activation (kicking
movement)
Applies to: veh icles with conven ience key and sensor-control­
led luggage compartment lid
Fig. 29 Rea r of t he ve hicle : foot movement
You can open and close the luggage compart­
ment lid w ith foot motion activat ion .
Requirements: you must be carrying your conven­
ience key* with you . You must be standing at the
center behind the luggage compartment lid. The
ignition must be switched off . Make sure you
have f irm foot ing.
- Move your foot back and forth under the bump­ er one time
q fig. 29. Do not touch the bumper.
The luggage compartment lid will open/close
once the system detects the movement.
The luggage compartment lid will only open/
close if you perform the movement as described.
This prevents the luggage compartment lid from open ing or closing due to sim ilar movements,
such as when you walk between the rear of the
vehicle and your garage door.
The closing of the luggage compartment lid is in ­
d icated by a warning signa l and can be cance led
by making the described movement again .
The foot movement does not lock the vehicle.
Op eni ng and clos ing
General informat ion
In some sit uations, the funct ion may be limited
or temporarily unavailable. This may happen if:
- the l uggage compartment lid was closed imme­
d iately before
- you park close to a hedge and the branches
move back and forth under the veh icle for a
long per iod of t i me
- you clean your veh icle, for example w ith a pres­
sure washer or in a car wash
- there is heavy rain
- the bumper is very dirty, for example after driv- ing on salt-covered roads
- there is interference to the radio signal from
the vehicle key, such as from cell phones or re ­
mote controls
8,. WARNING
-Pay careful attention when closing the lug­
gage compartment lid . O therwise, you co uld
cause serious injury to yourself or others de­
spite the pinch protection .
-To reduce the risk of pinching inju ries, al­
ways make sure that no o ne is in the ope rat­
ing area of the luggage compartment lid, in­
cluding the hinge areas and the upper and
lower edge of the luggage compartment lid.
-Never drive with the luggage compartment
lid ajar or open, because poisonous gases
can enter the vehicle interior and create the risk of asphyxiat ion.
-If there is a luggage rack (such as a bicycle
rack) on the luggage compartment lid, the
luggage compartment lid may not open
comp letely under certa in circumstances or it
could close by itself if open due to the ext ra
weight. Therefore, the open luggage com­
partment lid must be given additional sup­
port or the ca rgo must fi rst be removed
from the luggage rack.
3 9

Opening and closing

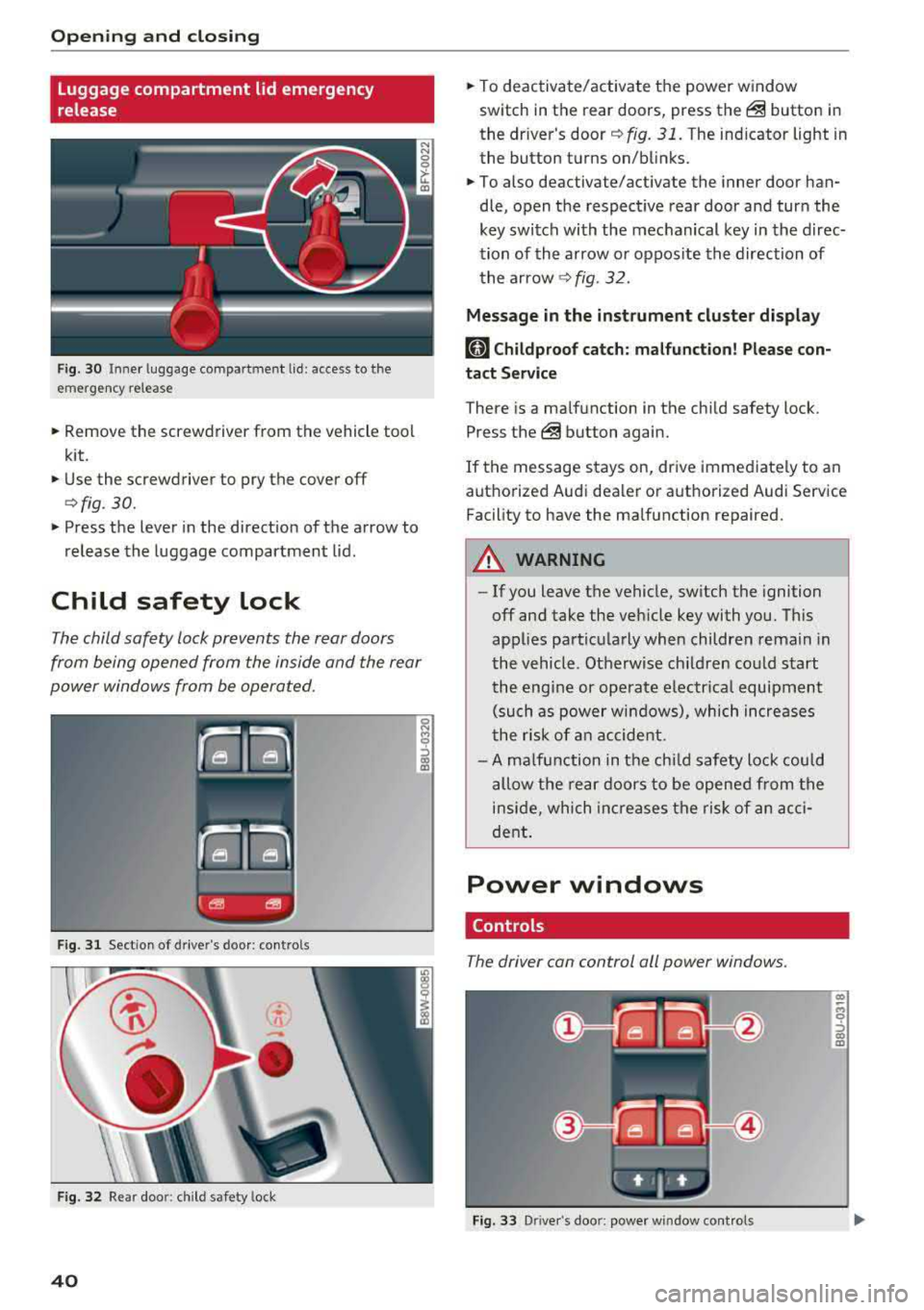

Luggage compartment lid emergency
release
Fig. 30 Inne r luggage compartment lid : access to the
emergency release
.. Remove the screwdriver from the vehicle tool
kit.
.. Use the screwdriver to pry the cover off
<=>fig. 30.
.. Press the lever in the direct ion of the arrow to
release the luggage compartment lid .
Child safety lock
The child safety lock prevents the rear doors
from being opened from the inside and the rear
power windows from be operated.
F ig. 31 Sect ion of drive r's door: contro ls
Fig . 32 Re ar doo r: child safety lock
40
.. To deactivate/activate the power window
switch in the rear doors, press
the@ button in
the driver's
door ¢ fig. 31. The indicator light in
the button turns on/blinks .
.. To also deactivate/activate the inner door han­
dle, open the respect ive rear door and turn the
key switch with the mechanical key in the direc­
tion of the arrow or oppos ite the direction of
the arrow
¢fig. 32.
Message in the instrument cluster display
(81 Childproof catch: malfunction! Please con­
tact Service
There is a ma lfunction in the chi ld safety lock .
Press
the @ button again .
If the message stays on, drive immediate ly to an
authorized Audi dealer or authorized Audi Service
Facility to have the malfunction repaired .
A WARNING
-- If you leave the vehicle, sw itch the ignition
off and take the veh icle key with you. This
applies particularly when children remain in
the vehicle. Otherwise ch ildren could start
the engine or operate electrical equipment
(such as power windows), which increases
the ris k of an accident.
- A malfunction in the child safety lock could
allow the rear doors to be opened from the
inside, which increases the risk of an acci­
dent.
Power windows
Controls
The driver can control all power windows .
Fig. 33 Driver's doo r: power window cont rols
Cl) ~
"" 0
='> Cl) m

u co ..... N ,..._
N ..... 0 <( 0 00
All power window switches are equipped with a
two-stage function *:
Opening and clo sing the windows
.,. T o open or close the w indow completely, p ress
the sw itc h down or p ull the sw itc h up br iefly to
the second level. The operation wi ll stop if the
switch is pressed/pu lled again.
.. To se lect a position in between opened and
closed, press/pull the switch to the first leve l
until the desired window position is reached.
Po wer window switch es
(D Left front door
@ R ight front door
@ L eft rea r door*
© Right rear door*
A WARNING
- If you leave the veh icle, switch the ignition
off and take the vehicle key with you. This
applies particularly when children remain in
the vehicle . Otherw ise children could start
the engine or operate elect rical equipment
(such as powe r windows), which inc reases
the risk of an acc ident. The power windows
c ontin ue to f unct ion until the driver's door
or front passenge r's door has been opened .
- Pay ca reful attent ion when closing the win­
dows. Pin ching co uld cause serious injur ies.
- When loc king the veh icle from outside, the
vehicle mus t be unoccupied since the win­
dows can no longer be opened in an emer­
gency.
(D Tips
You can still open and close the w indows for
app roxima tely 10 minutes after tu rning the
ign it ion off. The power windows do no t switch
off until the driver's door or front passenger's
door has been opene d.
Opening and cl osing
Convenience opening/closing
Applies to: vehicles with convenience key
All of the windows and the roof* con be opened/
closed at the some time .
Convenience opening f eature
.. Press and hold the @ button on the remote con ­
trol key until a ll of the windows reach the de ­
sired position and the roof* is ti lted open .
Convenience closing feature
.. Press the t'fl button on the remote control key
until the roof* is closed
~ ,&. , or
.. Touch the sensor * on the door handle unti l all
of the windows and the roof* are closed. Do not place your hand in the door handle when doing
this .
Sett ing con ven ience opening in the
Infotainment system
.. Select in the Infotainment system: I MENU ! but­
ton
> V ehicle > left control button > V ehicle
s etting s
> Central locking > Long press to
open windows .
A WARNING
-Never close the w indows o r the roof* ca re­
lessly or in an uncon trolled manner, be­
cause this increases the risk o f injury .
- For secur ity reasons, the win dows and the
roof* c an only be opened and closed with
the remote control key at a maxim um dis­
tance of approximately 6.S feet (2 m) away
from the vehicle. Always pay attention when using the
t'fl button to close the windows
and the roof * so that no one is pinched. The
clos ing process will stop immediately when
the
t'fl button is released.
(D Tips
Applies to: vehicles with panorama glass roof:
the power sunshade also opens/closes when
opening/closing the roof .
-
41

Opening and clo sin g
Correcting power window malfunctions
You can reactivate the one-touch up/down func­
tion if it malfunctions.
.. Pull the power window switch up unt il the win­
dow is completely raised.
.. Release the sw itch and pull it up again for at
least one second.

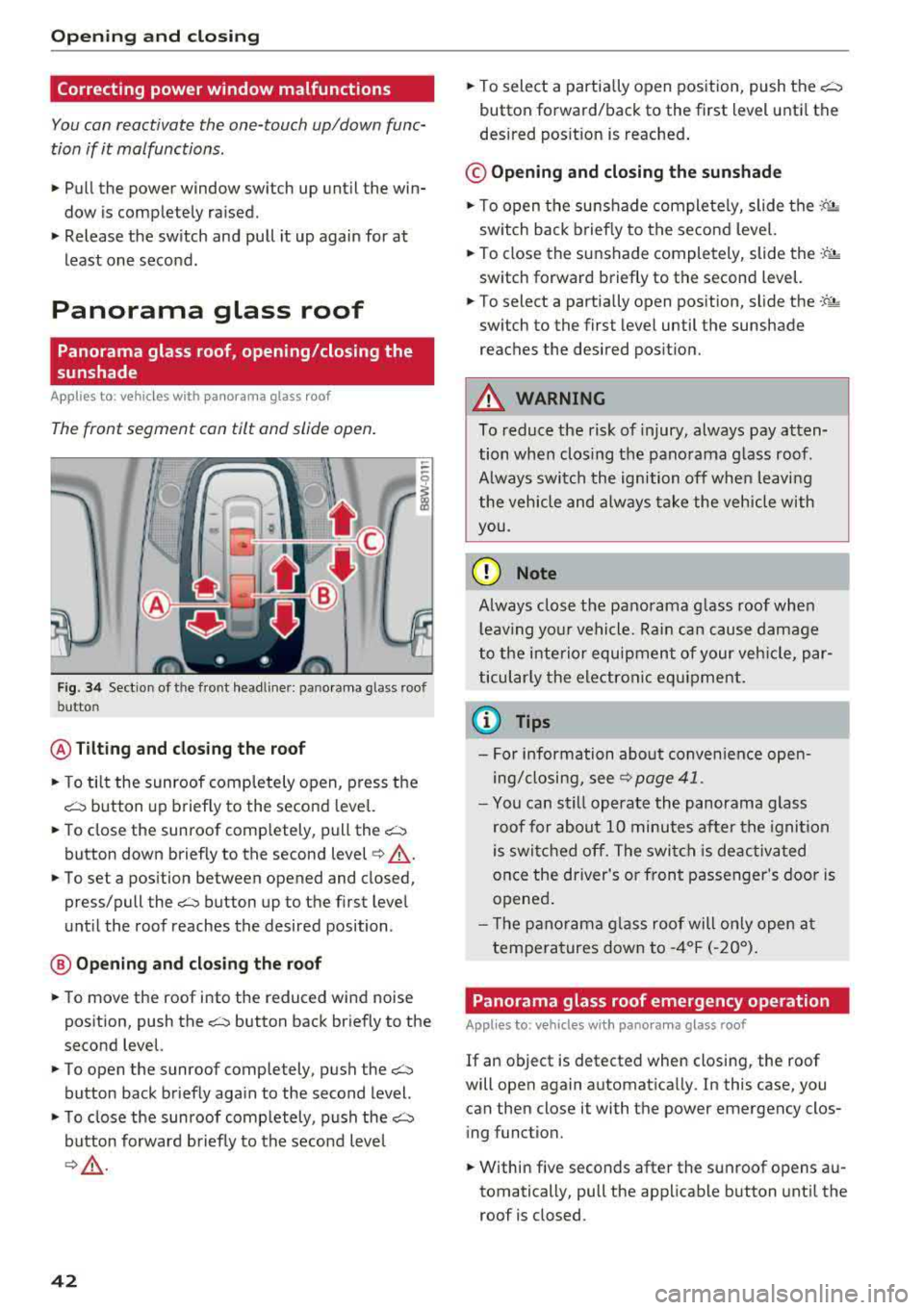

Panorama glass roof
Panorama glass roof, opening/closing the
sunshade
A ppl ies to: ve hicles w ith pan orama gl ass roo f
The front segment can tilt and slide open.
Fig. 34 Sect ion of the front headline r: pano rama glass roof
button
@ Tilting and clo sing th e roof
.. To tilt the sunroof comp letely open, press the
c::::::, button up briefly to the second leve l.
.,. To close the sunroof completely, pull the~
button down briefly to the second level¢_& .
.. To set a position between opened and closed,
press/pull
the~ button up to the first level
until the roof reaches the desired position .
@ Opening an d clos ing th e ro of
.,. To move the roof into the reduced wind noise
position, push
the~ button back briefly to the
second level.
.. To open the sunroof completely, push the~
button back briefly aga in to the second level.
.,. T o close the sunroof comp letely, push the c::::::,
button forward briefly to the second level
¢ ,& .
42
.,. To select a partia lly open pos ition, push the~
button forward/back to the first level unti l the
desired pos ition is reached .
© Opening and closing the sunshad e
.,. To open the sunshade completely, slide the ·-P. •·
sw itch back briefly to the second level.
.,. To close the su nshade completely, slide the -'f'~
switch forward briefly to the second level.
.,. To select a partially open position, slide the -:t- ;&
switch to the first level until the sunshade
reaches the desired posit ion.
A WARNING
To reduce the risk of injury, always pay atten­
tion when clos ing the panorama g lass roof.
A lways switch the ignition off when leavi ng
the vehicle and always take the vehicle with
you.
(D Note
A lways close the panorama g lass roof when
l eav ing you r vehicle. Ra in can cause damage
to the i nterior equipment of your veh icle, par­
ticular ly the electronic equ ipment.
(I) Tips
- For information about convenience open­
ing/closing, see
9 page 41 .
-You can still operate the panorama glass
roof for about 10 minutes a fter the igni tion
is switched off. The swi tch is deactiv ated
once the driver's or front passenger's door is
opened .
- T he p anorama g lass roof will on ly open a t
temperatures down to
- 4°F ( -20°).
Panorama glass roof emergency operation
App lies to: vehicles wi th pano ra m a g lass ro of
If an object is detected when closing, the roof
will open again automatica lly. In this case, you
can then close it with the power emergency clos­
i ng function.
.,. Within five seconds after the sunroof opens au­
tomatically, pull the applicable button unti l the
roof is closed.

u co ..... N r-­N .....
~ 0 co

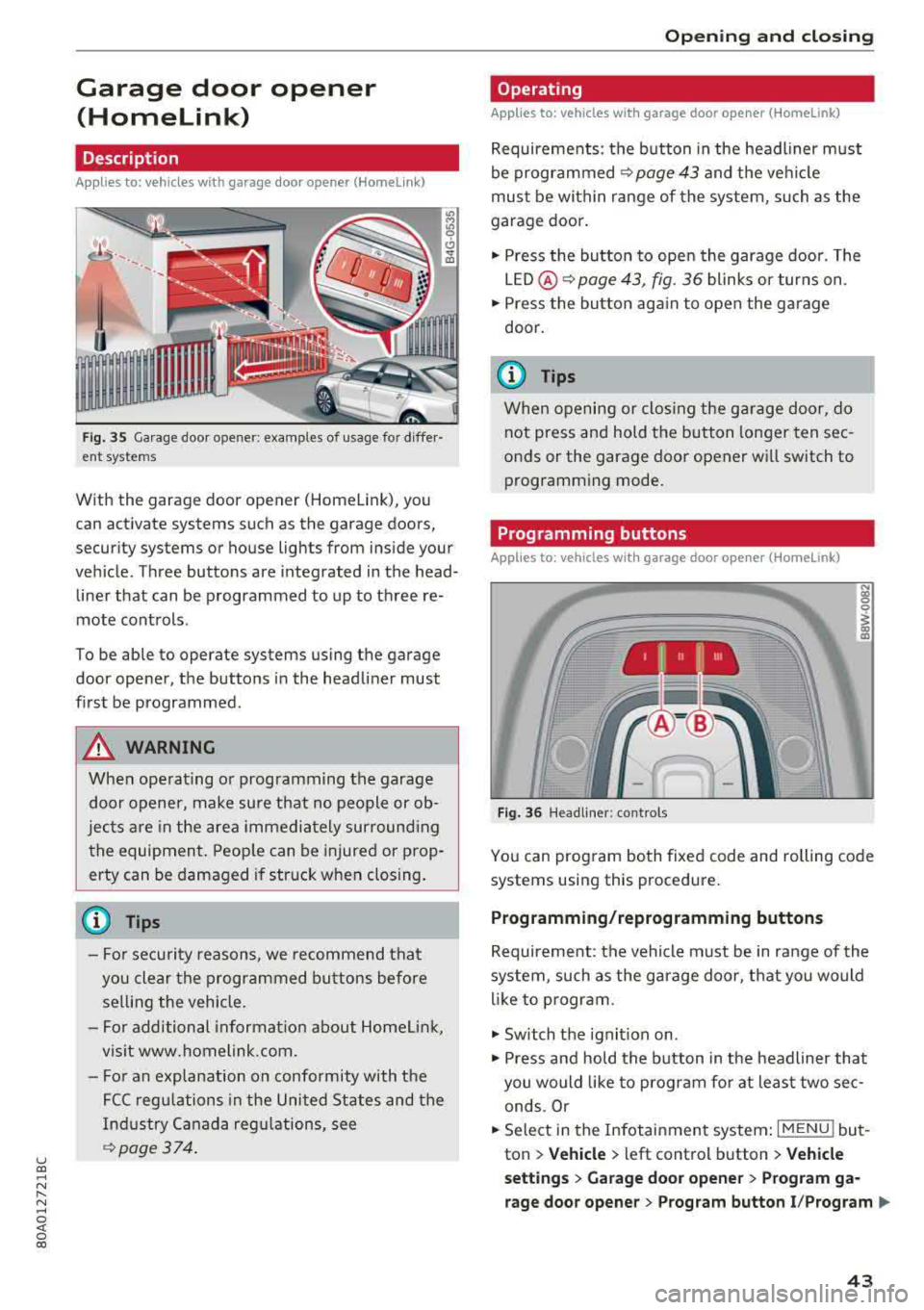

Garage door opener (Homelink)
Description
Applies to: vehicles with garage door opener (Homelink)
Fig. 35 Garage door o pene r: examp les of usage fo r diffe r·
ent syste ms
With the garag e door opener (Hom elink), you
can activate systems such as the garage doors,
security systems or house lights from inside your
vehicle. Three buttons are integrated in the head·
liner that can be programmed to up to three re­
mote controls .
To be able to oper ate systems using the garage
door opener, the buttons in the headliner must
first be programmed .
A WARNING
When operating or programming the garage
door opener, make sure that no people or ob·
jects are in the area immediately surround ing
the equipment. People can be injured or prop­
erty can be damaged if struck when closing.
- For security reasons, we recommend that
you clear the programmed buttons before
selling the vehicle .
- For additional informat ion about Homelink,
visit www.homelink.com.
- Fo r an explanation on conformity with the
FCC regulations in the United States and the
Industry Canada regulations, see
¢page 374 .
Opening and closing
Operating
Applies to: vehicles with garage door opener (Home link)
Requirements : the button in the headl iner must
be programmed
<>page 43 and the veh icle
must be within range of the system, such as the
garage door .
., Press the button to open the garage door. The
LED @<>
page 43, fig. 36 blinks or turns on .
.. Press the button again to open the garage
door.
@ Tips
When opening or closing the garage door, do
not press and hold the button longer ten sec ­
onds or the garage door opener wi ll switch to
programming mode.
Programming buttons
Applies to: vehicles with garage door opener (Home Link)
, 1 111 111
Fig . 36 H eadlin er: controls
N
~ 0
~ 0:, m
You can program both fixed code and rolling code
systems using this procedure.
Programming/reprogramming buttons
Requirement: the vehicle must be in range of the
system , such as the garage door, that you would
lik e to program.
., Switch the ignit ion on .
., Press and hold the button in the headliner that
you would like to program fo r at least two sec·
ends .Or
.. Select in the Infotainment system: I MENU ! but­
ton
> Vehicle > left control button > Vehicle
settings
> Garage door opener > Program ga­
rage door opener
> Program button I/Program ll>
43

Opening and clo sing

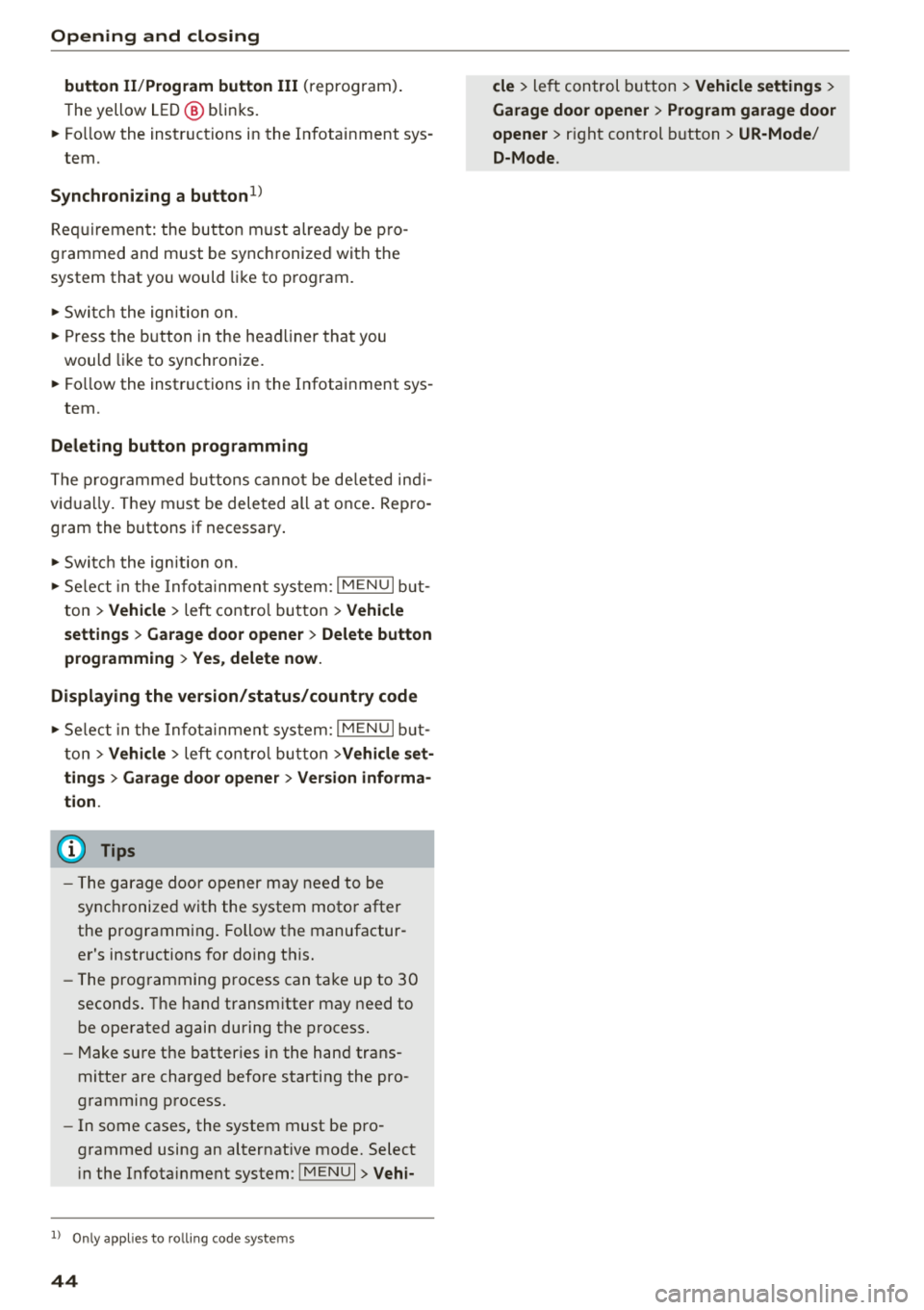

button II /P rogram button III (reprogram) .
The yellow LED @ blinks.
~ Follow the instructions in the Infotainment sys -
tem.
S y nchronizing a button1>
Requirement: the button must already be pro ­
grammed and must be synchronized with the
system that you would like to program.
~ Switc h the ign ition on.
~ Press the button in the head liner that you
would like to synchronize.
~ Fo llow the instructions in the Infotainment sys -
tem.
Del eting button prog ramming
The programmed buttons cannot be de leted ind i­
vidua lly. They must be deleted all at once . Rep ro­
gram the buttons if necessary .
~ Switch the ign ition on.
~ Se lect in the Infota inment system: I MENU I but­
ton
> Vehi cle > left contro l button > Vehicl e
settings > Garage d oor o pene r > Delete button
programming > Yes, delete no w.
Di splaying the version /statu s/country code
~ Se lect in the Infota inmen t system: IM ENU I but­
ton
> Vehi cle> left contro l button >Vehicl e set­
tings > Garage d oor o pene r > Versi on inf orma­
ti on.
(D Tips
- The garage door opener may need to be
synchronized with the system motor after
the programming . Follow the manufactur ­
er's instructions for doing t his.
- The programming process can take up to 30
seconds . The hand transmitter may need to
be operated again during the process.
- Make sure the batteries in the hand trans ­
mitter are charged before starting the pro­
gramming process.
- In some cases, the system must be pro ­
grammed using an alternative mode. Select i n the Infota inment system :
IMENUI > Vehi-
1> On ly appl ies to ro lling code sy stem s
44
cle > left control button > Vehicle settings >
Garage door opener > Progr am garage door
open er >
right control b utton > UR -Mode /
D-Mode .

Lights and Vision
Exterior Lighting
Switching the lights on and off
--- ----~-----'~
i
Fig. 37 Instrument p anel: l ig ht switc h with buttons
Light switch ·'!:! ·
Turn the light sw itch to the corresponding posi­
tion when the ignition is switched on.
:oo: and the
selected pos ition turn on (except pos ition 0).
0 -The daytime r unning lights automat ica lly t urn
on. In vehicles for certain markets, you can
switch the automatic daytime running lights on
and off in the Infotainment system*.
AUTO
-T he headlights automatically adapt to the
surrounding brightness.
: oo : -Parking lights
io -Low beam headlights
Buttons
When you turn the light switch to the AUTO or
low beam headlight pos ition
io, you can activate
the following functions:
~ o -A ll-weather lights. The headlights automati ­
cally adjust so that there wi ll be less glare, for
examp le when the road surface is wet.
O t -Rear fog lights
Automatic headlight range control system
Your veh icle is equipped with an automatic head ­
l ight range contro l system that re duces g lare fo r
oncoming traffic i f the vehicle load c hanges. The
~ headlight range ad justs automatica lly . ..... N r-­N .....
~ 0 co
Lights and V ision
Audi adaptive light
Appl ies to: vehicles wit h adaptive light
Adaptive ligh t provides better visibili ty whe n it i s
dark by adapting the lights to the road conditions
based on speed , such as on e xpressways, rura l
roads, at intersections, and in c urves. The adap­
t ive light only functions when the light sw itch is
i n the AUTO position .
A WARNING
--Automatic headlights* are on ly intended to
assist the driver. They do not relieve the
driver of responsibil ity to check the head­
lights and to t urn t hem on manua lly based
on t he curren t ligh t and v is ibility condition s.
For examp le, fog canno t be detec ted by the
light sensors. So always switch on the low
beams under these weather co nditions and
when driv ing in the da rk
io .
- To prevent glare for traffic behind yo ur vehi ­
cle, the rear fog lights should only be turned
on in accordance with traff ic regulat ions.
- Always observe legal regulations when
us­
ing the lighting systems desc ribed .
(D Tips
- The lig ht sensor for the automat ic he ad ­
lights * is in the rearview mir ror mount. Do
not p lace any st ickers in this area on the
windshield.
- A warning tone will sound if you open the door when the exte rior lights a re switched
on .
- Only t he front headlights turn on when t he
daytime running lights are switched on *. In
vehicles in certain markets, the tail lights
w ill also turn on .
- In cool or damp weather, the inside of the
head lights, turn signa ls and tail lights can
fog over due to the temperature diffe rence
between the inside and outside . They will
clear shortly afte r swi tching them on . This
does not aff ect the service life of the light­
mg.
45

Lights and Vision

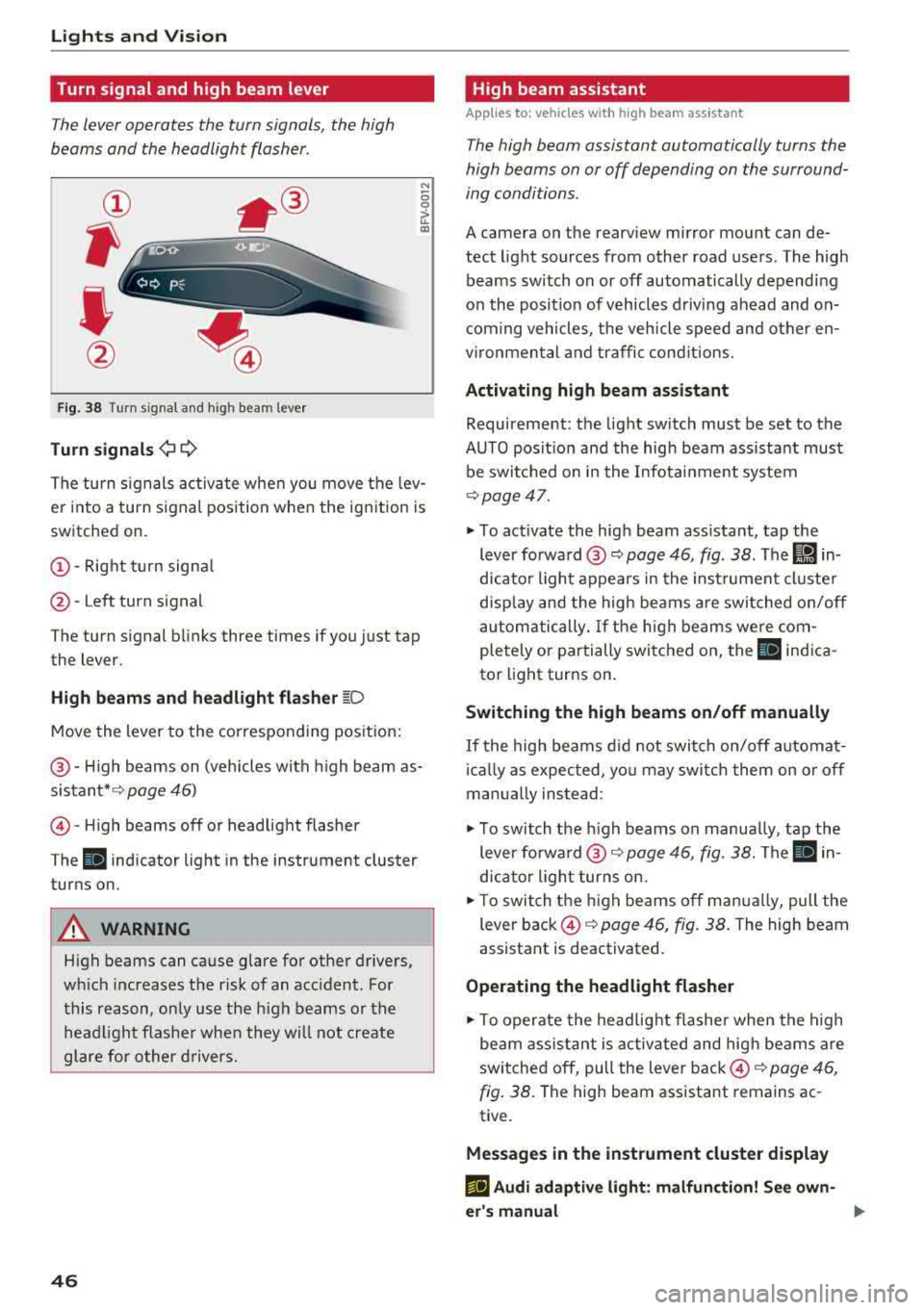

Turn signal and high beam lever
The lever operates the turn signals, the high
beams and the headlight flasher .
Fig. 38 Turn sig nal and high beam lever
Turn signals¢ Q
N
0 0
> u.. a,
The turn signals activate when you move the lev­
er into a turn signal position when the ignition is
switched on.
@ -Right turn signal
@-Left turn signal
The turn signal blinks three times if you just tap
the lever.
High beams and headlight flasher ~D
Move the lever to the corresponding position:
@ -High beams on (vehicles with high beam as­
sistant*¢ page 46)
©-High beams off or headlight flasher
The
II indicator light in the instrument cluster
turns on .
A WARNING
High beams can cause glare for other drivers,
wh ich increases the risk of an accident. For
this reason, only use the high beams or the
headlight flasher when they will not create
glare for other drivers.
46
High beam assistant
App lies to : vehicles with high beam ass istant
The high beam assistant automatically turns the
high beams on or off depending on the surround­
ing conditions .
A camera on the rearview mirror mount can de­
tect light sources from other road users. The high
beams switch on or off automatically depending
on the posit ion of vehicles driving ahead and on­
coming vehicles, the vehicle speed and other en­
vironmen tal and traffic conditions.
Activating high beam assistant
Requirement: the light sw itch must be set to the
AUTO posit ion and the high beam assistant must
be switched on in the Infotainment system
¢page 47 .
• To act ivate the high beam ass istant, tap the
lever
forward @~ page 46, fig . 38. The Ii] in­
dicator light appears in the instrument cluster
display and the high beams are switched on/off
automatically. If the high beams were com­
pletely or partially switched on, the
SI indica­
tor light turns on .
Switching the high beams on/off manually
If the high beams did not switch on/off automat­
icall y as expected, you may switch them on or off
manua lly instead :
• To switch the h igh beams on manually, tap the
lever
forward @~ page 46, fig. 38. The II in­
dicator light turns on.
• To switch the high beams off manually, pull the
lever back ©¢
page 46, fig. 38. The high beam
assistant is deactivated.
Operating the headlight flasher
• To operate the headlight flasher when the high
beam assistant is activated and high beams are
switched off, pull the lever back ©¢
page 46,
fig. 38.
The high beam assistant remains ac­
tive.
Messages in the instrument cluster display
EIJ Audi adaptive light: malfunction! See own­
er's manual

u co ..... N r-­N .....
~ 0 co

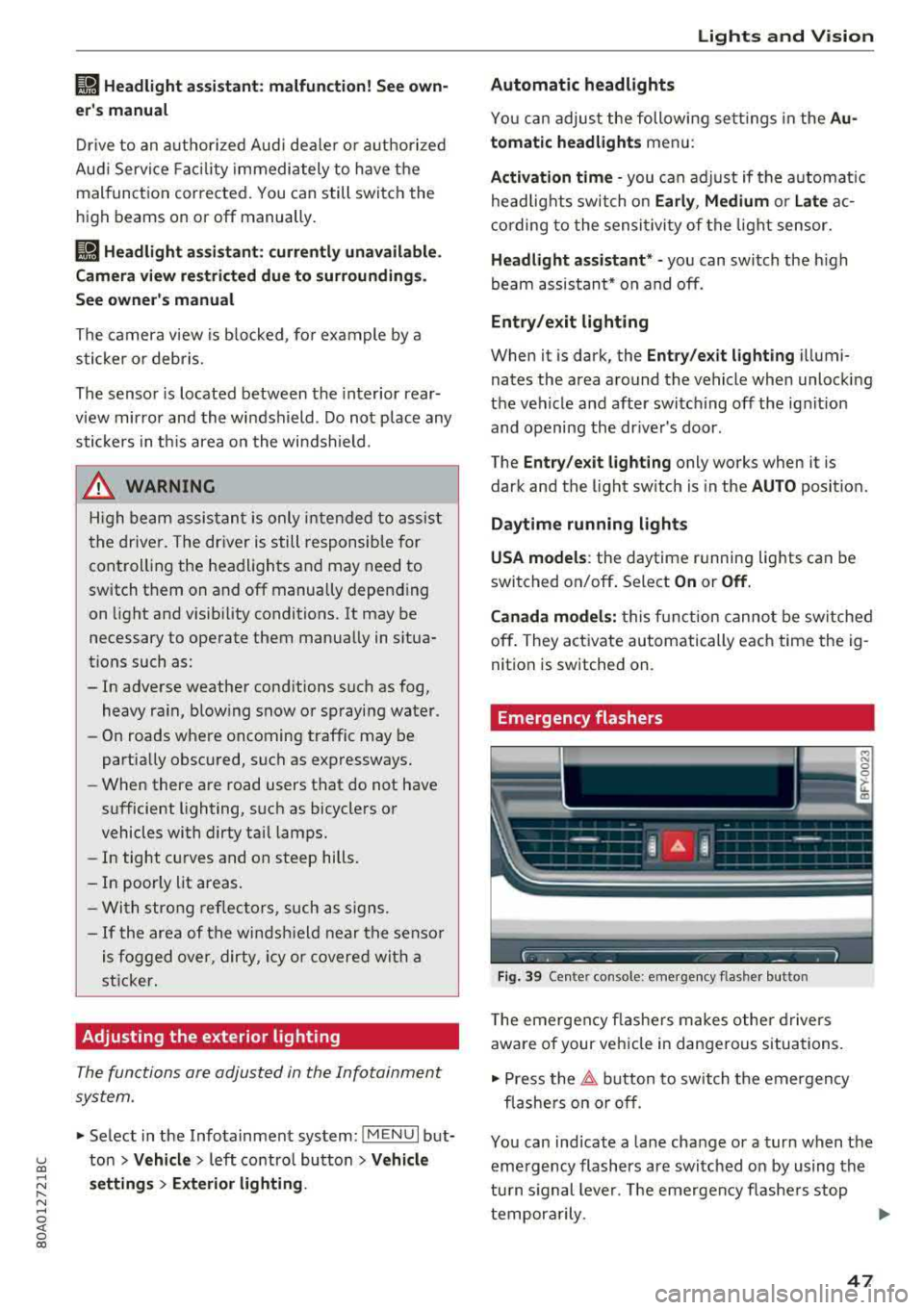

~ Headlight a ssistant : ma lfun ction! See own­
er 's manual
Drive to an autho rized Audi de aler o r a uthorized
Aud i Service Facility immedia tely to have the
mal funct ion corrected. You can still switch the
high beams on or off manually.
i:a Headlight a ssistant : currently unavailable.
Camera view restricted due to surroundings .
See owner 's manual
The camera view is b locked, fo r example by a
s ticker o r debris.
The senso r is located between the interior rear­
view mir ror and the wi ndshield . Do not p lace any
sti cke rs in t his area on the wi ndshi eld.
,& WARNING
High beam assis tan t is only i ntended to assist
th e drive r. The dr iver is still re sponsib le for
contro lling the headlights and may need to
switch them on and off manually depend ing
on light and visib ility conditions. It may be
necessary to ope rate them manua lly in s itua­
tions such as:
- In adverse weather cond itions such as fog,
heavy ra in, b low ing snow or sp raying water .
- On roads where oncoming traffic may be
partially obsc ured, such as expressways .
- W hen there are road users t hat do not have
s ufficient lighting, s uc h as bicyclers o r
vehicles with dirty ta il lamps.
- In tight cu rves and on steep hills .
- In poo rly lit areas .
- Wi th stro ng ref lec to rs, such as s igns.
- I f the area of t he windsh ield near the se nso r
is f ogg ed ove r, dir ty, i cy or covere d w ith a
sti cker.
Adjusting the exterior lighting
The fun ctio ns are adjust ed in the Infotainment
system.
• Select in the Info tainment sys tem: !ME NUI but­
ton
> Vehicle > left contro l butto n > Vehicle
settings > Exterior lighting .
Lights and Vision
Automatic headlights
Yo u ca n adju st the following se ttings in the Au­
tomatic headlights
men u:
Activation time -you can adjust if the a utomat ic
he adlig hts swi tch on
Early , Medium or Late ac­
cording to the sensi tivity of the ligh t se nsor.
Headlight assistant * -you can switch the high
beam assis tan t* on and off.
Entry/exit lighting
When it is dark, the Entry/exit lighting ill umi­
nates the area a round the vehicle when unlocking
the ve hicle and afte r swi tc h ing off the ignit io n
and opening the dr ive r's door.
The
Entry /exit lighting only works when it is
dark and the ligh t sw itch is in the
AUTO position.
Daytime running lights
USA models :
the daytime r unning lig hts can be
switched on/off . Select
On or Off.
Canada model s:
th is fu ncti on canno t be switche d
off. They act ivate au tomatically eac h time the ig ­
nition is switched on.
Emergency flashers
- --- - -- ----
~
Fig . 39 Ce nter console: emergency flasher butto n
The eme rgen cy fla she rs m akes othe r dr iv e rs
aware of your vehi cle in dangerous situa tions.
• Press the ~ button to sw itch t he emergency
fl as he rs on or off.
You can ind icate a lane change or a turn when the
eme rgency flashers are swi tched on by using the
tu rn s ignal leve r. T he emergen cy flashe rs stop
tempor arily.
""
47

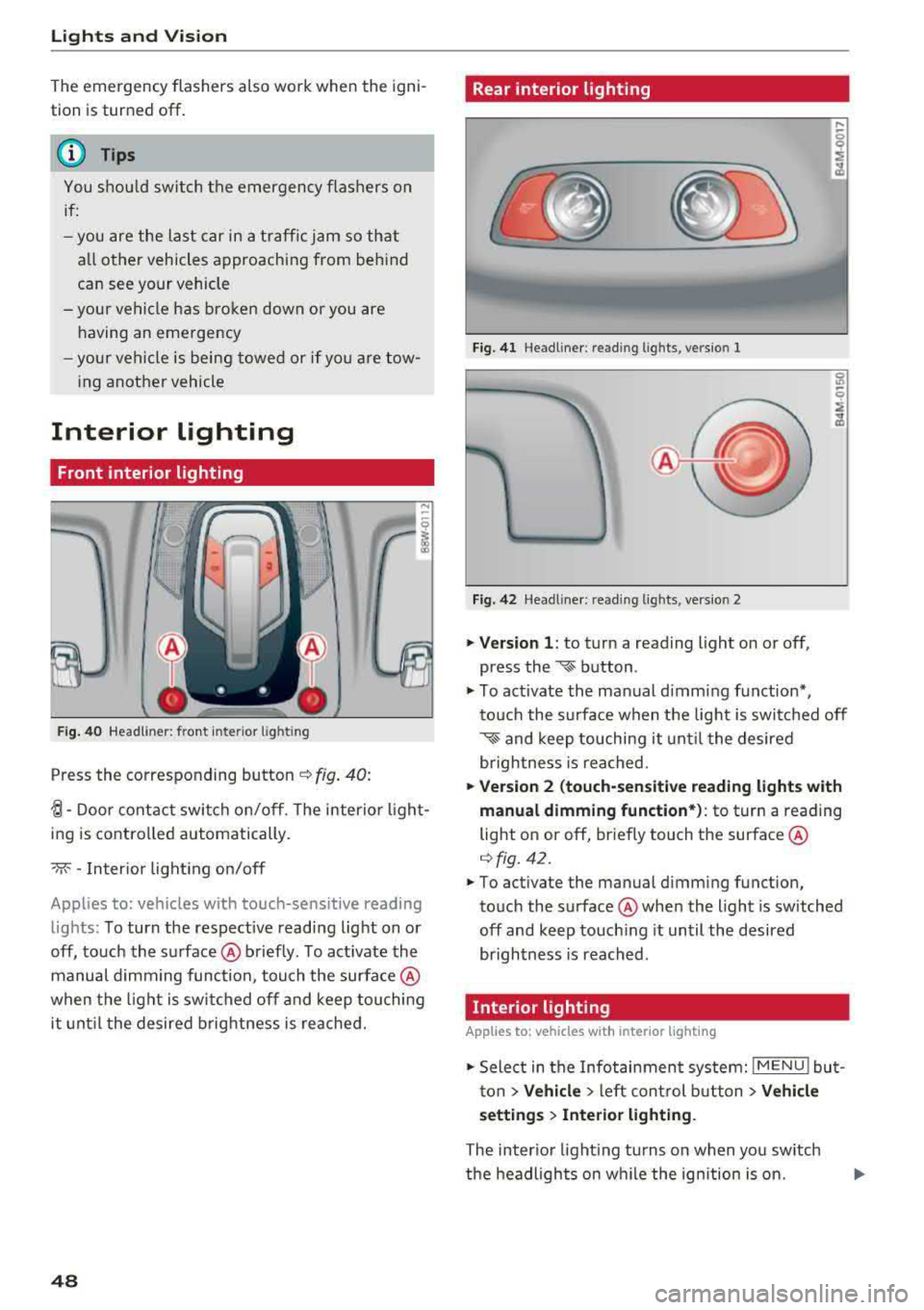

Lights and Vision
The emergency flashers also work when the igni­
t ion is turn ed off .
(D Tips
You s hou ld sw itch the emergency flashers on
if:
- you are the last car in a traff ic jam so that
a ll other vehicles approaching from behind
can see your vehicle
- your ve hicle has bro ke n down or you are
having an eme rgency
- you r vehicle i s being towed or if yo u are tow­
ing another vehicle
Interior lighting
Front interior lighting
F ig. 40 He adlin er: fr ont in te ri or l ig htin g
Press the co rresponding button ¢ fig . 40:
-fJ-Door contact swi tch on/off . T he interio r ligh t­
ing is controlled automatically.
- M--I n ter ior light ing o n/off
Applies to: vehicles with touch-sensitive reading lights: To turn the respect ive readi ng light on or
off, to uch the su rface @ brief ly . To act ivate the
manual d imm ing func tion , touch the surfa ce @
when the light is swi tched off and kee p touching
it unt il t he desired brig htness is reached.
48
Rear interior lighting
Fi g. 41 Headline r: re ad in g light s, vers io n 1
Fig. 42 Headline r: re ad in g l igh ts , ve rs io n 2
.. Version 1 : to turn a read ing l ight on or off,
press the
~ b utton .
.. To ac tivate the ma nual dimming f unct ion* ,
t o uch the s urface when the lig ht is swi tc h ed off
~ and keep touching it unt il t he de sired
brigh tness is reached.
.. Ver sion 2 (touch-sensiti ve reading light s with
manual dimming function* ):
to turn a reading
light on or off, br iefly touch t he surface @
¢fig. 42 .
.. To activate the manual dimming function,
to uch the surface @whe n the light is switched
off and keep touch ing it until the desired
brightness is reached .
Interior lighting
Applies to: vehicles with interior lighting
.. Select in the Infotainment system: IMENU ! but­
t on
> Vehicle > le ft cont rol but ton > Vehicle
s etting s> Interior lighting.
The inter io r li gh ting turns on when yo u sw itch
t h e headlights on w hile the ign ition is on.
