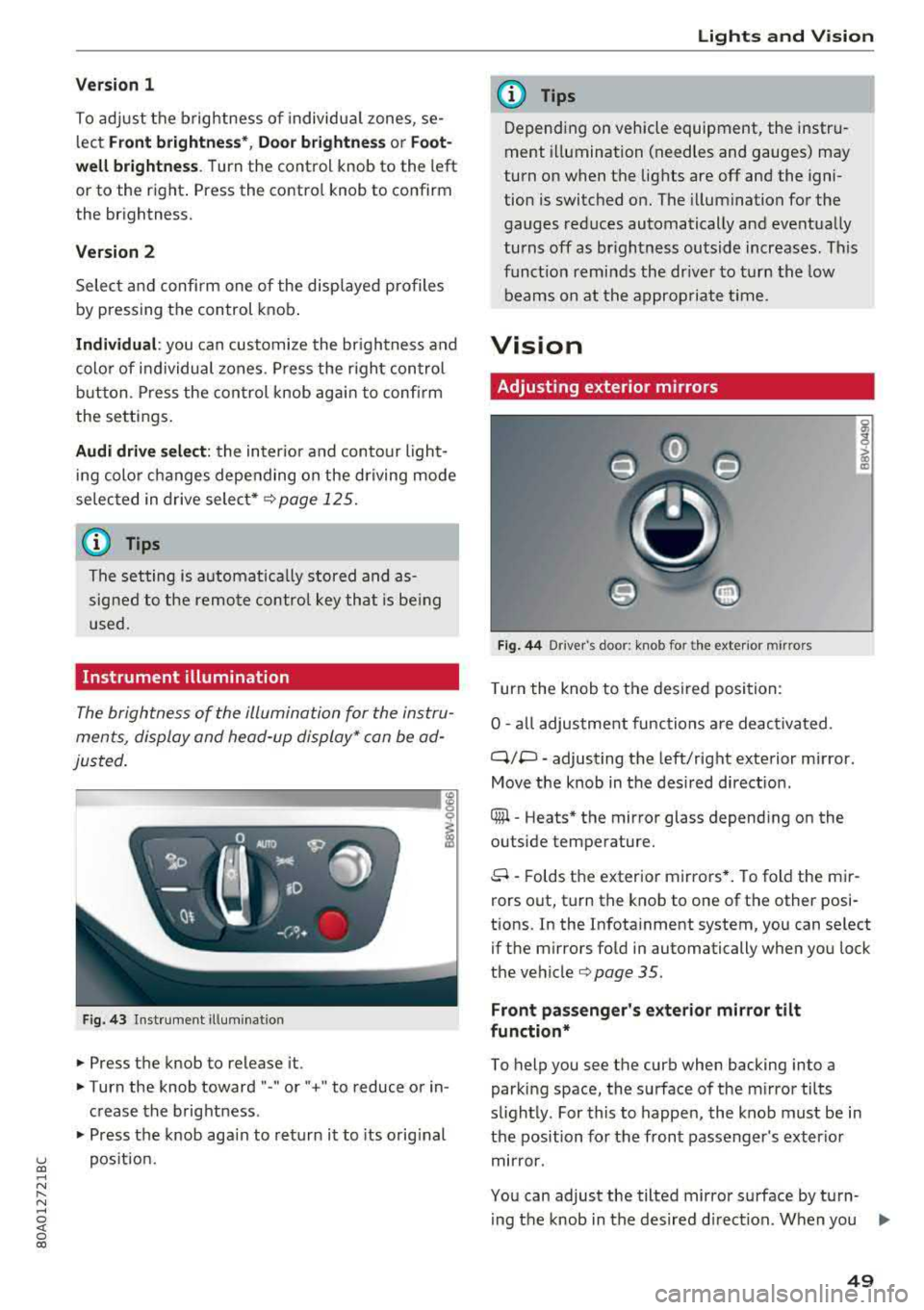

Version 1
To adjust the brightness of individual zones, se­
lect
Front brightness* , Door brightness or Foot­
well brightness.
Turn the control knob to th e left
or to th e right. Pr ess the control knob to confirm
the b rightness.
Version 2
Select and confirm one of the displayed profiles
by pressing the control knob.
Individual: you can customize the brightness and
color of individual zones. Press the right control
button. Press the control knob again to confirm
the settings.
Audi drive select: the interior and contour light­
ing color changes depending on the driving mode
selected in drive select*
r::?vpage 125.
(0) Tips
The setting is automatically stored and as­
signed to the remote control key that is being
used.
Instrument illumination
The brightness of the illumination for the instru­
ments, display and head-up display* can be ad­
justed.
--------... ~
i
Fig. 43 Instrument i llumination
.. Press the knob to release it.
.. Turn the knob toward "-" or" +" to reduce or in ­
crease the brightness .
.. Press the knob again to return it to its original
position.
Lights and Vision
(D Tips
Depending on vehicle equipment, the instru­
ment illumination (needles and gauges) may
turn on when the lights are off and the igni­
tion is switched on. The illumination for the
gauges reduces automatically and eventually
turns off as brightness outside increases . This
function reminds the driver to turn the low
beams on at the appropriate time.
Vision
Adjusting exterior mirrors
Fig. 44 D river 's doo r: knob fo r the ext erior mirr ors
Turn the knob to the desired position:
0
-all adjustment functions are deactivated .
q;p -adjusting the left/right exterior mirror.
Move the knob in the desired direction .
® -Heats* the mirror glass depending on the
outside temperature.
8 -Folds the exterior mirrors*. To fold the mir ­
rors out, turn the knob to one of the other posi­
tions. In the Infotainment system, you can select if the mirrors fold in automatically when you lock
the
vehicle¢ page 35 .
Front passenger's exterior mirror tilt
function*
To help you see the curb when backing into a
parking space, the surface of the mirror tilts
slightly. For this to happen, the knob must be in
the position for the front passenger's exterior
mirror.
You can adjust the tilted mirror surface by turn- ing the knob in the desired direction. When you
.,.
49

Lights and Vision

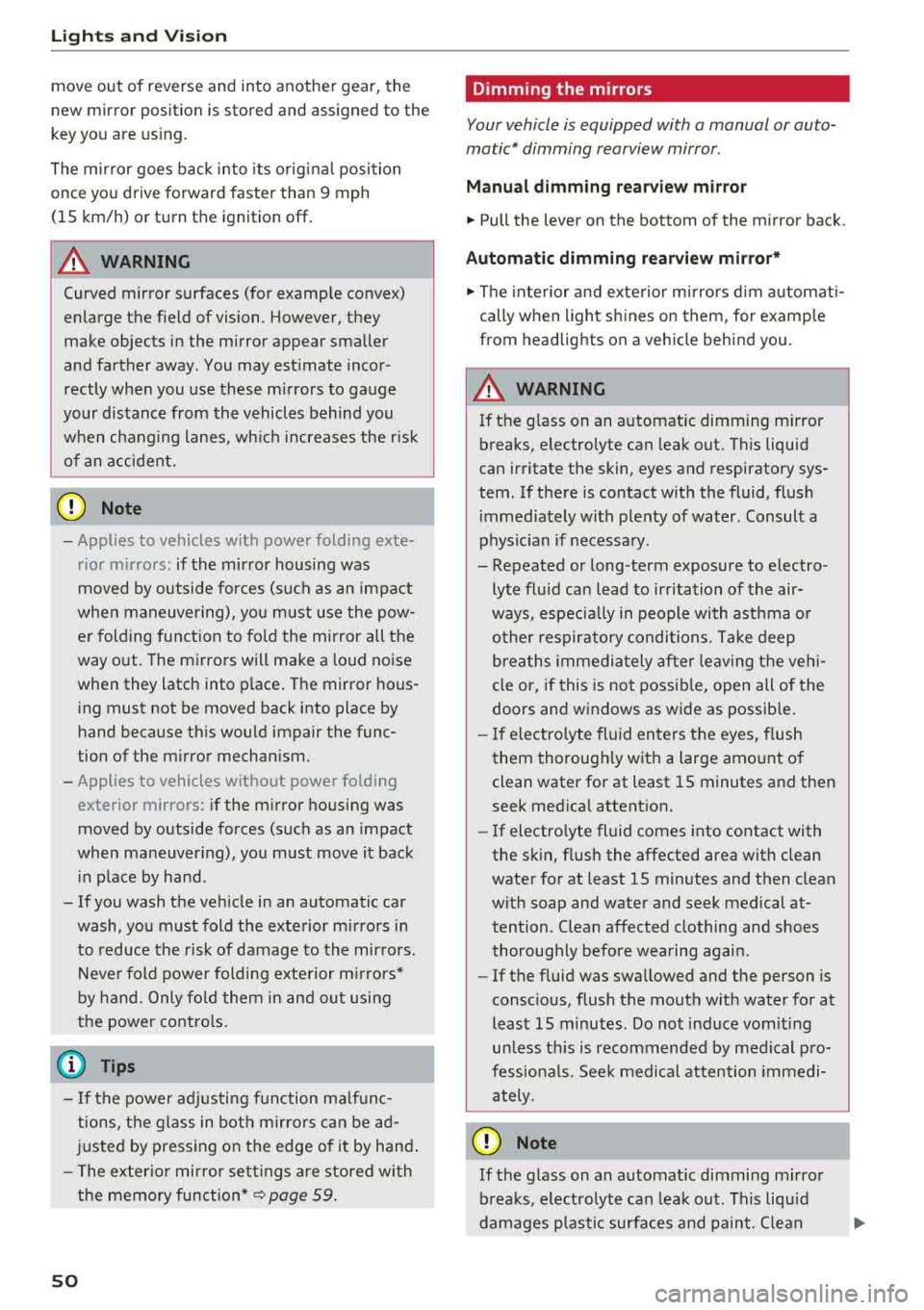

move out of reverse and into another gear, the
new mirror position is stored and assigned to the
key you are using.
The mirror goes back into its original position
once you drive forward faster than 9 mph
(15 km/h) or turn t he ignition
off.
A WARNING
Curved mirror surfaces (for example convex)
enlarge the field of vision. However, they
make objects in the mirror appear smaller
and farther away. You may estimate incor­
rectly when you use these mirrors to gauge
your distance from the vehicles behind you
when changing lanes, which increases the risk of an accident.
«1j) Note
-Applies to vehicles with power folding exte­
rior mirrors: if the mirror housing was
moved by outside forces (such as an impact
when maneuvering), you must use the pow­
er folding function to fold the mirror all the
way out. The mirrors will make a loud noise
when they latch into place. The mirror hous­
ing must not be moved back into place by
hand because this would impair the func­
tion of the mirror mechanism.
- Applies to vehicles without power folding
exterior mirrors : if the mirror housing was
moved by outside forces (such as an impact
when maneuvering), you must move it back in place by hand.
- If you wash the vehicle in an automatic car
wash, you must fold the exterior mirrors in
to reduce the risk of damage to the mirrors.
Never fold power folding exterior mirrors*
by hand . Only fold them in and out using
the power controls.
(D Tips
-If the power adjusting function malfunc­
tions, the glass in both mirrors can be ad­
justed by pressing on the edge of it by hand.
- The exterior mirror settings are stored with
the memory
function*~ page 59.
so
Dimming the mirrors
Your vehicle is equipped with a manual or auto­
matic* dimming rearview mirror .
Manual dimming rearview mirror
.,. Pull the lever on the bottom of the mirror back.
Automatic dimming rearview mirror*
.,. The interior and exterior mirrors dim automati­
cally when light shines on them, for example
from headlights on a vehicle behind you.
A WARNING
If the glass on an automatic dimming mirror
breaks, electrolyte can leak out. This liquid
can irritate the skin, eyes and respiratory sys­
tem. If there is contact with the fluid, flush immediately with plenty of water. Consult a
physician if necessary .
- Repeated or long-term exposure to electro­
lyte fluid can lead to irritation of the air­
ways, especially in people with asthma or other respiratory conditions. Take deep
breaths immediately after leaving the vehi­
cle or, if this is not possible, open all of the
doors and windows as wide as possible.
- If electrolyte fluid enters the eyes, flush
them thoroughly with a large amount of
clean water for at least 15 minutes and then
seek medical attention.
- If electrolyte fluid comes into contact with
the skin, flush the affected area with clean
water for at least 15 minutes and then clean
with soap and water and seek medical at­ tention. Clean affected clothing and shoes
thoroughly before wearing again.
- If the fluid was swallowed and the person is
conscious, flush the mouth with water for at
least 15 minutes . Do not induce vomiting
unless this is recommended by medical pro­
fessionals. Seek medical attention immedi­
ately .
@ Note
If the glass on an automatic dimming mirror
breaks, electrolyte can leak out. This liquid
damages plastic surfaces and paint. Clean

u co ..... N r-­N .....
~ 0 co
this liquid as quickly as possible, for example
with a wet sponge.
@ Tips
- If the light reaching the rearview mirror is
obstructed, the automatic dimming mirror
will not function correct ly,
- The automatic dimming mirrors do not dim
when the interior lighting is turned on or
the reverse gear is selected.
Sun visors
Fig. 45 Sun visor
Sun visor
The sun visors for the dr iver and front passenger
can be re leased from their mounts and turned
to­
ward the doors ¢ fig. 45 (D.
They can also be moved back and forth length­
wise in this posit ion.
Vanity mirror
The -mir ror lighting- switches on when the cover
over the vanity mirror 2* opens .
Sunshade
App lies to: ve hicles with s unsh ad e
Fig. 46 Rea r door : sunshade
Lights and Vision
Rear door sunshade
.,. Pull the sunshade out and attach it to the re­
tainer on the upper door frame ¢ fig. 46.
Windshield wipers
Switching the wipers on
•®
• @
•@
@.
• @
•®
Fig. 47 Winds hield wiper leve r
(!)-
. ®
Fig. 48 Rear window wiper operat ion
Move the windshield wiper lever to the corre­
sponding position:
@ -Windshield w ipers off
co 0 ;&
a,
0 ;&
(D -Rain sensor mode . T he windshield wipers
switch on once the veh icle speed exceeds approx­
imately 2 mph (4 km/h) and it is raining. The
higher the sensitivity of the ra in sensor that is set
(switch ® to the right), the earlier the wind­
shield wipers react to moisture on the wind­
shield. You can deactivate the rain sensor mode
in the Infotainment system, which switches the
intermittent mode on . To do this, select:
I MENU I
button > Vehicle > left control button > Driver
as sistance > Rain sensor.
In interm ittent mode,
you can adjust the interval time using the switch
®·
@ -Slow w iping .,.
51

Lights and Vision
@-Fast wiping
©-Single wipe. If you hold the lever in this posi­
tion longer, the wipers switch from slow wiping
to fast wiping .
®-Clean the windshield . The wipers wipe one
time after several seconds of driving to remove
water droplets . You can switch this function off
by moving the lever to position ® within
10 sec­
onds of the afterwipe. The afterwipe function is
r e activated the next time you switch the ignition
on.
Clean the headlights*. The headlight washer sys­
tem* operates only when the low beam head­
lights are on. If you move the lever into position
@, the headlights will be cleaned at fixed inter­
vals .
@-Wipe the rear window. The number of wipes
depends on the windshield wiper movement.
The rear wiper automatically switches on when
the reverse gear is selected and the front wind­
shield wipers are on and running.
(j) -Clean the rear window. The number of wipes
depends on how long the lever is held in position
(z). This may also clean the rearview camera, de­
pending on the vehicle equipment.
A WARNING
- The rain sensor is only intended to assist the
driver. The driver may still be responsible
for manually switching the wipers on based on visibility conditions.
- The windshield may not be treated with wa­ ter-repelling windshield coating agents . Un­
favorable conditions, such as wetness, dark­
ness or low sun, can result in increased
glare, which increases the risk of an acci­
dent. Wiper blade chatter is also possible.
- Properly functioning windshield wiper
blades are required for a clear view and safe
driving ~ page 53, Replacing wiper
blades .
«1j) Note
-If there is frost, make sure the windshield
wiper blades are not frozen to the wind-
52
shield. Switching on the windshield wipers
when the blades are frozen to the wind­ shield can damage the wiper blades.
- The windshield wiper system must be
switched off (lever in position 0) before us­
ing a car wash. This prevents the wipers
from switching on unintentionally and caus­ ing damage to the windshield wiper system.
(D Tips
- The windshield wipers switch off when the
ignition is switched off. You can activate the
windshield wipers after the ignition is
switched back on by moving the windshield
wiper lever to any position .
- Worn or dirty windshield wiper blades result
in streaking. This can affect the rain sensor
function . Check your windshield wiper
blades regularly.
- The washer fluid nozzles for the windshield
washer system are heated at low tempera­
tures when the ignition is on.
- When stopping temporarily, such as at a
traffic light, the speed of the windshield
wipers automatically reduces by one level.
Cleaning the wiper blades
Clean the wiper blades when you see wiper
streaks. Use a soft cloth and a glass cleaner.
Windshield wiper
.,. Place the windshield wiper arms in the service
position
~ page 53.
.,. Fold the windshield wiper arms away from the
windshield.
Rear window wiper
.,. Fold the wiper arm away from the rear window.
A WARNING
Dirty windshield wiper blades can impair vi­
sion, which increases the risk of an accident.
-

u co ..... N r-­N .....
~ 0 co

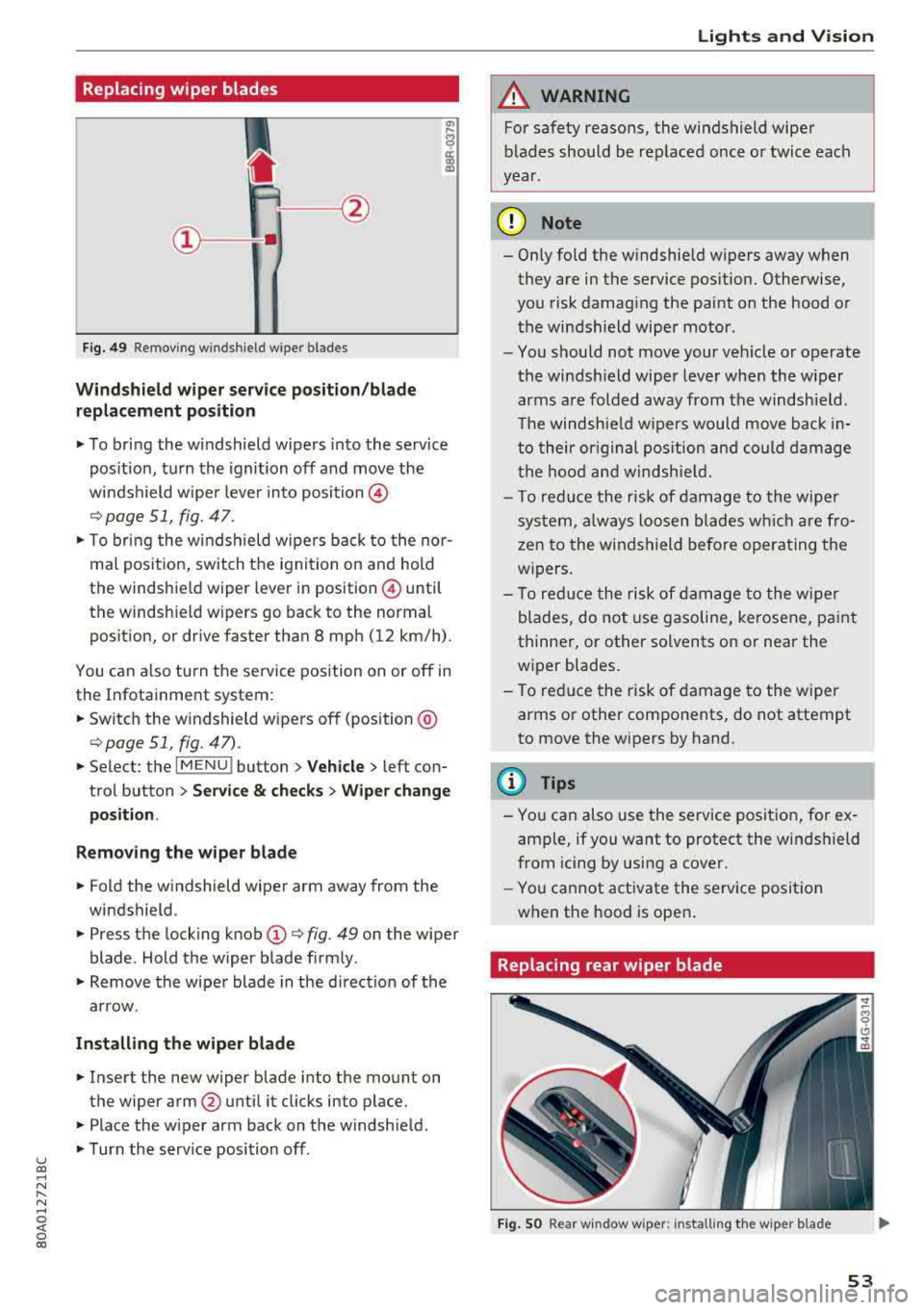

Replacing wiper blades
Fig. 49 Remov ing w indshi el d w iper blades
Windshield wiper serv ice po sition /blade
replacement position
"' To bring the windshield wipers into the service
pos ition, turn the ignition off and move the
windshield wiper lever into position @
¢ page 51, fig. 47.
"'T o bring the windshield wipers back to the nor­
mal pos ition, switch the ignition on and hold
the windshie ld wiper lever in posit ion @ until
the windshie ld wipers go back to the normal
pos ition, or d rive faster than 8 mph (12 km/h) .
You can a lso tu rn the service position on or off in
the Infotainment system :
"'Switch the windshield wipers off (position @
¢page 51 , fig. 47) .
"'Select : the I MENU ! button> Vehicle> left con­
trol button >
Service & checks > Wiper change
position .
Removing the wiper blade
"'Fold the windshield wiper arm away from the
windshield .
"' Press the locking knob (D ¢ fig. 49 on the wiper
blade . Hold the wiper blade firmly .
"'Remove the wiper blade in the direct ion of the
arrow .
Installing the wiper blade
"'Insert the new wiper blade into the mount on
the wiper arm
@ until it clicks into place.
"'Place the wiper arm back on the windshield .
"'Turn the serv ice position off.
Lights and Vision
A WARNING
For safety reasons, the windshield wiper
blades should be replaced once or twice each
year .
(D Note
- Only fold the windshield wipers away when
they are in the service pos ition. Otherwise,
you risk damaging the paint on the hood or
the windshield wiper motor .
- You should not move your veh icle or operate
the windsh ield wiper lever when the wiper
arms are folded away from the windshield .
Th e windshield wipers would move back in­
to their or iginal pos ition and could damage
the hood and windshield.
- T o red uce the risk of damage to the wiper
system, always loosen blades wh ich are fro­
zen to the windshield before operating the
w ipers.
- To reduce the risk of damage to the wiper
blades, do not use gasoline, kerosene, paint
thinner, or other solvents on or near the
wiper blades.
- To reduce the risk of damage to the wiper
arms or other components, do not attempt
to move the wipers by hand.
(D Tips
- You can also use the service position, for ex­
ample, if you want to protect the windshield
from icing by using a cover .
- You cannot activate the service posit ion
when the hood is open .

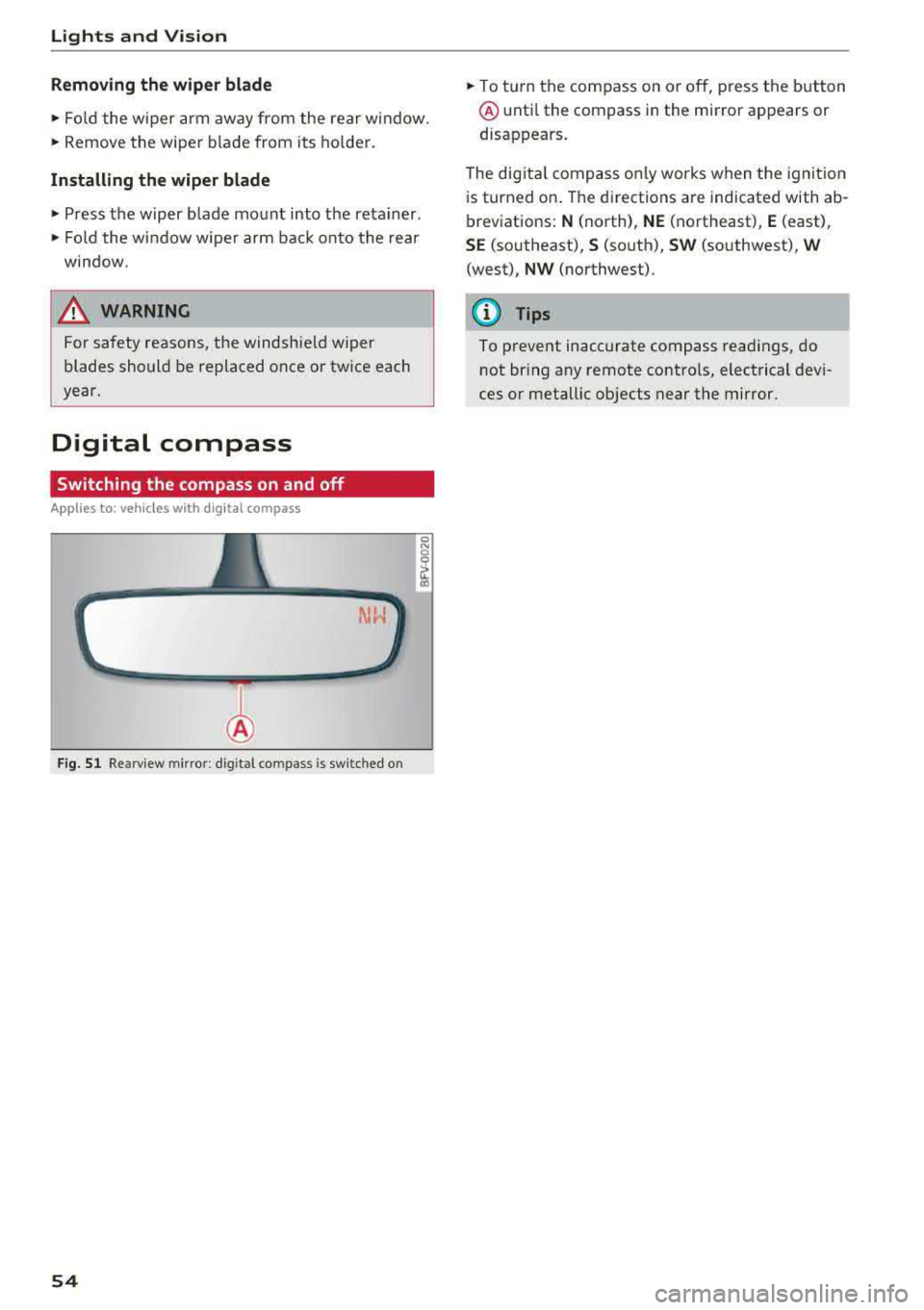

Replacing rear wiper blade
Fig . SO Rear w indow wiper : installing the w ip er blade
53

Lights and Vision
Removing the wiper blade
• Fo ld the wiper arm away from the rear window .
• Remove the wiper blade from its holder.
Installing the wiper blade
• Press the wiper b lade mount into the retainer.
• Fo ld the window wipe r arm bac k onto the rear
window.
WARNING
F or safety reasons, the windshie ld wiper
blades sho uld be replaced once or twice each
year .
Digital compass
Switching the compass on and off
App lies to: ve hicles w ith digital compass
F ig . 51 Re arview m irror : dig it al co mpass is sw itc hed o n
54
• To turn the compass on or o ff, press the button
@ unti l the compass in the mi rror appears or
disappears.
The dig ita l compass o nly works when the ignit ion
i s turned on . T he directions a re indicated with ab­
breviations:
N (north), NE (northeast), E (east),
SE (so utheast), S (so uth), SW (southwest), W
(west), NW (northwest) .
(D Tips
To prevent inaccurate compass readings, do
not br ing any remote contro ls, electrical devi­
ces or metallic objects near the mirror.

u co ..... N r-­N .....
~ 0 co
Lights and Vision

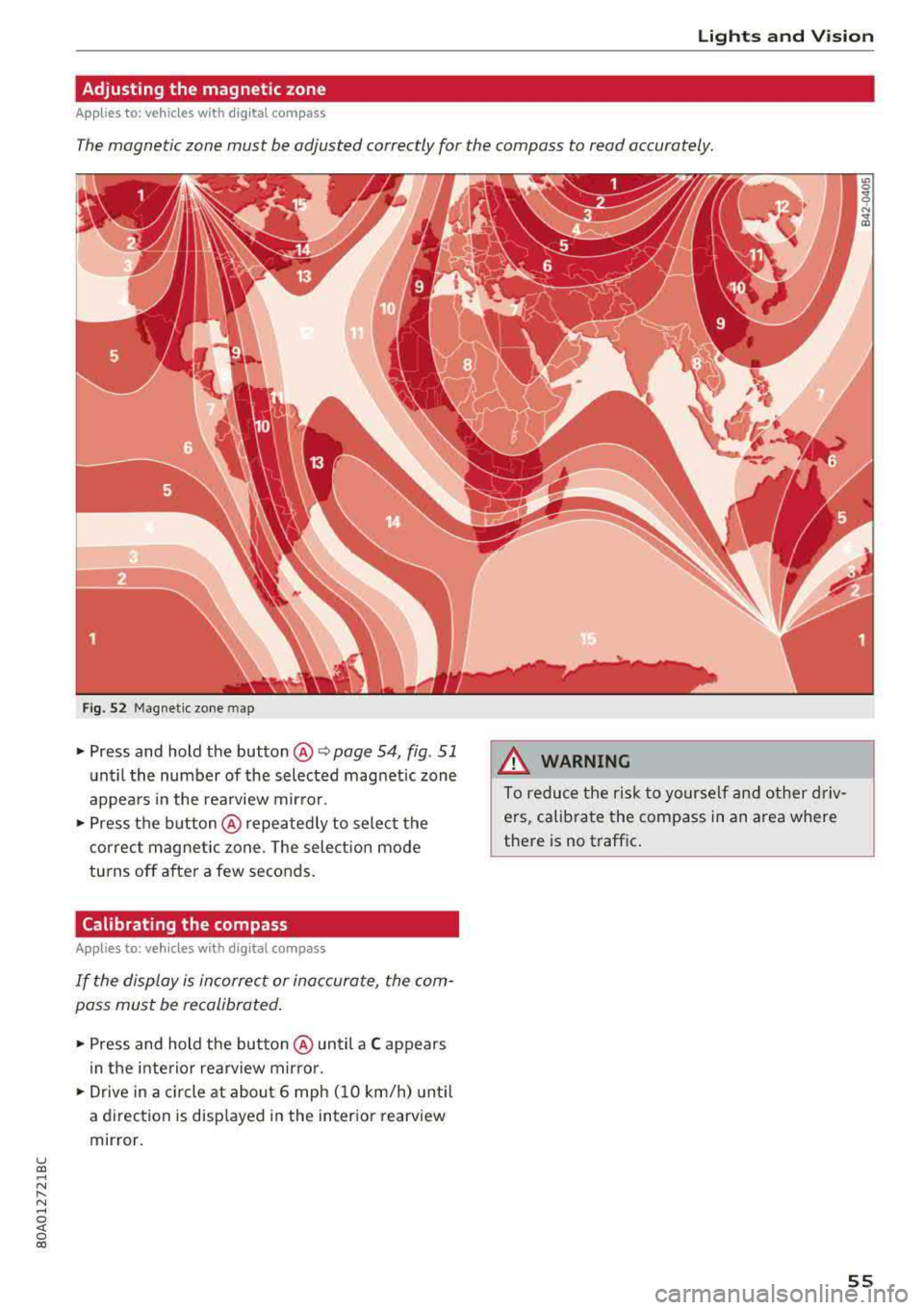

Adjusting the magnetic zone
Applies to: ve hicles with d ig ital compass
The magnetic zone must be adjusted correctly for the compass to read accurately.
Fig . 52 Magnetic zone map
• Press and hold the button @ Q page 54, fig . 51
until the number of the selected magnetic zone
appears in the rearview mirror .
• Press the button@repeatedly to select the
correct magnetic zone . The selection mode
turns off after a few seconds.
Calibrating the compass
A ppl ies to: ve hicles w ith d ig ital compass
If the display is incorrect or inaccurate, the com­
pass must be recalibrated.
• Press and hold the button @ until a C appears
in the interior rearview mirror .
• Drive in a circle at about 6 mph (10 km/h) until
a direction is displayed in the interior rearview
mirror.
A WARNING
To reduce the risk to yourself and other driv­
ers, calibrate the compass in an area where
there is no traffic.
.
55

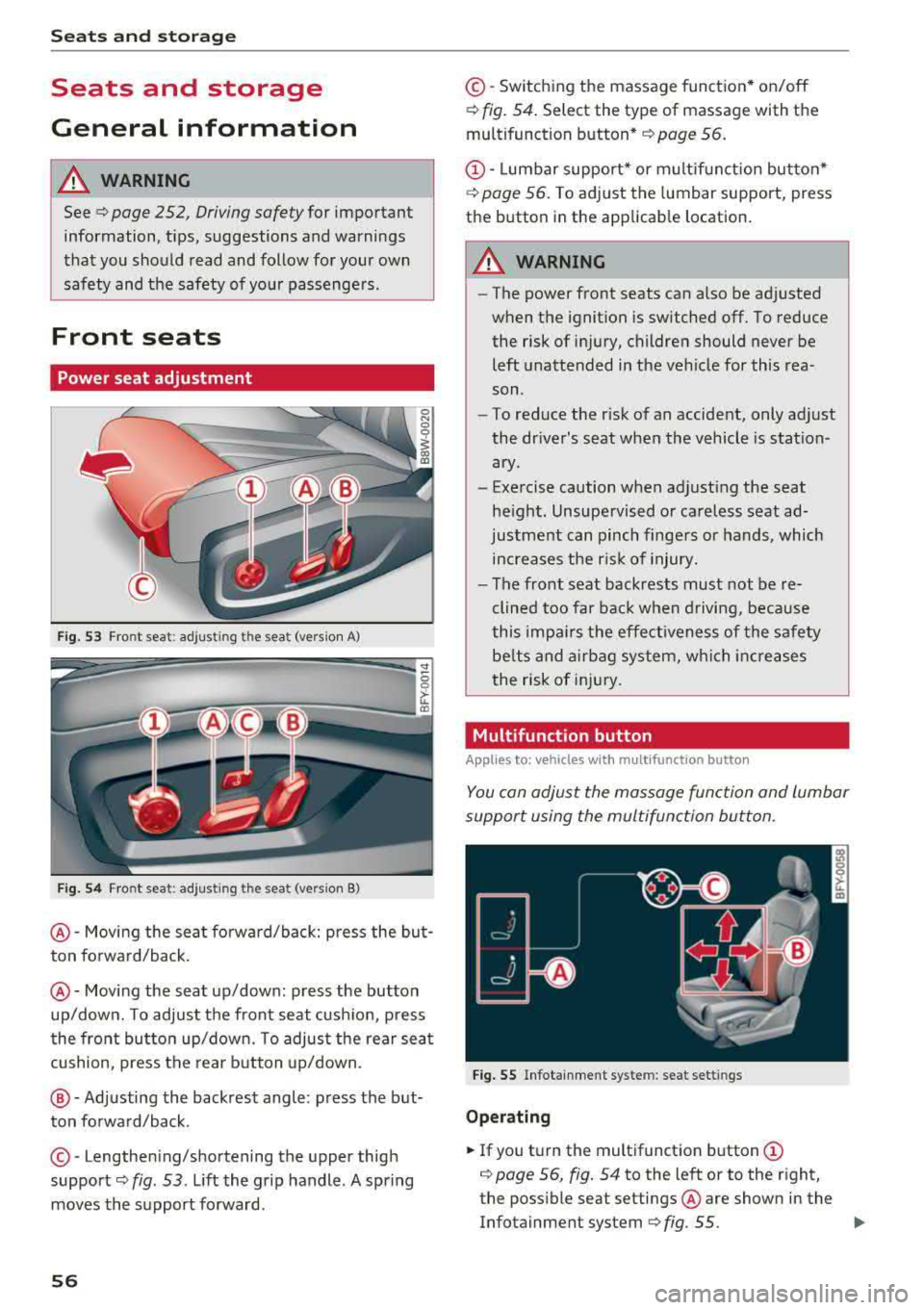

Seats and stor age
Seats and storage
General information
A WARNING
See c> page 252, Driving safety for important
information, tips, suggestions and warnings
that you should read and follow for your own
safety and the safety of yo ur passengers .
Front seats
Power seat adjustment
Fig. 53 Front seat : adjust ing the seat (vers ion A)
Fig. 54 Fro nt seat: adjusting the sea t (vers ion B)
@ -Movi ng the seat fo rwa rd/back: press the but­
ton forwa rd/back .
@-Moving the seat up/down: press the button
up/dow n. To adjust the front seat cush ion, press
the front button up/down. To adjus t the rear sea t
cushion, press the rear b utton up/down.
@ -Adjusting the backrest angle : press the but­
ton fo rward/back.
© -Lengthe ning/shortening the upper thigh
support
c> fig . 53 . Lift the grip handle . A spring
moves the su pport forward .
56
©-Switching the massage funct ion* on/off
c> fig. 54. Select the type of massage with the
multifunction button *
c> page 56.
CD-Lumbar support* or m ultif unction button*
c> poge 56. To ad just the lumbar support, press
the button in the applicab le location .
A WARNING
-The power front seats can also be adjusted
when the ignition is switched off. To reduce
the risk of injury, children should never be
left unattended in t he vehicle for this rea­
son .
-To reduce the r isk of an accident, only adjust
the driver's seat when the vehicle is station­
ary .
-Exe rcise caution when adjust ing the seat
he igh t. Unsupe rvised or ca reless seat ad­
justment can pinch finge rs or hands, which
increases the r is k of injury.
- The front seat backrests must not be re­
clined too far bac k when d riving, beca use
this impa irs the effect iveness of the safety
be lts and a irbag sys tem, w hich i ncreases
the risk of inj ury.
Multifunction button
App lies to: vehicles wi th mult ifunc tion butto n
You con adjust the massage function and lumbar
support using the multifunction button.
Fig . 55 Infotainment system: seat sett ings
Op erating
... If you tu rn the multifunction button CD
c> page 56, fig. 54 to the left or to the right,
the poss ible seat settings @are shown in the
Infotainment system
c> fig . 55. ..,

u co ..... N r-­N .....
~ 0 co

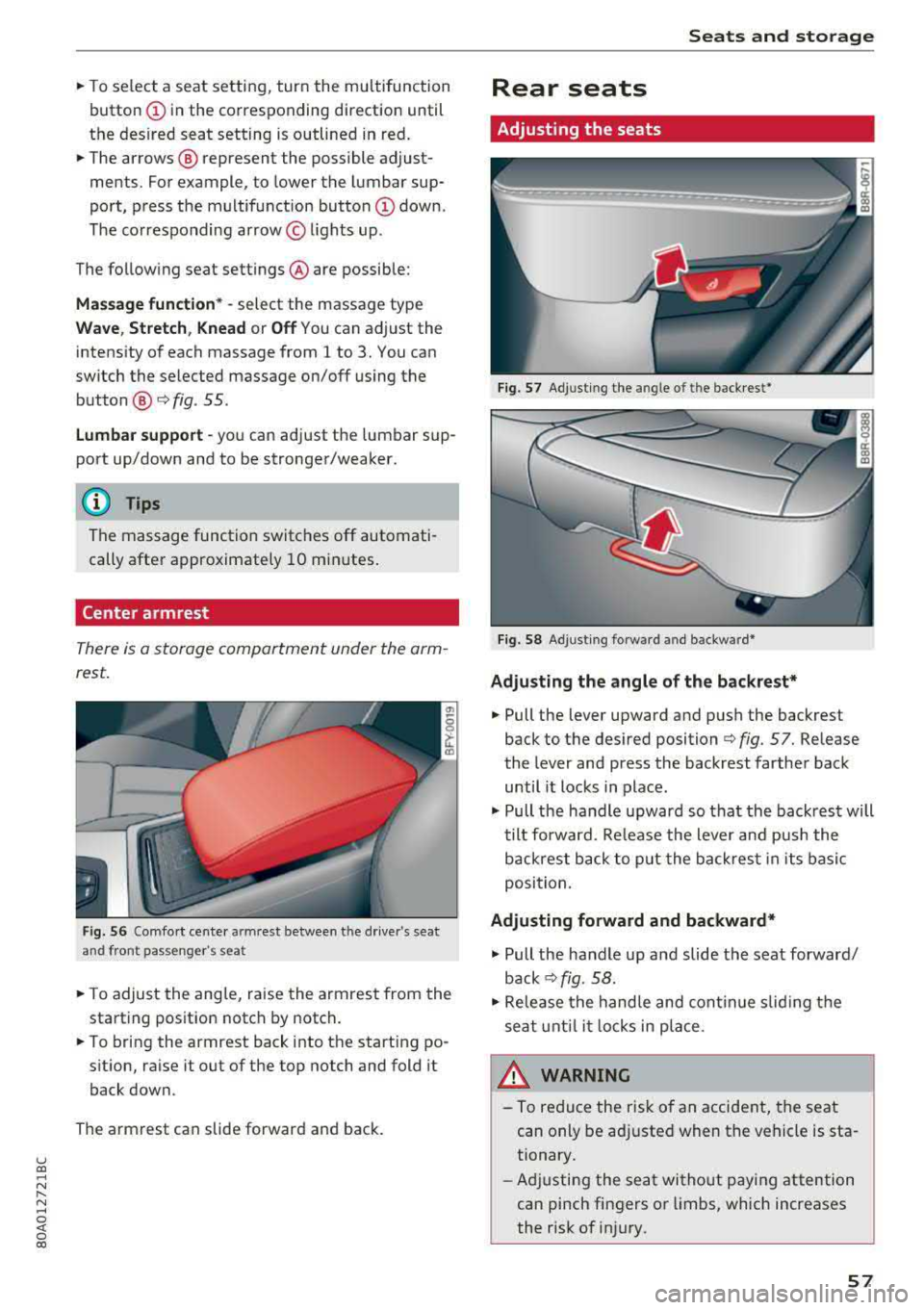

• To select a seat setting, turn the multifunction
button
CD in the corresponding direction until
the desired seat setting is outlined in red.
• The arrows @ represent the possible adjust­
ments . For example, to lower the lumbar sup­
port , press the multifunction button
CD down.
The corresponding arrow @ lights up.
The following seat sett ings @are possible:
Massage function* -select the massage type
Wave , Stretch, Knead or Off You can adjust the
intensity of each massage from 1 to 3. You can
switch the selected massage on/off using the button @¢
fig. 55 .
lumbar support -you can adjust the lumbar sup­
port up/down and to be stronger/weaker.
@ Tips
The massage function switches off automati­ cally after approximately 10 minutes.
Center armrest
There is a storage compartment under the arm­
rest.
Fig . 56 Comfort cente r armr est between t he driver 's sea t
and front passenger 's seat
• T o adjust the angle, raise the armrest from the
starting position notch by notch.
• To bring the armrest back into the starting po­
sit ion, ra ise it out of the top notch and fold it
back down.
The armrest can slide forward and back.
Seats and storage
Rear seats
Adjusting the seats
Fig. 57 Adjust ing the angle of the backrest*
Fig. 58 Adj usting forw ard and backwa rd*
Adjusting the angle of the backrest*
• Pull the lever upward and push the backrest
back to the des ired position ¢
fig. 57. Release
the lever and press the backrest farther back
until it locks in place .
• Pull the handle upward so th at the back rest will
tilt forward. Release the lever and pus h the
backrest back to put the back rest in its basic
position.
Adjusting forward and backward*
• Pull the handle up and slide the seat forward/
back ¢fig. 58.
• Release the handle and continue sliding the
seat until it locks in place.
_& WARNING ~
-To reduce the risk of an accident, the seat
can only be adjusted when the vehicle is sta ­
tionary.
- Adjusting the seat without paying attention
can pinch fingers or lim bs, which increases
the risk of injury.
-
57

Seats and stor age

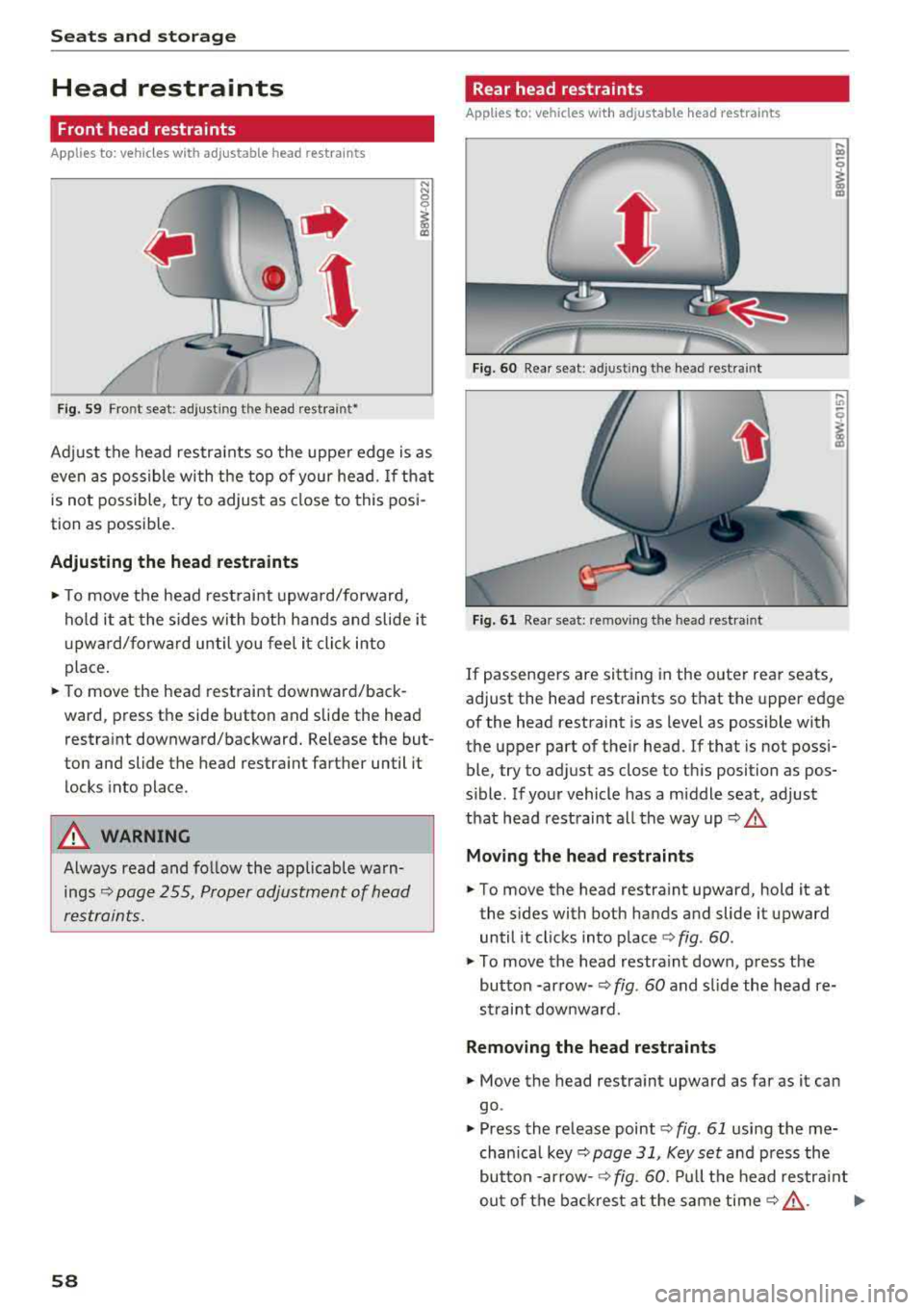

Head restraints
Front head restraints
Applies to: vehicles with adjustable head restraints
Fig . 59 Front seat: adjusting the head rest raint•
Adj ust the head restra ints so the uppe r edge is as
even as possible with the top of your head.
If that
is not possible, try to adjust as close to this posi­
tion as possible.
Adjusting th e head restraints
"'To move the head rest raint upwa rd/forward,
hold it at the sides wi th both hands and slide it
u pward/forward un til you fee l it click into
place.
"' To move the head restraint downward/back­
ward, press the side button and slide the head
restraint downward/backward. Re lease the but­
ton and slide the head restraint farther until it
locks into place .
.,&. WARNING
Always read and fo llow the applicable warn­
ings¢
page 255, Proper adjustment of head
restraints.
58
Rear head restraints
Applies to: vehicles with adjustable head restraints
Fig. 60 Rear seat: adjusting the head restraint
Fig. 61 Rear seat: removing the head restraint
.... m
I
If passengers are sitting in the outer rear seats,
adjust the head restraints so that the upper edge
of the head restraint is as level as possible with
the upper part of their head. If that is not possi­
ble, try to adjust as close to this position as pos­
s ible. If your vehicle has a middle seat, adjust
that head restraint all the way up ¢
.&,
Moving the head restraint s
"'To move the head restraint upward, hold it at
the s ides with both hands and slide it upward
until it cl icks into place ¢
fig. 60 .
"'To move the head restra int down, press the
button -arrow-
¢ fig . 60 and s lide the head re­
s traint downward.
Remo ving the head r estraint s
"'Move the head restra int upward as far as it can
go .
"' Press the release point ¢ fig. 61 using the me­
chanical key ¢
page 31, Key set and press the
button
-arrow- ¢ fig. 60. Pu ll the head restra int
out of the bac krest at the same
time ¢.&, . Ill>
