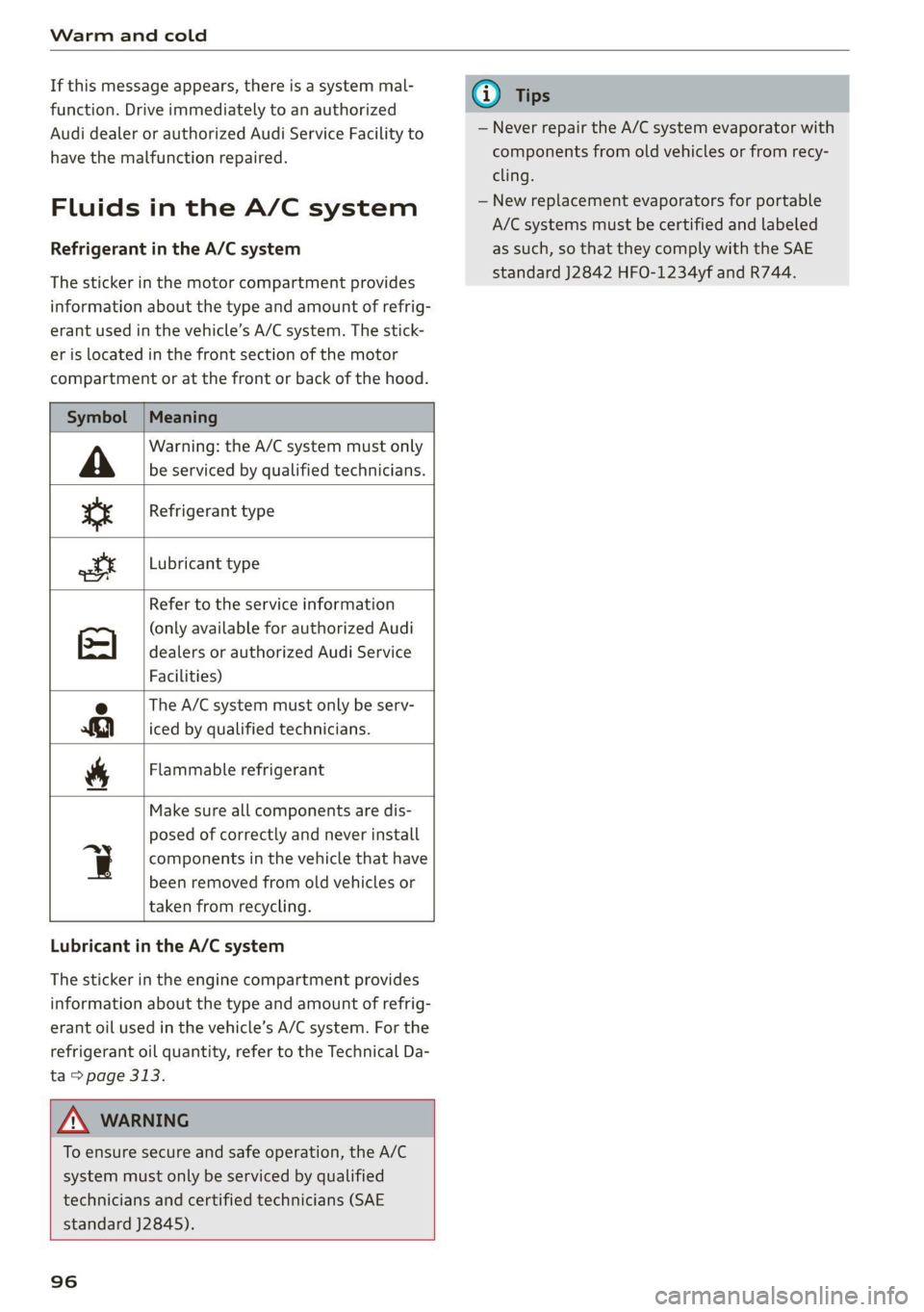

Warm and cold

If this message appears, there is a system mal- @) Tips
function. Drive immediately to an authorized
Audi dealer or authorized Audi Service Facility to — Never repair the A/C system evaporator with
have the malfunction repaired. components from old vehicles or from recy-
cling.
Fluids in the A/C system — New replacement evaporators for portable
A/C systems must be certified and labeled
Refrigerant in the A/C system as such, so that they comply with the SAE
The sticker in the motor compartment provides Se Te eee iS
information about the type and amount of refrig-
erant used in the vehicle’s A/C system. The stick-
er is located in the front section of the motor
compartment or at the front or back of the hood.

Symbol | Meaning

Warning: the A/C system must only
A be serviced by qualified technicians.


Lubricant type
tr Refrigerant type
tt
Refer to the service information
(only available for authorized Audi
dealers or authorized Audi Service
Facilities)

The A/C system must only be serv-
iced by qualified technicians.

Se
Be
Flammable refrigerant

Make sure all components are dis-
posed of correctly and never install
q components in the vehicle that have
been removed from old vehicles or
taken from recycling.

Lubricant in the A/C system
The sticker in the engine compartment provides
information about the type and amount of refrig-
erant oil used in the vehicle’s A/C system. For the
refrigerant oil quantity, refer to the Technical Da-
ta > page 313.

Z\ WARNING
To ensure secure and safe operation, the A/C
system must only be serviced by qualified
technicians and certified technicians (SAE
standard J2845).


96

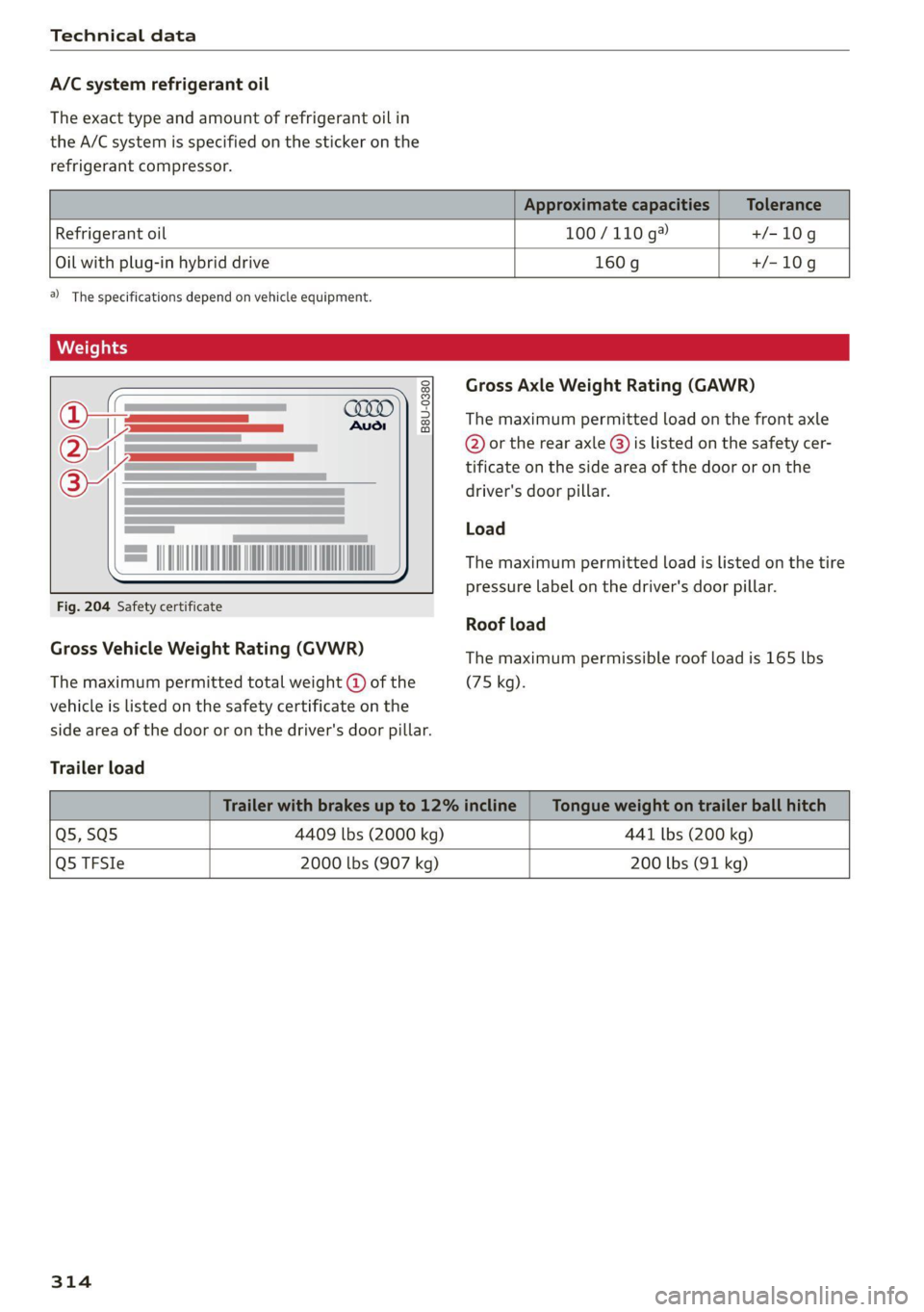

Technical data

A/C system refrigerant oil
The exact type and amount of refrigerant oil in
the A/C system is specified on the sticker on the
refrigerant compressor.
Refrigerant oil 100/110 g® +/-10g

Oil with plug-in hybrid drive

160g +/-10g

2) The specifications depend on vehicle equipment.

B8U-0380
= MINA AO
Fig. 204 Safety certificate


Gross Vehicle Weight Rating (GVWR)
The maximum permitted total weight @ of the
vehicle is listed on the safety certificate on the
side area of the door or on the driver's door pillar.
Trailer load
Gross Axle Weight Rating (GAWR)
The maximum permitted load on the front axle
@ or the rear axle @) is listed on the safety cer-
tificate on the side area of the door or on the
driver's door pillar.
Load
The maximum permitted load is listed on the tire
pressure label on the driver's door pillar.
Roof load
The maximum permissible roof load is 165 lbs
(75 kg).
Q5,SQ5 4409 lbs (2000 kg) 441 lbs (200 kg)


Q5 TFSIe 2000 lbs (907 kg)

200 lbs (91 kg)

314
