check engine light AUDI Q7 2010 Owner´s Manual

Ignition loc k malfunction ~page35
liWindshield wiper d efective ~page35
-
T ire pressure monitoring sys-~ page334
tern
Loss of a ir pressure
Tire pressure monitoring sys-
~page334
tern System not available
-
Battery in remote contro l key ~page42
Automatic transmission mal-~page 166
function
Applies to vehicles: w ith Con venience key
Key not in vehicle
Key not in veh icle
Th is reminder appears along with the symbo l if the master key is
removed from the veh icle with the e ng ine runni ng . It is intended to
remind you (e.g. when changing drivers) not to continue the journey
without the master key.
If the master key is no longer in the ve hicle, you cannot sw itch off the
ignition after stopping the engine and you also cannot s tart the
eng ine aga in . What is more, you cannot lock the veh icle from the
outside. •
Applies to vehicles: with light and rain sens or
Light/rain sensor defective '
Automatic headlight s/ aut omatic wipers defective
Controls and equip ­
ment Safety first
•
Dri
ver information display
If the symbol illuminates, the light sensor has failed . For safety
reasons t he low be ams are tu rned o n permanent ly with the switch i n
AUTO . H owever, you can cont inue to turn the lights on and off using
the light switch. In the case of a defect in the rai n sensor, the wind­
shield wiper lever functions are still ava ilable. Have the light/rain
sensor checked as soon as possib le by an authorized Audi dealer .•
Windshield washer fluid level too low
Plea se refill washer fluid
If the symbo l il luminates, add wi ndshield was he r fluid to the washer
system and a lso to the headlight washer system~
page 312. •
Fuel supply too low
BJ Please refuel
Whe n th is symbo l ,. illum inates fo r the first time, the fue l rese rve in
your vehicle is still between 2 .6 and 3 .2 gallons (10-12 liters) . Refuel
as soon as possible~
page 289 .
If the symbol lights up, even when there is ample fuel in the tank, and
the text Tank system m alfunction ! Contact wo rkshop appears in the
display, the re is a fa ult in the system. Contact a q ualified wor kshop to
have the fault rectified. •
Battery voltage n
If the battery's state of charge is not in the optima l range, the.::)
symbol is show n in the display and the dr ive r message Low battery
cha rge: battery will be charged while dr iving appears.
Wh ile this dr ive r not ifica tion is displayed, you have to be prepared fo r
limited starting capability . ..,_
Vehicle care Technical data

Driver information display
Driver message appears and goes out again
If this dr iver message appears af ter the ignition is t urned on or w hile
dr iving and it goes out aga in afte r a while , the battery has been
adeq uate ly recharged.
Driver message appears and does not go out again
If t his dr iver no tifica tion appears after the ignition is turned on or
w hile dr iv in g and does not go out again , the battery's state of charge
is not in t he optima l range. Starting ca pability is restricte d. Have the
ba ttery checked by a n author ized A udi deale r as soon as possible .•
Worn brake pads U
J Brake pads !
If the warn ing light illum inates, immediate ly contact your a uthorized
Aud i dealer or qualified workshop to have all b rake pads inspe cted.
On USA mode ls the warn ing light
.:l comes on together w ith the
w ar ning light
BRAKE . Both sets of b rake pad s on an ax le mus t alway s
be rep laced at the same time.
& WARNING
Driving with bad brakes can c ause a collision and serious personal
injury.
• If the warning light and the warning light BRAKE1> with the
mes sage Brak e pads! comes on in the instrument cluster di splay,
immediately contact your authorized Audi dealer or qualified
workshop to have all brake pads checked or replaced if necessary. •
ll BRAKE: USA mo dels only
Headlight range control ~[)
, Headlight range control defective !
If the sym bo l i llum inat es , the dyn ami c he adlig ht range co nt rol is no
longer wo rking properly . H ave t he system ch ecked and repaired at
your aut horize d Au di dea ler. •
Engine oil level Please che ck oil level
W hen th e symbo l illuminates, check th e eng ine o il level as soo n as
possible =>
page 301. Top off the oil at yo ur earliest o pportunity
=>page 3 02. •
Engine oil sensor defective
Oil level ! Sensor defective
C
-
If the symbo l illuminates, contact your author ized Audi dealer and
h ave the o il sensor inspec ted . Unti l y ou have this d one, check t he oil
level each time you refue l just to be on the safe side=>
page 301 . •
A pplie s to v eh icl es: w ith eng in e s peed l imitat io n
Engine speed limitation .?i
!'"') Do not exceed max . engine speed of XXXX rpm
T he ; symbol illuminates when there is an engine con trol malfunc ­
tion. The indicator light • in t he instrument cl uster also illuminates.
T he eng ine speed is limi ted to the speed displaye d in the d river info r­
mation system . Keep in m ind that t he engine s peed will not exceed
th e v alu e disp laye d in th e d river infor mati on sy ste m, for examp le
w hen downshift ing. .,_

Please go to an authorized Audi dealer or other qualified workshop to
have the malfunction repaired .•
Appli es to ve hicl es : wit h diesel e ngine and di ese l part ic ulate filt e r
Diesel particulate filter clogged ii1-
Particulate filter See owner's manual
When the symbol illuminates, you can alter your driving sty le to
assist the filter self-cleaning process. Drive for approximately 15
minutes with the selector lever in the S position at a minimum speed
of 37 mph (60 km/h) and an engine speed of approximately 2,000
RPM. The temperature increase that will resu lt from th is can burn off
the soot in the filter. The symbol will switch off when the cleaning is
successful. After a successful cleaning, there is no need to bring the
car to an authorized dealer or qualified workshop because this is part
of normal vehicle operation .
If the symbo l does not switch off, see your authorized dealer or
other qualified workshop to have the problem co rrected.
For more information on the diesel particulate filter, refer to
:::>page 263.
& WARNING
Always adapt your speed to the current weather, road and traffic
conditions. You should never disobey traffic laws in order to
follow driving recommendations. •
Applies to veh icles: w it h A daptive light
Adaptive Light defective i :
t".J adaptive light defective
When this symbol illum inates, it means that Adaptive Light is
defective . Go to an au thorized dealership to have the headlights or
the control unit for the Adaptive Light repaired .•
Controls and equip ·
ment Safety first
Driver information display
Ignition Lock malfunction :;ie
If the
symbol in the display comes on, there is a malfunc·
tion in the electronic ignition lock. An additional driver
message can be displayed by pressing the
[CHECK] button:
Ignition lock defective
-Drive to an authorized Audi dealer or qualified workshop
at your earliest convenience to have the malfunction
corrected. •
Windshield wipers faulty<..:>
Windshield wiper defective
When this symbol illuminates, it means that the electronics for
the windsh ield wipers are defective . Please go to an author ized Aud i
dealer or qualified workshop to have the w indshield wiper system
repa ired. •
Speed warning system
Overview
The speed warning system helps you to keep your driving
speed below a set speed limit.
The speed wa rning system warns the driver if he exceeds a previously
stored max imum speed . A warning tone w ill sound as soon as the
vehicle speed exceeds the set speed by about 3 mph (3 km/h) . At the
same time, a warn ing symbol appears in the display.
Th e speed warning system has
two warning thresholds that function
independently of each other and that have somewhat different
purposes: .,_
Vehicle care Technical data

& WARNING
• Wh en you lock your vehicle from outs ide , nobody - especially
c hildren - should remain in side the vehicle . Remember , when you
lo ck the vehicle from the outside the windows cannot b e opened
from the inside .
• When you lea ve the vehicle, always remove the ignit ion key
and take it with you. This will prevent pa ssenger s (c hildren, for
e xample ) from a ccidentally be ing locked in the vehicle should
they accidentally pres s the power locking switch in the front
doors .
• Do not leave children inside the vehicle unsuperv ised . In an
e mergency it would be impossible to open the door s from the
outside without the key.
[I] Tips
It is not possible to re -open the door fo r a b rief period directly after
clos ing it . This a llows you to ensure that the doors are p roper ly
loc ked .•
Anti-theft alarm system
The an ti-theft alarm triggers an al arm if any one
attempts to break into the vehicle .
The a nti-theft alarm system trigge rs an a udible a larm and t urns o n
th e emergen cy flas her if an unau thori zed inte rfe rence wi th t he
vehicle is sensed by the system.
How is the anti-theft alarm system sw itched on?
T he anti-theft alarm system is switched on when you lock the vehicle.
Th e system is activa ted app rox ima tely 30 seconds after the vehicle is
locked. The indicator light on top o f the doo r trim start flashing
r a pidly fo r 30 seconds and then blink s low ly .
Controls and equip ­
ment Safety first
Opening and closing
How is the anti-theft alarm system switched off?
Th
e an ti- the ft alarm system is switche d off on ly when yo u unlock your
veh icle . If you do not o pen a door wit hin 60 seconds after you have
unlocked wit h the remote control , the vehicle will lock itself again
automa tically .
When will the anti-theft alarm system be
triggered?
When the vehicle is locked, the a larm system monitors and protects
the following parts of the veh icle:
• engine compartment
• lu ggage compa rtment
• doors
• ignition
Whe n the system is activated, the alarm will be triggered if one of the
doors, the engine hood or the rear lid are opened, or if the ignition is
t ur ne d on . The anti-t heft a la rm system will a lso go off when the
ba ttery is d isco nnected.
You can also trigger the alarm by pressing the PANIC button on your remote con trol. This will alert o ther peop le in case of eme rge ncy.
Press the
PANIC butto n aga in to turn off the a larm .
How is the anti-theft alarm switched off when
triggered?
Th e alarm sys tem is swi tched off whe n yo u un lo ck the veh icle o r whe n
the ignit ion is sw itched on . The a larm will also switch itself off when
i t comes to the end o f its cy cl e.
Emergency flasher and horn
Th e emerge ncy fl ashe r will blink briefly and the hor n sounds whe n
the doo rs, engine hood and rear lid a re prope rly closed.
If the eme rgency flashers do not blink, o r th e horn does no t soun d,
check the doo rs, eng ine hood and rear lid to make s ure they a re prop­
er ly closed.
If you close a door, the hood o r the rear lid with the anti -
Vehicle care Technical data

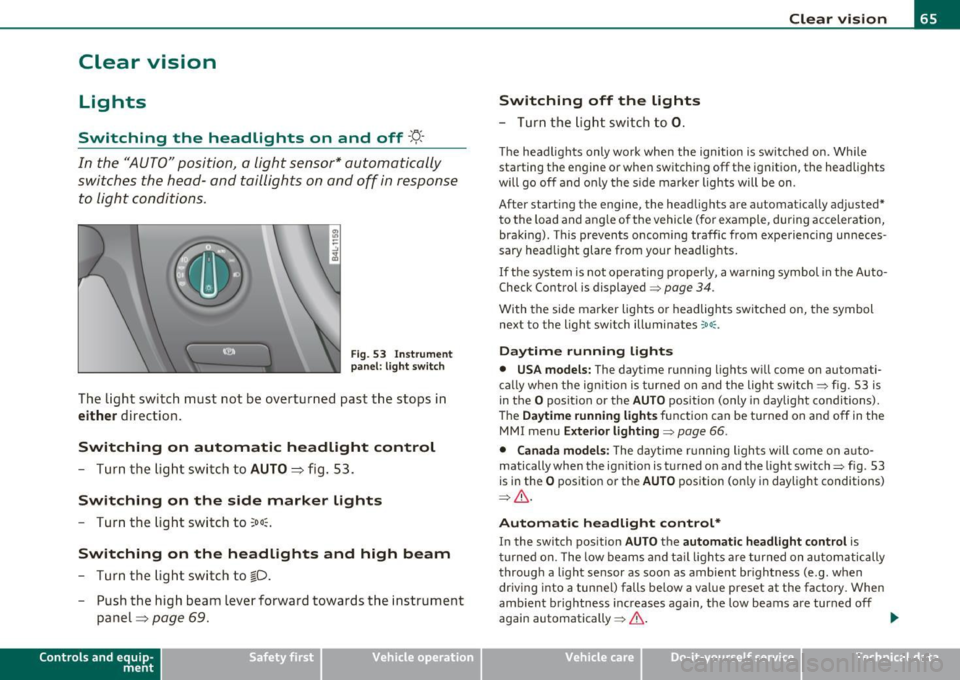

Clear vision
Lights
Switching the headlights on and off -'t!-
In the "AUTO" position, a light sensor* automatically
swit ches the head- and tai llights on and off in response
to light condition s.
F ig . 5 3 Inst rum ent
pan el: li ght swit ch
The light switch must not be overturned past the stops in
either direction.
Switching on automatic headlight control
-Turn the light swi tch to AUTO ::::, fig. 53.
Switching on the side marker lights
-Tur n the light sw itch to 300~.
Switching on the headlights and high beam
- Turn the light swi tch to ~D.
- Push the high beam lever forward towards the instrume nt
panel=>
page 69.
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
Switching off the lights
-Turn the lig ht swit ch to 0.
Clear vision
The headligh ts only work when the ignition is switched on. Whi le
sta rting the engine or when switchi ng off the ignition, the headlights
will go off and o nly the s ide marker lights will be on.
After start ing th e engine, the headlights are automatically adjusted*
to the load and a ng le of the vehicle (fo r example, during acceleration,
braking) . This prevents oncoming traffic from experiencing unneces­
sary head light glare from your head lig hts.
If the system is not operati ng p roperly, a warning symbol in t he Auto­
Check Control is displayed =>
page 34.
With the side marker lights o r headlights switched on, the symbol
next to the light switch illuminates
coo:.
Daytime running lights
• USA models: The daytime running lights w ill come on automati­
ca lly when the ign ition is turned on and the light switch => fig. 53 is
in the
O position or the AUTO position (only in daylight conditions).
Th e
Daytime running light s function can be tu rned on and off in the
MMI menu
Exterior lighting=> page 66.
• Canada model s: The d ay time r unning ligh ts w ill come on a uto­
matically when the ig nitio n is turned on and the light switch=> fig. 53
is in the
O pos itio n or the AUTO position (on ly in daylight conditions)
=> & .
Automatic headlight control *
In the switch pos ition AUTO t h e automatic headlight control is
tu rned on. The low beams and tail lights a re turned on au tomatically
throug h a light sensor as soon as ambient br ightness (e .g . when
driving into a tunnel) falls below a va lue preset at the factory . When
amb ient b rightness increases again, the low beams are turned off
again automatically =>& . ..,_
Vehicle care Do-it-yourselt service iTechnical data

_________________________________________ I_ n_ t_ e_ ll_,igent technology ,__E~-
If an individual wheel begins to rotate too slowly in relation to vehicle
speed and tends to lock, the ABS automatically reduces brake pres­
sure to prevent that wheel from locking .
Thi s automatic adjustment process wi ll cause a
slight vibration of
the brake pedal and some noises to alert you that vehicle speed must
be adapted to existing road and traffic conditions.
_& WARNING
Although the ABS is very effective, always remember that braking
capability is limited by tire traction. Always adjust your driving
speed according to the road and traffic conditions. Do not let the
extra safety afforded by the ABS tempt you into taking extra risks.
The ABS cannot overcome the laws of physics .
(I) Tips
• If ABS is not funct ioning properly, a warning light will come on .
See ~
page 19.
• If a fault occurs in the ABS, the EDL is also not functioning. This is
ind icat ed by the ABS warning light. •
Brake assistant
The brake assistant is designed to achieve the optimum
braking effect.
The brake assistant helps to increase the effective braking power and
thus to achieve a shorter stopping distance.
If the driver presses the
brake peda l very qu ickly , the brake assistant automatically boosts the
braking force to the maximum level, up to the point where the anti­
lock brake function (ABS) intervenes to stop the whee ls from locking.
You should then keep the brake pedal pressed until the vehicle has
braked to the required speed. The brake assistant switches itself off
as soon as you release the brake pedal.
Controls and equip­ ment Safety first Vehicle operation
Automatic full braking
assist
This function allows full braking in spite of high brake pedal forces
(e .g . when the brakes are severely stressed because the veh icle is fully
loaded). The driver notices this function through a reduction of pedal
force and increased pedal travel. When the brake pedal is released,
full braking assist switches off again automatically.
If there is an ABS failure, the brak e assistant and automatic full
braking assist are not available.
Th e brake assistant will not be operative if there is a ma lfunction in
the ABS .
_& WARNING
Please remember that the accident risk always increases if you
drive too fast, especially in corners or on a slippery road, or if you
follow the vehicle ahead of you too closely. Increased risk of an
accident cannot be compensated for even by the brake assistant ,
so always maintain a safe speed.•
Servotronic® -advanced power
steering system
The power steering systems uses the power of the
running engine to allow precise steering with little effort.
The advanced Servotronic ® power steering system senses the road
speed and electronically adjusts power assistance to provide
comfortable and safe steering response exactly matched to the
vehicle speed .
Power steering will not work if the engine is off. As a result , the
steering wheel will be hard to turn .
Th e power steering fluid level is checked during the scheduled main­
tenance services.
Vehicle care Do-it-yourself service Technical data

Intelligent technology
'-------------------------------------------------
Take into consideration that when you unlock your vehicle, some
convenience functions, such as the remote key or power seat adjust­
me nt, may not be available. The convenience functions will be avail­
able again when you turn on the ignition and start the engine.
With the engine turned off
If you listen to the radio, for example, with the engine turned off or
use other MMI functions, the battery is being discharged.
If start ing capability is jeopardized due to energy consumption, the
following warning appears in the MMI display:
Please start engine, otherwise system will switch off in
3 minutes .
The warning indicates that the system will be turned off automati­
cally after 3 minutes. If you wish to continue using the functions, you
have to start the engine.
With the engine running
Although electrical energy is generated when the vehicle is being
driven, the battery can become discharged. This happens mostly
when little energy is being generated and a great deal consumed and
the battery's state of charge is not optimal.
To bring the energy balance back into equilibr ium, consumers which
require especially large amounts of energy are temporarily cut back
or switched off. Heat ing systems in particular require a great deal of
energy. If you notice, for example, that the heated seats* or the
heated rear window are not heating, they have been temporarily cut
back or switched off. These systems will be available again as soon as
the energy balance has been restored .
You will also notice that engine idle speed has been increased
slightly. This is norma l and not a cause for concern. By increasing
engine idle speed the additional energy required is generated and the
battery is charged.
Driver notification in the instrument
cluster display
If battery power drops into the range where it can limit the ability of
the engine to start, this is shown in the instrument cluster display
with the following driver message:
i...-3 Low battery charge: battery will be charged while driving
This notification reminds you that the starting capability of the
engine may be limited. As soon as you start driving again, the battery
w ill be recharged and the notification will go out.
Driver notification appears and goes out again
If th is driver notification appears after the ignition is turned on or
whi le driving and it goes out again after a while, the battery has been
adequately recharged.
Driver notification appears and does not go out
again
If this driver notification appears after the ignition is turned on o r
wh ile driving and does not go out again, the battery's state of charge
is not in the optimal range. Starting ability is restricted. Have the
battery checked as soon as possible by an authorized Audi dealer or
qualified workshop. •

pressure label is located o n the dr iver's side B-pillar. Inflate trailer
t ires to tra ile r and t ire ma nufacturers' spec ifications.
Lights
T he headl ight settings shou ld be chec ked with the tr ailer attached
before driving off. Check to make sure both vehicle and trailer lights
are wo rking properly.
Safety chains
Be sure tra ile r safety cha ins are p roperly connected from the t rai ler
to the hitch on the vehicle. Leave enough slack in the chains to perm it
tu rning corners . When you install sa fe ty ch ains, ma ke sure they will
not drag on the road when you are driving.
T he chains should cross under the trai ler tongue to prevent it from
dropping in case of separation from the h itch .
0 Note
If you are goi ng to tow a trai ler , you must activate the trai ler opera­
tion mode =>
page 180, "Towing a trailer". •
Driving instructior,s
Driving with a trailer always requires e xtra care and
consideration.
To obtain the best possib le handling of ve hicle a nd trailer ,
please note the following :
- Do not tow a loaded trailer when your car itself is not
loaded.
- Be especia lly careful when pass ing other vehicles .
- Observe speed limi ts.
- Do not drive at the maximum pe rmissible speed.
Controls and equip­
ment Safety first Vehicle operation
- Always apply brakes early.
- Mo
nitor the temperature gauge.
Weight distri but ion
T owing a loaded trailer with an empty car results in a highly unstable
distribution of we ight . If t his cannot be avoided , drive at very low
speeds only to avoid the risk of losing steering control.
A "balanced" rig is easier to operate and control. This means that the
tow veh icle shou ld be loaded to the extent poss ible and permissib le,
wh ile keeping the tra ile r as lig ht as poss ible unde r the ci rc u mstances.
Whe never possible, transfer some cargo to the luggage compart ­
me nt o f the tow vehicle while observing tongue load requirements
and vehicle loading considerations.
Speed
The higher the speed, the more d ifficult it becomes for the driver to
control the r ig . Do not dr ive at the maxim um permiss ible speed .
Reduce your speed eve n more if load, weather or w ind conditions are
unfavorable -particular ly when going downhill.
Reduce vehicle speed
immed iately if the tra ile r shows the slightest
sign of swaying.
Do not tr y to stop the s wayi ng by a ccele rating .
Observe speed lim its. In some areas, speeds for veh icles towing
trailers are lowe r than for regular veh icles .
Always apply brakes early. When driving downhi ll, shift into a lower
gear to use the engine brak ing effect to slow t he ve hicle . Use of the
brakes alone can cause them to overheat and fa il.
Coolant temperatur e
The coo lant temperature gauge=> page 10 must be observed care­
fu lly. If the needle moves close to the upper end of the sca le, reduce
speed immediately and/or turn off the air conditioner.
If the coo lant temperature warning light in the instrument clus ter
starts flash ing
- F- , pull off the road, stop and let the engine idle for
about two m inutes to prevent hea t buil d-up.
Vehicle care Do-it-yourself service Technical data

___ C_h_ e_c _k _i_n -=g :a,__ a_n_ d_ f_ i_ l _li _n _,g;._ __________________________________________ _
Checking and filling
Engine hood
Releasing the engine hood
The engine hood is released from inside the vehicle.
-Open the driver's door.
Fig. 229 Driver's side
footwell: engine hood
release lever
-Pull the release lever on the left under the instrument
panel => fig . 229 in the direction of the arrow .
The hood pops up slightly under spring pressure .•
Opening the engine hood
Fig. 230 Release lever
under the engine hood
Before opening the engine hood, make sure that the wind­
shield wipers are flat against the windshield. Otherwise, they
could damage the paint on the hood.
- Lift the hood slightly =>& .
- Pull up on the release under the hood => fig. 230. This
releases the catch.
- Open the hood all the way.
& WARNING
Hot engine coolant can burn you.
• To reduce the risk of being burned, never open the hood if you
see or hear steam or coolant escaping from the engine compart­
ment. Wait until no steam or coolant can be seen or heard before
carefully opening the hood. •

___ C_h_ e_c _k _i_n -=g :a,__ a_n_ d_ f_ i_ l _li _n _,g;._ __________________________________________ _
& WARNING (continued)
-Always use extreme caution to prevent clothing, jewelry, or
long hair from getting caught in the radiator fan, V-belts or
other moving parts, or from contacting hot parts. Tie back hair
before starting, and do not wear clothing that will hang or
droop into the engine.
• Minimize exposure to emission and chemical hazards=:>
/1::..
& WARNING
California Proposition 65 Warning:
• Engine exhaust, some of its constituents, and certain vehicle
components contain or emit chemicals known to the State of Cali­
fornia to cause cancer and birth defects and reproductive harm. In
addition, certain fluids contained in vehicles and certain products
of component wear contain or emit chemicals known to the State
of California to cause cancer and birth defects or other reproduc­
tive harm.
• Battery posts, terminals and related accessories contain lead
and lead compounds, chemicals known to the State of California
to cause cancer and reproductive harms. Wash hands after
handling.
0 Note
When adding fluids, a lways make sure that they are poured into the
proper container or filler open ing , otherwise serious damage to
vehicle systems wi ll occur.
ci> For the sake of the environment
To detect leaks in time, inspect the vehicle floor pan from underneath
reg ular ly. If yo u see spots from oil or other vehicle fl uids, have your
vehicle inspected by an authorized Audi dea ler .•
Engine compartment
These are the most important items that you can check.
Fig. 231 Typical layout for containers, engine oil dipstick and engine oil filler
cap
© Windshield/headlight washer container ( q ) . . . . . . . . 312
@ Coolant expansion tank (- L ) . . . . . . . . . . . . . . . . . . . . . 305
® Engine oil f iller cap
("l!::r.) . . . . . . . . . . . . . . . . . . . . . . . . 302
© Engine oil dipstick (orange) . . . . . . . . . . . . . . . . . . . . . . 301
® Brake fluid reservoir ( ) . . . . . . . . . . . . . . . . . . . . . . . . 307
© Power steering reservoir . . . . . . . . . . . . . . . . . . . . . . . . 257
0 Jump start connector( +) u nder a cover,(-) with hex head
screw .. ... ... ...... ........ ......... .... .. .. 311,352
The position of the engine oil filling hole and the engine oil dipstick
=:> fig. 231 (position ® and ©> can vary according to the type of
eng ine. .,_
