AUDI Q7 2011 Owner´s Manual

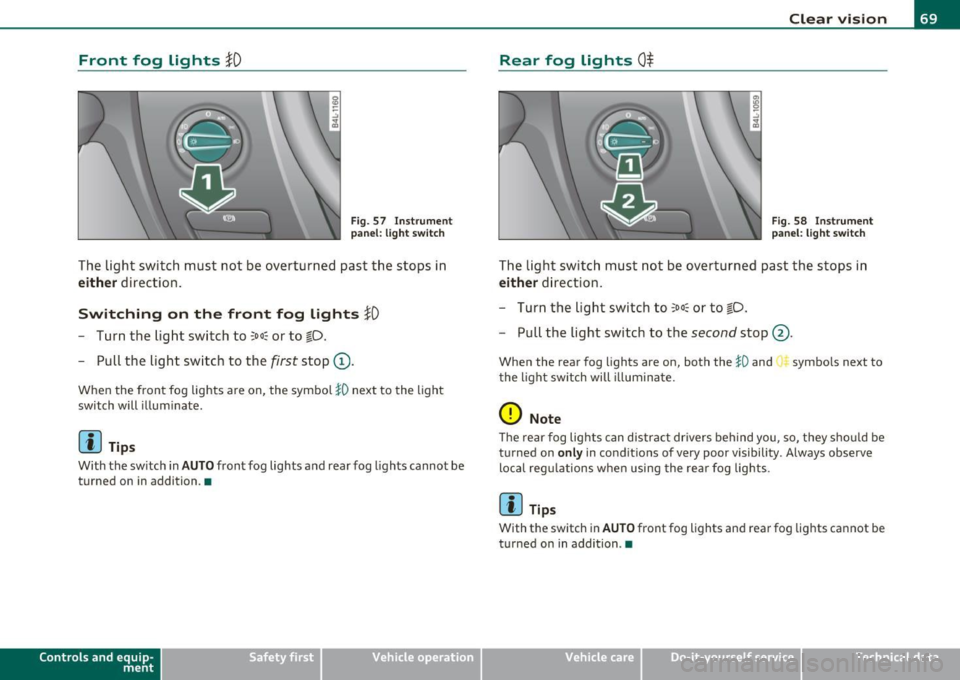

Front fog Lights }O
Fig. 57 Instru men t
panel : light s witch
The light switch must not be overturn ed past the stops in
either direction.
Switching on the front fog lights }D
Turn the light switch to :oo:: or to io .
- Pull the light switch to the first stop (D.
When the front fog lights are on, the symbo l tO next to the light
switch will illum inate .
[I] Tips
With the sw itch in AUTO front fog lights and rear fog lights cannot be
turned on in addition .•
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
Rear fog Lights 0$
Clear vision
Fi g. 58 Inst rume nt
p ane l: li ght s witch
The light switch must not be ove rturned past the stops in
eithe r direct ion .
- Turn the light switch to
:oo:: or to io.
- Pull the light switch to the second stop @.
When the rear fog lights are on, both the tO and ,._ symbols next to
the l ight sw itch will illumina te.
0 Note
T he rear fog lights can distract drivers behind you, so, they sho uld be
turned on
only in cond it ions of very poor visibility . Always observe
loca l reg ulations when using the rear fog lights.
[I] Tips
With the switch in AU TO front fog lights and rea r fog lights cannot be
turned on in addition .•
Vehicle care Do-it-yourselt service Technical data

Clear vision
Applies to vehicles : with Adaptive Light
Adaptive Light
When driving around bends, the relevant area of the road
is better illuminated.
Switching on Adaptive Light
Fig . 59 Adaptive Light
when driving
- Turn the light switch to AUTO~ page 67, fig. 56.
The Adaptive Light is a dynamic cornering light. When the light is on,
it follows the curve of the road. It is dependant upon the vehicle
speed and the angle of the steering wheel. The curve is then better
illuminated. The system works when the vehicle is moving from
6 mph (10 km/) to 68 mph (110 km/h).
The cornering light will switch on automatically at a specific steering
wheel angle. It works up to an approximate speed of 44 mph
(70 km/h).
At approximately 72 mph (115 km/h) the expressway light switches
on, which better distributes the light and increases the light cone
range . The expressway light switches off at approximately 62 mph
(100 km/h). •
Applies to vehicles : w ith light package
Perimeter lighting in the mirror housing
LEDs in the exterior mirror housing illuminate the ground
during entry.
This function ensures that when unlocking, the vehicle periphery is
illuminated in the dark. LEDs in the exterior mirror housing are
switched on. The function cannot be turned off separately .•
Emergency flasher ~
The emergency flasher makes other motorists aware that
you or your vehicle are in an emergency situation.
Fig. 60 Center
console: emergency
flasher switch
-Press the switch~~ fig. 60 to turn the emergency
flashers on or off .
When the emergency flasher is on, all fou r turn signals blink at the
same time. The turn signal indicator lights¢
9 in the instrument
cluster, as well as the light in the emergency flasher switch~ blink
likewise.
The emergency flashers will turn on automatically if you are in an
accident where the airbag has deployed.

(]] Tips
You shou ld turn on t he emergency flashers when :
• you are the last vehicle stand ing in a traffic jam so that any other
vehicles com ing can see you , or w hen
• your vehicle has broken down o r yo u are in an eme rgency s itua ­
tion, or when
• your vehicle is be ing towed by a tow tr uck o r if you are tow ing
another vehicle behind you .•

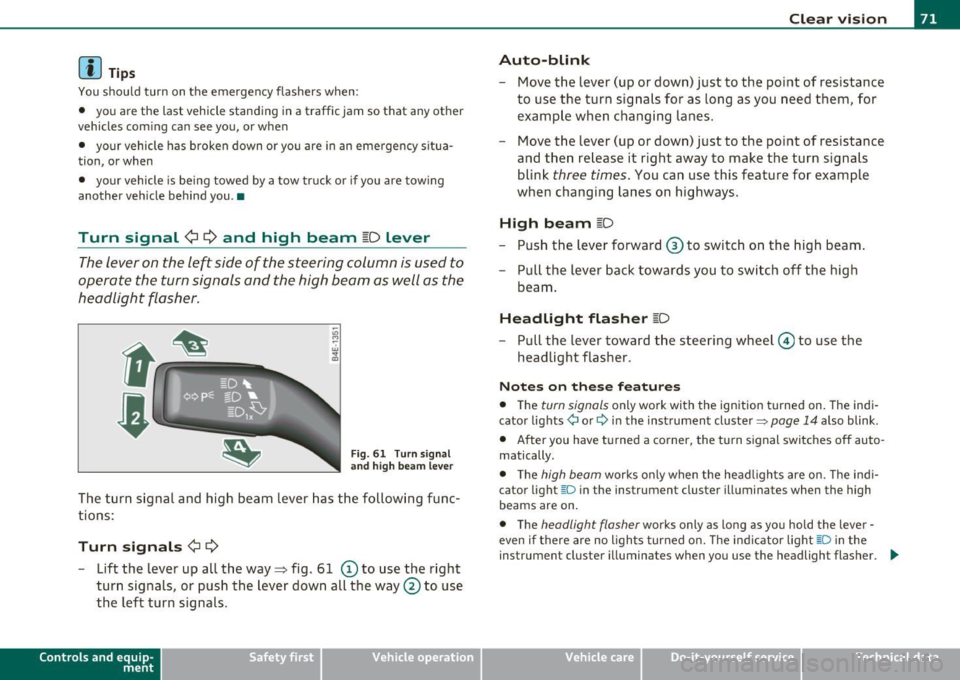

Turn signal ¢¢ and high beam ~D Lever
The lever on the le~ side of the s teering column is used to
operate the turn signals and the high beam as well a s the
headlight flasher .
-"' M
-w ... m
Fig. 61 Tu rn signal
and hi gh bea m l ever
The tu rn s ignal and high beam lever has the follow ing func­
tions:
Turn signals ¢ ¢
- Lift the lever up all the way~ fig. 61 (D to use the right
turn signals, or push the lever down all the way@ to use
the left turn signals.
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
Clear vision
Auto -blink
- Move the lever (up or down) just to the point of resistance
to use the turn signa ls for as long as you need them, for
examp le when chang ing lanes.
- M ove the lever (up or down) just to the poi nt of res istance
and t hen re lease it right away to make the turn signa ls
blink
three times . You can use this feature for examp le
w hen changing lanes on highways.
High beam ~D
- Push the lever forward @ to switch on the high beam .
- Pull the lever back towa rds you to switc h off the high
beam .
Headlight flasher ~D
Pull the lever toward the steering wheel© to use the
head light flasher .
Notes on these features
• The turn signals only work with the ignition t urned on. The indi­
cato r lights ¢ or¢ in the instrument cluster=>
page 14 a lso blink.
• After you have t urned a co rner, the tu rn signal switches off auto ­
matically .
• Th e
high beam works only when the hea dlights are o n. Th e ind i­
ca tor light
aD in the instrumen t cluster illuminates when the high
beams are on.
• The
headligh t flasher works only as long as you ho ld the lever -
even if there are no l igh ts turned o n. Th e indic ator lig ht
aD in the
instrument clus ter illuminates when you use the headlight flasher. .,,_
Vehicle care Do-it-yourselt service iTechnical data

Clear vision
0 Note
Do no t use the hig h beam or hea dlight fl asher if you know that these
cou ld blind oncoming traffic.•
Interior lights
Front interior Lights
The interior lights include reading lights for both the
driver and the f ront passenger .
Fig . 62 Headlin er:
Fr ont inte ri or/ rea ding
lights
The rocker switch©=> fig . 62 for operating the interior
lighti ng has the followi ng functions :
Door contact switch
-Place the switc h© in the middle position.
Interior light switched on
-Place the switch © in position I.
Interior light switched off
- Place the switch © in position 0 .
Reading lights ~
- Press one of the switches ® to turn the right or left
reading light on or off.
In the door contact sw itch position (switch @in the middle position),
the interior lights turn on as soon as you un lock the vehicle or open
the doors . The inter io r lights are also t urned on when the ign it ion key
is removed . The light goes out about 30 seconds after the doors are
closed. W hen the vehicle is locked or when the ignit ion is t urned on,
the interior lights are turned off.
When a door is ope n, the interior lights a re turned o ff afte r about 10
m inutes to prevent dra in ing the battery.
T he brightness o f the lights is controlled automatica lly by a dimmer
when they are sw itched on and off. •
Rear interior Lights
The re are reading lights in the rear for the passengers.
Fi g. 63 Headli ner:
Rear re a din g ligh ts

r ,:le,
Fig. 64 Headliner :
Third row reading light
-Press one of the switches ~ to turn the right or left
reading light on or off~
page 72, fig . 63.
For vehicles with third row seating*, the l uggage compartment light
can be switched on and off with the button~ and used as a reading
light => fig. 64. The rear lid has to be closed.
The lights in the luggage compartment and in the rear lid switch on
and off automatically when the lid is opened and closed.
[ i ) Tips
If the rear lid remain s open longer than 10 minutes, the luggage
compartment lights turn off automatically to prevent the vehicle
battery from discharging. •
Applies to veh icles: with ambience light ing
Ambience Lighting
The ambience lighting can be adjusted in the MMI.
-Select: Function button I CAR]> Systems *> Ambience
lighting .
When the vehicle is unlocked, the standard lighting turns on auto­
matically and dims after approx. 2 minutes, and when the ignition is
turned on it switches off immediately.
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
Clear vision
The following interior lighting is controlled through
Ambience lighting:
• Front footwell
• Rear footwe ll
• Front door panel
• Rear door pane l•
Vision
Sun visors
Using the sun visors makes driving safer.
Sun visors
Fig. 65 Passenge r
side: Sun v isor
The forward visor of the dua l sun v isor can be pulled out of its bracket
in the center of the vehicle and swung towards the door. The sun visor
can be extended after it is swung towards the door=> fig. 65.
Vanity mirror
The vanity mirrors on the sun visors are covered. When the cover is
ra ised, the mirror lighting switches on automatically . It turns off
when the lid is closed or the visor is fo lded up aga in.•
Vehicle care Do-it-yourselt service iTechnical data

Clear vision
Applies to veh icles : w ith sun shade
Sun shade
The windows in the rear doors and the rear window ore
each equipped with a sun shade .
Sun shade (rear doors )
Fig. 66 Sun shade
pulled up on a rear
wi ndow
F ig. 67 Su n shade
pulled up on the r ear
lid w indo w
-Pull the shade out and hang it in the bracket on the upper
door frame ~ fig. 66 .
Sun shade (r e ar window )
-Pull the shade out and hang it in the bracket on the rear lid
frame ~ fig. 67. •
Wiper and washer system
Switching the windshield wipers on '¢>
The windshield wiper lever controls both the windshield
wipers and the washer system .
Fig . 68 Wi ndshie ld
wiper lever
The windshield w iper lever ~ fig. 68 has the following posi­
tions :
Activating rain senso r
-Move the lever up to posi tion (D .
- Move switch @ up or down to adjust the sensitivity of the
rain sensor .
Low wiper sp eed
- Move the lever up to position @.
High wiper speed
- Move the lever up to position @.

One-touch wiping
- Move the lever to position@, when you want to wipe the
windshield
briefly.
Automatic wiper /washer
- Pull the lever to position © (toward the steeri ng w heel)
and hold .
- Re lease the lever. The washer stop s and t he wip ers keep
going for about four seconds . Depending on how long the
lever is held, d ifferent numbers of was h cyc les are
performed.
Turning off the wipers
- Move the lever back to positio n@ .
Gen eral information
The windshield wipers and the windshield washer system operate
only with the ign it ion on .
Dur ing a temporary stop, e.g. at a traff ic signa l, the set wipe speed is
automatica lly red uced by one stage.
Th e windshie ld washer noz zles a re heated at low tempe ratures when
the ignition is on .
Removing water droplets
About 5 seconds afte r the was h cycle is complete, the wipe r system
performs a single automat ic wipe cycle to remove any water droplets
that remain on the windshie ld w hile driving.
If you would like to deact ivate this delayed wipe cy cle w hile d riving,
you have to pull the lever to position ® aga in w it hi n 10 seconds after
this wipe cycle.
Water droplet removal is react ivated after the ign ition is sw itched off
and then on again.
Controls and equip ­
ment Safety first
Clear v
ision
W int er pos ition
T o speed up de -icing of the windshield wipers, they move to the
w inter position when the ig nitio n is switched off and at an outs ide
temperature below 39 °F (4 °C). In this position, the windshield
wipers a re in an a rea on the g lass which is reached by the air vents
below the g lass. It is also easier to remove snow and ice from the
windshield wipers in this position.
The w ipers leave the w inter pos it ion, when the ign it ion is switched
on, if the windshield wiper lever is oper ated or the active ra in sensor
reacts to moisture .
Rain sensor
The rain sensor operates on ly in the interval wiper position. When it
sta rts to rai n, the in terv al wiper mode is a ctivated a utomat ic al ly.
If the w indshield wipe r leve r is in the inte rval wipe position with the
ignition switched off, the rain sensor is not act ivated until vehicle
speed is above 4 mph (6 km/h) .
To reduce the sens itivity of the rain sensor, the switch © must be
moved down. To i ncrease t he se nsitivi ty of the ra in se nso r, the sw itch
must be moved up.
Th e higher the sensitivity setting, the sooner the windshie ld wipers
react to mo isture on the windshie ld . Increased sensit ivity is signa led
by the windshie ld wipers making a s ingle pass over the windshie ld.
Th e rain se nsor wiper inte rvals de pend on the se nsi tivity se tt ing as
well as veh icle speed . During br ief stops, w iper motion will ad just in
re lation to the amoun t of rain on the w indshield.
& WARNING
• Wiper blade s are crucial for safe dr iving! Only wh en they are in
good condition are the y able to clear the windows properly to
provide uncompromi sed vi sibility. Worn or damaged wiper blades
are a safety hazard~
page 78, "Replacing windshield wiper
blade s"! _..
Vehicle care Technical data

Clear vision
& WARNING (conti nued)
• The ra in se nsor i s on ly d esigned to assist and suppo rt the
driv er. It remain s entire ly the dri ver's res ponsibilit y to monitor
out side wea ther cond itions and to m anua lly ac tivate the wipe rs as
s oon as rain or dr izzle reduces visibil ity throu gh the wind sh ie ld.
0 Note
In freezing or nea r freezing condi tions:
• Always check that the wiper blades are not frozen to the glass
before you turn the wipers on. Loosen a w iper blade wh ich is frozen in
place before operating the wipers to prevent damage to the w iper
blade or the wiper motor.
• Do not use the wipers to clear a frosted window. Using the wipers
as a convenient ice scraper will destroy the w iper blades .
• Prior to using a car wash, the windshield wiper system mus t be
switched off (lever in position 0) , This helps to prevent unintentional
switching on and damage to the windshield wiper system .
(I) Tips
• The windshield wipers are switched off when the ignition is turned
off. Activate the winds hield wipers after the ignition is sw itched back
on by moving the windshield wiper lever to any position.
• Worn or d irty windshie ld w iper blades cause smear ing which can
affect the operation of the rain sensor . Check the condition of your
w indshield wiper b lades regularly .
• T he rain sensor is part of the interval wiping system. Turning off
the ignition will also deact ivate the ra in sensor. To reactivate the
sensor, switch off the interval wiping function, then switch it back on
again.
• Make sure the washer fluid reservoir in the engine compartment is
topped off before going on a long trip . Look up=> page
316 for
checking and filling the washer container. •
,,._. ..
Rear window wiper~
The wiper lever is also used to operate the rear window
wiper and the automatic wiper/washer function .
Fig. 69 Wipe r leve r:
ac tiva tin g th e rear
w indow w ip er an d
wa sh er
The rear window wipe r and the automatic wipe r/washe r func­
tions are activate d as follows:
Intermittent wiping
- Push the wiper lever forward to the first position ©
=> fig. 69. The rear window wiper will wipe the window
approx. every four seconds.
Automatic wiper /washer function
- Push the wiper lever forward to the second stop, position
0 , and hold it there for as long as you want the rear
wiper/was her to operate .
- Re lease the lever aga in. the w iper wi ll keep running for
approx . four seconds .
Switching intermittent wiper action off
- Pull the lever all the way back to the original position.

As soon as the reverse gear is engaged and the front w ipers are
turned on and operat ing at the same time, the rear wiper a lso tu rns
on automatically.
& WARNING
Wiper bla des ar e c rucia l for safe driv ing ! Onl y in good c ond ition
are the y able to cl ear the wi ndow s pr operl y to prov ide unr estricted
vi sib ilit y. W orn or fra yed wi per bl ad es are a safety hazard !
=> page 78, "Repla cing wind shi eld wiper blade s"
0 Note
In freezing or near freezing conditions:
• Always check that the w iper blades are not frozen to the glass
befo re you turn the wiper on. Loosen a w iper b lade w hich is frozen in
place before operat ing the w iper to prevent damage to the wiper
blade or the wiper motor.
• Do not use the wiper to clear a frosted window. Using the wipers
as a convenient ice scraper will dest roy the w iper blades. •
Applies to veh icles: with head light washer sys tem
Headlight washer system
The headlight washer system cleans the headlights.
- Operate the windsh ie ld wiper/washer system:::::, page 74,
fig. 68 ® with the headlights turned on by ho lding the
lever for longer than one second .
The washer jets extend forward o ut of the front bumper dr iven by
water pressure to spray the front headlights w ith water .
You shou ld inspect the headlights regularly (for example when refu­
eling) and clean off any solid dirt o r insects from the lenses .
To ensure the system works properly in winter, keep the washer jets
free of snow and remove any ic e using a de-ic ing sp ray .•
Controls and equip ­
ment Safety first
Clear v
ision

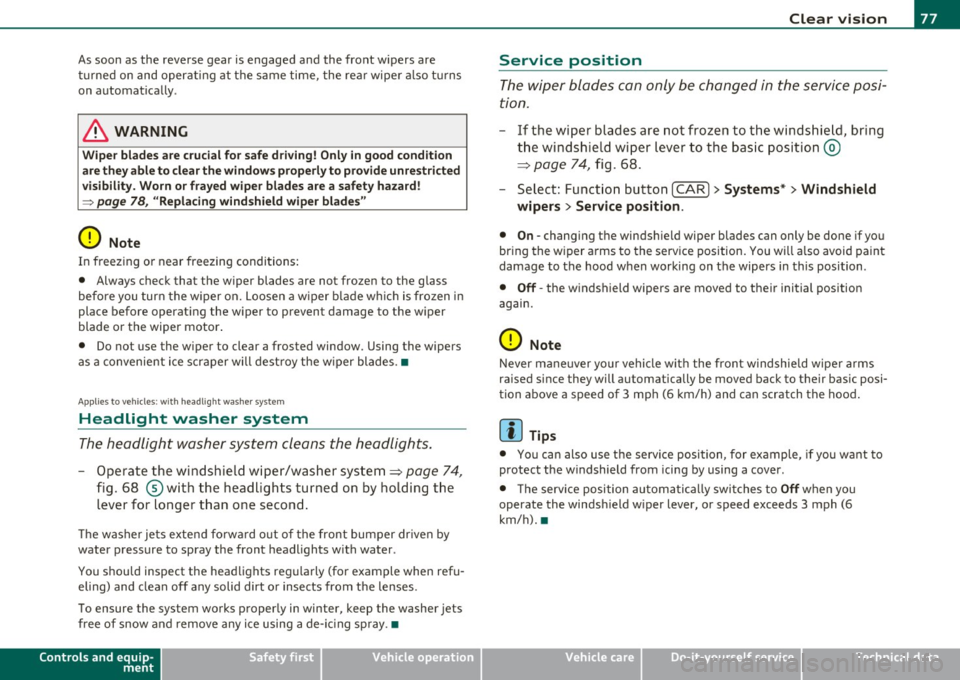

Service position
The wiper blades can only be changed in the service posi­
tion.
- I f the wiper blades are not frozen to the windshie ld, bring
the windsh ield wiper l ever to the basic position ®
=:, page 74, fig. 68.
- Select: Function button
I CAR]> System s*> Windshield
wipers > Serv ice positio n.
• On -chang ing the windsh ield wiper blades can only be done if you
bring the wiper arms to the service position. You will also avoid paint
damage to the hood when working on the wipers in this position .
• Off -the w indshield wipers are moved to their initial position
again.
0 Note
Never maneuver yo ur vehicle w ith the front windshie ld wiper arms
ra ised since they will automatically be moved back to their basic posi­
tion above a speed of 3 mph (6 km/h) and can scratch the hood .
[ i ] Tips
• You can also use the service posi tion, for example, if you want to
protect the windshield from icing by using a cover .
• T he serv ice position automa tically switches to
Off when you
operate the windsh ield w iper lever, or speed exceeds 3 mph (6
km/h) .•
Vehicle care Technical data

Clear vision

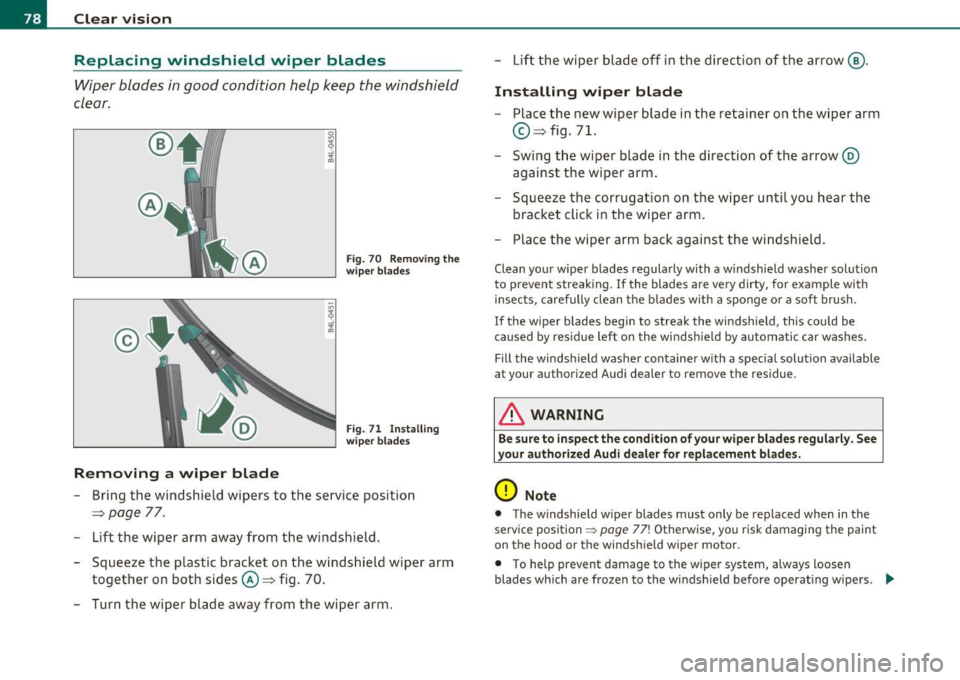

Replacing windshield wiper blades
Wiper blades in good condition help keep the windshield
clear .
@
Removing a wiper blade
Fig. 7 0 R em ov in g the
wi pe r bla des
Fi g. 7 1 In stallin g
w ipe r b la de s
- Bring the windshield wipers to the service position
~page 77.
- Lift the wiper arm away from the windshield.
- Squeeze t he p lastic bracket on the w indshield wiper arm
together on both sides©~ fig . 70.
- Turn the wiper b lade away from the wiper arm . -
Lift the wi per blade off in the direction of th e arrow @.
Installing wiper blade
- Place the new wiper blade in the retainer on the wiper arm
© ~fig. 71.
Swing t he wiper blade in the direct ion of the arrow @
against the wiper arm.
- Squeeze the co rrugatio n on the w iper until you hear the
bracket click in the wiper ar m.
- Place the w iper arm back again st t he wi ndshi eld .
Clean yo ur wipe r blades regula rly with a w indshield washer solution
to prevent streak ing . If the blades are very dirty , for example with
insec ts, carefully clean t he b lades w ith a sponge o r a soft bru sh .
If the w iper blades begin to streak the wi nds hield, this could be
caused by residue lef t on t he windsh ie ld by au toma tic c ar washes .
Fill the windsh ield washer container w ith a special solut ion avai lable
at your authorized Audi dealer to remove the residue.
& WARNING
Be sure to inspe ct the condition of your wiper blades regularly. See
your author ized Audi dealer for repla cement blade s.
0 Note
• The windshield w iper blades must only be replaced when in the
service position =>
page 77! Otherw ise, you risk damaging the paint
on t he hood or the windsh ield w iper motor.
• T o help prevent damage to the wipe r system, always loosen
blades which are frozen to the winds hield before operat ing wipers . .._
