• To help prevent damage to w iper blades, do not use gasoline,
kerosene, pa int thinner, or o ther solven ts on or near the w ipe r
blades.
• T o help prevent damage to the wiper a rms or othe r compo nents,
do not attempt to move the wipers by hand.
W Tips
Commercial hot waxes applied by automat ic car washes affect the
cleanability of the windshield. •

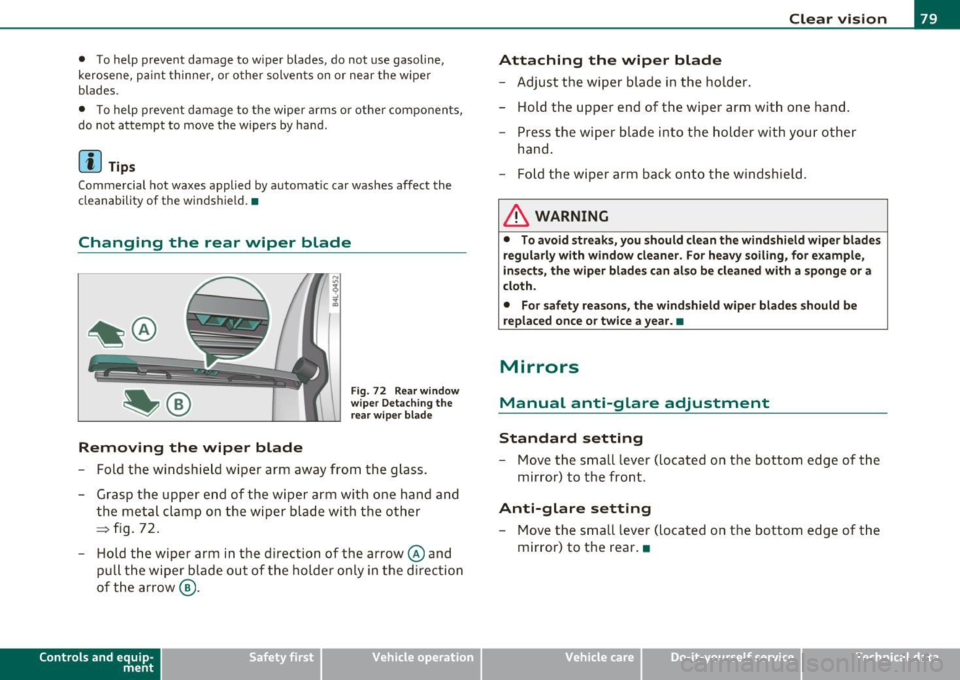

Changing the rear wiper blade
Removing the wiper blade
Fig. 7 2 R ear wind ow
wi per Det achi ng the
r e ar wiper blad e
- Fold the windsh ie ld wi per arm away from the glass .
- Grasp the upp er end of the wiper arm with one hand an d
the meta l clamp on the w iper blade w it h the o ther
=> fig. 72 .
- Hold the wiper arm in t he direction of the arrow@ and
pul l the wiper blade out of th e holder only in the dir ect ion
of th e arr ow @ .
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
Clear vision
Attaching the wiper blade
- Adjust t he wiper blade in the ho lder.
- Hold the upper end of the wiper arm with one hand .
- Press the wiper b lade into t he holde r with you r other
hand .
- Fold the wi per arm back onto th e windshield.
& WARNING
• To avoid streak s, you should clean the windshield wiper bl ade s
regularl y with window cleane r. Fo r heavy soili ng, for example,
inse ct s, the wiper blades can a lso be cleaned with a sponge or a
cloth .
• For safety reasons , th e wind shield wiper blades shou ld be
replaced on ce o r tw ice a ye ar. •
Mirrors
Manual anti-glare adjustment
Standard setting
- Move the small lever (located on t he bottom edge of the
mir ror) to t he front.
Anti-glare setting
- Move the small lever (located on the bottom edge of the
m irror) to the rear .•
Vehicle care Do-it-yourselt service iTechnical data

Clear vision
Applies to veh icles : w ith automat ically dimm ing inside mirror
Automatically dimming inside mirror
The automatic dimming function can be turned on and
off if required .
Disabling auto dimming
Fig . 7 3 I nside rea r
v ie w mirror
- Pre ss butt on @ ~ fig . 73 brie fly, -the green indic ator
light ® goes out.
Activating/reactivating auto dimming
- Press button @ briefly, -the green i ndicator ligh t® goes
on.
Automat ic dimming function
The automatic dimming function is activated every time the ignition
is turned on. The g ree n indicator light is lit to indica te auto d imming
is active.
W hen dimm ing is act iv a ted, the inside mir ror w ill darke n
automati­
cally
in response to the amou nt of light striking the mirror (such as
head lights from rearward approaching vehicles). Even in d imming
mode, the mirror surface turns br ight when:
• the interior light is switched on
• reverse gear is engaged.
& WARNING
Broken glass of automatic dimming mirror can cause electrolyte
fluid leakage . Electrolyte fluid can irritate skin , eyes, and respira­
tory system .
• Repeated or p rolonged expo sur e to electrolyte can cau se irrita­
tion to the resp iratory system, esp ecially among people with
asthma or other respiratory conditions. Get fre sh air immediately
by leaving the vehicl e or, if that is not po ssible , open window s and
doors all the way.
• If ele ctrolyte gets into the eyes, flush them thoroughly with
large am ount s of clean water for at lea st 15 minute s; medical
attention is re commended.
• If electrolyte contacts skin , flush affected area with clean
water for at l east 15 minutes and then wash aff ected area with
s oap and water; medical attention is rec ommended. Thoroughly
wash affected clothing and shoe s before reu se.
• If swallowed and person is con sciou s, rinse mouth with water
for at least 15 minutes. Do not induce vomit ing unle ss instru cted
to do so by medical profe ssional. Get medical attenti on immedi­
ate ly .
0 Note
Liquid e lectrolyte leaked from a broken mir ror g lass will damage any
plastic surfaces it comes in contact with. Clean up spi lled electrolyte
immedia tely with clear wate r and a spo nge.
[I) Tips
• If you switch off the automatic dimming function on the inside
mirror, automatic dimming of the outside mi rro rs* will l ikewise be
di sabled .
• Check to make s ure there are no objects preventing light from
reac hing t he i nside m irro r.

• Do not attach any st ickers to the w indshield in front of the light
sensor*, as t his wou ld interfere with the au toma tic ope ra tion of the
headlights and the automat ic dimming of the ins ide mirror.
• Be aware that automatic dimming o f the ins ide mir ror can on ly
operate proper ly if the rear w indow sun b lin d* is retracted . •

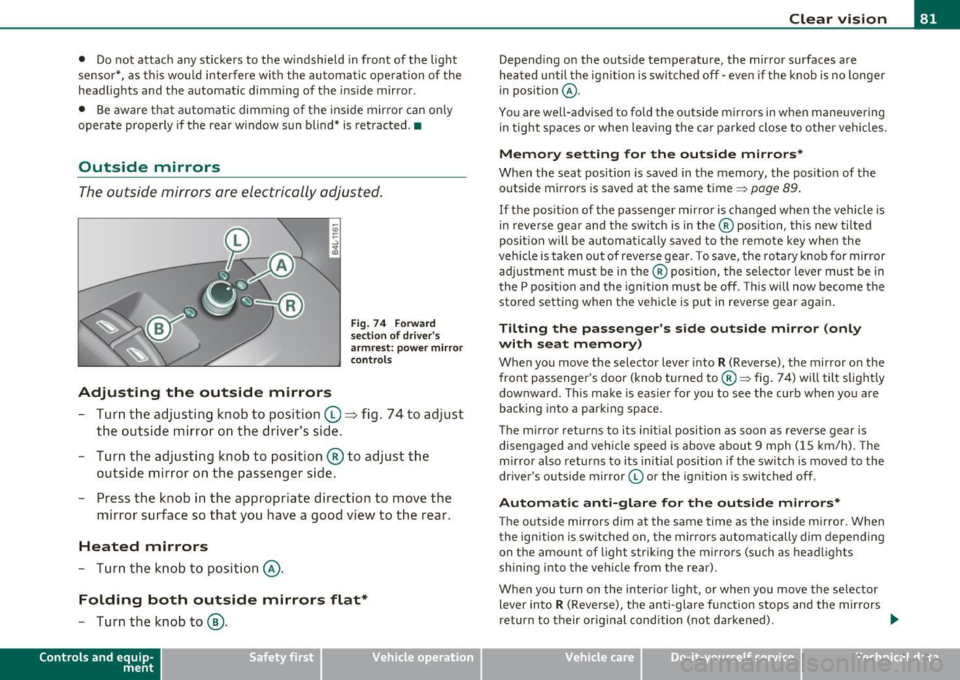

Outside mirrors
The outside mirrors are electrically adjusted.
Adjusting the outside mirrors
F ig . 7 4 Forward
sec tion of d riv e r's
a rmr est: po wer mirr or
con trols
- Tur n the adjus ting k nob to position (0 ~ fig. 74 to adjust
the outside mi rror on the driver's sid e.
- Turn the adjusting knob to position ® to adjust the
outside mirror on the passenger side .
- Press the knob in the appropriate direction to move the
mirror surface so that you have a good view to the rear .
Heated mirrors
-Turn the knob to position @.
Folding both outside mirrors flat*
-Turn the knob to@ .
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
Clear vision
Depend ing on the outs ide temperature, the mirror surfaces are
heated until t he ignit ion is sw itched off -eve n if the knob is no longe r
in pos ition
@ .
You are well-advised to fold the o utside mirrors in when maneuver ing
in tight spaces or w hen leaving the ca r pa rked close to othe r veh icles .
Memor y setting for the out side mirrors*
When the seat position is saved in the memory, the posit ion of the
outside mirrors is saved at the same time~
page 89.
If the pos it io n of t he passe nger m irror is changed when the vehicle is
in reverse gear and the switch is in the ® position, this new tilted
posit ion w ill be a utoma tica lly saved to the remote key when the
vehicle is taken out of reverse gear . To save, the rotary knob for mirror
adjus tment mus t be in the ® position, the se lec to r l ever must be in
the P position and the ignition must be off . T hi s will now become the
stored setti ng when the vehicle is put in reve rse gear agai n.
Tilting the passenger 's side outside mirror (only
with seat memory)
Whe n you move the selector lever into
R (Reverse), the mir ror o n the
front passenger 's doo r (knob tur ned to® ~ fig . 7 4) will tilt s light ly
dow nward. This make is eas ier for you to see the curb when you are
backing into a parking space.
Th e m irro r returns to its in it ial posi tion as soon as rever se gear is
disengaged and veh icle speed is above about 9 mph (15 km/h) . T he
mirror also returns to i ts initia l position i f the swit ch is moved to the
dr iver 's outs ide mirror © or the ign it ion is switched off .
Automatic anti-glare for the out side mirror s*
The outside mirrors dim at the same time as the inside m irror. When
t he ign ition is sw itched on, the mir rors automatic ally dim depending
on the amount of light str ik ing the m irrors (such as headlights
shining into the veh icle from t he rear) .
When you t urn on the interio r light, or when you move the selector
lever into R (Reve rse), the anti -glare f unction stops and the mirrors
return to their orig inal condition (not darkened) . -.,
Vehicle care Do-it-yourselt service iTechnical data

Clear vision

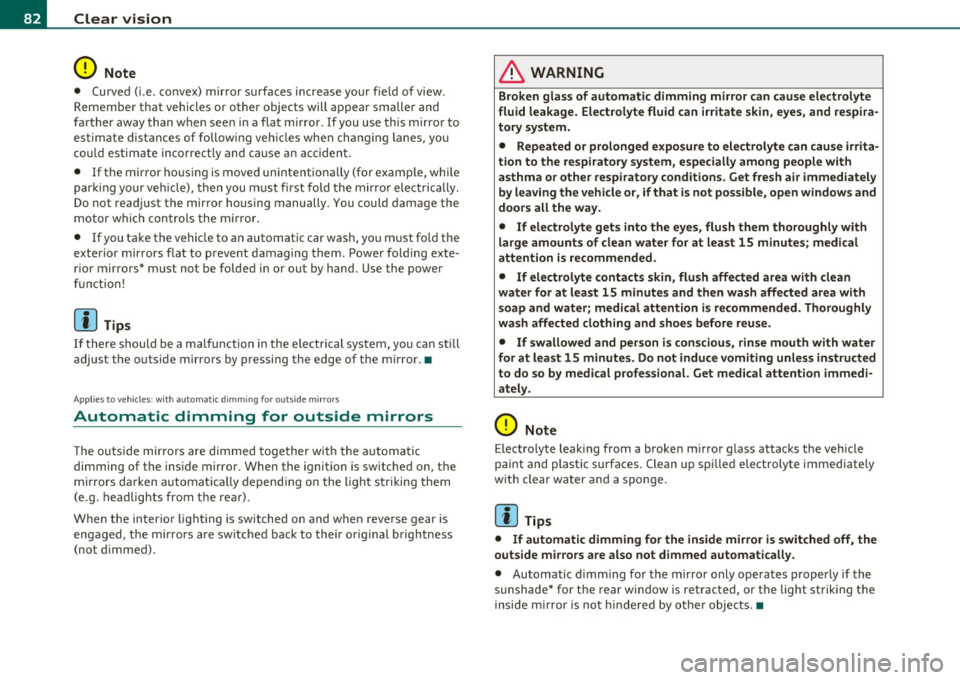

0 Note
• Curved ( i.e. co nvex) mir ror s urfaces increase your field of view.
Remember that vehicles or other objects will ap pear smaller and
f art her away th an whe n seen in a fla t mi rror. If you use th is mi rro r to
estimate distances of follow ing ve hicles when chang ing lanes, you
could estimate i nco rre ct ly and ca u se an a cci dent .
• If the mir ror ho using is moved un inte ntionally (for examp le, whi le
par king yo ur veh icle), then you m ust fir st f old the mir ror ele ctrically.
Do not read just the mirro r hous ing manually. You could damage the
mot or w hic h con trols the mi rror .
• If you take the vehicle to an automatic car wash, yo u m ust fo ld the
exterior mirrors flat to preven t dam aging the m. Powe r fol ding ex te­
r ior mirrors" m ust not be folded in or out by hand. Use the powe r
f unc tion!
[ i ) Tips
If th ere should be a malfu nction in the ele ct rical sys tem , you can still
adjust the outs ide mirrors by pressing the edge of the m irror. •
App lies to ve hicles : w ith auto mat ic dim mi ng fo r outs ide m ir ro rs
Automatic dimming for outside mirrors
Th e ou tside mir rors are d immed toge ther w it h t he a utoma tic
dimming of the ins ide mirror . When the ignition is switched on, t he
m irrors da rken a utomat ically depe nd ing on the light s trik ing t hem
(e .g . headlights from the r ea r) .
W hen the interio r light ing is switched on and when reverse gear is
engaged , the m irrors are sw itche d back to their or ig inal bright ness
(not d immed).
& WARNING
Broken glass of automatic dimming mirror can cause electrolyte
fluid leakage. Electrolyte fluid can irritate skin, eyes, and respira­
tory system.
• Repeated or prolonged exposure to electrolyte can cause irrita­
tion to the respiratory system, especially among people with
asthma or other respiratory conditions. Get fresh air immediately
by leaving the vehicle or, if that is not possible, open windows and
doors all the way.
• If electrolyte gets into the eyes, flush them thoroughly with
large amounts of clean water for at least 15 minutes; medical
attention is recommended.
• If electrolyte contacts skin, flush affected area with clean
water for at least 15 minutes and then wash affected area with
soap and water; medical attention is recommended. Thoroughly
wash affected clothing and shoes before reuse.
• If swallowed and person is conscious, rinse mouth with water
for at least 15 minutes. Do not induce vomiting unless instructed
to do so by medical professional. Get medical attention immedi­
ately.
0 Note
Electro lyte lea king from a broke n m irror g lass a ttacks the vehicle
paint and plastic surfaces . Clean up spilled electrolyte imme diate ly
w ith clear water and a sponge .
(I) Tips
• If automatic dimming for the inside mirror i s switched off, the
outside mirrors are also not dimmed automatically .
• Automatic d imm ing fo r the mir ro r only op erates p roperly if the
s u nshade* fo r th e rear w indow is ret racted, o r the light strik ing t he
inside m irror is not h indere d by ot her objec ts. •

Digital compass
Applies to veh icles: wit h digita l co mp ass
Activating or deactivating the compass
The direction is displayed on the interior rear view mirror.
Fig. 75 Inside rear
view mirror: digital
compass activated
To activate or deactivate, hold the@ button down until
the red display appears or disappears .
The digital compass only works with the ignition turned on. The direc­
tions are displayed as initials:
N (North), NE (Northeast), E (East), SE
(Southeast), S (South) , SW (Southwest), W (West), NW (Northwest).
(I) Tips
To avoid inaccurate directions, do not allow any remote controls ,
electr ical systems, or metal parts close to the mirr or.•
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
Clear vision
Applies to veh icles : w ith d ig ita l compass
Setting the magnetic deflection zone
The correct magnetic deflection zone must be set in order
to display the directions correctly .
.
,_ ,;=.~a,, I I
I I
I I
I ' I I
I I
1 ! ©
l 4
l
l
I ' I ,,
l ----
'
'
'
®
\, ,, ...... _______ ,.,.
©
@
Fig. 76 North America: magnetic deflection zone boundaries
-Hold the@=> fig . 75 button down until the number of
the set magnetic deflection zone appears on the interior rear view mirror .
- Adjust the magnetic deflection zone by repeatedly pressing on the@ button . The set mode automatically
deactivates after a few seconds. •
Vehicle care Do-it-yourselt service iTechnical data

Clear vision
Applies to veh icles : w ith d ig ita l compass

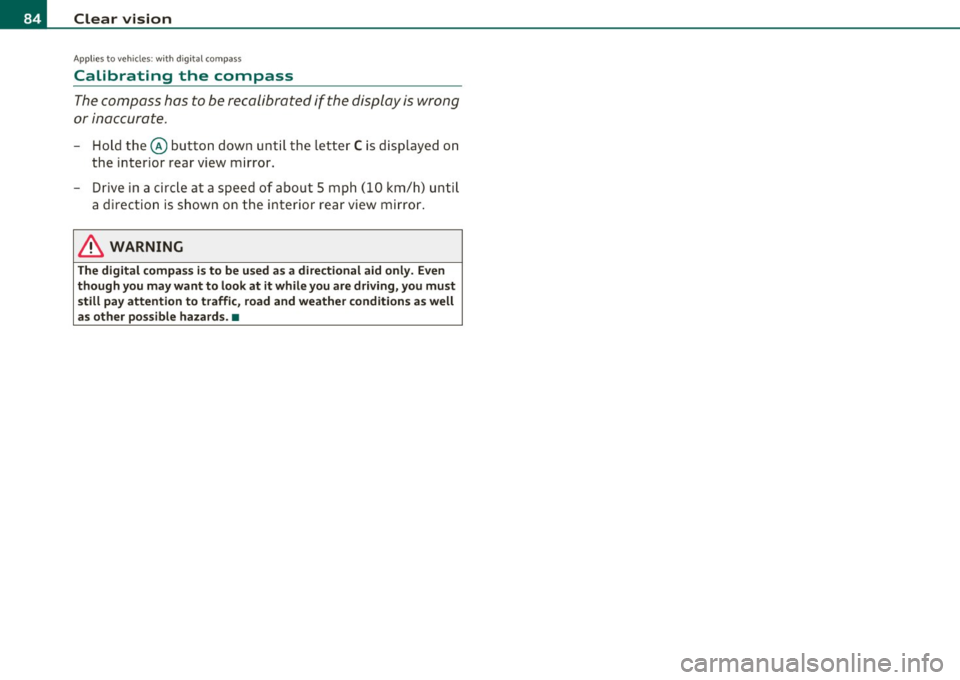

Calibrating the compass
The compass has to be recalibrated if the display is wrong
or inaccurate .
-Hold the@ button down until the letter C is displayed on
the interior rear view mirror .
- Drive in a circle at a speed of about 5 mph (10 km/h) until
a direction is shown on the interior rear view mirror.
& WARNING
The digital compass is to be used as a directional aid only. Even
though you may want to look at it while you are driving, you must
still pay attention to traffic, road and weather conditions as well
as other possible hazards. •

Seats and storage
General recommendations
Why is your seat adjustment so important?
The safety belts and the airbag system can only provide
maximum protection if the front seats are correctly
adju sted.
Th ere a re various ways of adjusting t he front seats to provide safe and
comfortable support for the driver and the front passenger . Ad just
your seat properly so that :
• you can easily and quickly reach a ll the switc hes and contro ls in the
ins trumen t pa nel
• your body is properly supported thus reducing phys ica l stress and
fatigue
• the safety be lts and airbag system can offer maximum protection
===> page 211 .
In the following sections, you w ill see exact ly how you can best ad just
your sea ts .
Th ere are special regulations a nd instr uctions for install ing a child
safety seat on the front passenger's sea t. Always follow the informa ­
tion regarding child safety p rovided in===>
page 233, "Child Safety ".
& WARNING
Incorrect seating posit ion of the dri ver and all other passengers
can result in seriou s personal injury.
• Always keep your feet on the floor when the vehicle is in
motion -never put your feet on top of the instrument panel, out
of the window o r on top of the seat cush ion. This applies especially
to the passengers.
If your seating po sition is incorrect, you
increase the ri sk of injury in the case of sudden braking or an acci-
Controls and equip ­
ment Safety first
Seats and storage
& WARNING
(con tinu ed)
dent . If the airbag inflates and the seating position is incorrect ,
this could result in per sonal injury or even death .
• It is important for both the dri ver and front passenger to keep
a distan ce of at least 10 inche s (25 cm) between themselves and
the steering wheel and /or instrument panel. If you 're sitting any
closer than this , the airbag system cannot protect you properly. In
addition, the front seats and head restraints must be adjusted to
your body height so that they can give you maximum protection .
• Always try to keep as much distance as possible between your­
self and the steering wheel or instrument panel.
• Do not adjust the driver's or front passenger 's seat while the
vehicle is moving. You r seat may move unexpectedly , causing
sudden loss of vehicle control and personal injury . If you adjust
your seat while the vehicle is moving , you are out of position. •
Driver's seat
The correct seat position is important for saf e and
re lax ed driving.
W e recomme nd that you a djust the drive r's sea t in the
f ollowing man ner :
- Ad just the seat in fore and aft direction so that you can
easily pus h the pedals to the floor w hile keeping your
knees slightly bent=>
& in "Why is yo ur seat a djus tme nt
so importa nt?" .
- Adjust the seatback so that when yo u sit with yo ur back
agai nst t he seatback , you can st ill grasp t he top of the
steering w heel. ..,
Vehicle care Technical data

Seats and storage
-Adjust the head restraint so the upper edge is as even as
possible with the top of your head. If that is not possible,
try to adjust the head restraint so that it is as close to this
position as possible=>
page 92.
& WARNING
Never place any objects in the driver's footwell. An object could
get into the pedal area and interfere with pedal function. In case
of sudden braking or an accident, you would not be able to brake
or accelerate. •
Front passenger's seat
Always move the front passenger seat into the rearmost
position.
To avoid contact with the airbag while it is deploying, do not
sit any closer to the instrument panel than necessary and
always wear the three-point safety belt provided adjusted
correctly. We recommend that you adjust the passenger's
seat in the following manner:
- Move the front passenger seat into the rearmost position
of the fore and aft adjustment range~
& in "Why is your
seat adjustment so important?" on
page 85.
- Bring the backrest up to an (almost) upright position. Do
not ride with the seat reclined.
- Adjust the head restraint so the upper edge is as even as
possible with the top of your head . If that is not possible,
try to adjust the head restraint so that it is as close to this
position as possible~
page 92.
-Place your feet on the floor in front of the passenger's
seat .•
Power front seat adjustment
Seat adjustment controls
The operating logic for the switches corresponds to the
construction and function of the seat.
~
-..:,
- ----,-, ~
Fig. 77 Front seat:
Controls for seat
adjustment
The switches to adjust the seat cushion and the seatback correspond
to the layout, the design and the function of the seat. The seats are
adjusted by moving the switches following this logic.
Controls
© Seat adjustment
@ Seatback adjustment
© Lumbar support •
Adjusting the seat
Position, angle and shape of the seat can be adjusted
electrically to ensure safe and comfortable seating.
Read and follow the warning notices~ & before you adjust
your seat. _.,

Fore-and-aft adjustment
- Push the switch@forward or backward~ page 86,
fig. 77.
Adjusting seat height
- Pull or push the switch © up or down.
Front seat cushion up/ down
- Press the switch © at the front up or down.
Rear seat cushion up/ down
- Press the switch © at the rear up or down.
Adjusting seatback angle
- Push the switch @ forward or backward.
Adjusting the curvature of the lumbar
support
- Push the switch plate © forward or backward to increase
or reduce the curvature.
Adjusting the height of the lumbar support
- Push the switch plate © up or down to position the curva­
ture higher or lower.
& WARNING
• Adjust the driver's seat only when the vehicle is stationary. You
risk an accident otherwise.
• The power adjustment for the front seats also works with the
ignition switched off or with the ignition key removed. For this
reason, children should never be left unattended in the vehicle -
they could be injured!
Controls and equip ­
ment Safety first
Seats and storage
& WARNING
(continued)
• Exercise caution when adjusting the seat height. Unsupervised
or careless seat adjustment can pinch fingers or hands causing
injuries.
• While the vehicle is moving, the seatbacks of the front seats
must not be inclined too far to the rear because the effectiveness
of the safety belts and the airbag system is severely compromised
- there is a risk of injury.
• To reduce the risk of injury in the case of sudden braking or
accident, front passengers must never ride in a moving vehicle
with the seatback reclined. Safety belts and the airbag system
only offer maximum protection when the seatback is upright and
the safety belts are properly positioned on the body. The more the seatback is reclined, the greater the risk of personal injury from an
incorrect seating position and improperly positioned safety
belts. •
Vehicle care Technical data

Seats and storage
Adjusting front passenger's seat manually
Applies to vehicl es: with manua lly adjustab le passenger seat
Adjustment controls
Various controls on the manual front passenger's seat
provide a wide range for individual adjustments.
(D Adjusting the seatback angle
@ Adjusting the seat height
® Moving the seat forward or backward •
Applies to veh icles : w ith manually adjustable passenger seat
Fig . 78 Adjustment
controls: locations on
front passenger's seat
Adjusting the manual front passenger's
seat
Position, angle and shape of the manual front
passenger's seat can be adjusted to provide safe and
comfortable seating.
Read and heed all WARNINGS :::;, & before you adjust your
seat.
Adjusting the seatback angle
- Lean forward to take your weight off the seatback.
- Turn the hand wheel[):::;,
page 88, fig. 78 in the direction
you want the seatback to tilt.
Adjusting the seat height
- Pull the lever @up and pump it to raise the seat.
-Push the lever down and pump it to lower the seat.
Moving the seat forward or backward
- Lift the lever® and slide the seat to the desired position.
- Release the lever and then move the seat further until you
feel and hear it engage.
& WARNING
• Never adjust the front passenger's seat while the vehicle is
moving. If you do this while the vehicle is moving, you will be out
of position. Always adjust the front passenger's seat when the
vehicle is not moving.
• Be careful when adjusting the seat height. Check to see that no
one is in the way, or serious injury could result!
• To reduce the risk of injury in the case of sudden braking or
accident, front passengers must never ride in a moving vehicle
with the seatback reclined. Safety belts and the airbag system
only offer maximum protection when the seatback is upright and
the safety belts are properly positioned on the body. The more the
seatback is reclined, the greater the risk of personal injury from an
incorrect seating position and improperly positioned safety
belts! •
