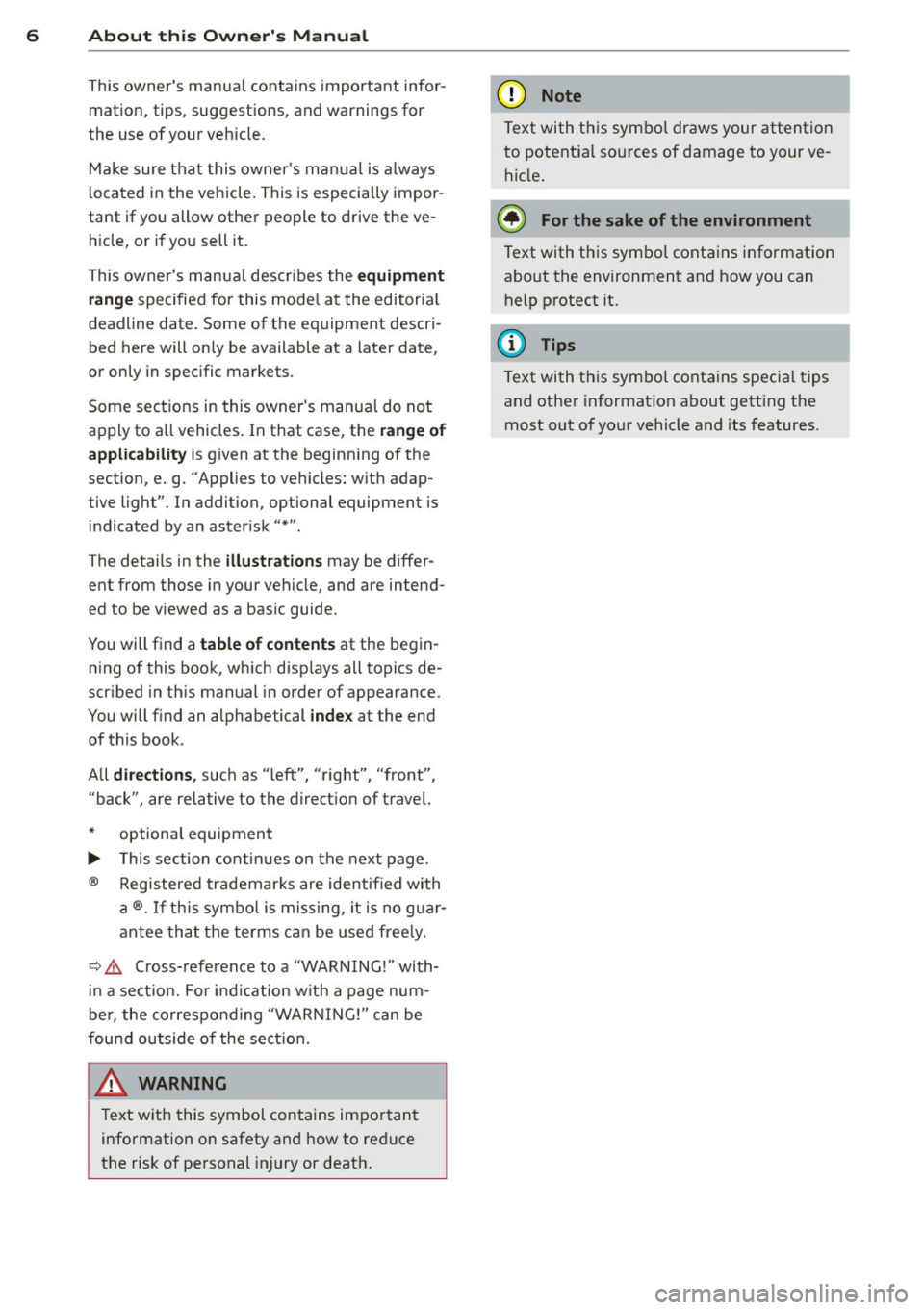

6 About this Owner's Manual
This owner's manua l contains important infor­
mation, tips, suggestions, and warnings for
the use of your veh icle.
Make sure that this owner's manua l is always
located in the vehicle. This is especia lly impor­
tant if you allow other people to drive the ve­
h icle, or if you sell it.
This owner's manua l descr ibes the
equipment
range
specified for this mode l at the editoria l
deadline date. Some of the equipment descri­
bed here will on ly be available at a later date,
or only in specific markets.
Some sections in this owner's manua l do not
apply to a ll vehicles . In that case, the
range of
applicability
is g iven at the beginn ing of the
section, e.g. "Applies to vehicles: w ith adap­
tive light". In addition, optional equipment is
indicated by an asterisk"*".
The details in the
illustrations may be differ ­
ent from those in your vehicle, and are intend­
ed to be viewed as a bas ic guide.
You will find a
table of contents at the begin­
ning of this book, which disp lays all topics de ­
scr ibed in this manual in order of appearance.
You will find an alphabetical
index at the end
of this book .
All
directions , such as "left", "right", "front",
"back", are relative to the direct ion of travel.
* optional equipment
... This section continues on the next page .
® Registered trademarks are identified with
a®. If this symbol is miss ing, it is no g uar­
antee that the terms can be used freely.
~ .& Cross-reference to a "WARNING!" with-
in a sect ion. For ind ication w ith a page num­
ber, the corresponding "WARNING!" can be
found ou tside of the sect ion.
& WARNING
Text with this symbol contains important
information on safety and how to reduce
the risk of personal injury or death.
(D Note
Text with this symbo l draws your attention
to potentia l sources of damage to your ve­
hicle.
@) For the sake of the environment
Text with this symbo l contains information
abo ut the environment and how you can
help protect it.
{!) Tips
Text with this symbo l contains specia l tips
and other information about gett ing the
most out of yo ur vehicle and its features.

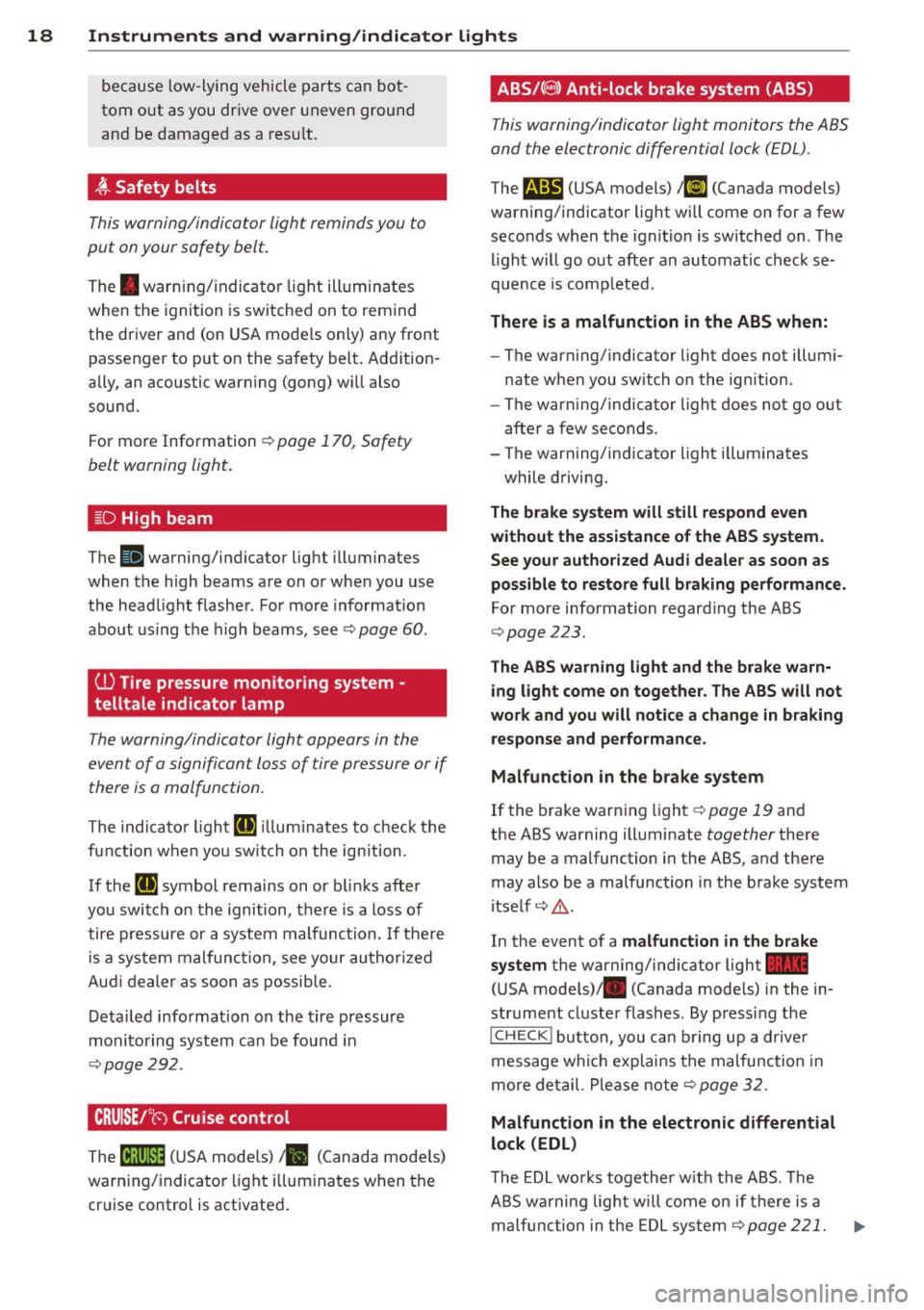

18 Instrum ent s and w arn ing /indic ato r light s
because low -lying vehicle parts can bot ­
tom out as you drive over uneven ground
and be damaged as a res ult .
~ Safety belts
This warning/indicator light reminds you to
put on your safety b elt.
The . warn ing/ indicato r light illum inates
when the ignition is switched on to remind
the d river and (on USA models only) any front
passenger to put on the safety belt . Add ition­
ally, an acous tic warning (gong) will also
sound.
F or more Information
r=) page 170, Safety
belt warning light.
~D High beam
The ii warning/indicato r light illuminates
when the high beams are on or when you use
the head light flasher . For more informat ion
about using the h igh beams, seer=)
page 60.
(l) Tire pressure monitoring system -
telltale ind icator lamp
The warning/indicator light appears in the
event of a significant loss of tire pressure or if there is a malfunction .
The indicator light (I] ill um inates to check the
function w hen you switch on the ign ition.
If the
(I] symbol remains on or b links after
you switch on the ignition, there is a loss of
tire pressure or a system malfunction . If there
is a system malfunction , see your au thorized
Aud i dealer as soon as possib le.
Detailed info rmation on the tire pressure
monitoring system can be found in
r=) page292.
CRUISE /'(-) Cruise control
The lff;jl)~i~ (USA mode ls) ;II (Canada mode ls)
warning/indicato r light illuminates when the
cr uise contro l is activated .
ABS/(8) Anti -lock brake system (ABS)
T his warning/indicator light monitors the ABS
and the electronic differential lock (EDL) .
Them (USA models) ;ii] (Canada models)
warning/indica tor ligh t will come on for a few
seconds when the ignition is switched on . T he
l ight will go out after an automat ic check se­
quence is comp leted.
There is a malfunction in the ABS when:
-The warning/indicator light does not illum i­
nate when you switch on the ignition .
- The warning/indicator light does not go out
after a few seconds.
- T he wa rning/indicator light i llum inates
while driving.
The brake system will still respond e ven
without the ass istance of the ABS system.
See your authorized Audi deale r as soon as
possible to restore full braking perfo rmance.
For more information regard ing the ABS
<=> page 223.
The AB S warning light and the brake wa rn­
ing light come on together. The ABS will not
work and you will notice a change in braking
r es ponse and p erform ance.
Malfunction in the brake system
If the brake warning light r=) page 19 and
the ABS warning ill uminate
together there
may be a malfunction in the ABS, and there
may also be a malfunction in the brake system
i tself <=>
A.
In the event of a malfunction in the brake
system
the warning/indicator ligh t 1111
(USA models)/ . (Canada mode ls) in the in­
st rument cluster flashes . By press ing the
jCH ECKI button, you can b ring up a d river
message whi ch explains the malfunction in
more de tail. Please note
<=> page 32 .
Malfunction in the electronic differential
lock (EDL)
The EDL works toge ther w it h the ABS. The
ABS wa rning lig ht w ill come on if there is a
malfu nction in the EDL sys tem
<=> page 221 .

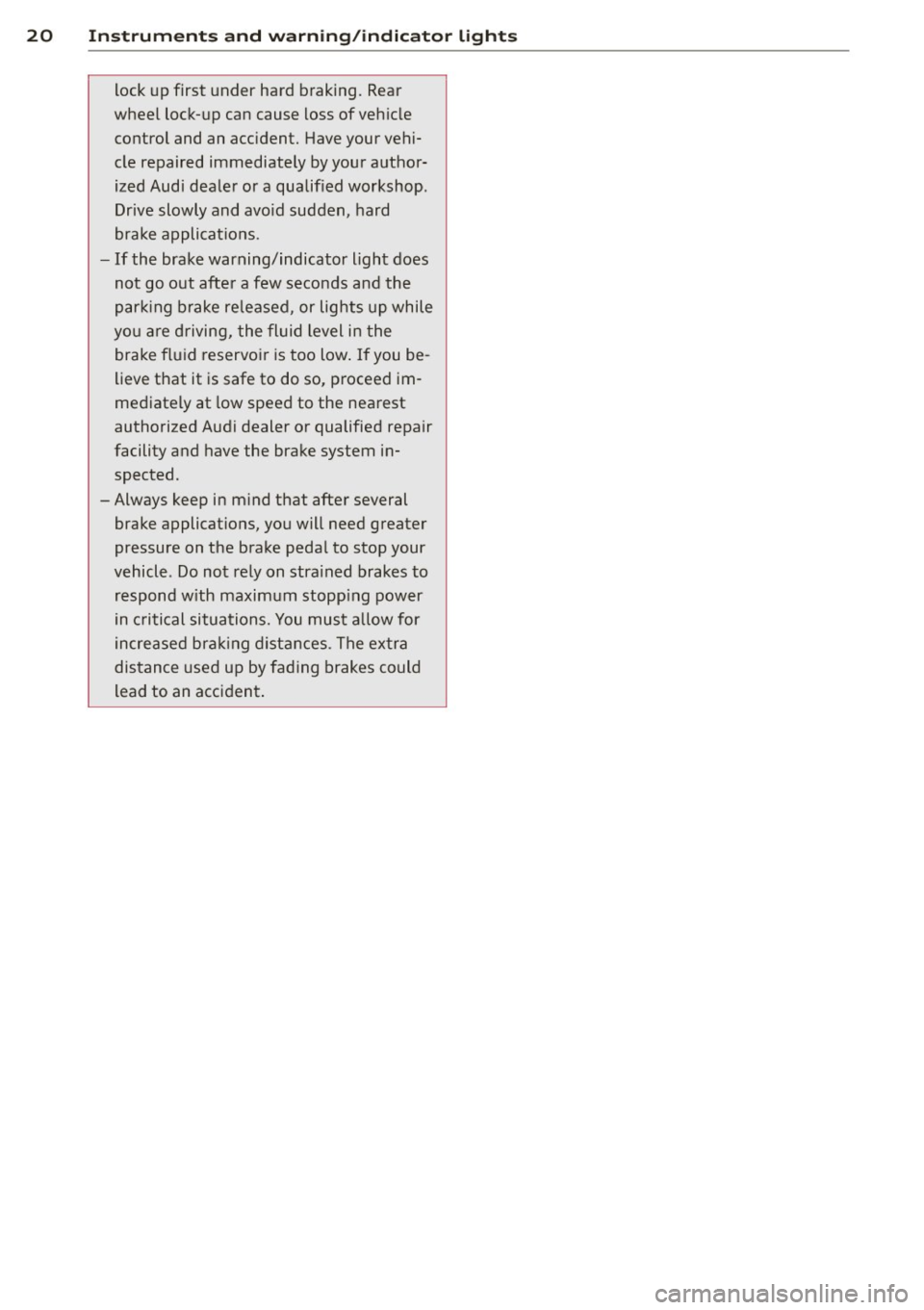

20 Instrum ent s a nd w arn in g/i ndic ato r light s
lock up first under hard braking. Rear
wheel lock-up can cause loss of vehicle
control and an accident. Have your vehi­
cle repaired immediately by your author­
ized Audi dealer or a qualif ied workshop.
Drive slowly and avo id sudden, hard
brake applicat ions.
- If the brake warning/indicator light does
not go out after a few seconds and the
par king brake re leased, or lights up while
yo u are driving, the fluid level in the
brake fluid reservo ir is too low . If you be ­
lieve that it is safe to do so, proceed im­
mediately at low speed to the nearest
authorized Audi dealer or qualified repair
facility and have the brake system in­
spected.
- Always keep in m ind that after several
brake applicat ions, you will need greater
pressure on the brake peda l to stop your
vehicle . Do not rely on stra ined brakes to
respond w ith maximum stopp ing power
in critical situations. You must a llow for
increased bra king distances . The extra
distance used up by fading brakes could
lead to an accident .

22 Driver in formation d ispl ay
Outside temperature display
Fig. 11 Display : outside temperature
At temperatures below 41 °F (+S °C) a snow­
flake symbol appears ahead of the tempera­
ture display . It is intended to remind the driv­
er to pay spec ial attent ion to
ic e on the roa d.
If the vehicle is stationary, or if you are driving
at a very low speed, the temperature shown in
the display might be slightly higher than the
actual outside temperature . Th is is caused by
the heat being rad iated from the engine .
If you have selected the °C (degrees Celsius)
unit for temperature in the MMI, the outside
temperature display also appears automat i­
cally in
°C.
A WARNING
- Never rely excl usively on the outside
temperatu re d isplay to determine if a
road surface is icy or not . Keep in mind
that road surfaces, especially bridges
and overpasses, could be ice covered and
s li ppery even at an outs ide temperature
above 41 °F (+ S °C).
- Always remember, even if the "snow­
flake" symbol (ice warn ing) does not ap­
pear in the display, black ice could be on
the road.
- Always reduce your speed and dr ive with
special care in cold weather conditions
when the chance of encountering icy road s urfaces increases .
Digital speedometer
Fig. 12 Display: Digi tal speedometer
Current speed appears in the disp lay. Speed is
shown in 1 mph measures (USA models) or 1
km/h measures (Canada models) .
You can switch the disp lay from m iles to kilo­
meters and vice versa via the MMI.
Open door or trunk lid warning
The pictogram alerts you when doors or the
rear lid have been left open .
Fig. 13 Display: open doo r or rea r lid wa rning
With the ign it ion sw itched on, the ope n door
or rear lid warning illuminates when at least
one door or the hood or the trunk lid is not
cl osed . The symbol a lso shows you
which
doo r(s) o r lid is not closed.
In the illustration
~ fig . 13 it is the dr iver's
doo r, the left rear door and the rear lid. As
soon as all the doors, the hood, the rear lid
and the f uel filler cap are prope rly closed, the
door and rear lid warning turns off and the
Driver Information System functions selected
are displayed again.

24 Driver information display
Resetting the service interval display
Your authorized Audi dealer w ill reset the cor­
responding service schedule after performing
the appropriate service on your vehicle. You
a lso have the possibility to reset the oi l
change schedule after having performed an
oil change according to Audi specifications.
Select function button !CARI> control button
Systems * > Service interval display > Reset
oil change interval
or! CARI > control button
Car systems* > Servicing & che cks > Servi ce
intervals > Reset oil change interval.
Q;) Note
If you disconnect the battery termina ls, no
calc ulations can be made for the service
interva l display during this time and no
service reminder will appear. Remember
that observing the proper service intervals
is vitally important to extend ing the life of
your veh icle, part icu larly the eng ine, and
maintaining its va lue. Even if the mileage
driven is low, the maximum period of one
year from one se rvice to the next must not
be exceeded.
(Di Tips
-Do not reset the display between oil
changes, otherw ise the display will be in­
correct.
- The information in the Service Reminder
remains stored even when the vehicle
battery is disconnected.
Trip computer
Introduction
The trip computer gives you information on
current and average fuel mileage, average
speed, fuel range and driving time.
Fig. 16 Trip computer disp lay: Average fue l mil eage
The following dr iving informa tion is con tinu­
ous ly evaluated by the trip computer and can
be displayed sequentially in the instrument
cluster disp lay.
Fuel range
T he es timated cruising range in miles (km )
appea rs in the display. This tells you how far
your vehicle will be ab le to travel on the c ur­
rent tank of fuel and with the same driving
style. The display changes in increments of 6
miles (10 km).
T he cruising range is calculated based on the
fuel consumption for the last 18 miles
(30 km). If you drive conservative ly, the cruis­
ing range will increase.
Average fuel mileage
The average fuel economy in MPG (l/100 km)
since you last cleared the memory appears in
t hi s disp lay . You can use this display to adjust
yo ur driving technique to achieve a desired
mileage.
Current fuel mileage
The instantaneous fuel consumpt ion in m iles
per gallon ( l/100 km) is shown in this display.
You can use this display to adjust your driving
technique to achieve a desired m ileage .
1111>

~ Contact your authorized Audi dea ler fo r as -
sistance if necessary.
If the engine coolant level is co rrect, then the
radiato r fan may be the cause of the malfunc­
tion.
If the . warning symbo l (alternator mal­
f u nction) a lso l ights up on the instr ument
panel ¢
page 31, then the fan belt may be
damaged .
A WARNING
- If your vehicle should break down for
mechanica l or other reasons, park at a
safe distance from moving traffic, turn off the engine and turn on the hazard
warning lights¢
page 60, Emergency
flasher.
-
- Never open the hood if you see or hear
steam o r coolant escap ing from the en­
gine compartment - you risk being scald­
ed. Wait until you can no longe r see or
hear steam or coo lant escaping.
- The e ngine compartment of any ve hicle
is a da ngerous a rea. Before you perform
any wor k in the engine compar tment,
t ur n o f the eng ine and allow it to cool.
Follow the warning stickers¢
page 248,
Engine compartment .
(D Note
Do not cont in ue d riving if the . symbol
illuminates. There is a malf unct ion in the
engine cooling system -you co uld damage
your eng ine.
9=:7-Engine oil pressure malfunction
The red engine oil pressure warning symbol
requires immediate service or repair. Driving
with a low-oil -pressure indication is likely to
inflict severe damage to the engine.
If the . symbo l appears in the disp lay and
b links, the oil press ure is too low . An addition ­
a l dr iver message can also be disp layed by
press ing the
I CH ECKi button:
Switch off engine! Oil p ressure too low
Dri ver information di spla y 33
Immediate act ions
~ Pull off the road.
~ Stop the vehicle.
~ T ur n off the engine .
~ Check the engine oil le vel with the dipstick
¢ page 263.
Dipstick readings check s too low
~ Top off oil to the proper level¢ page 264.
~ Make s ure that the oil pressure wa rning
symbo l. appears no longer in the display
before you start driving again.
Dipstick read ing checks OK
~ If the oil p ress ure warn ing symbol .
s t arts flashing aga in even though the en­
gine oil level checks OK on t he d ipstick,
do
not continue d riving and do not let the en­
gine run in idle .
Instead, contact your au­
thorized Audi dealer for assistance.
(D Tips
- The engine oil pressure symbol. is
not an indic ator for a low engine oil lev­
el. Do not rely on it . Instead, check the
oil level in your engine at regular inter­
vals, preferably each time you refuel,
and always before going on a long trip .
- The yellow oil lev el warn ing indication
1111 requires oil refill or workshop s erv­
ice without delay . Do not wait until th e
red oil pre ssure warning . start s to
flash before you r espond to the low oil
level warning
Ill . By then , your engine
may already have suffered serious dam­
age.
i Steering malfunction
If there is a malfunction in the electronic
steering column lock, the steering cannot be
unlocked .
If the I symbol i n the display blinks, there is
a malfunction in the electronic steering col­
u mn lock. An additional driver message can
a lso be displayed by pressing the
ICHECK I but-
ton:
~

38 Opening and closing
Opening and closing
Keys
Key set
Fig. 27 Key set
@ Master key with remote control
You can centrally lock and unlock your vehicle
and start the engine with the master key with
remote control.
@ Valet key
The valet key only fits the lock in the driver's
door and the ignition lock . If you have to leave
the key with somebody else, you are well-ad­
vised to turn over the valet key only
¢ page 41.
© Emergency key
The emergency key is only for temporary use if
the vehicle key should be lost or misplaced
¢ .&. .
Key replacement
If you lose a key, contact your authorized Audi
dealer immediately to have the
lost key disa­
b led . Be sure to bring all your keys with you.
Registered keys
You can check to find out how many keys have
been registered to your vehicle. Therefore,
when buying a used vehicle, make sure to get
all of the remote keys be long to it .
Ca lling up the registered keys¢
page 12.
Data in the master key
While you are driving, serv ice and mainte­
nance relevant data are being continuously stored on your master key. Your Audi service
adviser can read out these data and tel
l you
about work that is needed on your vehicle .
This also app lies to vehicles w ith Convenience
key*.
A WARNING
--
- Do not leave your vehicle unattended
with the key in the ignition lock. Entry by
unauthorized persons could endanger
you or result in theft or damage the vehi­
cle. A lways lock all doors and take the
key.
- Do not leave children unattended in the
veh icle, especially with access to vehicle
keys . Unguarded access to the keys pro­
vides children the opportun ity to start
the engine and/or activate vehicle sys­
tems such as the power windows etc. Un­
supervised operation of any vehicle sys­
tem by children can result in serious in­
Jury .
(D Tips
- If you open the driver's door with the key
left in the ignition lock, a chime w ill
sound. Th is is your reminder to remove
the key and lock the door.
- For security reasons, replacement keys
are only ava ilable from Audi dealers.
Master key with remote control
The remote control allows you to lock or un­
lock the vehicle electronically .
Fig. 28 Fold-up maste r key with remo te control
., To fold the key out and back in place, press
t he release button ¢
fig. 28. .,.

42 Openin g and clo sing
readiness light, located in the upper part of
the driver's door panel, will start to blink.
- T he vehicle interior lights turn off.
Unlocking and l ocking with Conven ience
k ey*
On vehicles which a re equipped w ith the C o n­
ve nience k ey*
authorization system, the
doors are unlocked without a key by means of
a proximity sensor in the door handle. The
doors are simi larly locked without a key using
the locking button. Each door has a proximity
sensor and a locking button .
Automatic l ock ing
The automatic locking feature locks all the ve­
hicle doors and the rear lid when you drive
faster than 9 mph (15 km/h). This function can be turned on and off in the MMI
C entr al
lo cking
Menu c:> page 44.
You can un lock the vehicle from the inside by :
- removing the key from the ign it ion sw itch
(the vehicle will automat ica lly unlock itself)
or
- pressing the unlock part of the power lock
switch @or
- pull ing the door handle (twice to open the
rear doors).
Unintent ionall y locking yourself out
In the following cases there safeguards to
prevent you locking your remote master key in
the vehicle :
- The veh icle does not lock with the power
locking sw itch
c:> page 44 if the driver's
door is open.
- On vehicles with Convenience key* , if the
most recently used master key is in the lug­
gage compartment, the rear lid is automati­
cal ly unloc ked aga in after it is closed.
Do not lock your vehicle with the
r e mot e m as ­
t e r k ey or Convenienc e key*
until all doors
and the rea r lid are closed. In t his way you
avoid locking yourse lf out accidenta lly.
A WARNING
- When you lock your vehicle from outside,
nobody- espec ially children -should re ­
main inside the vehicle . Remember,
when you lock the vehicle from the out­
side the windows cannot be opened from
the inside.
- When you leave the veh icle, always re­
move the ignition key and take it with
you . This will prevent passengers (chil­
dren, for example) from accidentally be ­
ing locked in the vehicle should they acci­
dentally press the power locking switch
in the front doors.
- Do not leave children inside the vehicle
unsupervised. In an emergency it would
be imposs ible to open the doors from
the outside without the key.
(D Tips
- In the event of a crash with airbag de­
ployment all locked doors will be auto­
matically unlocked to give access to the
vehicle occupants from the outside.
- If the power locking system sho uld mal­
function, you can lock each door individ­
ually using the vehicle key
c:> page 45 .
-If the power locking system shou ld fa il,
you can still open the fuel tank flap in an
emergency
c:> page 2 55 .
-You are well advised not to keep va lua­
bles inside an unattended vehicle, v is ible
or not. Even a properly locked vehicle
cannot p rov ide the secur ity of a safe .

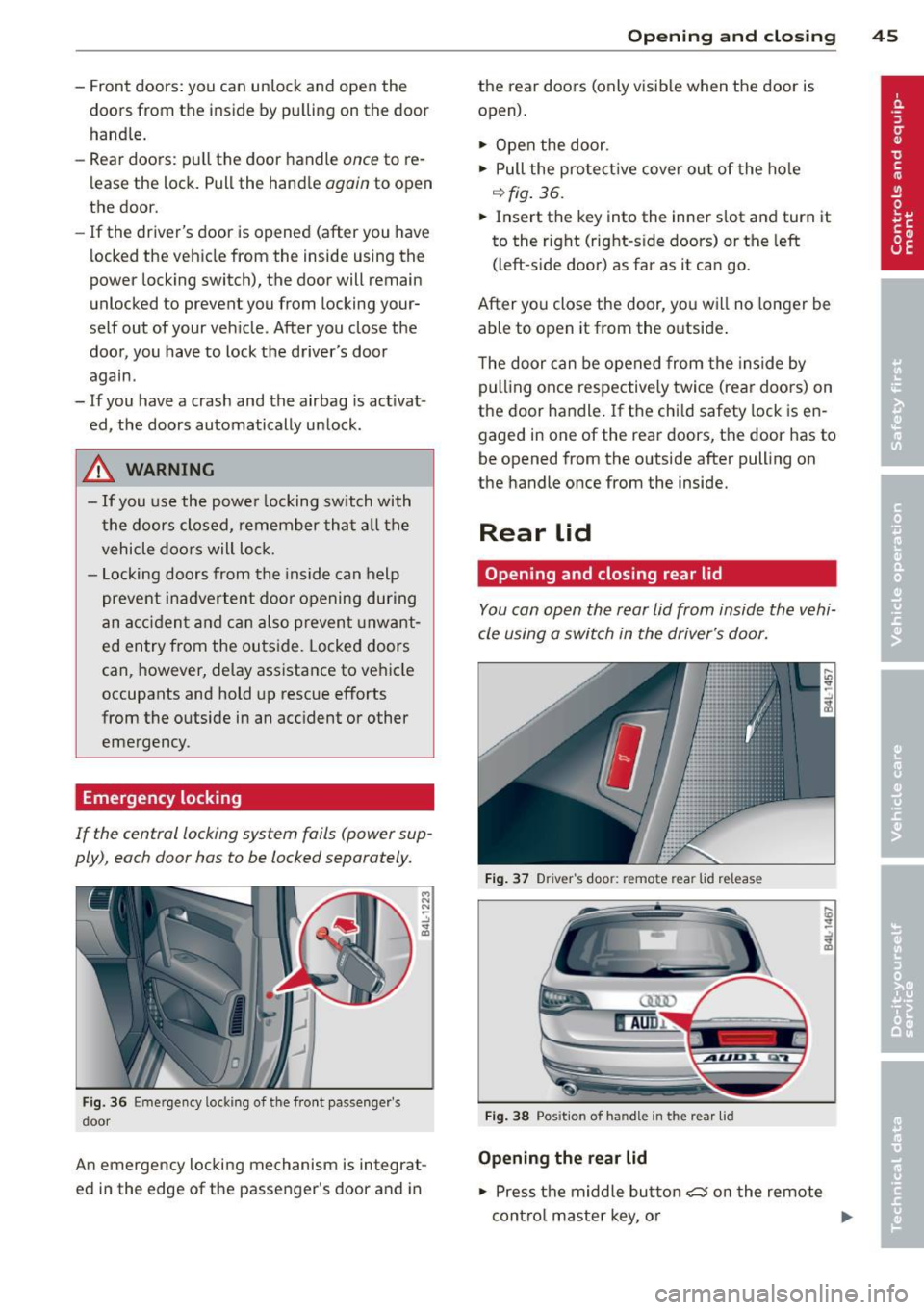

-Front doors: you can un lock and open the
doors from the inside by pulling on the door
handle.
- Rear doors: pu ll the door handle
once to re­
lease the lock. Pull the hand le
again to open
the door.
- If the driver's door is opened (after you have
locked the vehicle from the inside using the
power locking switch), the door will remain
unlocked to prevent you from locking your­
self out of your vehicle. After you close the door, you have to lock the driver's door
again.
- If you have a crash and the airbag is act ivat­
ed, the doors automatically unlock.
A WARNING
- If you use the powe r locking switch with
the doors closed, remember that all the
vehicle doors will lock.
- Locking doors from the inside can help
prevent inadvertent door opening during
an accident and can also prevent unwant­
ed entry from the outside. Locked doors
can, however, delay assistance to vehicle
occupants and hold up rescue efforts
from the outside in an acc ident or other
emergency.
Emergency locking
If the central locking system fails (power sup­
ply), each door has to be locked separately.
F ig. 36 Emergency locking of the front passenger's
door
An emergency locking mechanism is integrat­
ed in the edge of the passenger's door and in
Opening and closing 45
the rear doors (only visib le when the door is
open).
1-Open the door .
.,. Pull the protective cover ou t of the hole
~fig. 36.
.,. Insert the key into the inner slot and turn it
to the right (right-s ide doors) or the left
(left-s ide door) as far as it can go.
After you close the door, you w ill no longer be
able to open it from the outside .
T he door can be opened from the inside by
pulling once respectively twice (rear doors) on
the door handle .
If the child safety lock is en­
gaged in one of the rear doors, the door has to
be opened from the outside after pulling on
the handle once from the inside.
Rear lid
Opening and closing rear lid
You can open the rear lid from inside the vehi­
cle using a switch in the driver's door.
Fig. 37 Driver's door: remote rear lid release
Fig. 38 Position of handle in the rear lid
Opening the rear lid
1-Press the middle button cs on the remote
control master key, o r

48 Openin g and clo sing
- As soon as the electrical connec tion to
the trailer socket is completed on vehi­
cles with a factory installed towing h itch,
or a trailer hitch that was installed later
according to factory specifications, the
automat ic rear lid function can on ly be
operated via the handle in the rear lid.
Rear lid emergency unlocking
If the rear lid cannot be opened, an emergen­
cy release is provided .
1----------------- --,l~ N
Fig . 4 1 Section of the luggage compar tment : Access to
emerge ncy re lease
Fig . 42 Sect ion of the luggage compartment: Emer­
gency release
,.. Tilt the seatback forward .
,.. Move into the t runk.
,.. Take the sc rewd river from the veh icle tool
kit. As an alternat ive, you can a lso use the
vehicle key.
,.. Put the flat side of the screw driver into the
recess and pry the cover up
o fig. 41 -Arrow-.
,.. Press the lever in the direction of the arrow
ofig . 42 to unlock the rear lid .
Child safety lock
Power child safety lock for the rear
doors
The power child safety lock t prevents the
rear doors from being opened from the in ­
side .
Fig . 43 Sect ion fro m driver's door: controls
The rear doors are equipped with a power
child safety lock.
It is operated with the two
safety buttons
III in the dr iver's door o fig. 43.
,.. Press the left and/or right safety button to
disab le the rear power window(s) and pre­
vent the respective rear door from being
opened from the inside. The LED in the but­
ton will light up when the child safety lock is
turned
on .
,.. Press the illum inated button aga in to turn
the child safety featu res
off .
When the c hild safety lock is activated, the in­
te rior door opening lever is inoperative; the
doo r can only be opened from th e outside. In
addition, the window regu lator for that doo r
is also inoperative when the child safety lock
is activa ted.
If the child safety lock has been ac tivated on
one or both sides, the butto ns in the rear for
the Panoramic slid ing su nroof* are disabled .
If the child safety lock has been act ivated on
the left
and on the right side, the rear con­
tro ls are locked on veh icles with rear a ir-condi­
tion ing *. Dashes"··-" are show n in t he dis­
plays for the rear climate contro ls, and the
rear air-conditioning can on ly be operated
from the climate controls in the cabin
opage 97.
