Automatic transmission
tiptronic ®
General information
Your vehicle is equipped with an electronically
controlled automatic transmission. Upshifting
and downshifting takes p lace
automatically.
The transmission is also equipped with tip­
tronic ®. It allows the driver to shift gears
manually if desired ¢ page 140.
Driving the automatic transmission
Fig. 157 Shift gate o n the center console : se lector lev ­
er with release button
Starting the engine
.. The selector lever must be in Nor P.
Starting off
.. Press and hold the brake pedal.
.. Press and hold the release button in these­
lector lever handle and move the selector
lever from
P or N to D and release the but­
ton ¢.&,. .
.. Wait briefly until the transmission has shift­
ed (you will feet a slight movement).
.. Remove your foot from the brake pedal and
accelerate.
Rocking back and forth to become
unstuck
.. Shift only between D and R when the vehi­
cle is at a full stop and the engine is running
at id le speed.
Autom atic transm ission 13 7
Stopping
.. Press and hold the brake pedal until the ve­
hicle has come to a complete stop.
.. Keep the brake pedal depressed so that the
vehicle cannot roll forward or backward
while it is idling
c> .&,. .
.. Once stopped,
do not depress the accelera­
tor pedal to rev up the engine
c> .&, .
Parking
.. Press and hold the brake peda l until the ve­
hicle has come to a comp lete stop.
.. Set the parking brake firmly
¢page 110,
Parking .
.. Press and hold the release button in these­
lector lever handle, move the selector lever
into
P and then let go of the release button
¢ .&,.
The selector lever must be in Nor P. If one of
the driving positions is engaged a safety
switch will p revent the eng ine from being
started . See also
<=>page 106.
Before you move the selector lever from the P
position, you must always apply the brake
pedal before and while depressing the button
in the handle of the selector lever.
A WARNING
-Unintended vehicle movement can cause
serious injury .
- When the se lector lever is in a driving
pos ition, the vehicle may creep, even at
i dle speed . Therefore do not release
the parking brake o r foot brake until
you are ready to move, because power
i s transmitted to the wheels as soon as
a driving position is engaged .
- Do not accelerate while selecting a
driving position. At this time the en­
gine must be at idle speed so that un­
due stress is not placed on the clutches
in the transmission .
- Remember: -even when stopped brief-
l y with the automatic transmission in
"D", "S" or "R", engine power is being
transmitted to the wheels. Your vehicle
~

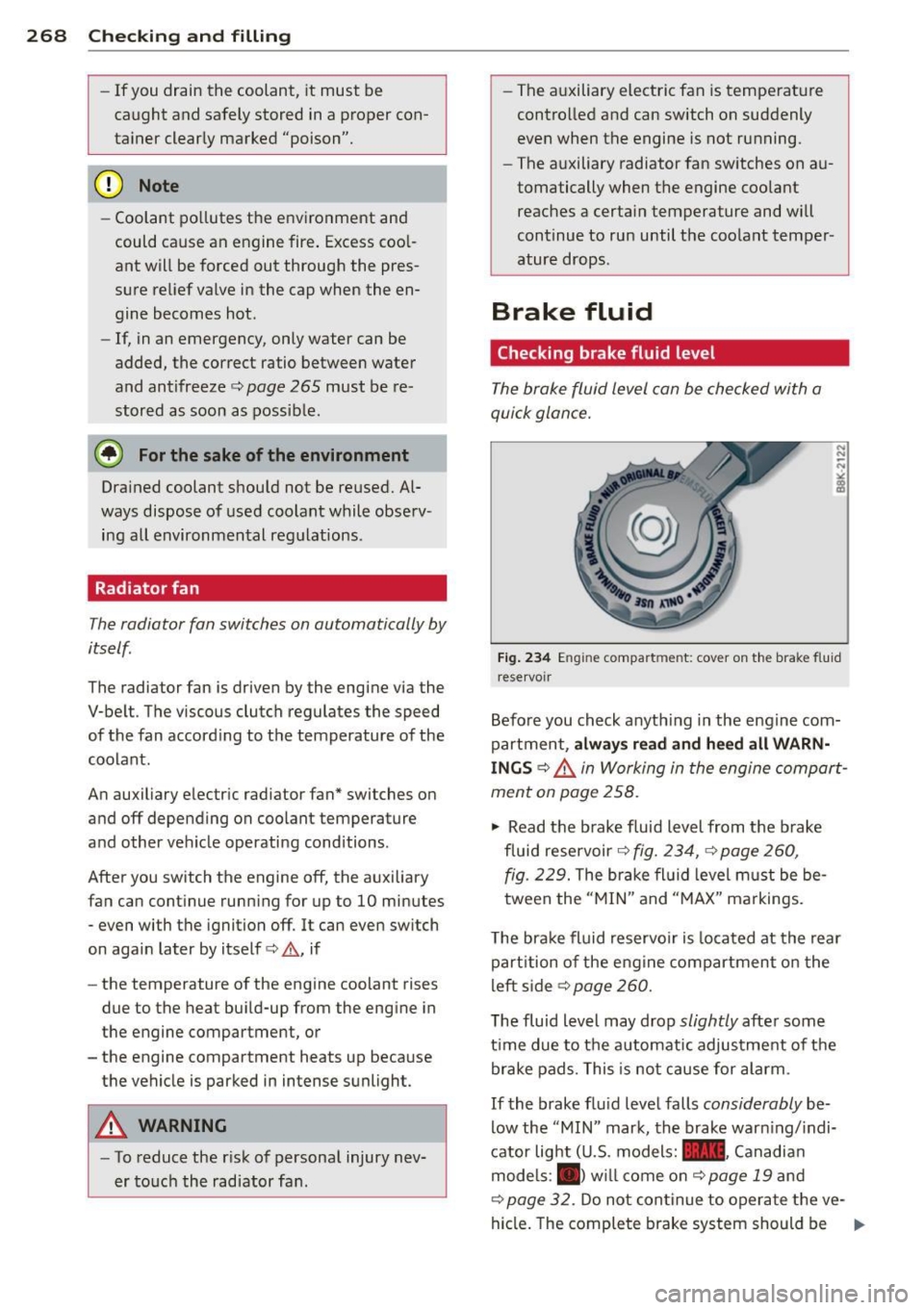

268 Checking and filling
-If you drain the coolant, it must be
caught and safely stored in a proper con­
tainer clearly marked "poison".
(D Note
- Coolant pollutes the environment and
could cause an engine fire . Excess cool-
ant will be forced out through the pres­
sure relief valve in the cap when the en­
gine becomes hot.
- If, in an emergency, only water can be
added , the correct ratio between water
and antifreeze
c:::> page 265 must be re­
stored as soon as possible .
@ For the sake of the environment
Drained coolant should not be reused. Al­
ways dispose of used coolant while observ­ ing all environmental regulations.
Radiator fan
The radiator fan switches on automatically by
itself
The radiator fan is driven by the engine via the
V-belt . The viscous clutch regulates the speed
of the fan accord ing to the temperature of the
coolant.
An auxiliary electric radiator fan* switches on
and off depending on coolant temperature
and other vehicle operating conditions.
After you switch the engine off, the aux iliary
fan can continue running for up to 10 minutes
- even with the ignition off. It can even switch
on again later by itself
c:::> &. , if
- the temperature of the engine coolant rises
due to the heat build-up from the engine in
t he engine compartment, or
- the engine compartment heats up because
the vehicle is parked in intense sunligh t.
_&. WARNING
- To reduce the risk of personal injury nev­
er touch the radiator fan. -
The auxiliary electric fan is temperature
controlled and can switch on suddenly
even when the engine is not running.
- The auxiliary radiator fan switches on au­
tomatically when the engine coolant reaches a certain temperature and will
continue to run until the coolant temper­
ature drops.
Brake fluid
Checking brake fluid level
The brake fluid level can be checked with a
quick glance.
Fig. 234 E ngine compart men t: cove r on the brake fluid
reserv oir
Before you check anyth ing in the engine com­
partment,
always read and heed all WARN­
INGS c:::> _&. in Working in the engine compart­
ment on page 258.
.,. Read the brake fluid level from the brake
fluid reservoir
c:::> fig. 234, c:::> page 260,
fig.
229. The brake fluid level m ust be be­
tween the "MIN" and "MAX" markings.
The brake fluid reservoir is located at the rear
partition of the engine compartment on the
left side
c:::> page 260.
The fluid level may drop slightly after some
time due to the automatic adjustment of the
brake pads. This is not cause for alarm.
If the brake flu id level falls
considerably be­
low the
"MIN " mark, the brake warning/indi­
cator light ( U.S. models: -· Canadian
models :. ) w ill come on
c:::>page 19 and
c:::>page 32. Do not continue to operate the ve-
hicle. The compl ete brake system should be ..,.
