AUDI Q7 2014 Owner´s Manual

-Jumper cables must be long enough so
that the vehicles do not t ouch.
- W hen connecting jumper ca bles, make
sure that they cannot get caught in any
moving parts in the eng ine compart­
ment.
- Before you check anything in the engine
compartment, always read and heed all
WARNINGS
Q page 257.
(D Note
Improper hook-up of jumper cables can ru­
in the generator.
- Always connect POSITIVE( +) to POSI ­
TIVE(+), and NEGATIVE(-) to NEGATIVE
( - ) ground post of the battery manager
control unit.
- Check that all screw plugs on the battery
cells are screwed in firmly. If not, tighten plugs prior to connecting clamp on nega­
tive battery terminal.
- Please note that the procedure for con­
nect ing a jumper cable as described
above applies spec ifically to the case of
your vehicle be ing jump started . When
you are giving a jump start to another ve­
hi cle, do
not connec t the negat ive (-) ca­
ble to the negat ive( -) term inal on the
discharged battery ©¢
fig. 2 72. In ­
stead, securely connect the negative( -)
cable to e ither a solid metal component
that is firmly bolted to the engine block
or to the engine block itse lf. If the bat­
tery that is being charged does not vent
to the outside, escaping battery gas
could ignite and exp lode!
Em erg en cy si tuation s 309
Emergency towing
with commercial tow
truck
General hints
Your Audi requires special handling for tow­
ing.
T he following information is to be used by
commercial tow t ruck operators who know
how to operate their equipment safely.
- Never tow your Audi , towing will cause
damage to the engine a nd transmi ssion.
- Never wrap th e safet y chain s or winch c a­
ble s around th e brak e lin es.
- To prevent unne ce ss ary dam age, your Aud i
mu st be t ransp orted with a flat bed truck .
- To load th e vehi cle on to the fl at bed, us e
the t owing loop found in the vehicle t ool s
and atta ch to the front or rear anch o rage
¢ page 310 and Qpage 310 .
A WARNING
A vehicle being towed is not safe for pas­
sengers. Never allow anyone to ride in a
vehicle be ing towed, for any reason.
-
•
•

310 Emergency situations
Front towing loop
Do not install the front towing loop until it is
needed.
Fig. 273 Right fron t bu mpe r: Remov ing t he cove r
Fig. 27 4 Righ t fron t bumpe r w it h out cove r: Screw ing
i n tow ing loo p
The towing loop fits into the threaded hole lo­
cated on the r ight side of the front bumper
a nd covered by a cover whe n not in use.
• Remove the towing loop from the vehicle
tool kit
Q page 294.
• Carefully remove the cover q fig. 273.
• Screw the towi ng loop tightly into the
threaded hole as fa r as it will go
q fig . 274 .
When it is no longer needed , unscrew the
towing loop and put it back into the vehicle
too lkit. Be sure to have the tow ing loop stored
i n the vehicle at all times .
A WARNING
If the towing loop is not scr ewed in as far
as it w ill go, the th read ca n pul l o ut w hen
t he vehicle is towed -potenti al risk of an
a cc ide nt.
Rear towing loop
Do not install the rear towing loop until it is
needed .
Fig . 275 Rea r bu mper: Cove r
Fig. 27 6 Rear bumpe r: Sc rew ing in tow ing loop
On t he right s ide of the rear bumper there is a
t hr eaded hole for t he towing loop. The
t h readed hole is protec ted by a cover.
• Remove th e tow ing loop from th e vehicl e
t oo l kit
q page 294 .
• To release the cover from the bumper, press
it in by app ly ing short, sharp pressure to the
outer part
q fig . 2 75.
• Screw the tow ing loop t ightly i nto the
threaded ho le as far as it wi ll go
q fig. 2 76.
U nscrew t he towing loop again afte r use and
insta ll the cover in the bumper. Return the
tow ing loop to the toolkit . Be su re to have the
towing loop stored in the vehicle at a ll times.
A WARNING
If the tow ing lo op is not screwed in as far
as it will go, the thread can pull ou t when
the veh icle is towed -potent ial ris k of an
accident.

Loading the vehicle onto a flat bed truck
Fig. 277 Veh icle on flat bed truck
Front hook up
.. Align the vehicle with the centerline of the
car carrier ramp.
.. Attach the winch hook to the front towline
eye previously installed .
Rear hook up
.. Align the vehicle with the centerline of the
car carrier ramp.
.. Attach the winch hook to the rear towline
eye previously installed.
(D} Tips
Check carefully to make sure the hook-up
is secure before moving the car up the flat­
bed truck ramp.
Lifting vehicle
Lifting with workshop hoist and with
floor jack
The vehicle may only be li~ed at the lifting
points illustrated .
Fig. 278 Front l ifting po int
Emergency situations 311
Fig . 279 Rea r lift ing po int
.,. Read and heed WARNING c::> .&, .
.,. Locate lifting points c::> fig. 2 78 and
¢ fig. 279 .
.,. Adju st lifting arms of workshop hoist or
floor jack to match veh icle lifting points.
.. Insert a rubber pad between the floor jack/
workshop hoist and the lift ing points.
If you must lift your vehicle with a floor jack
to work underneath, be sure the vehicle is
safely supported on stands intended for this
purpose .
Front lifting point
T he lifti ng point is loca ted on the floo r pan re­
info rcemen t about at the same level as the
jack mounting point
c::>fig. 278. Do not lift
the vehicle at the vertical sill reinforcement.
Rear lifting point
The lifting point is located o n the vert ica l rein­
forcement of the lower sill for the on board
jack
c::> fig. 2 79 .
Lifting with vehicle jack
Refer to c:;, page 299.
A WARNING
-To reduce the risk of ser ious injury and
vehicle damage.
- Always lift the vehicle only at the spe­
cia l workshop hoist and floor jack lift
points illustrated
c:;, fig. 278 and
¢fig. 279.
- Fail ure to lift the veh icle at these
-
points could cause the vehicle to tilt or ..,.

312 Emergency situations
fall from a lift if there is a change in ve­
hicle weight distribution and balance.
This might happen, for example, when
heavy components such as the engine
block or transmission are removed .
- When removing heavy components like
these, anchor vehicle to hoist or add cor­
responding weights to maintain the cen­
ter of gravity. Otherwise, the vehicle
might tilt or slip off the hoist, causing
serious personal injury.
(D Note
- Be aware of the following points before
lifting the vehicle:
-The vehicle should never be lifted or
jacked up from underneath the engine
oil pan, the transmission housing, the
front or rear axle or the body side
members. This could lead to serious
damage.
- To avoid damage to the underbody or
chassis frame, a rubber pad must be
inserted between the floor jack and
the lift points.
- Before driving over a workshop hoist,
check that the vehicle weight does not
exceed the permissible lifting capacity
of the hoist.
- Before driving over a workshop hoist,
ensure that there is sufficient clear­
ance between the hoist and low parts
of the vehicle.

Technical Data
Vehicle identification
F ig. 280 Veh ide Identificat ion Numbe r (VlN) plate: lo ·
c ation on d river 's s ide das h pane l
XXXXX XX · X -XXXX XXX
~ fAllftlli. -llllll · NR. ~ W!ru -IIOO -NO.
xx
XXXX XXXX XX X XXXXXXXX
XXX XXX
IYP /TYPE
XX XXXXXXX XX X X XX
XXX KW XXX
®i ~W.::·f :l~~ XXXX XXX XXX
©+ ::rw= xxxx I xxxx XXX I xx
M. · AUSSt I IJ'IIDIIS
~--
EOA 7D 5 4UB 6XM SSG SRW
2E H JDZ 1LB lA S 1BA
3FC SMU 7X l
FD A 9G3 OG7 OYH OJF
TL6 3 KA 8EH UlA X98 027
lXW 803 908 824
D2D
7T6 CV7 7KO 4X3 2K2
3L4 4KC 3YO 413
50 2
1S A 7GB QlA 4GO
XX. X XX X XX X XXXX
Fig. 281
Veh icle identificat io n label: ins ide the lug ­
ga ge compar tmen t
Vehicl e Id entifica tion Numb er (VlN )
The Veh icle Iden tifica tion Number is located
in different p laces :
- under the w indshield on the driver's side
¢fig. 280.
- i n the MMI: Select: !CAR ! function button>
Sys tem s* cont ro l bu tton > Vehicl e ID num­
b er (V IN )
or select: I CAR I function b utton >
Car syst ems* control button > Servic ing &
che ck s > VIN numbe r.
- on the vehicle identification label.
Techni cal Data 31 3
Vehicle id ent ification label
T he vehicle identification label is located in
the luggage compartment under the cargo
floor cover.
T he label¢
fig. 281 shows the fol low ing vehi­
cle data :
(D Vehicle Ident ificat ion Number (VIN)
@ Vehicle type, engine o utput, transmission
® Engine and transmission code
© Paint number and inte rior
® Optional equipment numbers
The information of the vehicle identification
label can also be found in your Warranty
&
Maintenance booklet .
Safety compliance sticker
The safety compliance sticker is your assur­
ance that your new veh icle complies with all
applicable Fede ra l Motor Vehicle Safety
Standards which were in effect at the time the
vehicle was manufactured . You can find this
sticker on the door jamb on the driver 's side.
It shows the month and year of production
and the vehicle ident ificat ion number of your
vehicle (perforation) a s well as the Gross Veh i­
cle Weight Rating (GVWR) and the Gross Axle
Weight Rating (GAWR) .
High voltage warning label
The high voltage warning label is located in
the engine compartment next to the engine
hood release. The spark ign ition system com­
plies with the Ca nadian standard ICES-002 .
Weights
Gross Vehicle Weight Rating
The Gross Vehicle Weight Rat ing (GVWR), and
the Gross Axle Weight Rati ng (GAWR) for
front and rear are listed on a sticker on the
doo r jamb on the driver's side.
The Gross Vehicle Weight Rat ing includes the
weight of the basic vehicle plus full fuel tank,
o il and coolant, plus maximum load, which in ­
cludes passe nger we ight (150 lbs/68 kg per
II>--

314 Technical Dat a
designated seating position) and luggage
weight¢ .&,.
Gross Axle W eight Rating
The Gross Axle Weight Rating is the maximum
l oad that can be applied at each axle of the
vehicle ¢Lr!, .
Vehicle capacit y weight
The vehicle capac ity we ight (max. load) is list­
ed on the driver's side B-p illar.
A WARNING
- T he Gross Vehicle Weight Rat ing for your
vehicle, fo und on the safety compliance
label on the driver's side B -pillar, must
never be exceeded under any circumstan­
ces. Exceeding the Gross Vehicle We ight
Rating of your vehicle is likely to damage
your vehicle, and such damage will not
be covered by your Lim ited New Vehicle
Warranty. Exceeding the Gross Vehicle
We ight Rating will also change the per­
formance and handling cha racte rist ics of
yo ur vehicle, which cou ld cause a crash
result ing in se rious in jury or death.
- T he Gross Veh icle Weight Rat ing fo r yo ur
vehicle would be exceeded if yo ur vehicle
is simultaneo us ly equipped with Panor­
amic sliding sunroo f; th ird-row seating;
Dimensions
Length
Width
Width (across mirrors) Height (unloaded) al
Turning circle diamete rbl trailer towing
equipment (factory or
dea le r-installed), and running boards
(dealer-installed). UNDER NO CIRCUM­
STANCES MAY ALL SUCH ITEMS BE IN­
STA LLED ON THE SAME VE HICLE .
- The actual Gross Ax le Weig ht Rating at
the front and rear ax les should not ex­
ceed the permissible weights, and the ir
comb inat io n must not exceed the Gross
Vehi cle Weight Rating.
- Exceeding permiss ible weight ratings can
result i n ve hicl e damage, a ccidents and
personal inj ury.
....--
CD Note
- The vehicle capacity weight figu res apply
when the load is d istr ibuted evenly in the
vehicle (passenge rs and luggage). When
t ransport ing a heavy load in the lugg age
compar tment, carry the load as near to
t he rear ax le as possible so that the vehi ­
cle's handling is not impaired.
- Do not exceed the maximum permissib le
ax le loads or the maximum gross vehicle
we ight . A lways remember that the vehi ­
cle's handling w ill be affected by the ex­
tra load. Therefore, ad just your speed ac­
cordingly.
- Always observe local regulat ions.
in (mm)
200 .3 (5089)
in (mm) 78.1 (1983)
in (mm) 85 .7 (2 177)
in (mm) 68.4 (1737)
ft (m) 39 .4 ( 12)
al The he ight of t he ve hicle depends on the tires and t he su spension.
b l The turning radius dep ends on th e tir es.
When driv ing up steep ramps, on rough roads,
over curbs, etc. it is important to remembe r
that some parts of your ve hicle, such as spoil- ers or exhaust
system components, may be
close to the ground . Be careful not to damage
them .
1

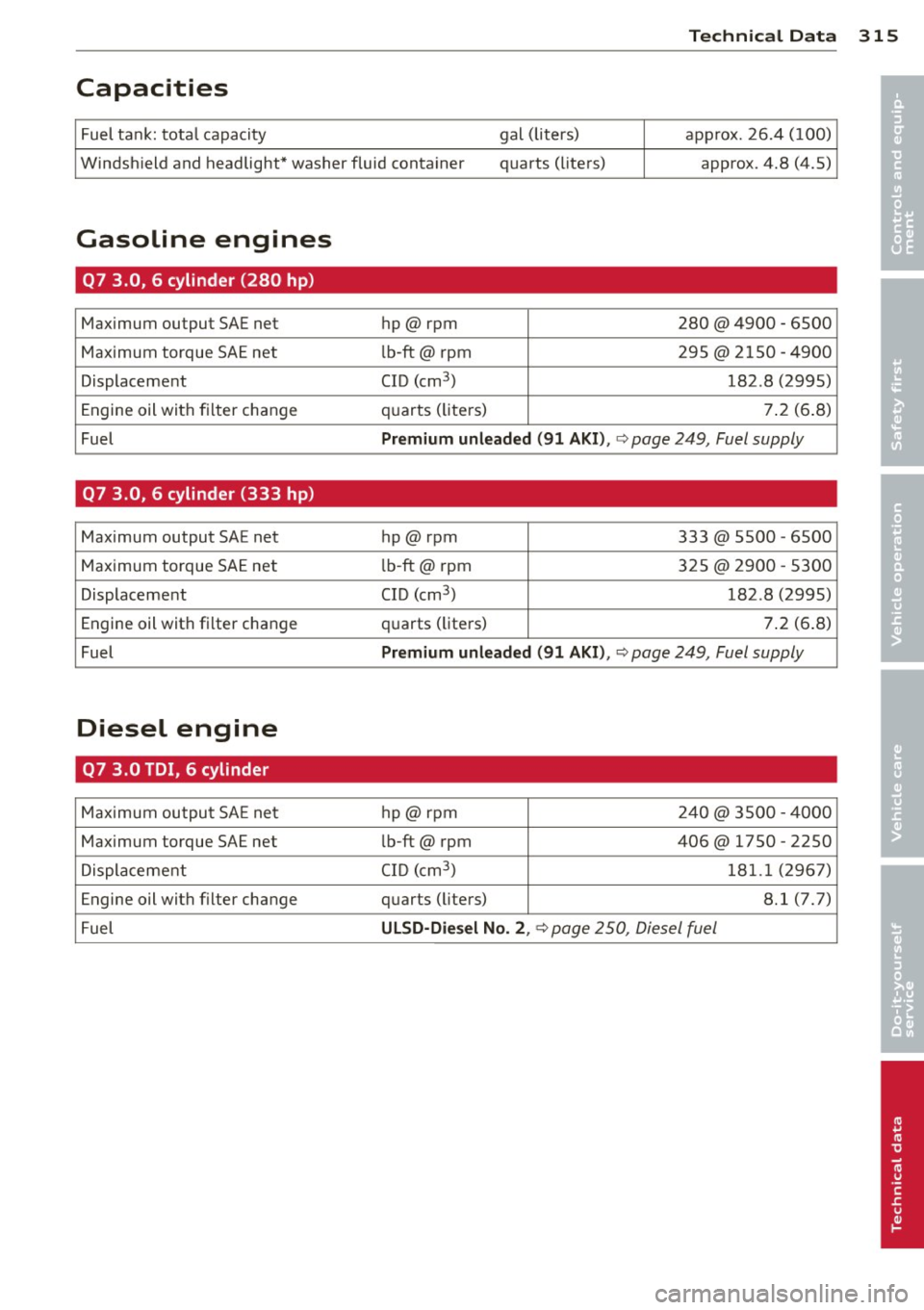

Technical Dat a 315
Capacities
•
Fuel tank: tota l capacity gal (liters) approx. 26.4 (100) •
Windshield and headlight* washer fluid container quarts (liters) approx. 4.8 (4.5)
Gasoline engines
Q7 3.0, 6 cylinder (280 hp)
Maximum output SAE net hp@ rpm 280 @ 4900 - 6500
Maximum torque SAE net lb-ft@ rpm 295@ 2150 - 4900
Displacement CID (cm
3
) 182 .8 (2995)
Engine oil with f ilter change q
uarts ( lite rs) 7.2 (6 .8)
Fuel
Pr emium unlea ded (91 AKI), Q page 249, Fuel supply
Q7 3.0, 6 cylinder (333 hp)
Maximum output SAE net hp@ rpm
333 @ 5500 -6500
Maximum torque SAE net l
b -ft@ rpm 325@ 2900 -5300
Displacement CID (cm
3
) 182 .8 (2995)
Engine oil with filter change q
uarts (liters) 7.2 (6 .8)
Fuel Pr emium unlead ed (9 1 AKI) , Q page 249, Fuel supply
Diesel engine
Q7 3.0 TOI, 6 cylinder
Maximum outpu t SA E net hp@rpm 240@ 3500 - 4000
Maximum torque SAE net lb-ft@ rpm 406@ 1750 -2250
Displa cement CID (cm
3
) 181. 1 (2967)
Engine oil with filter change quarts (liters) 8.1 (7.7)
F uel
ULSD-Die sel No. 2 , ~ page 250, Diesel fuel

316 Consumer Information
Consumer Information
Warranty coverages
You r Audi is covered by the following war­
ranties:
- New Vehicle Limited Warranty
- Limited Warranty Against Corrosion Perfo-
ration
- Emissions Control System Warranty
- Emissions Performance Warranty
- California Emissions Control Warranty (USA
vehicles only)
- California Emissions Performance Warranty
(USA vehicles only)
Detailed information regarding your warran­
ties can be found in your
Warranty & Mainte­
nance booklet .
Operating your vehicle
outside the U.S.A. or
Canada
Government regu lations in the United States
and Canada require that automobiles meet
specific emission regulations and safety
standards. Therefore, veh icles built for the
U.S.A . and Canada differ from vehicles sold in
other countries .
If you p lan to take your vehicle outside the
continental limits of the United States or Can­
ada, there is the possibility that:
- unleaded fuels for vehicles with cata lytic
converter may not be available;
- fuel may have a considerably lowe r octane
rating. Improper fuel may cause engine
damage ;
- service may be inadequate due to lack of
proper service facilities, tools or testing
equipment ;
- replacement pa rts may not be readily availa­
ble.
- Navigation systems for vehicles built for the
U.S.A. and Canada will not necessar ily work
in Europe, and may not work in other coun­
tries outside North America .
(D Note
Audi cannot be responsible for mechanical
damage that could result from inadequate
fuel, service or parts availability.
Audi Service Repair Manuals and Literature
Audi Official Factory Service Manuals and Lit­
erature are published as soon as possible after
model introduction. Service Manuals and liter­
ature are available to order from the Audi
T echnical Literature Ordering Center at:
www.audi.techliterature.com
Maintenance
General
Your vehicle has been designed to help keep
maintenance requirements to a minimum.
However, a certain amount of regular mainte­
nance is still necessary to assure your vehicle's
s afety, economy and rel iability. For detailed
vehicle maintenance consult your Warranty &
Maintenance booklet.
Under difficult operating conditions, for ex­
ample at extremely low outside temperatures,
i n very dusty regions , when towing a trailer
very frequently, etc., some service work
should be performed between the intervals
specified. This applies particularly to:
- oil changes, and
- cleaning or replacing the air filter .
(® For the sake of the environment
By regularly maintaining your vehicle, you
help make sure that emission standards
are maintained, thus minimizing adverse
effects on the environment.
Important considerations for you and
your vehicle
The increasing use of electronics, sophisticat­
ed fuel injection and emission contro l sys-
tems, and the genera lly increasing technical
liJJ,

complexity of today's automobi les, have
steadi ly reduced the scope of maintenance
and repairs which can be carried out by vehicle
owners.
Also, safe ty and e nvir onm en tal con­
cerns p lace very strict limits on the na ture of
repairs and adjustments to engine and trans ­
miss io n pa rts which an owner can perform .
Maintenance, adjustments and repa irs usua lly
require special tools, testing dev ices and oth­
er equipment avai lab le to specially trained
workshop personnel in order to assure prope r
performance, reliab ility and safety of the vehi­
cle and its many systems .
Improper ma intenance, adjustments and re ­
pa irs can impair the operation and reliability
of your vehicle and even void your vehicle war­ ranty. The refo re, p roof of servici ng in accord­
ance w ith the maintenance sched ule may be a
condition for upholding a poss ible war ranty
claim made within the warranty period.
Above all, operational safety can be adversely
affected, crea ting unnecessary risks for you
and your passengers.
If in doubt about any servicing, have it done
by your authorized Audi dealer or any other
properly equipped and q ualified workshop .
We strong ly urge you to give you r a uthorized
Audi dealer the opportunity to perform all
schedu led maintenance and necessary repairs .
Your dea ler has the facilities, or iginal parts
and trained spec ialists to keep your vehicle
running properly .
Performing limit ed m aintenance you rself
The following pages describe a limited num­
ber of procedures which can be performed on
your vehicle with ordinary too ls, should the
need arise and trained personnel be unavaila­
b le. Before performing any of these proce­
dures, always thoroughly read all of the app li­
cable text and carefully follow the instruc­
tions given . Always rigorously obse rve the
WARNINGS provided .
Before you check anything in th e engine
compartment, a lway s re ad and heed all
Con sumer In formation 317
WARNINGS ¢ & and ¢ & in Working in the
engine comportment on page 257 .
A WARNING
-Ser ious personal injury may occur as a re­
sult of improperly performed mainte­ nance, adjustments or repa irs.
-Always be extremely careful when work­ ing on the vehicle. Always follow com­
mon ly accepted safety pract ices and gen­
eral common sense . Never r isk personal
lnJUry .
- Do not attempt any of the ma intenance ,
checks or repairs descr ibed on the fol­
lowing pages if you are not fully fam iliar
wit h these or othe r pro cedures with re­
spect to t he veh icle, or are uncerta in how
to p roceed .
- Do not do any work without the proper
too ls and equipment. Have the necessary
work done by your authorized A udi deal ­
er or another proper ly equipped and
qualified workshop .
- The engine compartment o f any motor
veh icle is a potentially hazardous area.
Never reach into the area around or
touch the rad iator fan. It is temperature
contro lled and can switch on suddenly -
even when the engine is
off and the igni­
tion key has been removed. The rad iator
fan switches on automat ica lly when the
coo lant reaches a certai n temperatu re
and will cont inue to run until the coo lan t
tempera ture drops .
- Always remove the ign ition key befo re
anyone gets under the vehicle.
- Always support your veh icle with safety
s tands i f it is necessary to work under­
neath the vehicle. The jack s upplied with
the vehicle is not adequate for this pur ­
pose and cou ld collapse causing serio us
personal injury.
- If you must work underneath the vehicle
with the wheels on the ground, a lways
make sure the vehicle is on leve l ground,
that the wheels are a lways securely
blocked a nd that the engine cannot be
started .
•
•

318 Con sum er Inf ormation
-Always make sure the transmission se­
lector lever (automatic transmiss ion) is
in P (Park position) and the park brake is
firmly applied .
@) For the sake of the environment
-Changing the engine settings wi ll ad­
versely affect em iss ion levels. This is det­
rimental to the environment and increas­
es fuel consumption .
- Always observe env ironmental regula­
tions when dispos ing of old engine oil,
used brake fluid, dirty engine coolant,
spent batteries or worn out tires.
- Undeployed airbag modules and preten­
s ioners might be classified as Perchlo ­
rate Material -spec ial handling may ap­
ply, see www.dtsc.ca .gov/hazardous­
was te/perch lorate . When the veh icle or
parts of the res traint system including
airbag modules safety belts wit h preten ­
sioners are scrapped, all applicable laws
and regulations must be observed. Your
authori zed Aud i dea ler is familiar with
these requirements and we recommend
that you have your dealer perform this
serv ice for you .
Additional accessories,
modifications and
parts replacement
Additional accessories and parts
replacement
Always consult an authorized Audi dealer be­
fore purchasing accessories.
Your veh icle incorporates the latest safety de­
sig n featu res ensu ring a high standard of a c­
tive and passive safety .
This safety could be comp romised by non-ap­
proved changes to the ve hicle. For this reason ,
if pa rts have to be replaced , please obse rve
the following points when install ing addition­
a l accessories: Approved Audi accessories and genuine Aud
i
parts are available from authorized A udi deal­
ers.
T hese dea le rs a lso have the necessary facili­
ties, tools and tra ined specialists to install the
parts and acc essories proper ly .
A WARNING
-Using the wrong spare parts or using non-
approved accessories can cause damage to
the veh icle and ser ious persona l injury.
- Use on ly accessories express ly approved
by Audi and gen uine Audi spare parts
- These parts and accessories have been
specia lly designed to be used on yo ur ve­
h icle .
- Never install accessor ies such as tele­
phone crad les or beverage ho lders on a ir­
bag covers or within the airbag deploy­
ment zones . Do ing so will increase the
risk of injury if a irbags are triggered in an
accident!
- Before you check anything in the engine
compa rtment, always read and heed a ll
WARNI NGS
9 page 257.
(D Note
-If items other than genu ine Audi spare
parts, add-on equipment and accessory
items are used or if repair work is not
performed accord ing to specified meth­
ods, this c an resu lt in seve re damage to
your vehicle's eng ine and body (such as
corrosion) and adversely affect yo ur vehi ­
cle's warranty .
- If emergency repairs must be performed
elsewhere, have the vehicle examined by
an authorized Audi dealer as soon as
possible .
- The manufacturer cannot be held liable
for damage wh ich occ urs due to failure
to comply with these stipu lations.
