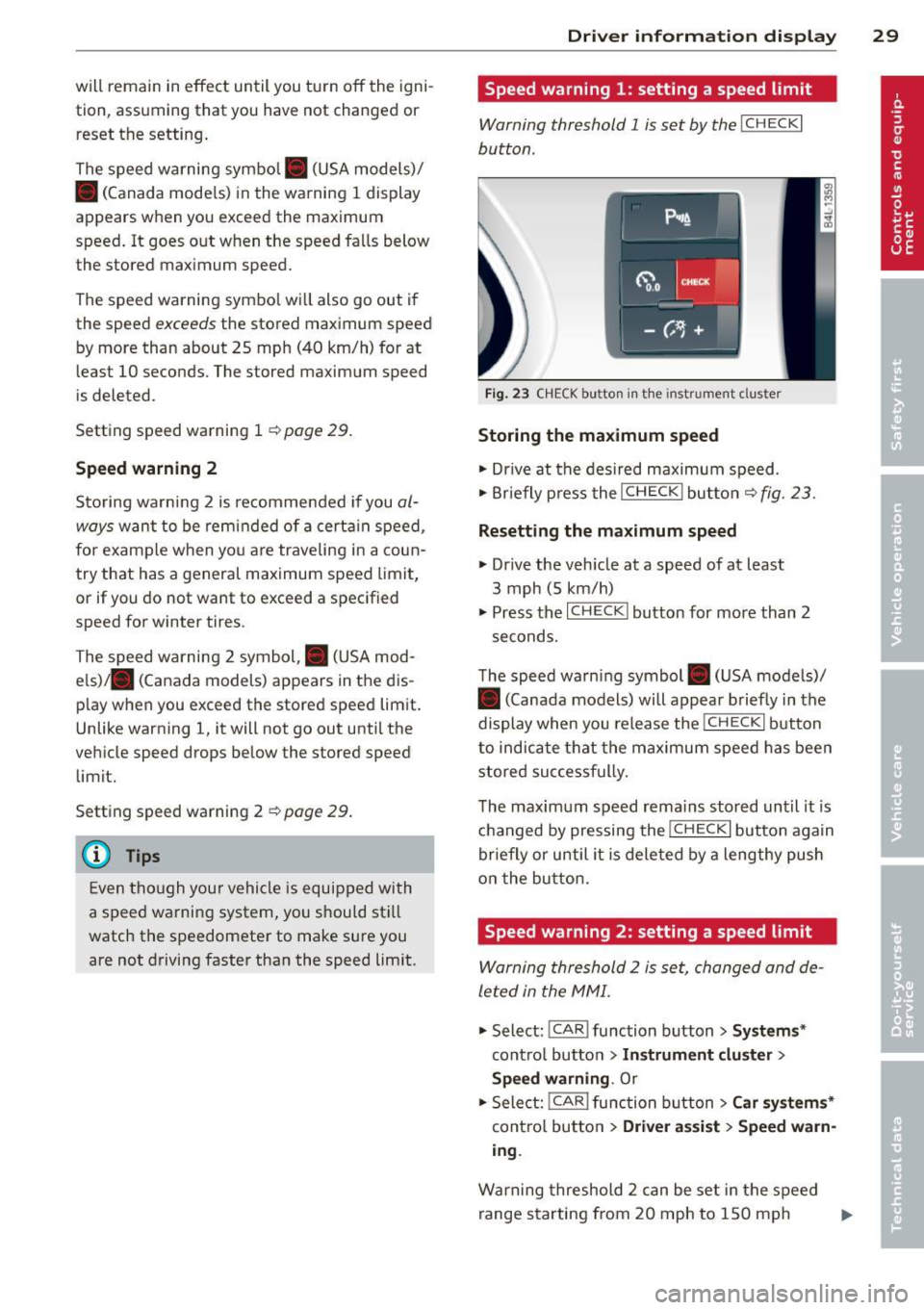

will remain in effect until you turn off the igni­
tion, assum ing that you have not changed or
reset the setting.
The speed warning symbol. (USA models)/
• (Canada mode ls) in the warning 1 display
appears when you exceed the maximum
speed . It goes out when the speed falls below
t he stored maximum speed.
The speed warning symbo l wi ll also go out if
the speed exceeds the stored maximum speed
by more than about 2S mph (40 km/h) for at
least 10 seconds. The stored maximum speed
is deleted .
Setting speed warning 1 <:!;>page 29.
Speed warn ing 2
Storing warn ing 2 is recommended if you al­
ways want to be reminded of a certa in speed ,
for example when you a re traveling in a coun­
try that has a general maximum speed limit,
or if you do not want to exceed a specified
speed for winter tires .
The speed warning 2 symbol, . (USA mod­
els)/ . (Canada models) appears in the d is ­
p lay when you exceed the stored speed limit.
Unlike warning 1, it will not go out unti l the
vehicle speed drop s below the stored speed
limit.
Setting speed warning 2
r:!;> page 29.
@ Tips
Even though your vehicle is equipped with
a speed warning system, you should sti ll
watch the speedometer to make sure you
are not driving faster than the speed lim it.
Dri ver inform ation di spl ay 29
Speed warning 1: setting a speed limit
Warning threshold 1 is set by the I CH ECKi
button .
Fig . 23 CHECK button in the instr umen t clu ster
Storing the ma ximum speed
.,. Dr ive at the desired maximum speed .
.,. Briefly p ress the
I CHECK I but to n c::> fig. 23.
Resetting the m aximum speed
.,. Dr ive the veh icle at a speed of at least
3 mph (5 km/h)
.,. Press the
I CHECK ! button for more than 2
seconds.
T he speed warn ing symbol . (USA models)/
• (Canada models) will appear briefly in the
display when you release the
!CH ECK I button
to indicate t hat the maximum speed has been
stored suc cessf ully.
T he maximum speed rema ins stored until it is
changed by pressing the
! CHECK I button again
briefly or until it is deleted by a lengthy push
o n the bu tton.
Speed warning 2: setting a speed limit
Warning threshold 2 is set, changed and de­
le ted in the MMI .
.,. Select:
I CAR I function button > Sys tem s*
contro l button > In strum ent clu ste r >
Spe ed warning .
Or
.,. Select: !CAR I function b utton > C ar sy ste m s*
cont ro l butto n > Driver a ssist > Speed w arn­
ing .
Warning threshold 2 can be set in the speed
range starting from 20 mph to 150 mph ..,.

30 Driver in formation d ispl ay
(30 km/h to 240 km/h) . Settings can each be
adj usted in intervals of S mph (10 km/h) .
Auto Check Control
Introduction
The Auto-Check control monitors the function
of certain veh icle featu res and components . It
simply makes sure these features and compo­ nents are work ing proper ly . The Auto -Check
contro l wo rks as long as the ignition is on, as
well as whenever the vehicle is driven.
If a componen t is ma lf u nctioning or if the
n eed for an urgent repair has been detected,
this will appear in the instrument cluster dis­
p lay . You w ill a lso hear an audible warn ing
tone . The displays are co lor coded in e ither
red or yellow depending on their level of prior­
ity .
A red symbo l means
Dange r, a yellow symbo l
indic ates
Warning . In certain s ituations, in­
formation message for the dr iver appear in
addit ion to the red and yellow symbols.
Function te st : automat ic transmi ssion
The Auto -Check Control will automat ica lly
perform a test each time you switch on the ig­
n ition. With the selector lever in P or N, the
following message appears in the display :
When station ary apply brake pedal while se­
lecting gear
When you select a different gear (for exam ­
p le : R, D, etc.), the message will d isappear
and the Auto-Check function is d isplayed .
I f the re is a m alfu nction, then the malfunc­
tion message w ill appear about 15 seconds af ­
ter the yo u start the vehicle. At t he same time
you will hear a warning tone .
Driver information messages
Driver information messages are shown in the
instrument cluster display in addition to the
red and yellow symbols .
Fig. 24 Ins trume nt cl ust er: CHECK b utto n
For example, if the transmiss ion selec to r l ever
is not in the P position when the engine is
turned off, the following message appears :
Shift to P otherwise vehicle can roll away.
Door s do not l ock if you are not in P .
The ig nition key can only be removed with the
selector in this position . Th is and other mes­
sages are bro ugh t up if a func tion cannot be
carr ied out.
Driver messages and red symbols
If a red symbol appea rs in the display, a d river
message can be shown by pressing the
I CH ECK I button.
For example, the symbo l for a problem w ith
engine oil p ressure . appears in the d isp lay .
If you then p ress the
I CHECK I button , the fol­
lowing dr iver mess age appears in the display:
Switch off engine ! Oil pr essure too low
The driver message in the display goes out af­
ter about 5 seconds . The driver message can
be displayed again by briefly press ing the
I CH ECKi button.
Driver messages and yellow symbols
If a yellow symbol appears in the display, a
driver message is also displayed automatical-
~ ~

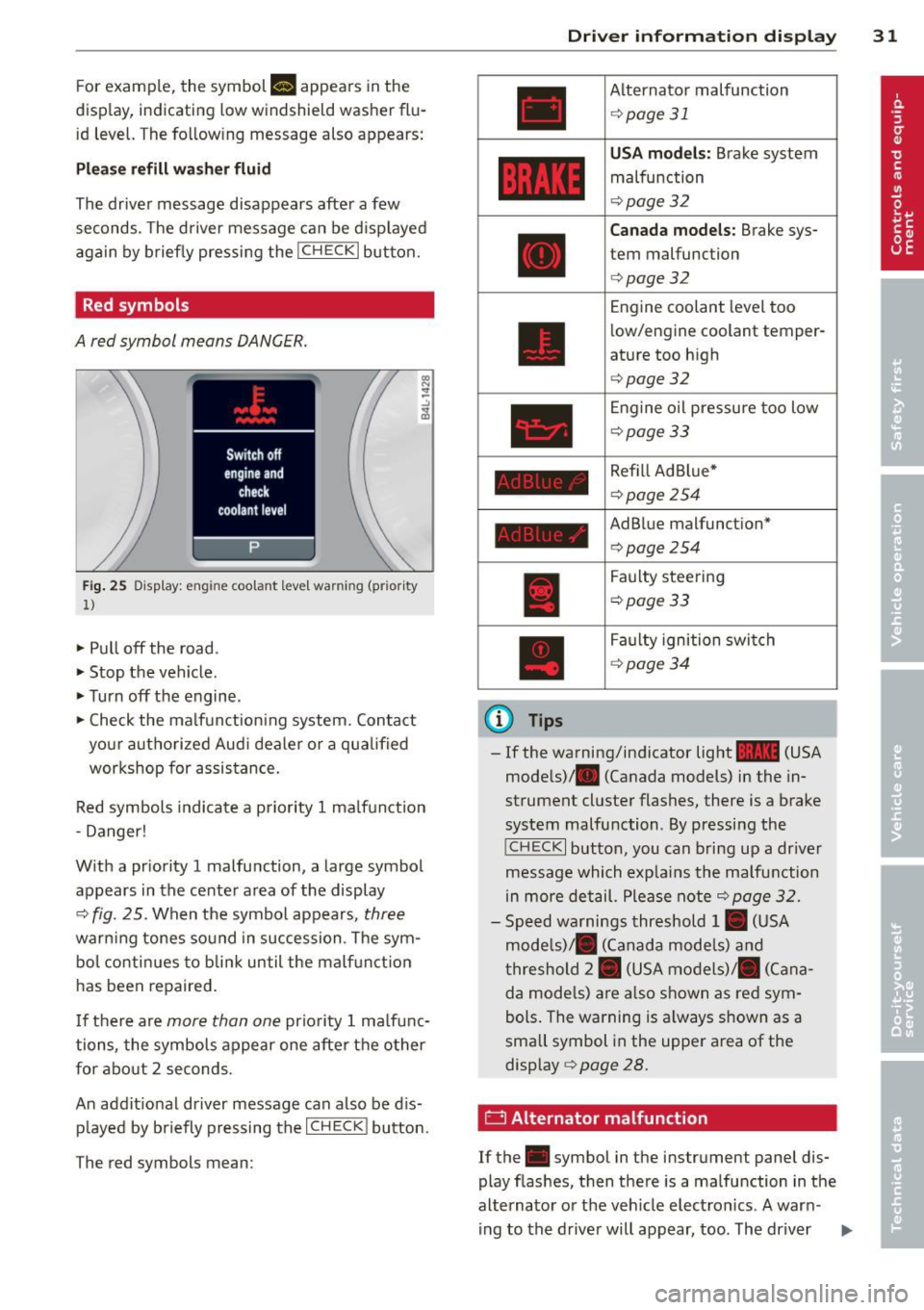

For example, the symbol II appears in the
display, indicating low windshield washer flu­
id level. The follow ing message also appears:
Pleas e refill w asher fl uid
The driver message disappears after a few
seconds. The driver message can be displayed
again by briefly pressi ng the
!CHECK I button.
Red symbols
A red symbol means DANGER.
Fig. 25 Display: engine coolant level warning (prior ity
1)
• Pull off the road.
• Stop the vehicle .
• Turnoff the engine.
• Check the ma lfunction ing system. Contact
your authorized Aud i dea ler o r a qualified
workshop for assistance.
Red symbols indicate a priority 1 ma lfunction
- Danger!
W ith a pr iority 1 malfunction, a large symbol
appears in the center area of the display
¢ fig. 25. When the symbol appears, three
warning tones sound in succession. The sym­
bo l conti nues to blin k until the malf unct io n
has been repaired .
I f there are
more than one prio rity 1 ma lfunc­
tions, the symbols appear one afte r the other
for about 2 seconds.
An addit ional driver message can also be d is­
p layed by briefly pressing the
I CHECK ! button.
The red symbols mean:
(D Tips
Driver inform ation di spl ay 31
Alternator malfunction
¢page 31
USA mod els: Brake system
malfunction
¢page 32
Canada mo del s: Brake sys­
tem malfunction
¢page 32
Engine coolant level too
low/engine coolant temper­
ature too high
¢ page 32
Engine o il pressu re too low
¢page33
Refill Ad Blue*
¢page254
AdBlue malfunction*
c:!> page 254
Faulty steering
¢page33
Faulty ignition swi tch
¢ page34
-If the warning/indicator light 1111 (USA
models)/ . (Canada models) in the in­
strument cluster flashes, there is a brake
system malfunction. By pressing the
! CHECK I button, you can bring up a dr iver
message which exp lains the malfunction
in more detail. Please note
¢ page 32.
- Speed warnings threshold 1. (USA
mode ls)/ . (Canada mode ls) and
t hreshold 2. (USA models)/ . (Cana­
da mode ls) a re a lso shown as red sym­
bols. The warning is a lways shown as a
small symbol in the upper area of the
display¢
page 28.
0 Alternator malfunction
If the . symbol in the instrument panel dis­
play flashes, then there is a malfunction in the
alternato r or the veh icle elect ron ics. A war n-
ing to the drive r will appear, too. The driver .,.

32 Driver in formation d isplay

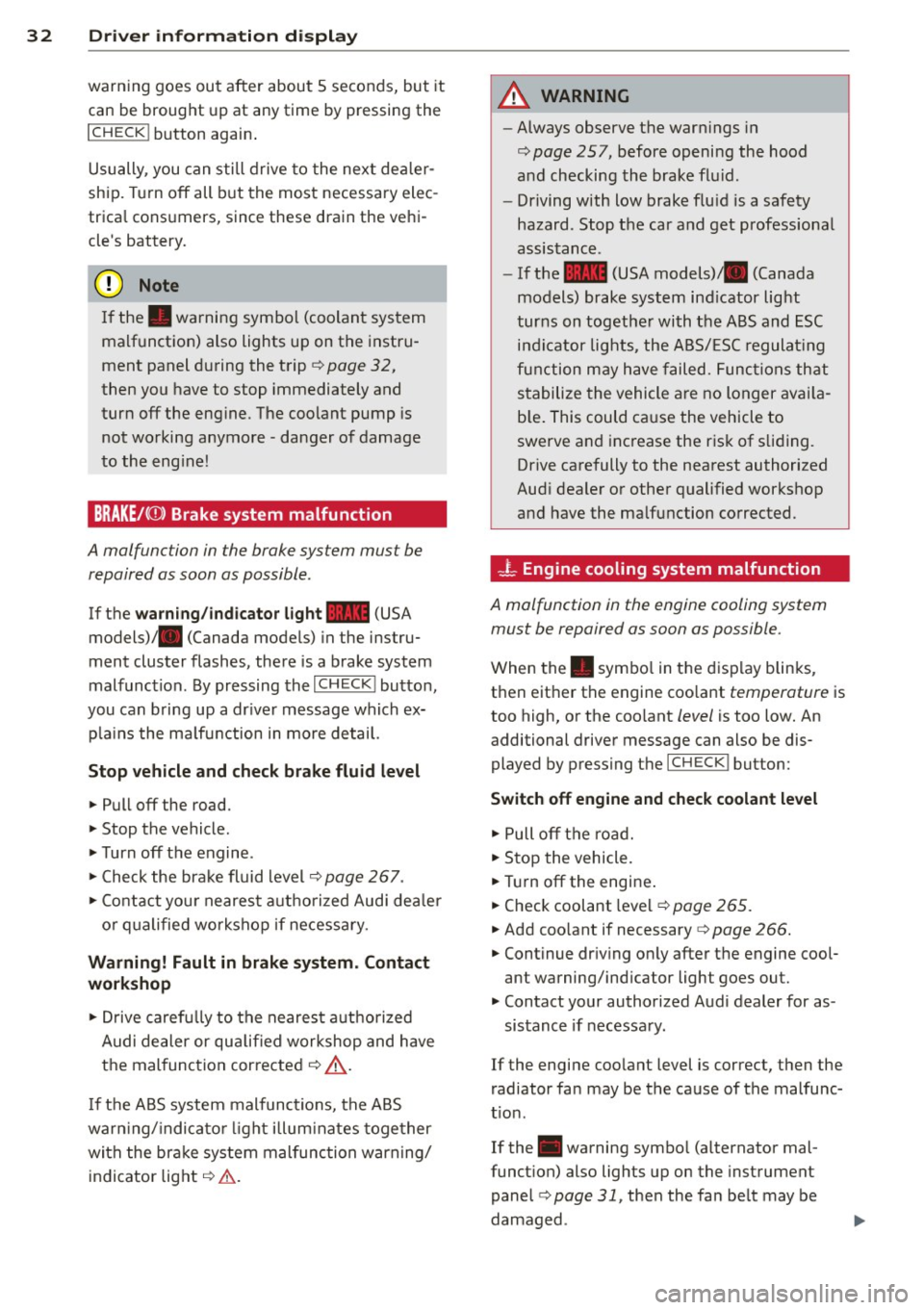

warning goes out after about 5 seconds, but it
can be brought up at any time by pressing the
I CHECK ! button again .
Usually , you can still drive to the next dealer ­
ship. Turn off all b ut the most necessary elec­
trica l cons umers, sinc e these drain the vehi­
cle's battery.
(D Note
If the . warning symbol (coolant system
malfunction) also lights up on the instru­
ment panel during the trip ¢
page 32,
then you have to stop immediately and
turn off the eng ine . The coolant pump is
not working anymore -danger of damage
to the eng ine!
BRAKE/( ©) Brake system malfunction
A malfunc tion in the brake system mus t be
repaired as soon as possible .
If the warn ing /indicator light~ (USA
models)/ . (Canada mode ls) in the instru­
ment cluster flashes, there is a brake system
malfunction . By pressing the
I CH ECK ! button,
you can bring up a dr iver message which ex­
p la ins the ma lfu nction in more detail.
Stop vehicle and check brake fluid level
> Pull off the road.
> Stop the vehicle.
>T urnoff the engine .
> Check the brake fluid level¢
page 267 .
> Co ntact you r neares t auth orized Audi dea ler
o r q ualified workshop if necessa ry.
Warning! Fault in brake system. Contact
workshop
> Drive carefu lly to the nearest a utho rized
Audi de aler or qua lified workshop and h ave
the mal function cor rected ¢
&_.
If the A BS system malfunctions, the ABS
war ning/ indica to r li ght illum inates toge ther
with the bra ke system mal func tion warning/
indicator light¢&. .
A WARNING
-Always observe the war nings in
¢
page 257, before opening the hood
a nd checking the brake flu id.
- Dr iving with low brake flu id is a safety
hazard . Stop the car and get professiona l
assis tance .
- If the ~ (USA models) . (Canada
models) brake system ind icator light
turns on toget he r with the ABS and ESC
i n dicator lights, the A BS/ ESC regulat ing
fu nction may have failed. Func tio ns that
s tabilize the vehicle a re no longer av aila­
b le. This could ca use the vehicle to
swerve and inc rease the r isk of s liding.
Drive carefully to the nearest authorized
Aud i dealer or other q ualified workshop
and have the ma lfu nction corrected .
-L Engine cooling system malfunction
A malfunction in the engine cooling system
must be repaired as soon as possible .
When the. symbo l in t he display blinks,
t h en eit her the engine coo la nt
temperature is
too high, o r the coo lant
level is too low. An
additional driver message can also be dis­
played by pressing the
I CHECK ! button:
Switch off engine and check coolant level
> Pull off t he road.
> Stop the vehicle.
> Tur noff the engine .
> Check coolant level ¢
page 265.
> Add coo lant if necessary ¢ page 266.
> Continue dr iv ing on ly after the engine cool­
ant warning/ind icator light goes out.
> Contact your authorized Aud i dealer for as -
sistance if necessa ry.
If the engine coolant level is correct, then the
radiator fa n may be the cause of the malfunc­
t ion .
If the . warning symbo l (a lternator mal­
funct ion) also lights up on the instrument
panel ¢
page 31, then the fan be lt may be
damaged .

& WARNING
-If your veh icle should break down for
mechanical or other reasons, park at a
safe distance from moving traffic, turn off the engine and turn on the ha zard
warning lights¢
page 60, Emergency
flasher .
-
-Never open the hood if you see or hear
steam or coolant escap ing from the en­
gine compartme nt -you risk being scald ­
ed . Wa it until you can no longe r see or
hear stea m or coo la nt escaping.
- The eng ine compartment of a ny veh icle
is a dangerous a rea . Before you perfo rm
any wor k in the engine compa rtme nt,
t ur n o f the eng ine and allow it to cool.
F ollow the warning stick ers ¢
page 257.
(D Note
Do not co nti nu e d riving if the . symbol
illumi nates. T here is a m alf unct io n in the
eng ine cooling system -you co uld dam age
your eng ine .
"t:::7: Engine oil pressure malfunction
The red engine oil pressure warning symbol
requires immediate servi ce or repair. Driving
with a low -oil -pressure indication is likely to
inflict severe damage to the engine .
If the. symbol appe ars in the display and
b links, the oil press ure is too low . An addition­
a l driver message can also be disp layed by
pressing the
I CH ECK i button :
Switch off engine! Oil pre ssure too low
Immediate actions
~ Pull off the road .
~ Stop the vehicle.
~T urnoff the engine .
~ Check the engine oil lev el with the dipsti ck
¢page 262.
Dipstick readings checks too low
~ Top off o il to the proper level¢ page 263 .
Driver information di spla y 33
~ Make s ure that the oi l pressure wa rning
symbo l. appears no longer in the disp lay
befo re you sta rt driv ing again.
Dipstick reading checks OK
~ If the oil press ure warning symbol.
starts flashing aga in even thoug h the en­
gine oil leve l checks OK on the dipstick,
do
not continue driving and do not let the en­
gine run in idle .
Instead, contact your au­
thori zed A udi dealer for assistance.
(D Tips
- The engine oil pressure symbol. is
not an indicator for a low engine o il lev­
el. Do not rely on it . Instead, check the
oil level in your engine at regular inter­
vals, preferably each time you refuel,
and always b efore going on a long trip .
- The yellow oil level warning indication
l!I requires oil refill or workshop serv­
ice without delay . Do not wait until the
red oil pressure warning. start s to
fla sh before you. respond to th e low oil
level warning l!I. By then, your engine
may already have suffered serious dam­
age.
i Steering malfunction
If there is a malfunction in the electronic
steering column lock, the steering cannot be
unlocked .
If the . symbo l in the display b links, the re is
a malfunction i n the elect ro nic steer ing col­
u mn lock. An additional driver message can
also be displayed by pressing the
ICHECK I but­
ton:
Do not drive vehicle: steering defective
~ Contact your nea rest au thori zed Aud i deale r
or qu alified worksho p.
~ Do not tow your ve hicle. .,..

34 Driver in formation d isplay
A WARNING -
Your vehicle must not be towed in the
event of a malfunction in the electron ic
steering column lock because it cannot be
steered due to the locked steering. If it is
t owed w ith the stee ring locked, there is
the risk of an accident.
~ Ignition lock malfunction
A malfunction in the ignition lock must be re­
paired immediately.
If the . symbo l in the d isplay blinks, there is
a malf unct ion in the electronic ignition lock.
A n addit ional driver message ca n also be d is­
p layed by pressing the
! CHECK I button:
Ignit ion lo ck def ect ive . C ontact work shop !
• Do not turn the eng ine off.
• Drive immediate ly to an authorized Audi
dealer to have the ma lfunction corrected.
If there is a ma lfunction in the e lectronic igni­
tion lock, the ign ition cannot be turned off.
Drive immediately to an a uthorized Audi dea l­
e r to have the cause of the ma lfunction co r­
rected .
On vehicles w ith Convenience key*, the engine
should not be sw itched
off using the ! STOP !
button because the eng ine cannot be started
aga in after the ignition is switched
off .
Yellow symbols
A yellow symbol means WARNING.
Fig . 26 Display: low fuel level warning (pr io ri ty 2)
Yellow symbols indicate a priority 2 ma lfunc­
tion -Warning! When a yellow warning symbol appears,
one
warning tone sounds. A driver message ap­
pears as well to exp lain the ma lfunction in
more detail. The driver warning goes out after
about 5 seconds, but it ca n be brought up
again at any time by press ing the
! CHECK I but ­
ton .
Check the displayed function as soon as possi­
ble. If
more than one priority 2 ma lfunction is
detected, all symbols will appear one after
the o ther for about 2 seconds .
Ye llow symbo ls mean:
•
1:1
Ad Blue/)
Ad Blue,/'
•
Convenience key*
Key not i n veh icle
¢ page 108
USA models: Defect ive
brake light
¢ page 23
Canada model s: Defective
brake light
¢ page 23
De fect ive l ight bulb
¢page23
Light/ rain senso r defective
¢ page35
Windsh ie ld washer fluid lev­
el low
¢page35
Low fue l level
¢ page35
Ref ill Ad Blue *
¢page 254
AdBlue mal funct ion*
¢ page254
Battery vo ltage
¢ page35
Wor n brake pads
<=> page36
Dynam ic headlight range
control defect ive
¢ page36

•
Check engine oi l level
¢ page36
•
Engine oil sensor malfunc-
tion
¢page 36
111
Engine speed limitation*
¢page36
Ill
Diesel particu late filter*
clogged
.
¢page36
Ill
Adapt ive light* defective
¢page37
m
I gnition lock malfunction
¢page 37
m
Windshield wiper defective
¢page37
[I]
Tire pressure monitoring
system
L oss of air pressure
¢ page292
mm
Tire pressure monitoring
system
System not avai lab le
¢ page292
I!
Battery in remote contro l
key
¢page39
•
Automatic transmission malfunction
¢ page 141
2e Key not in vehicle
Applies to vehicles: with Convenience key
!I Key not in ve hicle
This reminder appears a long with the !I sym­
bo l if the master key is removed from the ve­
hi cle with the engine running.
It is intended
to remind you (e.g. when changing drivers) not to continue the journey w ithout the mas­
ter key.
If the master key is no longer in the vehicle,
you cannot sw itch
off the ignition after stop-
Dri ver information di spla y 35
ping the engine and you also cannot start the
engine again. What is more, you cannot lock
the ve hicle from the outs ide .
liP Light/rain sensor defective
£I Automatic headlights / automatic w ipers
d efe ctiv e
If the symbol i lluminates, the light sensor has
failed. For safety reasons the low beams are
turned on permanently with the switch in
AU­
T O . However, you can cont inue to turn the
l ights on and
off using the l ight sw itch. In the
case of a defect in the rain sensor, the wind­
shield wipe r lever functions a re still availab le.
Have the light/ rain senso r chec ked as soon as
poss ib le by an au thorized A udi dealer .
.-v ~,
O Windshield washer fluid level too low
II Plea se refill wa she r fluid
If the symbol illum ina tes, add w indshie ld
washe r fl ui d to the washer sys tem and also to
the headlight washer system¢
page 272.
fj)
Fuel supply too low
II) Ple ase refuel
When this symbol II) illuminates for the first
t ime, the fue l reserve in yo ur vehicle is s till
between 2.6 and 3.2 ga llons (10- 12 liters).
Ref uel as soon as possible¢
page 251.
If the symbol lights up, even when there is
amp le fue l in the tank, and the text
Tank sy s­
tem malfuncti on! Contact work shop
appears
in the disp lay, there is a fa ult in the system.
Contact a qualified workshop to have the fault
rect ified.
0 Battery voltage
If the battery's state of charge is not in the
optimal range, the(•] symbol is shown in the
display and the driver message
Low battery
charge : batt ery will be char ged whil e driving
appea rs. .,.

36 Driver in formation d isplay
While this driver notification is displayed, yo u
have to be prepared for limited starting capa­
b ili ty.
Driv er m essage appears and goes out
a ga in
If t his driver message appears after the igni ­
tion is turned on or while driving and it goes
out again after a while, the battery has been
adequately recharged.
Driv er m essage app ear s and do es not g o
out ag ain
If th is driver notification appears after the ig­
n ition is turned on or while driv ing and does
not go out again, the battery's state of charge
is not in the opt imal range . Starting capability
is restricted . Have the battery checked by an
author ized Audi dealer as soon as poss ible.
(0) Worn brake pads
EiJ Brak e pa ds !
If the war ning l ight illum inates, immediately
contact your authorized Audi dealer or quali­
fied workshop to have all brake pads inspect­
ed. On USA models the wa rning light
EiJ
comes on togethe r wi th the warn ing light
1111 . Both sets of brake pads on an axle
must always be replaced at the same time .
.&_ WARNING
Driv ing with bad brakes can cause a colli­
sion and serious personal injury .
-If the warning light EiJ and the warning
light
11111 ) with the message Brake
pads !
comes on in the instrument cluster
display, immediately contact your au­
tho rized Aud i dealer o r qualified work­
shop to have a ll brake pads chec ked or
replaced if necessary.
i.(D Headlight range control
II H eadli ght range c ontrol def ective !
l ) - : USA mod els only
-
If the symbol i lluminates, the dynamic head ­
li ght range control is no lo nger working prop­
erly. Have the system checked and repaired at
your authori zed Aud i dea ler.
~ .. Engine oil level
II Please check o il leve l
When the symbol i lluminates, check the en­
gine oi l leve l as soon as possible
<=> page 262.
Top off the oil at your earliest opportun ity
<=> page 263.
~ .... , Engine oil sensor defective
Ill Oil level ! Sensor d efe ct ive
If the symbol illuminates, contact your au­
thorized Audi dea ler and have the oil sensor
inspected . Until you have this done, check the
o il level each time you refue l just to be on the
safe side <=>
page 262.
! ?)
Engine speed limitation
Applies to vehicles: with engine speed limitation
Iii Do not exc eed ma x. engine speed of
XXXX rpm
T he Iii symbol illum inates when there is an
engi ne cont rol malf unct ion. The indicator
l igh t~ in the instr ument cluster a lso illumi­
nates. The engine speed is limited to the
speed displayed in the driver in format ion sys ­
tem. Keep in mind that the engine speed wi ll
not exceed the val ue d isplayed in the driver in ­
format ion system, for example when down­
shifting.
Please go to an authorized A udi dealer or oth ­
er qualified workshop to have the malfunct ion
repaired.

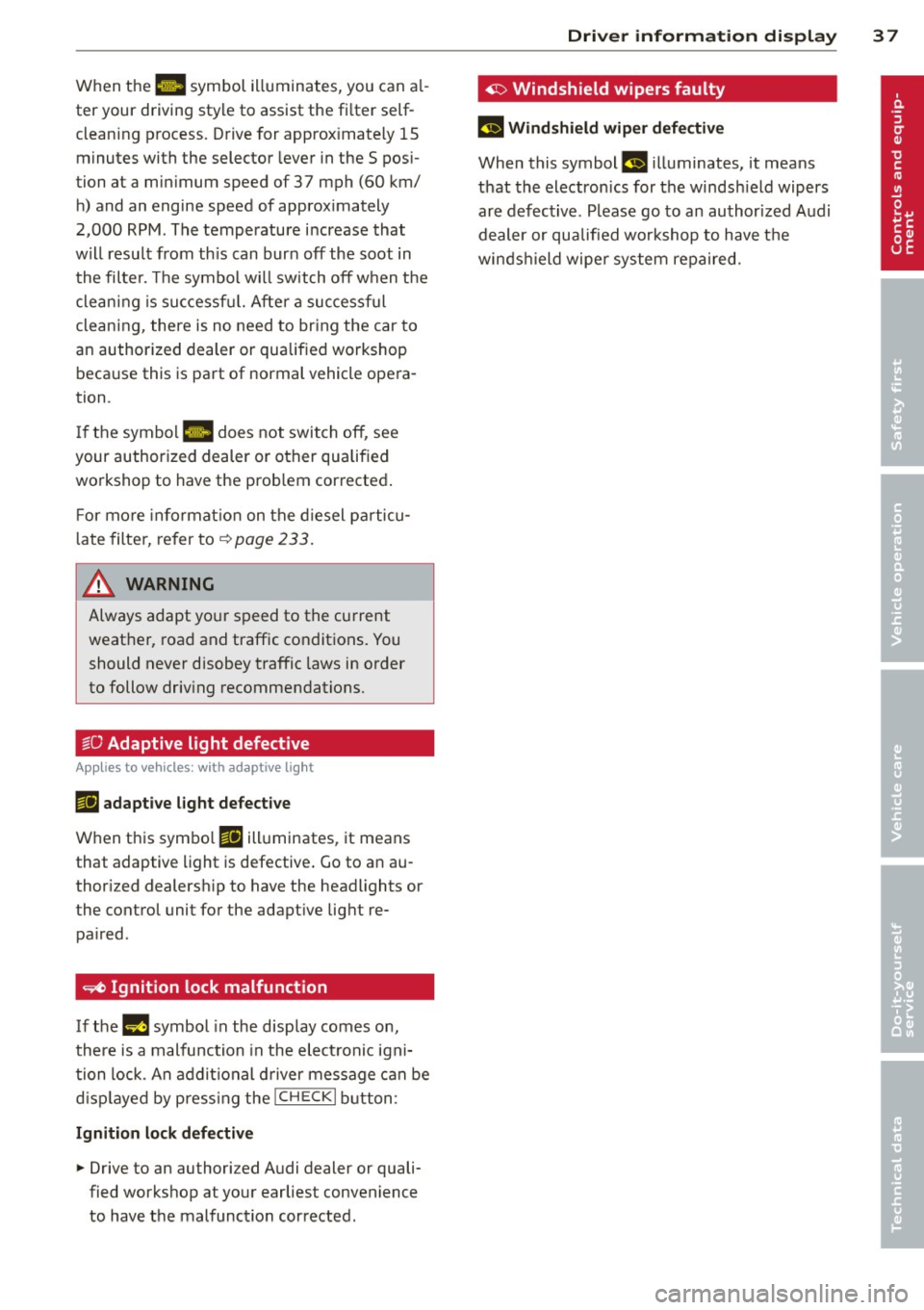

e, Diesel particulate filter clogged
Applies to vehicles: with diesel eng ine and diese l particu­
late filter
El Particulate filter See owner's manual

When the 1111 symbol illuminates, you can al­
ter your driving style to assist the fi lter self­
cleaning process. Drive for approx imately 15
minutes with the selector lever in the S pos i­
tion at a minimum speed of 37 mph (60 km/ h) and an engine speed of approx imately
2,000 RPM . The temperature i ncrease that
will result from th is can burn off the soot in
the filter. The symbol w ill switch off when the
cleaning is successf ul. After a successful
cleaning, there is no need to br ing the car to
an authorized dealer or qualified workshop beca use this is part of normal vehicle opera­
tion .
I f the symbol
II does not switch off, see
your authorized dealer or other qualified
workshop to have the prob lem corrected .
F or mo re informat io n on the d iesel pa rticu­
l ate filter, refer to~
page 233 .
& WARNING ,..__
Always adapt yo ur speed to the current
weather, road and traffic condit ions. You
should never disobey traffic laws in order
to follow driv ing recommendations.
~O Adaptive light defective
Appl ies to vehicles: with adapt ive light
111 adapti ve l ight defe cti ve
When this symbo l Ill illuminates, it means
that adaptive light is defective . Go to an au­
thor ized dealersh ip to have the headlights or
the control unit for the adapt ive lig ht re­
pa ired .
~ Ignition lock malfunction
If the l!)J symbol in the display comes on,
there is a malfunction in the elect ronic igni­
tion lock. An addit ional d river message can be
d isp layed by press ing the
! CHECK I b utton:
Ignitio n lock d efective
.. Drive to an authorized Audi dealer or quali­
fied workshop at your earliest convenience
to have the malfunction corrected.
Dri ver information di spla y 37
'1> Windshield wipers faulty
£~$ Windshield wip er de fecti ve
When this symbol £11 illuminates, it means
t h at the electronics for the winds hield wipers
are defective . Please go to an author ized A udi
dealer or qualified wo rkshop to have t he
winds hield wiper system repaired.

38 Opening and closing
Opening and closing
Keys
Key set
Fig. 27 Key set
@ Master key with remote control
You can centrally lock and unlock your vehicle
and start the engine with the master key with
remote control.
@ Valet key
The valet key only fits the lock in the driver's
door and the ignition lock . If you have to leave
the key with somebody else, you are well-ad­
vised to turn over the valet key only
¢ page 41.
© Emergency key
The emergency key is only for temporary use if
the vehicle key should be lost or misplaced
¢ .&. .
Key replacement
If you lose a key, contact your authorized Audi
dealer immediately to have the
lost key disa­
b led . Be sure to bring all your keys with you.
Registered keys
You can check to find out how many keys have
been registered to your vehicle. Therefore,
when buying a used vehicle, make sure to get
all of the remote keys be long to it .
Ca lling up the registered keys¢
page 12.
Data in the master key
While you are driving, serv ice and mainte­
nance relevant data are being continuously stored on your master key. Your Audi
Service
Advisor can read out these data and tell you
about work that is needed on your vehicle .
This also app lies to vehicles w ith Convenience
key*.
A WARNING
--
- Do not leave your vehicle unattended
with the key in the ignition lock. Entry by
unauthorized persons could endanger
you or result in theft or damage the vehi­
cle. A lways lock all doors and take the
key.
- Do not leave children unattended in the
veh icle, especially with access to vehicle
keys . Unguarded access to the keys pro­
vides children the opportun ity to start
the engine and/or activate vehicle sys­
tems such as the power windows etc. Un­
supervised operation of any vehicle sys­
tem by children can result in serious in­
Jury .
(D Tips
- If you open the driver's door with the key
left in the ignition lock, a chime w ill
sound. T his is your reminder to remove
the key and lock the door.
- For security reasons, replacement keys
are only ava ilable from Audi dealers.
Master key with remote control
The remote control allows you to lock or un­
lock the vehicle electronically .
Fig. 28 Fold-up maste r key with remo te control
., To fold the key out and back in place, press
t he release button ¢
fig. 28. .,.
