AUDI Q7 2015 Owner´s Manual
Manufacturer: AUDI, Model Year: 2015, Model line: Q7, Model: AUDI Q7 2015Pages: 350, PDF Size: 86 MB
Page 21 of 350

M N
0 ...J
'SI: ,...., \!) ..,.,
,...., ..,., ,....,

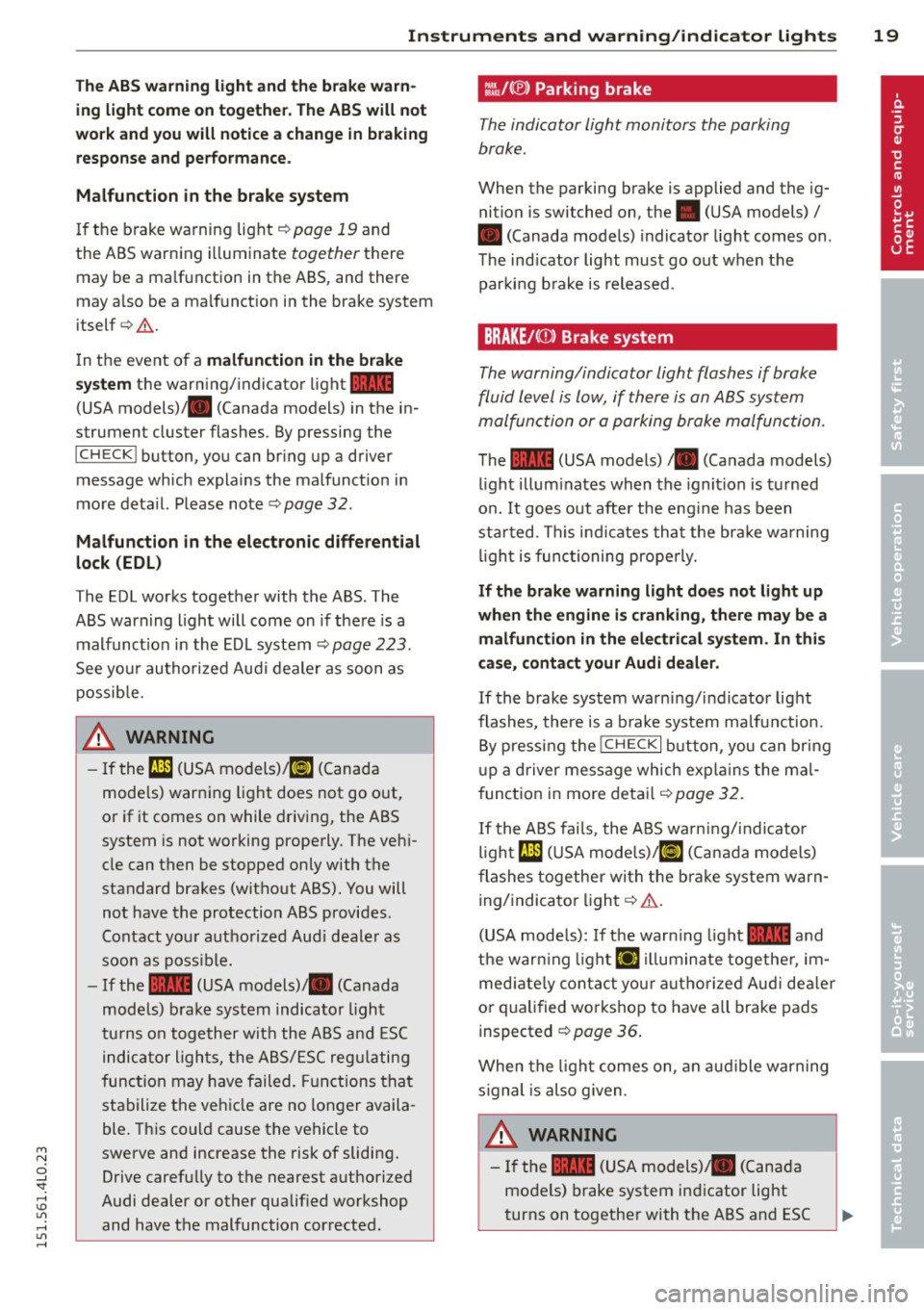

Instrument s and warnin g/indic ator ligh ts 19
The ABS war nin g lig ht a nd the bra ke w arn
ing l ight come on t ogeth er. The ABS will not
work and you will notic e a c hange in brak ing
re spo nse and pe rformance.
Ma lfunction in th e brak e system
If the b rake warn ing light <=>page 19 and
the ABS warning i lluminate
together there
may be a ma lfunction in the ABS, and there
may a lso be a malfunct ion in the brake system
itself <=>,&. .
In the event of a
m alfun ct ion in the b rake
s ys tem
the warning/indicator light 1111
(USA models) . (Canada models) in the in
strument cluster flashes. By pressing the
ICHECKI button, you can bring up a driver
message which explains the malfunct ion in
more deta il. Please note
<=>page 32.
M alfunction in t he e lectronic diff erential
lock (EDL)
The EDL works together with the ABS. The
ABS warning light will come on if there is a
malfunct ion in the EDL system
<=> page 223.
See your autho rized Aud i dealer as soon as
possib le.
.&, WARNING
-
- If the ml (USA models) ;tlJ (Canada
models) warning light does not go out,
or if it comes on while driving, the ABS
system is not working properly. The vehi
cle can then be stopped only with the
standard brakes (without ABS). You will
not have the protection ABS provides.
Contact your authorized Aud i dealer as
soon as poss ible.
- If the
1111 (USA models)/ . (Canada
models) brake system indicator light
tu rns on together with the ABS and ESC
indicator ligh ts, the ABS/ESC regu lating
f unction may have failed. F unctions that
stabilize the vehicle are no longer availa
ble. This could cause the vehicle to
swerve and increase the risk of sliding.
Drive carefully to the nearest authorized
Audi dealer or other qualified workshop and have the malfunction corrected.
:l~ /(® ) Parking brake
The indicator light monitors the parking
brake.
When the parking brake is applied and the ig
nition is switched on, the. (USA models) /
• (Canada models) indicator light comes on .
The ind icator light must go out when the
parking b rake is released.
BRAKE/CC Dl Brake system
The warning/indicator light flashes if brake
fluid level is low, if there is an
ABS system
ma/function or a parking brake ma/function.
The 1111 (USA models)/ . (Canada models)
light illum inates when the ignition is turned
on.
It goes out after the eng ine has been
started . This indicates that the bra ke warning
l ight is functioning properly.
If the brake w arning light d oes not light up
wh en th e eng ine i s cran king, th ere ma y be a
malfunction in the ele ct ric al sy ste m . In thi s
c ase , conta ct your Audi de aler .
If the brake system warning/indicator light
flashes, there is a b rake system ma lfunction .
By pressing the
I CH ECK i button, you can bring
up a driver message which expla ins the ma l
function in more detai l
<=>page 32.
If the ABS fai ls, the ABS wa rn in g/ indicator
li ght
ml (USA mode ls)/ [§] (Canada models)
flashes together with the brake system warn
ing/indicator light<=>,&. .
(USA mode ls): If the warn ing light
1111 and
the warn ing light
El il luminate togethe r, im
med iate ly contact yo ur a utho rized Aud i dea ler
or qualified workshop to have all brake pads inspected ¢
page 36.
When the light comes on, an aud ible warn ing
s ignal is also g iven.
.&, WARNING ~ ~
- If the 1111 (USA models) . (Canada
models) brake system indicator light
turns on together with the ABS and ESC
Page 22 of 350

20 Instrum ent s a nd w arn in g/i ndic ato r light s
indicator lights, the ABS/ESC regu lating
function may have failed. Functions that
stabilize the vehicle are no longer availa ble . This could cause the vehicle to
swerve and increase the risk of sliding.
Drive carefu lly to the nearest authorized
Audi dealer or other qualified workshop and have the malfunction corrected.
- If the brake warning/indicator light does
not go out afte r a few seconds and the
par king brake is released, or ligh ts up
wh ile you are driving, the fluid level in
the brake fluid reservoir is too low. If you believe that it is safe to do so, proceed
immediately at low speed to the nearest
authorized Audi dealer or qualified repair
facility and have the brake system in
spected.
- Always keep in m ind that after several
brake applicat ions, you will need greater
pressure on the b rake pedal to stop your
vehicle . Do not re ly on stra ined brakes to
respond w ith maximum stopp ing power
in cri tic al situations. You must a llow for
increased bra king distances. The extra
distance used up by fad ing brakes could
lead to an accident.
Page 23 of 350

M
"' 0 ..J
"". rl I.O
"' rl
"' rl
Driver information
display
Introduction
General notes
The driver information display inside the in
strument cluster provides you, the driver ,
with much useful information .
Fig. 9 In st ru men t cl uster: ce nte r dis p lay
Info rmation from the Drive r Information Sys
tem is shown in the display in the center of
t he instrument cl uster .
When you turn on the ignition and while you
are driving, some functions and vehicle com ponents are scanned fo r their operating sta
t us. Malfunc tions or required service proce
dures are signal led aud ibly and shown by red
and yellow lighted symbols and rem inders to
the dr iver in the display.
T he driver i s also shown information abou t ra
d io and CD operation and directions for the
nav igation system . You can f ind additional in
formation on these subjects in the MMI man
ua l.
The Driver Information System prov ides the
following functions:
Sound system disp lay ¢
page 21
Outside air temperature ¢page 22
Digital speedometer ¢
page 22
Door open indicator ¢page 22
D efective light b ulb ¢
poge23
Serv ice i nte rval display ¢page 23
Auto Check system ¢
page 30
Driver information ¢
page 30
Driver inform ation di spl ay 21
Speed warning system ¢page28
T rip computer ¢
page24
Cruise con trol ¢page 113
Adapt ive cruise control* ¢
page 115
Selector lever pos ition ¢page 139
Adapt ive Air Suspension * ¢
page 160
Tire pressure monitoring ¢page301
(D Tips
In the event of a malfunction either a red
or ye llow icon appears in the display . Red
symbols indicate
Dang er ¢ page 31 . Yel
l ow symbo ls indicate a
Warning
¢ page 34.
Sound system display
Fig. 10 D isp lay: so un d syste m
If priority 1 or pr iority 2 faults are not shown
by the Auto Check Control, the name of the ra
dio station you are tuned to or t he frequency
and the recept ion range are shown in the up
per area of the d isplay.
When the CD is in use, the tit le of the track
being played is shown . T he number of the CD
(CDI to CD6) cur rently be ing played is also
shown.
Page 24 of 350

22 Driver in formation d ispl ay
Outside temperature display
Fig. 11 Display : outside temperature
At temperatures below 41 °F (+S °C) a snow
flake symbol appears ahead of the tempera
ture display . It is intended to remind the driv
er to pay spec ial attent ion to
ic e on the roa d.
If the vehicle is stationary, or if you are driving
at a very low speed, the temperature shown in
the display might be slightly higher than the
actual outside temperature . Th is is caused by
the heat being rad iated from the engine .
If you have selected the °C (degrees Celsius)
unit for temperature in the MMI, the outside
temperature display also appears automat i
cally in
°C.
A WARNING
- Never rely excl usively on the outside
temperatu re d isplay to determine if a
road surface is icy or not . Keep in mind
that road surfaces, especially bridges
and overpasses, could be ice covered and
s li ppery even at an outs ide temperature
above 41 °F (+ S °C).
- Always remember, even if the "snow
flake" symbol (ice warn ing) does not ap
pear in the display, black ice could be on
the road.
- Always reduce your speed and dr ive with
special care in cold weather conditions
when the chance of encountering icy road s urfaces increases .
Digital speedometer
Fig. 12 Display: Digi tal speedometer
Current speed appears in the disp lay. Speed is
shown in 1 mph measures (USA models) or 1
km/h measures (Canada models) .
You can switch the disp lay from m iles to kilo
meters and vice versa via the MMI.
Open door or trunk lid warning
The pictogram alerts you when doors or the
rear lid have been left open .
Fig. 13 Display: open doo r or rea r lid wa rning
With the ign it ion sw itched on, the ope n door
or rear lid warning illuminates when at least
one door or the hood or the trunk lid is not
cl osed . The symbol a lso shows you
which
doo r(s) o r lid is not closed.
In the illustration
~ fig . 13 it is the dr iver's
doo r, the left rear door and the rear lid. As
soon as all the doors, the hood, the rear lid
and the f uel filler cap are prope rly closed, the
door and rear lid warning turns off and the
Driver Information System functions selected
are displayed again.
Page 25 of 350

M
"' 0 ..J
"". rl I.O
"' rl
"' rl
Defective light bulb warning
The defective light bulb warning tells you
when a vehicle light bulb has become defec
tive.
Fig . 14 D isplay : defective lig ht bu lb warn ing
The defective light bu lb warning monitors the
function of the light bulbs . If th is symbol
S:!I
illuminates, a brake light, a turn signal (front
or rear), a headlight, the backup light, a fog
light or a rear fog light has failed.
A WARNING
- light bu lbs are pressurized and could ex
plode while they are being changed caus
ing serious personal injury.
- Work w ith due care when handling the
high-voltage section of gas discharge
(xenon) lights. Fa ilure to do so could re
sult in dea th o r se rious injury.
(D Tips
Have the bulb replaced or the connection
repa ired by you r autho rized Aud i Service
department.
Dri ver inform ation di spl ay 23
Service interval display
The service interval display reminds you when
your next service is due .
Fig . 1 5 Display: Serv ice interva l d isplay
T he schedule for the nex t oi l change or inspec
tion is ca lculated automatica lly and disp layed
accordingly. The disp lay works in two stages:
Service reminder
30 days before t he nex t se rvice is due, a serv
i ce reminde r appea rs in the display whe n you
turn on the ignition
~fig. 15.
After about 5 seconds the display switches
back to norma l. The distance and time re
mai ning are updated each time the ignit ion is
turned on unt il t he da te d ue for se rv ice is
reached.
Service due
When the due date fo r se rvice is reached, the
mes sage
Se rv ice due! appears in the instr u
ment cluster immed iate ly after yo u tur n on
the ignit ion. Addit iona lly, a warning tone
sounds. After about 5 seconds the disp lay
switches back to normal.
Calling up the service schedules
If or when an oil change o r inspection is due,
can be shown in the MMI display by selecting
the service in terval d isplay in the car menu .
Se lect
I CAR I funct io n button > Sy stem s* con
trol button
> S ervice inte rval display or I CAR !
function button > Car sy stem s* contro l but -
ton
> Servicing & chec ks > Service in te rv als . ..,_
Page 26 of 350

24 Driver information display
Resetting the service interval display
Your authorized Audi dealer w ill reset the cor
responding service schedule after performing
the appropriate service on your vehicle. You
a lso have the possibility to reset the oi l
change schedule after having performed an
oil change according to Audi specifications.
Select
I CAR I function button > Systems* con
trol button >
Service interval display > Reset
oil change interval
or ICARI function button>
Car systems* control button > Servicing &
checks > Service intervals > Reset oil change
interval.
(D Note
- Only reset the o il change d isp lay when
you have completed an oil change.
- If you d isconnect the battery terminals,
no calculations can be made for the serv
i ce interval display during this time and
no service reminder will appear. Remem
ber that observing the proper service in
terva ls is vitally important to extending
the life of your vehicle, particularly the
engine, and maintaining its value. Do not
exceed the time interval for the next
serv ice, even if the vehicle mileage is
low .
(D Tips
The informat ion in the Serv ice Reminder
remains stored even when the vehicle bat
tery is disconnected .
Trip computer
Introduction
The trip computer gives you information on
current and average fuel mileage, average
speed, fuel range and driving time.
Fig. 16 Trip computer d isp lay: Average fue l mil eage
The following dr iving informa tion is con tinu
ous ly evaluated by the trip computer and can
be displayed sequentially in the instrument
cluster disp lay.
Fuel range
T he es timated cruis ing range in miles ( km)
appea rs in the display. This tells you how far
your vehicle will be ab le to travel on the c ur
rent tank of fuel and with the same driving
style. The display changes in increments of
Smiles (10 km).
T he cruising range is calculated based on the
fuel consumption for the last 18 miles
(30 km). If you drive conservative ly, the cruis
ing range will increase.
Average fuel mileage
The average fuel economy in MPG (l/100 km)
since you last cleared the memory appears in
this disp lay. You can use this display to adjust
your driving technique to achieve a desired
mileage.
Current fuel mileage
The instantaneous fuel consumption in m iles
per gallon ( l/100 km) is shown in this display.
You can use this display to adjust your driving
technique to achieve a desired m ileage .
1111>
Page 27 of 350

M
"' 0 ..J
"". rl I.O
"' rl
"' rl
Fue l consumption is reca lculated at interva ls
of 33 yards (30 meters). When the vehicle is
stationary, the most recent fue l consumption
is displayed .
Average speed
The average speed in mph (km/h) since the
l ast time the disp lay was reset appears in the
display .
Elapsed time
The length of time that you have been driving
since you last reset the memory appears in
this display.
Distance
The distance that has been covered since the
l ast time the memory was cleared appears in
the disp lay.
(D Tips
- Fuel consumptions (ave rage and cur
rent), range and speed are displayed in
metric units on Canadian models.
-All stored va lues w ill be lost if the veh i
cle battery is disconnected .
Memories
The trip computer is equipped with two fully
automatic memories as well as an efficiency
program".
Fig. 17 Trip computer d isplay: memo ry level 1
You can switch between the trip computer 1
and 2 and the efficiency program* by pressing
the
! RESET I button @¢ page 25, fig. 18.
You can tell which memo ry level is cur rently
active by the number or the sign in the display
Driver information display 25
¢ fig. 17. The data from the single-trip mem
ory (memory level 1) is being displayed if a
D
appears in the display . If a fJ is shown, then
the data from the total-trip memory is being
displayed (memory level 2). The fuel pump nozzle
iii indicates the efficiency program*
¢page 26.
Single-trip memory (Trip computer 1)
The single-trip memory stores the trip infor
mation from the time the ignition is turned on
until it is turned off. If the trip is continued
within 2 hours from the time the ignition was
turned off, the new data will be included in
the calculat ion of the current trip informa
tion. If the trip is interrupted for
more than 2
hours
the memory is reset automatically.
Total-trip memory (Trip computer 2)
Unlike the single -trip memory, the total -trip
memory is not reset automat ical ly. This per
mits you to evaluate your driv ing data for the
entire period between manua l resets.
Efficiency program*
The efficiency program can help you to use
less fuel ¢
page 26.
Operation
The trip computer is controlled by two
switches on the windshield wiper lever .
Fig. 18 Windsh ield wiper lever : contro ls for the t rip
computer
Operating
.,. To display the trip computer memory levels,
press the
I RESET ! button®¢ fig. 18 re
peatedly until the desired memory level is
shown in the display .
Ill>
Page 28 of 350

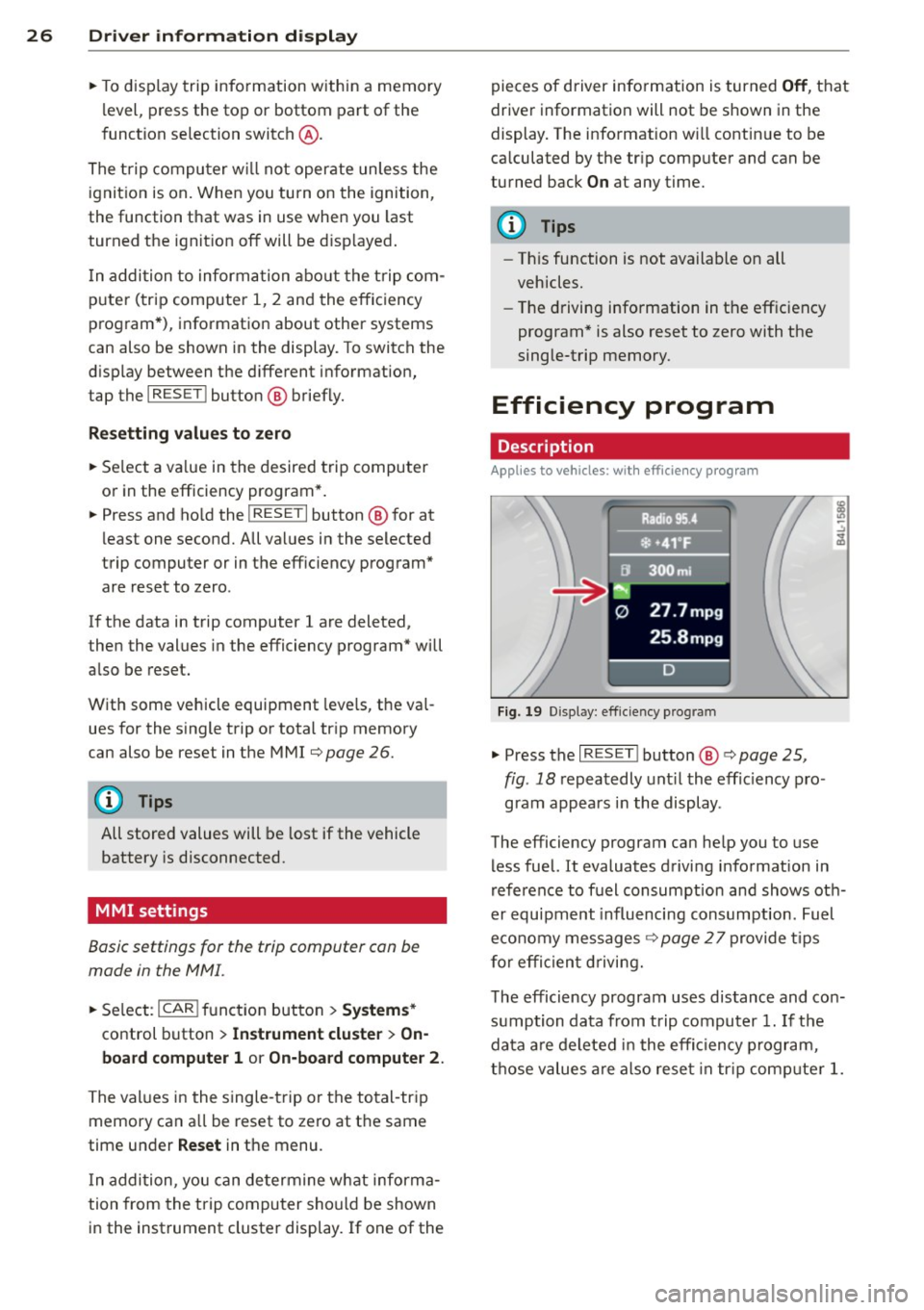

26 Driver in formation d isplay
• To d is p lay tri p information within a memory
l evel, press the top or bottom part of the
function selection switch
@ .
The t rip computer w ill not operate unless the
ignition is on. When you turn on the ignition,
the function that was in use when you last
turned the ignit ion off will be d isp layed .
I n addi tion to informa tion abo ut the trip com
puter (trip computer 1, 2 and the efficiency
prog ram*), information about other systems
can also be shown in the display. To switch the
d isp lay between the d ifferent information,
tap the I RESET! button @ briefly.
Resetting values to z ero
• Se lect a va lue in the desired trip computer
or in the efficiency program* .
• Press and ho ld the I RESE T
I button @for at
least one second. All va lues in the selected
trip computer or in the eff iciency program*
are reset to zero .
If the data in trip compute r 1 are deleted,
then the values in the efficiency program* will
a lso be reset.
W ith some vehicle equipment leve ls, the va l
ues for the s ingle trip or total tr ip memory
can also be reset in the MMI
c::;, page 26.
@ Tips
All stored values will be lost if the vehicle
battery is disconnected.
MMI settings
Basic settings for the trip computer con be
mode in the MM I.
• Se lect : ICAR !funct io n but ton> Systems *
control button > Instrument cluster > On
board computer 1 or On -boa rd computer 2.
The val ues in the single -trip or the to tal-tr ip
memory can a ll be reset to zero at t he same
time under
Reset in the menu.
I n addi tion, you can de termine w hat inform a
tion from the trip computer shou ld be shown
in the instrument cluster display. If one of the pieces of driver info
rmation is turned
Off , that
drive r information will not be shown in the
display. The info rmation w ill cont in ue to be
ca lculated by the tr ip comp uter and can be
turned back
On at any time.
(j) Tips
- Th is function is not available on all
vehicles.
- The d riving info rmation in the eff iciency
program * is also reset to zero with the
single-trip memory.
Efficiency program
Description
Applies to vehicles: with efficiency program
Fi g. 19 Displ ay: eff icie ncy prog ra m
• Press the I RESE T! button @ c::;, page 25,
fig . 18
repeatedly unt il the eff ic iency pro
gram appears in the display .
The efficiency program can he lp you to use
less fuel. It evaluates driving information in
r eference to f uel consumption and shows oth
er equipm ent influ encing consumption . Fu el
e co nomy messages
c::;, page 27 provide t ips
f o r eff ici en t driving.
The efficiency program uses distance and co n
sumption data from trip computer
1. I f t he
da ta ar e deleted in the effi ciency p rogram,
t h ose v alues are a lso rese t in tr ip co mpu ter
1.
Page 29 of 350

M
"' 0 ..J
"". rl I.O
"' rl
"' rl
Other equipment
Applies to vehicles: with efficiency program
Fig. 20 D isplay : ot her equipment
• In the efficiency program, press the function
s elec tion switch
q page 25 , fig. 18@ re
peatedly until the other equipment appears
in the d isplay .
Other equipment that i s cu rrently affecting
f uel consumption is lis ted in the eff iciency
program . The display shows up to three other
items of equipment @. The equipment using
the most fuel is l isted first. If more than three
items using fue l are switched on, the equ ip
ment that is currently using the mos t fu el is
d isp layed .
A scale @also shows the current total con
sumpt io n of all other equ ipment .
Fuel economy messages
Applies to vehicles: with efficiency program
Fig. 2 1 Dis pl ay: fuel e co n omy messa ge
-.:,
~
Fuel economy messages are displayed when
fuel consumption is inc reased by certain con
d itions . If you follow these fuel economy mes
sages, you can reduce your vehicle's consump
tion of fuel. The messages appear automati
cally and are o nly displayed in the eff ic iency
Dri ver inform ation di spl ay 2 7
program . The fue l economy messages t urn off
automatica lly after a certain period of time .
• To tu rn a f uel economy message off immedi
ately after it appears, press the
I RESE TI but
ton ¢
page 25 , fig. 18 @, or
• Press the function selection switch
r::!) page 2 5, fig . 18 @ .
{I) Tips
-Once you have turned a fuel economy
message off, it will o nly appear again af
ter yo u turn the ign ition on again.
- Th e fuel economy messages are not dis
played in
every i nstance, but rather in in
tervals
over a period of time.
On-Board Diagnostic
system (OBD)
Malfunction Indicator Lamp (MIL)
The Malfunction Indicator Lamp (M IL) ¢..ij in
the instrument cluster¢
page 14, fig. 8 is
part of the On-Board Diagnos tic (OBD
II) sys
tem .
The warning/ind icator light ill um inates when
the ignition is switched on and goes out after
the engine star ts and the id le has stabilized.
This indicates that the M IL is working prope r
ly .
If the light does not go out after the engine
is started , or illuminates while you are dr iv
ing, a malfunction may exist in the engine sys
tem . If the light illuminates, the catalytic con
verter could be damaged .
Con tinue driving
with reduced powe r (avoid
ing sustained high speeds and/or rapid accel
erations) and have the cond ition co rrected .
Contact your a uthorized Aud i dea ler.
If the light illum inates, the elec tronic speed
limiter may also be malfunctioning . For more
information ¢
page 28, Electronic speed
limiter.
An improperl y closed fuel filler cap may also
cau se th e MIL light to illum inat e (onl y
ve hicl es with gas oline engi ne) ¢
page 250 .
Page 30 of 350

28 Driver information d isplay
On-Board Diagnostics
Fig. 22 Locat ion of Data Link Connector (DLC)
On-Board Diagnostics monitors the compo
nents of your emission control system. Each
monitored component in your engine system
has been assigned a code . In case of a mal
function, the component will be ident ified
and the fault stored as a code in the control
module memory .
The MIL light may also illuminate if there is a
leak in the on-board fue l vapor recovery sys
tem.
If the light illuminates after a refuelling ,
stop the veh icle and make sure the fuel filler
cap is proper ly closed (on ly vehicles with gaso
line engine)
c::>page 250.
In o rder to make an accurate d iagnosis, the
stored data can only be displayed using spe
cial diagnostic equipment (generic scan tool
for OBD).
I n o rder to connect the special diagnostic
equipment, push the plug into the Data Link
Connector (DLC) . The DLC is located to the
right of the hood release
c::> fig . 22.
Your author ized Audi dealer or qualified work
shop can interpret the code and perform the
necessary repair.
A WARNING
Do not use the diagnostic connector for
personal use. Incorrect usage can cause
ma lfunctions, which can increase the risk
of a collis ion!
Electronic speed
limiter
Your vehicle may be factory equipped w ith
t ir es that are rated for a maximum speed of
130 mph (210 km/h) . This is less than the
maximum speed of your vehicle . To reduce the
risk of sudden tire fa ilure a nd loss of contro l if
the vehicle is operated at excessive speeds,
your vehicle also has an elec tronic speed limit
er . The e lectronic speed limiter prevents your
vehicle from going faster than the tire speed
rating . For more information
c::> page 291.
If the engine control unit receives faulty vehi
cle roadspeed signals, the Malfunction Indica
tor Lamp (MIL)
¢4 will illuminate . If this oc
curs, contact the nearest authorized Audi
dealer for assistance.
A WARNING
-
Always observe the posted speed limits
and adjust your speed to suit prevailing
road, traffic and weather cond itions . Never
drive your vehicle faster than the maxi
mum speed rating of the tires installed.
-
Speed warning system
Overview
The speed warning system helps you to keep
your driving speed below a set speed limit.
T he speed warning system warns the driver if
he exceeds a previo usly stored maximum
speed . A warning tone wi ll so und as soon as
the vehicle speed exceeds the set speed by about 3 mph (3 km/h). At the same time, a
warning symbol appears in the display.
The speed warning system has
two warning
thresholds
that function independently of
each other and that have somewhat different
purposes:
Speed warning 1
You can use speed warning 1 to set the maxi
mum speed while you are driving. This setting "'
