check engine AUDI Q7 2015 Owner´s Manual

2 Table of content s
Vehicle lite ratu re .. .. .. .. .. ... .
About thi s Owner' s Manual ...
C ontr ols and equi pm ent .. ... .
Ins truments and controls .. . .
General illustration ...... ... .. ... .
Instruments and warning /
indicator lights ............... .
Instruments ............ ... .. ... .
Warning/indicator lights .. ... ... .. .
Driver information d isplay .. . .
Introduction .............. ... ... .
Trip computer ........... ... .. ... .
Efficiency program ............... .
On-Board Diagnostic system (OBD) .. .
Electronic speed limiter ......... .. .
Speed warn ing system .......... .. .
Auto Check Control ............ .. .
Opening and closing ...... .. . .
Keys ........................ .. .
Power locking system ............ .
Rear lid .. .. .......... ..... .. .. . .
Child safety lock ................. .
Convenience key .. ......... ... ... .
Anti-theft alarm system ........ .. .
Power windows ........... ... ... .
Panoramic sliding sunroof ......... .
Garage door opener (HomeLink) .... .
Clear vision ................... .
Lights ... .. .................... .
Interior lights . ............... ... .
V1s1on ... .. ... .... ...... ...... . .
W iper and washer system ...... .. . .
Mirrors ........................ .
Dig ita l compass ................. .
Seats and storage ......... .. . .
General recommendat ions ........ .
Power front seat adjustment ....... .
Seat memo ry ............. ... ... .
Rear seats . ................. .... .
Head restraints .. ......... ... ... .
Armrest . ... ............ .. .. .. . .
5
6
8
8
8
10
10
14
21
21
24
26
27
28
28
30
38
38
41
45
48
49
so
51
54
57
60
60
64
65
66
70
72
74
74
75
76
77
79
80
Long center console . . . . . . . . . . . . . . . 81
Luggage compartment . . . . . . . . . . . . 82
Roof rack . . . . . . . . . . . . . . . . . . . . . . . 86
(upholder . . . . . . . . . . . . . . . . . . . . . . . 88
Rear ashtray . . . . . . . . . . . . . . . . . . . . . 89
Outlet . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Storage . . . . . . . . . . . . . . . . . . . . . . . . . 90
Warm and cold . . . . . . . . . . . . . . . . 94
Climate control . . . . . . . . . . . . . . . . . . 94
Rear Air Conditioning . . . . . . . . . . . . . .
100
Basic sett ings . . . . . . . . . . . . . . . . . . . . 102
Heated Seats . . . . . . . . . . . . . . . . . . . . 103
On the road . . . . . . . . . . . . . . . . . . . 105
Stee ring . . . . . . . . . . . . . . . . . . . . . . . . 105
Ignit ion lock and ignition sw itch . . . . . 107
Starting and stopping the engine . . . . 108
Starting and stopping the engine with
Convenience key . . . . . . . . . . . . . . . . . .
109
Parking brake . . . . . . . . . . . . . . . . . . . . 111
Starting on hills . . . . . . . . . . . . . . . . . . 112
Cruise control . . . . . . . . . . . . . . . . . . . . 113
Adaptive cruise control . . . . . . . 115
Speed and distance control system . . 115
Driver information . . . . . . . . . . . . . . . . 122
System limitations . . . . . . . . . . . . . . . . 127
Audi braking guard . . . . . . . . . . . . . . . 129
Audi side assist . . . . . . . . . . . . . . . 131
Lane Change Assistant............. 131
Notes ...... .. .. .... ........ .... 137
Automatic transmission ..... .
tipt ron ic ....................... .
Parking systems
General information ............. .
Rear park assist ................. .
Audi parking system plus with
rearview camera . ................ .
Audi parking system plus with front-
and rearview camera ............ . .
Adjusting the display and warning
tones .......................... .
139
139
145
145
146
146
150
155

M N
0 ...J
'SI: ,...., \!) 1.1'1 ,...., 1.1'1 ,....,
Error messages . . . . . . . . . . . . . . . . . . 155
Trailer hitch . . . . . . . . . . . . . . . . . . . . . 155
Adaptive Air Suspension .. .. . .
Air suspension and damping
S afet y fir st ... ...... ... .. .. .. . .
15 7
157
163
Driving Safely . . . . . . . . . . . . . . . . . 163
Gene ral notes ..... .... ... .. .. .. . .
Proper occupant seating posit ions . . .
Ped al area .. .. ............. .. .. . .
Stowing luggage ......... .... .. . .
Report ing Safety Defects ....... ... .
Safety belts ........... .... .. . .
General notes ............... .... .
Why safety belts? ............... .
Safety belts ..... ... ... .. .. .. .. . .
Safety bel t pretens ioners .. .. .. .. . .
Airbag system .......... ... ... .
Important things to know .. .. .. .. . .
Fr ont airbags ..... ..... .. .... .. . .
M on itoring the A dvanced Airbag
System .... .. ... .. ..... ... .. .. . .
Side airbags . ... ...... ... .. .. .. . .
Side curtain ai rbags .... ... .. .. .. . .
Child Safety .. .. .... ... .. .. .. . .
Important th ings to know . ... .. .. . .
Ch ild safety seats ......... .... .. . .
Instal ling a child safe ty seat .. .. .. . .
LATC H Lower ancho rages and tethers
for chi ldren .... .. ... ... .. .. .. .. . .
Addit ional Information
Vehicle operation ... .. .. .. .. . .
Intelligent technology .. .. . .. .
163
164
168
169
1 70
173 1 73
174
177
180
182
18 2
186
193
197
200
203
203
209
213
216
222
223
223
Not ice about data recorded by vehi cle
con trol mod ules . . . . . . . . . . . . . . . . . . 223
E lect ronic S tabiliz ation Control ( ESC) . 223
Brake system . . . . . . . . . . . . . . . . . . . . 225
Servotronic -advanced powe r steering
system . . . . . . . . . . . . . . . . . . . . . . . . . 226
Driving w ith your quattro . . . . . . . . . . 227
Energy management . . . . . . . . . . . . . . 228
Table of contents 3
Driving and environment . . . . .
230
The first 1,000 miles (1 ,500 km) and
afterwa rds . . . . . . . . . . . . . . . . . . . . . . 230
Catalytic co nverter . . . . . . . . . . . . . . . . 231
Diesel particulate filter . . . . . . . . . . . . 231
Avoid damaging the vehicle . . . . . . . . . 232
S h utting down veh icle . . . . . . . . . . . . . 232
Operate yo ur v ehicl e economically and
min imi ze poll ution .. . ............ .
Driving off road .............. .
D riv ing i n diff icult road conditions and
offroad . .. .. .. .. .... ........... .
Trailer towing .... .. .. ... ..... .
Drivi ng with a trailer ........... .. .
T rail er tow ing t ips .. . ............ .
Vehicle care ... .. .. ........... .
Vehicle care and cleaning .... .
Genera l informa tion . ... .... ... .. .
Car was hes . ..... .. . .. .. ..... ... .
Cleaning and care information ... .. .
Fuel supply and filling your
fuel tank ... .... .. . .. .. ..... ... .
Fuel supp ly . ... .. .. .. ... ..... ... .
Diesel f uel .. .. .. .... ........... .
Fuel tank .. .. .. .. ... ............ .
Se lective cata lytic reduction ....... .
Checking and filling .......... .
En gine hood . .... .... .... ... .... .
E n gine o il ... .. .. .. . .. .... .... .. .
Engine cooling system ............ .
Br ake fluid .. .. .. ............... .
B attery ... .. .. .. .. .. ........... .
Windsh ie ld /hea dligh t washer 2
32
235
2 35
238
2 38
2 40
2 42
2 4 2
2 4 2
242
243
2 4 8
248
249
250
252
256
256
258
262
2 65
2 66
container . . . . . . . . . . . . . . . . . . . . . . . 2 70
Tires and wheels . . . . . . . . . . . . . . 271
T ires . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 71
Tire pressure monitoring system 301
Do-it-yourself service . . . . . . . . . 304
What do I do now? . . . . . . . . . . . . 304
Jack, too ls an d inf lata ble spare tire . . 304
Changi ng a wheel . . . . . . . . . . . . . . . . . 307
•
•

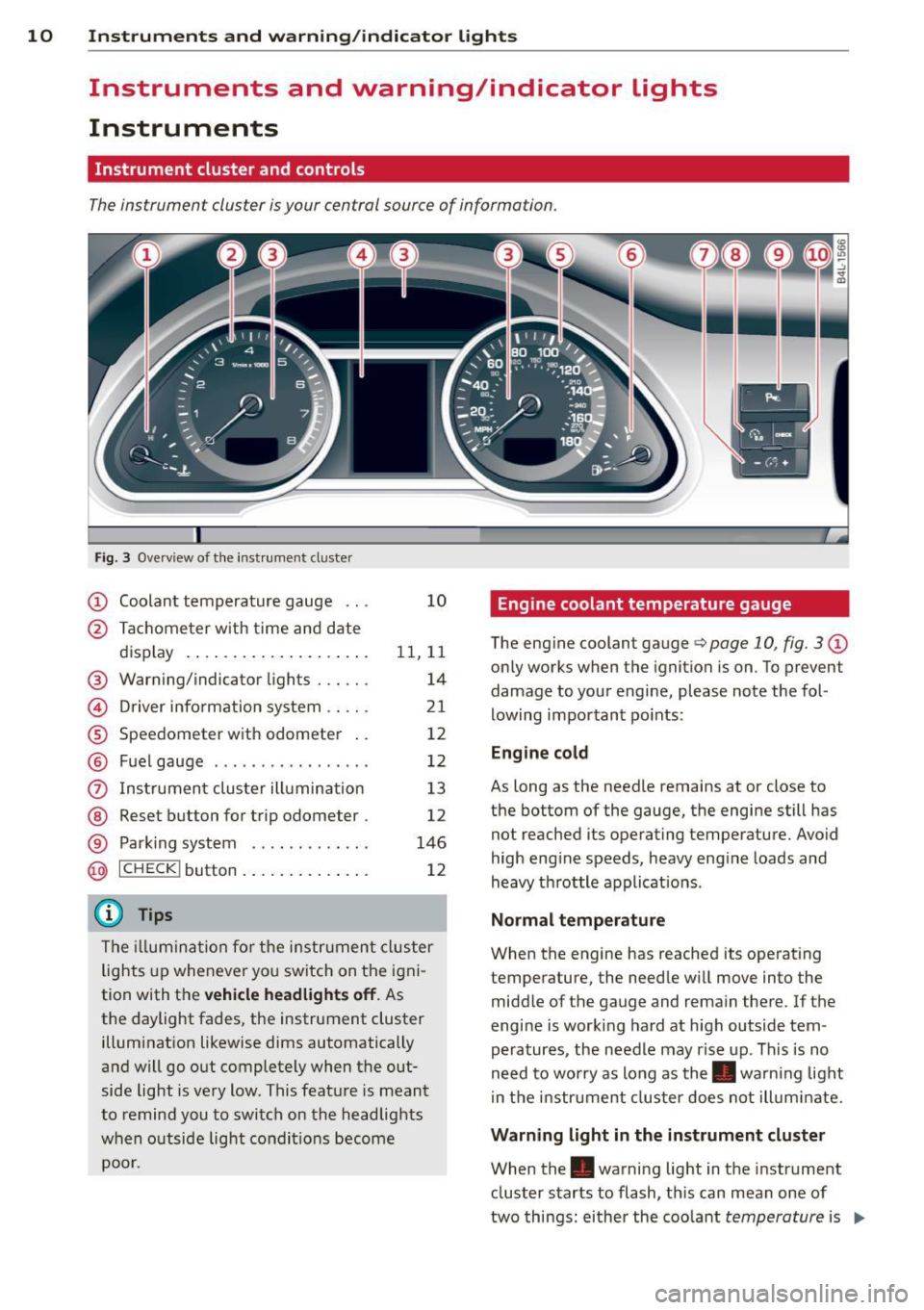

10 Instruments and warning/indicator lights
Instruments and warning/indicator Lights
Instruments
Instrument cluster and controls
The instrument cluster is your central source of information.
Fig. 3 Ove rv iew of t he inst ru m ent cluster
CD Coolant temperature gauge . . . 10
@ Ta ch ome ter w ith time an d date
d isplay . . . . . . . . . . . . . . . . . . . . 11, 11
® Warning/indicator lights . . . . . . 14
© Driver info rmation system .. .. . 21
® Speedometer with odometer . . 12
® Fuel gauge . . . . . . . . . . . . . . . . . 12
(i) Ins trumen t clus ter ill umination 13
@ Reset button for t rip odometer . 12
® Parking system . . . . . . . . . . . . . 146
@ ICHECK I button . . . . . . . . . . . . . . 12
@ Tips
The ill umi nat ion fo r th e i nstru me nt cl uster
lights up whe never yo u switch on the i gni ­
tion with t he
vehicle headlights off . As
the daylight fades, the instrument cluster illumi nat ion likewise dims automatically
a n d w ill go out completely when t he out­
side light is very low. This feat ure is meant
to remind you to switch on the headlights
w hen o utside lig ht con dit io ns become
poor.
Engine coolant temperature gauge
The eng ine coolant gauge q page 10, fig. 3 CD
only works when the ignition is on. To p revent
damage to you r engine, please note the fol­
lowing impor tant po ints:
Engine cold
As long as the needle remains at or close to
the bottom of the gauge, the engi ne still has
not reached its operat ing temperature . Avoid
high eng ine speeds, heavy eng ine loads and
heavy th rottle a pplicat io ns.
Normal temperature
When the engine has reached its operat ing
temperature, the needle w ill move into the
midd le of the gauge and rema in the re. If th e
engine is worki ng ha rd at high outside tem­
peratures, the needle may rise up. This is no
need to worry as long as the. warni ng lig ht
i n the i nstr ument cluster does not ill uminate.
Warning light in the instrument cluster
When the. warning lig ht in the instr ument
cluster s tarts to flash, th is can mean one of
two things : either the coo lant
temperatur e is .,..

M
"' 0 _,
"". rl I.O
"' rl
"' rl
Instrument s and warning /indicator lights 11
too high, or the coolant level is too low
¢ page 32.
If the needle is well in the upper area of the
ga uge , the coolant temperature is too high.
Stop the vehicle , switch the eng ine off and
allow the engine to cool.
If the warning light
comes on again after driving a short distance,
contact an authorized dealer.
A WARNING
- Always observe the warning in
¢
page 256, before opening the hood
and checking the engine coolant level.
- Never open the engine hood if you see or
hear steam, or if you see engine coolant
dr ipping from the engine compartment.
You could bu rn yourself. Let the engine
cool off first until you can no longer see
or hear steam or coolant escaping.
0 Note
- Mount ing additional lights or accessories
i n front of the a ir inlets reduces the cool­
i ng effect of the radiator. At h igh outside
temperatures or high eng ine load , the
engine could overheat.
- The front spo iler has been designed to
properly distribute the cooling air when
the veh icle is moving. If the spoiler is
damaged, this cou ld reduce the cooling
effect and the engine could then over­ heat. Ask your authorized Audi dealer for
ass istance.
Tachometer (engine rev counter)
The tachometer indicates the engine RPM
(revolutions per minutes).
The tachometer @¢ page 10, fig. 3 is the left
of the two large clock-type displays.
The engine turns at a speed 1,000
times the
single digit in the display, e.g . if the needle is
pointing at the "2" the engine is turning at
2,000 RPM.
If engine RPM drops be low 1,500, you should
downshift to the next lower gear. The red area at
the end of the scale indicates maximum
permissible engine RPM after the break-in pe­
riod. Before reaching this area , move these­
lector lever to position D (Drive) or ease your
foot off the accelerator pedal.
(D Note
The tachometer needle should not move
into the red range. If it does, then only for
a very short per iod of t i me. You could
damage your engine by driving at high RPM .
@) For the sake of the environment
Upshifting early saves fuel and reduces en­
gine noise .
Digital clock with date display
Fig. 4 In st ru m en t cluster : time a nd da te
The date, time of day, and time and date for ­
mat can be set in the MMI. You can learn more
about this in the MMI manual.
(D Tips
-When open the driver door, the time,
date and odometer are disp layed for an
add itional 30 seconds.
- You can also call up the display with the
!CHECK I button q page 12 while the ig­
nition is sw itched off.

12 Instruments and warning/indicator lights
Speedometer with odometer
The speedometer shows you the vehicle
speed, and the odometer shows you how
many miles (kilometers) you have driven.
Fig. 5 Instrument cluster Odometer and reset button
The odometer and trip odometer are located
inside the speedometer.
- USA mode ls - Miles
- Canada models -Kilometers
You can switch the display from miles to kilo­ meters and vice versa via the MMI. You can
find out more in the MMI manual.
Lower odometer
The lower odometer shows the total number
of mi les (kilometers) driven.
Upper odometer (trip odometer)
The upper odometer shows the tota l number
of mi les (kilometers) driven since you last re­
set the odometer to zero. You can use this od­
ometer when you want to keep track of how many miles (k ilometers) you have driven for a
single trip or errand. The last digit indicates
1/10 of a mile (100 meters).
You can reset the trip odometer to zero by
pressing the Reset button
~o.
Malfunction message
If there is a malfunction somewhere in the in­
strument cluster,
dEF will appear in the trip
odometer and will stay on. Contact your au ­
thorized Audi dealer to have the problem cor­
rected.
(D Tips
- When you open t he driver door, the time,
date and odometer are disp layed for an
add itiona l 30 seconds.
- You can also call up the display with the
I CHECK I button c> page 12 while the ig­
nition is switched off.
Fuel gauge
The fue l gauge only works when the ignition is
on .
When the needle reaches the reserve mark,
the
c> page 35 mJ symbol appears in the in­
strument cluster d isplay as well as the mes ­
sage
Please refuel. This message is meant to
remind you to
refuel.
The total tank capacity of your vehicle is listed
in
.:> page 325 .
@ Note
Never run the tank completely dry. An ir­
regular supply of fuel can cause engine
misfiring and fuel could enter the exhaust
system. The catalytic converter could then
overheat and be damaged.
~ button
Fig. 6 CHECK b utto n in the instrument clus ter
The !CHECK I button performs the follow ing
funct ions:
Switching on the clock and odometer
With the ignition turned off, the odometer
reading and the dig ita l clock with date display ..,_

M N
0 ...J
'SI: ,...., \!) 1.1"1 ,...., 1.1"1 ,....,
Instrument s and warnin g/indic ator ligh ts 15
Canada m od els: Anti-lock brake
system (ABS) defective
¢ page 18
USA mode ls: Parking brake
¢page 19
Canada models : Parking brake
¢page 19
USA model s: Brake malfunction
¢ page 19
Canada m odel s: Brake malfunc­
tion
¢ page 19
Vehicles with the adaptive cruise contro l*
have the following additional check lamps :
Open road
¢ page 123
Driving in traff ic
¢ page 123
Request for driver to as­
sume control
¢ page 123
A WARNING
-Failure to heed warning lights and other
important vehicle info rmation may result
in serious personal injury o r vehicle dam­
age.
- Whenever sta lled or stopped for repa ir,
move the vehicle a safe distance
off the
road, stop the engine, and t urn on the
emergency flasher ¢
page 63.
- The engine compartment of any motor
vehicle is a potentially hazardous area.
Before you check anything in the engine
compartment, stop the engine and let it
cool down. Always exercise extreme cau­
t ion when working under the hood
¢ page 256.
{!) Tips
Many f unctions are monitored by the A uto­
Check system ¢
page 30. Malfunct ions
or faults w ill be ide ntif ied either w ith a red
symbo l (pr iority 1 -Danger!) or with a yel­
low symbol (prior ity 2 -Warning) .
EPC Electronic power control
Applies to veh icles: w ith gasoline engine
This warning/indicator Light monitors the
electronic power control .
The Illa warning/ indicator light (Electron ic
Power Control) illuminates when you turn on
the ignit ion as a funct ion check .
(D Tips
If this warn ing/ indicator light illum inates
while you are driving, then there is a mal­
funct ion in the engine electronics . Have
the malfunct ion corrected as soon as pos­
sible by your author ized Audi dealer or
q ualified workshop.
W Glow plug system
Applies to veh icles: w ith diesel engine
The control Light illuminates when the glow
plug system is active .
If the II indicator light illuminates, the glow
plug system is act ive . You should start the en­
gine immediately after the ind icator light
swi tches
off. Th e indi cator light only i llum i­
nates fo r approximate ly 1 second if the en­
gine is warm or if the outside temperature is
above 46 QF (8 QC).
(D Tips
- I f the glow plug indica tor ligh t illum i­
nates while dr iving, there is an eng ine
contro l malfunction. The engine should
be checked immediate ly .
- I f the ind icator light does not illuminate
at a ll when switching the ign ition on,
there may be a malfunction in the glow
plug system. The engine sho uld be
checked.

M N
0 ...J
'SI: ,...., \!) 1.1'1 ,...., 1.1'1 ,....,
Instrument s and warnin g/indic ator ligh ts 17
¢1.~ Trailer turn signal assembly
Appl ies to vehicles: with towing hitch
The indicator light also blinks if the turn sig­
nal is operated when towing a trailer .
The indicator light. blinks when the turn
signal is used, if a trailer has been properly
connected to the vehicle.
If one of the turn signal bulbs on the trai ler is
burned out or defective, the indicator light
will not blink when you use the turn signals.
{!) Tips
For vehicles with a factory installed towing
hitch or a trailer h itch that was installed
later according to factory specifications,
the trailer tu rn signal assembly is actuat­
ed.
o Malfunction Indicator Lamp (MIL)
The Malfunction Indicator Lamp (M IL) is part
of the On-Boa rd D iagnostic (OBD II) system.
The symbol
¢111ij li gh ts up when the igni tion is
turned on and will turn off after the engine has started and has sett led at a constant idle
speed. This ind icates that the MIL is working
properly .
The warning light i lluminates when there is a
malfunction in the engine e lectronic system .
Contact your authorized Audi dealer and have
the malfunction corrected.
An imp roperly clo sed fuel filler cap m ay al so
c au se the MIL light to illuminate (onl y
v ehicles with ga soline eng ine)
c:> page 250.
F or more in format ion c:> page 2 7 .
Ci:> Adaptive Air Suspension
A ppl ies to vehicles: with Ada ptive Ai r Susp en sio n
This II warning/indicator light has the fol­
l owing f unctions:
- It illuminates for a few seco nds after the ig­
nition is t urned on as f unct ion check and
then goes out . -
If the warning/indicator light illuminates or
blinks contin uously, there is a system fault
in the Adaptive Air Suspension. A system
fau lt can result in lim ited ride comfort and
lo w ground clea rance . Drive safely to the
nearest authorized Audi dealer or qualified
wo rkshop, and have the fault corrected.
- If the warning/indicator light flashes, you
should not dr ive the veh icle . The flashing
warning/indicator light points to an extreme H igh level. A very
pronounced lifting of the
veh icle (ext reme H igh leve l) can result, for
examp le, when a heavy load is removed
from the vehicle. As soon as the level has re ­
t u rned to norma l, the wa rning/indicator
light stops flashing, and you can drive away.
- If the warning/indicator lig ht flashes in con ­
junction with the. warning/indicator
light, you should not dr ive off immediately
in order to prevent damage to the under­
body. The two warn ing/ indicator lights
flashing together points to an extreme Low level. A ve ry
pronounced lowering of the ve­
hicle (extreme Low leve l) can result, for ex­
ample, from a heavy load. As soon as the
level has retu rned to normal, the warn ing/
ind icator lights stop flashing, and you can
drive away.
(D Note
If the w arning/ indic ator l igh t flas hes in
conjunction with the. warning/ind icator
li ght, you shou ld not d rive the vehicle be ­
cause low-lying vehicle parts can bottom
out as you drive over uneven ground and be damaged as a result.
~ Adaptive Air Suspension
App lies to vehicles: wit h Adaptive A ir Suspensio n
This. warn ing/indicator light has the fo l­
low ing functions:
- It illuminates for a few seconds after the ig­ nition is turned on as function check and
then goes out .
- It comes on for approximately 15 seconds
as a warning of
reduced ground clearance , if .,,.

24 Driver information display
Resetting the service interval display
Your authorized Audi dealer w ill reset the cor­
responding service schedule after performing
the appropriate service on your vehicle. You
a lso have the possibility to reset the oi l
change schedule after having performed an
oil change according to Audi specifications.
Select
I CAR I function button > Systems* con­
trol button >
Service interval display > Reset
oil change interval
or ICARI function button>
Car systems* control button > Servicing &
checks > Service intervals > Reset oil change
interval.
(D Note
- Only reset the o il change d isp lay when
you have completed an oil change.
- If you d isconnect the battery terminals,
no calculations can be made for the serv­
i ce interval display during this time and
no service reminder will appear. Remem­
ber that observing the proper service in­
terva ls is vitally important to extending
the life of your vehicle, particularly the
engine, and maintaining its value. Do not
exceed the time interval for the next
serv ice, even if the vehicle mileage is
low .
(D Tips
The informat ion in the Serv ice Reminder
remains stored even when the vehicle bat­
tery is disconnected .
Trip computer
Introduction
The trip computer gives you information on
current and average fuel mileage, average
speed, fuel range and driving time.
Fig. 16 Trip computer d isp lay: Average fue l mil eage
The following dr iving informa tion is con tinu­
ous ly evaluated by the trip computer and can
be displayed sequentially in the instrument
cluster disp lay.
Fuel range
T he es timated cruis ing range in miles ( km)
appea rs in the display. This tells you how far
your vehicle will be ab le to travel on the c ur­
rent tank of fuel and with the same driving
style. The display changes in increments of
Smiles (10 km).
T he cruising range is calculated based on the
fuel consumption for the last 18 miles
(30 km). If you drive conservative ly, the cruis­
ing range will increase.
Average fuel mileage
The average fuel economy in MPG (l/100 km)
since you last cleared the memory appears in
this disp lay. You can use this display to adjust
your driving technique to achieve a desired
mileage.
Current fuel mileage
The instantaneous fuel consumption in m iles
per gallon ( l/100 km) is shown in this display.
You can use this display to adjust your driving
technique to achieve a desired m ileage .
1111>

30 Driver in formation d ispl ay
(30 km/h to 240 km/h) . Settings can each be
adj usted in intervals of S mph (10 km/h) .
Auto Check Control
Introduction
The Auto-Check control monitors the function
of certain veh icle featu res and components . It
simply makes sure these features and compo­ nents are work ing proper ly . The Auto -Check
contro l wo rks as long as the ignition is on, as
well as whenever the vehicle is driven.
If a componen t is ma lf u nctioning or if the
n eed for an urgent repair has been detected,
this will appear in the instrument cluster dis­
p lay . You w ill a lso hear an audible warn ing
tone . The displays are co lor coded in e ither
red or yellow depending on their level of prior­
ity .
A red symbo l means
Dange r, a yellow symbo l
indic ates
Warning . In certain s ituations, in­
formation message for the dr iver appear in
addit ion to the red and yellow symbols.
Function te st : automat ic transmi ssion
The Auto -Check Control will automat ica lly
perform a test each time you switch on the ig­
n ition. With the selector lever in P or N, the
following message appears in the display :
When station ary apply brake pedal while se­
lecting gear
When you select a different gear (for exam ­
p le : R, D, etc.), the message will d isappear
and the Auto-Check function is d isplayed .
I f the re is a m alfu nction, then the malfunc­
tion message w ill appear about 15 seconds af ­
ter the yo u start the vehicle. At t he same time
you will hear a warning tone .
Driver information messages
Driver information messages are shown in the
instrument cluster display in addition to the
red and yellow symbols .
Fig. 24 Ins trume nt cl ust er: CHECK b utto n
For example, if the transmiss ion selec to r l ever
is not in the P position when the engine is
turned off, the following message appears :
Shift to P otherwise vehicle can roll away.
Door s do not l ock if you are not in P .
The ig nition key can only be removed with the
selector in this position . Th is and other mes­
sages are bro ugh t up if a func tion cannot be
carr ied out.
Driver messages and red symbols
If a red symbol appea rs in the display, a d river
message can be shown by pressing the
I CH ECK I button.
For example, the symbo l for a problem w ith
engine oil p ressure . appears in the d isp lay .
If you then p ress the
I CHECK I button , the fol­
lowing dr iver mess age appears in the display:
Switch off engine ! Oil pr essure too low
The driver message in the display goes out af­
ter about 5 seconds . The driver message can
be displayed again by briefly press ing the
I CH ECKi button.
Driver messages and yellow symbol s
If a yellow symbol appears in the display, a
driver message is also displayed automatical-
~ ~

M N
0 ...J
'SI: ,...., \!) 1.1"1 ,...., 1.1"1 ,....,

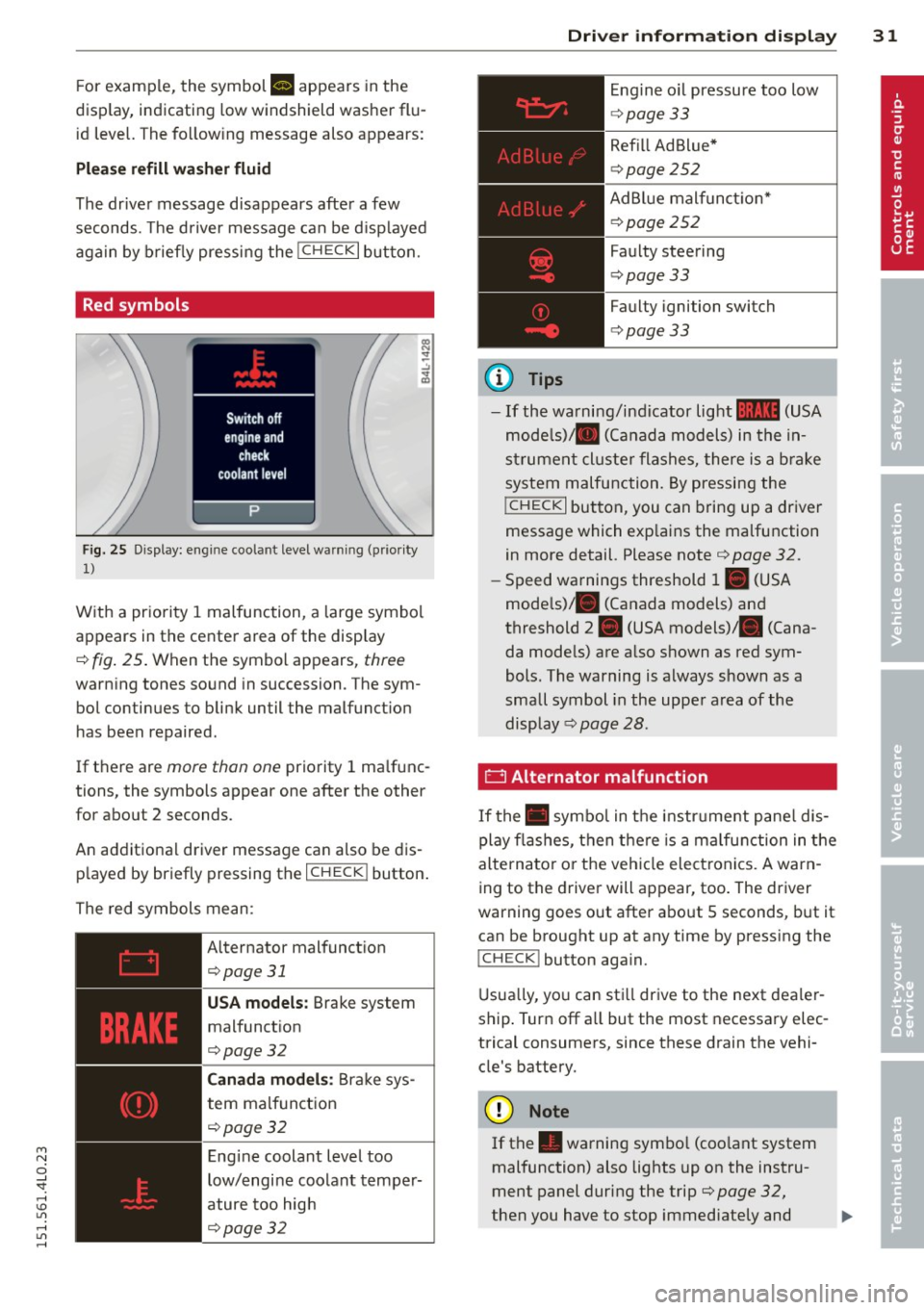

For example, the symbol II appears in the
display, indicating low windshield washer flu­
id level. The follow ing message also appears:
Please refill washer fluid
The driver message disappears after a few
seconds. The driver message can be d isp layed
again by briefly pressing the
!CHECK I button.
Red symbols
Fig. 25 Display: engine coolant level warning (prio rity
1)
With a priority 1 malfunction, a large symbol
appears in the center area of the display
¢ fig . 25 . Wh en the symbo l appears, three
warning tones sound in succession. The sym­
bol continues to blink until the malfunct ion
has been repaired.
If there are
more than one priority 1 ma lfunc­
tions, the symbols appear one after the other for about 2 seconds.
An additional driver message can also be dis­
played by briefly pressing the
I CHECK ! button.
The red symbols mean:
Alternator malfunct ion
¢page31
USA models: Brake system
malfunction
¢page32
Canada models: Brake sys­
tem malfunction
¢pa ge32
Engine coolant level too
low/engine coolant temper­
ature too high
¢page32
Driver information display 31
@ Tips
Engine oil pressure too low
¢page 33
Refill Ad Blue*
¢page 252
AdBlue malfunct ion*
c!>page252
Faulty steering
c!>page 33
Faulty ignition switch
¢page 33
-If the warning/indicator light 11111 (USA
models)/ . (Canada models) in the in­
strument cluster flashes, there is a brake
system malfunction. By pressing the
!CHECK I button, you can bring up a driver
message which exp lains the malfunction
in more detail. Please note ¢
page 32.
-Speed warnings threshold 1. (USA
mode ls)/ . (Canada models) and
threshold 2. (USA models) . (Cana­
da models) are a lso shown as red sym ­
bols. The warning is always shown as a
small symbol in the uppe r area of the
display
c!> page 28.
0 Alternator malfunction
If the . symbol in the instrument panel dis­
play flashes, then there is a malfunction in the
alternator o r the vehicle elect ronics. A warn­
ing to the driver will appear, too . The driver
warning goes out after about 5 seconds, but it
can be brought up at any time by pressing the
ICHECK I button aga in.
Usually, you can still drive to the next deale r­
ship . Turn off all but the most necessary elec­
trical consumers, since these drain the vehi­
cle's battery.
([) Note
If the . warning symbo l (coo lant system
malfunction) also lights up on the instru­
ment panel during the trip¢
page 32,
then you have to stop immediately and ..,_
